Gigabyte Adaptec 7902W chip Configuration

1

Server Systems and

Motherboards

Raid Configuration and

Driver installation guide

For Adaptec 7902W chip

2

Contents

1. RAID Configuration

1.1 RAID Definition ………………………………………….. 3

1.2 Installing disk drives ……………………………………. 3

1.3 Setting the RAID in BIOS ……………………………….4

1.4 Adaptec 7902W RAID configuration utility ……….4

1.4.1 Create a RAID 0 (Striped) ………………………………7

1.4.2 Create a RAID 1 (Mirrored) …………………………….9

1.4.3 Create a RAID 1+0 ………………………………………….12

1.4.4 Deleting a RAID set ……………………………………..14

1.4.5 Rebuilding a RAID 1 Set …………………………………..15

2. RAID driver installation

2.1 Installing the Adaptec 7902W RAID controller …18

2.1.1 Windows 2000/2003 (Installing the driver in new

system) ……………………………………………………….. 18

2.1.2 Windows 2000/2003 (Adding the controller to an

existing system) ……………………………………………. 19

2.1.3 RedHat 9.0 ……………………………………………………. 23

3

1. RAID Configuration

GIGABYTE server systems and motherboards that a RAID supports is comply with

the following RAID solutions:

● Hardware RAID: Use dedicate hardware to control RAID array, and supposed

to doing RAID 0, 1, 1+0, 5 configurations through software utility.

● Software RAID (Host RAID): Use BIOS setup and management utility

complete RAID 0, 1, 1+0, Spare configurations and support Ultra 320

products.

● SATA RAID: Adaptec SATA RAID is embedded in the Intel south bridge chip,

depending on the specific configure, it is support up to two SATA hard disk

drives and RAID support 0, 1, JBOD configuration.

1.1 RAID Definition

RAID 0, Striping supports up to two SCSI disk drives to read and write data

in parallel. Even two hard disk drives reliability the same as single disk, but

offers higher performance than a single disk. If one disk fails then all data in

the array is lost.

RAID 1, Mirroring copy from one hard disk to second hard disk such both of

them contains exactly the same data, in case of failure of one disk, the system

will boot through the second disk and data is still available to use therefore.

RAID 1+0 is a combine with data striping and data mirroring. Take a stripe

pair of disks and mirror them completely in parallel architecture. Excellent

solution for RAID 10 provides fast and highly fault tolerant.

1.2 Installing hard disk drives

In general, we suggest using the same model and capacity disk drives to

create RAID array.

1. Install the disk drives into the drive bays of the respective GIGABYTE

server or motherboard.

2. Select cables suitable for your disk drives.

3. Connect power code to hard disk on each HDD.

4. Enable or Disable SCSI termination.

Note  Please make sure your SCSI controller support U160 or U320 SCSI

device and find suitable for your SCSI disk, cable and terminator.

4

1.3 Setting the RAID in BIOS

Since onboard RAID controller option, please enable onboard H/W SCSI

capability of the BIOS utility before you creating.

1) During the POST screen, please enter the BIOS setup utility.

2) Into Advance Menu > click Integrated Peripherals screen item.

3) Choose Onboard Device item > Onboard H/W SCSI [Enable].

4) Save your change and Exist BIOS setup.

1.4 Adaptec 7902W RAID configuration utility

Adaptec 7902W RAID controller is built-in BIOS code, even you create

software RAID after detected SCSI devices that you need to start SCSI select

utility by pressing “Ctrl+A” during the controller BIOS startup.

The illustrator is an Adaptec 7902W host RAID utility; you can set SCSI

capability on options window.

5

After into SCSI Disk Utility screen, you can check your SCSI hard disk

drives be detected on your system, in general, a SCSI bus can support up to

15 devices and the controller connected to its 16-bit bus.

Return Options, choose “Configure/View SCSI Controller Settings”.

Select HostRAID options and “Enabled” it.

6

Save Changes Made screen will pop-up , please click “Yes”.

Options item will become 3 selections, please pull down to

“Configure/View HostRAID Settings”.

7

Click “Configure/ View HostRAID settings” icon that will allow you to

check and create RAID array or Spare capability of SCSI hard disk drives.

1.4.1 Create a RAID 0 (Stripe)

From the Create RAID menu, please click “RAID-0 (High Performance,

No Fault Tolerance)” that disk drives set requires for the maximum of 4

drives.

All required SCSI hard disk drives will appears in the Select RAID

members screen.

8

Select default Strip size 64-KB from the menu, then press <Enter>.

(Of course, you also can select 16-KB or 32-KB by your application)

Enter 1 ~15 alphabetic or numeric characters to assign RIAD name and

press <Enter> to proceed.

If you would like to set this array on bootable, please select “Yes” on this

window and apposite, please select “No”.

9

The RAID-0 is complete the array propertied.

After configure successfully, please exit Adaptec SCSISelct Utility window

and restart system.

1.4.2 Create RAID 1 ( Mirrored )

From the Create RAID menu, click RAID-1 (Fault Tolerance) that disk

drives set requires for the maximum of 2 drives.

10

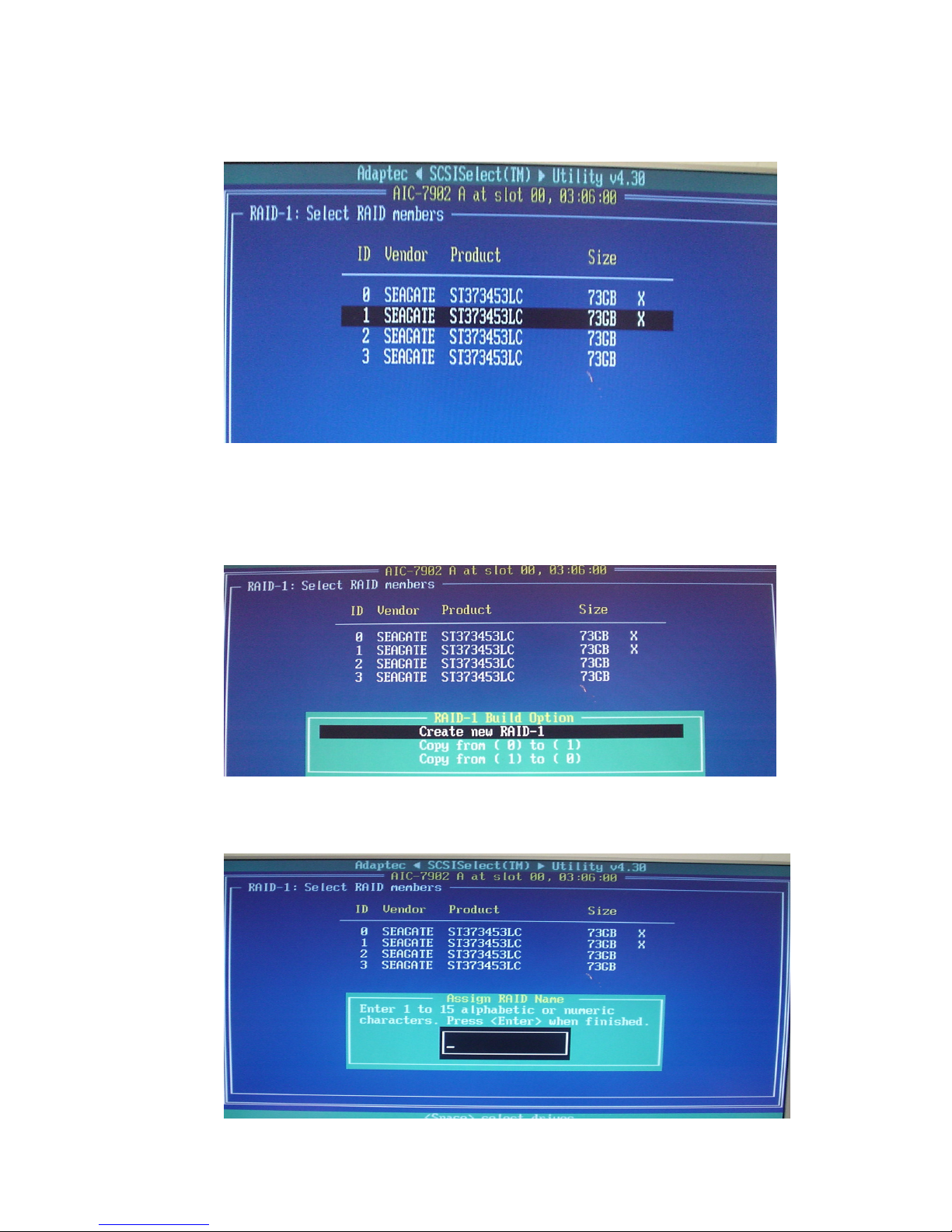

All required SCSI hard disk drives will appears in the Select RAID

members screen.

Select default “Create new RAID-1” on RIAD-1 build option. In the

RAID-1 Build Option item, you also can choose copy data from one hard

disk to the second hard disk.

Enter 1 ~15 alphabetic or numeric characters to assign RIAD name.

11

If you would like to set this array on bootable, please select “Yes” on this

window and apposite, please select “No”.

After RAID-1 builds the array propertied completed, you can select other

disk drives for Spare.

※※※※ SPARE: Set one drive on stand by should prompt for replacement of

the dead one if one of the hard disk drive failing.

12

After configure successfully, please exit Adaptec SCSISelct Utility window

and restart system.

1.4.3 Create RAID 1+0

From the Create RAID menu, please click RAID-10 (Fault Tolerance, High

Performance) that you want to add to create array, then press <Enter>.

Select default Strip size 64-KB from the menu, then press <Enter>.

(Of course, you also can select 16-KB or 32-KB by your application)

13

Enter 1 ~15 alphabetic or numeric characters to assign RIAD name.

All required SCSI hard disk drives will appears in the Select RAID

members screen. If you would like to set this array on bootable, please

select “Yes” on this window, whereas select “No”.

Click <Yes> to proceed.

14

The RAID-10 is completed array propertied.

After configure successfully, please exit Adaptec SCSISelct Utility window

and restart system.

1.4.4 Deleting a RAID set

From the Adaptec SCSIselect utility menu, go to the Stiped (R0) properties.

Press “Del” key to display the Main Menu below. This is the fastest and

easiest method to delete your first array.

15

When the dialogue windows appear, click <Yes> to proceed.

1.4.5 rebuilding a RAID 1 Set

During the post screen, SCSI HostRAID BIOS does checks RAID 1 condition

each time. If one of the disk broken, it is appears which drive failure.

After replaced a drive, restart a system and during the POST screen, please

press “Ctrl+A” into the SCSI utility

Note  Please determined which drive in the RAID has failed and need to

be replaced

16

From the SCSISelect Utility menu, press <Enter> on ID-1 Mirrored (R1)

property.

From the SCSIRAID properties menu, press <R> key to rebuild a replaced

drive.

A prompt message will pop-up after you ready for rebuild replaced drive,

please choose <YES> button

17

All data will be overwritten on the new drive from the existing array drive in

a while.

After finished the rebuilding, please restart system again.

2. RAID driver installation

A system with Adaptec 7902W SCSI RAID driver installed needs have an

appropriate driver for the RAID controller to operate properly.

If you would like add RAID driver to an existing system, the driver may be direct

installed from the CD, whereas install the RAID driver in new system usually will

require a driver disk, please extract RAID driver into floppy disk form CD or

GIGABYTE web site.

18

2.1 Installing the Adaptec 7902W RAID controller

2.1.1 Winodws 2000/XP/2003

(Installing the driver in new system)

If you installing the driver in new system, please press <F6> during the

message appears “Press F6 if you need to install a third party SCSI or

RAID driver…”.

Note  You only have 5 seconds to press the F6 key during the

installation startup. Press F6 at this time; otherwise, you must restart

the Windows 2000/XP installation process to complete this procedure

Press <S> to specify additional device when Windows prompted.

19

Insert Adaptec 7902W RAID driver disk that you earlier extract RAID driver

into floppy disk, then press <Enter>

Select the Adaptec Ultra 320 SCSI cards (Windows XXXX) depend on

your type of operating system, then press <Enter> to proceed.

2.1.2 Windows 2000/XP/2003

(Adding the controller to an existing system)

If you would like add the RAID controller to an existing system, please

restart system and into Computer Management window (My Computer

click right button > choose Manage).

20

Note Windows will automatic detect the RAID controller and then

pop-up “New Hardware Found” window, please click “Cancle” and

install driver by manually.

Double click RAID Controller item, RAID Controller Properties window

is pop-up, then click “Reinstall Driver” button.

21

Insert original CD or floppy disk that you earlier extract RAID driver into

floppy disk.

Select Install the software automatically (Recommended), then press

<Enter>.

Hardware Update Wizard window appears, system doing search a suitable

driver automatically.

22

After the driver installation is done, click <Finish>

Please repeat the above step and installing Host RAID SCSI Processor

Device.

After the Host RAID SCSI Processor Device installed completely, please

restart system, then initial partition.

23

2.1.3 Red Hat 9.0

The Adaptec 7902W or SCSI RAID controller in a Red Hat 9.0 Linux system

does require SCSI RAID driver installation.

To install the host RAID controller:

1. Boot Red Hat 9 from the CD 1.

2. When the Red Hat Linux 9 screen appears, type “linux dd”, then press

enter.

When dialogue window “Do you have a drive disk?” pop-up, please click

“Yes” by pressing <Tab> key.

24

Please extract SCSI RAID driver for Red Hat 9.0 file to a floppy disk, insert

this disk and click “fd0” item when the system asks which device you would

like to use, then press <Enter>

A prompt message is pop-up after your floppy disk has already inserted.

Choose <YES> button while the system has ready for loading this driver.

Please continue with the Linux install while the driver to installed the system.
