Giant XTC JR 1 User Manual

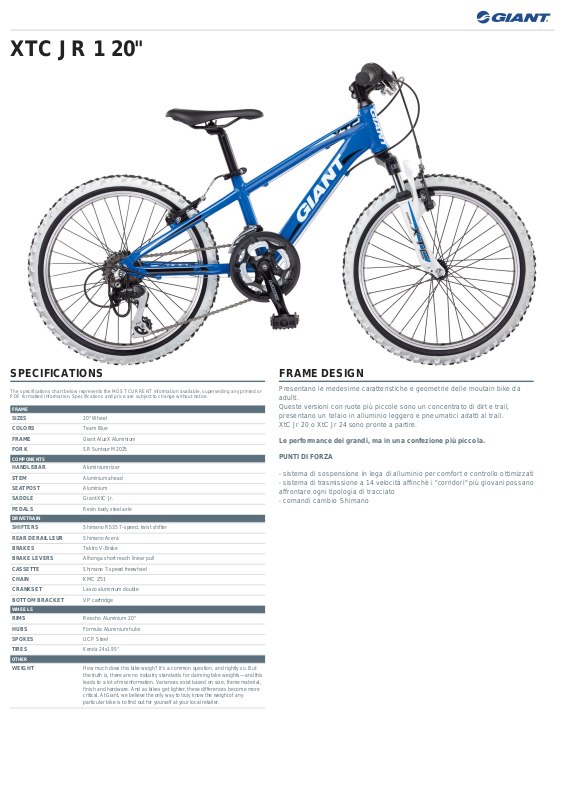

XTC JR 1 20"

SPECIFICATIONS

The specifications chart below represents the MOST CURRENT information available, superseding any printed or
PDF formatted information. Specifications and price are subject to change without notice.

FRAME

SIZES

20" Wheel

COLORS

Team Blue

FRAME

Giant AluxX Aluminium

FORK

SR Suntour M2025

COMPONENTS

HANDLEBAR

Aluminium rizer

STEM

Aluminium ahead

SEATPOST

Aluminium

SADDLE

Giant XtC Jr.

PEDALS

Resin body steel axle

DRIVETRAIN

SHIFTERS

Shimano RS35 7-speed, twist shifter

REAR DERAILLEUR

Shimano Acera

BRAKES

Tektro V-Brake

BRAKE LEVERS

Alhonga short reach linear pull

CASSETTE

Shimano 7-speed freewheel

CHAIN

KMC Z51

CRANKSET

Lasco aluminium double

BOTTOM BRACKET

VP cartridge

WHEELS

RIMS

Reecho Aluminium 20"

HUBS

Formula Aluminium hubs

SPOKES

UCP Steel

TIRES

Kenda 24x1.95"

OTHER

WEIGHT

How much does this bike weigh? It’s a common question, and rightly so. But
the truth is, there are no industry standards for claiming bike weights—and this
leads to a lot of misinformation. Variances exist based on size, frame material,
finish and hardware. And as bikes get lighter, these differences become more
critical. At Giant, we believe the only way to truly know the weight of any
particular bike is to find out for yourself at your local retailer.

FRAME DESIGN

Presentano le medesime caratteristiche e geometrie delle moutain bike da
adulti.
Queste versioni con ruote più piccole sono un concentrato di dirt e trail,
presentano un telaio in alluminio leggero e pneumatici adatti al trail.
XtC Jr 20 o XtC Jr 24 sono pronte a partire.

Le performance dei grandi, ma in una confezione più piccola.

PUNTI DI FORZA

-

sistema di sospensione in lega di alluminio per comfort e controllo ottimizzati

-

sistema di trasmissione a 14 velocità affinchè i "corridori" più giovani possano

affrontare ogni tipologia di tracciato

-

comandi cambio Shimano
