Page 1
86
OFF-road | PERFORMANCE | Competition
OFF-road | PERFORMANCE | Trail

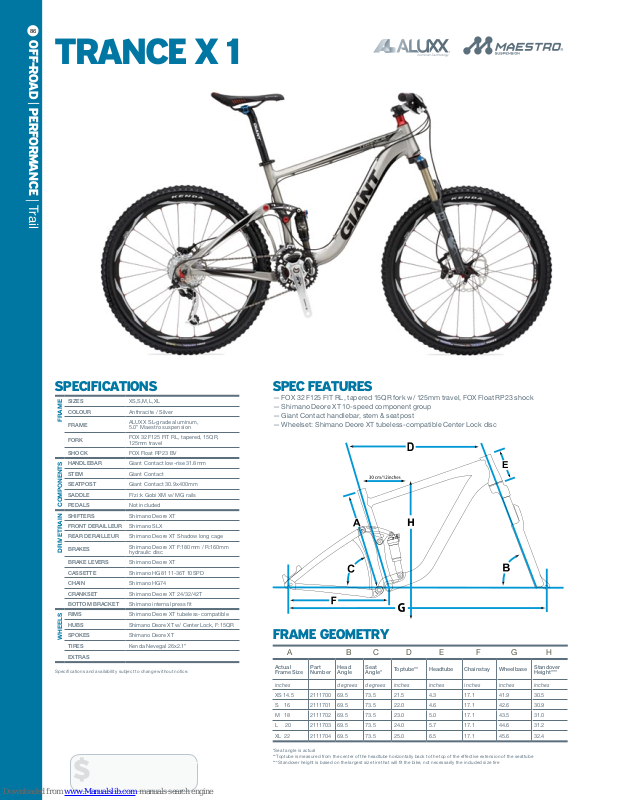

Trance X 1
Specifications
SIZES
COLOUR
frame
FRAME
FORK
SHOCK
HANDLEBAR
STEM
SEATPOST
SADDLE
componentS
PEDALS
SHIFTERS
FRONT DERAILLEUR
REAR DERAILLEUR
BRAKES
DriVetrain
BRAKE LEVERS
CASSETTE
CHAIN
CRANKSET
BOTTOM BRACKET
RIMS
HUBS
SPOKES
WHeeLS
TIRES
EXTRAS
Specific ations and availab ility subject to c hange without noti ce.
XS,S,M,L,XL
Anthracite / Silver
ALUXX SL-grade aluminum,
5.0” Maestro suspension
FOX 32 F125 FIT RL, tapered, 15QR,
125mm travel
FOX Float RP23 BV
Giant Contact low-rise 31.8mm
Giant Contact
Giant Contact 30.9x400mm
Fi'zi:k Gobi XM w/ MG rails
Not included
Shimano Deore XT
Shimano SLX
Shimano Deore XT Shadow long cage
Shimano Deore XT F:180mm / R:160mm
hydraulic disc
Shimano Deore XT
Shimano HG81 11-36T 10SPD
Shimano HG74
Shimano Deore XT 24/32/42T
Shimano internal press fit
Shimano Deore XT tubeless-compatible
Shimano Deore XT w/ Center Lock, F:15QR
Shimano Deore XT
Kenda Nevegal 26x2.1”
$
Spec Features
— FOX 32 F125 FIT RL, tapered 15QR fork w/ 125mm travel, FOX Float RP23 shock
— Shimano Deore XT 10-speed component group
— Giant Contact handlebar, stem & seatpost
— Wheelset: Shimano Deore XT tubeless-compatible Center Lock disc
frame geometry
A B C D E F G H
Actual
Frame Size
inche s degre es degre es inch es inche s in ches inche s inches
XS 14.5 2111700 69.5 73.5 21.5 4.3 17.1 41.9 30.5
S 16 2111701 69.5 73.5 22.0 4.6 17.1 42.6 30.9
M 18 2111702 69.5 73.5 23.0 5.0 17.1 43.5 31.0
L 20 2111703 69.5 73.5 24.0 5.7 17.1 44.6 31.2
XL 22 2111704 69.5 73.5 25.0 6.5 17.1 45.6 32.4
*Seat ang le is actual
**Toptube is m easured from the c enter of the headtu be horizontally ba ck to the top of the effec tive extension of th e seattube
***Sta ndover height is ba sed on the largest s ize tire that will fit the b ike, not necessar ily the included si ze tire
Part
Number
Head
Angle
Seat
Toptube** Headtube Chainstay Wheelbase
Angle*
Standover
Height***
