68
X-road | PERFORMANCE | Competition
X-road | PERFORMANCE | Cyclo-Cross

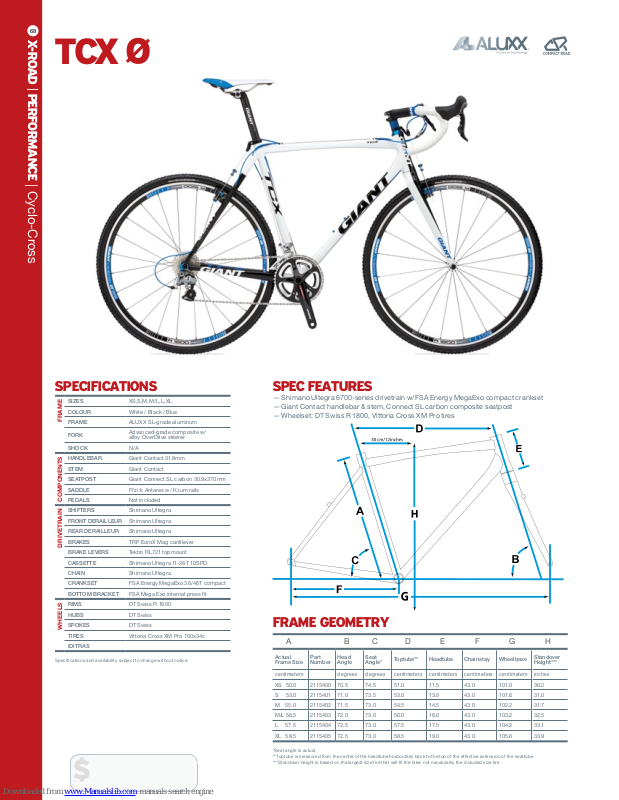

TCX
Specifications
SIZES
COLOUR
frame
FRAME
FORK
SHOCK
HANDLEBAR
STEM
SEATPOST
SADDLE
componentS
PEDALS
SHIFTERS
FRONT DERAILLEUR
REAR DERAILLEUR
BRAKES
DriVetrain
BRAKE LEVERS
CASSETTE
CHAIN
CRANKSET
BOTTOM BRACKET
RIMS
HUBS
SPOKES
WHeeLS
TIRES
EXTRAS
Specific ations and availab ility subject to c hange without noti ce.
XS,S,M,M/L,L ,XL
White / Black / Blue
ALUXX SL-grade aluminum
Advanced-grade compos ite w/
alloy OverDrive steerer
N/A
Giant Contact 31.8mm
Giant Contact
Giant Connect SL carbon 30.9x370mm
Fi'zi:k Antares w/ K:ium rails
Not included
Shimano Ultegra
Shimano Ultegra
Shimano Ultegra
TRP EuroX Mag cantilever
Tektro RL721 top mount
Shimano Ultegra 11-28T 10SPD
Shimano Ultegra
FSA Energy MegaExo 36/46T compact
FSA Mega Exo internal press fit
DT Swiss R 1800
DT Swiss
DT Swiss
Vittoria Cross XM Pro 700x34c
$
Spec Features
— Shimano Ultegra 6700-series drivetrain w/FSA Energy MegaExo compact crankset
— Giant Contact handlebar & stem, Connect SL carbon composite seatpost
— Wheelset: DT Swiss R 1800, Vittoria Cross XM Pro tires
frame geometry
A B C D E F G H
Actual
Frame Size
centim eters degre es degrees centim eters centim eters centim eters centimet ers inches
XS 50.0 2115400 70.5 74.5 51.0 11.5 43.0 101.0 30.2
S 53.0 2115401 71.0 73.5 53.0 13.0 43.0 101.6 31.0
M 55.0 2115402 71.5 73.0 54.5 14.5 43.0 102.2 31.7
M/L 56.5 2115403 72.0 73.0 56.0 16.0 43.0 103.2 32.5
L 57.5 2115404 72.5 73.0 57.5 17.5 43.0 104.2 33.1
XL 58.5 2115405 72.5 73.0 58.5 19.0 43.0 105.6 33.9
*Seat ang le is actual
**Toptube is m easured from the c enter of the headtu be horizontally ba ck to the top of the effec tive extension of th e seattube
***Sta ndover height is ba sed on the largest s ize tire that will fit the b ike, not necessar ily the included si ze tire
Part
Number
Head
Angle
Seat
Toptube** Headtube Chainstay Wheelbase
Angle*
Standover
Height***
