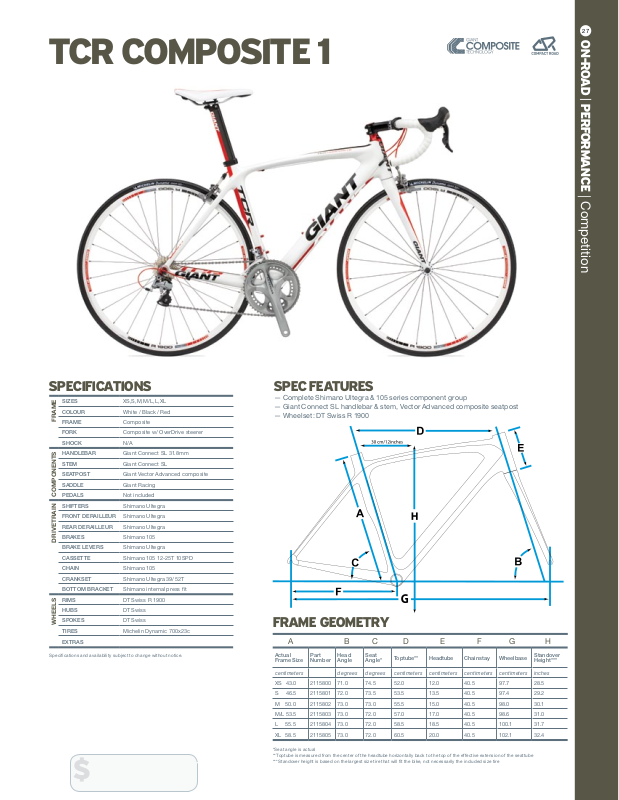

Giant TCR COMPOSITE 1 DATASHEET

TCR composite 1

on-road | performance | Competition

Specifications

SIZES

COLOUR

frame

FRAME

FORK

SHOCK

HANDLEBAR

STEM

SEATPOST

SADDLE

componentS

PEDALS

SHIFTERS

FRONT DERAILLEUR

REAR DERAILLEUR

BRAKES

DriVetrain

BRAKE LEVERS

CASSETTE

CHAIN

CRANKSET

BOTTOM BRACKET

RIMS

HUBS

SPOKES

WHeeLS

TIRES

EXTRAS

Speciﬁc ations and availab ility subject to c hange without noti ce.

XS,S,M,M/L,L ,XL

White / Black / Red

Composite

Composite w/ OverDrive steerer

N/A

Giant Connect SL 31.8mm

Giant Connect SL

Giant Vector Advanced composite

Giant Racing

Not included

Shimano Ultegra

Shimano 105

Shimano Ultegra

Shimano 105 12-25T 10SPD

Shimano 105

Shimano Ultegra 39/52T

Shimano internal press ﬁt

DT Swiss R 1900

DT Swiss

Michelin Dynamic 700x23c

Spec Features

— Complete Shimano Ultegra & 105 series component group — Giant Connect SL handlebar & stem, Vector Advanced composite seatpost — Wheelset: DT Swiss R 1900

frame geometry

A B C D E F G H

Actual Frame Size

centim eter s degre es degre es cent imete rs centim eter s ce ntime ters centim eters in ches

XS 43.0 2115800 71.0 74.5 52.0 12.0 40.5 97.7 28.5

S 46.5 2115801 72.0 73.5 53.5 13.5 40.5 97.4 29.2

M 50.0 2115802 73.0 73.0 55.5 15.0 40.5 98.0 30.1

M/L 53.5 2115803 73.0 72.0 57.0 17.0 40.5 98.6 31.0

L 55.5 2115804 73.0 72.0 58.5 18.5 40.5 100.1 31.7

XL 58.5 2115805 73.0 72.0 60.5 20.0 40.5 102.1 32.4

*Seat ang le is actual **Toptube is m easured from the c enter of the headtu be horizontally ba ck to the top of the effec tive extension of th e seattube ***Sta ndover height is ba sed on the largest s ize tire that will ﬁt the b ike, not necessar ily the included si ze tire

Part Number

Head Angle

Seat

Toptube** Headtube Chainstay Wheelbase

Angle*

Standover Height***
