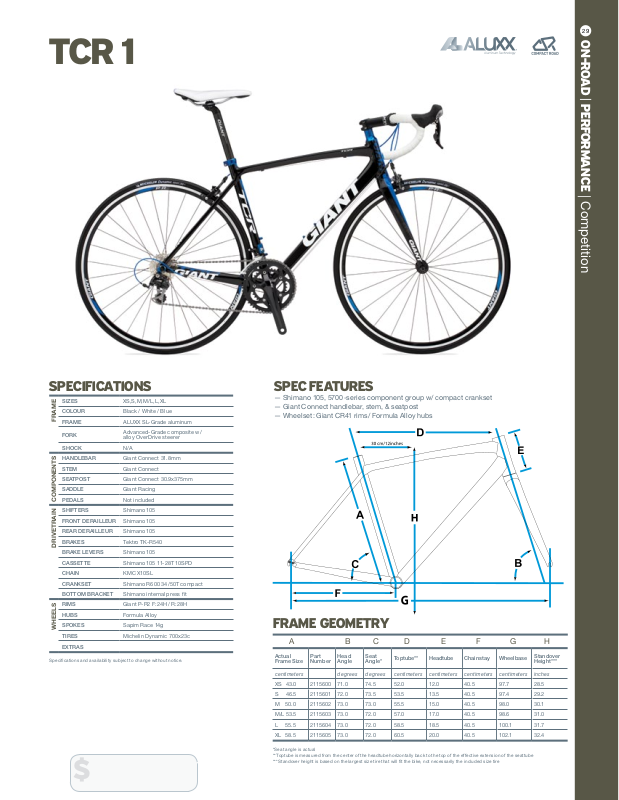

Giant TCR 1 DATASHEET

TCR 1

on-road | performance | Competition

Specifications

SIZES

COLOUR

frame

FRAME

FORK

SHOCK

HANDLEBAR

STEM

SEATPOST

SADDLE

componentS

PEDALS

SHIFTERS

FRONT DERAILLEUR

REAR DERAILLEUR

BRAKES

DriVetrain

BRAKE LEVERS

CASSETTE

CHAIN

CRANKSET

BOTTOM BRACKET

RIMS

HUBS

SPOKES

WHeeLS

TIRES

EXTRAS

Speciﬁc ations and availab ility subject to c hange without noti ce.

XS,S,M,M/L,L ,XL

Black / White / Blue

ALUXX SL-Grade aluminum

Advanced-Grade composite w/ alloy OverDrive steerer

N/A

Giant Connect 31.8mm

Giant Connect

Giant Connect 30.9x375mm

Giant Racing

Not included

Shimano 105

Tektro TK-R540

Shimano 105

Shimano 105 11-28T 10SPD

KMC X10SL

Shimano R600 34/50T compac t

Shimano internal press ﬁt

Giant P-R2 F:24H / R:28H

Formula Alloy

Sapim Race 14g

Michelin Dynamic 700x23c

Spec Features

— Shimano 105, 5700-series component group w/ compact crankset — Giant Connect handlebar, stem, & seatpost — Wheelset: Giant CR41 rims/ Formula Alloy hubs

frame geometry

A B C D E F G H

Actual Frame Size

centim eter s degre es degre es cent imete rs centim eter s ce ntime ters centim eters in ches

XS 43.0 2115600 71.0 74.5 52.0 12.0 40.5 97.7 28.5

S 46.5 2115601 72.0 73.5 53.5 13.5 40.5 97.4 29.2

M 50.0 2115602 73.0 73.0 55.5 15.0 40.5 98.0 30.1

M/L 53.5 2115603 73.0 72.0 57.0 17.0 40.5 98.6 31.0

L 55.5 2115604 73.0 72.0 58.5 18.5 40.5 100.1 31.7

XL 58.5 2115605 73.0 72.0 60.5 20.0 40.5 102.1 32.4

*Seat ang le is actual **Toptube is m easured from the c enter of the headtu be horizontally ba ck to the top of the effec tive extension of th e seattube ***Sta ndover height is ba sed on the largest s ize tire that will ﬁt the b ike, not necessar ily the included si ze tire

Part Number

Head Angle

Seat

Toptube** Headtube Chainstay Wheelbase

Angle*

Standover Height***
