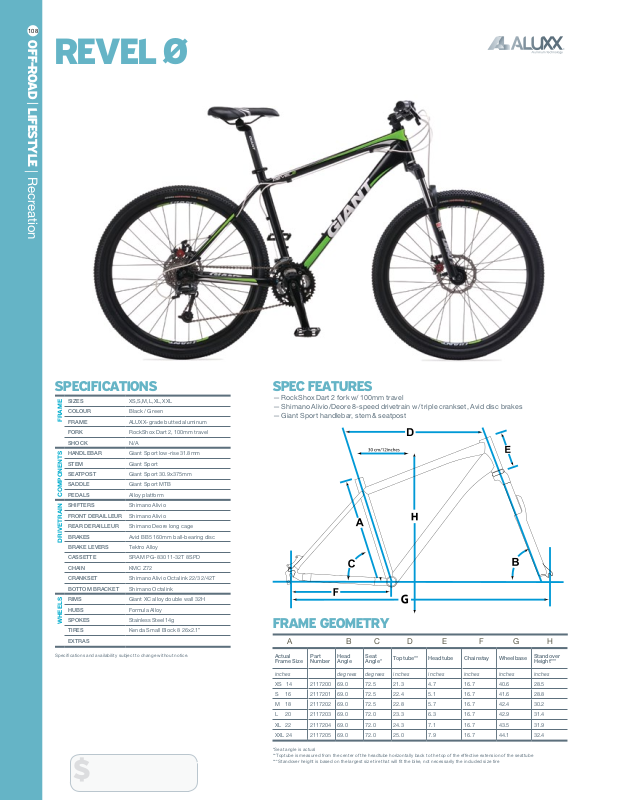

Giant REVEL 0 DATASHEET

108

OFF-road | Lifestyle | Recreation

revel

Specifications

SIZES

COLOUR

frame

FRAME

FORK

SHOCK

HANDLEBAR

STEM

SEATPOST

SADDLE

componentS

PEDALS

SHIFTERS

FRONT DERAILLEUR

REAR DERAILLEUR

BRAKES

DriVetrain

BRAKE LEVERS

CASSETTE

CHAIN

CRANKSET

BOTTOM BRACKET

RIMS

HUBS

SPOKES

WHeeLS

TIRES

EXTRAS

Speciﬁc ations and availab ility subject to c hange without noti ce.

XS,S,M,L,XL,X XL

Black / Green

ALUXX-grade butted aluminum

RockShox Dart 2, 100mm travel

N/A

Giant Sport low-rise 31.8mm

Giant Sport

Giant Sport 30.9x375mm

Giant Sport MTB

Alloy platform

Shimano Alivio

Shimano Deore long cage

Avid BB5 160mm ball-bearing disc

Tektro Alloy

SRAM PG-830 11-32T 8SPD

KMC Z72

Shimano Alivio Octalink 22/32/42T

Shimano Octalink

Giant XC alloy double wall 32H

Formula Alloy

Stainless Steel 14g

Kenda Small Block 8 26x2.1”

Spec Features

— RockShox Dart 2 fork w/ 100mm travel — Shimano Alivio/Deore 8-speed drivetrain w/ triple crankset, Avid disc brakes — Giant Sport handlebar, stem & seatpost

frame geometry

A B C D E F G H

Actual Frame Size

inche s degre es degre es inch es inche s in ches inche s inches

XS 14 2117200 69.0 72.5 21.3 4.7 16.7 40.6 28.5

S 16 2117201 69.0 72.5 22.4 5.1 16.7 41.6 28.8

M 18 2117202 69.0 72.5 22.8 5.7 16.7 42.4 30.2

L 20 2117203 69.0 72.0 23.3 6.3 16.7 42.9 31.4

XL 22 2117204 69.0 72.0 24.3 7.1 16.7 43.5 31.9

XXL 24 2117205 69.0 72.0 25.0 7.9 16.7 44.1 32.4

*Seat ang le is actual **Toptube is m easured from the c enter of the headtu be horizontally ba ck to the top of the effec tive extension of th e seattube ***Sta ndover height is ba sed on the largest s ize tire that will ﬁt the b ike, not necessar ily the included si ze tire

Part Number

Head Angle

Seat

Toptube** Headtube Chainstay Wheelbase

Angle*

Standover Height***
