Models
P420A-3100
& P420A-5100
Triplex Ceramic
Plunger Pump
Operating Instructions/
Repair and Service
Manual
Corrossion Resistant Pumps
Contents:
Installation Instructions: page 2
Specifications: page 3
Parts List/Torque Specs: page 4
Recommened
Spare Parts List page 4
Exploded View/Kits: page 5
Repair Instructions: pages 6-7
Pump mounting selection
Guide: page 7
Dimensions: back page
Warranty Information back page
INSTALLATION INSTRUCTIONS
Installation of the Giant Industries, Inc.,
pump is not a complicated procedure, but
there are some basic steps common to all
pumps. The following information is to be
considered as a general outline for installation. If you have unique requirements, please
contact Giant Industries, Inc. or your local
distributor for assistance.
1. The pump should be installed flat on a base to
a maximum of a 15 degree angle of inclination
to ensure optimum lubrication.
2. The inlet to the pump should be sized for the
flow rate of the pump with no unnecessary
restrictions that can cause cavitation. Teflon
tape should be used to seal all joints. If pumps
are to be operated at temperatures in excess of
1600 F, it is important to insure a positive head
to the pump to prevent cavitation.
3. The discharge plumbing from the pump
should be properly sized to the flow rate to
prevent line pressure loss to the work area. It is
essential to provide a safety bypass valve
between the pump and the work area to protect
the pump from pressure spikes in the event of a
blockage or the use of a shut-off gun.
4. Use of a dampener is necessary to minimize
pulsation at drive elements, plumbing, connections, and other system areas. The use of a
dampener with Giant Industries, Inc. pumps is
optional, although recommended by Giant
Industries, Inc. to further reduce system pulsation. Dampeners can also reduce the severity of
pressure spikes that occur in systems using a
shut-off gun. A dampener must be positioned
downstream from the unloader.
5. Crankshaft rotation on Giant Industries, Inc.
pumps should be made in the direction designated by the arrows on the pump crankcase.
Reverse rotation may be safely achieved by
following a few guidelines available upon
request from Giant Industries, Inc. Required
horsepower for system operation can be obtained from the chart on page 3.
6. Before beginning operation of your pumping
system, remember: Check that the crankcase
and seal areas have been properly lubricated per
recommended schedules. Do not run the pump
dry for extended periods of time. Cavitation will
result in severe damage. Always remember to
check that all plumbing valves are open and that
pumped media can flow freely to the inlet of the
pump.
Finally, remember that high pressure operation in a pump system has many advantages. But, if it is used carelessly
and without regard to its potential hazard, it can cause serious injury.
IMPORTANT OPERATING CONDITIONS
Failure to comply with any of these conditions invalidates the warranty.
1. Prior to initial operation, add oil to the
crankcase so that oil level is between the two
lines on the oil dipstick. DO NOT OVERFILL.
Use Recommended Giant Oil
Crankcase oil should be changed after the
first 50 hours of operation, then at regular
intervals of 500 hours or less depending on
operating conditions.
2. Pump operation must not exceed rated
pressure, volume, or RPM. A pressure relief
device must be installed in the discharge of the
system.
3. Acids, alkalines, or abrasive fluids cannot be
pumped unless approval in writing is obtained
before operation from Giant Industries, Inc.
4. Run the pump dry approximately 10 seconds
to drain the water before exposure to freezing
temperatures.
NOTE: Contact Giant Industries for Service School Information. Phone: (419)-531-4600
Specifications
P420A-3100/5100 PULLEY SELECTION & HORSEPOWER
Model P420A-3100/5100
Volume ................................................................................................... Up to 13.0 GPM (49 lm)
Discharge Pressure ................................................................................. Up to 2000 PSI (138 bar)
............................................................................................................... (at 11 GPM)
Inlet Pressure.......................................................................................... Up to 140 PSI (9.7 bar)
Stroke..................................................................................................... 24mm
RPM....................................................................................................... Up to 1460 RPM
Plunger Diameter .................................................................................... 25mm
Temperature of Pumped Fluids ............................................................... Up to 160 oF (71 oC)
Inlet Ports ............................................................................................... (2) 3/4" BSPP (P420A-5100)
Inlet Ports ............................................................................................... (2) 3/4" NPT (P420A-3100)
Discharge Ports ....................................................................................... (2) 3/4" BSPP (P420A-5100)
Discharge Ports ...................................................................................... (2) 3/4" NPT (P420A-3100)
Shaft Rotation.............................................................................Top of pulley towards fluid end
Crankshaft Diameter............................................................................... 28mm
Key Width .............................................................................................. 8mm
Shaft Mounting....................................................................................... Either side
Weight.................................................................................................... 36lbs. 11oz. (0.52 kg)
Crankcase Capacity ................................................................................ 30fl.oz. (0.89 liters)
Volumetric Efficiency @ 1460 ................................................................ 0.95
Mechanical Efficiency @ 1460 ............................................................... 0.86
1
Consult the factory for special requirements that must be met if the pump is
to operate beyond one or more of the limits specified above.
PULLEY INFORMATION
Pulley selection and pump speed are based on a 1725
RPM motor and "B" section belts. When selecting
desired GPM, allow for a ±5% tolerance on pumps
output due to variations in pulleys, belts and motors
among manufacturers.
1. Select GPM required, then select appropriate
motor and pump pulley from the same line.
2. The desired pressure is achieved by selecting the
HORSEPOWER INFORMATION
Horsepower ratings shown are the power requirements for the pump. Gas engine power outputs must
be approximately twice the pump power requirements shown above.
We recommend that a 1.1 service factor be specified
when selecting an electric motor as the power source.
To compute specific pump horsepower requirements,
use the following formula:
correct nozzle size that corresponds with the pump
GPM.
GPM X PSI
1450
REQUIREMENTS
PUMP
PULLEY
7.75 4.50
7.75 5.00
7.75 5.75
7.75 6.00 1120
7.75 6.75 1240
7.75 7.75 1460
MOTOR
PULLEY
1000
RPM GPM
785 7.0 4.8 7.2 8.2 9.6
900 8.0 5.5 8.3 9.4 11.0
1010 9.0 6.2 9.3 10.5 12.4
9.9 6.9 10.3 11.7 13.7
11.0 7.6 11.4 12.9 15.2
13.0 8.9 13.4 15.2
PSI
1500
PSI
1700
PSI
=hp
2000
PSI
P420A-3100/5100 PUMP PARTS LIST
ITEM PART DESCRIPTION QTY.
1 08377 Crankcase 1
2 08378 Oil Fill Plug with Gasket 1
3 06479 Crankcase cover 1
3A 07186 Oil Sight Glass w/ Gasket 1
4 08380 O-Ring 1
5 12137 Oil Drain Plug 1
5A 07182 Gasket for Oil Drain Plug 1
5B 08092 Plug with Gasket 1
6 08093 Screw 4
6A 08094 Spring Washer 12
7 08471 Bearing Cover, Open 1
8 08472 Bearing Cover, Closed 1
8A 06245 Shim 1
9 01016 O-Ring 2
10 08095 Screw with Washer 8
11 07459 Radial Shaft Seal 1
12 08473 Bearing 1
12A 08474 Bearing 1
13 08475 Crankshaft 1
14 08091 Fitting Key 1
15 08390 Connecting Rod Assembly 3
15A 07311 Screw with Washer 6
16 06611 Plunger Assy. Items 16A-16G 3
16A 08096 Plunger Base 3
16B 08398 Plunger Pipe 3
16C 07256 Centering Sleeve 3
16D 08097 Tensioning Screwing 3
16E 07023 O-Ring 3
16F 07203 Backup Ring 3
ITEM PART DESCRIPTION QTY.
16G 07161-0100 Copper Washer 3
17 07314 Crosshead Pin 3
19 08366 Oil Seal 3
20 08098 Seal Case 3
21 06613 O-Ring (P420-3100) 3
21 07266 O-Ring (P420-5100) 3
22 08059 O-Ring 3
23 12254 V-Sleeve 3
23A 08099 Spacer Ring 3
23B 12255 Weep Seal 3
24 08376 Pressure Ring 6
25 06373 Weep Return Ring 3
26 06614 Manifold (P420-3100) 1
26 06374 Manifold (P420-5100) 1
27A 06615 Valve Assembly (P420A-3100) 6
27A 06375 Valve Assembly (P420A-5100) 6
27 06376 Valve Seat 6
28 08371 Valve Plate 6
29 06377 Valve Spring 6
30 08372 Valve Spring Retainer 6
31 07212-0001 O-Ring, Viton (P420A-3100) 6
31 07212 O-Ring (P420A-5100) 6
32 06616 Plug (P420A-3100) 6
32 06379 Plug (P420A-5100) 6
33 07214-0001 O-Ring, Viton (P420A-3100) 6
33 07214 O-Ring (P420-5100) 6
34 06612 Inner Hexagon Screw 8
36 13150 Plug, G 3/4" (P420-5100) 1
37 13321-0100 Plug, G 1" (P420-5100) 1
P420A-3100/5100 PUMP TORQUE SPECIFICATIONS
Position Item# Description Torque Amount
15A 07311 Screw with Washer 216 in.-lbs.
16D 08097 Tensioning Screw 240 in.-lbs.
32 06616/06379 Plug (P420A-3100/P420A-5100) 125 ft.-lbs.
34 06612 Inner Hexegon Screw 35 ft.-lbs.
Preventative Maintenance Check-List & Recommended Spare Parts List
Check Daily Weekly 50hrs Every Every Every
500 hrs 1500 hrs 3000 hrs
Oil Level/Quality X
Oil Leaks X
Water Leaks X
Belts, Pulley X
Plumbing X
Recommended Spare Parts
Oil Change X X
Seal Spare Parts (1 kit/pump) X
(See page 5 for kit list)
Oil Seal Kit (1 kit/pump) X
(See page 5 for kit lit)
Valve Spare Parts (1 kit/pump) X
(See page 5 for kit list)
EXPLODED VIEW - P420A-3100/5100 PUMPS
P420A-3100/5100 PUMP REPAIR KITS
Plunger Packing Kits
# 09542 (P420-3100)
Item Part # Description Qty.
21 06613 O-Ring 3
22 08059 O-Ring 3
23 12254 V-Sleeve 3
23B 12255 Weep Seal 3
24 08376 Pressure Ring 6
Plunger Packing Kits
# 09140 (P420-5100)
Item Part # Description Qty.
21 07266 O-Ring 3
22 08059 O-Ring 3
23 12254 V-Sleeve 3
23B 12255 Weep Seal 3
24 08376 Pressure Ring 6
Oil Seal Kit
# 09306
Item Part # Description Qty.
19 08366 Oil Seal 3
Valve Assembly Kit (P420A-3100)
# 09522
Item Part # Description Qty.
27A 06615 Valve Assembly, Complete 6
33 07214-0001 O-Ring, Viton 6
Valve Assembly Kit (P420A-5100)
# 09478
Item Part # Description Qty.
27A 06375 Valve Assembly, Complete 6
33 07214 O-Ring 6
REPAIR INSTRUCTIONS - P420A-3100/5100 PUMPS
Note: Always take time to lubricate all metal and nonmetal parts with a light film of oil before reassembly. This step will ensure proper
fit, at the same time protecting the pump nonmetal parts (i.e., the elastomers) from cutting and scoring.

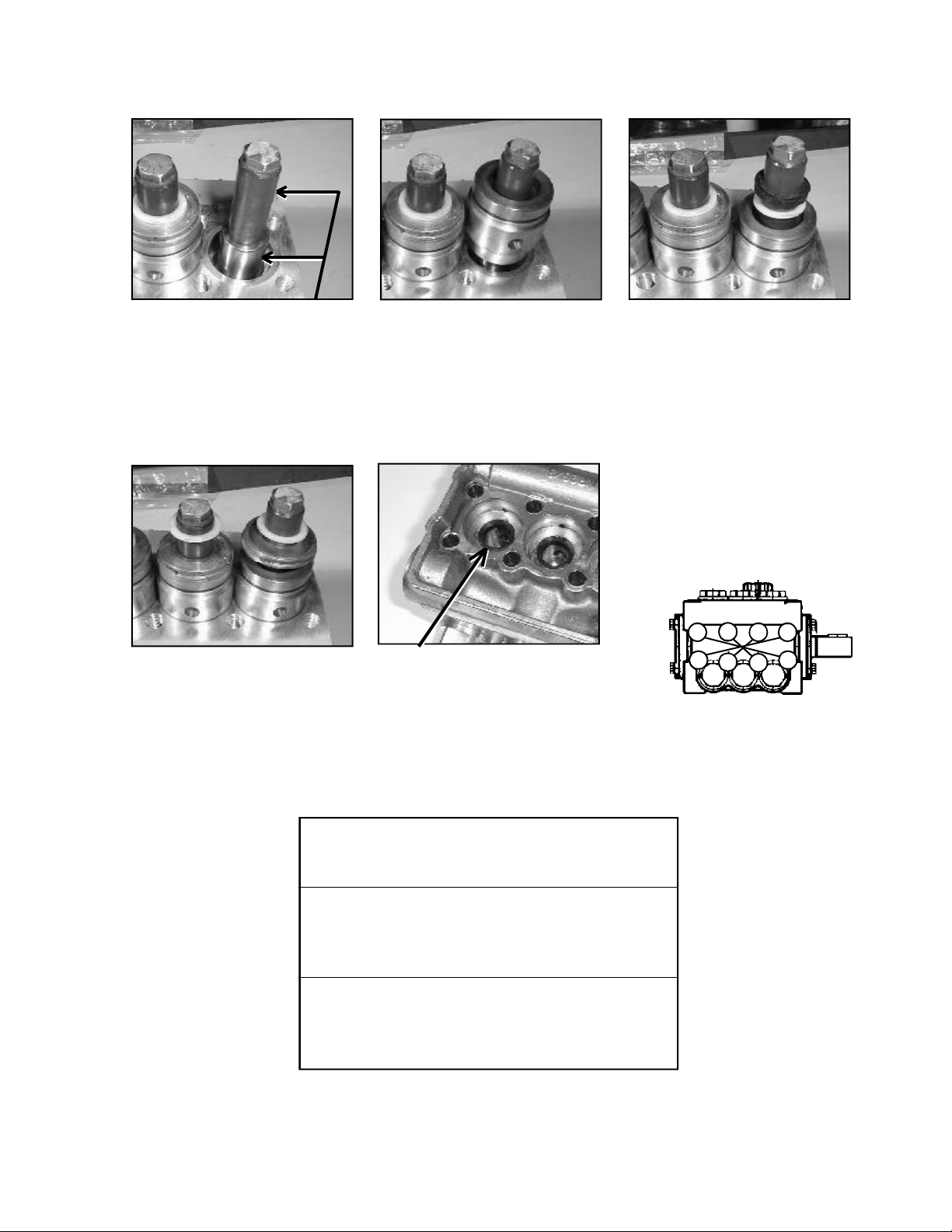

1) With a socket wrench,
remove the three discharge
valve plugs and three inlet
valve plugs (32). Inspect
the o-ring (33) for wear and
replace if damaged.
4) Remove the o-ring (31).
Inspect all parts for wear and
replace as necessary. Apply
one drop of loctite 243 to the
valve plugs (32) and tighten
to 125 ft. lbs.
2) Using needle nose pliers,
remove the inlet and discharge valve assemblies
(27A). Note: It may become
neccesary to remove the
valve seat (27) from the
valve casing using a
slidehammer.
5) Use a 8mm allen wrench to
remove the 8 socket head
cap screws (34). Carefully
slide the valve casing (26)
out over the plungers. Remove the weep return rings
(25).
3) By inserting a small screw
driver between the valve seat
(27) and the valve spring retainer (30), the valve assembly can be separated.
6) Remove each seal case (20)
with o-rings and oil seals (21
and 22) from the crankcase
(1).
7) Remove the pressure rings
(24), and v-sleeves (23) and
spacer ring (23A) from the
valve casing (26). Remove the
remaining v-sleeves (23B) and
pressure rings (24) from the
seal case (20).
19 22 20 21 24 23(B) 25 24 23 23A
Note: The orientation of oil seal in seal case is: seal lips
face crankcase.
8) Inspect all parts for wear and replace as needed.
REASSEMBLY INSTRUCTIONS - P420A-3100/5100 PUMPS
9) Check surfaces of plunger
pipe (16B).
12) Place weep return rings (25)
over the plunger (16) and
pressure ring over plunger
(24).
10) Place each seal case (20)
with new o-rings (21 and
22) and new oil seals (19)
over plungers (16) with
weep hole down. Generously lubricate o-rings and
oil seals before reassembly.
13) Generously lubricate
v-sleeves. Assemble spacer
rings (23A), and v-sleeves
(23) into valve casing (26).
11) Place pressure rings and
weep seals (23B) over
plungers and into each seal
case (20).
14) Slide valve casing over
plungers and seat firmly.
Replace the 8 socket head cap
screws (34) and tighten to 35
ft.-lbs. in a crossing pattern
(as shown below).
4
8
1
76
2
5
3
Pump Mounting Selection Guide
Bushings
07175 - 28 mm Tapered H Bushing
Pulley & Sheaves
01055 - 7.75” Cast Iron 2 gr. - AB Section
01062 - 7.75” Cast Iron - 2 gr. - AB Section
Rails
07358 - Plated Steel Channel Rails
(L=9.18"xw=1.88"xh=3.00")
Contact Giant Industries for service school information. Phone: (419) 531-4600
P420A-3100/5100 PUMP DIMENSIONS - INCHES (MM)
10/02P420A-3100/5100.PM6
GIANT INDUSTRIES LIMITED WARRANTY
Giant Industries, Inc. pumps and accessories are warranted by the manufacturer to be free from
defects in workmanship and material as follows:
1. For portable pressure washers and self-service car wash applications, the discharge
manifolds will never fail, period. If they ever fail, we will replace them free of charge.
Our other pump parts, used in portable pressure washers and in car wash applications,
are warranted for five years from the date of shipment for all pumps used in NONSALINE, clean water applications.
2. One (1) year from the date of shipment for all other Giant industrial and consumer
pumps.
3. Six (6) months from the date of shipment for all rebuilt pumps.
4. Ninety (90) days from the date of shipment for all Giant accessories.
This warranty is limited to repair or replacement of pumps and accessories of which the manufacturer’s
evaluation shows were defective at the time of shipment by the manufacturer. The following items
are NOT covered or will void the warranty:
1. Defects caused by negligence or fault of the buyer or third party.
2. Normal wear and tear to standard wear parts.
3. Use of repair parts other than those manufactured or authorized by Giant.
4. Improper use of the product as a component part.
5. Changes or modifications made by the customer or third party.
6. The operation of pumps and or accessories exceeding the specifications set forth
in the Operations Manuals provided by Giant Industries, Inc.
Liability under this warranty is on all non-wear parts and limited to the replacement or repair of those
products returned freight prepaid to Giant Industries which are deemed to be defective due to
workmanship or failure of material. A Returned Goods Authorization (R.G.A.) number and completed
warranty evaluation form is required prior to the return to Giant Industries of all products under
warranty consideration. Call (419)-531-4600 or fax (419)-531-6836 to obtain an R.G.A. number.
Repair or replacement of defective products as provided is the sole and exclusive remedy provided
hereunder and the MANUFACTURER SHALL NOT BE LIABLE FOR FURTHER LOSS, DAMAGES,
OR EXPENSES, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES DIRECTLY OR
INDIRECTLY ARISING FROM THE SALE OR USE OF THIS PRODUCT.
THE LIMITED WARRANTY SET FORTH HEREIN IS IN LIEU OF ALL OTHER WARRANTIES OR
REPRESENTATION, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND ALL SUCH
WARRANTIES ARE HEREBY DISCLAIMED AND EXCLUDED BY THE MANUFACTURER.
GIANT INDUSTRIES, INC., 900 N. Westwood Ave., P.O. Box 3187, Toledo, Ohio 43607
PHONE (419) 531-4600, FAX (419) 531-6836, www.giantpumps.com
Copyright 2002 Giant Industries, Inc.
Loading...
