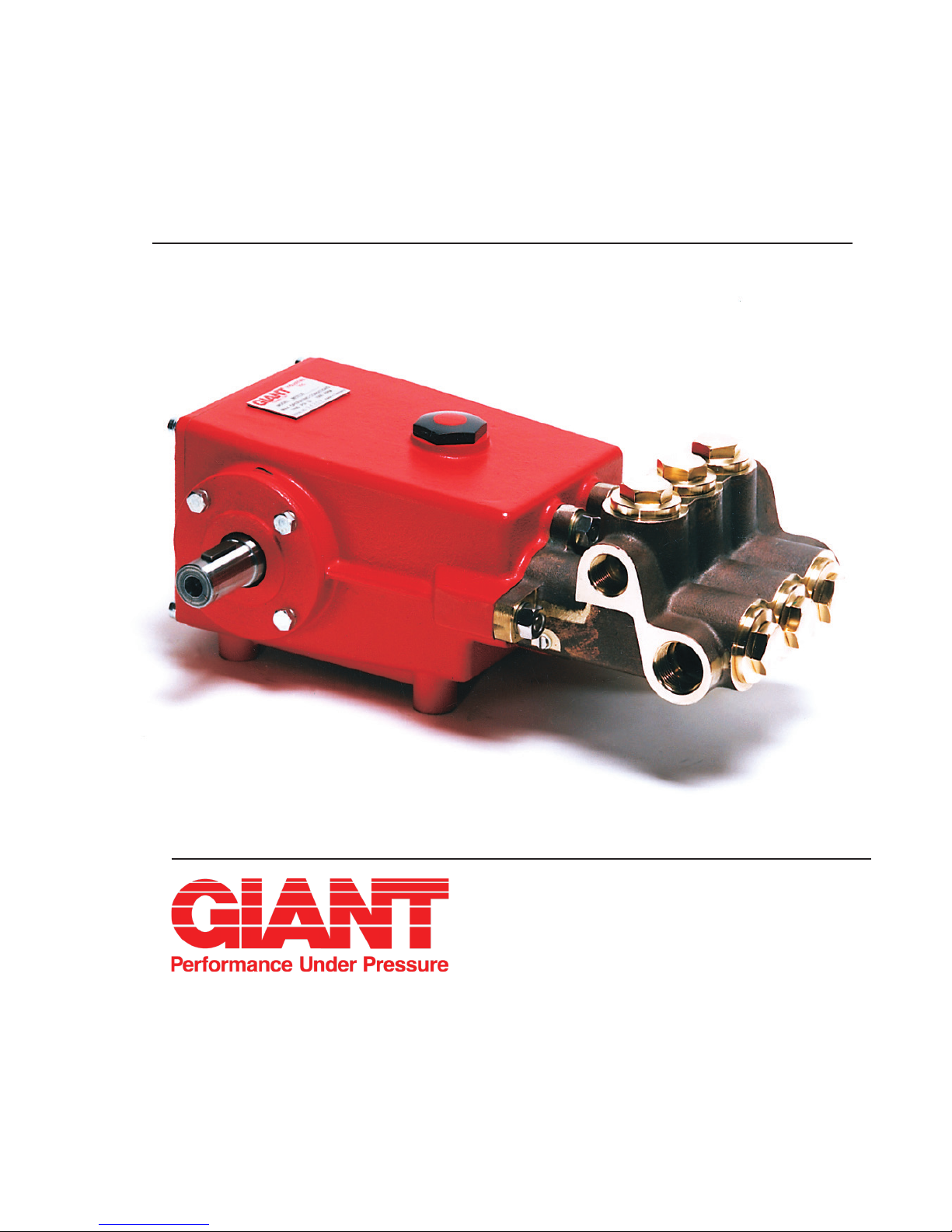

MP
Series
Triplex Ceramic Plunger Pump
Operating Instructions/
Repair and Service Manual
Pump Models:
MP4120
MP4124
MP4126
MP4130
MP4130HK
MP4135
Updated 01/18
Contents:
Installation Instructions: page 2
Preventive Maintenance
and Recommended
Spare Parts List: page 2
Pump Specications: page 3
Exploded View: page 4
Parts List: page 5
Repair Kits: page 6
Torque Specications: page 6
Repair Instructions: page 7
Dimensions: back page
Warranty Information: back page

INSTALLATION INSTRUCTIONS
Required NPSH refers to water: Specic
weight 1kg/dm3, viscosity 1 °E at max. permissible revolutions.
Operation and Maintenance
Check oil level prior to starting and ensure
trouble-free water supply.
Oil: Use 33.8 . ounces (1.0 liters) of Giant’s
part number 01154 or ISO VG 220 GL4 (e.g.
Aral Degol BG220) or SAE 90 GL4 gear oil.
Initial change after 50 operating hours and
then every 500 hours, after 6 months operation in any case.
Caution when operating in damp places or
with high temperature uctuations. Oil must
be changed immediately, should condensate
(frothy oil) occur in the gear box.
Keep NPSH under control.
Max. input pressure 145 PSI (10 bar), max.
suction head -4.35 (-0.3 bar).
Pressure in discharge line and in pump must
be at zero before any maintenance to the
pump takes place. Close up suction line. Disconnect fuses to ensure that the driving motor
does not get switched on accidentally.
Make sure that all parts on the pressure side of
the unit are vented and relled, with pressure
at zero, before starting the pump.
In order to prevent air, or an air/water-mixture
being absorbed and to prevent cavitation oc-
curring, the pump-NPSHR, positive suction
head and water temperature must be kept
under control.
Cavitation and/or compression of gases
lead to uncontrollable pressure kicks which
can ruin pump and unit parts and also be
dangerous to the operator or anyone standing nearby.
Giant plunger pumps are suitable for pumping clean water and other non-aggressive or
abrasive media with a specic weight similar to
water.
Safety Rules
Before pumping other liquids - especially
inammable, explosive and toxic media
Pump operation without safety valve as well
as any excess in the temperature or speed
limits automatically voids the warranty. The
safety valve must be regulated in accordance
with the guidelines for liquid spraying units so
that the admissible operating pressure can
- the pump manufacturer must under all
circumstances be consulted with regard to
the resistance of the pump material. It is
the responsibility of the equipment manufacturer and/or operator to ensure that all
pertinent safety regulations are adhered to.
not be exceeded by more than 10%.
When the pump is in operation, the open
shaft end must be covered up by shaft pro-
tector (21), the driven shaft side and coupling
by a contact protector.
Preventative Maintenance Check-List & Recommended Spare Parts List
Check Daily Weekly 50hrs Every Every Every
500 hrs 1500 hrs 3000 hrs
Oil Level/Quality X
Oil Leaks X
Water Leaks X
Belts, Pulley X
Plumbing X
Recommended Spare Parts
Oil Change (1 Quart) X X
Seal Kit (1 kit/pump) X
(See page 6 for kit lit)
Valve Spare Parts (1 kit/pump)
(See page 6 for kit list)
X
2

MP SERIES - PUMP SPECIFICATIONS
U.S. Measurements
Max.
Flow
Model GPM PSI RPM HP °F in Ft-Head
MP4120 8.9 3625 1450 23.1 160 0.787 24.6
MP4124 12.8 2610 1450 24 160 0.945 27.9
MP4135 13.5 1885 1100 18.2 160 1.1 29.5
MP4130 15.4 1600* 1100 17.6 160 1.18 29.5
MP4130HK 15.4 1600 1100 17.6 195 1.18 N/A
MP4126 17.9 1600 1100 20.4 160 1.18 N/A
Metric Measurements
Max.
Flow
Model L/min bar RPM kW °C mm mWs
MP4120 33.8 250 1450 17.2 70 20 7.5
MP4124 48.6 180 1450 17.9 70 24 8.5
MP4135 51.2 130 1100 13.6 70 28 9
MP4130 58.2 110* 1100 13.1 70 30 9
MP4130HK 58.2 110 1100 13.1 90 30 N/A
MP4126 67.7 11 0 1100 15.2 70 30 N/A
Max. Pres-
sure
Max. Pres-
sure
Max.
Speed
Max.
Speed
Power
Required
Power
Required
Max.
Temperature
Max.
Temperature
Plunger
Diameter
*Intermittent rating of 2000 PSI
Plunger
Diameter
*Intermittent rating of 140 bar
NPSH Re-
quired
NPSH Re-
quired
Consult the factory for special requirements that must be met if the
pump is to operate beyond one or more of the limits specied above.
Horsepower Ratings:
We recommend a 1.15 service factor be specied when selecting an electric motor as the power source.
To compute electric motor horsepower required, use the following formula: HP = (GPM X PSI) / 1450.
The formula to determine the horsepower required for a gas engine is: HP = (GPM X PSI) / 1150.
For the Application of a Hydraulic Motor:
To Determine the Torque of a Hydraulic Motor -- (GPM x PSI x 36.77) / RPM = Torque (in-lbs)
Calculating RPM / GPM of Pump:
A pump must be connected to an electric motor or gas or diesel engine with the correct ratio of pulleys
and belts to attain the required speed and GPM. The use of a Variable Frequency Drive (VFD) may also
be used to control the RPM of a properly sized electric motor when variable ows are required.
(Max. Pump RPM / Rated Pump GPM) x Required Pump GPM = Required Pump RPM
To calculate a pulley diameter one (1) pulley diameter and the required pump RPM must be known:
(Pump RPM x Pump Pulley Diameter) / Motor RPM = Motor Pulley Diameter
(Motor RPM x Motor Pulley Diameter) / Pump RPM = Pump Pulley Diameter
Common Specications:
Inlet Pressure ........................ 145 PSI (10 Bar)
Crankshaft Diameter.............. 1.10” (28 mm)
Crankcase Oil Capacity ......... 33.8 . oz. (1 L)
Inlet Ports .............................. (2) 1” NPT
Discharge Ports ..................... (2) 3/4” NPT
Stroke (except MP4126) ........ 1.02” (26 mm)
Materials Used for MP Pumps:
Manifold ........ Aluminum Bronze
Plungers ....... Solid Ceramic Oxide
Valves ........... High Grade Stainless Steel
Seals............. Nitrile with Fabric Reinforcing
Gear End ...... Spheroidal Cast Iron
Stroke (MP4126 only) ............ 1.18” (30 mm)
Weight ...................................66 lbs (30 kg)
Shaft Rotation............Top of Pulley Toward Fluid End
3
