Giant LP121A-5100, LP200-5100, LP250-5100 Operating Instructions/ Repair And Service Manual
Triplex Ceramic
Plunger Pump
Operating Instructions/
Repair and Service
Models
Manual
LP121A-5100/LP200-5100/LP250-5100
updated 02/19
Contents:
Installation Instructions: page 2
LP200-5100/LP121A-5100 Specs: page 3
Exploded View / Kits: page 4
Parts List: page 5
LP250-5100 Specs: page 6
Repair Instructions: page 7-9
Torque Specications: page 9
Pump Mounting Selection Guide: page 9
Troubleshooting: page 10
Recommended Spare Parts List: page 10
Dimensions: page 11
Warranty Information: back page
INSTALLATION INSTRUCTIONS
Operation and Maintenance
Check oil level prior to starting and ensure
trouble free water supply.
IMPORTANT! If there is a danger of frost,
the water in the pump and in the pump ttings
(particularly the unloader valve) must be emptied. The second discharge port can also be
used and the pump run “dry” for 1-2 minutes
for this purpose.
Oil: Use only 118 uid ounces (3.5 L) of SAE
90 Industrial gear lube oil. (Giant’s p/n 01154)
Initial change after 50 operating hours and
then every 1000 operating hours, or after one
year if used less.
Caution! When operating in damp places or
with high temperature uctuations, condensate (frothy oil) might occur in the gear box.
In this situation, change the oil immediately.
Keep NPSH under control.
Maximum input pressure is 145 PSI (10 bar),
the maximun suction head is -4.35 PSI (-0.3
bar). Make sure that suction pulsation is suf-
ciently dampened. Water column resonance
must be avoided.
Safety Rules
Pump operation without safety valve as well
as any excess in temperature or speed limits
automatically voids the warranty. The safety
valve must be regulated in accordance with
the guidelines for liquid spraying units so that
the admissible operating pressure can not be
exceeded by more than 10%.
When the pump is in operation, the open shaft
end must be covered up by a shaft protector
(21). For direct drive operations, the driven
shaft side and coupling must have a guard
over the connected area.
Pressure in discharge line and in pump must
be at zero before any maintenance to the
pump takes place. Close the uid supply to
the inlet port(s). Disconnect fuses to ensure
that the driving motor does not accidentally get
switched on. Make sure that all parts on the
pressure side of the unit are vented and re-
lled, with pressure at zero, before starting the
pump.
In order to prevent air, or air/water mixture
being absorbed and to prevent cavitation occurring, the pump-npshr, positive suction head
and water temperature must be kept under
control.
Required NPSH refers to water: Specic
weight 0.0624 lb/ft3 (1kg/dm3), viscosity 1°E at
maximum permissible revolutions.
Cavitation and/or compression of gases
lead to uncontrollable pressure kicks which
can ruin pump and unit parts and also be
dangerous to the operator or anyone standing nearby.
Giant pumps are suitable for pumping clean
water and other non-aggressive or abrasive
media with a specic weight similar to water.
Before pumping other liquids - especially
inammable, explosive and toxic media -
the pump manufacturer must under all circumstances be consulted with regard to the
resistance of the pump material. It is the responsibility of the equipment manufacturer
and/or operator to ensure that all pertinent
safety regulations are adhered to.
NOTE: Contact Giant Industries for Service School Information. Phone: (419)-531-4600
2
Model LP200-5100 Specications
U.S Metric
Volume ..........................................................................................19.1 GPM ..................................... 72.2 LPM
Discharge Pressure ...................................................................... 3000 PSI ......................................... 200 Bar
Inlet Pressure ............................................................................... -4.35 to 87 PSI ...................... -0.3 to 6.0 Bar
Speed ...................................................................................................................................... Up to 1000 RPM
Plunger Diameter .......................................................................... 1.10” .................................................. 28 mm
Stroke ............................................................................................ 1.65” .................................................. 42 mm
Crankcase Oil Capacity ................................................................ 118 .oz. ................................................ 3.5 L
Temperature of Pumped Fluids @ 1000 RPM ............................... 140 o F ................................................. 60 oC
Temperature of Pumped Fluids @ 500 RPM ................................. 160 o F ..................................................70 oC
Inlet Port .................................................................................................................................... (3) x 1-1/2” BSP
Discharge Port ................................................................................................................................. (3) x 1” BSP
Crankshaft Mounting ......................................................................................................................... Either Side
Shaft Rotation .................................................................................................... Top of Pulley Towards Fluid End
Weight .......................................................................................... 119 lbs. ................................................ 54 kg
Crankshaft Diameter ................................................................................................................................ 35 mm
Model LP121A-5100 Specications
U.S Metric
Volume ..........................................................................................32.5 GPM ................................... 123.1 LPM
Discharge Pressure ...................................................................... 1740 PSI .......................................... 120 Bar
Inlet Pressure ............................................................................... -4.35 to 87 PSI .......................-0.3 to 6.0 Bar
Speed ...................................................................................................................................... Up to 1000 RPM
Plunger Diameter .......................................................................... 1.42” .................................................. 36 mm
Stroke ............................................................................................ 1.65” .................................................. 42 mm
Crankcase Oil Capacity ................................................................ 118 .oz. ................................................ 3.5 L
Temperature of Pumped Fluids @ 1000 RPM ............................... 140 o F ................................................. 60 oC
Temperature of Pumped Fluids @ 500 RPM ................................. 160 o F ..................................................70 oC
Inlet Port .................................................................................................................................... (3) x 1-1/2” BSP
Discharge Port ................................................................................................................................. (3) x 1” BSP
Crankshaft Mounting ......................................................................................................................... Either Side
Shaft Rotation .................................................................................................... Top of Pulley Towards Fluid End
Weight .......................................................................................... 119 lbs. ................................................ 54 kg
Crankshaft Diameter ................................................................................................................................ 35 mm
LP200 HORSEPOWER REQUIREMENTS
RPM GPM 1000 PSI 1500 PSI 2000 PSI 3000 PSI
500 9.6 6.6 9.9 13.2 19.9
640 12.2 8.4 12.6 16.8 25.2
750 14.3 9.9 14.8 19.7 29.6
805 15.4 10.6 15.9 21.2 31.9
865 16.5 11.4 17.1 22.8 34.1
920 17.6 12.1 18.2 24.3 36.4
1000 19.1 13.2 19.8 26.3 39.5
PULLEY INFORMATION
Pulley selection and pump speed are based on
a 1725 RPM motor and “B” section belts. When
selecting desired GPM, allow for a ±5% tolerance
on pumps output due to variations in pulleys, belts
and motors among manufacturers.
1. Select GPM required, then select appropriate
motor and pump pulley from the same line.
2. The desired pressure is achieved by selecting
the correct nozzle size that corresponds with the
pump GPM.
LP121A HORSEPOWER REQUIREMENTS
RPM GPM 500 PSI 1000 PSI 1500 PSI 1740 PSI
500 16.3 5.6 11.2 16.9 19.6
640 20.8 7.2 14.4 21.5 25.0
750 24.4 8.4 16.8 25.2 29.3
805 26.2 9.0 18.1 27.1 31.4
865 28.1 9.7 19.4 29.1 33.7
920 29.9 10.3 20.6 30.9 35.9
1000 32.5 11.2 22.4 33.6 39.0
HORSEPOWER INFORMATION
We recommend that a 1.1 service factor be speci-
ed when selecting an electric motor as the power
source. To compute specic pump horsepower
requirements, use the following formula:
HP = (GPM X PSI) / 1450
3

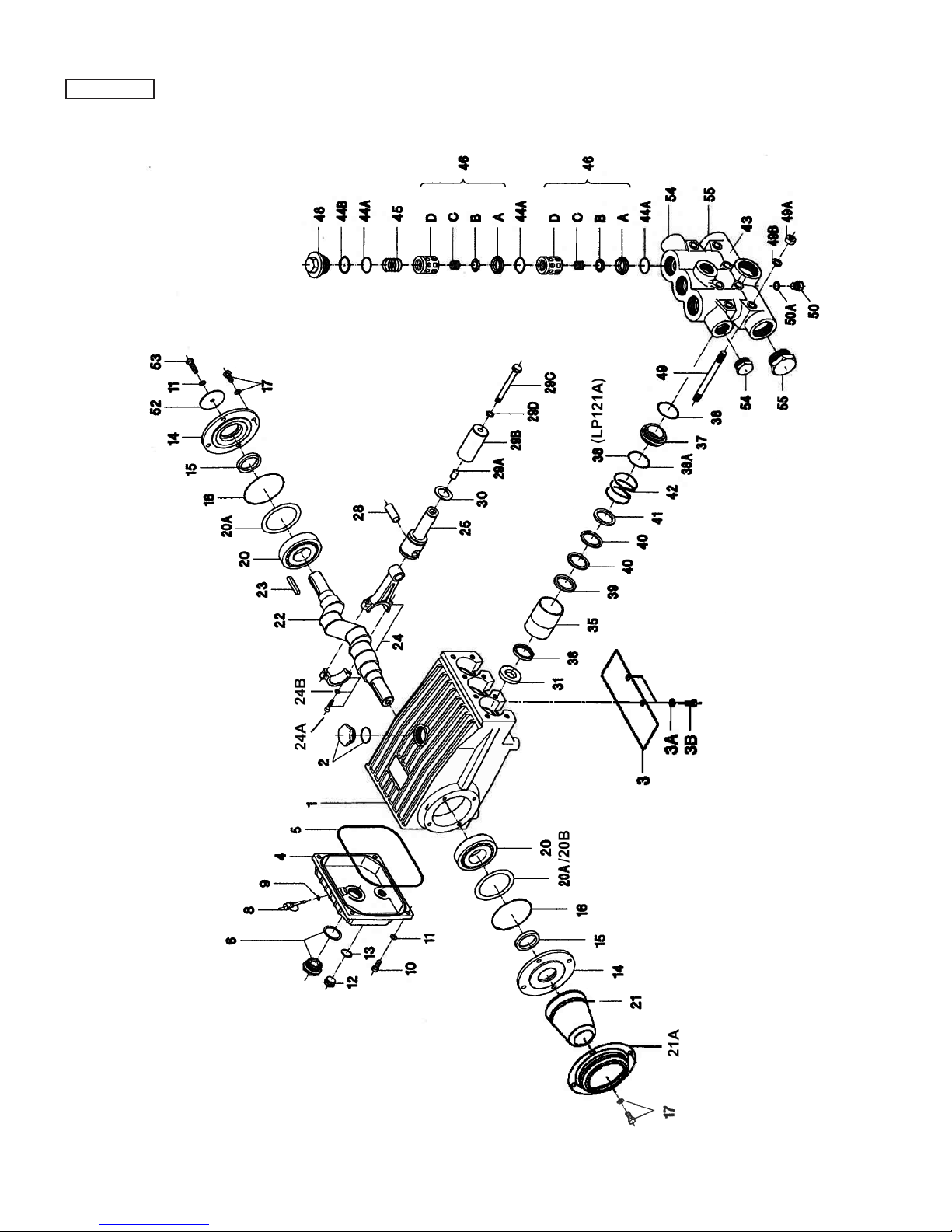

Exploded View - LP121A-5100, LP200-5100, and LP250-5100
Important! The stainless steel valve plugs (48) can seize when being screwed out of the casing.
To release tension beforehand, strike the plugs 1-2 times with a steel hammer on the top before
screwing them out. Coat threads with antiseize (e.g. Fel-Pro Nickel Anti-Seize 51119)
4
4
LP121A-5100, LP200-5100, and LP250-5100 Parts List
ITEM PART DESCRIPTION QTY
1 07759 Crankcase 1
2 13000 Oil ller Plug Assembly 1
3 05940 Cover Plate 1
3A 07223-0100 Spring Ring 2
3B 05051-0100 Hexagon Screw 2
4 06085 Crankcase Cover 1
5 07104 O-ring, Crankcase Cover 1
6 05943 Oil Sight Glass Assembly 1
8 06086 Oil Dipstick Assembly 1
9 01009 O-Ring, Dipstick Assembly 1
10 01010-0100 Cylinder Screw 4
11 01011-0400 Spring Ring 5
12 07109-0400 Plug, 1/2” BSP 1
13 06015 O-Ring 1
14 07111 Bearing Cover 2
15 07112 Radial Shaft Seal 2
16 07113 O-Ring 2
17 07114-0100 Hexagon Screw 8
20 07116 Taper Roller Bearing 2
20A 07117 Fitting Disc 1-3
20B 13001 Fitting Disc 1-3
21 05376 Shaft Protector 1
21A 05377 Shaft Guard Holder 1
22 13242 Crankshaft 1
23 13243 Fitting Key 1
24 13340 Connecting Rod Assembly 3
24A 13227 Hex Screw 3
24B 13278 Spring Washer 3
25 13341 Crosshead / Plunger Assembly 3
28 13232 Crosshead Pin 3
29A 07125 Centering Sleeve 3
29B 13220 Plunger Pipe (LP200) 3
29B 13022 Plunger Pipe (LP250) 3
29B 07130 Plunger Pipe (LP121A) 3
29C 07131-0100 Tension Screw 3
29D 07161A-0100 Steel Ring 3
30 07779 Drip Shield 3
31 07133 Radial Shaft Seal 3
35 13228-0100 Seal Sleeve (LP200) 3
35 13024-0100 Seal Sleeve (LP250) 3
35 07135-0100 Seal Sleeve (LP121A) 3
ITEM PART DESCRIPTION QTY
36 13228 Leakage Seal (LP200) 3
36 13360 Leakage Seal (LP250) 3
36 13291 Leakage Seal (LP121A) 3
37 07170-0100 Seal Case (LP200, LP250) 3
37 07139-0100 Seal Case (LP121A) 3
38 07140 O-Ring (LP200, LP250) 3
38 07140 O-Ring (LP121A only) 6
38A 12055 O-Ring (LP200, LP250) 3
39 13197-0100 Pressure Ring (LP200) 3
39 13026-0100 Pressure Ring (LP250) 3
39 07142-0100 Pressure Ring (LP121A) 3
40 13115 V-Sleeve (LP200) 6
40 13027 V-Sleeve (LP250) 6
40 07144 V-Sleeve (LP121A) 6
41 13198-0100 Support Ring (LP200) 3
41 13028-0100 Support Ring (LP250) 3
41 07146-0100 Support Ring (LP121A) 3
42 07173 Tension Spring (LP200, LP250) 3
42 07147 Tension Spring (LP121A) 3
43 13018-5000 Valve Casing 1
44A 07150 O-Ring 9
44B 06266 Support Ring for O-Ring 3
45 06078 Compression Spring 3
46A 07064-0100 Valve Seat 6
46B 07063-0100 Valve Plate 6
46C 07062-0100 Valve Spring 6
46D 07066 Spacer Pipe 6
48 06077-0100 Plug 3
49 07157 Stud Bolt 8
49A 07158 Hexagon Nut 8
49B 07159 Disc 8
50 07423-0100 Plug 1
50A 07755-0100 Steel Ring 1
52 13020 Disc for Crankshaft 1
53 04561 Hexagon Screw 1
54 13044-0100 Plug, 1” BSP* 2
55 13322-0100 Plug 1-1/2” BSP* 2
*BSP to NPT Adapters/Seals (sold separately)
Inlet = 13375-0100 (Adapter) / 13374-0100 (Seal)
Discharge = 13373-0100 (Adapter) / 13372-0100 (Seal)
LP121A-5100, LP200-5100, and LP250-5100 REPAIR KITS
Plunger Packing Kits
LP200-5100 - #9307
Item Part# Description Qty.
36 13228 Leakage Seal 3
38 07140 O-Ring 3
38A 12055 O-Ring 3
40 13115 V-Sleeve 6
LP121A-5100 - #09720
Item Part# Description Qty.
36 13291 Leakage Seal 3
38 07140 O-Ring 6
40 07144 V-Sleeve 6
LP250-5100 - #9308
Item Part# Description Qty.
36 13360 Grooved Ring 3
38 07140 O-Ring 3
38A 12055 O-Ring 3
40 13027 V-Sleeve 6
5
Valve Kit - #09196-0100
Item Part# Description Qty.
44A 07150 O-Ring 9
44B 06266 Support Ring 3
46A 07064-0100 Valve Seat 6
46B 07063-0100 Valve Plate 6
46C 07062-0100 Valve Spring 6
Oil Seal Kit - #09577
Item Part# Description Qty.
31 07133 Oil Seal Kit 3
Specications
LP250 HORSEPOWER REQUIREMENTS
RPM
GPM 1000 PSI 1500 PSI 2000 PSI 2200 PSI
500 13.0 9.0 13.5 18.0 19.8
640 16.6 11.5 17.3 23.1 25.4
750 19.5 13.5 20.3 27.1 29.8
805 20.9 14.5 21.8 29.0 31.9
865 22.5 15.6 23.4 31.2 34.3
920 23.9 16.6 24.9 33.2 36.5
1000 26.0 18.0 27.1 36.1 39.7
Model LP250-5100
U.S. Metric
Volume .................................................................................26.0 GPM ......................... 98.3 LPM
Discharge Pressure ................................................................... 2200 PSI ................................. 150 Bar
Inlet Pressure ............................................................................. -4.35 to 87 PSI ..........-0.3 to 6.0 Bar
Speed ............................................................................................................................1000 RPM
Plunger Diameter .................................................................1.26” ......................................32 mm
Stroke ...................................................................................1.65” .......................................42 mm
Crankcase Oil Capacity ............................................................. 118 .oz. ...................................... 3.5 L
Temperature of Pumped Fluids ................................................ 140 o F .........................................60 o C
Inlet Port ................................................................................................................. 3 x 1-1/2” BSP
Discharge Port ........................................................................................................................ 3 x 1” BSP
Crankshaft Mounting .............................................................................................................. Either Side
Shaft Rotation .....................................................................................Top of Pulley Towards Fluid End
Weight .................................................................................119 lbs. ........................................ 54 kg
Crankshaft Diameter.............................................................................................................35 mm
PULLEY INFORMATION
Pulley selection and pump speed are based on
a 1725 RPM motor and “B” section belts. When
selecting desired GPM, allow for a ±5% tolerance
on pumps output due to variations in pulleys, belts
and motors among manufacturers.
1. Select GPM required, then select appropriate
motor and pump pulley from the same line.
2. The desired pressure is achieved by selecting
the correct nozzle size that corresponds with the
pump GPM.
HORSEPOWER INFORMATION
We recommend that a 1.1 service factor be
specied when selecting an electric motor
as the power source. To compute specic
pump horsepower requirements, use the
following formula:
HP = (GPM X PSI) / 1440
6
LP121A-5100, LP200-5100, and LP250-5100 - Repair Instructions
44A 44B 45
1. With a 30mm wrench,
remove the 3 plugs (48).
46A 46B 46D
4. Loosen valve seats (46A) from spacer pipe (46D) by lightly
hitting the valve plate (46B) with a plastic stick. Check
sealing surface and replace worn parts. Reassemble with
new O-rings (44A) and oil them before installing. Tighten
up tension plugs (48) to 107 ft.-lbs. (145 NM).
2. Remove the compression
spring (45), O-rings and
support rings (44A & 44B).
3. Remove the complete
valve assembly (46A-46D)
with valve pullers.
5. Loosen the 8 nuts (49A)
with a 19mm wrench. Tap
the back of the manifold
(43) with a rubber mallet
to dislodge and slide off
the studs (49).
6. Pull seal sleeves (35) out of
guides in crankcase (1).
42 41 40 40 39 35 36
7. Remove the tension spring (42), support ring (41), v-sleeves
(40), pressure ring (39), from the seal sleeve (35). Examine
seals (36) carefully and replace if worn. Clean all parts.
7
LP121A-5100, LP200-5100, and LP250-5100 - Repair Instructions
38/38A
29B 29D 29C
8. Remove seal case (37)
from valve casing (43)
and inspect O-rings
(38/38A).
9. Check plunger surface (29B). If plunger pipe is worn, loosen tension screws (29C) and pull off plunger pipe to the
front. Clean front surface of plunger (25) thoroughly. Apply
a thin coat of Loctite to the tension screw threads (29C).
Note: Care must be taken that no glue gets between
the plunger pipe (29B) and the centering sleeve (29A).
Add new copper ring (29D).
10. Place new plunger pipe
(29B) carefully through
the oiled seals and push
seal sleeve (35) with
plunger pipe into the
crankcase guide. Note:
Make sure weep hole is
facing down.
11. Tighten the tension
screws (29C) to 310 in.lbs. (35NM).The plunger
pipe (29B) should not be
strained by over tightening of the tension screw
(29C) or through damage
to the front surface of the
plunger; otherwise, it will
probably break.
12. Place valve vasing
(43) over studs and
push rmly until seated
against the crankcase
(1). Tighten the hexagon
nuts (49A) in a crosswise
pattern (shown below) to
59 ft.-lbs. (80 NM)
6
412
8
7
3
5
8
LP121A-5100, LP200-5100, and LP250-5100 - Repair Instructions
To Dismantle Gear End
After removing valve casing (43) and plunger pipe (29B), drain oil. Remove crankcase cover (4)
and bearing cover (14). Loosen connecting rod screws (24A) and push the front of the connecting
rod (24) forward as far as possible into the crosshead guide.
IMPORTANT! Connecting rods (24) are marked for identication. Do not twist connecting rod
halves. Connecting rod is to be reinstalled in the same position on shaft journals.
Turning the crankshaft (22) slightly, hit it out carefully to the side with a rubber hammer.
IMPORTANT! Do not bend the connecting rod (24) shanks. Check crankshaft (22) and connecting
rod (24) surfaces, radial shaft seals (15) and taper roller bearings (20).
To Reassemble
Using a soft tool, press in the outer bearing ring until the outer edge lines up with the outer edge of
the bearing hole. Remove bearing cover (14) together with radial shaft seal (15) and o-ring (16).
Fit crankshaft (22) through bearing hole on the opposite side. Press in outer bearing and tighten
it inwards with the bearing cover, keeping the crankshaft in vertical position and turning slowly so
that the taper rollers of the bearings touch the edge of the outer bearing ring. Adjust axial bearing
clearance to at least 0.1mm and maximum 0.15mm by placing tting discs (20A and 20B) under
the bearing cover.
IMPORTANT! After assembly has been completed, the crankshaft should turn easily with very little
clearance. Tighten connecting rod screws (24A) to 22 ft.-lbs. (30 NM).
LP121A-5100, LP200-5100, and LP250-5100 Torque Specications
Pos. Item # Description Lubrication Info Torque Amount
1 07759 Crankcase Molycote Cu-Paste
6 05943 Oil Sight Glass Assembly Loctite 572 29 ft.-lbs. (40 Nm)
10 01010-0100 Cylinder Screw 221 in.-lbs. (25 Nm)
12 07109-0400 Plug 29 ft.-lbs. (40 Nm)
17 07114-0100 Hexagon Screw 221 in.-lbs. (25 Nm)
24A 13227 Hex Screw 22 ft.-lbs. (30 Nm)
29C 07131-0100 Tension Screw Loctite 243 26 ft.-lbs. (35 Nm)
29D 07161A-0100 Steel Ring Loctite 577
31 07133 Radial Shaft Seal Loctite 403
48 06077-0100 Plug Pro Pack 550 107 ft.-lbs. (145 Nm)
49A 07158 Hexagon Nut 59 ft.-lbs. (80 Nm)
Pump Mounting Selection Guide
Bushings
06496 - 35mm H Bushing
Pulley & Sheaves
07165 - 12.75” Cast Iron - 4 gr. - AB Section
Rails
07357 - Plated Steel Channel Rails
(L=11.75” x W=1.88” x H=3.00”)
9
Pump System Malfunction
Preventative Maintenance Check List & Recommended Spare Parts List
Check Daily Weekly 50 hrs
Every
500 hrs
Every
1500 hrs
Every
3000 hrs
Oil Level/Quality X
Oil Leaks X
Water Leaks X
Belts, Pulley X
Plumbing X
Recommended Spare Parts
Oil Change (1 Quart) p/n 01153 X X
Seal Spare Parts (1 kit/pump)
(see page 5 for kit list)
X
Oil Seal Kit (1 kit/pump)
(see page 5 for kit list)
X
Valve Spare Parts (1 kit/pump)
(see page 5 for kit list)
X
MALFUNCTION CAUSE REMEDY
The Pressure and/ Worn packing seals Replace packing seals
or the Delivery Broken valve spring Replace spring
Drops Belt slippage Tighten or Replace belt
Worn or Damaged nozzle Replace nozzle
Fouled discharge valve Clean valve assembly
Fouled inlet strainer Clean strainer
Worn or Damaged hose Repair/Replace hose
Worn or Plugged relief valve on pump Clean, Reset, and Replace worn parts
Cavitation Check suction lines on inlet of
pump for restrictions
Unloader Check for proper operation
Water in crankcase High humidity Reduce oil change interval
Worn seals Replace seals
Noisy Operation Worn bearings Replace bearings, Rell crankcase
oil with recommended lubricant
Cavitation Check inlet lines for restrictions
and/or proper sizing
Rough/Pulsating Worn packing Replace packing
Operation with Inlet restriction Check system for stoppage, air
Pressure Drop leaks, correctly sized inlet
plumbing to pump
Accumulator pressure Recharge/Replace accumulator
Unloader Check for proper operation
Cavitation Check inlet lines for restrictions
and/or proper size
Pressure Drop at Gun Restricted discharge plumbing Re-size discharge plumbing to
ow rate of pump
Excessive Worn plungers Replace plungers
Leakage Worn packing/seals Adjust or Replace packing seals
Excessive vacuum Reduce suction vacuum
Cracked plungers Replace plungers
Inlet pressure too high Reduce inlet pressure
High Crankcase Wrong Grade of oil Giant oil is recommended
Temperature Improper amount of oil in crankcase Adjust oil level to proper amount
10
LP121A-5100, LP200-5100, and LP250-5100 Dimensions - mm (in)
11
GIANT INDUSTRIES LIMITED WARRANTY
Giant Industries, Inc. pumps and accessories are warranted by the manufacturer to be free from
defects in workmanship and material as follows:
1. For portable pressure washers and self-service car wash applications, the discharge manifolds are guaranteed for the life of the pump. Our other pump parts,
used in portable pressure washers and in car wash applications, are warranted
for ve years from the date of shipment for all pumps used in NON-SALINE, clean
water applications.
2. One (1) year from the date of shipment for all other Giant industrial and
consumer pumps.
3. Six (6) months from the date of shipment for all rebuilt pumps.
4. Ninety (90) days from the date of shipment for all Giant accessories.
This warranty is limited to repair or replacement of pumps and accessories of which the manufacturer’s evaluation shows were defective at the time of shipment by the manufacturer. The following items are NOT covered or will void the warranty:
1. Defects caused by negligence or fault of the buyer or third party.
2. Normal wear and tear to standard wear parts.
3. Use of repair parts other than those manufactured or authorized by Giant.
4. Improper use of the product as a component part.
5. Changes or modications made by the customer or third party.
6. The operation of pumps and or accessories exceeding the specications set
forth in the Operations Manuals provided by Giant Industries, Inc.
Liability under this warranty is on all non-wear parts and limited to the replacement or repair of
those products returned freight prepaid to Giant Industries which are deemed to be defective
due to workmanship or failure of material. A Returned Goods Authorization (R.G.A.) number and
completed warranty evaluation form is required prior to the return to Giant Industries of all products under warranty consideration. Call (419)-531-4600 or fax (419)-531-6836 to obtain an R.G.A.
number.
Repair or replacement of defective products as provided is the sole and exclusive remedy provided hereunder and the MANUFACTURER SHALL NOT BE LIABLE FOR FURTHER LOSS,
DAMAGES, OR EXPENSES, INCLUDING INCIDENTAL AND CONSEQUENTIAL DAMAGES
DIRECTLY OR INDIRECTLY ARISING FROM THE SALE OR USE OF THIS PRODUCT.
THE LIMITED WARRANTY SET FORTH HEREIN IS IN LIEU OF ALL OTHER WARRANTIES OR
REPRESENTATION, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION ANY WARRANTIES OR MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE AND ALL
SUCH WARRANTIES ARE HEREBY DISCLAIMED AND EXCLUDED BY THE MANUFACTURER.
GIANT INDUSTRIES, INC., 900 N. Westwood Ave., Toledo, Ohio 43607
PHONE (419) 531-4600, FAX (419) 531-6836, www.giantpumps.com
Copyright 2019 Giant Industries, Inc.
02/19 LP200_250_121A-5100.indd
Loading...
