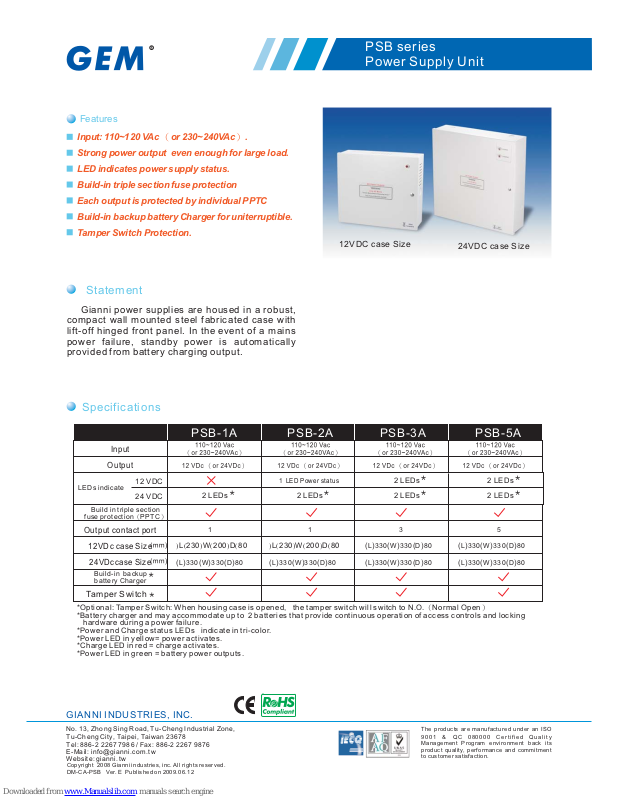

PSB series
Power Supply Unit
Gianni power supplies are housed in a robust,
compact wall mounted steel fabricated case with
lift-off hinged front panel. In the event of a mains
power failure, standby power is automatically
provided from battery charging output.
Input: 1 10~120 VAc or 230~240V Ac .
Strong power output even enough for large load.
LED indicates power supply status.
Build-in triple section fuse protection
Each output is protected by individual PPTC
Build-in backup battery Charger for uniterruptible.
Tamper Switch Protection.
（）
*Optional: Tamper Switch: When housing case is opened, the tamper switch will switch to N.O. Normal Open
*
（）
Battery charger and may accommodate up to 2 batteries that provide continuous operation of access controls and locking
hardware during a power failure.
*Power and Charge status LEDs indicate in tri-color.
Power LED in yellow= power activates.
Charge LED in red = charge activates.
Power LED in green = battery power outputs.
*
*
*
Input
Output
Output contact port
12VDc case Size
24VDccase Size
PSB-1A PSB-2A PSB-3A PSB-5A
LEDs indicate
Build in triple section
fuse protection PPTC（）
() ( ) ( )L 330 W 330 D 80 () ( ) ( )L 330 W 330 D 80 () ( ) ( )L 330 W 330 D 80
() ( ) ( )L 330 W 330 D 80
() ( ) ( )L 330 W 330 D 80
() ( ) ( )L 330 W 330 D 80
1 LED Power status
1
)( ) ( ) (
L 230 W 200 D 80)( ) ( ) (L 230 W 200 D 80
1 3 5
Build-in backup
battery Charger
Tamper Switch
Features
Specifications
Statement
12 VDC
24 VDC
2 LEDs 2 LEDs 2 LEDs
2LEDs
2LEDs
2LEDs
24VDC case Size
12VDC case Size
No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: info@gianni.com.tw
Website: gianni.tw
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
GIANNI INDUSTRIES, INC.
The products are manufactured under an ISO
9001 QC 080000 Certified Quality
Management Program environment back its
product quality, performance and commitment
to customersatisfaction.
&
PSB series
Power Supply Unit
Application
1
2
3
4
5
6
7
8
9
0
*
#
Reader
(outdoor)
Lock
Device
Door Loop
Push Bar
Uninterruptible
Power Supply
1.Status LED specifications
- Power:
Yellow: Both AC input and DC outputs are at normal status.
Green: There is noAC input, and the power is supplied by
the batteries.
Red: There is no output voltage.
- Charge:
Red light on: The batteries are charging.
Red light off: The batteries are finished charging. (If the light
is off immediately after the power is on, there may
be some damages with the batteries).
2.Installation specifications
- There is always voltage output between the OUTPUT 1~2.
When the TAMPER is at N.C, there is voltage output between
the OUTPUT 3~5, and when the TAMPER is at N.O, there is
no voltage output.
- Each OUTPUT is protected by individual PPTC from over
current; therefore each load of output may not exceed 1AMP.
- TAMPER switch: system on-off push switch mounted on
outside cover. When outside cover is close, TAMPER switch
is on N.C; when outside cover is open, TAMPER switch is on N.O.
For series connection at ''L'', it will disconnect the main power
for 230Vac.
For parallel connection at the TAMPER, it will control the output
between the OUTPUT 3~5.
FUSE
Main Input
Main Input
OR
TRANSFORMER
TAMPER SWITCH
(option)
(PSB-5A)
PSB-TAMPER
Tamper Switch
When housing case is opened, the tamper switch
PSB3A-2A-115
PSB3A-2A-230
Optional Accessories
To switch DC output
screw fastened:
