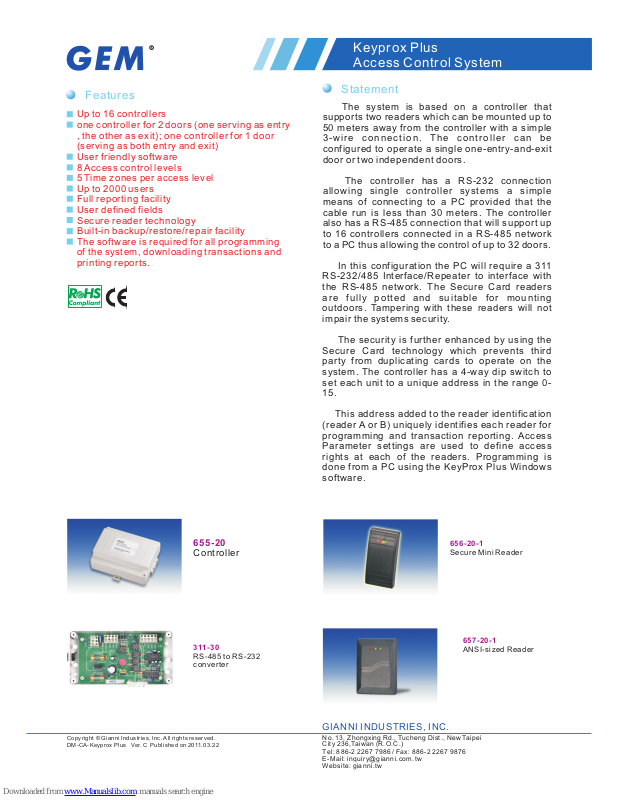

Page 1
Statement
Features
Keyprox Plus
Access Control System
The system is based on a controller th at
support s two readers which ca n be mounted up to
50 meters away from the controlle r with a simple
3-wir e conne c t ion. T he contr o l ler c a n b e
configu red to operat e a single one-entry-an d-exit
door or two i ndependent doo rs.
Th e control ler h as a R S-232 connec tion
allowin g s in gle contr ol ler syste ms a s imple
means o f connecting to a PC p rovided that the
cable run i s less than 30 meters. The controller
also has a RS -485 c onnection that will suppo rt up
to 16 controllers connected i n a RS-485 network
to a PC thus al lowing the contr ol of up to 32 doors.
In this c onfiguration the PC wil l requi re a 311
RS-232/ 485 Inte rface/Repeater to interface w ith
the RS-485 network. Th e Se cure Card readers
are fu lly pot ted an d sui tab le f or mou nti ng
outdoor s. Tamperin g with these rea ders will not
impair th e systems securi ty.
The securi ty is further en hanced by using the
Secure Card technology whic h preven ts third
party from duplicating cards to operate on the
system. The cont roller ha s a 4-way dip switch to
set eac h unit to a uniqu e address in the range 0-
15.
T his address ad ded to the read er identifica tion
(reader A or B) un iquely identi fies each reader for
program ming and transaction reporting. Access
Paramet er se ttings are used t o def ine access
rights at e ach of the r eaders. Programming is
done from a PC using the KeyProx Plus Windows
softwar e.
65 5-20
Control ler
65 6-2 0-1
Secure Mini Reader
65 7-2 0-1
ANSI-sized Reader
311 -30
RS-485 to RS-232
converter
Up to 16 cont rollers
one contr oller for 2 doors (o ne serving as entr y
, the other a s exit); one contr oller for 1 door
(servin g as both entry and ex it)
User frie ndly software
8 Access con trol levels
5 Time zones p er access level
Up to 2000 us ers
Full repo rting facility
User defi ned fields
Secure re ader technolog y
Built-i n backup/resto re/repair faci lity
The softw are is required fo r all programmin g
of the syst em, downloadin g transactions a nd
printin g reports.
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-Ke yprox P lus Ver. C Pu blish ed on 2011 .03. 22
GIANNI IN DUSTRIES, INC.
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Te l: 886 -2 22 67 798 6 / Fax : 886 -2 226 7 987 6
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
Page 2
Gianni supplies all accessories for access control applicatio n
including maglock, electric bolt lock, electric strike ,exit button,
power supply, prox cards or fobs.
Keyprox Plus
Access Control System
Application
The KeyProx Plus controller has both a RS-232 and a RS-485 interface.
RS-232 interface a simple connection bet wee n t he controller and t he PC in l ess than 30 m ete rs. The dr awi ngs be low show typical
RS-232 connection
AC IN
N L - +
12VDC 0.5A
P.B.
NO NC COM
Two Door System
Door
strike 2
Door strike 1
3
c
o
re
3
c
o
r
e
2
core
2
co
r
e
2
c
o
re
2
c
o
r
e
2 c
o
r
e
2
co
r
e
2
c
o
r
e
RS-232 to PC
Power supply
Exit 2
Exit 1
Door Sw 2
Door Sw 1
Reader B
Reader A
AC IN
N L - +
12VDC 0.5A
P.B.
NO NC COM
Single Door System
Door
strike 1
3 core
2 core
2
c
o
r
e
2
c
ore
3 core
2 core
RS-232 to PC
Reader A
Power sup ply
Exit 1
Door Sw 1
Reader B (i n)
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-Ke yprox P lus Ver. C Pu blish ed on 2011 .03. 22
GIANNI IN DUSTRIES, INC.
655-20
control ler
(Out)
Button
655-20 Controller
Button
Button
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Te l: 886 -2 22 67 798 6 / Fax : 886 -2 226 7 987 6
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
Page 3
The product is warranted against d efe cts in ma ter ial and
workmanship while used in normal service for a period of 1
year fro m t he date of sale t o t he original customer. The GEM
policy i s o ne of continual de vel opm ent and improvement;
therefore GEM reserves th e ri ght to change specifications
without notice.
Gianni supplies all accessories for access control applicatio n
including maglock, electric bolt lock, electric strike ,exit button,
power supply, prox cards or fobs.
Keyprox Plus
Access Control System
RS-485 mus t be us ed wh ere t he distance between the c ont rol ler
and th e PC is greater than 30 meters or fo r in sta lla tio n of
multiple co ntr oll ers . The PC wi ll r equ ire a 311 co nve rte r to
interface between RS-232 a nd RS -48 5. The drawing below
shows a ty pic al c onn ect ion of m ult ipl e co ntr oll ers wit h a 311-3 0
converter.
Multi-Controller System
Warranty
AC IN
N L - +
12VDC 0.5A
P.B.
NO NC COM
Door strike 1
3 core
2 core
2
core
2 c
ore
3 core
2 core
Controller
Address 15
Reader 15 A
Alarm or trigger output
Exit 1
Button
Door Sw 1
Reader 15 B
AC IN
N L - +
12VDC 0.5A
P.B.
NO NC COM
Door strike 1
3 core
2 core
2
core
2
c
ore
3 core
2 core
Controller
Address 0
311: RS- 232/485
interfa ce
Reader 0A
Power supply
Power supply
Alarm or trigger output
Exit 1
Button
Door Sw 1
Reader 0B
T
o
ta
l Cab
l
e Le
ng
th M
ax
. 10
00 m
e
te
rs
Ma
x
i
mum o
f 1
6 Con
t
r
o
ller
s
