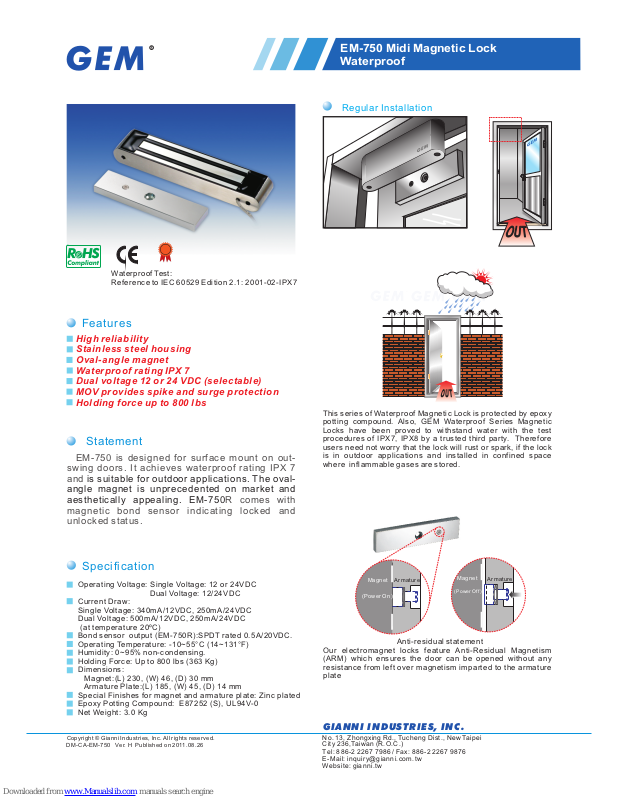

Page 1
Statement
Specification
Regular I nstallation
Wat erp roo f Test:
Reference to IEC 60529 Edition 2.1: 2001-02-IPX7
EM-750 is designed for surface mount on out-
swing doors . It achieves waterpr oof rating IPX 7
and
R comes wit h
magnetic b ond sensor in dicatin g locked an d
unlocke d status.
is suitable for outdoor applications. The ovalangle magnet is unprec edented on market an d
aesthet ically appeali ng. EM-750
Operating Voltage: Single Voltage: 12 or 24VDC
Dual Voltage: 12/24VDC
Current Draw:
Single Voltage: 340mA/12VDC, 250mA/24VDC
Dual Voltage: 500mA/12VDC, 250mA/24VDC
(at temperature 20ºC)
Bond sensor output (EM-750R):SPDT rated 0.5A/20VDC.
Operating Temperature: -10~55°C (14~131°F)
Humidity: 0~95% non-condensing.
Holding Force: Up to 800 lbs (363 Kg)
Dimensions:
Magnet:(L) 230, (W) 46, (D) 30 mm
Armature Plate:(L) 185, (W) 45, (D) 14 mm
Special Finishes for magnet and armature plate: Zinc plated
Epoxy Potting Compound: E87252 (S), UL94V-0
Net Weight: 3.0 Kg
GI ANNI INDUSTRIES , IN C.
Features
High reli ability
Stainle ss steel housing
Oval-an gle magnet
Waterproof rating IPX 7
Dual volt age 12 or 24 VDC (sele ctable)
MOV provi des spike and surg e protection
Holding f orce up to 800 lbs
EM-750 Midi Magnetic Lock
Waterproof
This se rie s of Wa ter pro of Magnetic Loc k is ep oxy
potting compound. Also, GEM Wat erp roo f Se rie s Ma gne tic
Locks have be en pr ove d to wi ths tan d water wi th the test
procedures of IPX 7, IPX8 by a t rus ted third party. Therefore
users need not worry that the loc k wi ll r ust or s par k, i f the lock
is in ou tdo or applications an d installed i n confined sp ace
where inflammable gases are stored.
protected by
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EM -750 Ver. H P ublis hed on 20 11. 08.2 6
Mag net
Arm ature
(Po wer Off )
Mag net
Arm ature
(Po wer On)
Anti-residual statement
Our e lec tro mag net locks f eat ure Anti-Residual Magnetism
(ARM) which ensu res t he door can be ope ned without any
resistance f rom left over mag net ism imparted to t he armature
plate
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Te l: 886 -2 22 67 798 6 / Fax : 886 -2 226 7 987 6
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
Page 2
Optional Brackets
L-bracket for narrow door frames
When < 48 mm ,must
install with "L" brackets.
"A"
L-750
LZ-bracket for inswing doors
LZ-750
Bracket i nstallation is a ccording to door swing
directi on and door frame ty pe , e.g. narrow fra me
door fram eless glass door i nswing door etc.
U-bracket for frameless glass doors
For 10~ 12mm glass t hickness UBK-0 13
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EM -750 Ver. H P ublis hed on 20 11. 08.2 6
EM-750 Midi Magnetic Lock
Waterproof
GI ANNI INDUSTRIES , IN C.
The product i s w arr ant ed ag ain st de fec ts in material and
workmanship while used in normal service for a period of 5
year fro m t he date of sale t o t he original customer. The GEM
policy i s o ne of continual development a nd improvement;
therefore GEM reserves th e ri ght to ch ang e sp eci fic ati ons
without notice.
Warranty
48 mm
Mag net
Arm ature
Doo r Frame
Doo r
Lea f
A
Out swing
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Te l: 886 -2 22 67 798 6 / Fax : 886 -2 226 7 987 6
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
