Page 1
Statement
Features
Specification

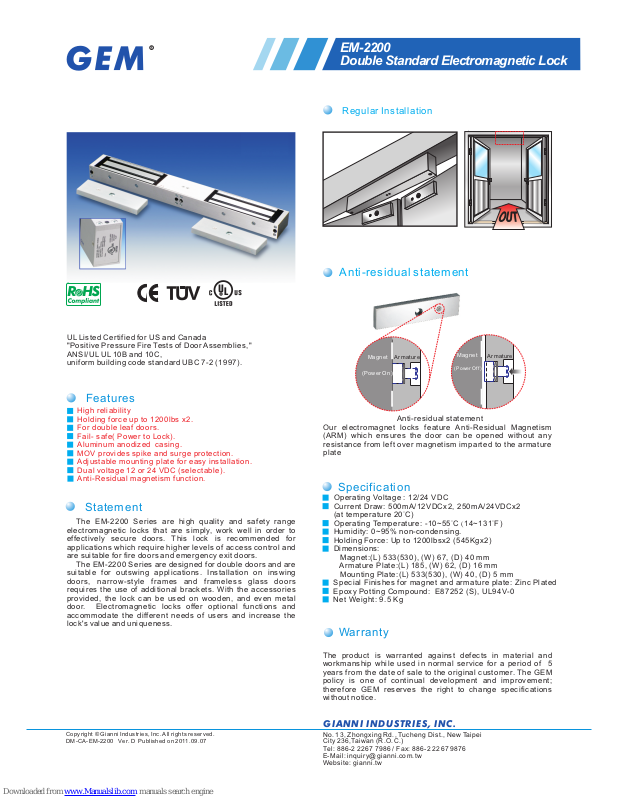

EM-2200
Double Standard Electromagnetic Lock
T he EM -22 00 Se rie s are h igh q ual ity a nd safety r ang e
electromagnetic lo cks th at are simply, work we ll in order to
effectively secure doors. This lock is re com men ded for
applications wh ich req uir e hi ghe r le vel s of access control and
are suitable for fire doors and emergency exit doors.
The EM- 220 0 Se rie s ar e designed for d oub le d oor s an d are
suitable for o uts win g ap pli cat ion s. I nst all ati on o n in swi ng
do or s, narr ow -style f ra mes and f ra me less gl as s doors
requires th e u se of additional bra cke ts. With the accessories
provided, the loc k can be use d on wooden, and eve n metal
door. Electromagnetic l ock s offer opt ion al f unc tio ns a nd
accommodate the different nee ds of us ers and inc rea se the
lock's value and uniqueness.
High reliability
Holding force up to 1200lbs x2.
Fo r do ubl e le af d oor s.
Fail- safe( Power to Lock).
Aluminum anodized casing.
MOV provides spike and surge protection.
Adjustable mounting plate for easy installation.
Dual voltage 12 or 24 VDC (selectable).
Anti-Residual magnetism function.
UL Li ste d Cer tif ied f or US a nd Ca nad a
"Positive Pressure Fire Tests of Door Assemblies,"
ANSI/UL UL 10B and 10C,
uniform building code standard UBC 7-2 (1997).
Operating Voltage : 12/24 VDC
Current Draw: 500mA/12VDCx2, 250mA/24VDCx2
(at temperature 20°C)
Operating Temperature: -10~55°C (14~131°F )
Humidity: 0~95% non-condensing.
Holding Force: Up to 1200lbsx2 (545Kgx2)
Dimensions:
Magnet:(L) 533(530), (W) 67, (D) 40 mm
Armature Plate:(L) 185, (W) 62, (D) 16 mm
Mounting Plate:(L) 533(530), (W) 40, (D) 5 mm
Special Finishes for magnet and armature plate: Zinc Plated
Epoxy Potting Compound: E87252 (S), UL94V-0
Net Weight: 9.5 Kg
GI AN NI INDUSTRI ES, INC.
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EM -2200 Ve r. D Publi shed on 2 011.09 .07
Regular I nstallation
Anti-residual statement
Mag net
Arm ature
(Po wer Off )
Mag net
Arm ature
(Po wer On)
Anti-residual statement
Our e lec tro mag net locks f eat ure A nti -Re sid ual Magnetism
(ARM) which ensu res t he door can be ope ned without any
resistance f rom left over mag net ism imparted to t he armature
plate
The product i s w arr ant ed against d efe cts i n m ate ria l a nd
workmanship while used in normal service for a period of 5
years fro m the date of s ale to the ori gin al customer. The GEM
policy i s o ne of continual de vel opm ent and improvement;
therefore GEM reserves th e ri ght to change specifications
without notice.
Warranty
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Te l: 886 -2 22 67 798 6 / Fax : 886 -2 226 7 987 6
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
Page 2
EM-2200
Double Standard Electromagnetic Lock
GI AN NI INDUSTRI ES, INC.
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EM -2200 Ve r. D Publi shed on 2 011.09 .07
Operating Features
EM-2200MTD: Relock time delay
Ensure a uto mat ic l ock ing af ter the
door is clos ed pro per ly. Relo ck tim e
delay can be adjusted fr om 1 to 80
seconds.
EM-2200MBZ: Buzzer Alarm
Door H eld Open Ala rm is an a udi tory fe edb ack for
users. Th e al arm so unds wh en t he doo r is no t
closed an d that has ex cee ded a s pec ifie d time
limit. V R tim er is ad jus table fro m 1 to 20 secon ds.
EM-2200M: Bond sensor output
Indica te the lock ed & unl ocke d status with vis ibl e
LED indi cat or.
Bond sen sor o utpu t : SPD T rate d: 0. 5A/1 25VAC;1A /24VDC
: Door status EM-2200MDS
Door Sta tus Sensor ind ica tes the doo r
is in an o pen or clos ed stat us.
Door status output : S PDT ra ted: 0.2A /12 VDC
Time r Ad just
Shorten
Tri gger
Optional Brackets
With L-bracket for narrow frame doors
When < 60 mm ,must
installed with "L" brackets.
"A"
L-500
LZ-bracket for inswing doors
LZ-500N
Bracket i nstallation is a ccording to door s wing
directi on and door frame ty pe , e.g. narrow fra me
door , fram eless glass door , i nswing door , etc.
60 mm
Mag net
Arm ature
Doo r Frame
Doo r
Lea f
A
Out swing
In- Swing ing
Fra me
Doo r
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Te l: 886 -2 22 67 798 6 / Fax : 886 -2 226 7 987 6
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
