Gianni Industries GEM EM-1200 Series, GEM EM-1200M, GEM EM-1200MBZ, GEM EM-1200MDS, GEM EM-1200MTD Specification

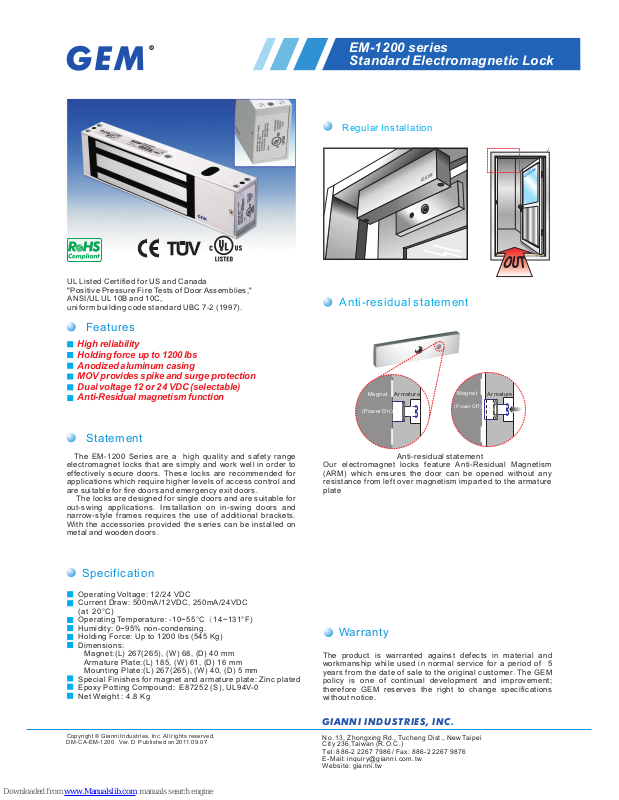

EM-1200 series
Standard Electromagnetic Lock
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EM -1200 Ve r. D Publi shed on 2 011.09 .0 7
GI ANNI I N DUST RIES , INC.
Features
High reliability
Holding force up to 1200 lbs
Anodized aluminum casing
MOV provides spike and surge protection
Dual voltage 12 or 24 VDC (selectable)
Anti-Residual magnetism function
Statement
Specification
Oper at ing Vol ta ge : 12/2 4 V DC
Curr en t Draw : 5 00 mA/12 VD C, 250 mA /24VDC
(at 2 0° C )
Oper at ing Temperat ur e: -10 ~5 5°C (14~1 31 °F)
Humi di ty: 0~ 95 % n on-co nd ensin g.
Hold in g Forc e: Up to 120 0 l bs (54 5 K g)
Dime ns ions:
Magn et :(L) 2 67 (2 65), ( W) 68, (D ) 4 0 m m
Armat ur e Plat e: (L ) 185, (W ) 61, ( D) 16 mm
Moun ti ng Pla te :( L) 267 (2 65), ( W) 40, (D) 5 mm
Spec ia l Fini sh es for ma gn et and ar mature p la te: Zi nc plated
Epox y P ottin g C om pound : E 87252 (S ), UL94V- 0
Net Wei gh t : 4.8 Kg
Regul ar Installat ion
Anti-residual statement
Mag net
Arm ature
(Po wer Off )
Mag net
Arm ature
(Po wer On)
Anti- re si dual st at ement
Our elec tr omagn et l oc ks f ea ture Anti- Re sidua l Ma gn etism
(ARM ) wh ic h en sures the door can be opene d with ou t an y
resi st ance f rom le ft o ve r ma gn etism impar te d to the armatur e
plat e
The product is wa rr anted ag ainst defects in mat erial an d
work ma nship whi le use d in norma l serv ice for a pe ri od of 5
year s from the da te o f sale to t he ori gi nal cu stome r. T he GEM
poli cy is one of co nt inual devel op me nt and i mp rovemen t;
ther ef ore GEM reserv es the rig ht to cha nge spe ci ficat io ns
with ou t notic e.
Warranty
UL Li st ed Cert if ied for U S an d Ca nada
"Pos it ive Pre ss ur e Fire Tests of D oo r Assembli es ,"
ANSI /U L UL 10 B an d 10C,
unif or m build in g co de stan da rd UBC 7- 2 (1 997).
Th e EM-1200 Ser ie s are a h ig h qua lity and safe ty ra ng e
elec tr omagn et l ocks th at ar e si mply an d wor k we ll in o rder to
effect iv el y secure do ors. These lo ck s are recom me nded for
appl ic ation s w hich r eq uire h ig her le ve ls of a ccess co ntrol an d
are su it able fo r fi re d oors an d em ergen cy e xit doors .
The lock s a re de si gned for si ng le do ors and are suit ab le for
out- sw ing ap plica ti ons. Installa ti on on in -s wing doors and
narr ow -styl e frame s requi re s the use of a dd ition al brac ke ts.
With the a ccess or ies prov ided the series can be in stalled on
meta l an d woode n do ors.
No. 13, Zhongxing Rd., Tuc he ng D is t. , Ne w Taip ei
City 236,Taiwan (R.O.C. )
Te l: 8 86 -2 2 26 7 79 86 / F ax: 8 86 -2 2 26 7 98 76
E-Mail: inquiry@gia nn i. co m. tw
Web si te : gi an ni .t w
EM-1200 series
Standard Electromagnetic Lock
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EM -1200 Ve r. D Publi shed on 2 011.09 .0 7
GI ANNI I N DUST RIES , INC.
Operating Features
EM-1200MTD: Relock time delay
Ensu re a utomati c lo cking a ft er the
door is closed proper ly. Relock time
dela y can be ad juste d from 1 to 80
seco nd s.
EM-1200MBZ: Buzzer Alarm
Door H el d Op en Al ar m is an auditory feedback for
users. The alar m sounds w he n the door is not
closed and that h as exc ee de d a sp ec ified t im e
limit. VR timer is adjust ab le f ro m 1 to 2 0 se co nd s.
EM-1200M: Bond sensor output
Indicate the locked & unl oc ke d stat us wit h visi bl e
LED indicator.
Bond sensor output : SPDT r at ed : 0. 5A /1 25 VAC;1A/24VDC
: Door status EM-1200MDS
Door Status Sensor indicat es the door
is in a n open or clos ed s ta tus.
Door s ta tus out pu t : SP DT r at ed : 0. 2A /1 2V DC
Time r A djust
Shorten
Tri gge r
Optional Brackets
With L -b racke t fo r na rrow fr am e doors
When < 60 mm ,m us t
inst al led wit h "L " br acket s.
"A"
L-500
LZ-b ra cket fo r in sw ing doo rs
LZ-50 0N
Brack et installat ion is acco rding to door sw ing
direc tion and door fr ame type , e. g. narrow fram e
door , fr ameless glas s door , insw ing door , etc.
60 mm
Mag net
Arm ature
Doo r Frame
Doo r
Lea f
A
Out swing
In- Swing ing
Fra me
Doo r
No. 13, Zhongxing Rd., Tuc he ng D is t. , Ne w Taip ei
City 236,Taiwan (R.O.C. )
Te l: 8 86 -2 2 26 7 79 86 / F ax: 8 86 -2 2 26 7 98 76
E-Mail: inquiry@gia nn i. co m. tw
Web si te : gi an ni .t w
