Statement
Dimensions
Vandal Resistant Circuitry
Auto-de tective circui try
Specification
Th e van dal resistant cir cui try m ean s the door po sit ion
sensor can 't be foo led in to projecting t he electric dro pbo lt
un less th e d oo r i s a ct ua ll y c lo se d. Th e r ee d s en so r
au tom ati cally di sco nne cts after the bolt is proje cte d to
enhance security of the lock.
The u niq ue intelligent l ogi c c irc uit in GEM's electric
dropbolts keeps the bolt retracted until the door is properly
closed. Th is feature e nsu res the b olt will not extend if th e door
is improperly aligned.

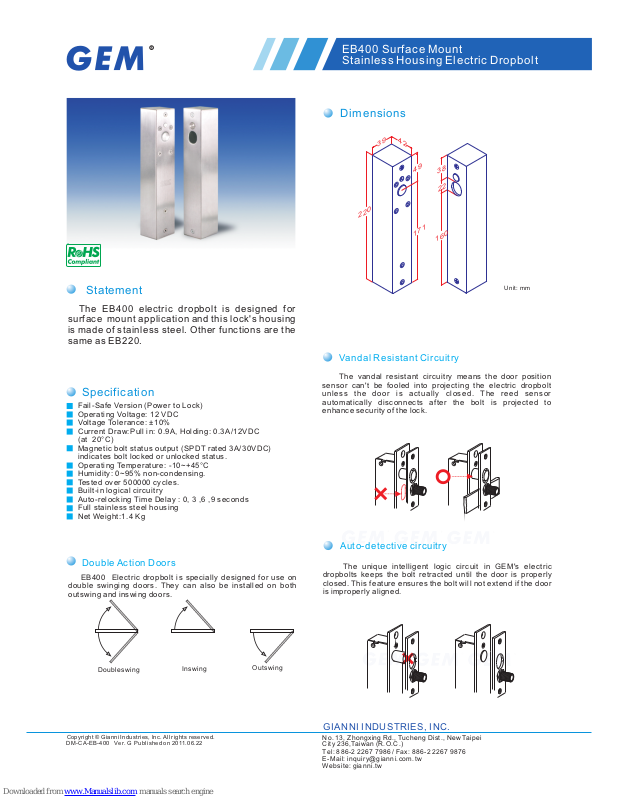

EB400 Surface Mount
Stainless Housing Electric Dropbolt
The EB400 electri c dropbolt is d esigned for
surface mount application and t his lock' s housing
is made of sta inless steel. Other functions are the
same as EB2 20.
Fail-Safe Version (Power to Lock)
Operating Voltage: 12 VDC
Voltage Tolerance: ±10%
Current Draw:Pull in: 0.9A, Holding: 0.3A/12VDC
(at 20°C)
Magnetic bolt status output (SPDT rated 3A/30VDC)
indicates bolt locked or unlocked status.
Operating Temperature: -10~+45°C
Humidity: 0~95% non-condensing.
Tested over 500000 cycles.
Built-in logical circuitry
Auto-relocking Time Delay : 0, 3 ,6 ,9 seconds
Full stainless steel housing
Net Weight:1.4 Kg
Uni t: mm
3
9
22
0
17
1
49
3
8
22
1
60
4
2
Double Act ion Doors
E B40 0 Electric dro pbo lt is spec ial ly de sig ned for use on
double swinging doo rs. Th ey can also be installed on both
outswing and inswing doors.
Double swi ng
Inswin g
Outswi ng
GIANNI IN DUSTRIES, INC.
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EB -400 Ver. G P ublis hed on 20 11.0 6.22
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Te l: 886 -2 22 67 798 6 / Fax : 886 -2 226 7 987 6
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
GEM's el ect ric d rop bol ts can be installed e ith er horizontally
at the top or bot tom of the doo r fr ame or ver tic all y on the si de
of the door frame.
0 seconds 3 seconds 6 seconds 9 seconds
Relock time setting
The do or position sensor ca n detect within a range of
5mm. If the doo r gap is to o wid e, a magn et with in the stri ke
plate of the door can be adjusted to im pro ve detection
accuracy.
45
5 mm maxi
Reed
The product i s w arr ant ed against defects i n m ate ria l a nd
workmanship while used in normal service for a period of 1
year fro m t he date of sale t o t he original customer. The GEM
policy i s o ne of continual de vel opm ent and imp rov eme nt;
therefore GEM reserves th e ri ght to change specifications
without notice.
Warranty
Horizon tal or vertical in stallation Long life s olenoids
Adjusta ble Sensor
The s pec ial desi gne d solenoid aim s f or strength an d l ong
life. The solenoid is guaranteed 500,000 times of operations.
Pull in
Holding
Current Draw (mA)
Tim e (se con ds)
Wiring cable
Header
Door
Blind Nut
EB-400
Energy Sa ving Design
After the dro pbo lt is completely lo cke d, the current draw
changes from 0.9A to 0.3A to prolong its life.
Adj ust abl e Ti me Del ay of 0,3,6,9 seconds with 2 way DIP
switch. (Default Value: 0 sec.)
Relock Time Delay
GIANNI IN DUSTRIES, INC.
EB400 Surface Mount
Stainless Housing Electric Dropbolt
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EB -400 Ver. G P ublis hed on 20 11.0 6.22
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Te l: 886 -2 22 67 798 6 / Fax : 886 -2 226 7 987 6
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
