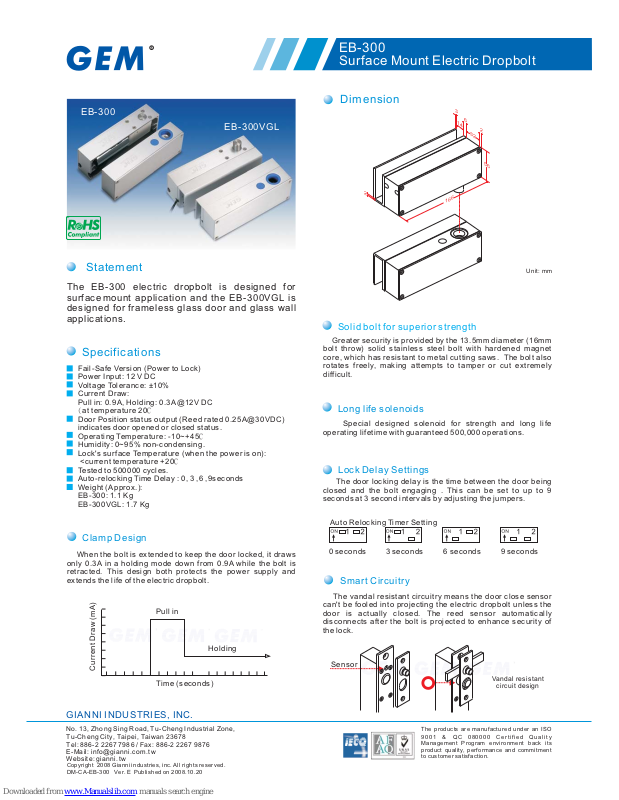

Page 1
Statement
Dimension
Specifications
GIANNI INDUSTRIES, INC.
Copyright 2008 Gianniindustries, inc. All rightsreserved.
DM-CA-EB-300 Ver.E Published on 2008.10.20
The products are manufactured under an ISO
9001 QC 080000 Certified Quality
Management Program environment back its
product quality, performance and commitment
to customersatisfaction.
&
Unit: mm

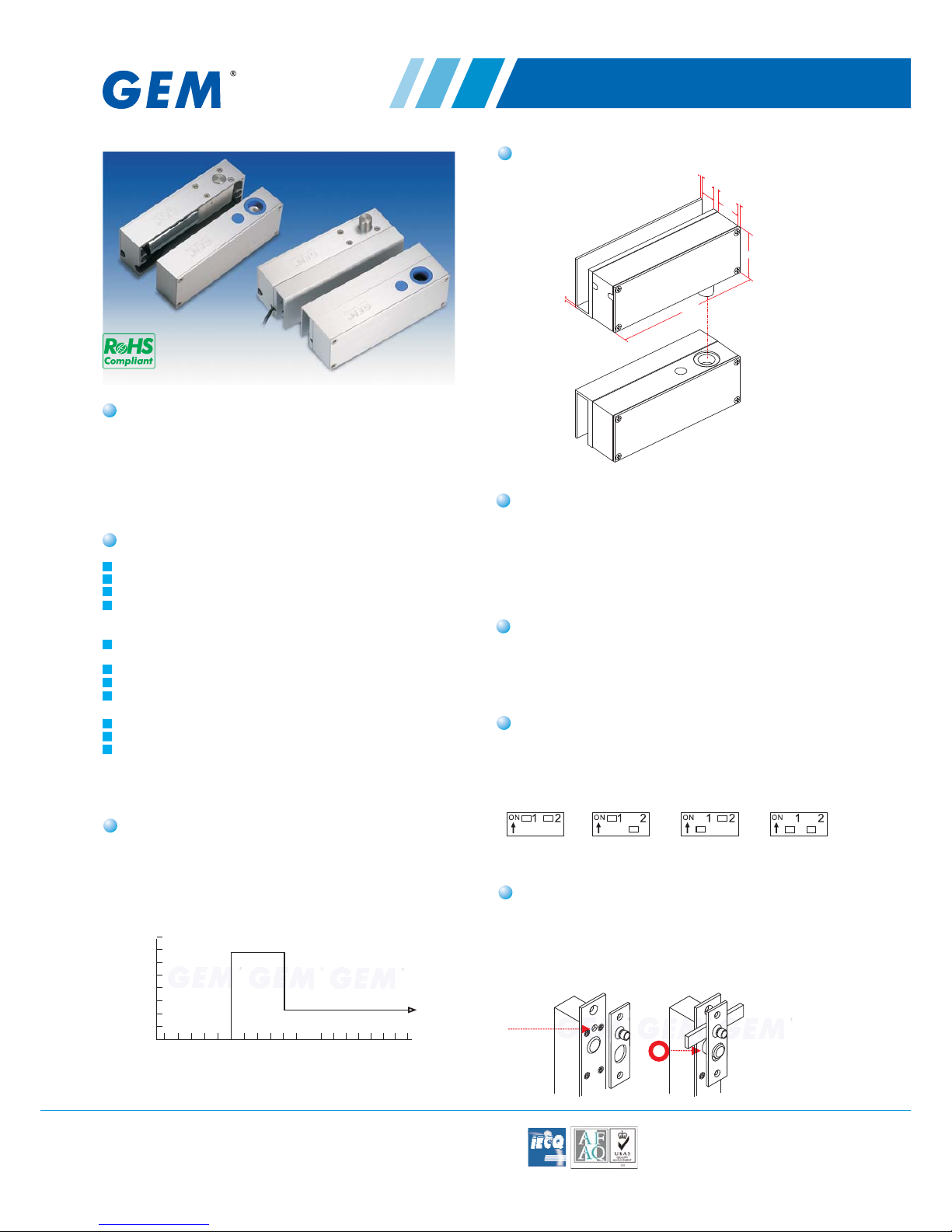

EB-300
Surface Mount Electric Dropbolt
EB-300
EB-300VGL
Fail-Safe Version (Power to Lock)
Power Input: 12 V DC
Voltage Tolerance: ±10%
Current Draw:
Pull in: 0.9A, Holding: 0.3A@12V DC
at temperature 20
Door Position status output (Reed rated 0.25A@30VDC)
indicates door opened or closed status.
Operating Temperature: -10~+45
Humidity: 0~95% non-condensing.
Lock's surface Temperature (when the power is on):
<current temperature +20
Tested to 500000 cycles.
Auto-relocking Time Delay : 0, 3 ,6 ,9seconds
Weight (Approx.):
EB-300: 1.1 Kg
EB-300VGL: 1.7 Kg
(C
C
C
32
14
3
6
2
56
166
2
The EB-300 electric dropbolt is designed for
surfacemount application and the EB-300VGL is
designed for frameless glass door and glass wall
applications.
Special designed solenoid for strength and long life
operating lifetime with guaranteed 500,000 operations.
Long life solenoids
Solid bolt for superior strength
Greater security is provided by the 13.5mm diameter (
solid stainless steel bolt with hardened magnet
core, which has resistant to metal cutting saws. The bolt also
rotates freely, making attempts to tamper or cut extremely
difficult.
16mm
bolt throw)
The door locking delay is the time between the door being
closed and the bolt engaging . This can be set to up to 9
seconds at 3 second intervals by adjusting the jumpers.
Lock Delay Settings
0 seconds 3 seconds 6 seconds 9 seconds
Auto Relocking Timer Setting
Clamp Design
When the bolt is extended to keep the door locked, it draws
only 0.3A in a holding mode down from 0.9A while the bolt is
retracted. This design both protects the power supply and
extends the life of the electric dropbolt.
Pull in
Holding
Current Draw (mA)
Time (seconds)
Smart Circuitry
The vandal resistant circuitry means the door close sensor
can't be fooled into projecting the electric dropbolt unless the
door is actually closed. The reed sensor automatically
disconnects after the bolt is projected to enhance security of
the lock.
Sensor
Vandal resistant
circuit design
No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
Page 2
GIANNI INDUSTRIES, INC.
The products are manufactured under an ISO
9001 QC 080000 Certified Quality
Management Program environment back its
product quality, performance and commitment
to customersatisfaction.
&
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Warranty
EB-300
Surface Mount Electric Dropbolt

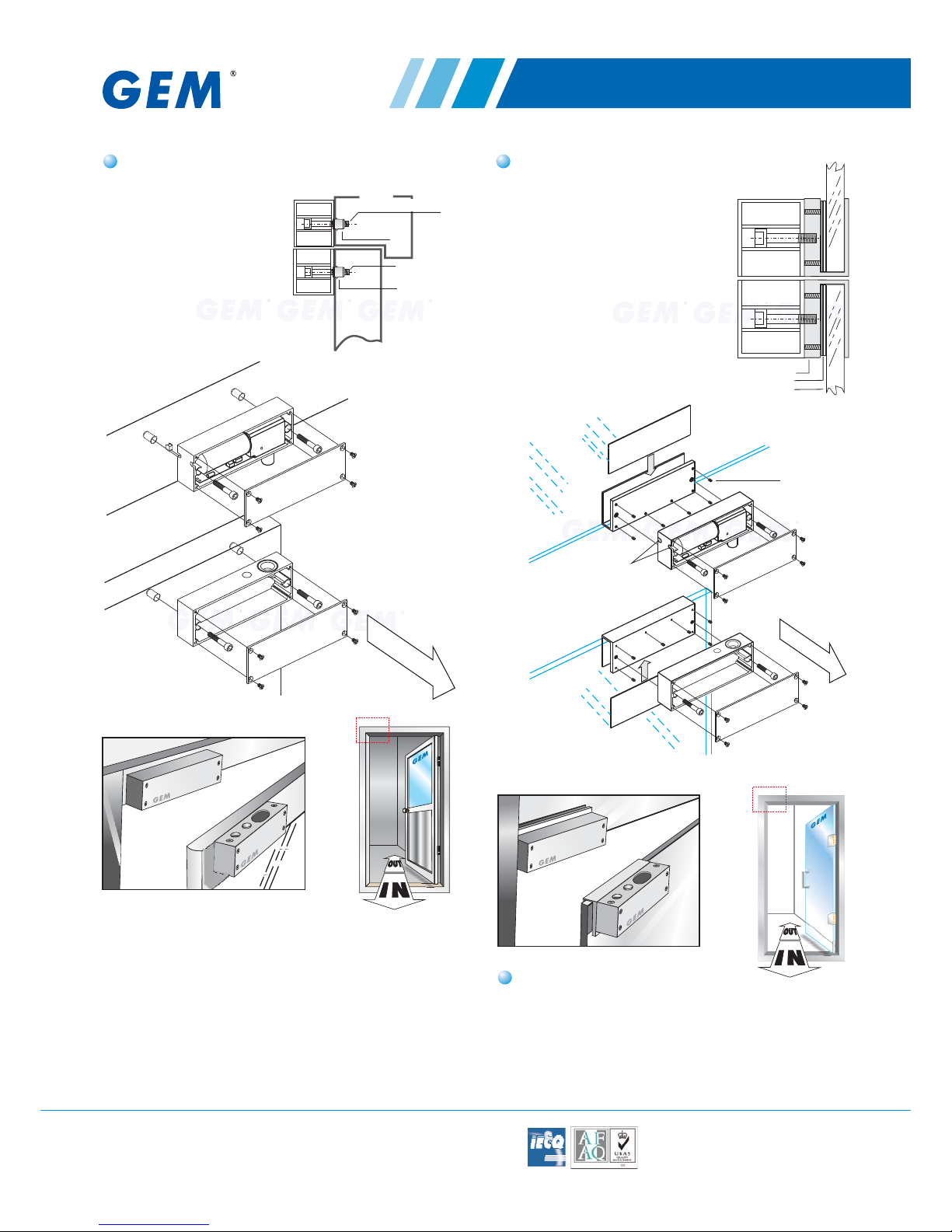

Surface Mount for Narrow Frame
For Full Frameless Glass doors
The EB-300 dropbolt and
strike plate with complete
housings are specially
designed for narrow door
frames.
M6 x45Screw
Blind Nut
Blind Nut
Lock Body
Strike Body
Door
Header
M6 x45Screw
Cable Access Holes
Thethicknessofglass
is 14 mm maximum.
Frameless
Glass Door
Frameless
Glass Wall
Spacer
Spacer
Sunken screw
In-swinging
Blind Nut
Door
Header
In-swinging
The EB-300VGL Dropbolt and
strike plate with complete housings
and u-bracketsare specially
designed for full frameless glass
doors/wall. The thickness of glass
are 14 mm maximum.
Dropbolt
Assembly
Strike plate
Assembly
Frameless GlassDoor
Spacer
U-channel Bracket
Copyright 2008 Gianniindustries, inc. All rightsreserved.
DM-CA-EB-262 Ver.E Published on 2008.10.20
No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: [email protected]
Website: gianni.tw
