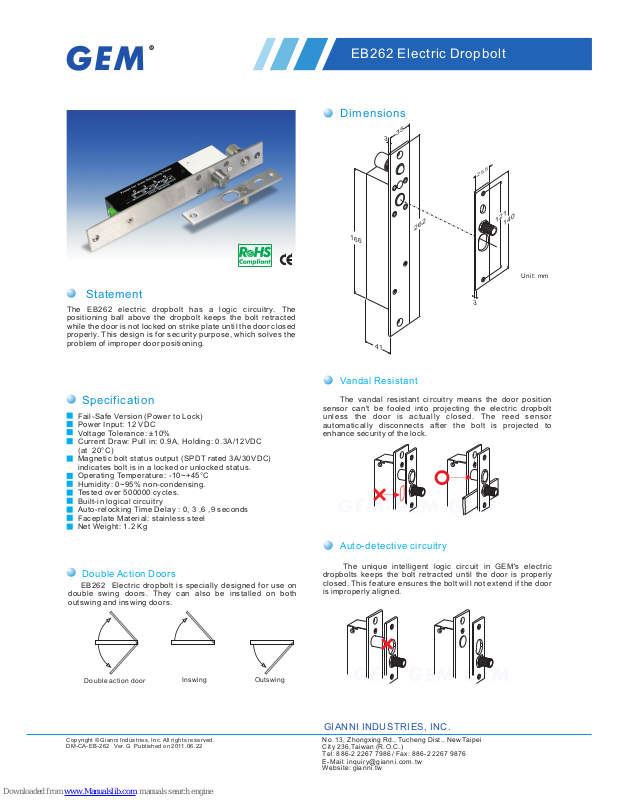

Page 1
Statement
Dimensions
Vandal Resistant
Auto-de tective circui try
Specification
Double Act ion Doors
EB262 Electric Dropbolt
E B26 2 Electric dro pbo lt is spec ial ly de sig ned for use on
double swing doors. T hey ca n al so b e in sta lle d on bo th
outswing and inswing doors.
Double a cti on doo r
Inswin g
Outswi ng
Th e van dal resistant cir cui try m ean s the do or po sit ion
sensor can 't be foo led in to projecting t he electric dro pbo lt
un less t he do or i s a ct ua ll y cl os ed . T he reed s en so r
au tom ati cally disconne cts af ter th e bolt is projecte d to
enhance security of the lock.
T he unique in tel lig ent logic circuit i n GEM's e lec tri c
dropbolts keeps the bolt retracted until the door is properly
closed. Th is feature e nsu res the b olt will not extend if th e door
is improperly aligned.
3
3
4
1
16
6
35
26
2
14
0
1
2
1
2
5.5
Unit: mm
Fail-Safe Version (Power to Lock)
Power Input: 12 VDC
Voltage Tolerance: ±10%
Current Draw: Pull in: 0.9A, Holding: 0.3A/12VDC
(at 20°C)
Magnetic bolt status output (SPDT rated 3A/30VDC)
indicates bolt is in a locked or unlocked status.
Operating Temperature: -10~+45°C
Humidity: 0~95% non-condensing.
Tested over 500000 cycles.
Built-in logical circuitry
Auto-relocking Time Delay : 0, 3 ,6 ,9 seconds
Faceplate Material: stainless steel
Net Weight: 1.2 Kg
Th e EB26 2 elec tri c d ropbolt has a l ogic c ircui try. The
positioning ba ll abo ve the dr opb olt ke eps the bolt retracted
while the do or is n ot lo cke d on st rik e plate until the door closed
properly. T his des ign is for security purpose, which solves the
problem of improper door positioning.
GIANNI IN DUSTRIES, INC.
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EB -262 Ver. G P ublis hed on 20 11.0 6.22
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Tel: 886 -2 22 67 798 6 / Fax : 886-2 226 7 9876
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
Page 2
GEM's el ect ric d rop bol ts can be installed e ith er horizontally
at the top or bot tom of the doo r fr ame or ver tic all y on the si de
of the door frame.
Fig. A Horizontal Installation (Frame Header)
Fig. B Vertical Installation (Side Jamb)
0 seconds 3 seconds 6 seconds 9 seconds
Relock time setting
The do or position sensor ca n detect within a range of
5mm. If the doo r gap is to o wid e, a magn et with in the stri ke
plate of the door can be adju ste d t o i mpr ove d ete cti on
accuracy.
45
5 mm maxi
Reed
The b rac ket s UB K-2 62 a re c omp ati ble wit h frameless glass
doors(Fig. C).
Fig. C
UBK-262 Bracke t
For 10 or 12 m m thi ckne ss of g lass
The product i s w arr ant ed against d efe cts in material and
workmanship while used in normal service for a period of 1
year fro m t he date of sale t o t he original customer. The GEM
policy i s o ne of continual de vel opm ent and i mpr ove men t;
therefore GEM reserves th e ri ght to change specifications
without notice.
Warranty
Horizontal or vertical installation
Long life solenoids
Adjustable Sensor
Positioning Ball
Optional Accessory
The s pec ial desi gne d solenoid aim s f or strength an d l ong
life. The solenoid is guaranteed 500,000 times of operations.
Pull in
Holding
Current Draw (mA)
Tim e (se con ds)
Positioning Bal l is ins tal led to prev ent the cha nce of
locking dama ge caused by the imp rop er door pos iti oni ng. It
also helps the doo r al ign with the drop bolt an d reduce the
automatic relock time of dropbolt when the door is closed.
Adj ust abl e Ti me Del ay of 0,3,6,9 seconds with 2 wa y D IP
switch. (Default Value: 0 sec.)
Relock Time Delay
Energy Saving Design
After the dro pbo lt is completely lo cke d, the current draw
changes from 0.9A to 0.3A to prolong its life.
GIANNI IN DUSTRIES, INC.
EB262 Electric Dropbolt
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EB -262 Ver. G P ublis hed on 20 11.0 6.22
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Tel: 886 -2 22 67 798 6 / Fax : 886-2 226 7 9876
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
