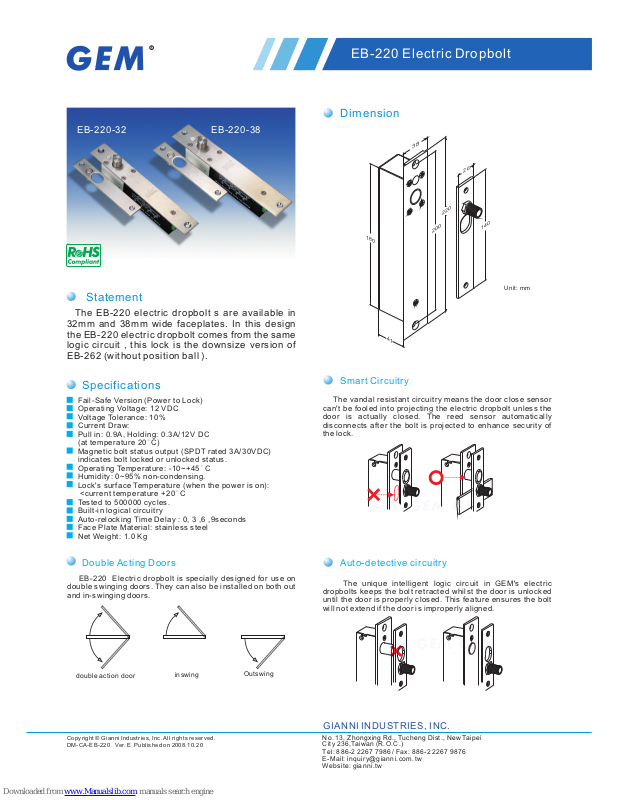

Statement
Dimension
Specifications
Double Act ing Doors
EB-220 Electric Dropbolt
EB-220- 32 EB-220- 38
Fail-Safe Version (Power to Lock)
Operating Voltage: 12 VDC
Voltage Tolerance: 10%
Current Draw:
Pull in: 0.9A, Holding: 0.3A/12V DC
(at temperature 20° C)
Magnetic bolt status output (SPDT rated 3A/30VDC)
indicates bolt locked or unlocked status.
Operating Temperature: -10~+45°C
Humidity: 0~95% non-condensing.
Lock's surface Temperature (when the power is on):
<current temperature +20° C
Tested to 500000 cycles.
Built-in logical circuitry
Auto-relocking Time Delay : 0, 3 ,6 ,9seconds
Face Plate Material: stainless steel
Net Weight: 1.0 Kg
double a cti on doo r
inswin g
Outswi ng
38
20
0
2
2
0
180
4
1
26
14
0
Uni t: mm
Th e EB-220 electric drop bolt s are available in
32mm and 38mm wid e facepla tes. In this design
the EB-220 electri c dropbolt comes from the same
logic circuit , this lock is the downsize v ersion of
EB-262 (w ithout positio n ball ).
Smart Cir cuitry
The van dal resistant circuitry me ans the door c los e se nso r
can't be foo led into p roj ect ing the el ect ric dropbolt unl ess the
do or is actu all y clo sed. The r eed s ens or au tomatica lly
disconnects af ter the bolt is pro jec ted to enhance s ecu rit y o f
the lock.
Auto-de tective circui try
The unique intelligent logic circuit in G EM' s e lec tri c
dropbolts keeps th e b olt retracted whilst t he doo r is unlocked
until the doo r is properly closed. This f eat ure ens ure s th e bolt
will not extend if the door is improperly aligned.
EB- 220 Ele ctr ic dro pbo lt is specially designed for use on
double swinging doors. T hey can als o be ins tal led on both out
and in-swinging doors.
GIANNI IN DUSTRIES, INC.
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-EB -220 Ver. E P ublis hed on 20 08.10 .20
No. 13, Zh ong xing R d., Tu cheng Dis t., New Taipe i
City 236 ,Taiw an (R. O.C .)
Te l: 886 -2 22 67 798 6 / Fax : 886 -2 226 7 987 6
E-Mail : inq uiry @gi anni.co m.tw
Web sit e: gianni .tw
0 seconds 3 seconds 6 seconds 9 seconds
Relock time setting
45
5 mm maxi
Reed
Th e brackets UB K-2 62 a re compatible with frame les s
glasses doors(Fig. C).
Fig. C
UBK-262 Bracke t
For 10 or 12 m m thi ckne ss of g lass
EB-220 Electric Dropbolt
The product is warranted against defects in ma ter ial a nd
workmanship while used in normal service for a period of 1
year fro m t he date of sale t o t he original customer. The GEM
policy i s o ne of c ont inu al de vel opm ent a nd im pro vem ent ;
therefore GEM reserves the right to cha nge sp eci fic ati ons
without notice.
Warranty
Horizontal or vertical installation Long life solenoids
Adjustable Sensor
Optional Accessory
Spe cia l d esi gne d sol eno id fo r s tre ngt h a nd lo ng li fe
operating lifetime with guaranteed 500,000 operatio ns.
Pull in
Holding
Current Draw (mA)
Tim e (se con ds)
Fig. A Horizontal Installation (Frame Header)
Fig. B Vertical Installation (Side Jamb)
GEM's el ect ric d rop bol ts can be installed e ith er horizontally
at the top or bot tom of the doo r fr ame or ver tic all y on the si de
of the door frame.
The door cl ose sen sor can wor k up to a ran ge o f 5m m. If
there is a wide door gap , a sensor mag net wi thi n the strike
plate of the door can be adjusted to improve sensor accuracy.
Energy Saving Design
After t he dropbolt is com ple tel y loc ked , t he cu rre nt draw
changes from 0.9A into 0.3A to prolong its lifetime.
Adj ust abl e Ti me Del ay of 0,3,6,9 seconds with 2 wa y D IP
switch. (Default Value: 0 sec.)
Relock Tim e Delay
