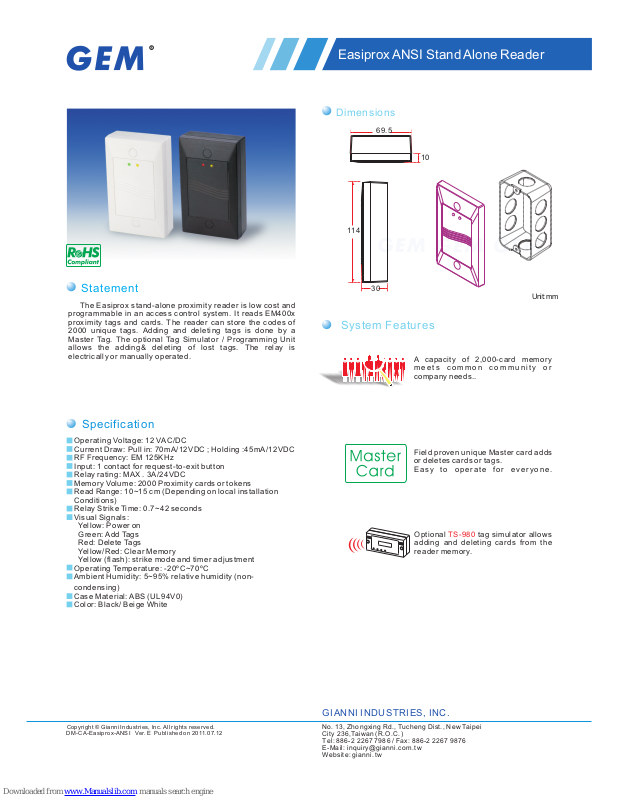

Page 1
The Easiprox st an d- al on e p roximity reade r i s l ow co st and
progra mm ab le i n an a cc es s co nt ro l sy stem. It r eads EM400x
proxim it y tags and c ar ds . The r ea der c an store the codes of
2000 unique tags . Adding and deleting tags is do ne by a
Master Tag. The opt io na l Tag Simulator / Pro gr amming U ni t
allows the adding& deleting of lost tags. The re lay i s
electr ic al ly o r ma nually operat ed .
Unit: mm
30
114
10
69.5
Statement
Dimensions
Easiprox ANSI Stand Alone Reader
System Features
A capaci ty of 2, 000-car d mem or y
m e e t s c om m o n c o m m u n it y o r
compan y ne ed s. .
Field pr ov en u nique Mas te r ca rd a dds
or delet es c ar ds o r ta gs.
E a s y t o o p e ra t e f o r e ve ry o ne .
Option al t ag si mulator al lo ws
adding a nd d el eting cards fro m th e
reader m em or y.
TS-980
GIANNI INDUSTRIES, INC.
Cop yrigh t © Giann i Indus tries , Inc. All r ights r eserv ed.
DM- CA-Ea sipro x-ANS I Ver. E Publ ished o n 2011.0 7. 12
Operat in g Vol ta ge : 12 VAC/ DC
Curren t Dr aw : Pu ll i n: 70mA/12VDC ; H ol di ng : 45 mA/12VDC
RF Frequ en cy : EM 1 25 KHz
Input: 1 c on ta ct f or r equest-to-e xi t bu tt on
Relay ra ti ng : MA X . 3A /24VDC
Memory Vo lu me : 20 00 Proximity card s or t ok en s
Read Ran ge : 10 ~1 5 cm (Depending on lo ca l in st al lation
Condit io ns )
Relay St ri ke Ti me : 0. 7~42 seconds
Visual Signals :
Yellow : Po we r on
Green: Ad d Tags
Red: Del et e Tags
Yellow /R ed : Cl ea r Memory
Yellow ( fl as h) : st rike mode and timer a dj us tm en t
Operat in g Temper at ur e: - 20 ºC~70ºC
Ambien t Hu mi di ty : 5~95% relativ e hu mi di ty ( non-
conden si ng )
Case Mat er ia l: AB S (U L94V0)
Color: B la ck / Be ig e White
Specification
No. 13, Zho ng xi ng R d., Tuch en g Di st ., New Taip ei
City 236, Taiw an ( R. O.C.)
Te l: 8 86- 2 22 67 7 98 6 / Fa x: 88 6- 2 22 67 9 87 6
E-Mail: i nq ui ry @gian ni .c om .tw
Web si te : gi anni. tw
Page 2
Easiprox ANSI Stand Alone Reader
The TS -9 80 Tag Simul at or allows an d removing an y card/ ta g
number from the reader mem or y when the tag is lost o r not
availa bl e. One un it ca n be ut il iz ed at differe nt si tes but for
securi ty re as ons it wi ll op er ate only in co nj unction wi th th e
Master C ar d.
Optional AccessoryEasy Programming
The pr od uc t is wa rr an ted again st d efects in m aterial a nd
workma ns hi p whil e used in norma l s er vi ce for a peri od of 1
year f ro m the d at e of sa le to the or ig in al customer. The GE M
policy is on e of co nt inual d ev el op ment an d improveme nt ;
theref or e G EM reserves t he ri ght to ch an ge specifica ti on s
withou t no ti ce .
Warranty
TS-980 simulator
Dimens io n : 12 0 L x 54 W x 38 H mm
Weight : 180 g
Operat in g di st an ce : less than 3 cm
Batter y : PP 3 - 9V
Operat in g di st an ce
less tha n 3 cm
1.Gree n LE D fl as h
Read the M as te r Ca rd o nce
ADD mode
1
Read the M as te r ca rd t wice
Delete m od e
2
Read the M as te r ca rd t hree times
Clear mo de
3
Read the M as te r ca rd f our times
Relay St ri ke Ti me
4
2.Read n ew c ar ds ,F or setting
3.Read m as te r ca rd a gain , back to stan db y mo de .
1.Red LE D fl as h
2.Dele te s et ti ng o f cards
3.Read m as te r ca rd a gain ,back to sta nd by m od e.
1.Yell ow a nd Red LED flash
2.Read a ny c ar d (E xc ept master card )
3.Yell ow a nd Green LED flas h me mo ry o f al l cards
(inclu de d ma st er c ard are clear)
1.Each f la sh i nd ic ates the openin g ti me i s 0. 7 se cond.
2.The lo ng es t op en ing time is 42 seco nd s
