Unit: mm
3
8
8
2
11
6
2
1
3
4
5
6
7
8
9
0
#
*
Operating Voltage: 9~12 VAC/DC
Current Draw: 15~60mA/12VDC
Input: request-to-exit, time out reed switch contact
Output: Dual relays, N.O./N.C./Com. Output (free voltage
contact)
Relays Electric Current: 2A /30VDC, 0.4A/120VAC
Relay Activation Time: （＊100、＊200）
Strike Time: 1~99 seconds
Strike mode: Access Timer or Latch
Memory Volume: 49+50 PIN codes
Relay 1 is controlled by user 00 1~ 04 9
Relay 2 is controlled by user 050~099
PIN codes: 5 digit codes only
Operating Temperature: -20~+70°C
Ambient Humidity: 5~95% relative humidity non-condensing
Factory Master Code: 12345
Invalid PIN Lock-out: The system will shut down for 60
seconds while 32 codes of incorrectly Master Codes
enrolled or PIN codes attempted(None beeper signal of
keypad activations)
Weight (Approx): 240g
Color: Beige White
Touch Panel Keypad
Allows up to 4 9+50 PIN codes
Dual relays output for multi-control
Additional I nput for Anti-Tailgating
3 LED display with audible indication
Non-Volatile Me mory & I nvalid PIN Lock-out
Metal casing with vandal resistant scre ws
Fully Programmable via keypad
The DK-502 is a dual relay digital code-operated for access
control keypad with up to 49+50 individual user PINs,to
ensure t ha t al l fu nc ti on s controlled to authorized pe rs on s on ly.
The door reed switch Input is used to time out the timer when
door is moved for Anti-Tailgating.
Logical memory can prevents unauthorized persons from
gaining PIN code entry by trial and error, The system will shut
down for 60 seconds while 32 codes of incorrectly Master
Codes enrolled or PIN codes attempted（None beeper signal
of keypad activations）.Metal die casting housing with vandal
resistant screws to seize every security measures of the unit;
an elegant contour dedicated with fashion coating which leads
DK-502 for matching up-to-dated door stile for compensable
application to the worldwide trend. The DK-502 is highly
reliable, warranted for life and capable of providing the best
read range in its class.
The touch panel keypad is a
new generation version of keypad with twelve sense buttons.
It offers a key beep function with back light in order to provide
its users with ease of use in the dark.
Copyright Gianni industries, inc. All rights reserved.
DM-CA-DK-502 Ver.E Published on 2008.08.04
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
Features
Dimension
Warranty
Statement

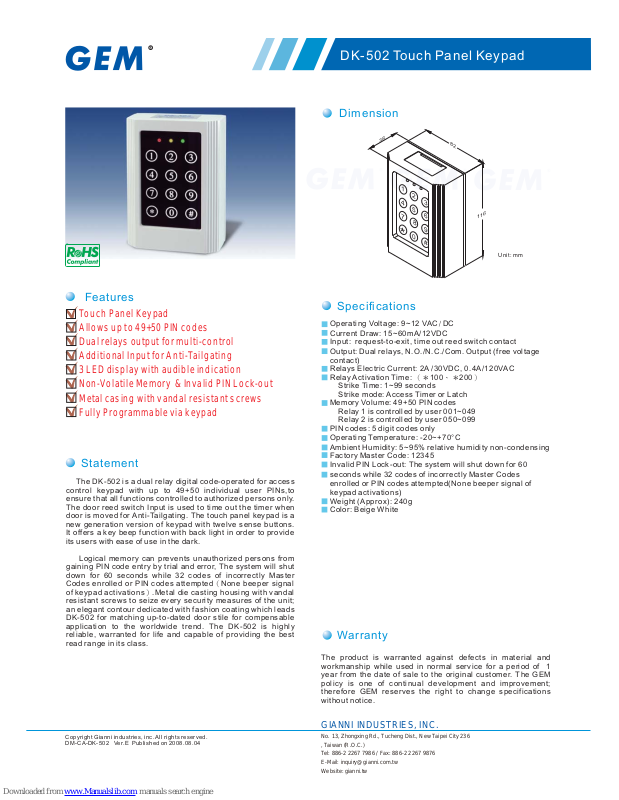

DK-502 Touch Panel Keypad
Specifications
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei City 236
, Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
GIANNI INDUSTRIES, INC.
