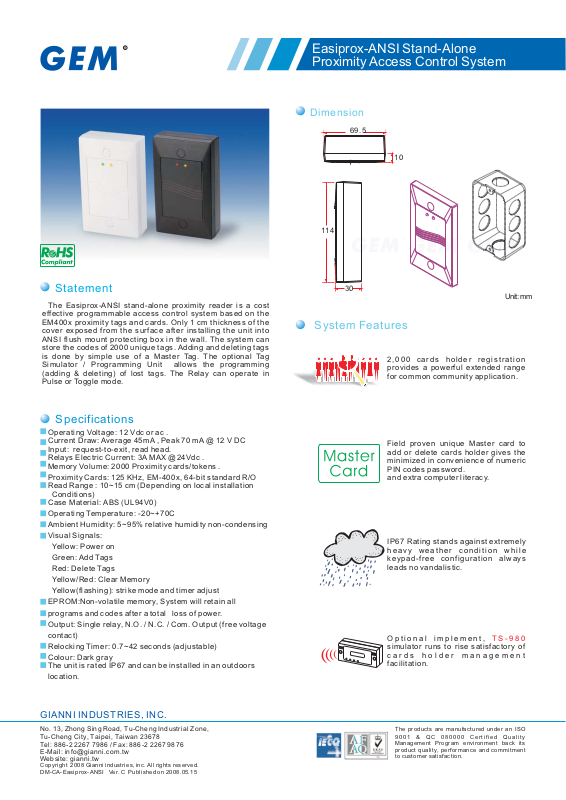

Gianni Proximity Access Control System User Manual
Easiprox-ANSI Stand-Alone
Proximity Access Control System
Dimension
69.5
10
114
Statement
The Easiprox-ANSI stand-alone proximity reader is a cost
effective programmable access control system based on the
EM400x proximity tags and cards. Only 1 cm thickness of the
cover exposed from the surface after installing the unit into
ANSI flush mount protecting box in the wall. The system can
store the codes of 2000 unique tags. Adding and deleting tags
is done by simple use of a Master Tag. The optional Tag
Simulator / Programming Unit allows the programming
(adding & deleting) of lost tags. The Relay can operate in
Pulse or Toggle mode.
Specifications
Operating Voltage: 12 Vdc or ac .
Current Draw: Average 45mA, Peak 70 mA @ 12 V DC
Input: request-to-exit, read head.
Relays Electric Current: 3A MAX @24Vdc .
Memory Volume: 2000 Proximity cards/tokens .
Proximity Cards: 125 KHz, EM-400x, 64-bit standard R/O
Read Range : 10~15 cm (Depending on local installation
Conditions)
Case Material: ABS (UL94V0)
Operating Temperature: -20~+70C
Ambient Humidity: 5~95% relative humidity non-condensing
Visual Signals:
Yellow: Power on
Green: Add Tags
Red: Delete Tags
Yellow/Red: Clear Memory
Yellow(flashing): strike mode and timer adjust
EPROM:Non-volatile memory, System will retain all
programs and codes after a total loss of power.
Output: Single relay, N.O. / N.C. / Com. Output (free voltage
contact)
Relocking Timer: 0.7~42 seconds (adjustable)
Colour: Dark gray
The unit is rated IP67 and can be installed in an outdoors
location.
30
System Features
2,000 cards holder registration
provides a powerful extended range
for common community application.
Field proven unique Master card to
add or delete cards holder gives the
minimized in convenience of numeric
PIN codes password.
and extra computer literacy.
IP67 Rating stands against extremely
heavy weather condition while
keypad-free configuration always
leads no vandalistic.
Optional implement,
simulator runs to rise satisfactory of
cards holder management
facilitation.
Unit: mm
TS-980
GIANNI INDUSTRIES, INC.
No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: info@gianni.com.tw
Website: gianni.tw
Copyright 2008 Gianni industries, inc.All rights reserved.
DM-CA-Easiprox-ANSI Ver. C Published on 2008.05.15
The products are manufactured under an ISO
9001 QC 080000 Certified Quality
&
Management Program environment back its
product quality, performance and commitment
to customersatisfaction.
Easiprox-ANSI Stand-Alone
Proximity Access Control System
Optional AccessoryEasy Programming
ADD state
Read the Master Tag once
1
Delete Tags
Read the Master Tag twice
2
GREEN lamp to
start flashing
RED lamp to
start flashing
The Tag Simulator is used to add and delete any card/tag
number from the reader memory when the tag is lost or not
available.
TS-980 simulator
Unit size : 120 L x 54Wx38Hmm
Weight : 180 g
Operating distance : less than 60 mm
Battery:PP3-9V
Clear Memory
Read the Master Tag three times
YELLOW and RED
lamps to start flashing
3
Time Adjust and Toggle Mode Selection
Read the Master Tag four times
Wait for the YELLOW
lamp to start flashing
4
Operating distance
less than 6 cm
Warranty
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
