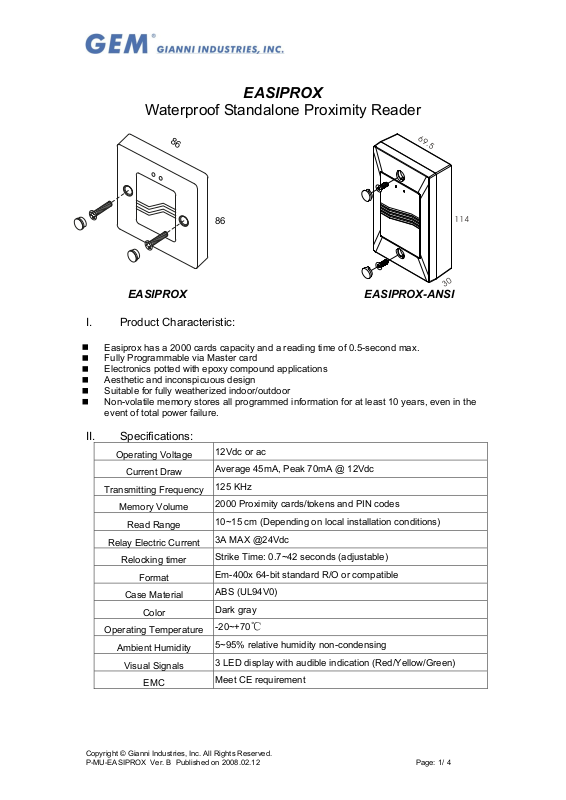

EASIPROX
Waterproof Standalone Proximity Reader
86
86
EASIPROX EASIPROX-ANSI
I. Product Characteristic:
Easiprox has a 2000 cards capacity and a reading time of 0.5-second max.
Fully Programmable via Master card
Electronics potted with epoxy compound applications
Aesthetic and inconspicuous design
Suitable for fully weatherized indoor/outdoor
Non-volatile memory stores all programmed information for at least 10 years, even in the
event of total power failure.
II. Specifications:
Operating Voltage
Current Draw
Transmitting Frequency
Memory Volume
Read Range
Relay Electric Current
Relocking timer
Format
Case Material
Color
Operating Temperature
Ambient Humidity
Visual Signals
EMC
12Vdc or ac
Average 45mA, Peak 70mA @ 12Vdc
125 KHz
2000 Proximity cards/tokens and PIN codes
10~15 cm (Depending on local installation conditions)
3A MAX @24Vdc
Strike Time: 0.7~42 seconds (adjustable)
Em-400x 64-bit standard R/O or compatible
ABS (UL94V0)
Dark gray
-20~+70
5~95% relative humidity non-condensing
3 LED display with audible indication (Red/Yellow/Green)
Meet CE requirement
Copyright © Gianni Industries, Inc. All Rights Reserved.
P-MU-EASIPROX Ver. B Published on 2008.02.12 Page: 1/ 4
III. The indicator signal chart:
Yellow Power on, Stand-by
User Signals
Green Lock relay active
Red Invalid Card
Yellow Green Flashing
Green Flashing Into the ADD CARDS MODE
Programming
Signals
Red Flashing Into the DELETE CARDS MODE
Yellow Red Flashing
Yellow Flashing Into the TIME ADJUST MODE
Green Blinking Clearing Memory
IV. Wiring diagram:
noitidnoC langiS
The memory is empty
Into the CLEAR MEMORY MODE
Po we r Sup p ly
Pu sh Bu tto n
(N .O./ C om .)
El ec tri c St r ike
(F ai l -S ec ure Ty pica l)
El ec tri c magn e t
(Fai l-s af e Ty pical )
Note:
1. The suggested wire gauge is #22~26 AWG.
2. The varistor or diode must be connected across the lock terminal (electromagnet...)
operated by the device. The vartistor controls the overload produced by the strike coil
(EMP).
3. Using a Linear supply power recommended, to prevent power reduction at the card
reader.
Copyright © Gianni Industries, Inc. All Rights Reserved.
P-MU-EASIPROX Ver. B Published on 2008.02.12 Page: 2/ 4
