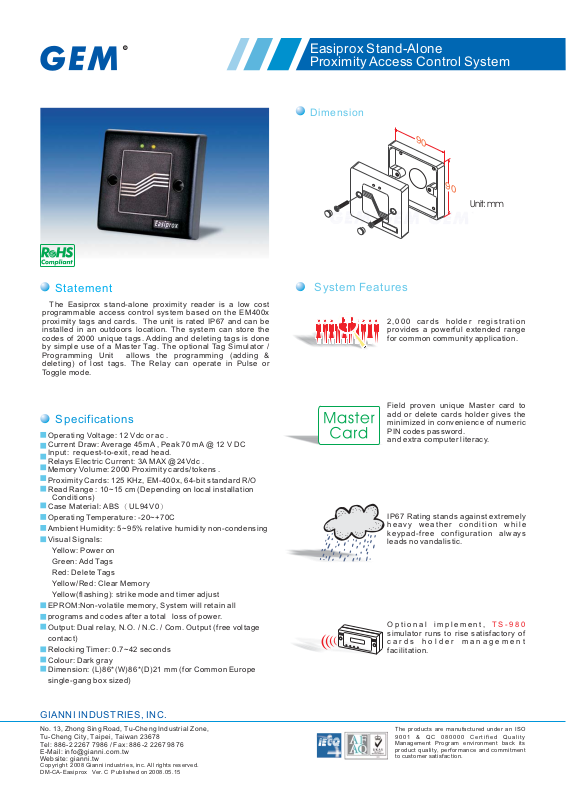

Gianni Easiprox User Manual
Easiprox Stand-Alone
Proximity Access Control System
Dimension
90
90
Unit: mm
Statement
The Easiprox stand-alone proximity reader is a low cost
programmable access control system based on the EM400x
proximity tags and cards. The unit is rated IP67 and can be
installed in an outdoors location. The system can store the
codes of 2000 unique tags. Adding and deleting tags is done
by simple use of a Master Tag. The optional Tag Simulator /
Programming Unit allows the programming (adding &
deleting) of lost tags. The Relay can operate in Pulse or
Toggle mode.
Specifications
Operating Voltage: 12 Vdc or ac .
Current Draw: Average 45mA, Peak 70 mA @ 12 V DC
Input: request-to-exit, read head.
Relays Electric Current: 3A MAX @24Vdc .
Memory Volume: 2000 Proximity cards/tokens .
Proximity Cards: 125 KHz, EM-400x, 64-bit standard R/O
Read Range : 10~15 cm (Depending on local installation
Conditions)
Case Material: ABS UL94V0
Operating Temperature: -20~+70C
Ambient Humidity: 5~95% relative humidity non-condensing
Visual Signals:
Yellow: Power on
Green: Add Tags
Red: Delete Tags
Yellow/Red: Clear Memory
Yellow(flashing): strike mode and timer adjust
EPROM:Non-volatile memory, System will retain all
programs and codes after a total loss of power.
Output: Dual relay, N.O. / N.C. / Com. Output (free voltage
contact)
Relocking Timer: 0.7~42 seconds
Colour: Dark gray
Dimension: (L)86*(W)86*(D)21 mm
single-gang box sized)
（）
(for Common Europe
System Features
2,000 cards holder registration
provides a powerful extended range
for common community application.
Field proven unique Master card to
add or delete cards holder gives the
minimized in convenience of numeric
PIN codes password.
and extra computer literacy.
IP67 Rating stands against extremely
heavy weather condition while
keypad-free configuration always
leads no vandalistic.
Optional implement,
simulator runs to rise satisfactory of
cards holder management
facilitation.
TS-980
GIANNI INDUSTRIES, INC.
No. 13, Zhong Sing Road, Tu-Cheng Industrial Zone,
Tu-Cheng City, Taipei, Taiwan 23678
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: info@gianni.com.tw
Website: gianni.tw
Copyright 2008 Gianni industries, inc.All rights reserved.
DM-CA-Easiprox Ver. C Published on 2008.05.15
The products are manufactured under an ISO
9001 QC 080000 Certified Quality
&
Management Program environment back its
product quality, performance and commitment
to customersatisfaction.
Easiprox Stand-Alone
Proximity Access Control System
Optional AccessoryEasy Programming
ADD state
Read the Master Tag once
1
Delete Tags
Read the Master Tag twice
2
GREEN lamp to
start flashing
RED lamp to
start flashing
The Tag Simulator is used to add and delete any card/tag
number from the reader memory when the tag is lost or not
available.
TS-980 simulator
Unit size : 120 L x 54Wx38Hmm
Weight : 180 g
Operating distance : less than 60 mm
Battery:PP3-9V
Clear Memory
Read the Master Tag three times
lamps to start flashing
3
Time Adjust and Toggle Mode Selection
Read the Master Tag four times
4
YELLOW and RED
Wait for the YELLOW
lamp to start flashing
Operating distance
less than 6 cm
Warranty
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
