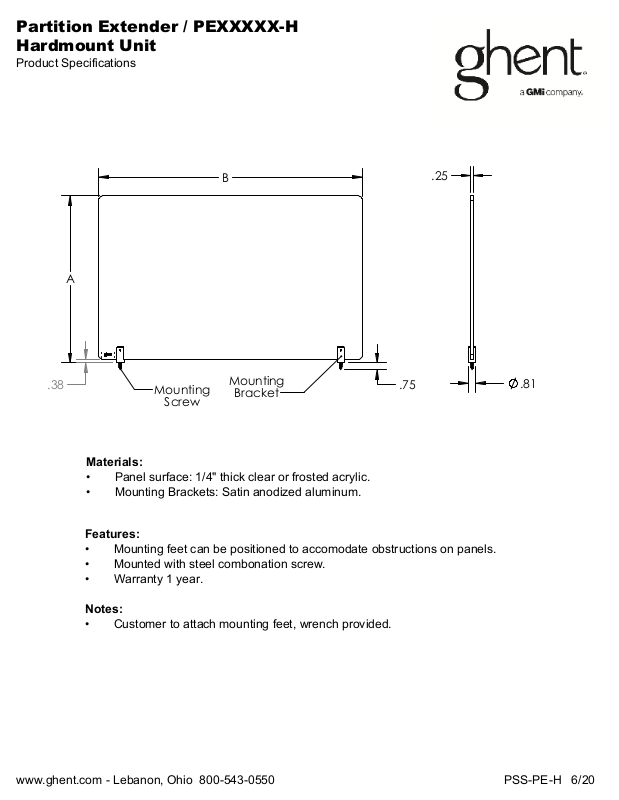

Page 1
Partition Extender / PEXXXXX-H
Hardmount Unit
Product Specifications
.38
A
Materials:
•
•
B
Mounting
Screw
Panel surface: 1/4" thick clear or frosted acrylic.
Mounting Brackets: Satin anodized aluminum.
Mounting
Bracket
.75
.25
.81
Features:
Mounting feet can be positioned to accomodate obstructions on panels.
•
Mounted with steel combonation screw.
•
Warranty 1 year.
•
Notes:
Customer to attach mounting feet, wrench provided.
•
www.ghent.com - Lebanon, Ohio 800-543-0550
PSS-PE-H 6/20
Page 2
Partition Extender / PEXXXXX-H
Hardmount Unit
Product Specifications
PART NUMBER
PEC1824-H
PEC1829-H
PEC1836-H
PEC1842-H
PEC1848-H
PEC1859-H
PEC2424-H
PEC2429-H
PEC2436-H
PEC2442-H
PEC2448-H
PEC2459-H
PEC3024-H
PEC3029-H
PEC3036-H
PEC3042-H
PEC3048-H
PEC3059-H
PEF1824-H
PEF1829-H
PEF1836-H
PEF1842-H
PEF1848-H
PEF1859-H
PEF2424-H
PEF2429-H
PEF2436-H
PEF2442-H
PEF2448-H
PEF2459-H
PEF3024-H
PEF3029-H
PEF3036-H
PEF3042-H
PEF3048-H
PEF3059-H
A
17-7/8" 23-1/2"
17-7/8"
17-7/8"
17-7/8"
17-7/8" 47-1/2"
17-7/8"
23-7/8" 23-1/2"
23-7/8"
23-7/8"
23-7/8"
23-7/8" 47-1/2"
23-7/8"
29-7/8" 23-1/2"
29-7/8"
29-7/8"
29-7/8"
29-7/8" 47-1/2"
29-7/8"
17-7/8" 23-1/2"
17-7/8"
17-7/8"
17-7/8"
17-7/8" 47-1/2"
17-7/8"
23-7/8" 23-1/2"
23-7/8"
23-7/8"
23-7/8"
23-7/8" 47-1/2"
23-7/8"
29-7/8" 23-1/2"
29-7/8"
29-7/8"
29-7/8"
29-7/8" 47-1/2"
29-7/8"
B
29"
36"
42"
59"
29"
36"
42"
59"
29"
36"
42"
59"
29"
36"
42"
59"
29"
36"
42"
59"
29"
36"
42"
59"
FINISH
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
CLEAR
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
FROSTED
www.ghent.com - Lebanon, Ohio 800-543-0550
PSS-PE-H 6/20
