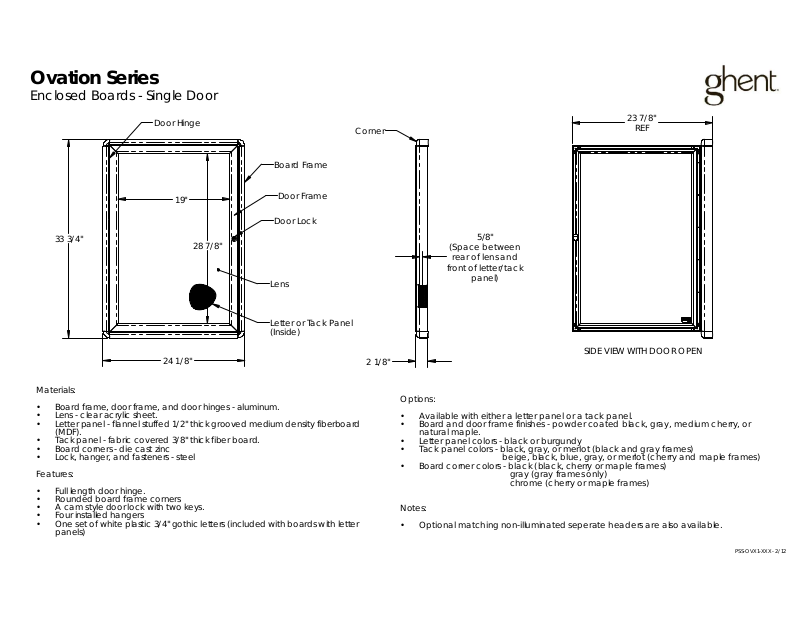

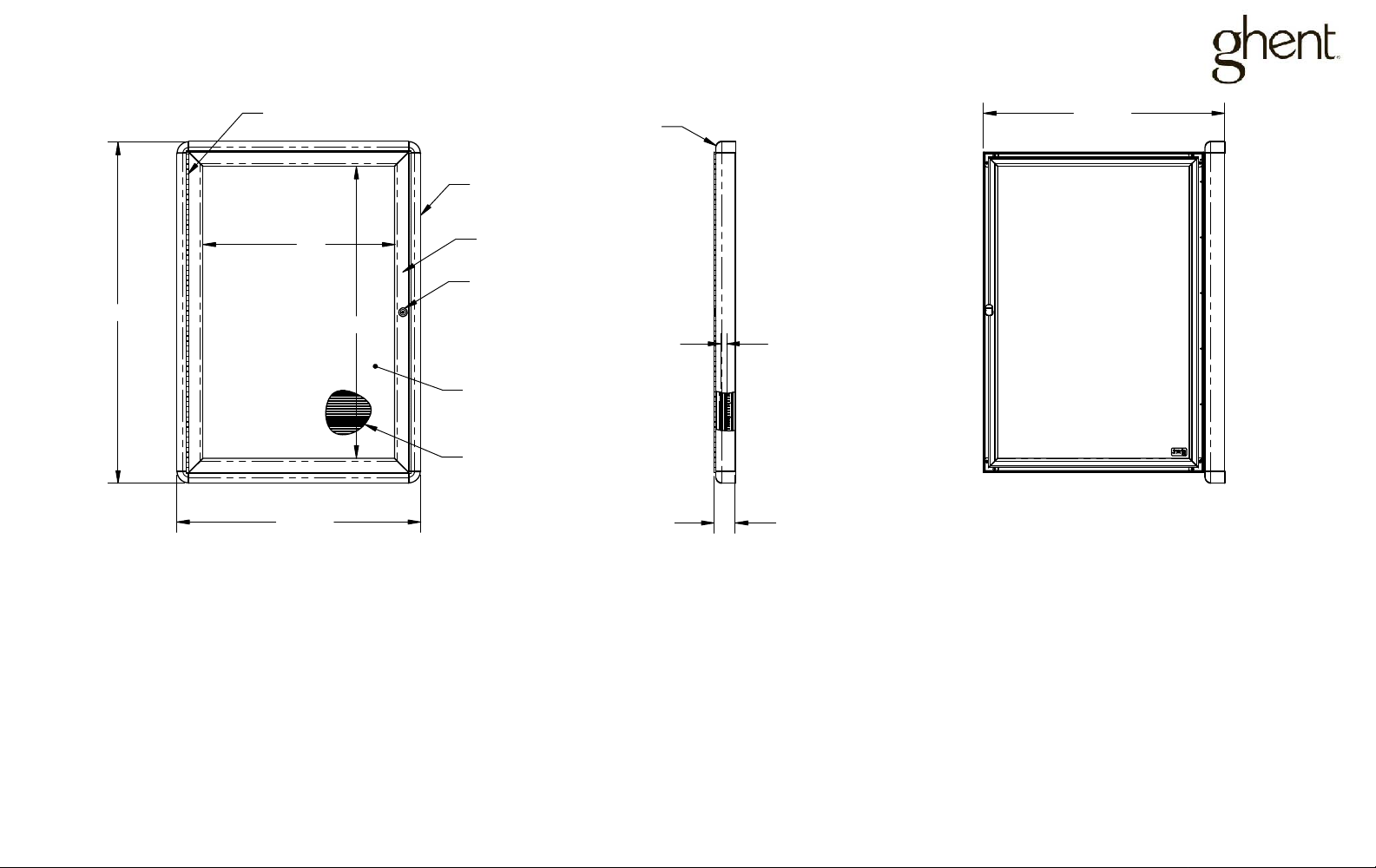

Ovation Series
Enclosed Boards - Single Door
Door Hinge
19"
33 3/4"
Materials:
Board frame, door frame, and door hinges - aluminum.•
Lens - clear acrylic sheet.•
Letter panel - f lanne l s t uffed 1/2" thick grooved medium density fiberboard •
(MDF).
•
Tack panel - fabric covered 3/8" thick fiber board.
Board corners - die cast zinc•
• Lock, hanger, and fasteners - steel
Features:
• Full length door hing e .
Rounded board frame corners
•
A cam style door lock with two keys.•
Four installed hangers •
One set of white plastic 3/4" gothic letters (included with boards with letter •
panels)
28 7/8"
24 1/8"
Board Frame
Door Frame
Door Lock
Lens
Letter or Tack Panel
(Inside)
Corner
2 1/8"
23 7/8"
REF
5/8"
(Space between
rear of lens and
front of letter/tack
panel)
SIDE VIEW WITH DOOR OPEN
Options:
Available with either a letter panel or a tack panel.•
Board and door frame finishes - powder coated black, gray, medium cherry, or •
natural maple.
Letter panel colors - black or burgundy •
Tack panel colors - black, gray, or merlot (black and gray frames) •
beige, black, blue, gray, or merlot (cherry and maple frames)
Board corner colors - black (black, cherry or maple frames)•
gray (gray frames only)
chrome (cherry or maple frames)
Notes:
Optional matching non-illuminated seperate headers are also available.•
PSS-OVX1-XXX - 2/12
Page 2

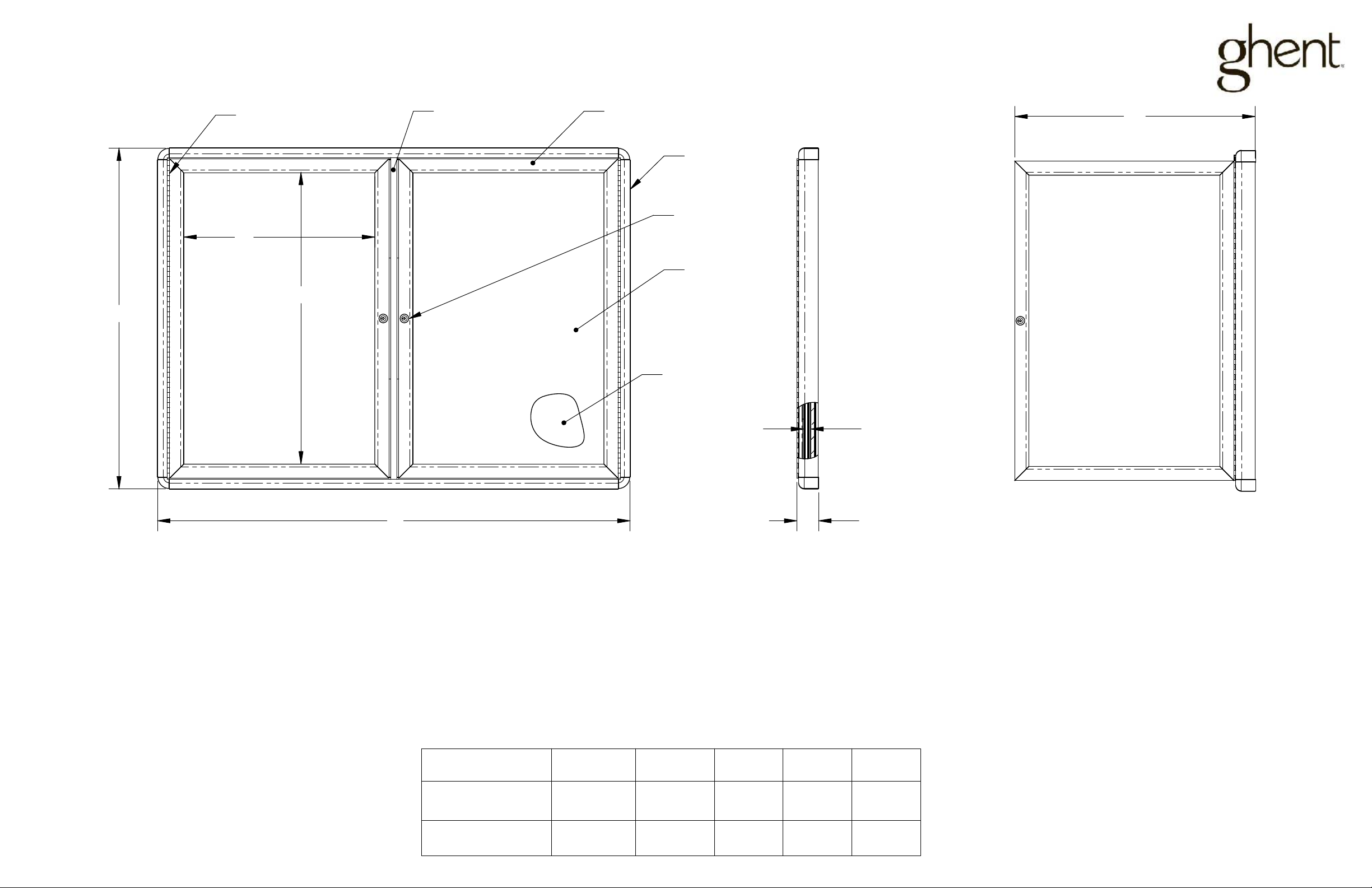

Ovation Series
Enclosed Boards - 2 Door
A
Door Hinge
D
E
Door FrameMullion
Board Frame
Door Lock
Lens
Letter of Tack
Panel (inside)
5/8"
(Space between
rear of lens and
front of letter/tack
panel)
C
Materials:
Board frame, door frames, and door hinges - aluminum.•
Lens - clear acrylic sheet.•
Letter panel - flannel stuffed 1/2" thick grooved medium density fiberboard (MDF).•
•
Tack panel - fabric covered 3/8" thick fiber board.
• Board corners - die cast zinc
•
Lock, hangers, and fasteners - steel
Features:
Full length door hinges.•
Rounded board frame corners
•
• Cam style door locks with two keys.
•
Four installed hangers
• One set of white plastic 3/4" gothic letters
(included with boards with letter panels)
B
2 1/8"
Options:
Available with either a letter panel or a tack panel.•
Board and door frame finishes - powder coated black, gray, medium •
cherry, or natural maple.
Letter panel colors - black or burgundy •
Tack panel colors - black, gray, or merlot (black and gray frames) •
beige, black, blue, gray, or merlot (cherry and
maple frames)
Board corner colors - black (black, cherry or maple frames)•
gray (gray frames only)
chrome (cherry or maple frames)
MODEL# A B C D E
OVG2-BBG thru
OVNMC2-F95
OVK4-BBG thru
OVNMC4-F95
33-3/4" 46-7/8" 23-7/8" 19" 28-7/8"
36-1/16" 60-1/16" 30-7/16" 21-1/4" 31-1/8"
Notes:
SIDE VIEW WITH DOOR OPEN
Optional matching non-illuminated seperate
headers are also available.
PSS-OVXX-XXX - 2/12
Page 3

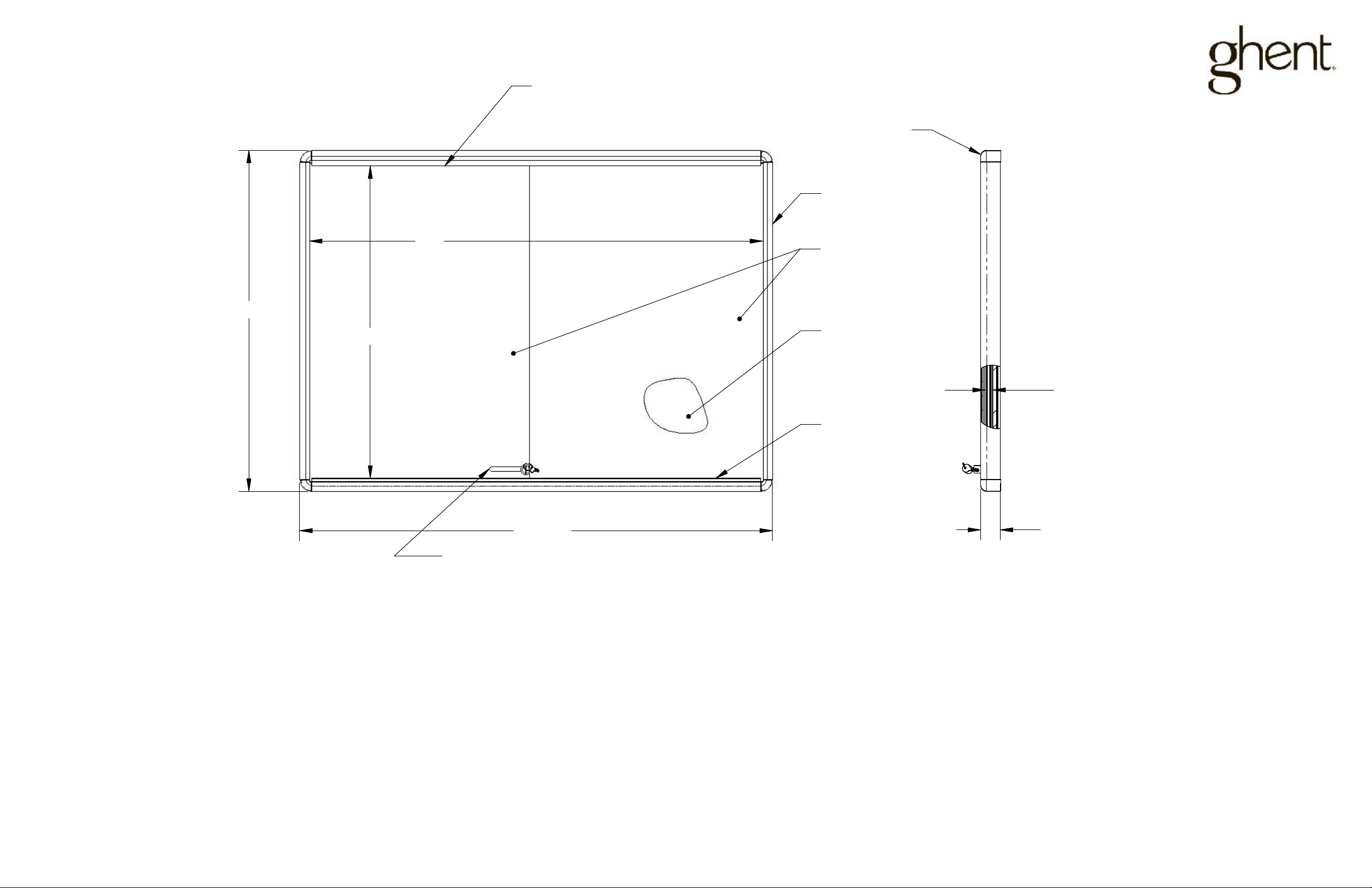

Ovation Series
Enclosed Boards - Sliding Doors
Upper Sliding Door Track
Corner
Board Frame
33 7/8"
31"
45"
Lock
46 7/8"
Sliding Doors
Letter or Tack Panel
(inside)
Lower Sliding
Door Track
1 7/8"
3/4"
(Space between the
rear of the inner door and
front of letter/tack
panel)
Materials:
Board frame - aluminum•
Sliding doors - 1/8" thick tempered glass•
Letter panel - flannel stuffed 1/2" thick grooved medium density fiberboard (MDF).•
Tack panel - fabric covered 3/8" thick fiber board•
•
Door tracks - color matched PVC
• Board corners - die cast zinc
• Lock, hanger, and fasteners - steel
Features:
•
Full length door hinge.
Rounded board frame corners •
•
Sliding glass door style lock with two keys.
• Four installed hangers
• One set of white plastic 3/4" gothic letters (included with boards with letter panels)
• Finger pulls for the sliding glass panels.
Options:
Available with either a letter panel or a tack panel.•
Board frame finishes - powder coated black, gray, medium cherry, or natural •
maple.
Letter panel colors - black or burgundy •
Tack panel colors - black, gray, or merlot (black and gray frames) •
beige, black, blue, gray, or merlot (cherry and maple frames)
Board corner colors - black (black, cherry or maple frames)•
gray (gray frames only)
chrome (cherry or maple frames)
Notes:
Optional matching non-illuminated seperate headers are also available.
•
PSS-OVX3-XXX - 2/12
Page 4

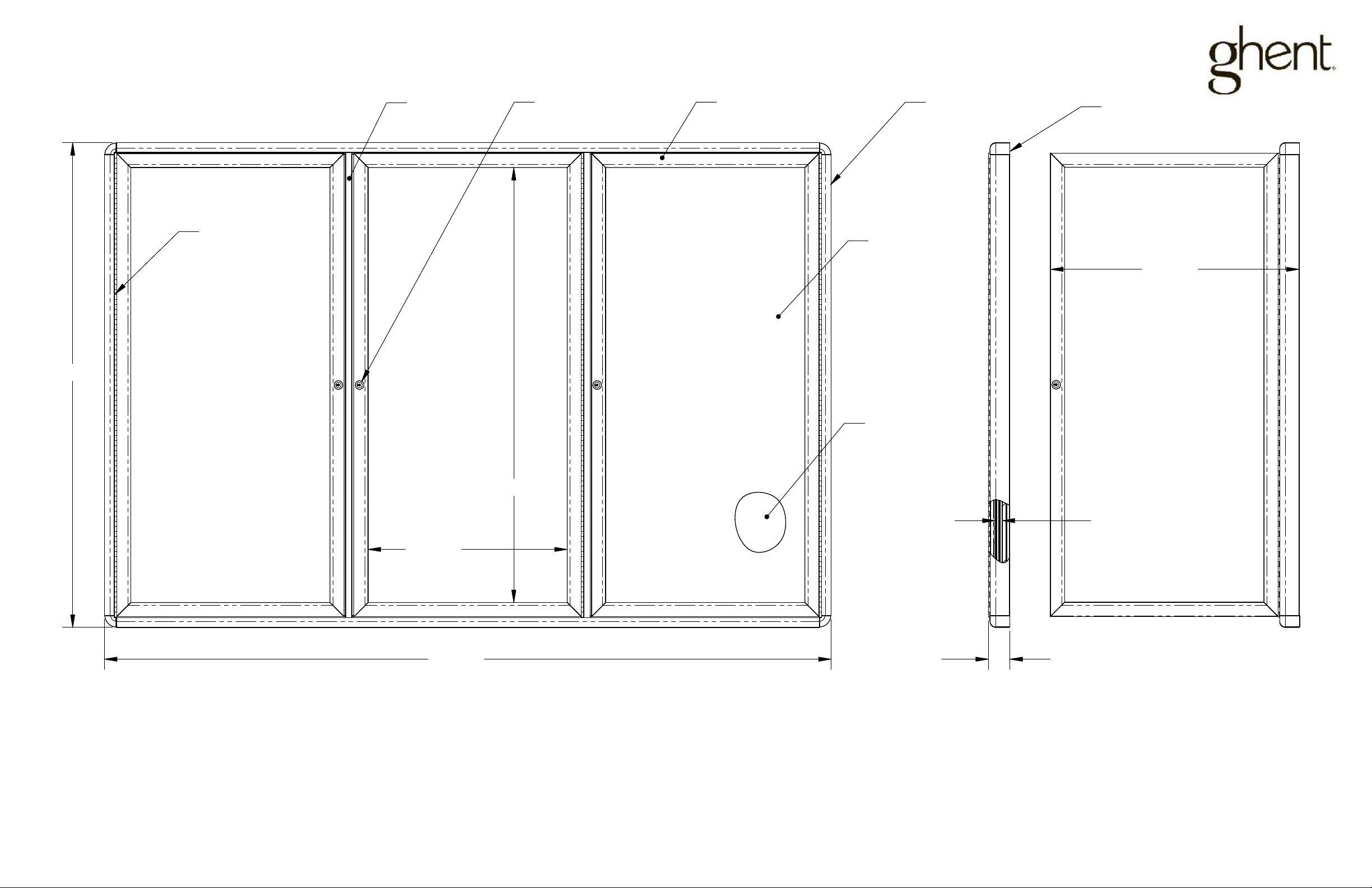

Ovation Series
Enclosed Boards - 3 Door
Mullion
Door Lock
Door Frame
Board Frame
Corner
48 1/8"
Door Hinge
19 3/4"
43 1/8"
Lens
24 5/8"
Letter or Tack
Panel (inside)
5/8"
(Space between
rear of lens and
front of letter/tack
panel)
72 1/8"
Materials:
Board frame, door frames, and door hinges - aluminum.•
Lens - clear acrylic sheet.•
Letter panel - flannel stuffed 1/2" thick grooved medium density fiberboard (MDF).•
•
Tack panel - fabric covered 3/8" thick fiber board.
•
Board corners - die cast zinc
Lock, hanger, and fasteners - steel•
Features:
•
Full length door hinges.
Rounded board frame corners •
• A cam style door locks with two keys.
•
Four installed hangers
• One set of white plastic 3/4" gothic letters (included with boards with letter panels)
2 1/8"
Options:
Available with either a letter panel or a tack panel.•
Board and door frame finishes - powder coated black, gray, medium cherry, or natural maple.•
Letter panel colors - black or burgundy •
Tack panel colors - black, gray, or merlot (black and gray frames) •
beige, black, blue, gray, or merlot (cherry and maple frames)
Board corner colors - black (black, cherry or maple frames)•
gray (gray frames only)
chrome (cherry or maple frames)
Notes:
Optional matching non-illuminated seperate headers are also available.•
SIDE VIEW WITH DOOR OPEN
PSS-OVX5-XXX - 2/12
