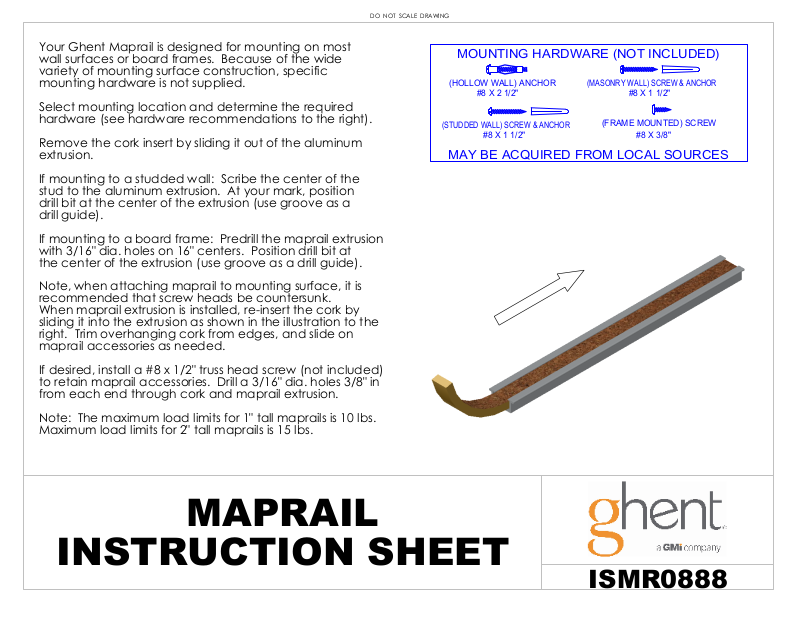

DO NOT SCALE DRAWING
Your Ghent Maprail is designed for mounting on most
wall surfaces or board frames. Because of the wide
variety of mounting surface construction, specific
mounting hardware is not supplied.
Select mounting location and determine the required
hardware (see hardware recommendations to the right).
Remove the cork insert by sliding it out of the aluminum
extrusion.
If mounting to a studded wall: Scribe the center of the
stud to the aluminum extrusion. At your mark, position
drill bit at the center of the extrusion (use groove as a
drill guide).
If mounting to a board frame: Predrill the maprail extrusion
with 3/16" dia. holes on 16" centers. Position drill bit at
the center of the extrusion (use groove as a drill guide).
Note, when attaching maprail to mounting surface, it is
recommended that screw heads be countersunk.

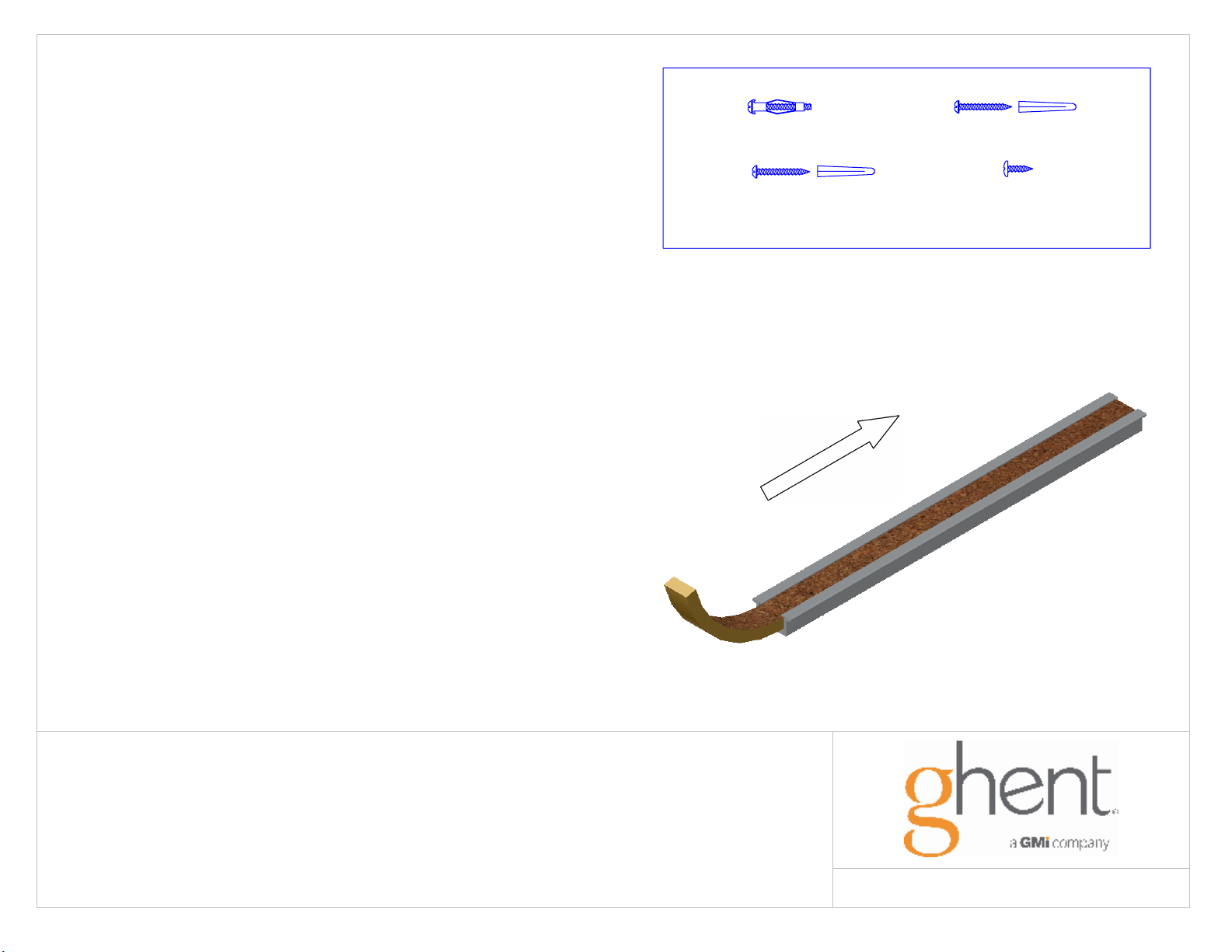

When maprail extrusion is installed, re-insert the cork by
sliding it into the extrusion as shown in the illustration to the
right. Trim overhanging cork from edges, and slide on
maprail accessories as needed.
MOUNTING HARDWARE (NOT INCLUDED)
(HOLLOW WALL) ANCHOR
#8 X 2 1/2"
(STUDDED WALL) SCREW & ANCHOR
#8 X 1 1/2"
MAY BE ACQUIRED FROM LOCAL SOURCES
(MASONRY WALL) SCREW & ANCHOR
#8 X 1 1/2"
(FRAME MOUNTED) SCREW
#8 X 3/8"
If desired, install a #8 x 1/2" truss head screw (not included)
to retain maprail accessories. Drill a 3/16" dia. holes 3/8" in
from each end through cork and maprail extrusion.
Note: The maximum load limits for 1" tall maprails is 10 lbs.
Maximum load limits for 2" tall maprails is 15 lbs.
MAPRAIL
INSTRUCTION SHEET
ISMR0888
