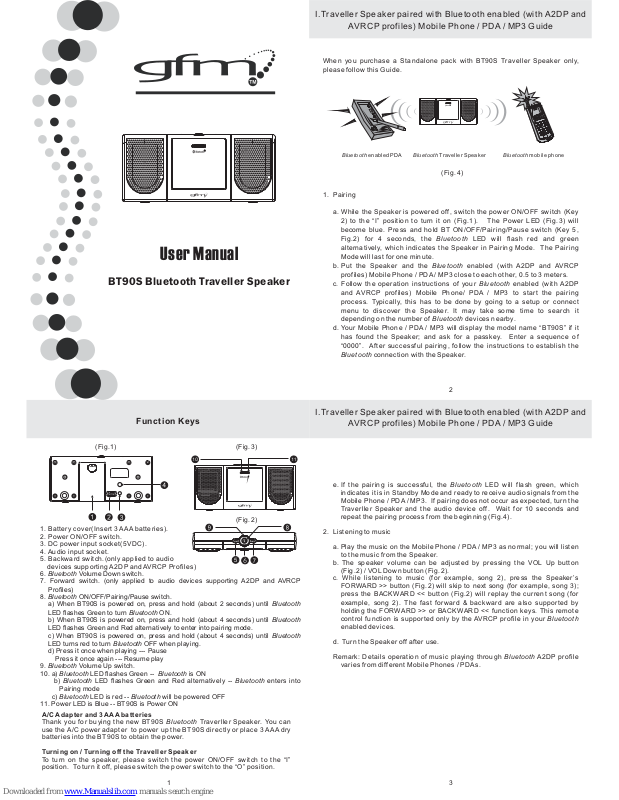

gfm BT90S User Manual

Page 1

BT90S Bluetooth Traveller Speaker

A/C Adapter and 3AAAbatteries

Thank you for buying the new BT90S Traverller Speaker. You can use theA/C power adapter to power up the BT90S directly or place 3AAA dry batteries into the BT90S to obtain the power.

Bluetooth

Turning on / Turning off the Traveller Speaker

To turn on the speaker, please switch the power ON/OFF switch to the “I” position. To turn it off, please switch the power switch to the “O” position.

1. Battery cover(Insert 3 AAAbatteries).

2. Power ON/OFF switch.

3. DC power input socket(5VDC).

4. Audio input socket.

5. Backward switch.(only applied to audio devices supporting A2DP and AVRCP Profiles)

6. Volume Down switch.

7. Forward switch. (only applied to audio devices supporting A2DP and AVRCP

Profiles)

8. ON/OFF/Pairing/Pause switch.

a) When BT90S is powered on, press and hold (about 2 seconds) until LED flashes Green to turn ON. b) When BT90S is powered on, press and hold (about 4 seconds) until LED flashes Green and Red alternatively to enter into pairing mode. c) When BT90S is powered on, press and hold (about 4 seconds) until LED turns red to turn OFF when playing. d) Press it once when playing --- Pause

Press it once again --- Resume play

9. Volume Up switch.

10. a) LED flashes Green -- is ON

b) LED flashes Green and Red alternatively -- enters into

Pairing mode

c) LED is red -- will be powered OFF

11. Power LED is Blue -- BT90S is Power ON

Bluetooth

Bluetooth Bluetooth

(Fig.1)

(Fig.2)

(Fig.3)

Function Keys

When you purchase a Standalone pack with BT90S Traveller Speaker only, please follow this Guide.

1. Pairing

a. While the Speaker is powered off, switch the power ON/OFF switch (Key

2) to the “I” position to turn it on (Fig.1). The Power LED (Fig.3) will become blue. Press and hold BT ON/OFF/Pairing/Pause switch (Key 5, Fig.2) for 4 seconds, the LED will flash red and green alternatively, which indicates the Speaker in Pairing Mode. The Pairing Mode will last for one minute.

b. Put the Speaker and the enabled (with A2DP and AVRCP

profiles) Mobile Phone / PDA / MP3 close to each other, 0.5 to 3 meters.

c. Follow the operation instructions of your enabled (with A2DP

and AVRCP profiles) Mobile Phone/ PDA / MP3 to start the pairing process. Typically, this has to be done by going to a setup or connect menu to discover the Speaker. It may take some time to search it depending on the number of devices nearby.

d. Your Mobile Phone / PDA / MP3 will display the model name “BT90S if it

has found the Speaker; and ask for a passkey. Enter a sequence of “0000 . After successful pairing, follow the instructions to establish the

connection with the Speaker.

Bluetooth

”

Bluetooth mobile phoneBluetooth enabled PDA

Bluetooth Traveller Speaker

(Fig.4)

I.Traveller Speaker paired with Bluetooth enabled (with A2DP and

AVRCP profiles) Mobile Phone / PDA / MP3 Guide

e. If the pairing is successful, the LED will flash green, which

indicates it is in Standby Mode and ready to receive audio signals from the Mobile Phone / PDA / MP3. If pairing does not occur as expected, turn the Traverller Speaker and the audio device off. Wait for 10 seconds and repeat the pairing process from the beginning (Fig.4).

Bluetooth

2. Listening to music

a. Play the music on the Mobile Phone / PDA / MP3 as normal; you will listen

to the music from the Speaker.

b. The speaker volume can be adjusted by pressing the VOL Up button

(Fig.2) / VOLDown button (Fig.2).

c. While listening to music (for example, song 2), press the Speaker ’s

FORWARD >> button (Fig.2) will skip to next song (for example, song 3); press the BACKWARD << button (Fig.2) will replay the current song (for example, song 2). The fast forward & backward are also supported by holding the FORWARD >> or BACKWARD << function keys. This remote control function is supported only by the AVRCP profile in your enabled devices.

d. Turn the Speaker off after use.

Remark: Details operation of music playing through A2DP profile

varies from different Mobile Phones / PDAs.

Bluetooth

I.Traveller Speaker paired with Bluetooth enabled (with A2DP and

AVRCP profiles) Mobile Phone / PDA / MP3 Guide

User Manual

Page 2

III. Traveller Speaker connected directly with

Audio Device Guide

1. Listening to music

a. While the Speaker is powered off, switch the power ON/OFF switch (Key 2)

to the “I” position to turn it on (Fig.1). The Power LED (Fig.3) will become blue.

b. Plug one end of the audio cable to the “Audio input socket” (socket 4,

Fig.1) of the Traverller Speaker and the other end to the 3.5 mm socket of any audio source such as iPod, MP3, CD player, Notebook PC or other audio devices.

c. Play the music on the audio source as normal; you will listen to the stereo

music from the speaker.

d. The Music volume can only be adjusted by pressing and releasing the VOL

+ / VOL- buttons of audio source.

e. Turn the Speaker off after use.

Accessories Table

Standalone pack

(BT90S)

Included

Audio cable

Included

3XAAA batteries

Included

A/C power adapter

Remarks: Specification ofA/C power adaptor for BT90S DC Voltage input: 5V, 500mA

DC plug: (1.35 X 3.5 X 11) mm

FCC part 15.19

FCC part 15.21

FCC part 15.105

This device compiles with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modification to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful Interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio TV technician for help.

FCC ID:NV6-CS8042

FCC

GFM Guarantee

If you are not totally satisfied with this GFM product you may return it, to any Meijer store for a full refund within 6 months 180 days of()

purchase when accompanied by a receipt.

For customer support please call 866 845 9436 or go to() -

www.

gfmproducts com.

Dist by Wholesale Merchandisers Inc.,.,

2929 Walker NW,,2929 Walker NW,,

Grand Rapids MI 49544,Grand Rapids MI 49544,

Made in China
