GFG Instrumentation Dynagard AutoCal Data Sheet

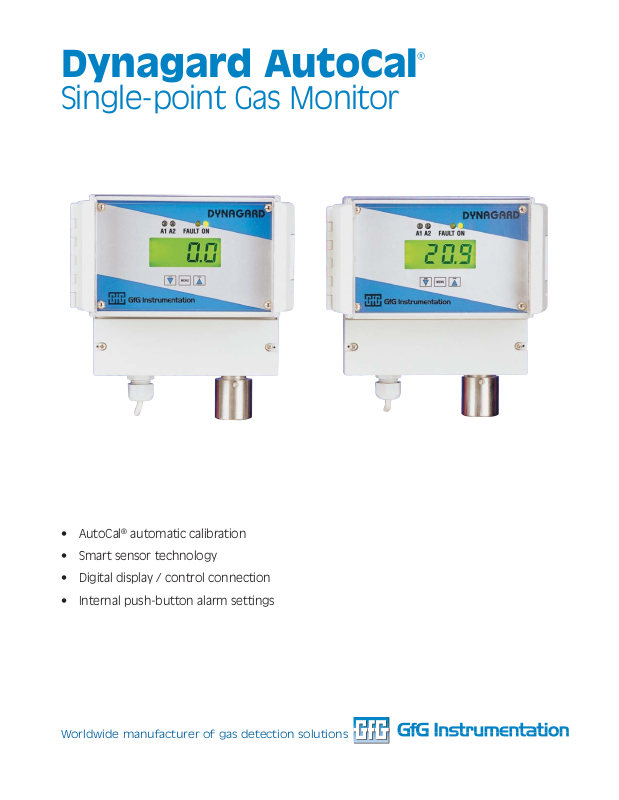

Dynagard AutoCal

Single-point Gas Monitor

®

•

AutoCal® automatic calibration

•

Smart sensor technology

•

Digital display / control connection

•

Internal push-button alarm settings

Worldwide manufacturer of gas detection solutions

Single-point Area Monitors

Dynagard AutoCal® monitors are single
point detection instruments that accurately
measure toxic gases and oxygen levels.
Alarm lights on the front panel illuminate
and an internal horn sounds when gas
concentrations are exceeded.

Simple and effective

The units accurately display values on a
large backlit LED and can transmit a linear
4-20 mA output. AutoCal® calibration and
maintenance is done effortlessly through
front panel push-buttons. Smart sensors
enable the user to change measuring
ranges or gas types in the field without
a need for additional programming.
The Dynagard is equipped with onboard
relays for two adjustable alarm points.
It also has one sensor fault for local
connection and activation or deactivation
of external devices like strobes, fans, auto
dialers etc.

Backlit LCD Readout

Calibration and

Maintenance Controls

Alarm 1 Indicator
Alarm 2 Indicator
Fault Indicator
Status Indicator

Alarm Horn

Cover Latch

Strain Relief

Sensor Housing

Dynagard AutoCal® gas monitors

Gases*

Ammonia (NH
Carbon Monoxide (CO
Chlorine (Cl
Chlorine Dioxide (CIO
Ethylene Oxide (C2H4O
Hydrogen (H
Hydrogen Chloride (HCL
Hydrogen Cyanide (HCN
Hydrogen Sulfide (H
Nitrogen Dioxide (NO
Oxygen (O
Sulfur Dioxide (SO

Detection ranges*

C2H4O 0-20 ppm
Cl

2

CIO

2

CO 0-500 or 2,000 ppm
H

2

H

S 0-200 or 1,000 ppm

2

HCL 0-200 ppm
HCN 0-200 ppm
NH

3

NO

2

O

2

SO

2

*Additional gases and ranges available
(consult manufacturer

3

2

2

2

2

S

2

2

2

0-50 or 250 ppm
0-1.0 ppm

0-2,000 ppm or 0-4% volume

0-200 or 1,000 ppm
0-50 or 200 ppm
0-25% volume
0-50 or 500 ppm

Technical Data

Detection principal

Electrochemical

Detection method

Diffusion

Response time

T90<5 sec. (depending on gas

Expected sensor life

2 years (depending on gas

Display

4 digit LCD
Power, alarm and fault LED's

Power supply

115 VAC / 24 VDC

Output signal

Linear 4-20 mA

Relays

2 alarm points, 1 fault – voltage free
Voltage: 250 VAC 50/60 Hz or 250 VDC
maximum
Current: 4 A AC/DC maximum

Horn

95 dB at one foot

Temperature range

+5 to +115˚F / -15 to +46˚C

Humidity range

15 to 96% rh

Pressure range

920 to 1,080 hPa

Housing

UL 94 HB polystyrene enclosure with
clear poly carbonate lid

Weight

2 pounds (907 g)

Dimensions

7.9x7.5x4.8 inches (200x190x120 cm (HxWxD)

Housing approvals

IP 65

Accessories

Remote display / control

Specifications subject to change without notification
