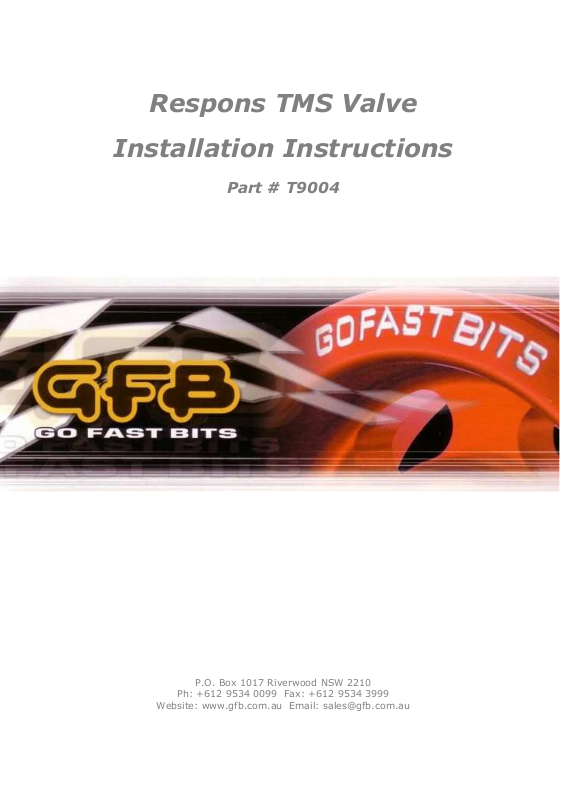

GFB T9004 User Manual

Respons TMS Valve

Installation Instructions

Part # T9004

P.O. Box 1017 Riverwood NSW 2210

Ph: [phone] Fax: [phone]

Website: www.gfb.com.au Email: [e-mail]

Installation Instructions for GFB Respons (part # T9004)

For Nissan Silvia/200SX S14-15 models. Please read the operation notes BEFORE installation.

1) Unclamp the battery and remove it. This will

make access much easier, but before doing
so check that it will not affect any
aftermarket alarm, stereo or other electrical
accessories.

2) Loosen the hose clamps shown in figure 1.

Using a 10mm socket, undo the two
mounting bolts holding the factory valve to
its bracket. The second bolt is much easier to
undo if the rubber recirc hose is removed
from the valve and bent out of the way.

3) Remove the vacuum hose from the top of the

factory valve (this hose is a tight fit, try using a
flat screwdriver to push the hose off, rather than
pulling it).

4) Pull the plastic feed pipe off its fitting on the

intercooler pipe so that the factory valve and
plastic pipe can be removed as shown.

5) Remove the factory valve from the lower elbow by

undoing the 3 Phillips head screws on the
underside of the flange. Position the GFB Respons
onto the elbow, ensuring that the orange factory o­ring found between the valve and elbow is used,
and the locating pin and matching hole on the
Respons flange match.

6) Rotate the Respons so that the recirc outlet points in the same

direction as it does on the factory valve, then use the factory
screws to clamp it firmly to the flange as shown in figure 3.

7) Replace the assembly back into the factory position in the

reverse order of removal.

8) Double-check all hose clamps are replaced and tightened,

and then re-install the battery.
