Installation Instructions for GFB DV+ TMS valve (part # T9354)

Care must be taken when screwing in the installation tool and vacuum
fitting, as it is easy to damage the brass threads. It is important that
the vacuum fitting is not over tightened, it does not need to be tight.

 Locate factory diverter valve solenoid. It will be

mounted directly on the turbo compressor cover. You
may have to remove the front right wheel for access.

 Remove the factory vacuum hose clamp, then pull

the hose off the factory diverter valve.

 Unscrew the 3 mounting screws and remove the

factory valve from the car

 Install the spring retainer cup, spring then piston into the body of the valve. (Refer to exploded diagram

on next page)

 Push the piston into the body against the spring and insert the installation tool from the top of the valve

and screw it into the back of the piston finger tight only.

 Screw the installation tool in all the way and then undo it half a turn, this will ensure it is not done up too

tight. Now install the vacuum fitting.

With the installation tool holding the piston in place the valve can
then be installed on the vehicle. You must remember to place the
metal solenoid bracket on top of the DV+ before installing the three
bolts.

Once the three mounting bolts are installed, the installation tool can be removed and the spring pre-load screw
can be installed in the top of the valve. Then re-install the vacuum
hose and clamp.

Spring Pre-Load Adjustment

Piston

Spring

Spring

retainer

cup

Spring

pre-load

screw

Installation

tool

Vacuum

fitting

Body

Body O-Ring
(installed)

Barb O-Ring
(installed)

Pre-load O-Ring
(installed)

Retainer Screw
(installed)

The dv+ can be installed and used directly out-of-the-box without any adjustment to the spring pre-load at all,
regardless of the boost pressure your car runs.
So if you are not inclined to tinker, you can finish the installation here, or you can read on for more tech info on
the subject!

Unlike other aftermarket replacement valves on the market, the GFB dv+ DOES NOT require spring pre-load
adjustment to suit specific boost pressures. The pressure-balancing design of the dv+ means that under wide
open throttle conditions there is equal boost pressure on both sides of the piston, so it will stay shut under boost
REGARDLESS of the spring setting or the boost pressure.
However, adjustments to the spring pre-load can often help improve throttle response and reduce lag, so it can
pay to experiment.

Adjusting the spring pre-load changes how easily the valve vents when the throttle is closed. The best throttle
response is typically found when the spring is set to the firmest setting possible that does not cause compressor
surge (turbo fluttering) at when the throttle is closed on a high boost/high RPM gearshift.

To explain further, contrary to popular belief, venting as much air as possible to “let the turbo freewheel” does

not reduce lag. Perhaps 20 years ago it may have been true, but turbos these days spool up very quickly, and the
greater benefit comes from setting the valve up to keeps as much pressure in the intercooler as possible during a
gear-shift or brief throttle lift.

This is especially true when a large front-mount intercooler is fitted – venting all of the air means the intercooler
must be re-pressurised, and even though a turbo does shift a lot of air, it still takes a measurable amount of time
to fill an intercooler.

Here’s where adjusting the spring pre-load can help. Increasing the spring pre-load can help retain a small amount
of pressure in the intercooler during a gearshift, which leads to a faster return to peak boost. The limiting factor in
how much you can increase the spring pre-load is compressor surge (turbo flutter). Once this starts to occur at
high boost/RPM, there is no further gain to be had and for the life expectancy of the turbo it is best avoided.
Note that it is common however for compressor surge to occur at low RPM/boost, even if it doesn’t occur at high
boost/RPM. This is not really a concern for the turbo because the shaft speed and loads on the turbo at this point
are much smaller, and the pressure spikes from compressor surge are much lower than those experienced at peak
boost.

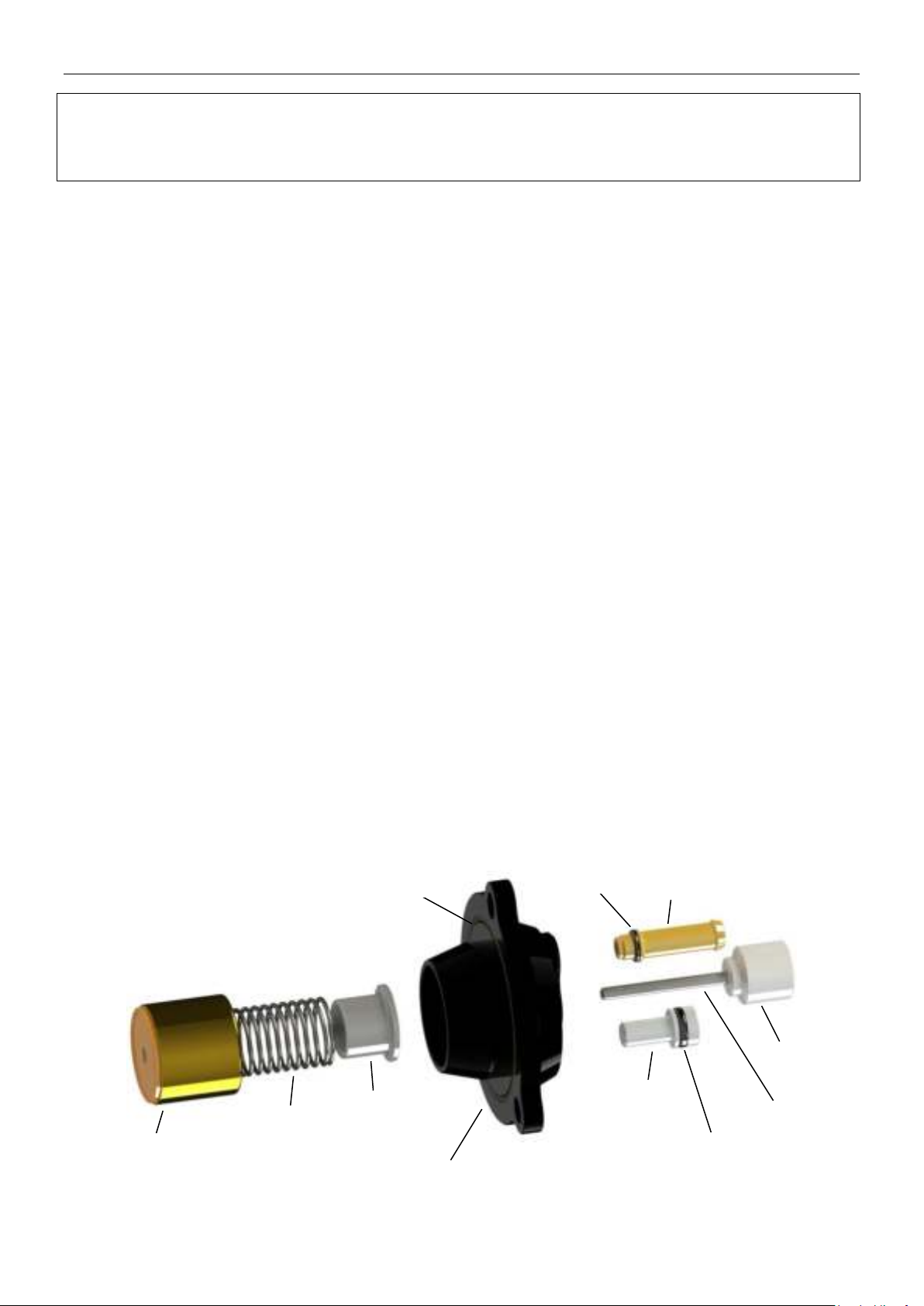

Exploded View

What to expect from your DV+

The DV+ is designed to offer three key improvements over the OE diverter:

Longevity:

The DV+ will outlast any version of the factory diverter. If you’ve ever replaced a factory diverter, chances are it
won’t be your last. Fitting a DV+ is good insurance and pays for itself after one or two factory diverter replacements.

Throttle response:

When using the DV+ with the main spring installed, it will preserve as much boost pressure as possible when the
throttle is lifted. This means that when you lift off to shift, or when you balance the car with the throttle mid-corner
(using slight on-off-on throttle modulation), the DV+ can help recover boost faster.

What the DV+ can’t do however, is create more boost, or cause the turbo to spool faster. Quite simply, whatever
boost the turbo makes, the DV+ will deliver to the engine, and it will also preserve as much boost pressure as
possible during a brief throttle lift-off, which is where the faster boost recovery comes from. If there is no boost to
preserve, or if boost still drops off at high RPM, that is simply highlighting the limitations of the turbo.

Technical Support

If you experience any issues during installation or use of your GFB DV+ that are not answered in these instructions,
please contact the GFB tech support team on [phone], or email [email protected].
