The Raytector is used for entrapment protection on industrial doors, mainly for
rolling grills.
An interruption of the light beam initiates a signal between transmitter and
receiver which stops the movement of the power operated Door.
The entrapment protection RAYTECTOR is suitable for doors between
1.5 to 10.5 m wide
10.16
Raytector
System Door kit
For
TS 959/970/971
GfA ELEKTROMATEN UK Ltd
Unit 1, Titan Business Centre, Spartan Close
Warwick CV34 6RR, England.
Telephone: 01 926 452452 Fax: 01 926 336417
E-mail: sales@ gfa-elektromaten.co.uk
Web Site: www.gfa-elektromaten.co.uk
ELECTRICAL WIRINGINSTRUCTIONS
Page 2
GF304528 RAYTECTOR

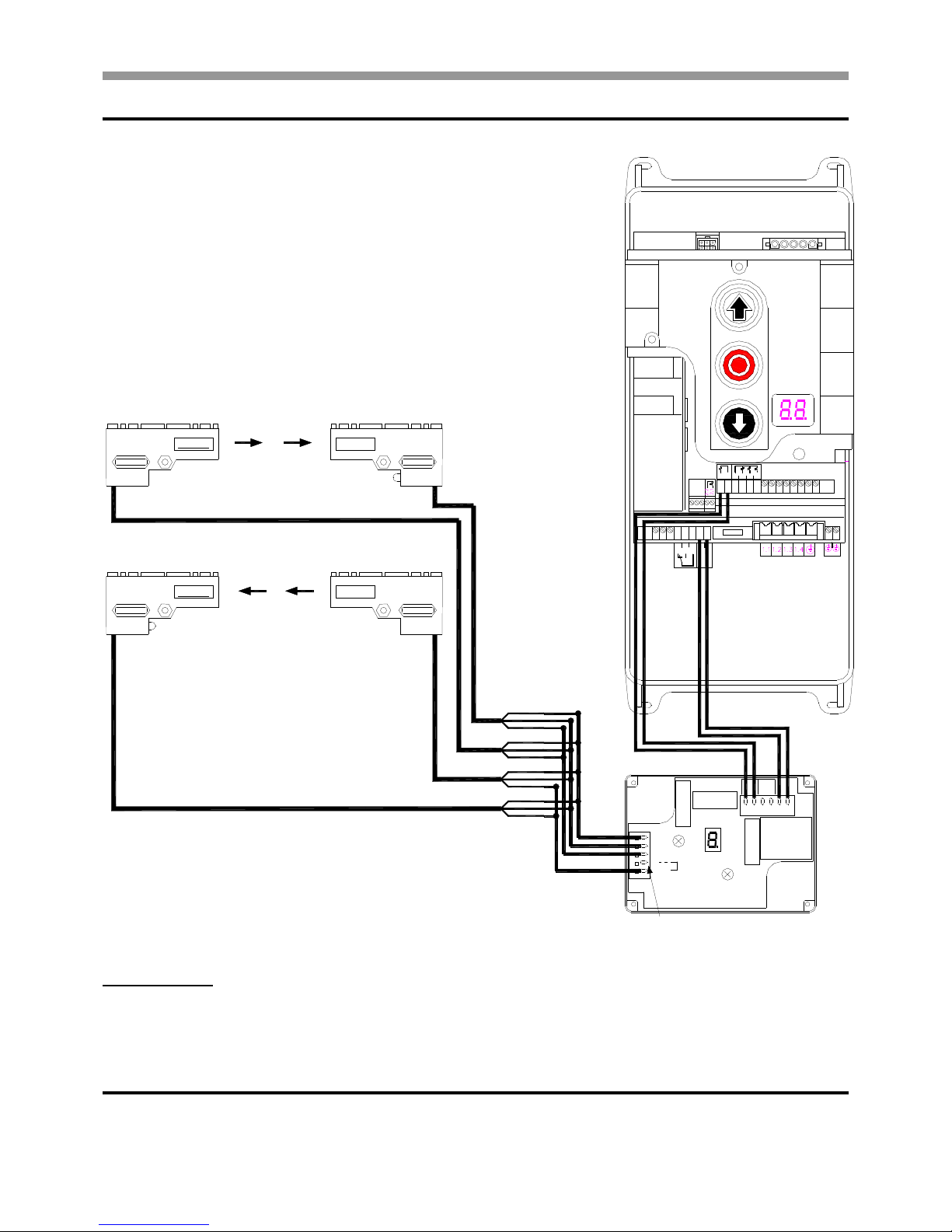

Connection Drawing
IMPORTANT!
READ THE RAYTECTOR INSTRUCTIONS FOR ESSENTIAL INSTALLATION AND TESTING
PROCEDURES.
5.1
5.2
5.3
5.4
3.1
3.2
20.3
20.2
20.1
1.8
1.9
F1 = 1,6A t
1 BN
2 WE
4 GN1
5
6 GN2
OSE-C 2300
2 x OSE
1 x OSE
RELAY 2
RELAY 1
RELAY 3
TRANSFORMER
34 33
OSE
24 23
REV
A1 A2
Power
VITECTOR RAYTECTOR
RAY - R 1000
Receiver
RAY - T 1000
Transmitter
light barrier
inside
VITECTOR RAYTECTOR
RAY - T 1000
Transmitter
RAY - R 1000
Receiver
light barrier
outside
BROWN
WHITE
GREEN
BROWN
WHITE
GREEN
BROWN
WHITE
GREEN
BROWN
WHITE
GREEN
4 x BROWN
4 x WHITE
2 x GREEN
2 x GREEN
REMOVE LINK
TERMINALS 5 - 6
RAYTECTOR HIGH LEVEL ENTRAPMENT
PROTECTION BARRIERS
