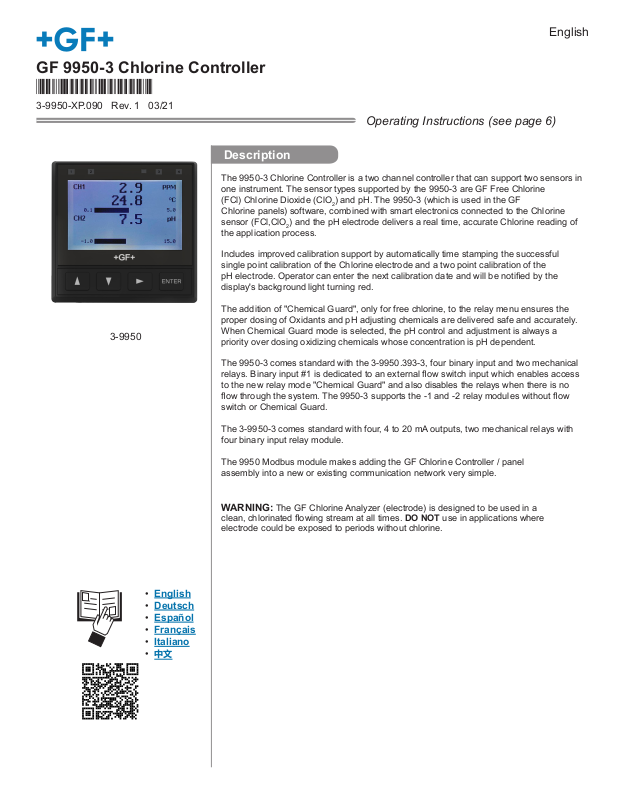

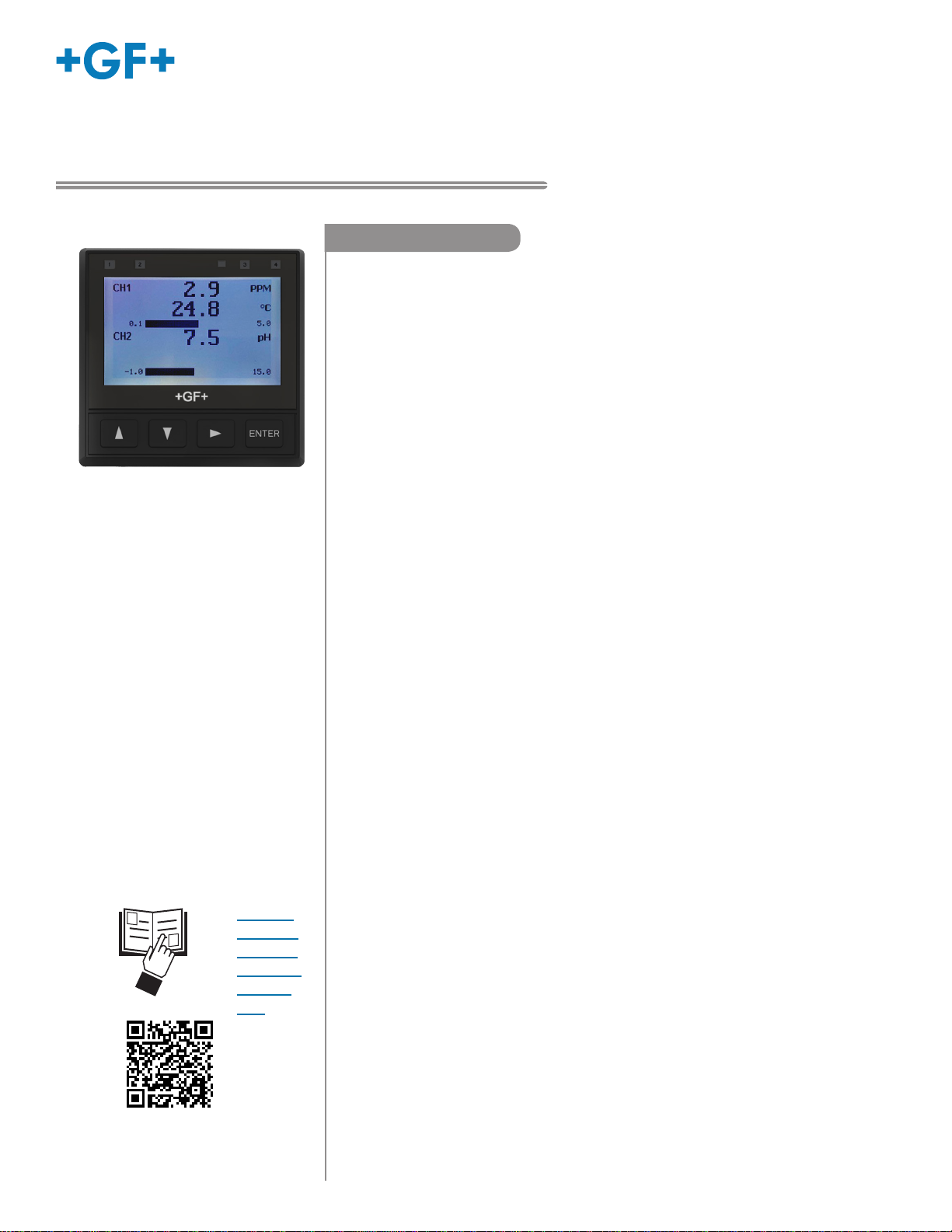

GF 9950-3 Chlorine Controller

*3-9950.090*

3-9950-XP.090 Rev. 1 03/21

Description

The 9950-3 Chlorine Controller is a two channel controller that can support two sensors in one instrument. The sensor types supported by the 9950-3 are GF Free Chlorine (FCl) Chlorine Dioxide (ClO2) and pH. The 9950-3 (which is used in the GF Chlorine panels) software, combined with smart electronics connected to the Chlorine sensor (FCl,ClO2) and the pH electrode delivers a real time, accurate Chlorine reading of the application process.

Includes improved calibration support by automatically time stamping the successful single point calibration of the Chlorine electrode and a two point calibration of the pH electrode. Operator can enter the next calibration date and will be notied by the display's background light turning red.

The addition of "Chemical Guard", only for free chlorine, to the relay menu ensures the proper dosing of Oxidants and pH adjusting chemicals are delivered safe and accurately.

3-9950

When Chemical Guard mode is selected, the pH control and adjustment is always a priority over dosing oxidizing chemicals whose concentration is pH dependent.

English

Operating Instructions (see page 6)

• English

• Deutsch

• Español

• Français

• Italiano

• 中文

The 9950-3 comes standard with the 3-9950.393-3, four binary input and two mechanical

relays. Binary input #1 is dedicated to an external ow switch input which enables access

to the new relay mode "Chemical Guard" and also disables the relays when there is no

ow through the system. The 9950-3 supports the -1 and -2 relay modules without ow

switch or Chemical Guard. The 3-9950-3 comes standard with four, 4 to 20 mA outputs, two mechanical relays with

four binary input relay module. The 9950 Modbus module makes adding the GF Chlorine Controller / panel

assembly into a new or existing communication network very simple.

WARNING: The GF Chlorine Analyzer (electrode) is designed to be used in a

clean, chlorinated owing stream at all times. DO NOT use in applications where electrode could be exposed to periods without chlorine.

Page 2

Safety Information

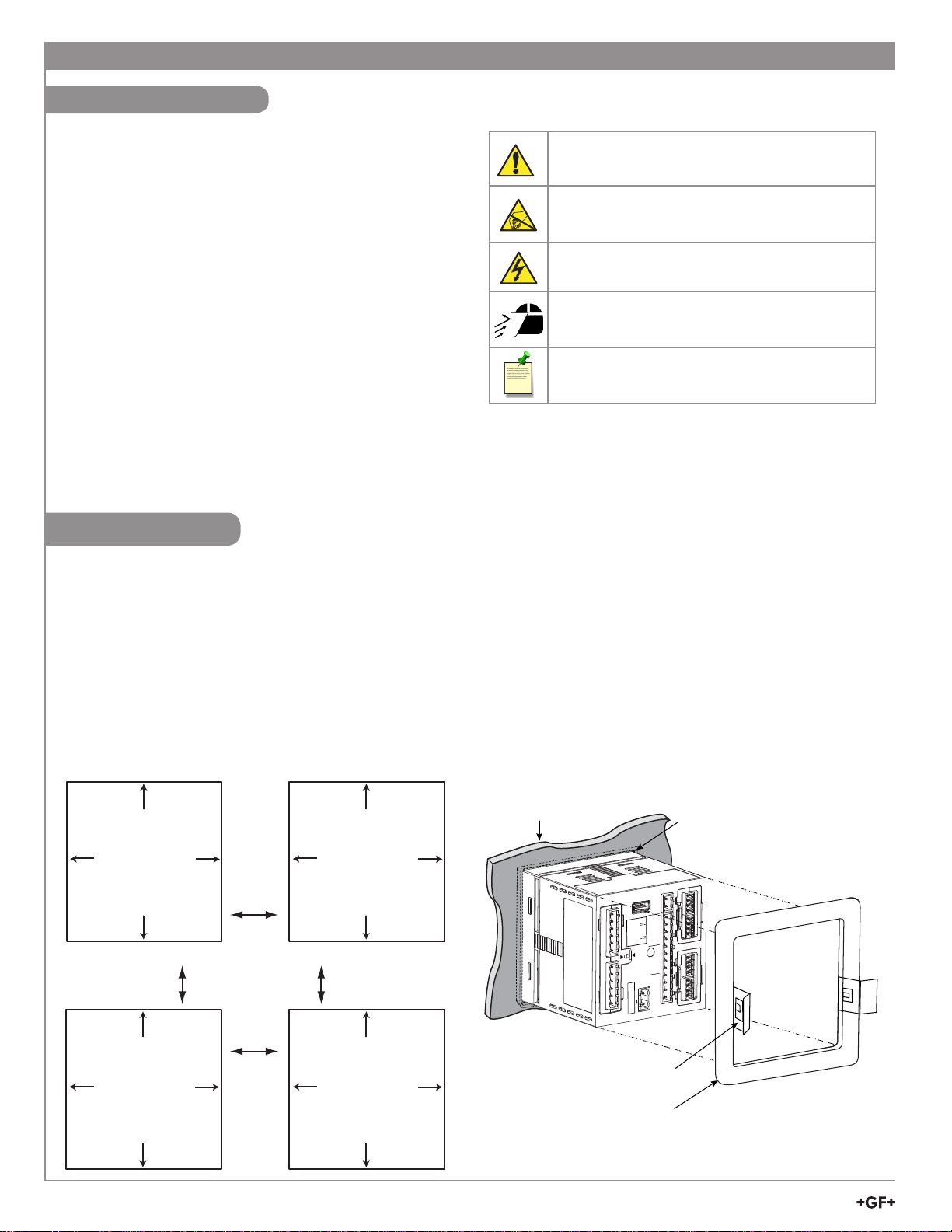

Panel Cutout

92 x 92 mm

(+ 0.8, - 0 mm)

3.6 x 3.6 in.

(+0.031, -0 in.)

Panel Cutout

92 x 92 mm

(+ 0.8, - 0 mm)

3.6 x 3.6 in.

(+0.031, -0 in.)

Panel Cutout

92 x 92 mm

(+ 0.8, - 0 mm)

3.6 x 3.6 in.

(+0.031, -0 in.)

Panel Cutout

92 x 92 mm

(+ 0.8, - 0 mm)

3.6 x 3.6 in.

(+0.031, -0 in.)

minimum

clearance

25 mm

(1 in.)

Start-Up Guide

• Please read entire manual before unpacking, setting up or operating this equipment. Adhere to all danger, warning and caution statements. Failure to do so could result in serious

Warning / Caution / Danger

Indicates a potential hazard. Failure to follow all warnings may lead to equipment damage, injury, or death

injury to the operator or damage the equipment. Make sure the protection provided by this equipment is not impaired, do not use or install this equipment in any manner

Electrostatic Discharge (ESD) / Electrocution Danger

Alerts user to risk of potential damage to product by ESD

other than specied in this manual.

• This unit is designed to be connected to equipment which can be hazardous to persons and property if used incorrectly.

• Read and understand all associated equipment manuals and safety warnings before using with this product.

• Remove power to unit before wiring connections.

Electrocution Danger

Alerts user to risk of potential of injury or death via electrocution

Personal Protective Equipment (PPE)

Always utilize the most appropriate PPE during installation and service of GF products

• Wiring connections to this product should only be performed

by qualied personnel.

• Do not use unit if front panel is cracked or broken.

NOTE / Technical Notes

Highlights additional information or detailed procedure

Installation

For future reference, for each installation, it is recommended to record the part number and serial number of each of the components listed here:

Facility Tag Number or System ID (user assigned):__________________

_ Base unit 3-9950-3 S/N ___________________ Relay Module 3-9950.393-____ S/N ___________________ Dual Channel 4 to 20 Current Loop Out. Module 3-9950.398-2 S/N ___________________ Modbus Module 3-9950.395-M S/N ___________________

Panel Mount Installation

panel

RELAY MODULE

Made in U.S. from U.S. and imported parts

12-32 VDC

0.50A Max

Loop Voltage

12-32 VDC

0.03A Max

100-240 VAC~

DC Power

USB

PWR+

PWR–

Loop1+

Loop1–

Loop2+

Loop2–

FREQ

DATA

GND

CH2 CH1

FREQ

DATA

GND

50-60 Hz, 24VA Max

Allowable panel thickness 2.36 mm (0.093 in.) to 33 mm (1.31 in.)

Quick-clip

mounting

bracket

DC POWER

V+

gasket on front side of panel

MODULE 1

MODULE 2

GF 9950-3 Chlorine Controller

Page 3

Start-Up Guide

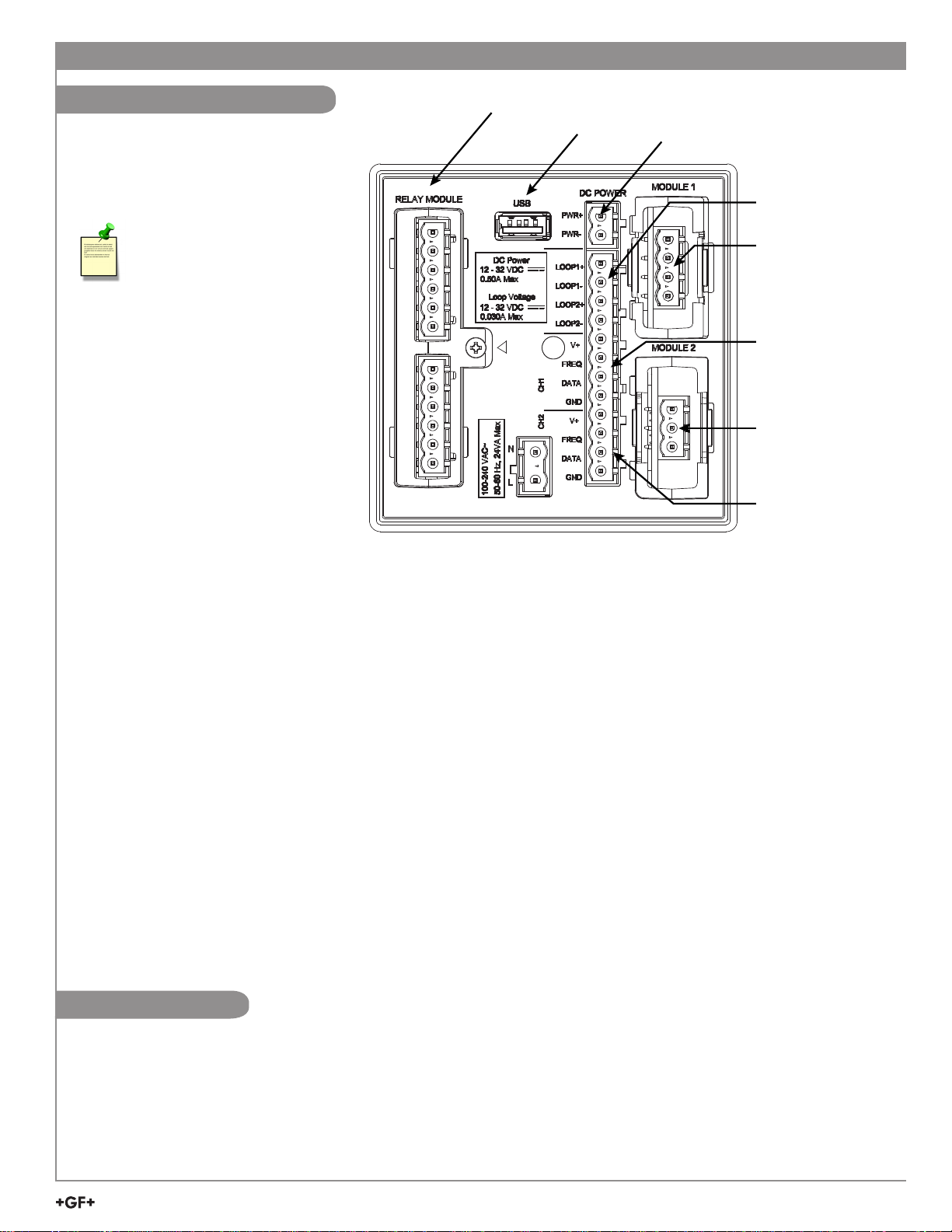

Terminal Identication

Prepare the transmitter installation location.

Relay Module 3-9950.393-3

USB Port

DC Power Terminals

If the back of the transmitter is di󰀩cult to access when installed, wire the removable

terminal blocks rst, then install them completely.

Current Loop Outputs 1 and 2

The 9950-3 requires regulated 12 to 32 VDC,

Current Loop Outputs 3 and 4 3-9950.398-2

±10% (24 VDC nominal) Maximum current draw is:

500 mA with DC power 24 VA with AC power

Channel 1 Input Chlorine Sensor Electrode

Optional Modbus Module 3-9950.395-M

Channel 2 Input pH Electrode

DC Power Terminal 3-9950-3

Required by the instrument

• 12 to 32 VDC, ±10% regulated, 0.5 A MAX. DC power input and Loop current regulated voltage require the use of a

UL60950-1 or UL61010-1 certied power supply. Power supply shall also be rated for operation at 4000 m altitude.

Relay Module

• 3-9950.393-3 Two mechanical relays, 5A 250 VAC or 30 VDC, and four binary inputs rated at 6 mA, 10 VDC to 24 VDC

Module 1

• 3-9950.398-2 Dual Channel 4 to 20 mA Current Loop Output Module

Module 2 (Optional, sold seperately)

• 3-9950.395-M Modbus Module

Channel 1 (Chlorine) and Channel 2 (pH)

• V+: +5 VDC out to sensor (black wire)

• FREQ: Frequency input signal from sensor (red wire)

• S3L DATA: Digital input signal from sensor (red wire)

• GND: Sensor ground (white wire)

Loop Outputs

• Two Passive 4 to 20 mA current loop outputs 12 - 32 VDC, ±10% regulated (30 mA Max) built into the base 9950-3

• Two Passive 4 to 20 mA current loop outputs in Mod 1 A

USB Port

• Software updates will be provided through the USB port

Maintenance

• Clean the instrument case and front panel with a soft cotton cloth dampened with a mild liquid soap solution.

• Never wipe the front window with static retentive cloths such as wool or polyester which may induce a static charge.

• If a static charge develops on the window, you may notice temporary blotches form on the screen. When this occurs, clean the front window with an anti-static cloth, or a soft cotton cloth and anti-static spray or a mild liquid soap solution to remove the static charge.

GF 9950-3 Chlorine Controller

Page 4

DC POWER

–

Black

Red

Power Supply

12 to 32 VDC

Red

–

PLC or

Recorder

–

PLC or

Recorder

Blue

WHITE BACKLIGHT

TEXT 3

AUTO LOW

CH2 BAR GRAPH MIN

GPM

0.00

FUNCTION 1

TEXT 3

NONE

FUNCTION 2

TEXT 3

NONE

FUNCTION 3

TEXT 3

NONE

FUNCTION 4

TEXT 3

NONE

CH1

GPM DECIMAL

_ _ _ _ . _

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

TEXT 3

STD

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

6 2 .8

7.0

WRONG SENSOR

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

7 .0

6 2 .8

MISSING SENSOR

CH2

OFF

TOTAL LOCK

SET SEPERATOR

999.99

CONTRAST

RED BACKLIGHT

OFF

DISPLAY

BAR GRAPH

CH1 BAR GRAPH MIN

0.00

WHITE BACKLIGHT

TEXT 3

AUTO LOW

CH2 BAR GRAPH MIN

GPM

0.00

FUNCTION 1

TEXT 3

NONE

FUNCTION 2

TEXT 3

NONE

FUNCTION 3

TEXT 3

NONE

FUNCTION 4

TEXT 3

NONE

CH1

GPM DECIMAL

_ _ _ _ . _

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

TEXT 3

STD

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

6 2 .8

7.0

WRONG SENSOR

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

7 .0

6 2 .8

MISSING SENSOR

LANGUAGE

ENTER CODE

LANGUAGE

0000

PASSWORD

TEXT 3

CH2

OFF

TOTAL LOCK

SET SEPERATOR

999.99

CONTRAST

RED BACKLIGHT

OFF

DISPLAY

BAR GRAPH

CH1 BAR GRAPH MIN

0.00

CH1 BAR GRAPH MAX

100.00

SAVING

FUNCTION 4

TEXT 3

NONE

CH1

GPM DECIMAL

_ _ _ _ . _

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

TEXT 3

STD

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

6 2 .8

7.0

WRONG SENSOR

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

7 .0

6 2 .8

MISSING SENSOR

CH2

OFF

TOTAL LOCK

SET SEPERATOR

999.99

CONTRAST

RED BACKLIGHT

OFF

DISPLAY

BAR GRAPH

CH1 BAR GRAPH MIN

0.00

CH1 BAR GRAPH MAX

100.00

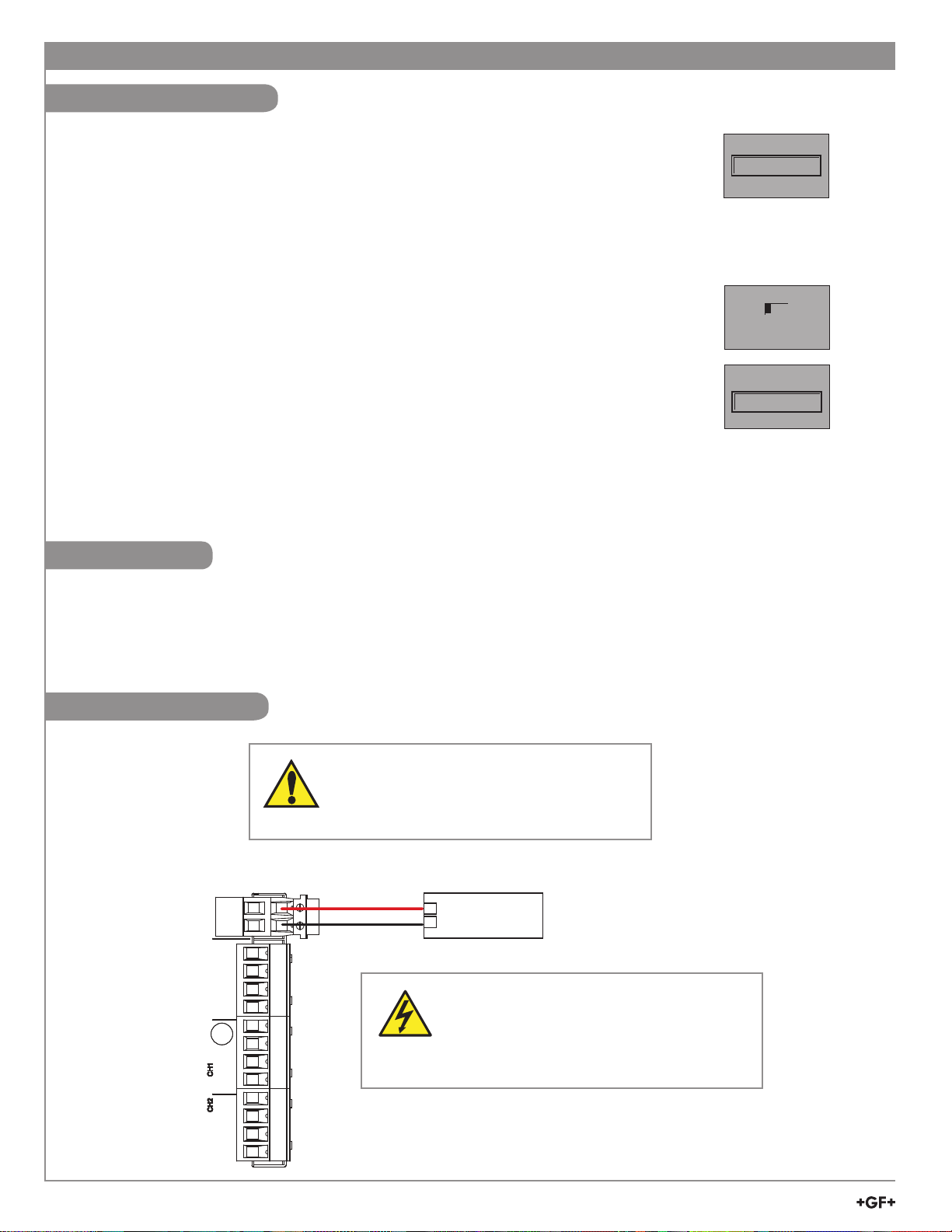

Password Overview

Start-Up Guide

The password is often required to start editing. Once entered correctly, this password will not be needed for subsequent edits, until the menu system is exited. The password is required when the menu system is re-entered.

Your choice of password (STD or CODE) is selected in the Options Menu.

• STD

The standard (STD) password is ▲▲▲▼, pressed in sequence. This password is

designed to protect the 9950 from unintentional changes. It is best suited for systems where a group of people need to be able to change settings.

• CODE

The CODE default setting is 0000, adjustable to any 4-digit numerical code up to 9999. Using a personal code provides the maximum degree of security.

This code can be modied in the Options menu.

Password Reset

Turn o󰀨 9950-3 Press and hold all 4 keys on keypad while turning on 9950 and unit will revert back to STD password.

Wiring

PASSWORD TYPE

WRONG CODE

TEXT 3

In the MENU mode, if the wrong code or password is entered, an ERROR message is displayed.

LANGUAGE

0000

LANGUAGE

ENTER CODE

LANGUAGE

PASSWORD

SAVING

TEXT 3

To change your CODE, go to OPTIONS mode, enter your desired code and press ENTER. (The STD password cannot be changed).

• Terminals accept 12 to 24 AWG wire.

• Strip 10 to 12 mm (0.4 to 0.5 in.) of insulation from wire tips and tin bare ends to eliminate fraying.

• Insert wire tip or ferrule completely into the terminal and secure with the screw.

• Do not allow any AC leads that may be connected to the internal relays to come in contact with low voltage wiring.

Input Power Wiring

GF 9950-3 Chlorine Controller

WARNING

DO NOT connect AC power to the DC version THE 3-9950-3 MUST BE POWERED BY 12 - 32 VDC at 0.5 A.

3-9950-3

Red

Power Supply

–

Black

12 to 32 VDC

Caution:

For DC power input and loop current regulated

voltage, use UL60950-1 or UL61010-1 certied

power supply. Power supply shall also be rated for operation at 4000 m altitude.

Page 5

DC POWER

PLC

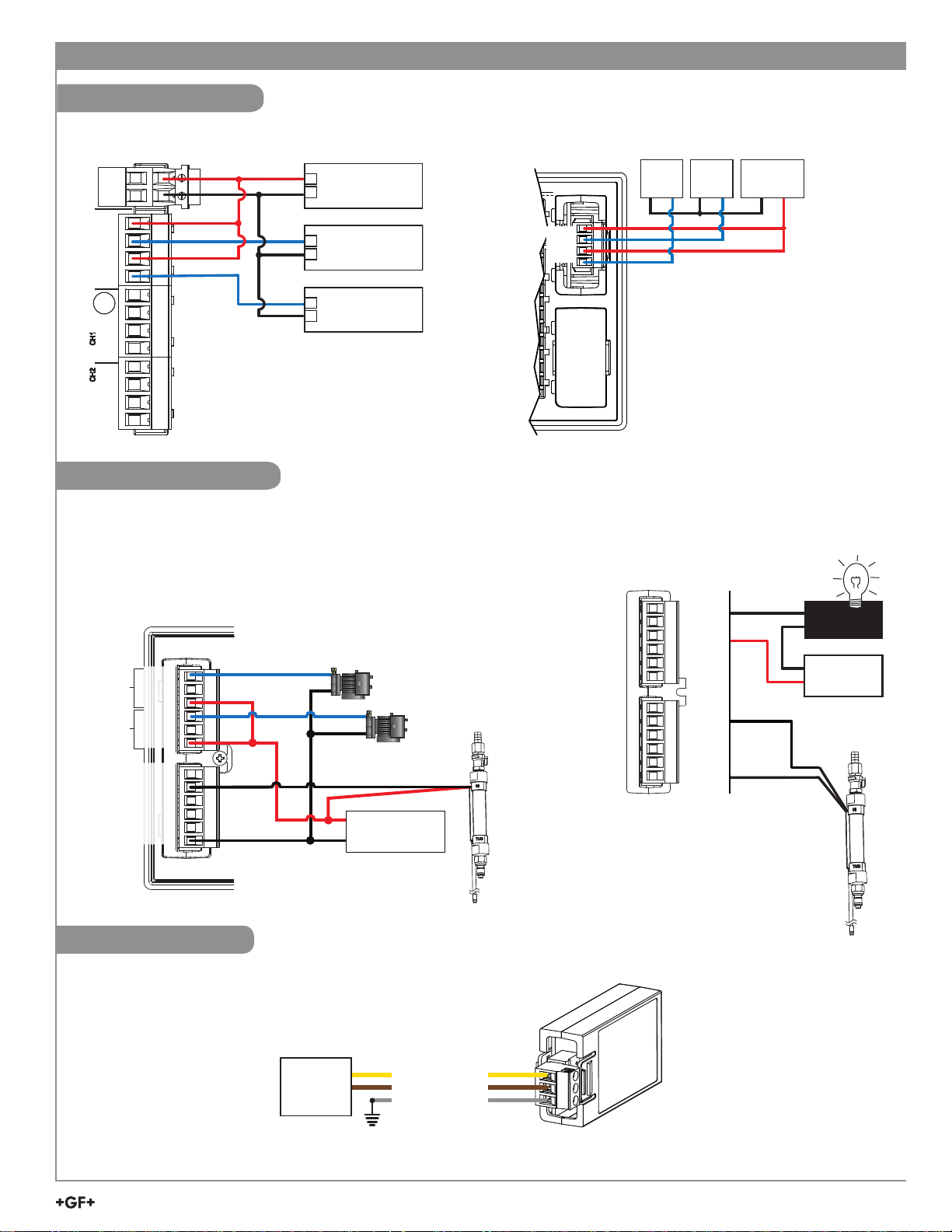

4 to 20 mA Wiring

9950 Transmitter with

3-9900.393-3 Relay Module installed

3-9950.393-3 with internally powered flow switch from factory.

N/O 1 N/C 1

COM 1

SW4

SW COM

N/O 2 N/C 2

COM 2

SW3

SW2

SW1

RELAY 1

RELAY 2

BINARY INPUT 3

BINARY INPUT 1

No Connection

BINARY INPUT 2

BINARY INPUT 4

ALARM!

DC Power

9950.393 External Power

AC or DC

power

Black

Red

Blue

Dual Channel

Conductivity Module

Modbus Module

Shield

Black

White

Red

ISO GND

TEMP

SHLD

SIGNAL

Shield

Black

White

Red

ISO GND

TEMP

SHLD

SIGNAL

Start-Up Guide

9950 Dual Channel 4 to 20 mA ModuleLoop 1 & 2

Red

–

Red

Black

Blue

–

Relay Module Wiring

3-9950.393-3 Standard with 9950-3

The alarm is OFF during normal operation, and will go ON when the relay energizes according to 9950 Relay settings.

RELAY MODULE

Blue

Red

Blue

Red

Black

Relay 1

Relay 2

No Connection

Binary Input 1 Binary Input 2 Binary Input 3 Binary Input 4

N/O 1

N/C 1

COM 1

N/O 2

N/C 2

COM 2

X SW1 SW2 SW3 SW4

SW COM

Power Supply

12 to 32 VDC

PLC or

Recorder

PLC or

Recorder

Chemical Dosing pump

Power Supply

Chemical Dosing pump

MODULE 1

Loop A+ Loop A– Loop B+ Loop B–

MODULE 2

3-9950.393-3 with internally powered ow

switch from factory

RELAY 1

RELAY 2

No Connection

BINARY INPUT 1 BINARY INPUT 2

BINARY INPUT 3 BINARY INPUT 4

Flow Switch Assembly

(159 001 960)

Recorder

Red Blue Red Blue

PLC

–

Recorder

–

N/O 1 N/C 1

COM 1

N/O 2 N/C 2

COM 2

SW1 SW2 SW3 SW4

SW COM

Power

Supply

–

Black

ALARM!

AC or DC

power

Red

Black

Modbus Wiring

RS485

RCVR

PLC

+ –

Shield recommended in noisy environment

Optional Wiring

Modbus Module

Yellow │ D1 + RS485 Brown │ D0 + RS485

(Optional) Shield │ GND

GF 9950-3 Chlorine Controller

Page 6

ENTER

00.00

99.99

00.00

99.99

CH1

9999.9

CH2

UOM UOM

Relay 1 Indicator LED

Relay 2 Indicator LED

Backlight Sensor (do not block)

Bar Graph

Channel 1

display area

Menu Navigation Keys

Relay 3 Indicator LED

Relay 4 Indicator LED

Units of Measure (mg/l/ppm)

Numeric Values or labels

Bar Graph

Channel 2

display area

Numeric Values or labels

Units of Measure (pH)

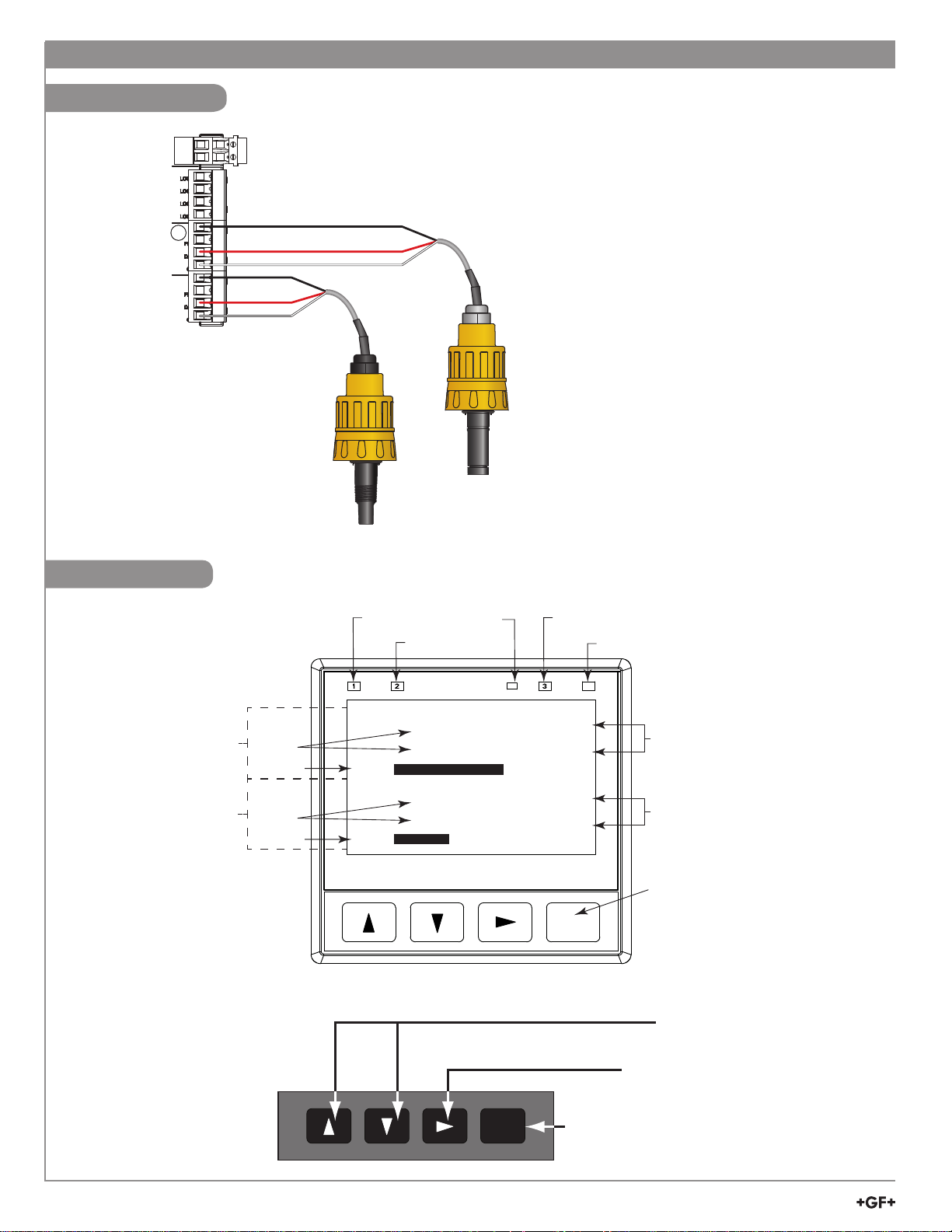

Sensor Wiring

CH1CH2

Start-Up Guide

DC POWER

Technical Notes:

• Route sensor cables away from AC power lines.

• Connect the silver (shield) wire to earth ground in case of EMI noise interference.

Black

Red White

Black

Red White

2650-7 with 263X Chlorine Electrode

2751-7 with 2724 pH Electrode

Operation

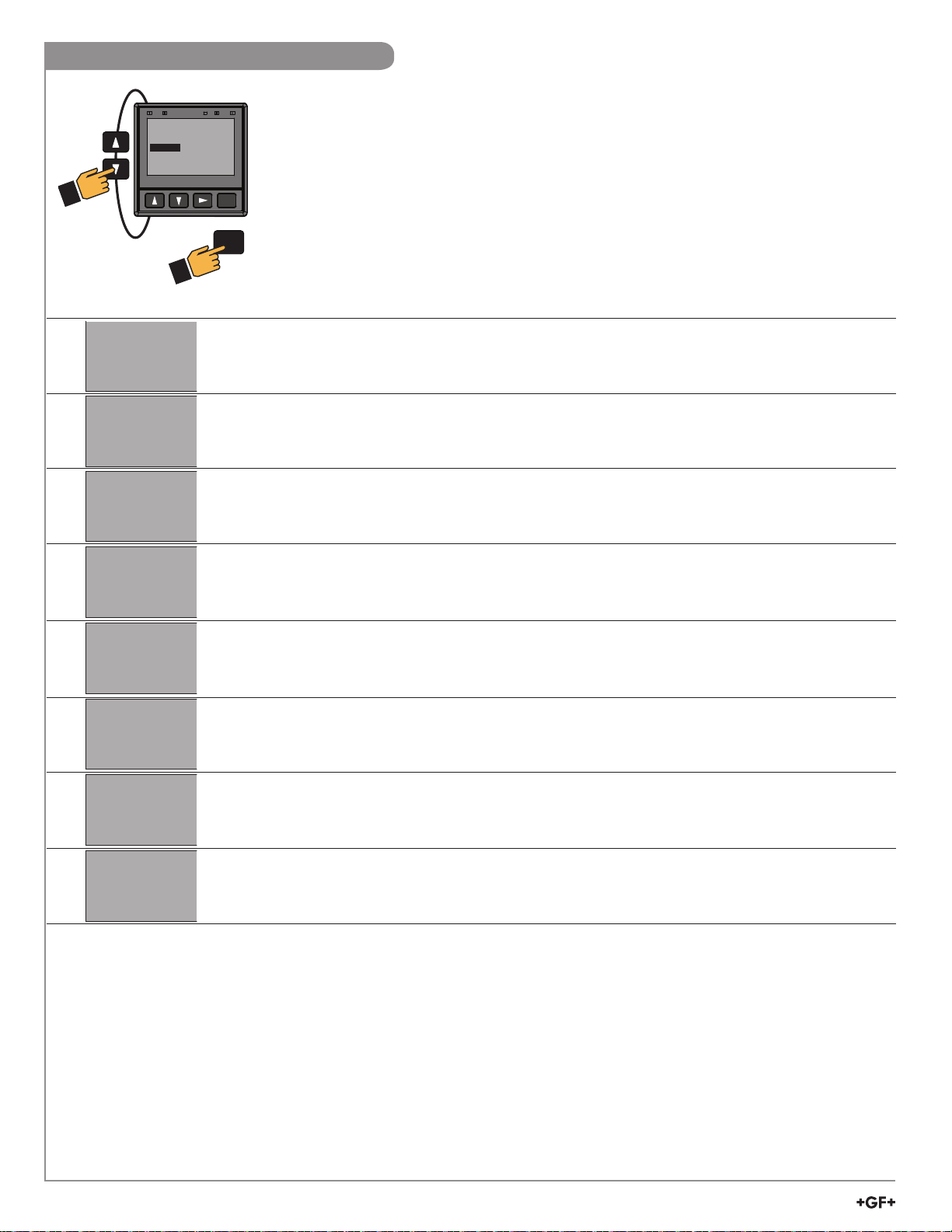

UP, DOWN keys

Scroll through Menu options or adjust values during editing Press both together to exit a menu or escape without saving

RIGHT key

Select item or character to edit

ENTER

ENTER key

Access menus Save changes

GF 9950-3 Chlorine Controller

Page 7

Start-Up Guide

1. Wire the input power 12/24 VDC

2. Wire any or all 4-20 mA outputs

3. Wire the 3-2650-7 to the 9950 CH 1 (channel 1) Wire the 3-2751-7 to the 9950 CH 2 (channel 2)

4. Install the Chlorine and pH electrodes into the 2650 and 2751-7 electronics (place electrodes into the ow cell or leave on the electrodes protective caps to protect the sensor tips)

5. Apply power A new 9950-3 requires initial set up to select the language to be viewed and formating of the displays.

The following instructions will assist in the 9950 set up.

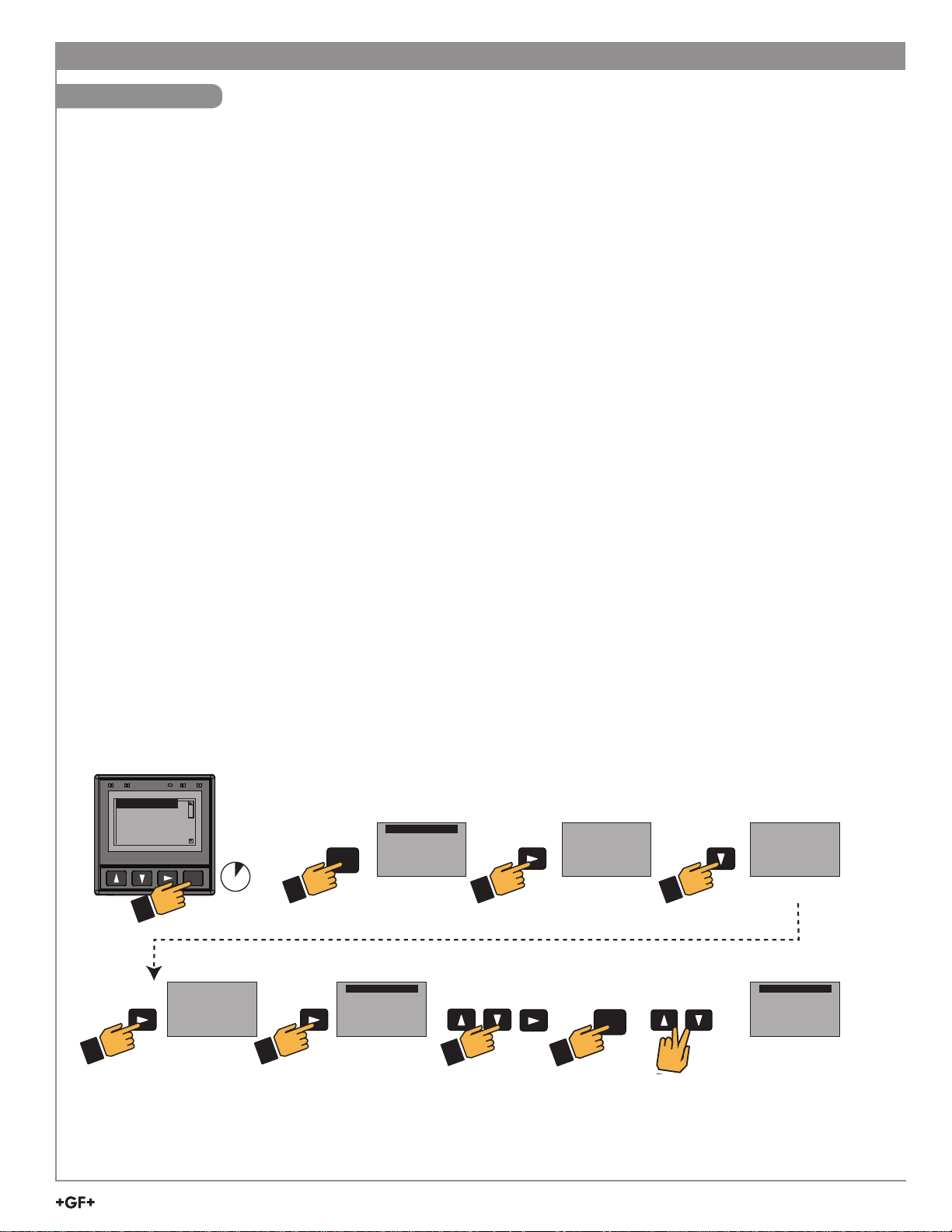

Keypad Functions

The four buttons of the keypad (▲ ▼ ► ENTER) are used to navigate display modes according to the descriptions in this table. Notice the function of each button may change depending on the display mode.

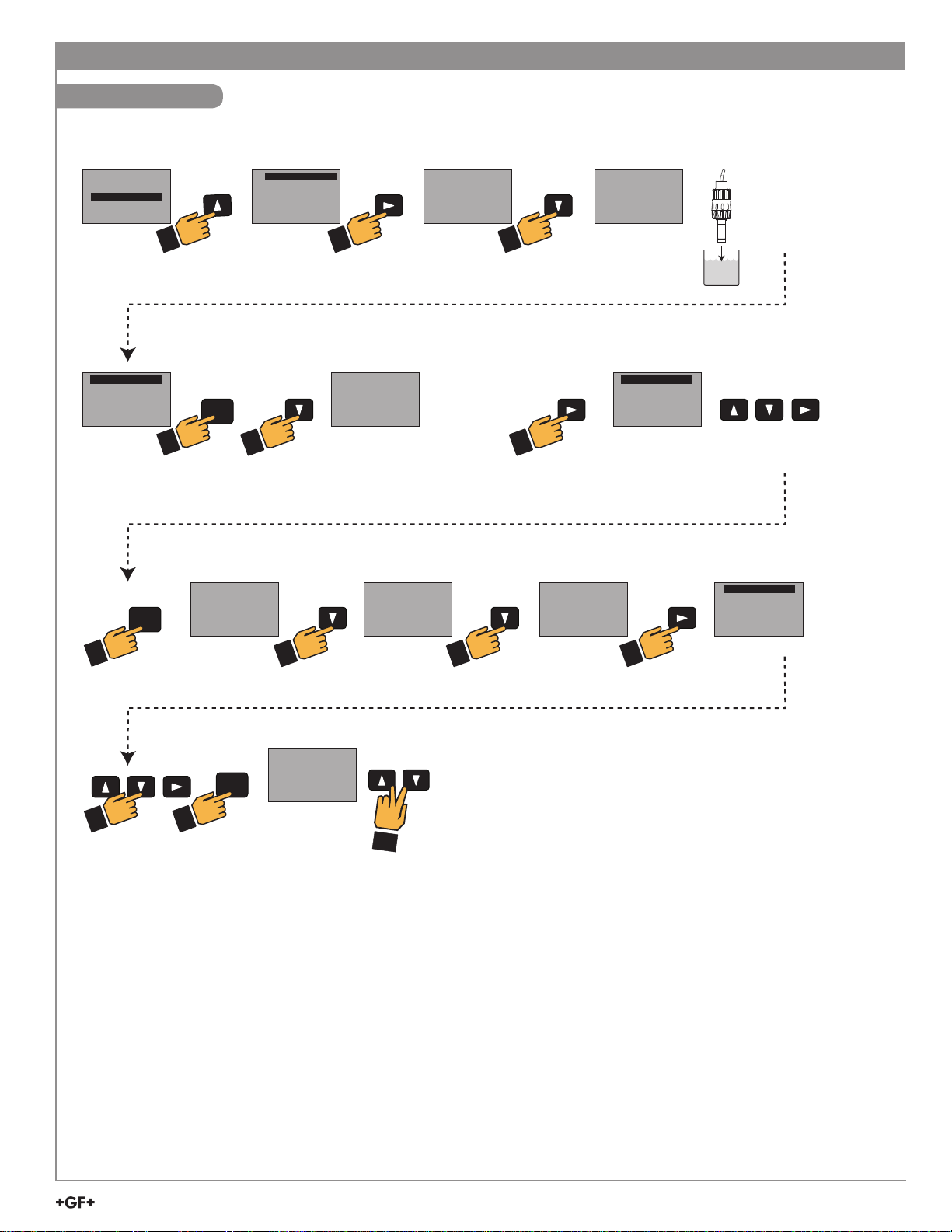

This menu operation sets up the 9950-3 for basic function:

See page 8 for reference.

1. Select desired language using the ▲ and ▼arrows. Press ENTER to save.

2. Press ► to select the TIME FORMAT. Press ▲ or ▼ to select 24 hour or AM/PM. Press ENTER to save the format selection.

3. Press the ▼ move to the next selection, SET TIME.

Press ► to scroll through hours, and minutes place values. Use ▲ or ▼ to adjust the value.

Press ENTER to save the time selection.

4. Press ▼ to move to the next selection, SET DATE FORMAT.

Press ► to select the MM/DD/YYYY date format and ▼ or ▲ to

scroll through other format options. Press ENTER to save the date format selection.

5. Press ▼ to move to the next selection, SET DATE.

Press ► to scroll through the days, months, and years. Use ▲ or ▼ to adjust the number, and ► to select the next

number. Press ENTER to save the Date selection.

6. Press ▼ to move to the next selection, SET DECIMAL MARK.

Press ► and use ▲ or ▼ to highlight desired decimal separator

(comma or decimal mark). Press ENTER to save the decimal mark selection.

7. Press ▼ to move to the next selection, SELECT UNITS. Press ► and scroll ▲ or ▼ to choose Metric or U.S. Customary. Press ENTER save unit selection.

8. Press ▼ to move to the next selection SETUP CHANNEL 1. Press ENTER, ('Looking for Sensor Type' will appear on the screen). The 9950-3 will search for an attached S3L sensor on Channel 1. The found sensor type will be highlighted. If your desired sensor is not highlighted, use the

▲ or ▼ to scroll through the sensor list and select another sensor type.

Press ENTER to save sensor type selected. Press ▲ or ▼ to access screens to adjust common sensor parameters.

► = edit, ENTER = Save, ▲+▼= Cancel. Press ▲+▼ to return to SETUP CHANNEL 1 screen.

9. Press ▼ to move to the next selection, SETUP CHANNEL 2.

Repeat steps in number 8 to set up Channel 2.

Press ▼ to go back to Channel 1, if desired. When done, press ▲+▼ together one time exits to the previous menu. Press ▲+▼ together a second time to exit

Easy Start Up.

10. Calibration Due will flash over each channel once a new

electrode is detected. Go to the Calibration section to review the proper procedures for calibration.

GF 9950-3 Chlorine Controller

Page 8

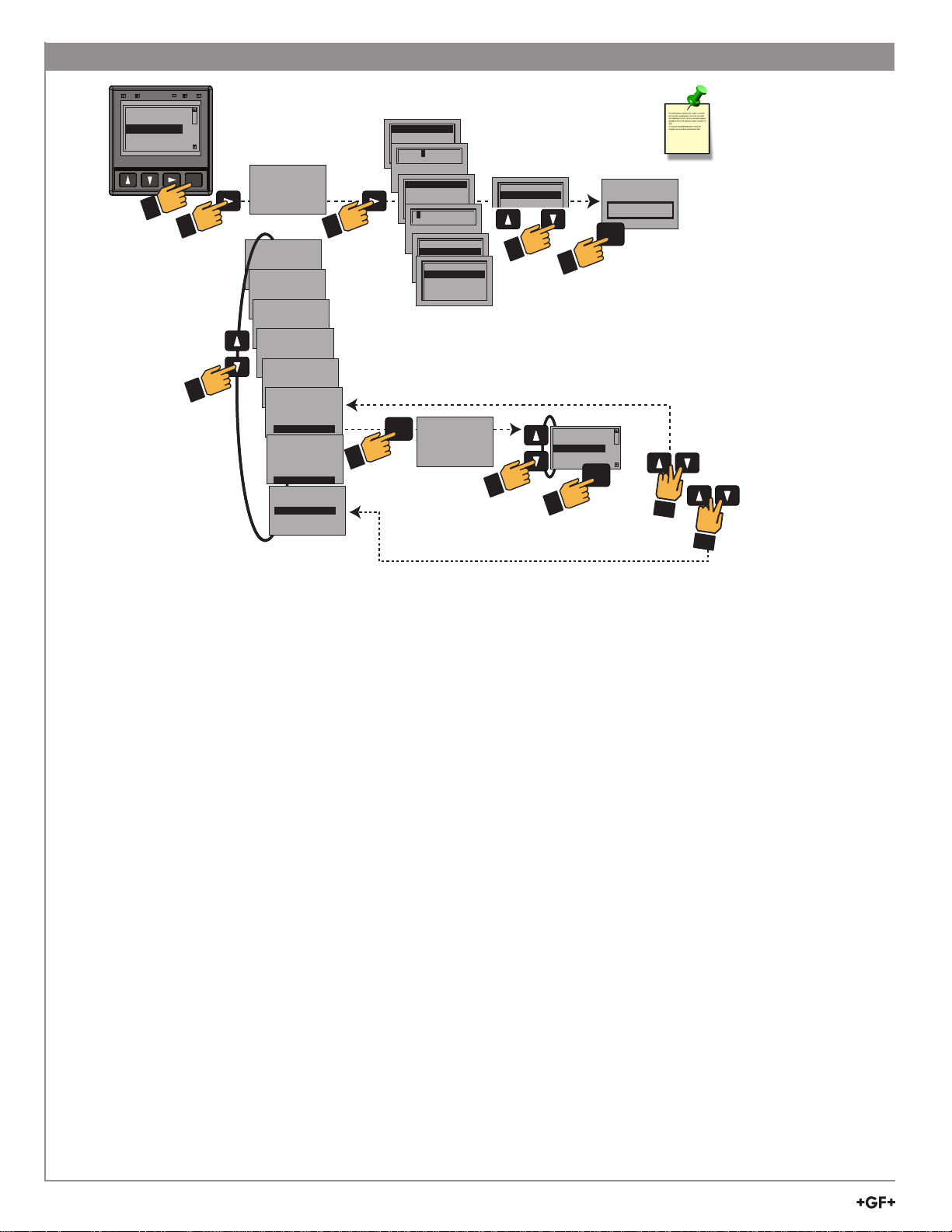

ENTER

DATE FORMAT

100% SOLUTION

NAME

SAVING

24 HOUR

AM/PM

GERMAN LANGUAGE LANGUAGE

00:00:040

AM/PM

09:11:04

MM/DD/YYYY

DD/MM/YYYY YYYY/MM/DD

LANGUAGE LANGUAGE

02/25/20162

AM/PM

02/25/2016

99.999

99,999

ENTER

saves changes

ENTER

METRIC

U.S. CUSTOMARY

LOOKING FOR

TEXT 3

SENSOR TYPE

MM/DD/YYYY

YYYY/MM/DD

DD/MM/YYYY

NONE

FREE CL

CL02 pH

FACTORY

ENTER

saves changes

TIME FORMAT

TEXT 3

24 HOUR

SET TIME

TEXT 3

08:56:47

DATE FORMAT

TEXT 3

MM/DD/YYYY

SET DATE

TEXT 3

02/25/2016

SET DECIMAL MARK

TEXT 3

999.99

SELECT UNITS

TEXT 3

U.S. CUSTOMARY

SETUP

CHANNEL 1

PRESS ENTER

SETUP

CHANNEL 2

PRESS ENTER

EXIT STARTUP

PRESS ENTER

ENGLISH

DEUTCH

ESPAÑOL

中文

FRANÇ

Start-Up Guide

Easy Set Up can be entered by setting either or both channels to Factory and cycling power on the 9950-3.

GF 9950-3 Chlorine Controller

Page 9

Start-Up Guide

Calibration

Both the Chlorine and the pH electrodes are required to be calibrated for accuracy. Upon inital set up the electrodes will need to be placed in a chlorinated ow stream for a minimum of 4 hours in a conditioning period. Calibration of the Chlorine electrode is typically required every 14 to 21 days to comply with the EPA standard 334.0. The calibration frequency of the pH electrode is application dependent and the intervals between calibrations must be determined by the user of the system.

In order to achieve the most accurate chlorine measurement, after the minimum 4 hour conditioning period, calibration must be

performed in the following specic order:

• Temperature

• pH electrode (Free Chlorine only)

• Chlorine electrode NOTE: The Temperature element only requires calibration one time during initial commissioning. Once calibrated the Temperature

element is calibrated for the life of the chlorine electrode.

Chlorine sensor temperature element calibration

The temperature element inside the chlorine sensor needs to be calibrated. Use a reference thermometer to verify the actual temperature of the sample. This value is then entered into the calibration screen of the Temperature Calibration menu. Tip: Remove the pH electrode from the ow cell and insert the reference thermometer. If no pH sensor is being used (ClO2 system), remove the cell plug to insert the thermometer. Replace the plug after calibration.

pH electrode calibration

It is highly recommended to perform a two point calibration of the pH electrode using a pH bu󰀨er 7 and pH bu󰀨er 4 or 10. The pH bu󰀨ers' temperatures should be close to the system water temperature for an accurate calibration. Once a successful calibration

is performed, the 9950 will automatically time stamp the "Last CAL" display with the date of calibration. The user can add a date to the "NEXT CAL" display which will generate a "Calibration Due" icon across the pH channel (CH2).

Chlorine sensor

Calibration must be performed to every new chlorine sensor (FCl or ClO2) and any time a membrane cap or internal electrolyte is

replaced. With the chlorine sensor attached to the 2650 electronics (with system power on) and placed in a chlorinated ow stream

for the minimum of 4 hour conditioning period, the temperature and chlorine In-Process Calibration needs to be performed. Once a successful calibration is performed the 9950 will automatically time stamp the "Last CAL" display with the date of calibration. The user can add a date to the "NEXT CAL" display which will generate a "Calibration Due" icon across the chlorine channel (CH1).

NOTE: It is advised to return 24 hours after the initial Chlorine calibration to verify and recalibrate if necessary.

Temperature Calibration

CAL

INPUT LOOP RELAY OPTION

ENTER

CH 1 FREE CI

25.00

ENTER

CH 1 FREE CI

CH 2 pH

TEXT 3

+25.30

+25.00

CH 1 FREE CI

OFF

HOLD OUTPUTS

to Save

ENTER

Display returns to calibration display

CH 1 FREE CI

SET

TEMPERATURE

CH 1 FREE CI

CH 2 pH

TEXT 3

GF 9950-3 Chlorine Controller

Page 10

fer.

Calibration

pH Electrode Calibration

CH 1 FREE CI

CH 2 pH

TEXT 3

Start-Up Guide

CH 2 pH

to edit to edit

CH 2 pH

OFF

HOLD OUTPUTS

CH 2 pH

SET

pH STANDARD

CH 2 pH

6.80

RAW - 3 mV

Place electrode tip in saturated pH 7.0 buf

to edit

CH 2 pH

NEXT CAL

MM/DD/YYYY

+07.01

6.80

RAW - 3 mV

to Save

ENTER

pH STANDARD

Use the arrows to modify the pH value, matching the buffer solution.

+04.80 CH 2 pH

4.80

RAW 173 mV

to Save

ENTER

Use the arrows to modify the pH value, matching the buffer solution.

to edit

MM/DD/YYYY

NEXT CAL

MM/DD/YYYY

to Save

ENTER

CH 2 pH

SET

pH SLOPE

CH 2 pH

NEXT CAL

MM/DD/YYYY

CH 2 pH

SET

pH SLOPE

Place electrode tip in saturated pH 4.0 buf

CH 2 pH

LAST CAL

MM/DD/YYYY

Display returns to calibration display

CH 1 FREE CI

CH 2 pH

TEXT 3

GF 9950-3 Chlorine Controller

Page 11

Calibration

Chlorine Electrode Calibration

Start-Up Guide

CH 1 FREE CI

CH 2 pH

TEXT 3

- .01

0.0 PPM

to Save

ENTER

CH 2 pH

CH 1 FREE CI

SET

pH STANDARD

IN PROCESS

CH 1 FREE CI

CH 2 pH

TEXT 3

to edit

CH 2 pH

CH 1 FREE CI

SET

pH STANDARD

IN PROCESS

CH 1 FREE Cl

MM/DD/YYYY

CH 1 FREE CI

pH STANDARD

HOLD OUTPUTS

Test sample with an external DPD test instrument.

LAST CAL

CH 2 pH

SET

OFF

to edit

CH 1 FREE Cl

MM/DD/YYYY

NEXT CAL

CH 2 pH

CH 1 FREE CI

SET

pH STANDARD

ZERO CAL

+ 002.25

RAW 100.5 nA

Place electrode tip into DI water.

Modify Chlorine PPM value to match DPD reference.

MM/DD/YYYY

NEXT CAL

MM/DD/YYYY

to Save

ENTER

CH 1 FREE Cl

NEXT CAL

MM/DD/YYYY

Display returns to calibration display

GF 9950-3 Chlorine Controller

Page 12

Warranty Information Table of Contents

99.06 mm (3.90 in.)

1 2 3 4

99.06 mm (3.90 in.)

ENTER

90.73 mm (3.57 in.)

91.44 mm (3.60 in.)

82.60 mm (3.25 in.)

90.73 mm (3.57 in.)

91.44 mm (3.60 in.)

102.37 mm (4.03 in.)

82.60 mm (3.25 in.)

Refer to your local Georg Fischer Sales o󰀩ce for the most

current warranty statement. All warranty and non-warranty repairs being returned must

include a fully completed Service Form and goods must be returned to your local GF Sales o󰀩ce or distributor. Product returned without a Service Form may not be warranty replaced or repaired.

GF products with limited shelf-life (e.g. pH, ORP, chlorine

electrodes, calibration solutions; e.g. pH bu󰀨ers, turbidity

standards or other solutions) are warranted out of box but not warranted against any damage, due to process or application failures (e.g. high temperature, chemical poisoning, dry-out) or mishandling (e.g. broken glass, damaged membrane, freezing and/or extreme temperatures).

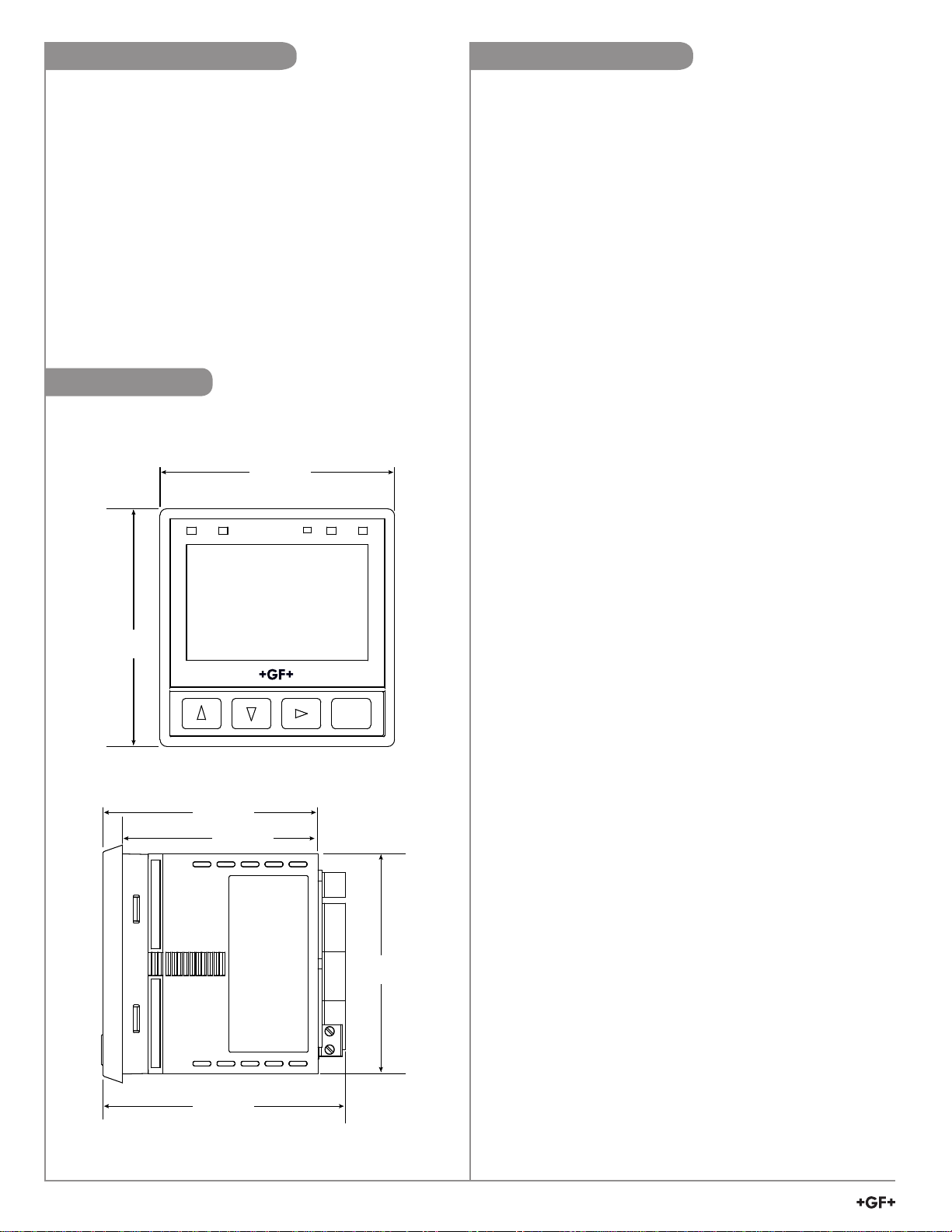

Dimensions

3-9950-3

Front View

General Information ...................................................................1

Safety Information/Installation....................................................2

Terminal Identication ................................................................3

Maintenance ...............................................................................3

Password Overview ...................................................................4

Wiring ......................................................................................4-8

Input Power Wiring ..............................................................4

4 to 20 mA Wiring ................................................................5

Relay Module Wiring ...........................................................5

Modbus Wiring ....................................................................5

Sensor Wiring ......................................................................6

Operation ................................................................................6-8

Calibration .............................................................................9-11

Warranty Information ................................................................12

Dimensions ..............................................................................12

Module Installation ...................................................................13

Plug-In Modules .......................................................................13

Loop and Modbus Modules .....................................................14

Signal Type: Digital (S3L) ........................................................14

Relay Modes .......................................................................15-18

Menu System ...........................................................................19

View Mode ....................................................................20-21

Calibration Menus ........................................................22-23

Input Menus ..................................................................24-25

4 to 20 mA Output Menus .................................................26

Relay Menus......................................................................27

Option Menus ...............................................................28-31

Modbus Menus .............................................................32-33

Field Software Upgrade ...........................................................34

Updating the 9950 ....................................................................34

Troubleshooting ..................................................................35-37

Specications ......................................................................38-39

Ordering Information ................................................................40

Side View

GF 9950-3 Chlorine Controller

Page 13

Signal Type: Digital (S3L)

• The input terminals on the 9950-3 carry Digital (S3L) serial data from the sensor.

• Do not route sensor or output cables in conduit containing AC power wiring. Electrical noise may interfere with sensor signal.

• Routing cable in grounded metal conduit will help prevent electrical noise and mechanical damage.

• Seal cable entry points to prevent moisture damage.

• Only one wire should be inserted into a terminal. Splice double wires outside the terminal.

• The TOTAL cable length from I/O devices to the transmitter must not exceed 305 m (1000 ft).

• In case of noise interference, ground the sensor SHIELD wire to a local earth ground at a point near the sensor.

• Consult the sensor manual for additional wiring information.

• The maximum cable length of the Digital (S3L) bus varies depending on the types of sensors connected and the size of the conductors in the cable. For best results, determine the maximum cable length for the system before routing cables.

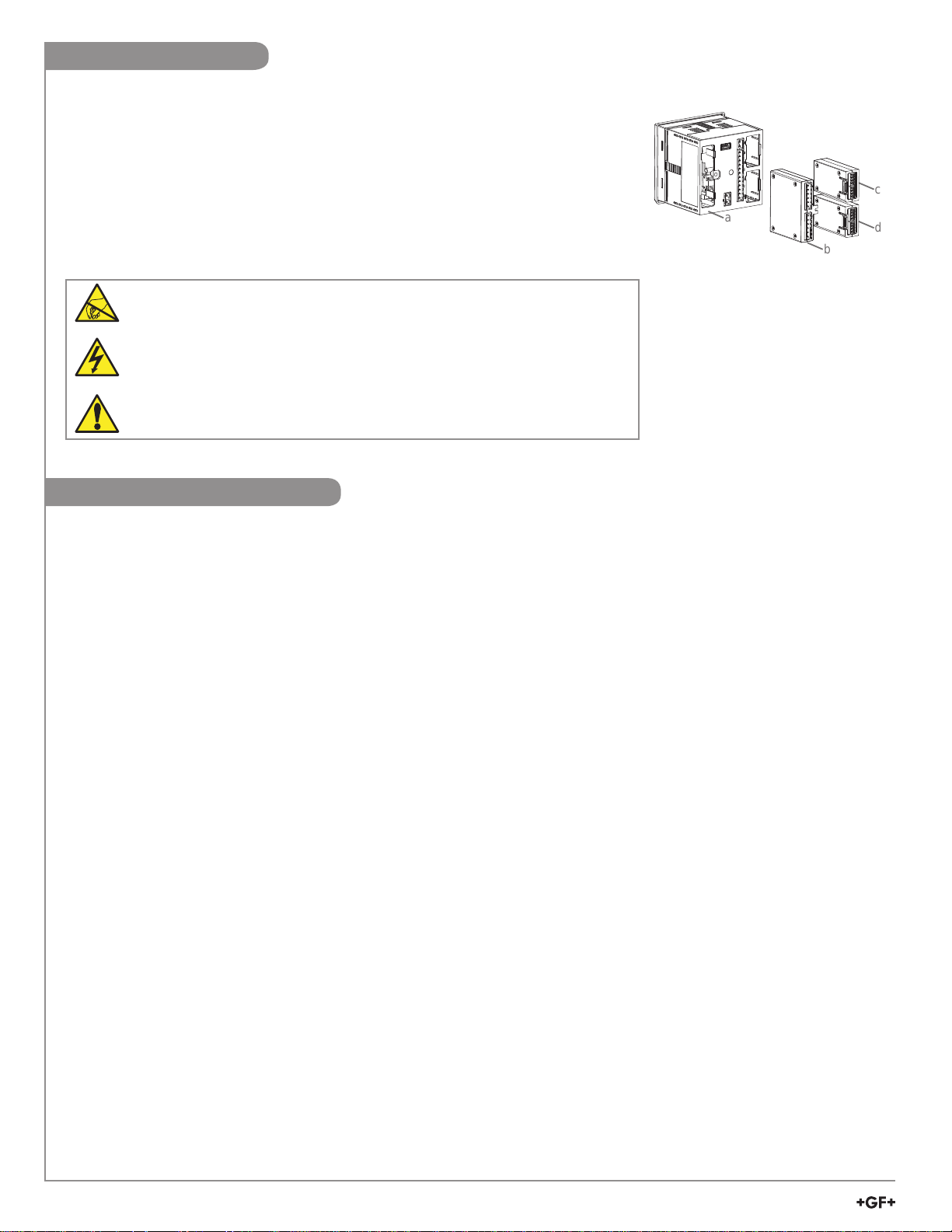

Module Installation

In case of noise interference, connect the cable shield to earth ground.

Maximum total cable length of the Digital (S3L) Bus:

The quality of the cable used in the bus determines the maximum length. The maximum cable length may not exceed 305 m (1000 ft), regardless of current requirements.

CAUTION

Avoid Electrostatic Discharge (ESD).

The plug-in modules may be installed either before or after the base unit is mounted. If the 9950-3 Base Unit will be mounted using the provided quick clip mounting bracket, install plug-in

modules rst with power disconnected.

CAUTION

Exercise care when installing modules. Do not bend connecting pins.

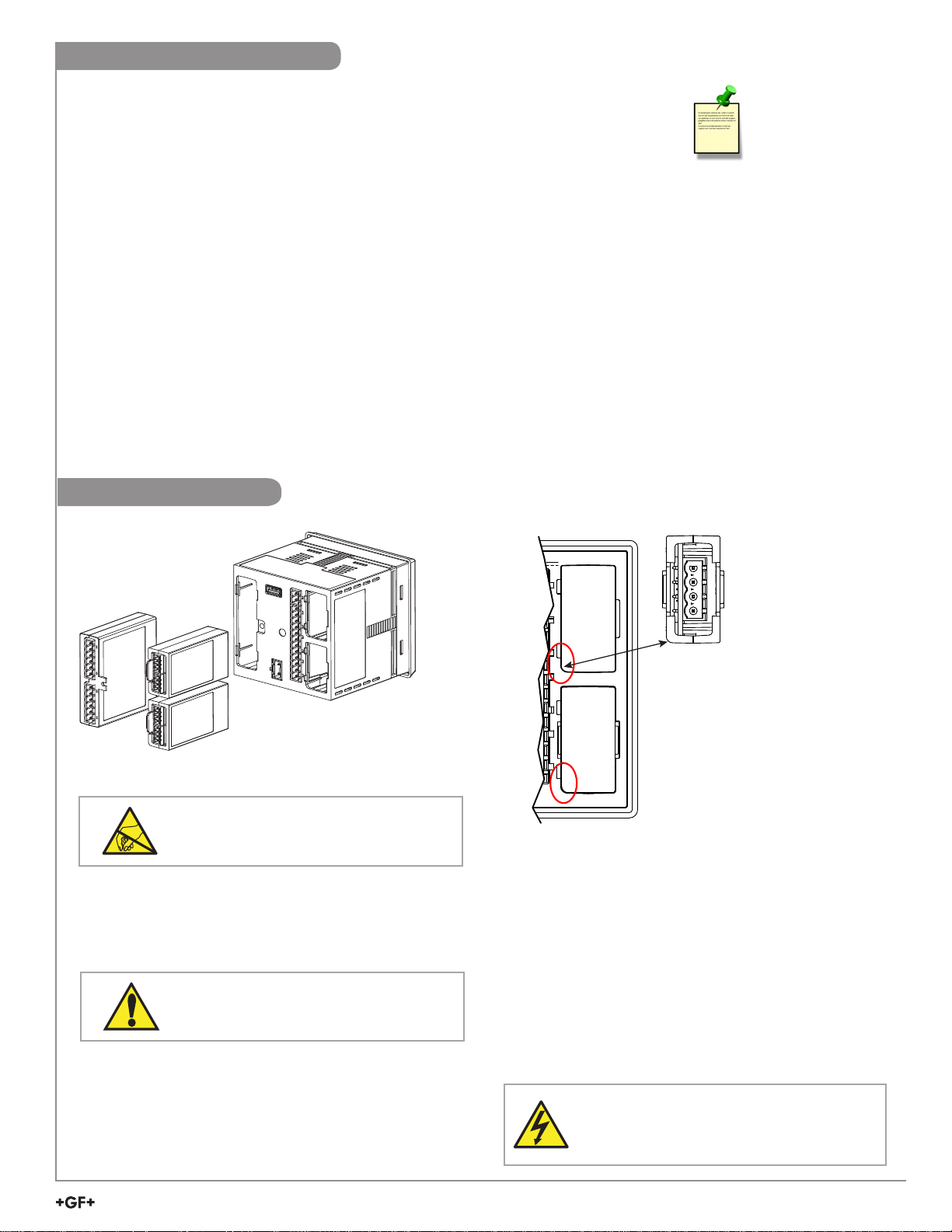

To install modules:

Remove power from the 9950-3. Carefully align pins and

connectors (do not bend connecting pins) and push module rmly

into place, then attach with screw(s) for Relay Modules only .

9950

MODULE 1

MODULE 2

Rounded Corners

Important!

Ensure the rounded corner of the module is alligned with the rounded corner of the module slot before installing

Dual Channel 4 to 20 mA Module

To move modules:

Remove power from the 9950-3.

For Relay Modules: Unplug connectors, remove screw(s), and carefully pull module straight out from the base unit. Do not bend the connecting pins.

For Dual Channel 4 to 20 mA, and Modbus Modules:

Unplug connectors and squeeze the two retaining tabs while pulling module out of 9950-3.

WARNING

Relays may be connected to external high-voltage power sources or multiple power sources creating an electrocution hazard.

GF 9950-3 Chlorine Controller

Page 14

Plug-In Modules

Standard modules for the 9950-3: a. Base Unit (required) 3-9950-3 159 001 841 Base Controller, no modules b. Relay Module 3-9950.393-3 159 310 270 Relay Module c. Module 1 3-9950.398-2 159 001 848 Dual Channel 4 to 20 mA

Output Module Optional module for the 9950-3: d. Module 2 3-9950.395-M 159 001 905 Modbus Module (optional)

Each item is ordered separately. Modules are eld-replaceable at any time.

See Module Installation (pg. 3) and Ordering Information (pg. 40) sections for more details.

CAUTION

Avoid Electrostatic Discharge (ESD).

•

Minimize handling of the plug-in modules to reduce the possibility of damage due to ESD.

•

Handle modules by the edges.

Never touch any exposed circuitry or contacts.

•

Wear an anti-static wristband or stand on an anti-static mat, or keep one hand touching a

properly grounded pipe or other piece of properly grounded metal when handling modules.

Loop and Modbus Modules

Mfr. Part No. Code Description 3-9950.398-2 159 001 848 Dual Channel 4 to 20 mA Current Loop Output Module 3-9950.395-M 159 001 905 Modbus Module

Dual Channel 4 to 20 mA Module

Two additional 4 to 20 mA passive current loop outputs in a single module, allows up to six current loop modules in the 9950-3 Chlorine Controller.

Modbus Module

The Modbus Module connects the 9950-3 to serial RS485 Modbus automation networks. The Modbus Module will allow for PLCs and SCADA Systems to query the current readings, channel status, state of the relay and 4 to 20 mA outputs, along with status of the 9950-3 Chlorine Controller and Modbus communications. Detail programming information is available in the 9950 Modbus Programming Manual.

Default Communication Parameters ModBus Address 95

ModBus Termination O󰀨

ModBus Mode RTU ModBus Baud Rate 19.2K ModBus Parity Even ModBus Endian Big

GF 9950-3 Chlorine Controller

Page 15

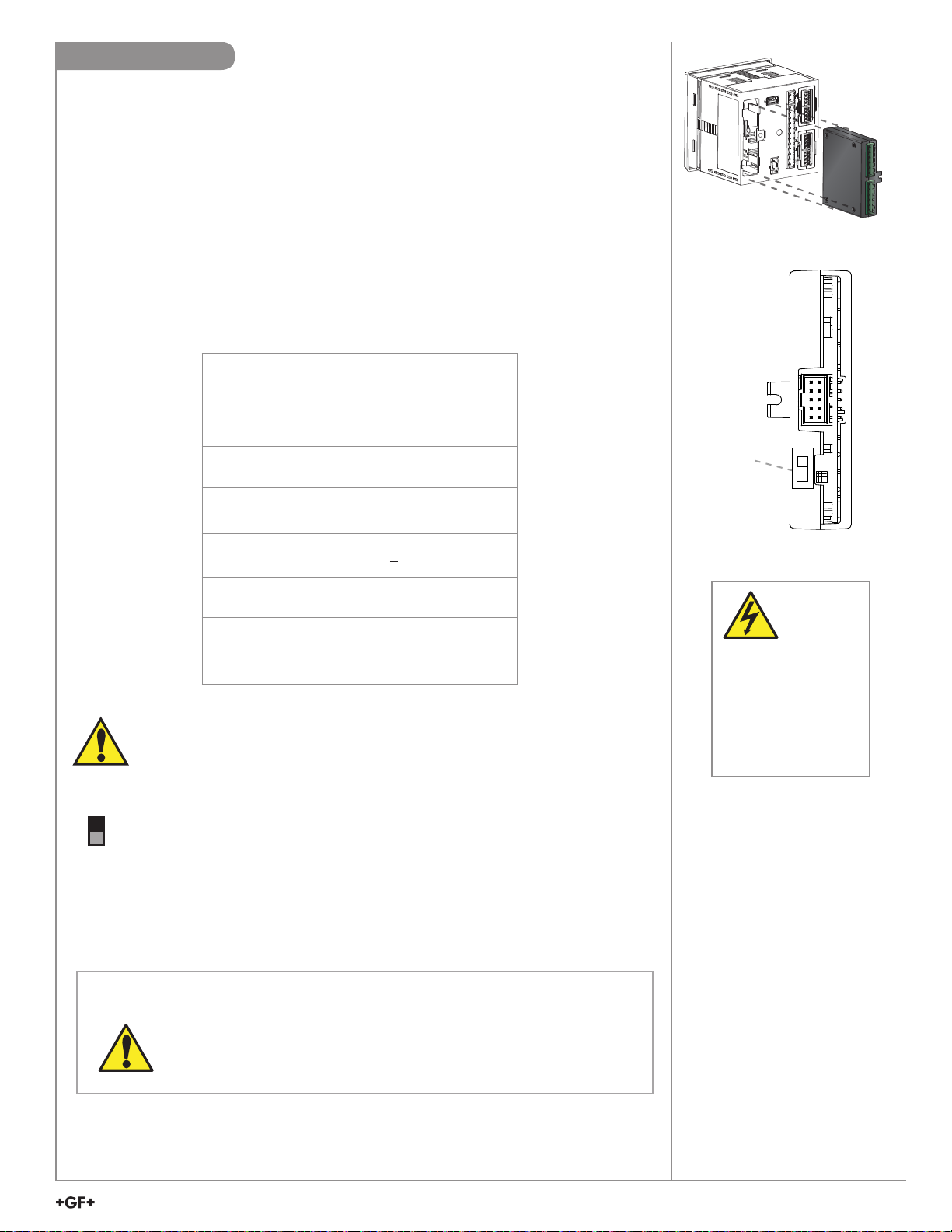

Relay Modes

The 9950-3 has a slot for an optional Relay Module for the module listed on page 14.

• The four Binary Inputs can detect if an external switch is open or closed. The switch state can be used to enable or disable the relays in the module control relay activation and are not considered an input measurement. This is standard on the 9950-3.

• A ow switch must be wired into Binary input #1 to allow access to the Chemical Guard mode of the 9950-3.

• Dry-contact relays are electromechanical switches with a moving contact armature. They are suitable for many general-purpose applications, AC or DC, including AC loads up to 250 V.

For wiring information, refer to the Relay Wiring section, page 5.

Binary Input Ratings

Maximum Input voltage (without damage)

. The four binary inputs only

30 VDC

3-9950.393-3

Power

Switch

EXT

INT

Minimum Input voltage (without damage)

Maximum input voltage for

signal “O󰀨” (low or "0")

Minimum input voltage for signal “On” (high or "1")

Maximum current draw for signal “0” (low)

Minimum current draw for signal “1” (high)

Typical current draw for signal “1” (high)

-5 VDC (no operation below 0 VDC)

1.5 VDC

3.0 VDC

<500 µADC

500 µA

6.0 mA at 30 VDC,

4.8 mA at 24 VDC,

2.4 mA at 12 VDC,

1.0 mA at 5 VDC

The 3-9950.393-3 module can be set to supply power to the external switch/ sensor. If an externally powered sensor is connected with the 3-9950.393-3 module, set the power switch to the EXT position. The module can power external sensors by switching the power switch to the INT position. Maximum power that can be drawn from the module is 6mA at 30 VDC. Important for externally powered switches/sensors ensure the output signal is within the allowable range for the 3-9950.393-3.

Int / Ext

Switch

EXT

INT

CAUTION

Keep relay wiring separate from electrode and signal wiring to prevent interference and damage to the 9950-3 Transmitter .

NOTE:

• The four red Indicator LEDs on the front panel of the 9950-3 show the status of relays 1, 2, 3, & 4. The LEDs will activate with or without a relay module installed.

• Hysteresis and time delay are adjustable for each relay.

CAUTION

Switching active loads (usually inductive) can cause contact arcing

su󰀩cient to damage the relays.

The RC Filter Kit or “snubber” (part number 3-8050.396) is available

as an accessory to reduce or eliminate these damaging e󰀨ects.

Recommended for inductive loads greater than 50 VAC (remote relays, solenoids, pumps, etc.)

GF 9950-3 Chlorine Controller

Page 16

Relay Modes

Chemical Guard

The Chemical Guard prevents overdosing of oxidant type chemicals (Chlorine) whose concentration varies based on the pH level of the application.

The Chemical Guard is only accessible in the relay menu when used in conjunction with a ow

switch (GF option) that is wired to the Binary input #1 of the 3-9950.393-3 relay module. When the Chemical Guard function is selected, relay 1 is automatically defaulted to control and

adjust the Oxidant chemical (Chlorine) and relay 2 is defaulted to control and adjust the pH level of the application.

The control logic will always interrupt (disable) relay 1 if the pH requires adjusting. Once the pH is corrected, relay 1 is then available to add additional oxidants to the application.

The Chemical Guard allows relay 1 and relay 2 to be independently programmed as a low set point, high set point or a proportional pulse output.

Flow Switch Enabled

YES

Chemical Guard ON

YES

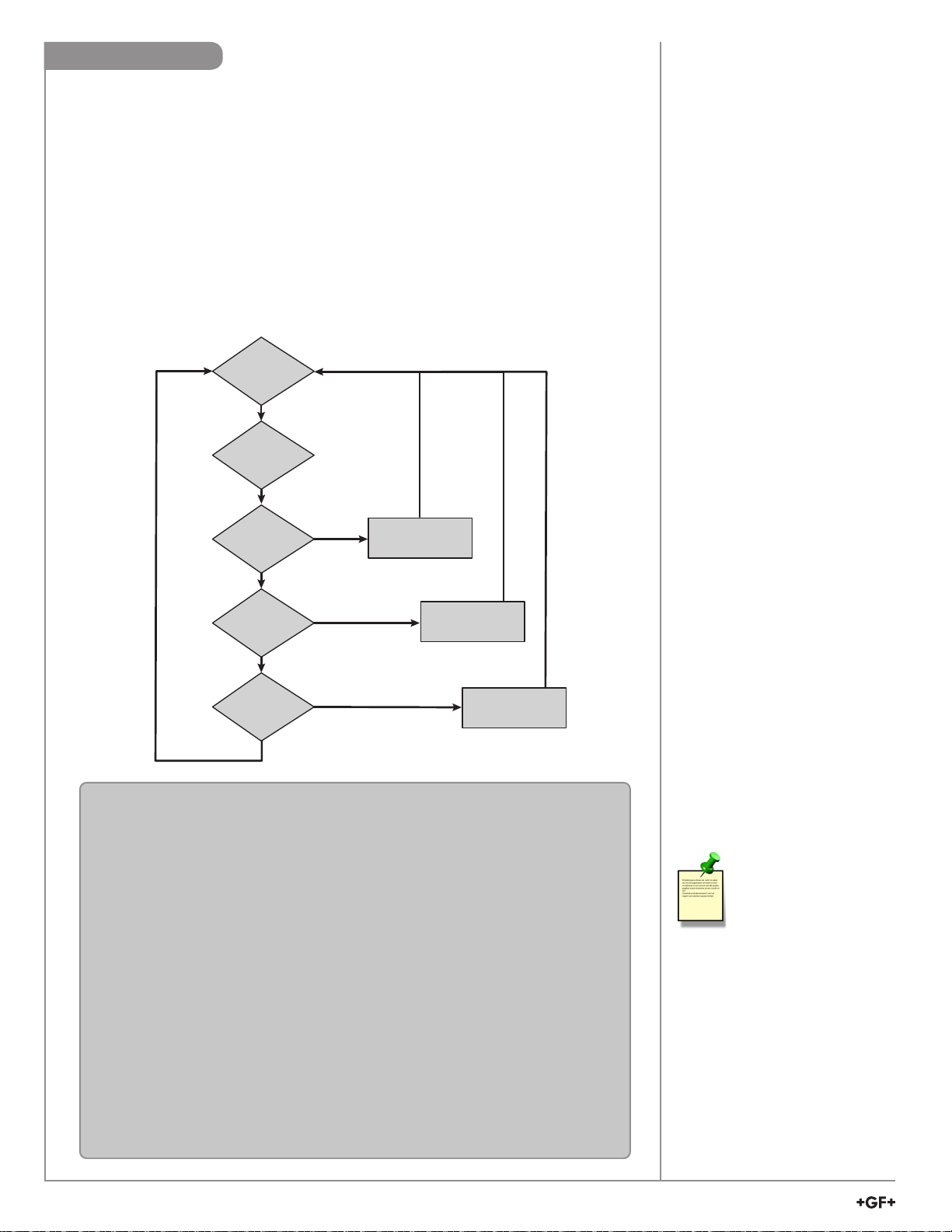

Is there flow?

Disable R1 and R2

YES

Is the pH correct?

YES

Is the Chlorine level

correct?

YES

Turn on R2 Disable R1

Turn on R1 Disable R2

1. Press and hold ENTER for 3 seconds

2. Go to the Relay Menu by pressing ▼ ▼ ▼ then ENTER

3. Display shows "FLOW SWITCH" NO, press ► and change to YES, Press ENTER to save

4. Press ▼ screen should show "RELAY CHEMICAL GUARD" OFF

5. Press ► and change to YES, press ENTER to save

6. Press ▼ screen should show "Oxidizer" Mode OFF

7. Press ► and select LOW

8. Press ▼ x2 to set POINT DISPLAY

9. Press ► to enter the LOW SET POINT value 3.0 ppm, press ENTER to save

10. Press ▼ then press ► to enter ON DELAY time of 15 seconds, press ENTER to save

11. Press ▼ then press ► to enter an OXIDIZER HYSTERESIS of 1.0 ppm, Press ENTER to save

12. Press ▼ x3 screen should show pH ADJUST Mode OFF

13. Press ► to change the Mode to HIGH

14. Press ▼ x2 then press ► to enter HIGH SET POINT of 7.5

15. Press ▼ then press ► to enter ON DELAY time of 15 seconds, press ENTER to save

16. Press ▼ then press ► to enter pH ADJUST HYSTERESIS of 0.3 ppm

17. Press ▲+▼ at the same time to go back to the VIEW Mode

Example: Maintain a pool's chemistry using two dosing pumps at pH 7.2 and chlorine at

3.0 ppm

GF 9950-3 Chlorine Controller

Page 17

Standard Relay Mode

Set your relay functions to your own application requirements.

Once a setting is saved it becomes immediately active.

1. Press and hold ENTER for 3 seconds

2. Go to the Relay Menu by pressing ▼ ▼ ▼ then ENTER

3. Press the ► to select desired source. You will be asked to enter a

code or password. Select source and press ENTER to conrm

4. Press ▼ to enter the relay MODE selection screen

5. Press ► and then ▼ to select R1 MODE LOW. Press ENTER to confirm

6. Press ▼ to R1 SET LOW. Press ► to enter PPM value of 2.0

7. Use the ▲ and ▼ to change Set Point. Press ENTER to save

8. Scroll ▼ to the R1 HYSTERESIS menu

9. Press ► to edit

10. Set the hysteresis for this relay. Set the value to 1.0 ppm

11. Press ENTER

12. Scroll down ▼ to the R1 ON DELAY menu

13. Press ► to edit

14. Set the turn-on delay in seconds for the relay: 15.0

15. Press ENTER Then

16. Exit to View Mode

● Relay function can be tested in the RELAY menu

Example: Set a relay R1 to turn on at a low setpoint of 2.0 ppm with a time delay of 15

seconds and turn o󰀨 at

3.0 ppm.

Remember,

SET LOW + hysteresis = OFF

Relay 1 Source = CH1 Primary Relay 1 Mode = Low R1 Set Low = 2.0 R1 Hysteresis = 1.0 R1 on delay = 15.0 sec

Relay Modes

• Binary

When the relay source is set to “Binary", the Binary Inputs can sense if the input is ON (Closed) or OFF (Open). The four binary inputs only control relay activation and are not considered a measurement source. Each binary mode is independent and each of them can be assigned to a relay mode.

• Error Mode

Relay activated when any related failures occur for the system.

Caution:

If HOLD WHILE RELAY # ACTIVE setting is changed while an Activation or Recovery is in process, the setting will be applied after the cycle is complete. To apply the change immediately, cycle power to the 9950-3.

Example: Binary Input

A 3-4630.395 Flow Switch is

mounted in the Chlorine ow

cell.

The ow switch will prevent the

relay(s) from activating if the

ow to the cell is interrupted.

GF 9950-3 Chlorine Controller

Page 18

Relay Output Rate:

0 to 100 Pulses/min.

Pulse rate

0 pulses

100 pulses

7.5

Relay Modes

Hysteresis

Time

High Setpoint

Process

Hysteresis

Time

Low Setpoint

Process

Time

High Limit

Hysteresis

Low Limit

Process

Window

Low Setpoint + Hysteresis

High Setpoint - Hysteresis

Hysteresis

Time

High Setpoint

Process

High Setpoint - Hysteresis

Time

Hysteresis

Relay energized

Relay de-energized

Low Setpoint + Hysteresis

High Setpoint - Hysteresis

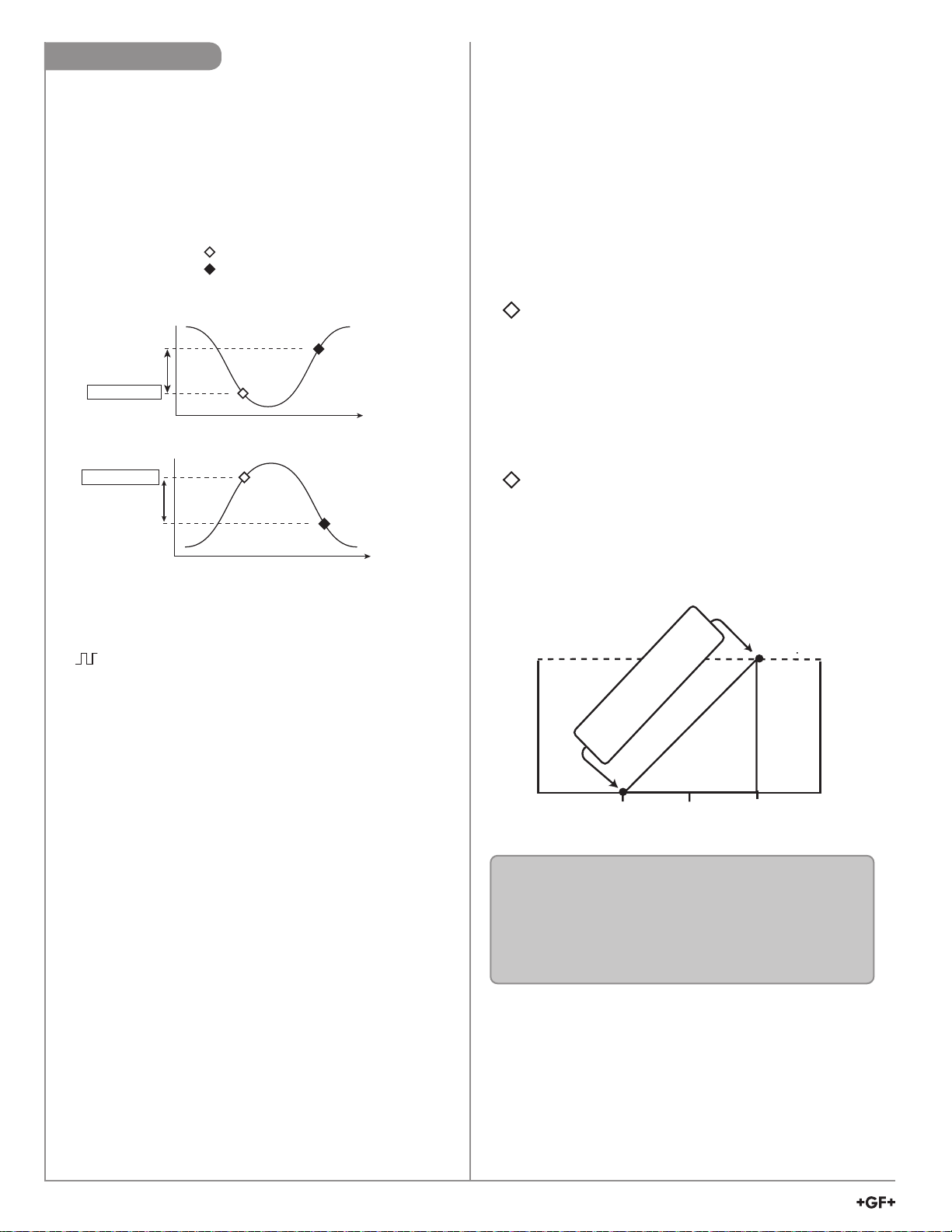

The 9950-3 relays are selectable and congurable and can be

used as switches that respond when the process value moves

above or below a user-dened setpoint or it can be used to

generate a pulse at a rate proportional to the process value. They can be used for Low Alarm, High Alarm or Proportional Pulse triggering related to the process value. All relay functions are set up in the RELAY menus.

The 9950-3 supports the ability to activate the Red Backlight when a relay is activated. An optional check box is displayed during the programming of a relay that will turn the Red Backlight on when the relay is activated. The Red Backlight can be activated by any relay or relay mode.

Low Setpoint:

Relay is on when the measured value is less than or equal

to the setpoint. Relay turns o󰀨 when the measured value is

equal to or greater than the Low Setpoint + Hysteresis.

High Setpoint:

Relay is on when the measured value is greater than or equal to

the setpoint. The relay turns o󰀨 when the measured value is less

than or equal to the High Setpoint - Hysteresis.

Proportional Pulse Operation:

The transmitter can output a pulse at the rate dened by the

settings in the CAL menu and the sensor input. The maximum pulse output is 300 pulses per minute.

As the process value rises above the setpoint, the output will start pulsing in relation to the process value, the maximum pulse endpoint and the programmed pulses/minute. The pulse rate will change as the process value changes and approaches the programmed endpoint. This functionality can be used to precisely control the process.

The starting point, endpoint and maximum pulse rate are select able in the RELAY menus.

Typical usage would be to control solenoid-operated dosing pumps.

NOTE: Relay LEDs will ash in PULSE mode.

100 pulses

Starting point Endpoint

In the example:

• The output will be 0 pulses/min. when value is less than 5.

• The output will be 50 pulses/min. when value is 7.5.

• The output will be 100 pulses/min. when value is 10 or greater.

GF 9950-3 Chlorine Controller

Page 19

Menu System

WHITE BACKLIGHT

TEXT 3

AUTO LOW

CH2 BAR GRAPH MIN

GPM

0.00

FUNCTION 1

TEXT 3

NONE

FUNCTION 2

TEXT 3

NONE

FUNCTION 3

TEXT 3

NONE

FUNCTION 4

TEXT 3

NONE

CH1

GPM DECIMAL

_ _ _ _ . _

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

TEXT 3

STD

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

6 2 .8

7.0

WRONG SENSOR

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

7 .0

6 2 .8

MISSING SENSOR

CH2

OFF

TOTAL LOCK

SET SEPERATOR

999.99

CONTRAST

RED BACKLIGHT

OFF

DISPLAY

BAR GRAPH

CH1 BAR GRAPH MIN

0.00

WHITE BACKLIGHT

TEXT 3

AUTO LOW

CH2 BAR GRAPH MIN

GPM

0.00

FUNCTION 1

TEXT 3

NONE

FUNCTION 2

TEXT 3

NONE

FUNCTION 3

TEXT 3

NONE

FUNCTION 4

TEXT 3

NONE

CH1

GPM DECIMAL

_ _ _ _ . _

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

TEXT 3

STD

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

6 2 .8

7.0

WRONG SENSOR

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

7 .0

6 2 .8

MISSING SENSOR

LANGUAGE

ENTER CODE

LANGUAGE

0000

PASSWORD

TEXT 3

CH2

OFF

TOTAL LOCK

SET SEPERATOR

999.99

CONTRAST

RED BACKLIGHT

OFF

DISPLAY

BAR GRAPH

CH1 BAR GRAPH MIN

0.00

CH1 BAR GRAPH MAX

100.00

SAVING

FUNCTION 4

TEXT 3

NONE

CH1

GPM DECIMAL

_ _ _ _ . _

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

TEXT 3

STD

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

6 2 .8

7.0

WRONG SENSOR

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

7 .0

6 2 .8

MISSING SENSOR

CH2

OFF

TOTAL LOCK

SET SEPERATOR

999.99

CONTRAST

RED BACKLIGHT

OFF

DISPLAY

BAR GRAPH

CH1 BAR GRAPH MIN

0.00

CH1 BAR GRAPH MAX

100.00

FUNCTION 4

TEXT 3

NONE

CH1

GPM DECIMAL

_ _ _ _ . _

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

TEXT 3

STD

_ _ _ _ ._

CH2

OFF

TOTAL LOCK

SET SEPERATOR

999.99

CONTRAST

RED BACKLIGHT

OFF

DISPLAY

BAR GRAPH

FUNCTION 4

TEXT 3

NONE

CH1

GPM DECIMAL

_ _ _ _ . _

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

TEXT 3

STD

00.00

15.00

00.00

CH1

_ _ _ _ ._

9999.9

CH2

GPMS

°F

6 2 .8

7.0

WRONG SENSOR

_ _ _ _ ._

CH2

OFF

TOTAL LOCK

SET SEPERATOR

999.99

CONTRAST

RED BACKLIGHT

OFF

DISPLAY

BAR GRAPH

CH1 BAR GRAPH MIN

0.00

VIEW Mode Overview

The top level of screens are referred to as the VIEW Mode. The VIEW Mode displays the sensor measurement values, sensor raw measurement data, current output and relay status. The horizontal bar graph represents the primary measurement value that is also displayed in the

numeric eld above the bar graph. The bar graph is primarily used to display the full scale range

of the sensor, but can be scaled via the OPTION menu item. During normal operation, the 9950-3 displays the VIEW mode.

• To select a display, press the ▲ or ▼ arrow keys. The display selections scroll in a continuous loop.

• Changing the display selection does not interrupt system operations.

• No password is necessary to change display selection.

• Output settings cannot be edited from the View Mode.

• The display will return to the VIEW Mode if no button is pressed for 10 minutes.

MENU Mode Overview

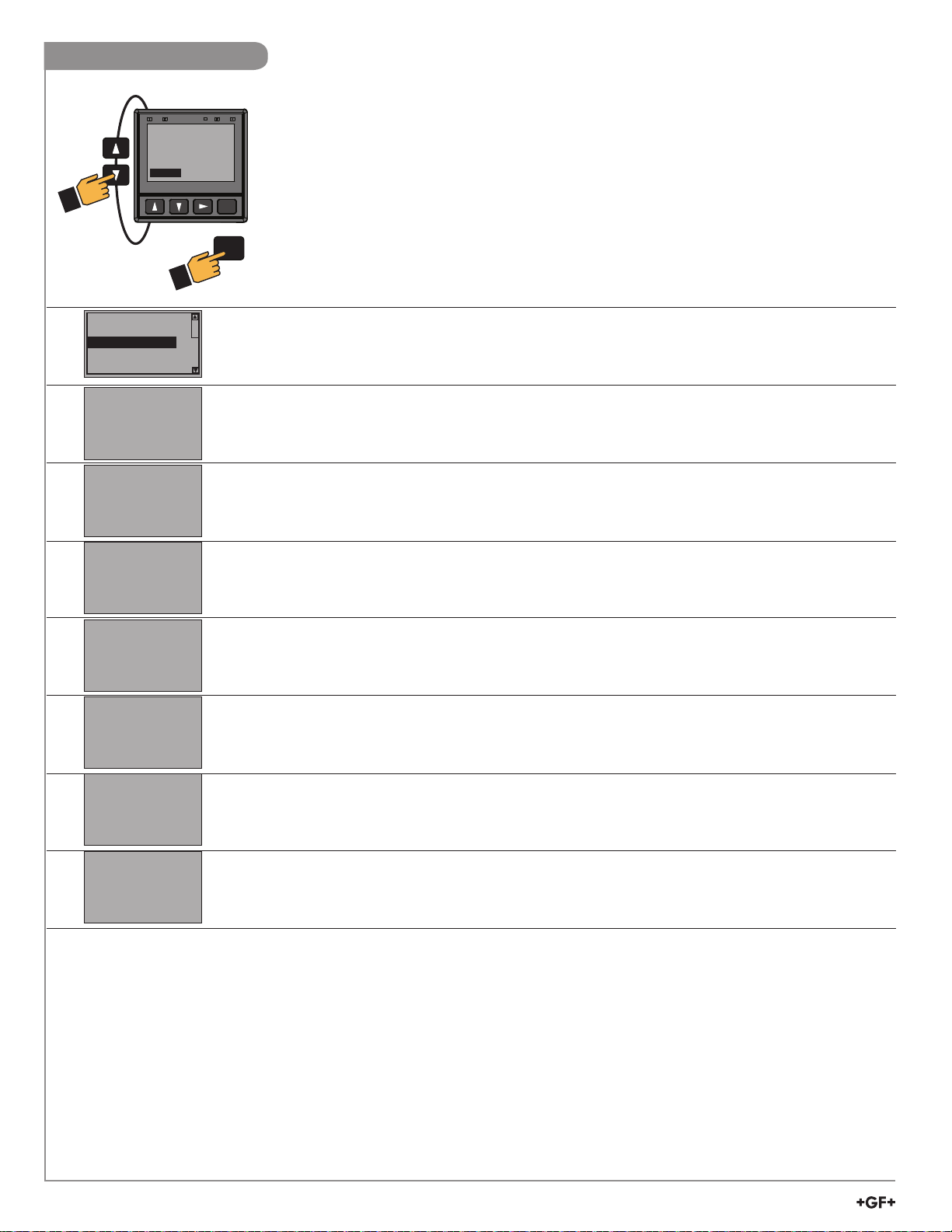

The MENU Mode enables the user to view and congure all menu items. The ve menus available are: CAL, INPUT, LOOP, RELAY and OPTION.

MENU Mode is entered by pressing and holding ENTER for three seconds.

To select a menu, use the ▲ and ▼ arrow keys to highlight the desired menu and press

ENTER to select the menu.

Error Handling

Errors occurring while on the measurement screens show a

specic message (e.g., Wrong

Sensor). Once the error is resolved or cleared, the error message stops.

7 .0

7.0

GPMS

00.00

15.00

GPMS

00.00

15.00

°F

CH1

MISSING SENSOR

9999.9

00.00

CH2

6 2 .8

00.00

CH1

WRONG SENSOR

9999.9

00.00

CH2

6 2 .8

00.00

In the selected menu, use the ▲ and ▼ keys to navigate through the menu. Use the ▲, ▼ and ► keys to edit the selected item.

To save the new selection, press the ENTER key. A message displaying “Saving” will be displayed for 3 seconds. After this message is displayed, the newly selected value will be

displayed, if applicable. To abandon the changes press the ▲ and ▼ arrows simultaneously.

Password Overview

Your choice of password (STD or CODE) is selected in the Options Menu.

• STD

• CODE

The standard (STD) password is ▲▲▲▼, pressed in sequence. This password is

designed to protect the 9950 from unintentional changes. It is best suited for systems where a group of people need to be able to change settings.

The CODE default setting is 0000, adjustable to any 4-digit numerical code up to 9999. Using a personal code provides the maximum degree of security.

This code can be modied in the Options menu.

Password Reset

Turn o󰀨 9950-3 Press and hold all 4 keys on keypad while turning on 9950 and unit will revert back to STD password.

Scrolling

In some cases, more than one message or measurement may need to be displayed. This is accomplished by alternating the message portions across the screen.

PASSWORD TYPE

WRONG CODE

TEXT 3

In the MENU mode, if the wrong code or password is entered, an ERROR message is displayed.

LANGUAGE

0000

LANGUAGE

ENTER CODE

LANGUAGE

PASSWORD

SAVING

TEXT 3

To change your CODE, go to OPTIONS mode, enter your desired code and press ENTER. (The STD password cannot be changed).

GF 9950-3 Chlorine Controller

Page 20

SENSOR DATA

CH2->

CH1 ->

0.0

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

999 99999 99999 99999

SENSOR DATA

CH2 pH ->

CH1 FC1 ->

GLASS IMPEDANCE

CH2 1049 MOhm ->

FCI

TEMP

12.00

4.00

INTERNAL LOOPS

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

999 99999 99999 99999

SENSOR DATA

CH2 pH ->

CH1 FC1 ->

GLASS IMPEDANCE

CH2 1049 MOhm ->

SENSOR DATA

CH2->

CH1 ->

FCI

0.0

25 C

7.2

CH2

mg/l

TEMP

0.0

5.0

2.43

SENSOR DATA

CH2->

CH1 ->

FCI

0.0

25 C

7.2

CH2

mg/l

TEMP

0.0

5.0

2.43

7.0

mg/l

-1.0

15.0

0.5

5.0

SENSOR DATA

CH2->

CH1 ->

FCI

0.0

25 C

7.2

CH2

mg/l

TEMP

0.0

5.0

2.43

7.0

mg/l

-1.0

15.0

0.5

5.0

CH1

2.43

FREE CL

7.0

CH2

mg/l

15.0

0.5

5.0

-1.0

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

999 99999 99999 99999

GLASS IMPEDANCE

CH2 1049 MOhm ->

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

999 99999 99999 99999

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

999 99999 99999 99999

GLASS IMPEDANCE

CH2 1049 MOhm ->

VIEW Mode

9950-3 VIEW Mode

FCI

CH2

CH1

FREE CL

CH2

25 C

0.0

7.2

0.0

0.5

7.0

-1.0

2.43

0.5

7.0

-1.0

RAW

CH1 115.00 nA +

CH2 +117 mV

GLASS IMPEDANCE

CH2 1049 MOhm ->

mg/l

TEMP

mg/l

View Measurement Display 1 Displays the primary (top line) and secondary (bottom line) values from the sensors assigned to Channel 1

5.0

and 2. If the Bar Graph feature is enabled in OPTION menu, the bar graphs will also be visable.

If Channel 2 doesn't have a sensor assigned to it, the area will be blank.

This is the default VIEW display and does not time out. View Measurement Display 2

5.0

Channel 1 electrode information: Chlorine sensor primary value and visual bar graph on top line.

Channel 2 electrode information: pH primary value and visual bar graph on bottom line.

15.0

View Measurement Display 3

5.0

Channel 1 electrode information: primary value, bar graph and custom name on top line.

Channel 2 electrode information: primary value, bar graph and custom name on bottom line.

15.0

Electrode Wellness Information Channel 1 electrode information: Chlorine sensor raw nanoamps (nA) value Channel 2 electrode information: pH electrode millivolt (mV) value

pH only, last measured glass impedance, press ► key to manually update reading.

SENSOR DATA

CH1 FC1 ->

CH2 pH ->

SENSOR DATA

CH1 FC1 ->

CH2 pH ->

INTERNAL LOOPS FCI

TEMP

MODULE LOOPS pH FCI MOD2 A MOD2 B

12.00

4.00

18.00

12.00

8.00

4.00

Select which sensor data to be reviewed by using the ▲ and ▼ arrows. CH 1 Using the ► key, you will see the following screens:

[Cl Sensor S/N] [Cl Type and Range]

[ZeroCAL: ppm & nA]

[In Proc: ppm & nA ] [Temp at CAL] [pH at CAL]

[Temp O󰀨set]

Electrode Serial Number Identify the chlorine sensor type connected and its ppm range

View user entered Zero Calibration data in ppm and nA

Users in process calibration value when it is entered in the calibration menu Temperature recorded during user In-Process Calibration pH value recorded during user In-Process Calibration Temperature o󰀨set calculated from user entered temperature calibration from

Calibrate Menu [Elapsed Time] [Low & High: C]

Total hours of operation

Lowest and highest temperatures the Cl sensor has been subjected to during

operation

CH 2 Using the ► key, you will see the following screens:

[Serial Number] [Model Number]

[pH Sensor E󰀩ciency]

[pH O󰀨set Calibration]

[Factory Impedance] [Usage Time] [Minimum pH] [Maximum pH] [Minimum Temperature] [Maximum Temperature]

Electrode Serial Number

Electrode Model Number

Calibration Slope Value

O󰀨set

pH only, Factory pH glass Impedance

Electrode Runtime in Hours

Minimum Measured Value

Maximum Measured Value

Minimum Measured Temperature

Maximum Measured Temperature

Displays the internal 4 to 20 mA LOOP output for each channel assigned primary and secondary sources. (3.6, 22.00 are error output values).

Displays the Module 4 to 20 mA LOOP output for each channel assigned primary and secondary sources. (3.6, 22.00 are error output values).

GF 9950-3 Chlorine Controller

Page 21

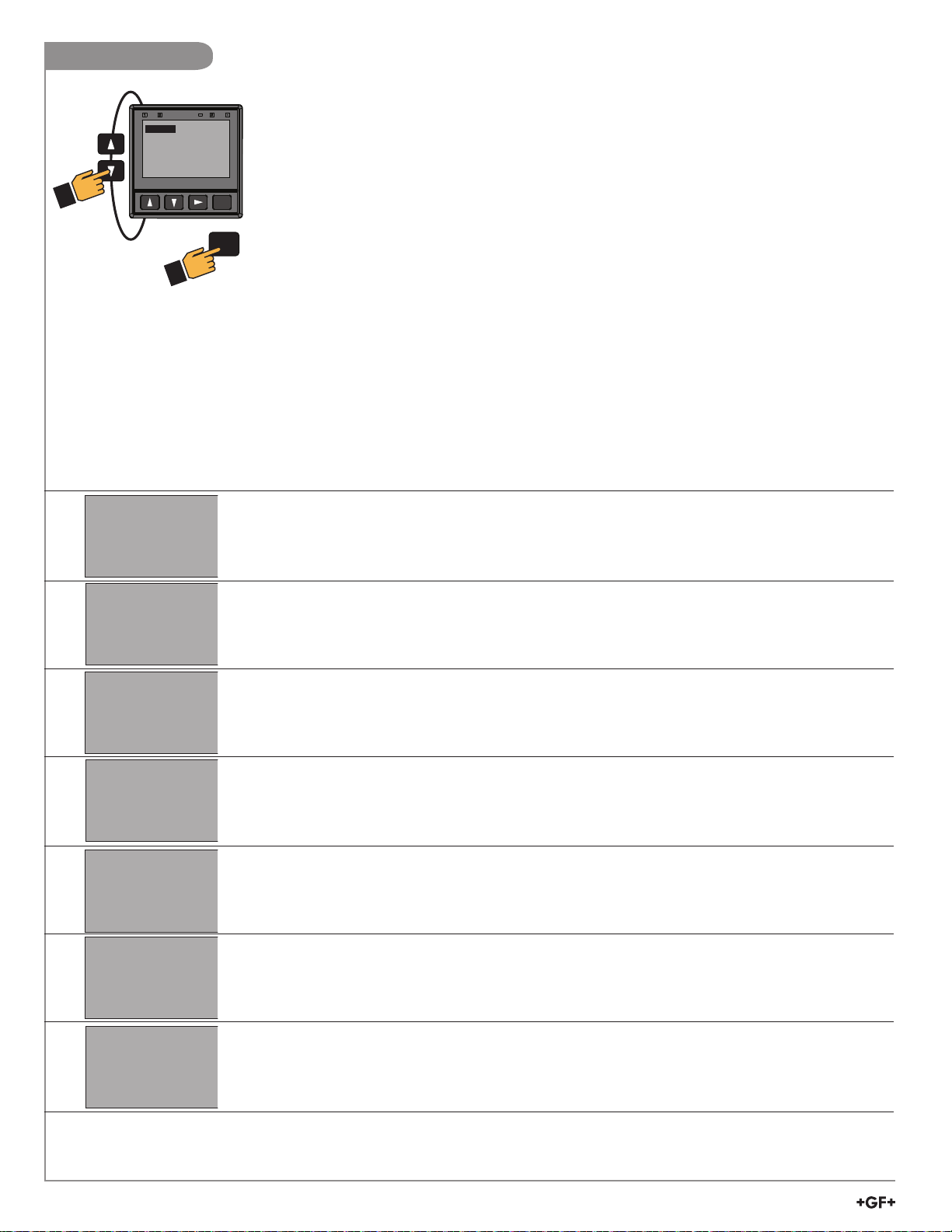

SW VER 9950 S/N

00-06

0123456789

5.0

8.0

0.00

14.00

0.00

14.00

Func 1

Func 2

Func 3

Func 4

50.00

100.00

2.00

0.00

RAW

CH2 182.10 mV

RELAY STATUS RELAY 1 RELAY 2 RELAY 3 RELAY 4

ON OFF OFF OFF

BINARY STATUS FLOW SWITCH BINARY 2 BINARY 3 BINARY 4

OFF

SYS CONFIG CH1 CH2 RELAY

FREE CI

MOD1

4-20 OUT

GENERATION 2

TEXT 1

TEXT 3

MENU ->

YES

ARE YOU SURE?

CH2 TOTALIZER

R 0.0 ->

P 44.3

EASYCAL

CH2 ORP ->

CH1 ORP ->

Sensor Data

CH2->

GLASS IMPEDANCE

CH1 1049 MOhm ->

CH1 pH

SENSOR MODEL

272410--

REF IMPEDANCE

CH1 24 MOhm ->

REF IMPEDANCE

CH1 27 MOhm ->

LOOP 1

LOOP 2

LOOP 3

LOOP 4

12.00

8.00

3.60

22.00

FCI

TEMP

12.00

4.00

INTERNAL LOOPS

MODULE LOOPS pH FCI

18.00

12.00

MOD2 A MOD2 B

8.00

4.00

MOD2

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

999 99999 99999 99999

SENSOR DATA

CH2 pH ->

CH1 FC1 ->

GLASS IMPEDANCE

CH2 1049 MOhm ->

399504033

39950408

RELAY STATUS RELAY 1 RELAY 2 RELAY 3 RELAY 4

ON OFF OFF OFF

BINARY STATUS FLOW SWITCH BINARY 2 BINARY 3 BINARY 4

OFF

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

999 99999 99999 99999

SW VER 9950 S/N

00-06

0123456789

RELAY STATUS RELAY 1 RELAY 2 RELAY 3 RELAY 4

ON OFF OFF OFF

BINARY STATUS FLOW SWITCH BINARY 2 BINARY 3 BINARY 4

OFF

SYS CONFIG CH1 CH2 RELAY

FREE CI

MOD1

4-20 OUT

GENERATION 2

MOD2

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

999 99999 99999 99999

399504033

39950408

RELAY STATUS RELAY 1 RELAY 2 RELAY 3 RELAY 4

ON OFF OFF OFF

BINARY STATUS FLOW SWITCH BINARY 2 BINARY 3 BINARY 4

OFF

SYS CONFIG CH1 CH2 RELAY

FREE CI

MOD1

4-20 OUT

MOD2

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

999 99999 99999 99999

399504033

39950408

RELAY 4

OFF

RELAY STATUS RELAY 1 RELAY 2 RELAY 3 RELAY 4

ON OFF OFF OFF

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

999 99999 99999 99999

VIEW Mode

RELAY STATUS RELAY 1 RELAY 2 RELAY 3

BINARY STATUS FLOW SWITCH BINARY 2 BINARY 3 BINARY 4

MODBUS STATUS ADDRESS BUS MSG CNT 9950 MSG CNT MSG ERR CNT

SYS CONFIG CH1 CH2 RELAY MOD1 MOD2

GENERATION 2

SW VER 9950 S/N

OFF OFF

OFF

999 99999 99999 99999

FREE CI

399504033

39950408

4-20 OUT

00-06

0123456789

Relay status is stated to the right of the relay number as (OFF, ON) for each relay.

When the ow switch is enabled, the label for Binary Input will automatically change to FLOW SWITCH. The Binary labels can be manually congured. Binary labels can be edited by pressing ► on the Binary Status screen and scrolling through the Binary Label submenu. Pressing Cancel (▲ and ▼ simultaneously) returns

to the Binary Status screen in View Mode. English, French, German, Italian and Spanish only. Binary status is stated to the right of the binary channel number as (OFF, ON) for each of the four binary inputs.

If there is no module installed, the error code "Missing Module" will appear and blink.

SYS CONFIG shows channel, parameter and relay module part number.

Generation Screen shows version of software and serial number of unit. Note: Top shows the Generation of 9950

TEXT 1

MENU ->

TEXT 3

Important

The Relay, Mod1 and Mod2 number returned by the Sys Cong Screen is not the Mfr. Part No.

To convert from the displayed number to the GF Mfr. Part No. use the chart below.

Module RELAY, MOD1 or MOD2 Mfr. Part No.

DATE

09/01/2016

09:06

MENU-> will allow access to top level menu by pressing the ► key.

DATE and TIME display show the current system date and time

Dual Channel 4 to 20 Out 39950408 3-9950.398-2 Modbus Module 39950409 3-9950-395M Relay Four Mechanical 399504031 3-9950.393-1 Relay Two SS and Two Mechanical 399504032 3-9950.393-2 Relay Two Mech and Four Binary 399504033 3-9950.393-3

GF 9950-3 Chlorine Controller

Page 22

CH 1 FREE CI

HOLD OUTPUTS

OFF

CH 1 FREE CI

ZERO CAL

SET

CH 1 TEMP

TEMPERATURE ->

SET

CH 1 FREE CI

IN PROCESS ->

SET

CH 1 FREE CI

HOLD OUTPUTS

OFF

CH 1 FREE CI

ZERO CAL

SET

CH 1 TEMP

TEMPERATURE ->

SET

CH 1 FREE CI

IN PROCESS ->

SET

CH FREE FCI

RESET CAL

CH 1 FREE CI

HOLD OUTPUTS

OFF

CH 1 FREE CI

ZERO CAL

SET

CH 1 FREE CI

MM - DD - YYYY

NEXT CAL

CH 1 TEMP

TEMPERATURE ->

SET

CH 1 FREE CI

IN PROCESS ->

SET

CH FREE FCI

RESET CAL

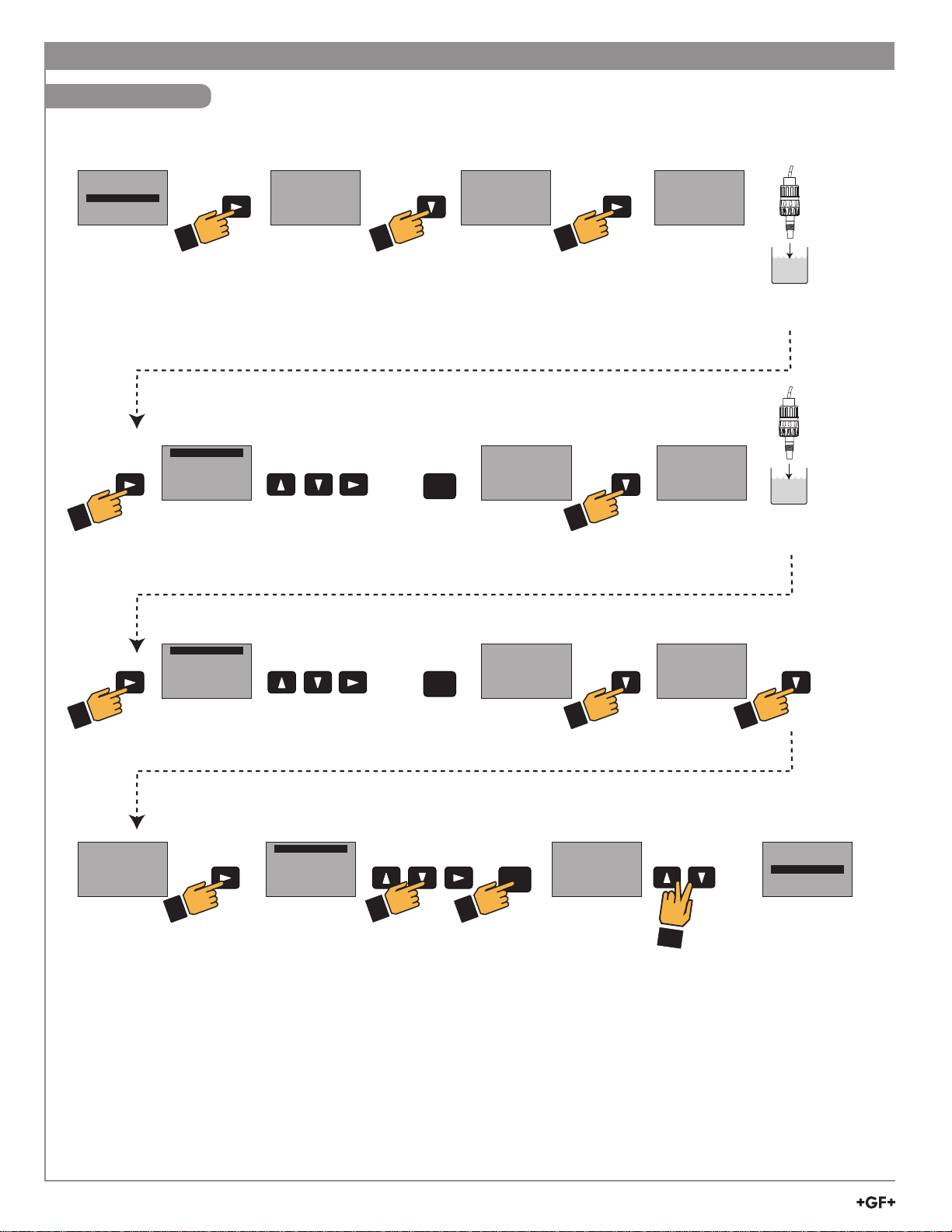

Calibration

ENTER

NONE

FLOW pH ORP

FACTORY

For greater accuracy the initial calibration of the system must be performed in the following order:

1. Temperature (only required on the initial start up of the FCl electrode).

CAL

INPUT LOOP RELAY OPTION

ENTER

WARNING Temperature Calibration

Calibrate temperature element: Must be performed on new chlorine electrodes. The temperature element is located in Chlorine Electrode (CH 1), see screens 1 and 2 below. Once calibrated the temperature element does not have to be calibrated for the life of the chlorine electrode.

Chlorine Electrode Calibration

2. pH electrode (2 point calibration required using pH bu󰀨er 4.0 and 7.0).

3. Zero calibration, single point calibration in DI water.

4. Chlorine sensor. (Single point calibration using a DPD reference).

• Before initial calibration, the FCl electrode must be connected in the 3-2650-7 electronics

and system powered. The Chlorine electrode must be installed in the ow cell with chlorinated water owing through the ow cell for at least 4 hours.

• It is recommended that the FCl electrode be process calibrated 24 hours after the initial "Start up" calibration.

• Chlorine and pH calibration screens will be shown only when a valid sensor is detected.

• Chlorine calibration should be stable per EPA 334.0 and should require additional calibration every 14 to 21 days.

• pH calibration is required over a period of time established by the customer based on the application requirement.

TEMPERATURE ->

CH 1 FREE CI

OFF

HOLD OUTPUTS

CH 1 TEMP

SET

CH 1 FREE CI

SET

ZERO CAL

CH 1 FREE CI

SET

IN PROCESS ->

CH 1 FREE CI

LAST CAL

MM - DD - YYYY

CH 1 FREE CI

NEXT CAL

MM - DD - YYYY

ON prevents relays from activating while making adjustments and relays in PULSE mode will suspend pulsing. Output is held until the user exits the CAL menu or turns it OFF. Select ON/OFF.

Default = OFF

Enter process temperature from a reference thermometer: °C or °F. Units are set up in the INPUT Menu. CAUTION: Refer to the calibration procedure on page 9

The ZERO CAL is only required to be performed when a chlorine electrode is initially installed.

The chlorine sensor should be placed in a beaker of non chlorinated water (DI water).

When ► is pressed, the LIVE readings in nA is displayed, but cannot be edited. Once the nA are stable press ENTER to save the ZERO OFFSET.

Enter process chlorine value determined by customer supplied DPD test kit.

After a successful chlorine calibration the LAST CAL display is automatically updated and date stamped with the date of the calibration.

Operator manually enters the next required calibration date. To avoid an immediate error code, this date must be at least one day after the LAST CAL date. A warning will show up on the chlorine sensor channel showing "Calibration is Due". To override this warning the operator can input a year that is several years away (ie 2050).

GF 9950-3 Chlorine Controller

CH FREE FCI

RESET CAL

This menu resets Cl readings and Zero Calibration back to Factory Calibration. WARNING! User entered Cl calibration settings will be lost, the Temperature, Zero Point and Process

Calibration will need to be done again.

Page 23

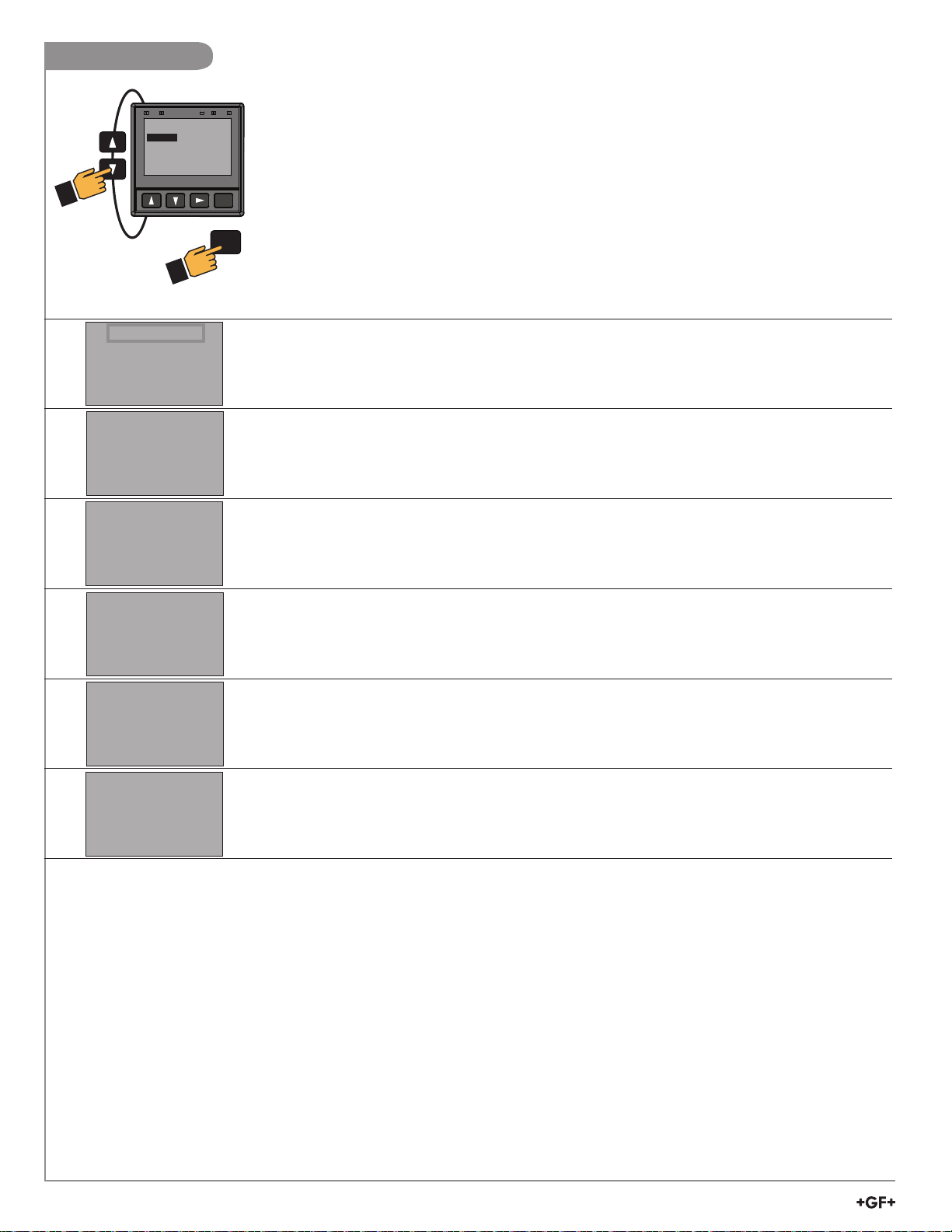

CH2 pH

AT INSTRUMENT

CAL

CH 2 pH

HOLD OUTPUTS

OFF

CH2 pH

TIMER

EASYCAL ->

CH2 pH

pH STANDARD

SET

CH 2 pH

HOLD OUTPUTS

OFF

CHANNEL 2

NAME

CH 2

TEMP UNITS

°F

CH 2 pH

OFF

AVERAGE

CH 2 pH

IMP UPDATE TIME

CH 2 pH

HOLD OUTPUTS

OFF

CH 2 pH

AT INSTRUMENT

CAL

CH 2 pH

C ST CELL CON-

EASYCAL ->

CH 2 pH

TEMPERATURE ->

SET

CHANNEL 2

NAME

CH 2 pH

°F

CH 2 pH

CUST CEOFFL CONST

AVERAGE

CH 2 pH

TYPE

AT INSTRUMENT

CHANNEL 2

NAME

CHANNEL 2

NAME

CH2 pH

AT INSTRUMENT

CAL

CH 2 pH

HOLD OUTPUTS

OFF

CH2 pH

TIMER

EASYCAL ->

CH2 pH

pH STANDARD

SET

CH2 pH

pH SLOPE ->

SET

CH2 pH

RESET pH CAL ->

SET

CH2 pH

RESET TEMPCAL ->

100.0

CH 2 pH

HOLD OUTPUTS

OFF

CHANNEL 2

NAME

CH 2

TEMP UNITS

°F

CH 2 pH

OFF

AVERAGE

CH 2 pH

IMP UPDATE TIME

CH 2 pH

HI IMP WARN

NONE

CH2 pH

TEMPERATURE ->

SET

TEMPERATURE

MM - DD - YYYY

NEXT CALIBRATION

CH 2 pH

MM - DD - YYYY

NEXT CAL

CH2 pH

AT INSTRUMENT

CAL

CH 2 pH

HOLD OUTPUTS

OFF

CH2 pH

TIMER

EASYCAL ->

CH2 pH

pH STANDARD

SET

CH2 pH

pH SLOPE ->

SET

CH 2 pH

HOLD OUTPUTS

OFF

CHANNEL 2

NAME

CH 2

TEMP UNITS

°F

CH 2 pH

OFF

AVERAGE

CH 2 pH

IMP UPDATE TIME

CH 2 pH

HI IMP WARN

NONE

Calibration

pH Calibration

CH 2 pH

OFF

HOLD OUTPUTS

CH 2 pH

°SETF

pH STANDARD ->

CH2 pH

SET

pH SLOPE ->

CH 2 pH

100LAST CAL.00

12 - 31 - 2015

CH 2 pH

NEXT CAL

MM - DD - YYYY

CH2 pH

SET

RESET pH CAL ->

ON prevents relays from activating while making adjustments and relays in PULSE mode will suspend pulsing. 4 to 20 mA output is held until the user exits the CAL menu or turns it OFF.

Select ON/OFF. Default = OFF

Applies an o󰀨set to the pH measurement. The slope value and the standard value must be at least 2 pH

units apart. The ideal values are the minimum and maximum values of your process.

An error message is displayed if o󰀨set is too high.

Applies a slope to the pH measurement. The slope value and the standard value must be at least 2 pH units apart. The ideal values are the minimum and maximum values of your process. An error message is displayed if the slope is too high or low.

After a successful pH calibration, the LAST CAL display is automatically updated and date stamped with the date of the calibration.

Operator manually enters the next required calibration date. A warning will show up on the pH sensor channel showing "Calibration is Due". To override this warning, the operator can input a date that is several years away (ie 2050)

Press ► to reset pH calibration to factory default.

This is useful to wipe out suspected corrupted calibration process prior to performing a new calibration.

GF 9950-3 Chlorine Controller

Page 24

INPUT Menu

ENTER

NONE

FLOW pH ORP

FACTORY

CAL

INPUT LOOP RELAY OPTION

CH 1 FREE CI ->

CH 2 pH ->

MANUAL pH

OFF

CH 2 pH

TYPE

CHANNEL 2

NAME

MANUAL pH VALUE

7.00

CH 2 pH

OFF

AVERAGE

CAL INPUT

INPUT

LOOP RELAY OPTION

Allows manual selection of sensor type assigned to the channel. Channel 1 is dedicated to Chlorine electrodes (FCl and ClO2). Channel 2 is dedicated to pH

electrode. Allows user to reset 9950-3 Transmitter to Factory settings or select "NONE" for sensor input.

This feature is used when a pH electrode is not being used (ClO2).

ENTER

Allows user to congure electrode specic parameters such as selecting engineering units,

Temperature (°C or °F) and Chlorine (mg/l or PPM).

ENTER

Note: User is strongly discouraged from changing the sensor type away from the correct sensor.

CH 1 FREE CI ->

CH 2 pH ->

CHANNEL 1

NAME

FREE Cl

CHANNEL 1

PPM

UNITS

CH 1 FREE CI

°C

TEMP UNITS

CH 1 FREE CI

AVERAGE

OFF

CH 1 FREE CI

TYPE

FREE Cl

Select sensor type assigned to the channel. Channel 1 is dedicated to Chlorine electrodes (FCl and ClO2). Choose FACTORY, FREE Cl or ClO2.

Assign a specic name to the measurement point.

Default name is the electrode type.

Select the Engineering units to be displayed. Select PPM or MG/L (Default PPM)

Select the Engineering units of the Temperature on the display. Select °C or °F. (Default is °C)

Dampens Display, Output and Relay Response Rate. Select LOW, MED, HIGH, OFF

Default = OFF

Current Channel type is listed. Manually change the channel type to match sensor type if sensor is not found by the S³L electronics. Select FACTORY, FREE Cl, Cl02

DEFAULT = FACTORY, the 2751-7 (pH Electronics) and 2650 (Chlorine Electronics) will automatically

be found by the controller.

GF 9950-3 Chlorine Controller

Page 25

CHANNEL 2

NAME

CH 2 pH

°F

CH 2 pH

CUST CEOFFL CONST

AVERAGE

CH 2 pH

TYPE

AT INSTRUMENT

CHANNEL 2

NAME

CH 2 pH

°F

CH 2 pH

OFF

AVERAGE

AT INSTRUMENT

CH 2 pH

TYPE

CH 1 pH

HI IMP WARN

IMP UPDATE TIME

MOhm

BROKEN GLASS

INPUT Menu

CH 1 FREE CI ->

CH 2 pH ->

MANUAL pH

OFF

CHANNEL 2

NAME

MANUAL pH VALUE

7.00

CH 2 pH

OFF

AVERAGE

pH INPUT Menu

CH 1 FREE CI ->

CH 2 pH ->

CHANNEL 2

NAME

MANUAL pH

OFF

MANUAL pH VALUE

7.00

CH 2 pH

AVERAGE

OFF

Select sensor type assigned to the channel. Channel 2 is dedicated to pH electrode. Choose FACTORY, NONE (use with Cl02) or pH electrode.

Assign a specic name to the measurement point.

Default name is the electrode type (Free Chlorine or NONE for Chlorine dioxide).

Select MANUAL pH or Electrode. If manual pH is set to "OFF", the pH value from a connected pH electrode will be used for FREE CHLORINE calculations and pH measurement. When manual pH is selected "ON" , a pH value manually entered is used for all Chlorine calculations.

Enter your pH value here if a pH electrode is not connected.

Default value = 7.00

Dampens Display, Output and Relay Response Rate. Select LOW, MED, HIGH, OFF

Default = OFF

CH 2 pH

TYPE

Current Channel type is listed. Manually change the channel type to match sensor type if sensor is not found by S³L. Select NONE, FACTORY, pH

DEFAULT = FACTORY, the 2751-7 (pH Electronics) will automatically be found by the controller.

Select NONE when using Chlorine dioxide with NO pH electrode.

GF 9950-3 Chlorine Controller

Page 26

4 to 20mA Output (LOOP OUTPUT)

LOOP 1

FCI

LABEL

LOOP 1

LOG

MODE

LOOP 1

NONE

SOURCE

ENTER

NONE

FLOW pH ORP

FACTORY

ENTER

CAL INPUT LOOP RELAY OPTION

INPUT

CAL

INPUT LOOP RELAY OPTION

The following can individually be set for each loop on the 9950-3.

CAL INPUT

LOOP

RELAY OPTION

ENTER

Loops 1 and 2 are in the 9950-3 base unit. Loops MOD1 A and MOD1 B are present when a loop module is in the Module 1 Slot. Loops MOD2 A and MOD2 B are present when a loop module is in the Module 2 Slot.

LOOP 1

SOURCE

NONE

LOOP 1

LABEL

FCI

L1 4 mA SETPOINT

0.00

PPM

L1 20 mA SETPOINT

5.00

PPM

LOOP 1

ERROR VALUE

22 mA

4.00

21.0

12.05

L1 ADJUST 4 mA

L1 ADJUST 20 mA

L1 TEST LOOP

Select source for each loop. Choose NONE, FCL, ClO2, pH or Temperature. Temperature values are from the Chlorine sensor.

English, French, German, Italian and Spanish languages only. A custom label can be assigned to the loop for ease of identication. Default name will be the SOURCE sensor type chosen above.

(ALL) Set value corresponding to desired 4 mA output. 6 digits max.

Default = 0 ppm (Chlorine), 0 (pH), 0 °C (32 °F) (Temperature)

Set value corresponding to desired 20 mA output. 6 digits max.

Defaults = 5.0 ppm (Chlorine), 14 (pH), 45 °C (113 °F) (Temperature)

(ALL) Set desired LOOP output value when sensor error (e.g., bad sensor, broken wire) is detected. Select (3.6 mA, 22 mA, or NONE). Default = 22

(ALL) Allows ne-tuning to compensate for errors in other equipment connected to the 9950-3. Adjust the current output at 4 mA. The display value represents the precise current output.

Adjustment limits: from 3.80 mA minimum to 5.00 mA maximum. Default = 4.00 mA

(ALL) Allows ne-tuning to compensate for errors in other equipment connected to the 9950.

Adjust the current output at 20 mA. The display value represents the precise current output.

Adjustment limits: from 19.00 mA minimum to 21.00 mA maximum. Default = 20 mA.

(ALL) Press ▲ or ▼ to manually control the output current value from 3.8 mA to 21.00 mA to test the

output of LOOP. The current loop will revert to automatic control when this menu item is left.

GF 9950-3 Chlorine Controller

Page 27

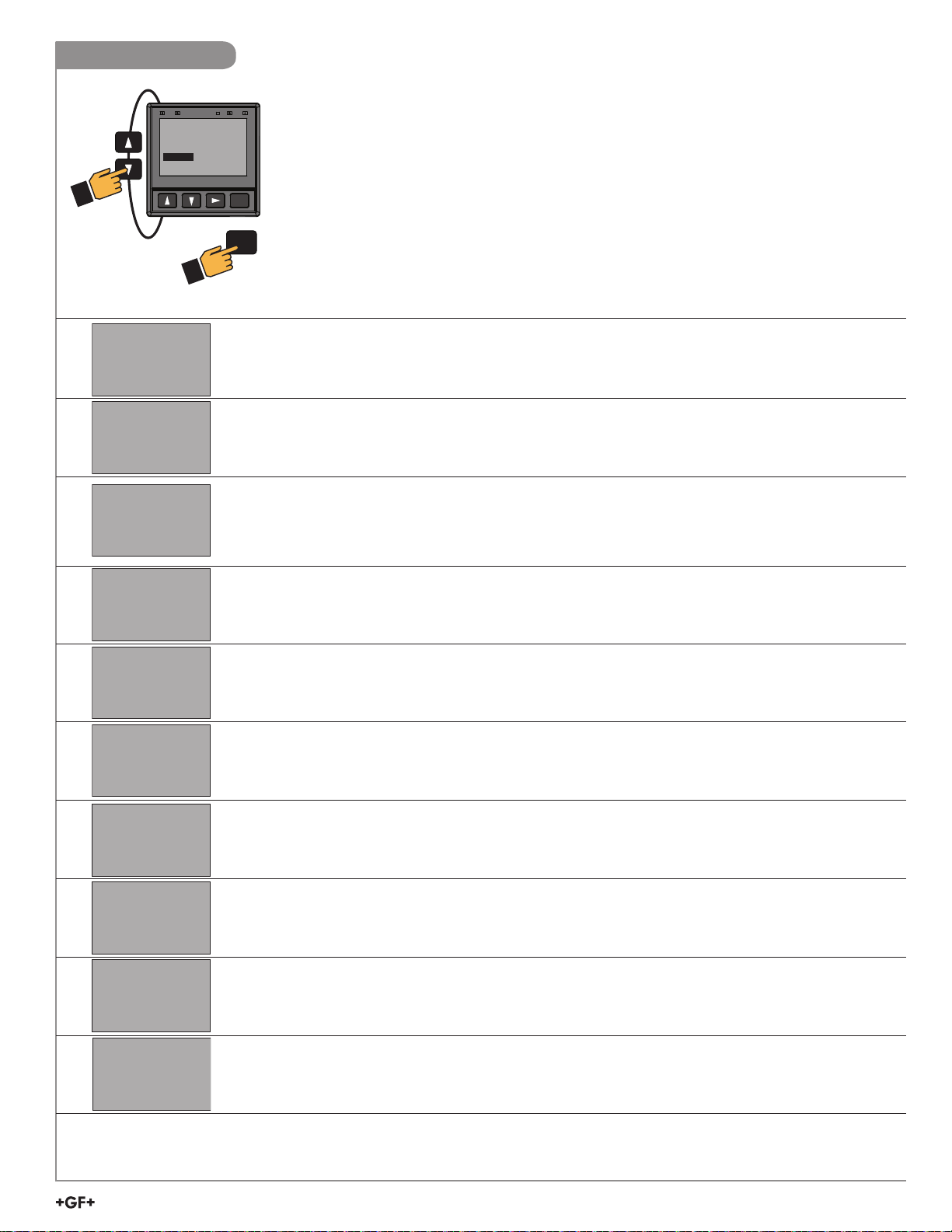

Relay Menu

pH ADJUST

00.00

SET LOW

pH ADJUST

0.00

SET HIGH

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER PULSE MIN

PPM

5.00

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 ON DELAY

SEC

5.0

R1 PULSE MIN

PPMIPLE

5.00

R1 PULSE MAX

PPMF

0.10

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

RELAY 1

TEST RELAY

FLOW SWITCH?

RELAY 1

OFF

CHEMICAL GUARD

pH ADJUST

00.00

SET LOW

pH ADJUST

0.00

SET HIGH

pH ADJUST

0.00 SEC

ON DELAY

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER PULSE MIN

PPM

5.00

OXIDIZER PULSE MAX

PPM

0.10

FLOW SWITCH?

RELAY 1

OFF

CHEMICAL GUARD

OXIDIZER

OFF

MODE

pH ADJUST

00.00

SET LOW

pH ADJUST

0.00

SET HIGH

pH ADJUST

0.00 SEC

ON DELAY

pH ADJUST HYSTERISIS

MULTpHIPLE

0.00

RELAY 2

OXIDIZER

LABEL

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER PULSE MIN

PPM

5.00

OXIDIZER PULSE MAX

PPM

0.10

pH ADJUST

OFF

MODE

FLOW SWITCH?

RELAY 1

OFF

CHEMICAL GUARD

OXIDIZER

OFF

MODE

OXIDIZER SET LOW

PPM

0.00

OXIDIZER SET HIGH

PPM

0.00

OXIDIZER

m0.00 SECA

ON DELAY

OXIDIZER HYSTERISIS

mPPMA

0.00

pH ADJUST

00.00

SET LOW

pH ADJUST

0.00

SET HIGH

pH ADJUST

0.00 SEC

ON DELAY

pH ADJUST HYSTERISIS

MULTpHIPLE

0.00

RELAY 2

OXIDIZER

LABEL

RELAY 2 ACTIVE

RED BACKLIGHT

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER PULSE MIN

PPM

5.00

OXIDIZER PULSE MAX

PPM

0.10

pH ADJUST

OFF

MODE

pH ADJUST

7.00 pH

PULSE MIN

RELAY 2

mAA

TEST RELAY

RELAY 1

mNONEA

SOURCE

pH ADJUST

8.00 pH

PULSE MAX

pH ADJUST RELAY

TEST RELAY

ENTER

NONE

FLOW pH ORP

FACTORY

ENTER

CAL INPUT LOOP RELAY OPTION

INPUT

ENTER

INPUT

CAL

INPUT LOOP RELAY OPTION

CAL

LOOP

RELAY OPTION

CAL INPUT LOOP

RELAY

OPTION

ENTER

CHEMICAL GUARD Menu

OXIDIZER PULSE MIN

OXIDIZER PULSE MAX

FLOW SWITCH?

RELAY 1

CHEMICAL GUARD

OFF

OXIDIZER

MODE

OFF

RELAY 1

LABEL

OXIDIZER

OXIDIZER SET LOW

OXIDIZER SET HIGH

OXIDIZER MODE

MODE

PROP PULSE

R1 MAX RATE

120.00

mPULSES/MINA

0.00

PPM

0.00

PPM

5.00

PPM

0.10

PPM

A ow switch is necessary to enable the Chemical Guard feature. Verify the use of a ow switch by selecting YES.

If NO is selected Chemical Guard will not be accessed and will go to Standard Relay Mode.

Enable the Chemical Guard feature by changing to ON.

If Chemical Guard is not enabled go to RELAY 1 source by pressing ▼ once.

See Standard Relay information on page 17. RELAY 1 will automatically be assigned to control Oxidizing chemicals using the Input source of the

Chlorine Sensor (CH1). MODE available are LOW, HIGH or PROPORTIONAL PULSE. NOTE: Chemical Guard must use a pH electrode. If the pH input is changed to MANUAL pH input, the Chemical Guard feature is disabled and the standard relay modes must be used control the system until the pH electrode is replaced.

English, French, German,Italian and Spanish languages only. A custom label can be assigned to the relay for ease of identication. Default name will be the "Oxidizer".

Relay turns on if the process measurement is equal to or lower than this value and the pH value is correct. Set to desired value. See Chemical Guard overview.

Relay turns on if the process measurement is equal to or higher than this value and the pH value is correct. Set to desired value. See Chemical Guard overview.

Proportional Pulse Mode varies the frequency of pulses in direct proportion to minimum and maximum set points.

Enter the desired minimum set point (END POINT) of the application. The number of pulses will be reduced to the chemcial dosing pump as the set point is reached to prevent overdosing of chemicals.

Default = 5.00 ppm

Enter the maximum o󰀨 set (START POINT) from desired set point (SEND POINT) of the application.

This is usually the maximum allowable OFF SET value from the set point of the application. The closer to

the starting point the more pulses will be sent to the chemical pump. Default = 0.01 ppm

Set desired maximum pulse rate (300 max)

NOTE: Pulse width xed at 100 ms.

GF 9950-3 Chlorine Controller

Page 28

Relay Menu

pH ADJUST

00.00

SET LOW

pH ADJUST

0.00

SET HIGH

pH ADJUST

0.00 SEC

ON DELAY

pH ADJUST HYSTERISIS

MULTpHIPLE

0.00

RELAY 2

OXIDIZER

LABEL

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER PULSE MIN

PPM

5.00

OXIDIZER PULSE MAX

PPM

0.10

pH ADJUST

OFF

MODE

pH ADJUST

7.00 pH

PULSE MIN

pH ADJUST

8.00 pH

PULSE MAX

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 ON DELAY

SEC

5.0

R1 PULSE MIN

PPMIPLE

5.00

R1 PULSE MAX

PPMF

0.10

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

RELAY 1

TEST RELAY

pH ADJUST

00.00

SET LOW

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER PULSE MIN

PPM

5.00

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER PULSE MIN

PPM

5.00

OXIDIZER PULSE MAX

PPM

0.10

pH ADJUST

OFF

MODE

pH ADJUST

00.00

SET LOW

pH ADJUST

0.00

SET HIGH

pH ADJUST

0.00 SEC

ON DELAY

pH ADJUST HYSTERISIS

MULTpHIPLE

0.00

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER PULSE MIN

PPM

5.00

OXIDIZER PULSE MAX

PPM

0.10

pH ADJUST

OFF

MODE

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER PULSE MIN

PPM

5.00

OXIDIZER PULSE MAX

PPM

0.10

RELAY 1

CH 1 PRIMARY

SOURCE

RELAY 1

BINARY ON

MODE

RELAY 1

TIMER

SOURCE

RELAY 1

MULTIPLE

SOURCE

RELAY 1

OFF

MODE

R1 SET LOW

PPM

0.10

R1 SET HIGH

PPMA

5.00

R1 SET VOLUME

mUNITSA

100.00

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 ON DELAY

SEC

5.0

R1 PULSE MIN

PPMIPLE

5.00

R1 PULSE MAX

PPMF

0.10

R1 MAX RATE

mPULSES/MINA

120.00

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

RELAY 1

TEST RELAY

R1 PWM MIN

mUNITSAA

00.0

R1 PWM MAX

mUNITSA

10.00

RELAY 1

mSSTART DATETA

04/23/2016

RELAY 1

LABEL

CHEMICAL GUARD Menu

RELAY 1 ACTIVATE

RED BACKLIGHT

pH ADJUST

MODE

OFF

pH ADJUST

SET LOW

00.00

RELAY 2

LABEL

OXIDIZER

Select YES to have the Red Backlight illuminate during relay activation, NO to not have the Red Backlight activated by the relay activation.

RELAY 2 will automatically be assigned to control pH adjusting chemicals using the Input source of the pH Electrode (CH2). MODE available are LOW, HIGH or PROPORTIONAL PULSE. NOTE: Chemical Guard must use a pH electrode. If the pH input is changed to MANUAL pH input, the Chemical Guard is disabled and the standard relay modes must be used to control the system until the pH electrode is replaced.

Relay turns on if the process measurement is equal to or lower than this value. Set to desired value. See Chemical Guard overview.

English, French, German, Italian and Spanish only.

A custom label can be assigned to the relay for ease of identication.

R1 MAX RATE

mPULSES/MINA

RELAY 2 ACTIVE

RED BACKLIGHT

GF 9950-3 Chlorine Controller

pH ADJUST

SET HIGH

0.00

pH ADJUST

PULSE MIN

pH ADJUST

PULSE MAX

TEST RELAY

7.00 pH

8.00 pH

120.00

RELAY 2

mAA

Relay turns on if the process measurement is equal to or higher than this value. Set to desired value. See Chemical Guard overview.

Enter the desired minimum set point (END POINT) of the application. The number of pulses will be reduced to the chemcial dosing pump as the set point is reached to prevent overdosing of chemicals.

Default = 8.00 pH

Enter the maximum o󰀨set (START POINT) from desired set point (SEND POINT) of the application.

This is usually the maximum allowable OFFSET value from the set point of the application.

The closer to the starting point the more pulses will be sent to the chemical pump. Default = 7.00 pH

Set desired maximum pulse rate (300 max)

NOTE: Pulse width xed at 100 ms.

Select YES to have the Red Backlight illuminate during relay activation, NO to not have the Red Backlight activated by the relay activation.

(ALL) Press ▲ or ▼ to turn relay on or o󰀨 for testing purposes.

Page 29

Relay Menu

RELAY 1

CH 1 PRIMARY

SOURCE

RELAY 1

BINARY ON

MODE

RELAY 1

TIMER

SOURCE

RELAY 1

MULTIPLE

SOURCE

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 ON DELAY

SEC

5.0

R1 PULSE MIN

PPMIPLE

5.00

R1 PULSE MAX

PPMF

0.10

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

RELAY 1

CH 1 PRIMARY

SOURCE

RELAY 1

BINARY ON

MODE

RELAY 1

TIMER

SOURCE

RELAY 1

MULTIPLE

SOURCE

RELAY 1

OFF

MODE

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 ON DELAY

SEC

5.0

R1 PULSE MIN

PPMIPLE

5.00

R1 PULSE MAX

PPMF

0.10

R1 MAX RATE

mPULSES/MINA

120.00

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

RELAY 1

TEST RELAY

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

RELAY 1

TEST RELAY

RELAY 1

mSSTART DATETA

04/23/2016

R1 PWM PERIOD

SEC

1.00

RELAY 1

CH 1 PRIMARY

SOURCE

RELAY 1

BINARY ON

MODE

RELAY 1

TIMER

SOURCE

RELAY 1

MULTIPLE

SOURCE

RELAY 1

OFF

MODE

R1 SET LOW

PPM

0.10

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 ON DELAY

SEC

5.0

R1 PULSE MIN

PPMIPLE

5.00

R1 PULSE MAX

PPMF

0.10

R1 MAX RATE

mPULSES/MINA

120.00

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

RELAY 1

TEST RELAY

R1 PWM MIN

mUNITSAA

00.0

RELAY 1

mSSTART DATETA

04/23/2016

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 ON DELAY

SEC

5.0

R1 PULSE MIN

PPMIPLE

5.00

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

RELAY 1

CH 1 PRIMARY

SOURCE

RELAY 1

BINARY ON

MODE

RELAY 1

TIMER

SOURCE

RELAY 1

MULTIPLE

SOURCE

RELAY 1

OFF

MODE

R1 SET LOW

PPM

0.10

R1 SET HIGH

PPMA

5.00

R1 SET VOLUME

mUNITSA

100.00

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 ON DELAY

SEC

5.0

R1 PULSE MIN

PPMIPLE

5.00

R1 PULSE MAX

PPMF

0.10

R1 MAX RATE

mPULSES/MINA

120.00

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

RELAY 1

TEST RELAY

R1 PWM MIN

mUNITSAA

00.0

R1 PWM MAX

mUNITSA

10.00

RELAY 1

mSSTART DATETA

04/23/2016

RELAY 1

LABEL

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 ON DELAY

SEC

5.0

R1 PULSE MIN

PPMIPLE

5.00

R1 PULSE MAX

PPMF

0.10

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

R1 SET TOTAL

SEUNITSC

100.00

RELAY 1

TEST RELAY

R1 HYSTERSIS

PPM

0.50

R1 USP PERCENT

0.20

R1 ON DELAY

SEC

5.0

R1 PWM PERIOD

SEC

1.00

R1 CYCLE TIME

%SECE

0.00

R1 SET VOLUME

SEUNITSC

100.00

R1 PULSE WIDTH

SEC

1.00

pH ADJUST

00.00

SET LOW

pH ADJUST

0.00

SET HIGH

pH ADJUST

0.00 SEC

ON DELAY

pH ADJUST HYSTERISIS

MULTpHIPLE

0.00

RELAY 2

OXIDIZER

LABEL

RELAY 2 ACTIVE

RED BACKLIGHT

OXIDIZER MODE

PROP PULSE

MODE

OXIDIZER PULSE MIN

PPM

5.00

OXIDIZER PULSE MAX

PPM

0.10

pH ADJUST

OFF

MODE

pH ADJUST

7.00 pH

PULSE MIN

RELAY 2

mAA

TEST RELAY

pH ADJUST

8.00 pH

PULSE MAX

pH ADJUST RELAY

TEST RELAY

STANDARD RELAY Menu

NOTE: Screens below are only visible when Porportional Pulse Mode is selected.

mPULSES/MINA

RELAY 1 ACTIVATE

RED BACKLIGHT

RELAY 1

SOURCE

mNONEA

RELAY 1

MODE

OFF

RELAY 1

LABEL

RELAY 1

R1 SET LOW

0.10

PPM

R1 SET HIGH

5.00

PPMA

R1 HYSTERSIS

R1 ON DELAY

R1 PULSE MIN

PPMIPLE

R1 PULSE MAX

R1 MAX RATE

TEST RELAY

0.50

PPM

5.0

SEC

5.00

0.10

PPMF

120.00

RELAY 1

All relay sources can be assigned to Relay 1 – 4. Choose NONE, FCl, ClO2, pH, Temperature, Binary 1 – 4. If CHANNEL 1 is assigned a chlorine sensor the temperature source comes from the chlorine sensor.

(ALL) Select the desired mode of operation for the (R1) output (OFF, LOW, HIGH, PROP PULSE, ERROR

mode) (See page 15, Relay Modes). Default = OFF. Continue stepping through to select R2, R3 and

R4 output modes. When MODE is set to ERROR, relay turns on if sensor problem is detected on either channel. ON DELAY delays the turning on of the relay until after the programmed delay time.

English, French, German, Italian and Spanish only.

A custom label can be assigned to the relay for ease of identication.

(ALL) (Shown if LOW mode) Relay turns on if process measurement is equal to or lower than this value. Set desired value.

Default = Chlorine 0.10 PPM, Temperature 25 C, pH 4.0

Relay turns on if process measurement is equal to or higher than this value. Set desired value.

Default = Chlorine 5.00 PPM, Temperature 45 C, pH 8.0

Hysteresis prevents the mechanical relays from chattering around the set point. Set amount (in units of measure from INPUT Mode) to add to SET LOW or SET HIGH values.

Set seconds (up to 9999.9) to wait before activating relay once the relay condition is true.

Enter the desired minimum set point (END POINT) of the application. The number of pulses will be reduced to the chemcial dosing pump as the set point is reached to prevent overdosing of chemicals.

Default = Chlorine 5.00 PPM, Temperature 45 C, pH 8.0

Enter the maximum o󰀨 set (START POINT) from desired set point (SEND POINT) of the application.

This is usually the maximum allowable OFF SET value from the set point of the application. The closer to the starting point the more pulses will be sent to the chemical pump.

Default = Chlorine 0.10 PPM, Temperature 25 C, pH 4.0

Set desired maximum pulse rate (300 max)

NOTE: Pulse width is xed at 100 ms.

Select Yes to have the Red Backlight illuminate during relay activation, No to not have the Red Backlight activated by the relay activation.

(ALL) Press ▲ or ▼ to turn relay on or o󰀨 for testing purposes. Can also be used to reset or latch/unlatch the relay. Does NOT reset the Totalizer.

GF 9950-3 Chlorine Controller

Page 30

OPTION Menu

SET LANGUAGE

CH 1 PRIMARY

ENGLISH

RED BACKLIGHT

DISPLAY

BAR GRAPH

CH2 BAR GRAPH MIN

PPM

0.00

CH2 BAR GRAPH MAX

PPM

100.00

FUNCTION 1

OFF

NONE

CH1

PPM DECIMAL

_ _ _ _._

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

STD

MEMO

SEC

MEMO

9950

SEC

GENERATION 3

USER MANUAL

SEC

100.00

CH1

°F DECIMAL

_ _ _ _._

CH1

TOTAL DECIMAL

_ _ _ _._

WHITE BACKLIGHT

AUTO LOW

PASSWORD TYPE

CODE

COND/RES

OFF

AUTORANGE

SET LANGUAGE

CH 1 PRIMARY

ENGLISH

TIME FORMAT

BINARY ON

24 HR

SET TIME

TIMER

08:56

DATE FORMAT

MULTIPLE

MM/DD/YYYY

SET DATE

OFF

02/25/2016

SET DECIMAL MARK

999.99

SELECT UNITS

METRIC

CONTRAST

RED BACKLIGHT

DISPLAY

BAR GRAPH

CH2 BAR GRAPH MIN

PPM

0.00

CH2 BAR GRAPH MAX

PPM

100.00

FUNCTION 1

OFF

NONE

CH1

PPM DECIMAL

_ _ _ _._

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

STD

MEMO

SEC

MEMO

9950

SEC

GENERATION 3

USER MANUAL

SEC

100.00

CH1

°F DECIMAL

_ _ _ _._

CH1

TOTAL DECIMAL

_ _ _ _._

WHITE BACKLIGHT

AUTO LOW

PASSWORD TYPE

CODE

COND/RES

OFF

AUTORANGE

ENTER

NONE

FLOW pH ORP

FACTORY

ENTER

CAL INPUT LOOP RELAY OPTION

INPUT

ENTER

INPUT

ENTER

CAL

INPUT LOOP RELAY OPTION

CAL

LOOP

RELAY OPTION

CAL INPUT LOOP

RELAY

OPTION

CAL INPUT LOOP RELAY

OPTION

ENTER

ENGLISH FRANÇ

DEUTCH

ESPAÑOL

中文

SET DECIMAL MARK

GF 9950-3 Chlorine Controller

TIME FORMAT

24 HR

BINARY ON

SET TIME

08:56

TIMER

DATE FORMAT

MM/DD/YYYY

MULTIPLE

SET DATE

02/25/2016

OFF

999.99

SELECT UNITS

METRIC

CONTRAST

Choose desired the language for the 9950-3. Default = English

Choose a time format between a 24 Hour or an AM/PM clock. Default = 24 HR

Set the time according to the format chosen 00:00

Date Format; MM/DD/YYYY, DD/MM/YYYY, YYYY/MM/DD

Set the date according to the format chosen 00/00/0000

Choose either comma or point according to local practices. Default = 999.99 (point).

Choose METRIC or US CUSTOMARY

Adjust the displays contrast for best viewing. A setting of 1 is lower contrast, 5 is higher and 3 is default.

Page 31

OPTION Menu

RED BACKLIGHT

DISPLAY

BAR GRAPH

CH2 BAR GRAPH MIN

PPM

0.00

CH2 BAR GRAPH MAX

PPM

100.00

FUNCTION 1

OFF

NONE

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

STD

MEMO

SEC

MEMO

9950

SEC

GENERATION 3

CH1

TOTAL DECIMAL

_ _ _ _._

WHITE BACKLIGHT

AUTO LOW

PASSWORD TYPE

CODE

COND/RES

OFF

AUTORANGE

RED BACKLIGHT

DISPLAY

BAR GRAPH

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

STD

CH1

TOTAL DECIMAL

_ _ _ _._

WHITE BACKLIGHT

AUTO LOW

PASSWORD TYPE

CODE

COND/RES

OFF

AUTORANGE

RED BACKLIGHT

DISPLAY

BAR GRAPH

CH2 BAR GRAPH MIN

PPM

0.00

CH2 BAR GRAPH MAX

PPM

100.00

FUNCTION 1

OFF

NONE

CH1

PPM DECIMAL

_ _ _ _._

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

STD

MEMO

SEC

MEMO

9950

SEC

GENERATION 3

USER MANUAL

SEC

100.00

CH1

TOTAL DECIMAL

_ _ _ _._

WHITE BACKLIGHT

AUTO LOW

PASSWORD TYPE

CODE

COND/RES

OFF

AUTORANGE

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

STD

CH1

TOTAL DECIMAL

_ _ _ _._

PASSWORD TYPE

CODE

COND/RES

OFF

AUTORANGE

CH1

OFF

TOTAL LOCK

CH1

TOTAL DECIMAL

_ _ _ _._

COND/RES

OFF

AUTORANGE

CH1

OFF

TOTAL LOCK

CH1

TOTAL DECIMAL

_ _ _ _._

COND/RES

OFF

AUTORANGE

WHITE BACKLIGHT

PASSWORD TYPE

CH2 BAR GRAPH MIN

CH2 BAR GRAPH MAX

AUTO LOW

RED BACKLIGHT

DISPLAY

BAR GRAPH

STD

CODE

0.00

PPM

100.00

PPM

CH1

_ _ _ _._

PPM DECIMAL

_ _ _ _._

°F DECIMAL

MEMO

SEC

White Backlight: OFF, LOW, HIGH, AUTO LOW, AUTO HIGH

The Red Backlight illuminates when an error condition is detected or user selected relay(s) are activated.

Default = ON

Display Bar Graph: ON, OFF When enabled, user enters range to be displayed.

(ALL) Select STD, CODE.

Default = STD (Refer to page 4 for further detail)

(CODE) If code is selected

Default Code = 0000 (Refer to page 4 for further detail)

Enter a value to represent bar at minimum.

Default = 0

Enter a value to represent bar at maximum.

Defaults = 5.00 ppm (Chlorine), 14 (pH)

(ALL) Set the decimal to the best resolution for your application for both CH1 and or CH2. The display will automatically scale up to this resolution for each channel. Select 0, 1, 2, 3, or 4 decimal places, (varies by parameter).

Default = 1 Decimal Place

(Chlorine electrodes) Set the Temperature decimal to the best resolution for your application for CH1. The display will automatically scale up to this resolution. Select 0, 1, or 2. Default = 1 Decimal Place

(ALL) Enter 17-character string, if desired.

Default = MEMO

GF 9950-3 Chlorine Controller

Page 32

CH1

OFF

TOTAL LOCK

PASSWORD TYPE

STD

MEMO

SEC

MEMO

CH1

TOTAL DECIMAL

_ _ _ _._

PASSWORD TYPE

CODE

COND/RES

OFF

AUTORANGE

MODBUS

EVEN

PARITY

MODBUS

BIG

ENDIAN

MODBUS

EVEN

PARITY

MODBUS

BIG

ENDIAN

RESET TO

DEFAULT

ACTIVATE

SETTINGS

Modbus Menus

MODBUS

MODULE

NONE

MODBUS

COMMUNICATION

SETTINGS ->

MODBUS

REMOTE UPDATE

9950

Select NONE, MOD 1 or MOD 2. The MODBUS module must be installed into Module 2 of the 9950.

Press the ► key to change the settings of the Modbus Module.

See page 33 for Modbus Communication Settings Menus.

Setting Modbus Remote update to YES allows remote Modbus device to change the settings on the 9950-3. Setting Modbus Remote Update to No prevents remote devices from make any changes to the 9950-3. Remote device will still be able to read all of the Modbus parameters.

GENERATION 3

SEC

USER MANUAL

100.00

SEC

Displays Transmitter Generation Version.

QR code for user manual.

GF 9950-3 Chlorine Controller

Page 33

Modbus Menus

MODBUS

NONE

MODULE

MODBUS

EVEN

PARITY

MODBUS

BIG

ENDIAN

MODBUS

NONE

MODULE

MODBUS

SETTINGS ->

COMMUNICATION

MODBUS

EVEN

PARITY

MODBUS

BIG

ENDIAN

RESET TO

DEFAULT

ACTIVATE

SETTINGS

MODBUS

REMOTE UPDATE

OPTION Menu

MODBUS

COMMUNICATION

SETTINGS ->

Press the ► key to change the settings of the Modbus Module

Modbus Communication Settings Menus

MODBUS

ADDRESS

NETWORK

Set the Modbus address of the 9950-3. The default address is 95

The 9950 Modbus Module has an electronic termination network.

TERMINATION

MODBUS

BAUD RATE

19.2 K

MODBUS

PARITY

EVEN

MODBUS

ENDIAN

BIG

RESET TO

The Termination can be activated by setting the value to Yes.

The default value is No (the termination is o󰀨).

Set the baud rate of the Modbus network. The default value is 19.2K baud, 19200 baud.

Set the parity of the Modbus network. The default value is Even parity.

Set the byte order in which the 9950-3 transmits oating point numbers in the Modbus protocol. The default value is Big Endian.

DEFAULT

ACTIVATE

SETTINGS

Reset all Modbus setting to the default values.

ACTIVATE SETTINGS: YES sends the changes to the Modbus Module, NO keeps the current settings

GF 9950-3 Chlorine Controller

Page 34

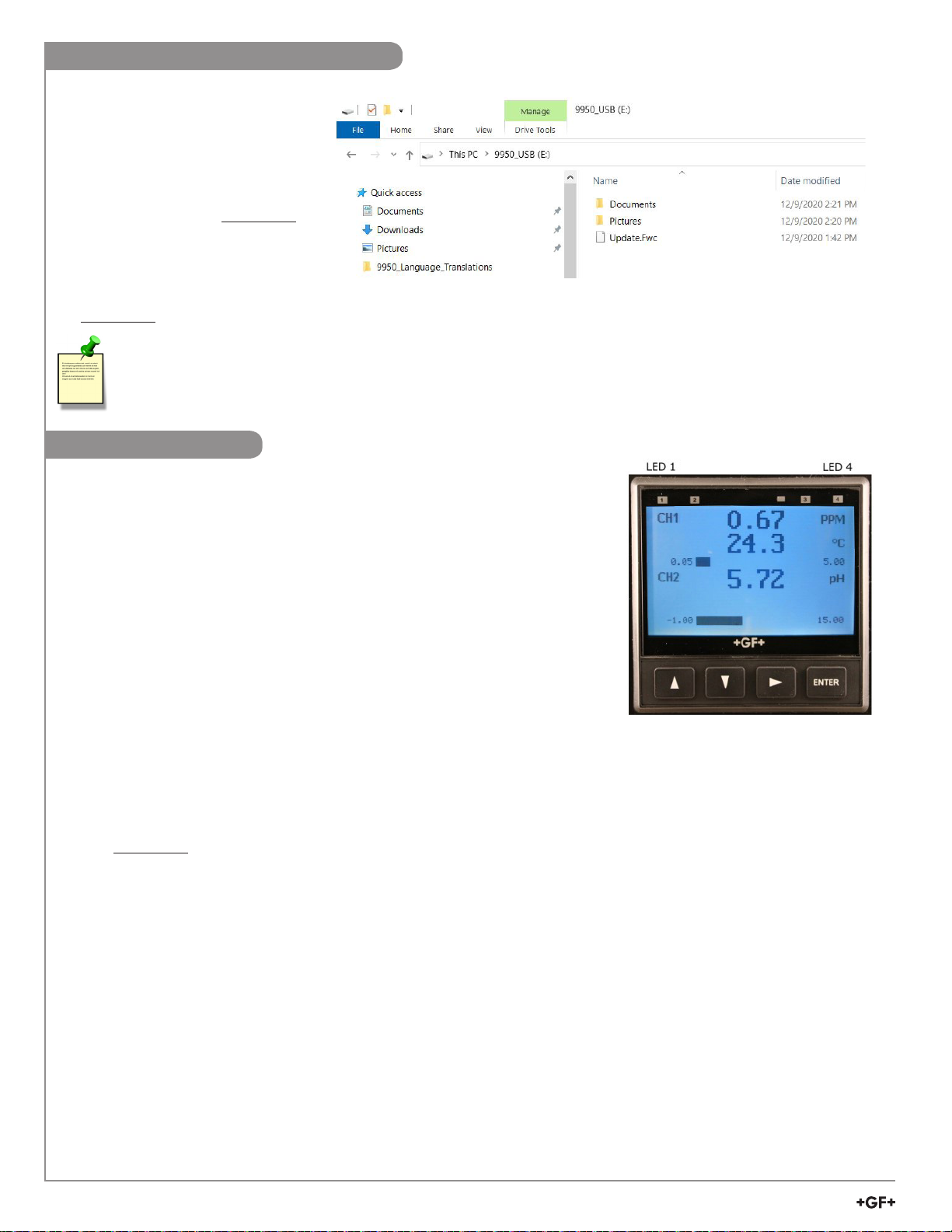

9950 Field Software Upgrade

The 9950 upgrade le will be available

on the Georg Fischer website. You will

need a USB ash drive that is formatted,

using Microsoft Windows, in either FAT16 or FAT32 format. Do not use exFAT or NTSF formats. These are incompatible with the 9950.

The upgrade le is named Update.Fwc. Copy the le to the root directory of the

Flash Drive. Do not change the name of

the le or store the le in a sub directory

on the Flash Drive. The 9950 will only

look in the root directory for the specic le, Update.Fwc.

Important! Do not use a USB extension cable. The USB

ash drive must be directly connected to the 9950 USB port.

Sample Flash Drive Directory with Update File

Updating the 9950

Updates available on www.gfpscom.

1. Disconnect power from the 9950.

2. Insert the Flash Drive into the 9950 USB slot.

3. Reconnect power to the 9950.

4. LED 1 on the 9950 will ash quickly as the unit searches for a Flash Drive and

the correct le.

5. When the 9950 detects a Flash Drive and a valid update le, LED 2 will slowly

ash during the update process.

6. The update process takes approximately 30 seconds.

7. After a successful update the 9950 will boot to the normal screen.

8. If the update is successful, disconnect power, remove USB drive, reconnect power and review application settings.

Troubleshooting

If, after 10 seconds, the unit boots to the normal screen, the 9950 was unable to nd the Flash Drive or the le.

a. Verify the Flash Drive has been formatted in either

FAT16 or FAT32 format, the upgrade le is in the root directory of the Flash Drive, and the le name is

Update.Fwc. You may also need to try a di󰀨erent ash drive.

b. If LED 4 on the 9950 is continuously illuminated, this

indicates either the le found on the Flash Drive is

corrupted, or power was interrupted during the upgrade process.

• Remove power from the 9950.

• Remove the Flash Drive.

• Apply power to the 9950.

c. If the 9950 starts normally, the le on the Flash Drive was

corrupted.

• Download a new copy of the update le and copy it to the Flash Drive.

• Repeat the update instruction with the new le.

d. If the 9950 starts up and stops with LED 4 on and a

blank screen, this indicates that the update process was interrupted and the 9950 cannot start.

• Disconnect power from the 9950.

• Reattach the Flash Drive to the 9950.

• Repeat the upgrade procedure.

e. If the 9950 still does not respond after the second

upgrade attempt to:

• Download a new copy of the update le and copy it

to a di󰀨erent Flash Drive.

• Repeat the update instruction with the new Flash Drive.

GF 9950-3 Chlorine Controller

Page 35

Troubleshooting

Condition Possible Causes Suggested Solution

Incorrect sensor installed on channel Connect correct sensor to channel

Wrong Sensor

Sensor Type set incorrectly in 9950-3

Wrong Code Wrong password entered Enter correct password (see page 4)

Set correct sensor TYPE in INPUT menu (see page 24)

Backlight inoperative

Relays inoperative

Relay always ON

– – – – –

Missing Module

Wrong Module

Backlight turned OFF (NOTE: Backlight can turn o󰀨 automatically in AUTO mode)

Set BACKLIGHT to LOW, HIGH, AUTO LOW or AUTO HIGH in OPTION menu.

Relay Module installed incorrectly Remove and reseat Relay Module

Wrong settings in RELAY menu

Use test relay to verify relay operation then check relay settings.

Flow Switch OFF Turn Flow Switch ON

Hysteresis value too large Change the hysteresis value Defective Relay Module Replace Relay or Modbus Module

Measurement exceeds display capability

4 to 20 mA Module or Modbus Module is not installed in the Module Slot

The wrong Module 4 to 20 mA or Modbus Module) is installed in the slot

Change unit of measure

Install the module in the correct slot

Replace module with the correct module

Calibration is required for all new sensors

Calibration Due

Calibration was reset to factory Next Calibration date reached Next Calibration date was not set

No pH value pH electrode faulty

No Flow

Man pH

No ow detected through the Flow

Switch

Manual pH compensation has been selected

Do the Calibration

Replace pH electrode Place pH electrode input to Manual Verify water source is turned ON

Verify the ow cell outlet ball valve is open

Disable Flow Switch input via Relay Menu Replace pH electrode Set Manual pH to OFF

GF 9950-3 Chlorine Controller

Page 36

Condition Possible Causes Suggested Solution

No Probe

(Chlorine or pH)

Check Preamp

(Chlorine or pH)

Troubleshooting

9950 "cannot communicate" with Chlorine or pH electrode

Missing sensor or bad temperature element

9950 "cannot communicate" with the Chlorine or pH electronics

• Check wiring

• Install or replace electrode

Check wiring

Replace 2751-7 or 2650 Electronics

Backlight of Screen is RED

Broken Glass

Hi Impedance

Check Cal

(pH only)

Error is detected or Relay is activating the red backlight

pH electrode glass has been damaged and caused very low impedance

The measured pH electrode impedance is above the high impedance level.

Correct error condition

Visually inspect pH electrode for cracked and/or chipped glass

Visually inspect the pH electrode and clean if necessary

Electrode could be in air Ensure electrode is submersed at all times

Perform pH EasyCal (pg. 31 & 59)

Slope and/or O󰀨set are out of range

Set pH Slope or Standard (pg. 32 & 60) Reset pH CAL (pg. 32)

GF 9950-3 Chlorine Controller

Page 37

Calibration Error Messages

Message Cause Solution

Out Of Range Use Manual Calibration

Err Too Large To Calibrate

(pH) Bu󰀨er not found;

Error > ±1.5 pH units

(pH) O󰀨set > 1.3 pH units;

Slope error > 100%

Troubleshooting

• Use 4 and 7 pH bu󰀨ers

• Clean sensor and retry EasyCal

• Use manual calibration method

• Check reference

• Clean sensor

• Replace sensor

Chlorine - nA out of range when compared to the DPD sample

Cal Error Out Of Range

pH - Calibration exceeds the maximum

o󰀨set of the reference junction allowed

Slope Too Close To Standard (pH) Di󰀨erence in calibration values

must be > 2 pH units

Standard Too Close To Slope

(pH) Di󰀨erence in calibration values

must be > 2 pH units

Check input at 4 mA and 20 mA settings

• Check sensor range

• Check reference

• Replace sensor

• Check sensor

• Use fresh bu󰀨er

• Use two di󰀨erent bu󰀨er values

• Clean sensor

• Use fresh 4, 7 and 10 pH bu󰀨ers

• Use two di󰀨erent bu󰀨er values

GF 9950-3 Chlorine Controller

Page 38

Specications

General

Input channels ............Two channels

Outputs.......................Two passive 4 to 20 mA outputs

Two active 4 to 20 mA ouputs Two mechanical relays, 250 VAC, 5 amp

Enclosure and Display

Case Material .............PBT

Window .......................Shatter-resistant glass

Keypad ....................... 4 buttons, injection-molded

silicone rubber seal

Display ........................Dot Matrix LCD

Update Rate ...............1 s

LCD Contrast ..............5 settings

Indicators .................... Two horizontal digital bar graphs,

four LED relay status indicators Enclosure

Size .....................¼ DIN

Mounting

Panel ................... ¼ DIN, ribbed on four sides for panel

mounting clip inside panel, silicon

gasket included

Wall ......................Wall Mount Enclosure

(sold as an accessory)

Terminal Blocks

Pluggable screw type: use minimum 105 °C rated wire Torque ratings

Power/Loop..........0.49 Nm (4.4 lb-in.)

Freq/S3L ...............0.49 Nm (4.4 lb-in.)

Relay....................0.49 Nm (4.4 lb-in.)

Connector wire gauge:

Power, Loop .........12 to 28 AWG

Freq/S3L ...............16 to 28 AWG

Module connector wire gauge:

Relay....................12 to 28 AWG

Environmental

Ambient Temperature:

DC Power ...............-10 °C to 70 °C (14 °F to 158 °F)

Storage Temp .........-15 °C to 70 °C (5 °F to 158 °F)

Relative Humidity........ 0 to 100% condensing for (front only);

0 to 95% non-condensing (rear panel)

Maximum Altitude .......4,000 m (13,123 ft)

Enclosure Rating .......... NEMA 4X/IP65 (front face only)

Installation Category Cat II Pollution Degree 2

Electrical Requirements

Power to Electrodes

Voltage...............................

Current............................... 30 mA Maximum

Short Circuit .......................Protected

Isolation ............................. Low voltage (< 48 V AC/DC)

Power Requirements

DC (3-9950-3, -5) .............. 24 VDC nominal (12 to 32 VDC,

Sensor Input Specications

Digital (S3L) Sensors .......Serial ASCII, TTL level, 9600 bps

Accuracy ..........................

Resolution........................1 µs

Repeatability ....................± 0.2% of reading

Power Supply

Rejection..........................No E󰀨ect ± 1 µA per volt

Short Circuit .....................Protected

Reverse Polarity ..............Protected

Shipping Weights

Base Unit ....................0.63 kg (1.38 lb)

9950-3 .....................1.0 kg (2.2 lb)

9950-5 .....................0.63 kg (1.38 lb)

Relay Module..............0.19 kg (0.41 lb)

Standards and Approvals

• CE, UL, CUL, WEEE

• RoHS Compliant

China RoHS (Go to www.gfsignet.com for details)

Declaration of Conformity according to FCC Part 15 This device complies with Part 15 of the FCC rules.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

• Manufactured under ISO 9001, ISO 14001 and ISO 45001

+4.9 to 5.5 VDC @ 25 °C, regulated

±10% regulated). A UL60950-1 or

UL61010-1 certied power supply

must be used. Power supply shall also be rated for operation at 4000 m (13,123 ft) altitude.

± 0.5% of reading max error @ 25 °C

Performance Specications

System Accuracy

• Primarily dependent upon the electrode.

System Response

• Primarily dependent upon the electrode. Controller adds a maximum of 150 ms processing delay to the electronics.

• Minimum update period is 500 ms.

• System response is tempered by the display rate, output averaging.

GF 9950-3 Chlorine Controller

Graphical User Interface created with emWin licensed by SEGGER

Page 39

Specications

Binary Input Specications (3-9950.393-3)

Input Voltage Range

(without damage) .................. -5 VDC to 30 VDC

(no operation below 0 VDC)

Max. Voltage Rating .............30 VDC

Max. Current Rating ............. 6.0 mA

Maximum input voltage for

signal “O󰀨” (low or "0") ........ 1.5 VDC

Minimum input voltage for

signal “On” (high or "1") ........ 3.0 VDC

Maximum current draw for

signal “0” (low): ..................... <500 µA DC

Minimum current draw for

signal “1” (high): ................... 500 µA

Typical current draw for

signal “1” (high): ................... 6.0 mA at 30 VDC

4.8 mA at 24 VDC

2.4 mA at 12 VDC

1.0 mA at 5 VDC

Current Loop Specications (Internal and Modules)

Current Loop Out ........... ANSI-ISA 50.00.01 Class H

(Passive, external voltage required)

Voltage........................... 12 to 32 VDC, ±10% regulated. Use

UL60950-1 or UL61010-1 certied

power supply. Power supply shall also be rated for operation at 4000 m (13,123 ft) altitude.

Max. Impedance: ........... 250 Ω @ 12 VDC

500 Ω @ 18 VDC 750 Ω @ 24 VDC

Span ..............................3.8 to 21 mA Adjustable, reversible

Accuracy ........................ ± 32 µA max. error @ 25 °C @ 24

VDC

Resolution......................6 µA or better

Temp. Drift .....................± 1 µA per °C

Isolation .........................Low voltage (< 48 VAC/DC)

Update Rate ..................100 mS nominal

Zero ............................... 4.0 mA factory set; user programmable

from 3.8 to 5.0 mA

Full Scale .......................

Power Supply Rejection ± 1 µA per V Actual update rate determined by sensor type Short circuit and reverse polarity protected Adjustable span, reversible

Error Condition ..............

Test Mode ...................... Increment to desired current

Analog Outputs .............. 2 Passive

20.00 mA factory set; user

programmable from 19.0 to 21.0 mA

Selectable error condition 3.6 or 22 mA

or None

(range 3.8 to 21.00 mA)

Relay Specications

Dry-Contact Relays

Type ......................................SPDT

Form ..................................... C

Max. Voltage Rating .............30 VDC or 250 VAC

Max. Current Rating ............. 5 A resistive

Solid-State Relays, Optional Relay Module

Type ......................................SPDT

Form ..................................... C

Max. Voltage Rating .............30 VDC or 30 VAC

Max. Current Rating ............. 0.050 A

Hysteresis ............................. Adjustable (absolute in

Engineering Units)

On Delay............................... 9999.9 seconds (max.)

Test Mode ............................. Set On or O󰀨

Maximum Pulse Rate ........... 300 pulses/minute

Input Types

• Chlorine (FCl and ClO2) input via the Digital (S³L) output from the 2650 Amperometric Electronics

• pH input via the Digital (S3L) output from the 2751-7 pH Electronics

Sensor Types:

Chlorine and pH

Current Outputs

• Two 4 to 20 mA output in base unit

• Linear scaling

• Reverse span

• Selectable error mode: 3.6 mA or 22 mA or None

• Test Output mode: allows testing of the current output

• Adjustable 4 to 20 mA end points

• Two 4 to 20 mA Output in base unit

• Two or Four 4 to 20 mA Outputs in optional Modules

Display Ranges:

FCI ..............................0 to 20 ppm

ClO2 ............................0 to 2 ppm

pH ...............................-1.00 to 15.00 pH

pH ...............................-99 °C to 350 °C (-146 °F to 662 °F)

GF 9950-3 Chlorine Controller

Page 40

Ordering Information

9950 Transmitter Base Unit: Dual Channel, Multi-Parameter and DC Power

Mfr. Part No Code Description

3-9950-3 159 001 954

3-9950-5 159 001 956 9950 Base Unit - DC Powered, 2 Channel Input, 2 Passive 4 to 20 mA Output

Optional Modules

3-9950.393-1 159 310 268 Relay Module with 4 Mechanical Relays 3-9950.393-2 159 310 269 Relay Module with 2 Mechanical and 2 Solid State Relays 3-9950.393-3 159 310 270 Relay Module with 2 Mechanical Relays and 4 Binary Inputs 3-9950.395-M 159 001 905 Modbus Module 3-9950.398-2 159 001 848 Dual Channel Output Module, 4 to 20 mA

Accessories

3-8050.396 159 000 617 RC Filter Kit (for relay use), 2 per kit 3-9950.391 159 310 278 Connector Kit, In-Line, 9950 Transmitter

3-9950.392 159 310 279 Relay Module Connector Kit, 9950 Transmitter 3-9900.392 159 001 700 Wall Mount Enclosure Kit

3-9000.392-1 159 000 839 Liquid Tight Connector Kit, NPT (1 pc.)

9950 Base Unit - DC Powered, 2 Channel Input, 2 Passive 4 to 20 mA Output, 2 Active 4 to 20 mA Output (Module) 2 Mechanical Relays, 4 Binary Inputs

Georg Fischer Signet LLC, 3401 Aero Jet Avenue, El Monte, CA 91731-2882 U.S.A. • Tel. (626) 571-2770 • Fax (626) 573-2057 For Worldwide Sales and Service, visit our website: www.gfsignet.com • or call (in the U.S.): (800) 854-4090 For the most up-to-date information, please refer to our website at www.gfsignet.com
