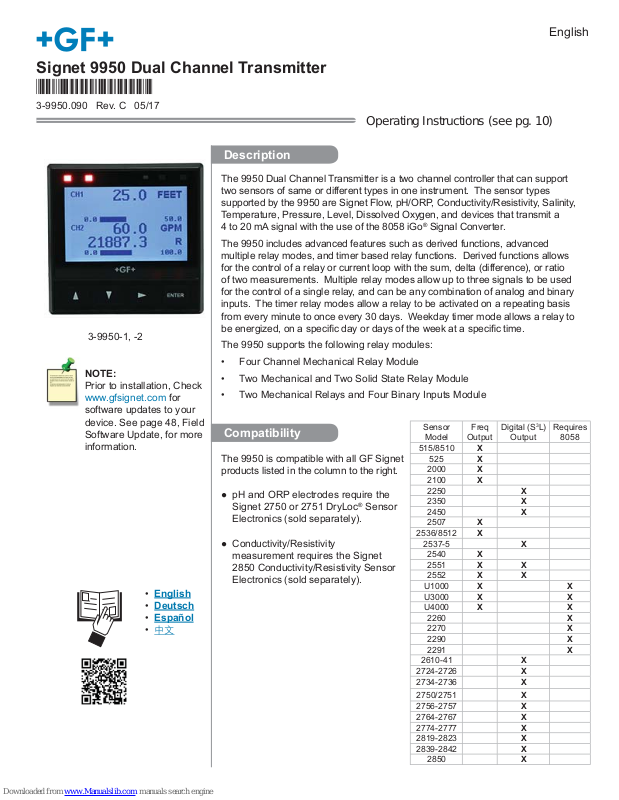

GF Signet 9950, 3-9950-2, 3-9950-1 Operating Instructions Manual

Page 1

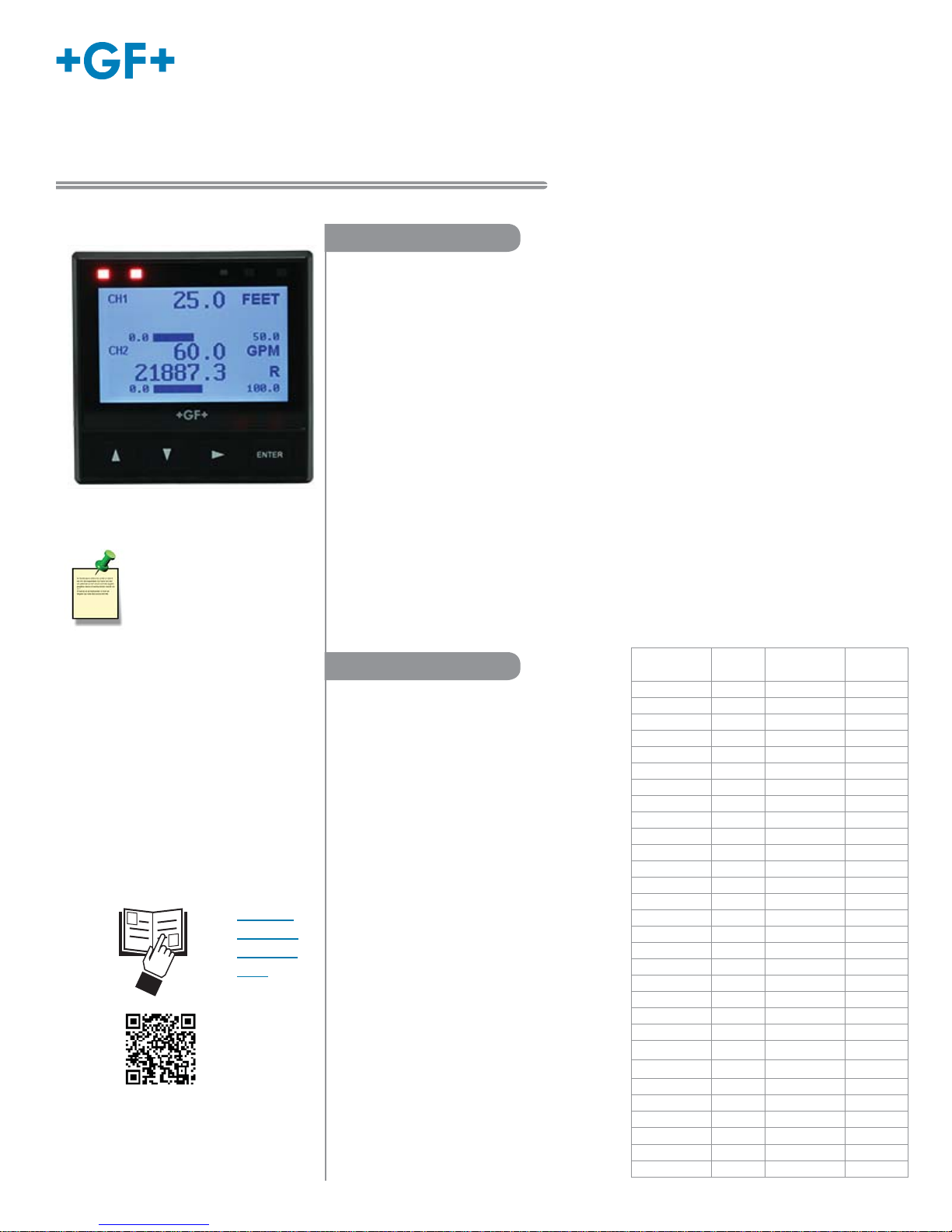

Signet 9950 Dual Channel Transmitter

*3-9950.090*

3-9950.090 Rev. C 05/17

Description

The 9950 Dual Channel Transmitter is a two channel controller that can support two sensors of same or different types in one instrument. The sensor types supported by the 9950 are Signet Flow, pH/ORP, Conductivity/Resistivity, Salinity, Temperature, Pressure, Level, Dissolved Oxygen, and devices that transmit a 4 to 20 mA signal with the use of the 8058 iGo® Signal Converter.

The 9950 includes advanced features such as derived functions, advanced multiple relay modes, and timer based relay functions. Derived functions allows for the control of a relay or current loop with the sum, delta (difference), or ratio of two measurements. Multiple relay modes allow up to three signals to be used for the control of a single relay, and can be any combination of analog and binary inputs. The timer relay modes allow a relay to be activated on a repeating basis from every minute to once every 30 days. Weekday timer mode allows a relay to

3-9950-1, -2

NOTE:

Prior to installation, Check

www.gfsignet.com for

software updates to your device. See page 48, Field Software Update, for more information.

• English

• Deutsch

• Español

• 中文

be energized, on a speciﬁ c day or days of the week at a speciﬁ c time.

The 9950 supports the following relay modules:

• Four Channel Mechanical Relay Module

• Two Mechanical and Two Solid State Relay Module

• Two Mechanical Relays and Four Binary Inputs Module

Compatibility

The 9950 is compatible with all GF Signet products listed in the column to the right.

 pH and ORP electrodes require the Signet 2750 or 2751 DryLoc® Sensor Electronics (sold separately).

 Conductivity/Resistivity measurement requires the Signet 2850 Conductivity/Resistivity Sensor Electronics (sold separately).

Operating Instructions (see pg. 10)

Sensor

Model

515/8510 X

525 X 2000 X 2100 X 2250 X 2350 X 2450 X 2507 X

2536/8512 X

2537-5 X

2540 X 2551 XX 2552 XX

U1000 XX U3000 XX U4000 XX

2260 X 2270 X 2290 X 2291 X

2610-41 X 2724-2726 X 2734-2736 X

2750/2751 X 2756-2757 X 2764-2767 X 2774-2777 X 2819-2823 X 2839-2842 X

2850 X

Freq

Output

Digital (S3L)

Output

English

Requires

8058

Page 2

Start-Up Guide

Safety Information

• Please read entire manual before unpacking, setting up or operating this equipment. Adhere to all danger, warning and caution statements. Failure to do so could result in

Warning / Caution / Danger

Indicates a potential hazard. Failure to follow all warnings may lead to equipment damage, injury, or death.

Electrostatic Discharge (ESD) / Electrocution Danger

Alerts user to risk of potential damage to product by ESD

serious injury to the operator or damage the equipment. Make sure the protection provided by this equipment is not impaired, do not use or install this equipment in any manner other than speciﬁ ed in this manual.

• This unit is designed to be connected to equipment which can be hazardous to persons and property if

Electrocution Danger

Alerts user to risk of potential of injury or death via electrocution.

Personal Protective Equipment (PPE)

Always utilize the most appropriate PPE during installation and service of Signet products.

used incorrectly.

• Read and understand all associated equipment manuals and safety warnings before using with this product.

NOTE / Technical Notes

Highlights additional information or detailed procedure

• Remove power to unit before wiring connections.

• Wiring connections to this product should only be performed by qualiﬁ ed personnel.

• Do not use unit if front panel is cracked or broken.

3-9950-2

Before commissioning the device, make sure the supply voltage matches the voltage speciﬁ cations on the nameplate. For DC power input and Loop current regulated voltage, use UL60950-1 or UL61010-1 certiﬁ ed power supply. Power supply shall also be rated for operation at 4000 m altitude. Provide a suitable switch or circuit breaker the installation. This switch must be located close to the device (easily reached), and marked as a circuit breaker. The switch or circuit breaker to be used for power disconnect shall be certiﬁ ed to IEC 60947-1 and IEC 60947-3, per IEC 61010-1, Clause

6.11.4.2. Overcurrent protection (rated > 10 A) is required for the power cable.

Installation

For future reference, for each installation, it is recommended to record the part number and serial number of each of the components listed here:

Facility Tag Number or System ID (user assigned):__________________ Base unit 3-9950-____ S/N ___________________

Relay Module 3-9950.393-____ S/N ___________________

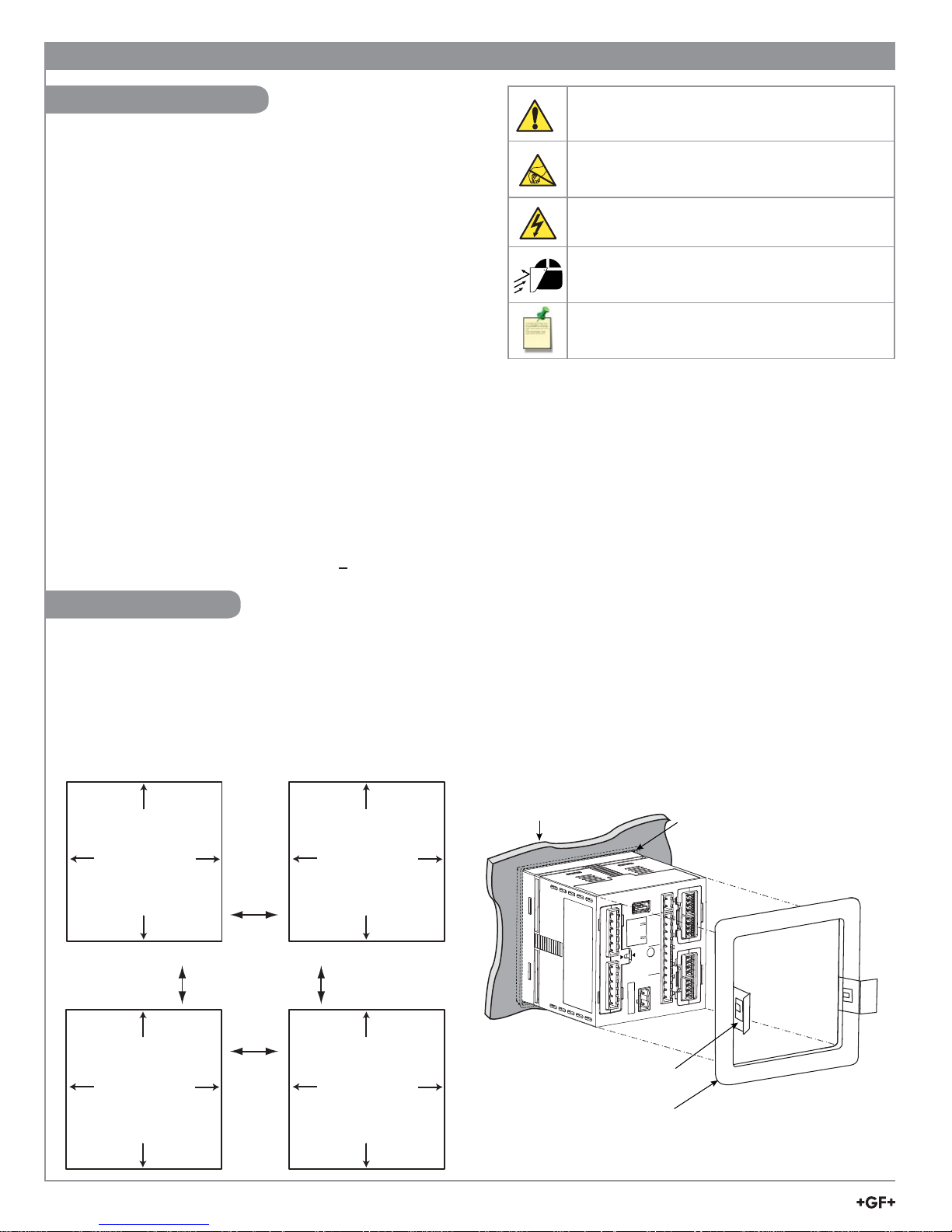

Panel Mount Installation

Panel Cutout

92 x 92 mm

(+ 0.8, - 0 mm)

3.6 x 3.6 in.

(+0.031, -0 in.)

Panel Cutout

92 x 92 mm

(+ 0.8, - 0 mm)

3.6 x 3.6 in.

(+0.031, -0 in.)

minimum

clearance

25 mm

(1 in.)

Panel Cutout

92 x 92 mm

(+ 0.8, - 0 mm)

3.6 x 3.6 in.

(+0.031, -0 in.)

Panel Cutout

92 x 92 mm

(+ 0.8, - 0 mm)

3.6 x 3.6 in.

(+0.031, -0 in.)

Allowable panel thickness 2.36 mm (0.093 in.) to 33 mm (1.31 in.)

panel

gasket on front side of panel

MODULE 1

DC POWER

USB

RELAY MODULE

PWR+ PWR–

Loop1+

DC Power

–

12-32 VDC

Loop1

0.50A Max

Loop2+

Loop Voltage

–

12-32 VDC

Loop2

0.03A Max

V+ FREQ DATA

GND

V+

CH2 CH1

FREQ DATA

GND

50-60 Hz, 24VA Max

100-240 VAC

Made in U.S. from U.S. and imported parts

Quick-clip

mounting

bracket

MODULE 2

9950 Transmitter

Page 3

Start-Up Guide

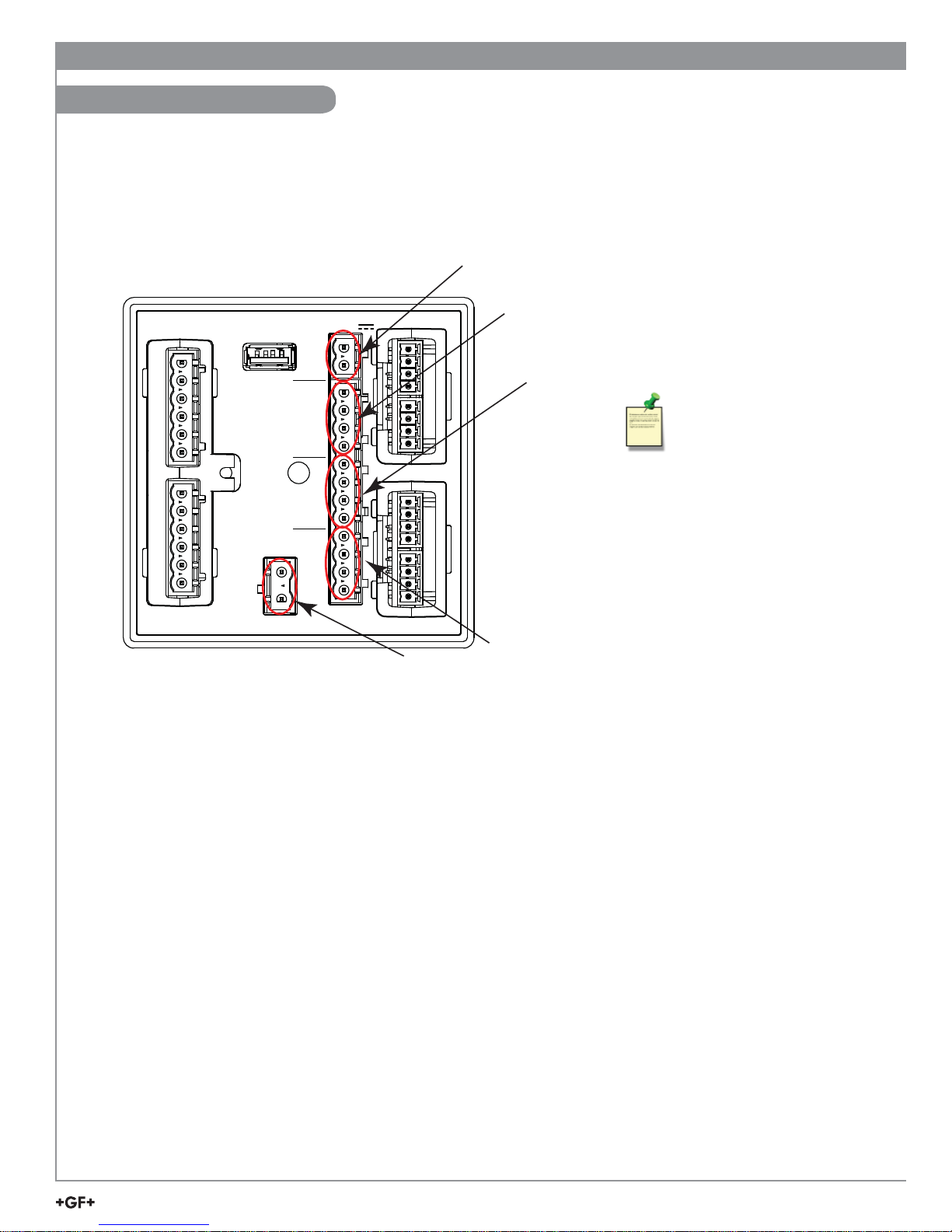

Terminal Identiﬁ cation

Prepare the transmitter installation location. If the back of the transmitter is difﬁ cult to access when installed, wire the removable terminal blocks ﬁ rst, then install it completely.

DC Power Terminals

RELAY MODULE

PWR+ PWR–

Loop 1+ Loop 1– Loop 2+ Loop 2–

FREQ

DATA

GND

CH2 CH1

FREQ

DATA

GND

11-24 VDC

USB

100-240 VAC~

Made in U.S. from U.S. and imported parts

MODULE 1

MODULE 2

Channel 1 Input

(Frequency/S

The 9950 requires regulated

12 to 32 VDC, ±10% regulated (24 VDC nominal) or 100240 VAC at 50-60 Hz from

an external power supply (not supplied).

Maximum current draw is:

500 mA with DC power 24 VA with AC power

Channel 2 Input

Current Loop Outputs

(Frequency/S

AC Power Terminals

DC Power Terminal 3-9950-1 or 3-9950-2

Required by the instrument

• 12 to 32 VDC, ±10% regulated, 0.5 A MAX. DC power input and Loop current regulated voltage require the use of a UL60950-1 or UL61010-1 certiﬁ ed power supply. Power supply shall also be rated for operation at 4000 m altitude.

AC Power Terminal 3-9950-2 Only

Required by the instrument

• 100-240 VAC at 50-60 Hz, 24 VA MAX

Relay Module

Dependent on model

• 3-9950.393-1 Four mechanical relays rated at 5A, 250 VAC or 5A, 30 VDC

• 3-9950.393-2 Two mechanical relays, 5A 250 VAC or 30 VDC, and two solid state relays rated at 50 mA, 30 VAC or 30 VDC

• 3-9950.393-3 Two mechanical relays, 5A 250 VAC or 30 VDC, and four binary inputs rated at 6 mA, 10 VDC to 24 VDC

Channel 1 and Channel 2: Digital (S3L)/Frequency Input

• V+: +5 VDC out to sensor (black wire)

• FREQ: Frequency input signal from sensor (red wire)

• S3L DATA: Digital input signal from sensor (red wire)

• GND: Sensor ground (white wire or silver wire from paddle wheel ﬂ ow sensor)

Loop Outputs

• Two Passive 4 to 20 mA current loop outputs 12 - 32 VDC, ±10% regulated (30 mA Max)

USB Interface

• Software updates will be provided through the USB port

9950 Transmitter

Page 4

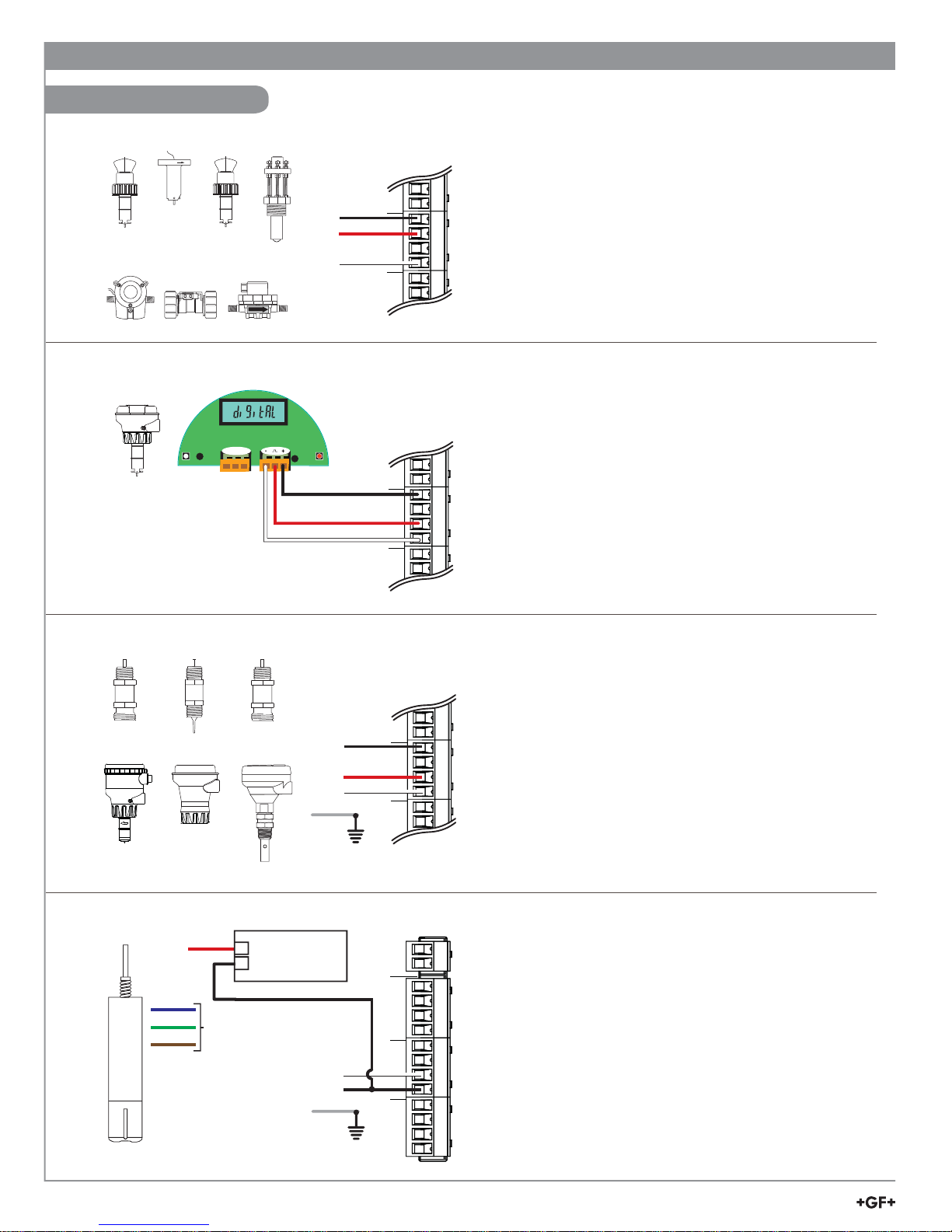

Sensor Wiring

515/8510

525 2536/8512 2540

FLOW

2000 2100 2507

Start-Up Guide

9950 Frequency

DC POWER

Loop

Black

Red

No connection

Silver

FLOW

Loop

FREQ

DATA

GND

CH2 CH1

FREQ

+V FREQ DATA GND

Technical Notes:

• See corresponding product manuals for maximum cable length.

• Maintain cable shield through cable splice.

• Route sensor cable away from AC power lines.

• Select "Yes" to CH # Flow 515/525 when setting up the input on the 9950. On the 515/8510 and 525 installations, connect the silver (shield) wire to earth ground in case of EMI noise interference.

2537-5

Blk Red Shld

2250 2350 2450

2551* 2750/2751 2850

9950 S3L Inputs

Technical Notes:

• Wiring terminals on the 2537 are rated for 16 to 22 AWG wires.

DC POWER

Black

Red White

No connection

Loop Loop

FREQ

DATA

GND

CH2 CH1

FREQ

+V FREQ DATA GND

9950 S3L Inputs

• The cable must be 7 mm to 10 mm in diameter (0.275 in. to 0.394 in.) to seal properly in the liquid-tight connector.

• The conduit ports have ½-inch NPT threads. After routing the cables, seal the port with a liquid-tight conduit connector (3-9000.392-1) or with conduit.

• The 2537 models connects to the 9950 via the Digital (S3L) output.

Technical Notes:

• Sensor dependent, see sensor manual for maximum

DC POWER

cable length.

• Maintain cable shield through cable splice.

• Route sensor cable away from AC power lines.

• Connect the silver (shield) wire to earth ground in case of EMI noise interference.

Black

No connection

White

Shield

Loop Loop

FREQ

DATA

GND

CH2 CH1

FREQ

+V FREQ DATA GND

* 2551-XX-21, -41 Display Magmeter

NOTE: The 2850 has no SHIELD wire.

3-2610-41

Red

Power Supply

–

12 to 32 VDC

Blue Green

Brown

No connection

White

Black

Shield

NOTE: 3-2610-41 only.

9950 Transmitter

9950 S3L Inputs

DC POWER

PWR+ PWR–

Loop1+ Loop1– Loop2+ Loop2–

FREQ

DATA

GND

CH2 CH1

FREQ

DATA

GND

PWR + PWR –

+V FREQ DATA GND

Technical Notes:

The wiring of the 3-2610-41 is non-standard:

• RED is 12 to 24 VDC

• WHITE is Data

• BLACK is VDC Ground (PWR -)

• A jumper MUST be installed between PWR- and S3L GND.

• Use of the 3-2610-31 requires iGo Converter, refer to the 2610 Dissolved Oxygen sensor manual.

Page 5

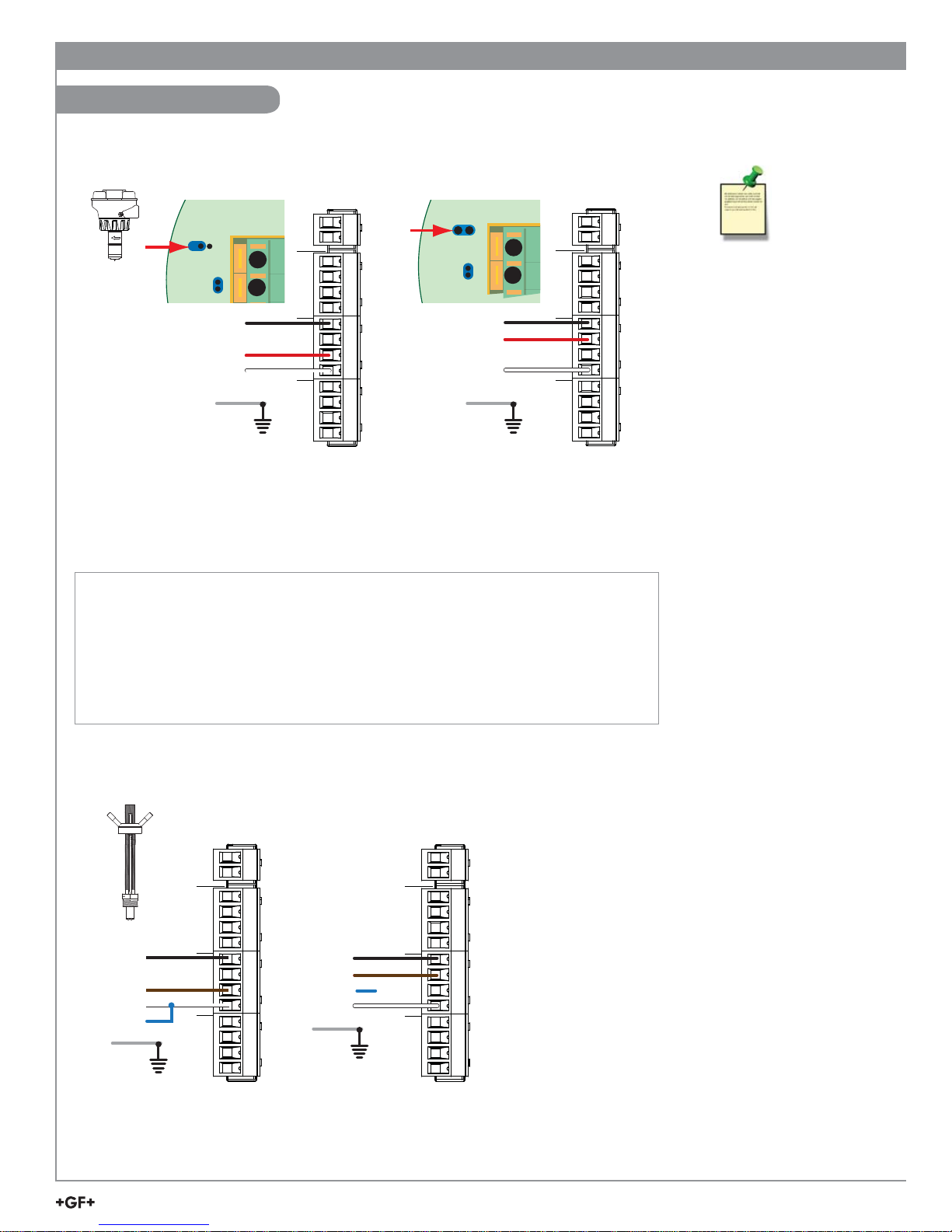

Sensor Wiring

2551-XX-11

Blind Magmeter

Start-Up Guide

9950 S3L Inputs

S L

Black

No connection

Red

White

Shield

DC POWER

PWR+ PWR–

Loop1+ Loop1–

Loop2+ Loop2–

FREQ

DATA

GND

CH2 CH1

FREQ

DATA

GND

+V FREQ DATA GND

Frequency

Black

Red

No connection

White

Shield

Only in case of EMI interference. See Frequency Output Technical Notes (2551 & 2552) at right.

9950 Frequency

PWR+ PWR–

Loop1+

Loop1–

Loop2+

Loop2–

FREQ

CH2 CH1

FREQ

DC POWER

DATA

GND

DATA

GND

+V FREQ DATA GND

2551 Technical Notes:

• When the blue jumper illustrated here is placed over both pins, the 2551XX-11 (Blind Magmeter) outputs an open collector frequency signal. When the jumper is removed (or placed over one pin for storage) the 2551-XX-11 outputs a digital (S

signal (recommended).

Input Wiring for 2551 and 2552 sensors

• Either Frequency or Digital (S3L) may be used.

• Signet recommends conﬁ guring these sensors with the Digital (S3L) output to

display reverse ﬂ ow (negative numbers).

• Input type is selected by choosing between “SENSOR FREQ” and "SENSOR S3L" in the FLOW sensor type INPUT menu (see page 29).

2552

Black

Brown White

Blue

Shield

No connection

9950 S3L Inputs

DC POWER

PWR+ PWR–

Loop1+ Loop1– Loop2+ Loop2–

FREQ

DATA

GND

CH2 CH1

FREQ

DATA

GND

+V FREQ DATA GND

Black Brown

Blue White

Shield

No connection

9950 Frequency

PWR+ PWR–

Loop1+ Loop1– Loop2+ Loop2–

FREQ

DATA GND

CH2 CH1

FREQ

DATA GND

DC POWER

+V FREQ DATA GND

Frequency Output Technical Notes (2551 & 2552):

• The frequency output will be displayed as positive

ﬂ ow regardless of the ﬂ ow direction.

• 5 VDC power required by the 2551 & 2552 is supplied by the 9950. No additional power is required.

• Connect the silver wire (shield) to earth ground in case of EMI noise interference.

2552 Technical Notes:

• The 2552 outputs an open collector frequency signal that can be connected to the 9950

• Route sensor cable away from AC power lines.

• Connect the silver (shield)

wire to earth ground in case of EMI noise interference.

9950 Transmitter

Page 6

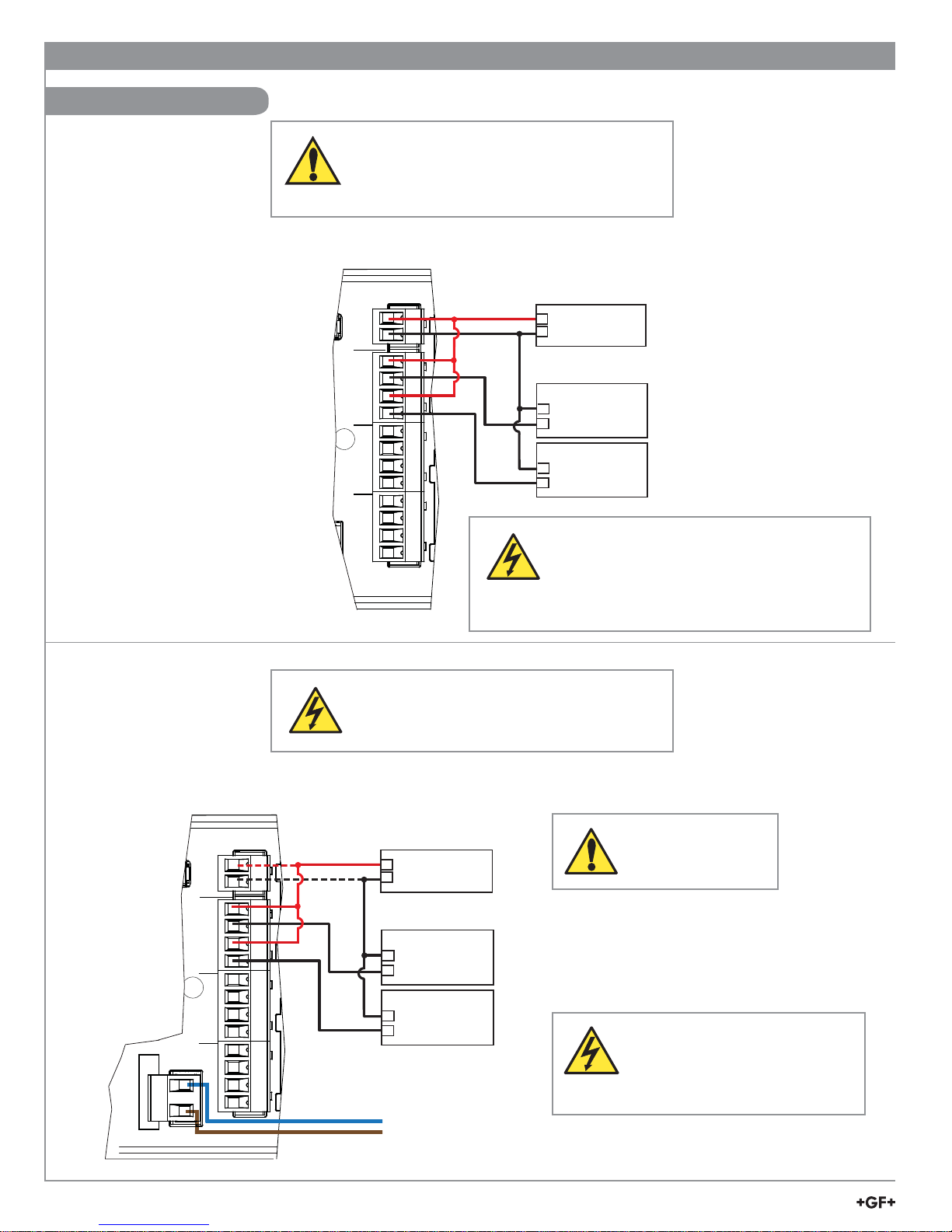

Power Wiring

Start-Up Guide

WARNING

DO NOT connect AC power to the DC version THE 3-9950-1 MUST BE POWERED BY 12 - 32 VDC at 0.5 A.

3-9950-1 and 3-9950-2

DC POWER

PWR+ PWR–

Loop1+ Loop1– Loop2+ Loop2–

FREQ

DATA

GND

CH2 CH1

FREQ

DATA

GND

and imported par

Red

Black

Power Supply

–

12 to 32 VDC

PLC or Recorder

–

Loop Input

4 to 20 mA

PLC or Recorder

–

Loop Input

4 to 20 mA

Caution:

For DC power input and loop current regulated voltage, use UL60950-1 or UL61010-1 certiﬁ ed power supply. Power supply shall also be rated for operation at 4000 m altitude.

DC POWER

PWR+ PWR–

Loop1+ Loop1– Loop2+ Loop2–

FREQ

DATA

GND

CH2 CH1

FREQ

100-240 VAC~

50-60 Hz, 24VA Max

Made in U.S. from U.S. and imported par

DATA

GND

DC power optional

Red

Caution: Electrical shock hazard exists!

Never connect live AC lines to the instrument.

3-9950-2

Red

Black

Neutral

Line

Power Supply

–

12 to 32VDC

PLC or Recorder

–

Loop Input

4 to 20 mA

PLC or Recorder

–

Loop Input

4 to 20 mA

100-240 AC

External DC Power is required for the current loops.

CAUTION

Keep AC power separate from sensor and signal wiring to prevent interference and damage to the 9950 Transmitter.

9950 Transmitter

Page 7

Start-Up Guide

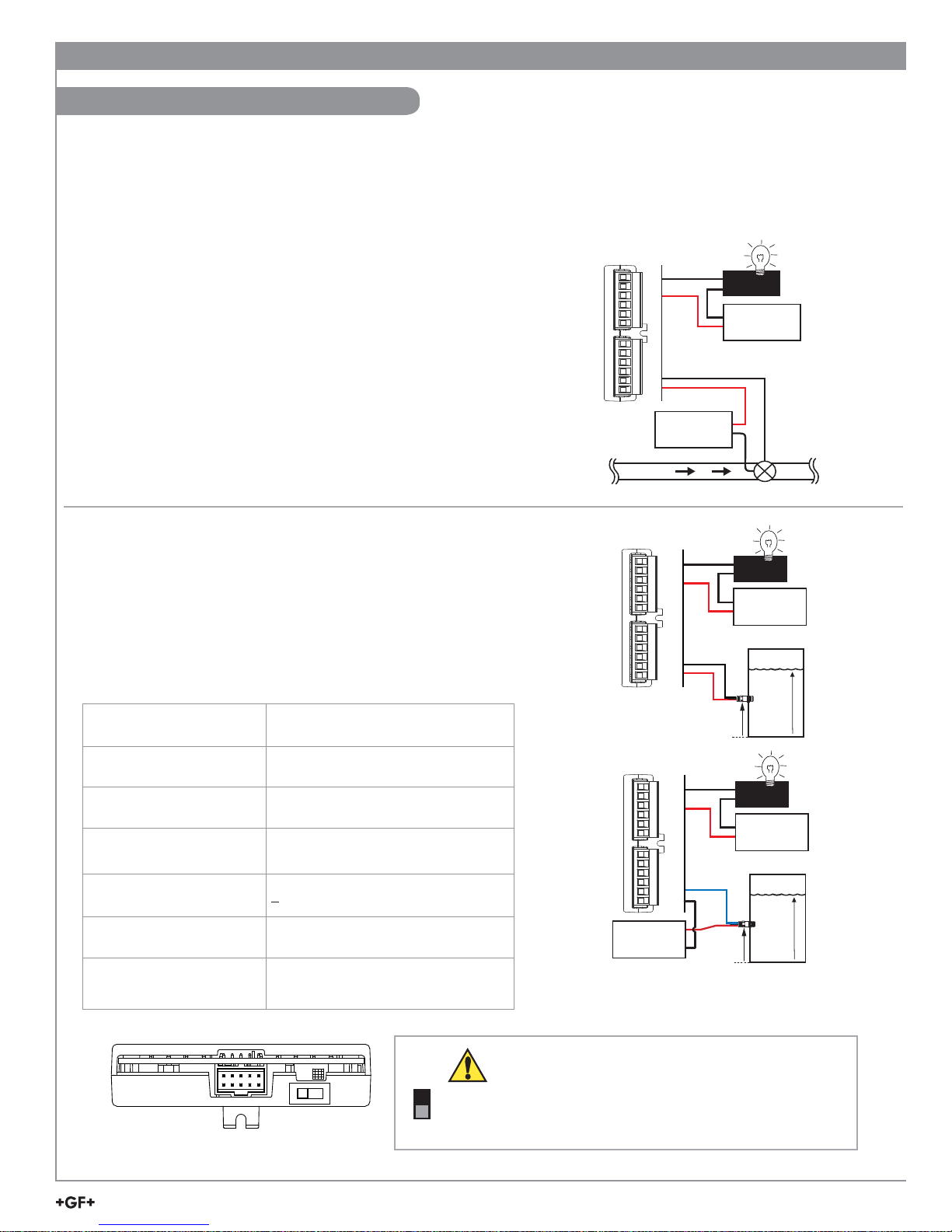

Relay Module Wiring

• Terminals accept 12 to 24 AWG wire.

• Strip 10 to 12 mm (0.4 to 0.5 in.) of insulation from wire tips and tin bare ends to eliminate fraying.

• Insert wire tip or ferrule completely into the terminal and secure with the screw.

• Do not allow any AC leads that may be connected to the internal relays to come in contact with low voltage wiring.

3-9950.393-1 and 3-9950.393-2

Relay 1: The alarm is OFF during normal operation, and will

go ON when relay energizes according to 9950 Relay settings.

Relay 4: The valve is ON during normal operation, and will

go OFF when relay energizes according to 9950 Relay settings.

NO = normally open (closes when energized) NC = normally closed (opens when energized)

Mechanical Relays Rating: 5A 250 VAC, 5A 30 VDC Solid State Relays Rating: 50 mA 30V AC/DC

(for 309950.393-2 relay 1 & 2)

3-9950.393-3

The alarm is OFF during normal operation, and will go ON when the relay energizes according to 9950 Relay settings.

Binary input 4 will be ON when the tank level is above the level switch, Binary Input 4 will be OFF when the tank level is below the level switch.

Binary Input Ratings

Maximum Input voltage (without damage)

Minimum Input voltage (without damage)

Maximum input voltage for signal “Off” (low or "0")

30 VDC

-5 VDC (no operation below 0 VDC)

1.5 VDC

Minimum input voltage for signal “On” (high or "1")

Maximum current draw for signal “0” (low)

Minimum current draw for signal “1” (high)

Typical current draw for signal “1” (high)

3.0 VDC

<500 ADC

500 A

6.0 mA at 30 VDC, 4.8 mA at 24 VDC,

2.4 mA at 12 VDC, 1.0 mA at 5 VDC

3-9950.393-1

NO 1

RELAY 1

RELAY 2

RELAY 3

RELAY 4

3-9950.393-3 Internal Power

RELAY 1

RELAY 2

No Connection

BINARY INPUT 1 BINARY INPUT 2 BINARY INPUT 3 BINARY INPUT 4

3-9950.393-3 External Power

RELAY 1

RELAY 2

No Connection

BINARY INPUT 1 BINARY INPUT 2 BINARY INPUT 3 BINARY INPUT 4

N/C 1

COM 1

NO 2 N/C 2

COM 2

NO 3

N/C 3

COM 3

NO 4

N/C 4

COM 4

AC or DC

Flow

9950.393 Internal Power

N/O 1 N/C 1

COM 1

N/O 2 N/C 2

COM 2

SW1 SW2 SW3 SW4

SW COM

9950.393 External Power

N/O 1 N/C 1

COM 1

N/O 2 N/C 2

COM 2

SW1 SW2 SW3 SW4

SW COM

DC power

power

Level Switch

ALARM!

AC or DC

power

ALARM!

AC or DC

ALARM!

Valve

power

Level

AC or DC

power

Level

EXT

Power

Switch

INT

EXT

If an externally powered sensor is connected with the 3-9950.393-3 module, set the power switch to the EXT position. The module can power external sensors by

switching the power switch to the INT position. Maximum

INT

power that can be drawn from the module is 6mA at 30 VDC.

9950 Transmitter

Page 8

Start-Up Guide

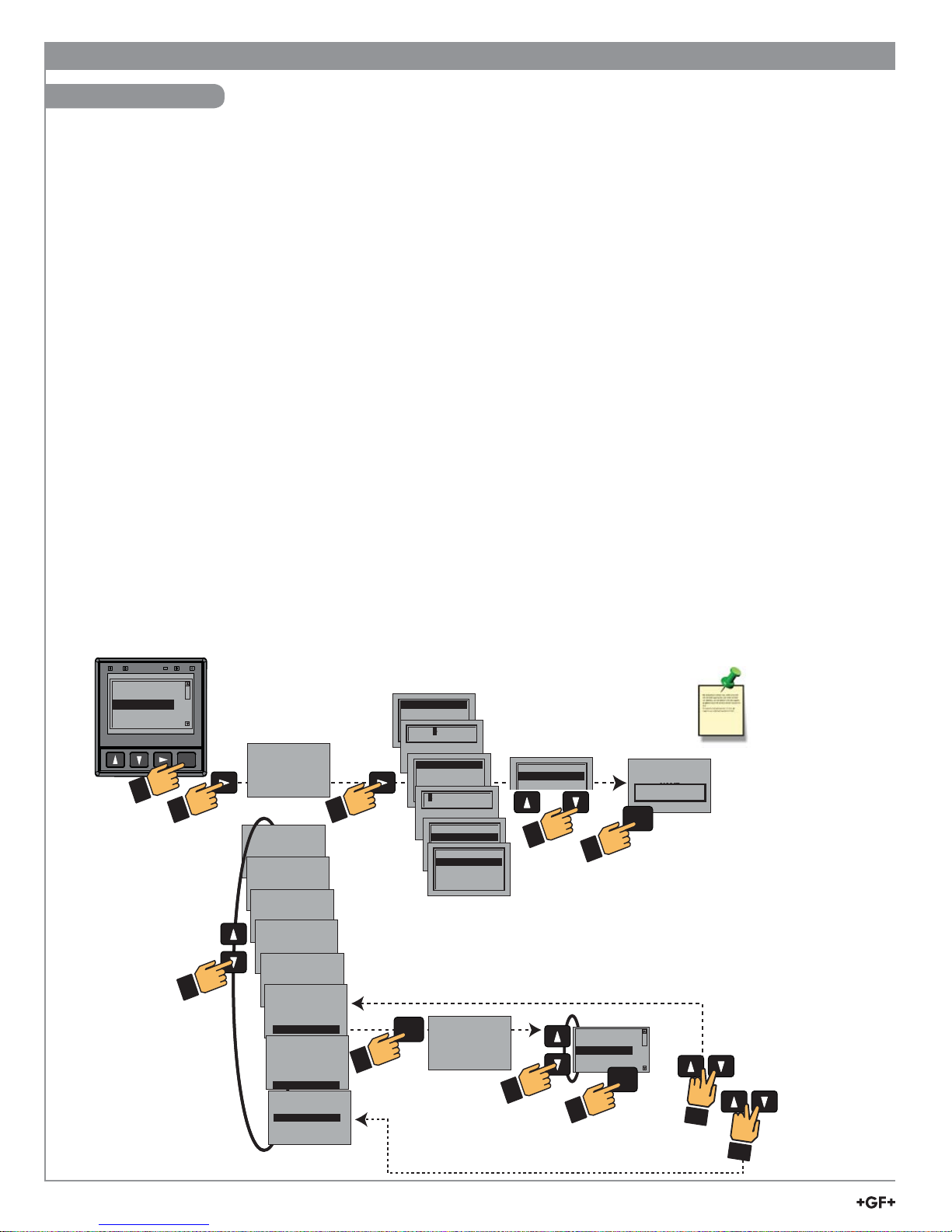

Operation

Keypad Functions

The four buttons of the keypad (   ENTER) are used to navigate display modes according to the descriptions in this table. Notice the function of each button may change depending on the display mode.

This menu operation sets up the 9950 for basic function:

1. Select desired language using the [UP] and [DOWN] arrows. Press ENTER to save.

2. Press  to select the TIME FORMAT. Press  or  to select 24 hour or AM/PM. Press ENTER to save the format selection.

3. Press the  move to the next selection, SET TIME. Press  to scroll through hours, and minutes place values. Use  or  to adjust the value. Press ENTER to save the time selection.

4. Press  to move to the next selection, SET DATE FORMAT. Press  to select the MM/DD/YYYY date format and  or  to scroll through other format options. Press ENTER to save the date format selection.

5. Press  to move to the next selection, SET DATE. Press  to scroll through the days, months, and years. Use  or  to adjust the number, and  to select the next number. Press ENTER to save the Date selection.

6. Press  to move to the next selection, SET DECIMAL MARK. Press  and use  or  to highlight desired decimal separator (comma or decimal mark). Press ENTER to save the decimal mark selection.

ENGLISH FRANÇ

DEUTCH

ESPAÑOL

中文

ENTER

TIME FORMAT

24 HOUR

TEXT 3

SET TIME

08:56:47

DATE FORMAT

TEXT 3

MM/DD/YYYY

SET DATE

TEXT 3

02/25/2016

SET DECIMAL MARK

TEXT 3

999.99

SELECT UNITS

TEXT 3

U.S. CUSTOMARY

SETUP

TEXT 3

CHANNEL 1

PRESS ENTER

SETUP

CHANNEL 2

PRESS ENTER

EXIT STARTUP

24 HOUR

AM/PM

GERMAN LANGUAGE

00:00:040

LANGUAGE

AM/PM

MM/DD/YYYY

DD/MM/YYYY YYYY/MM/DD

LANGUAGE LANGUAGE

ENTER

09:11:04

02/25/20162

AM/PM

02/25/2016

99.999

99,999

METRIC

U.S. CUSTOMARY

LOOKING FOR

SENSOR TYPE

TEXT 3

7. Press  to move to the next selection, SELECT UNITS. Press  and scroll  or  to choose Metric or U.S. Customary. Press ENTER save unit selection.

8. Press  to move to the next selection SETUP CHANNEL 1. Press ENTER, ('Looking for Sensor Type' will appear on the screen). The 9950 will search for an attached S

L sensor on Channel 1. The found sensor type will be highlighted. If your desired sensor is not highlighted, use the

 or  to scroll through the sensor list and select another sensor type. Press ENTER to save sensor type selected.

Press  or  to access screens to adjust common sensor parameters.  = edit, ENTER = Save, += Cancel. Press + to return to SETUP CHANNEL 1 screen.

9. Press  to move to the next selection, SETUP CHANNEL 2.

Repeat steps in number 8 to set up Channel 2. Press  to go back to Channel 1, if desired. When done, press + together one time exits to the previous menu. Press + together a second time to exit Easy Start Up.

Easy Set Up can be entered by setting either or both channels to Factory and cycling

MM/DD/YYYY

DD/MM/YYYY

YYYY/MM/DD

NONE FACTORY

FLOW

pH ORP

ENTER

saves changes

ENTER

saves changes

DATE FORMAT

NAME

SAVING

100% SOLUTION

power on the 9950.

9950 Transmitter

Page 9

Start-Up Guide

Password

Password Overview

The password is required to start editing. Once entered correctly, this password will not be needed for subsequent uses, until the menu system is exited. The password will be required when the menu system is re-entered.

Your choice of password (STD or CODE) is selected in the Options Mode.

 STD

The standard (STD) password is     , pressed in sequence. This password is designed to protect the 9950 from unintentional changes. It is best suited for systems where a group of people need to be able to change settings.

 CODE

The CODE default setting is 0000, adjustable to any 4-digit numerical code up to 9999. Using a personal code provides the maximum degree of security. This code can be modiﬁ ed in the Options mode.

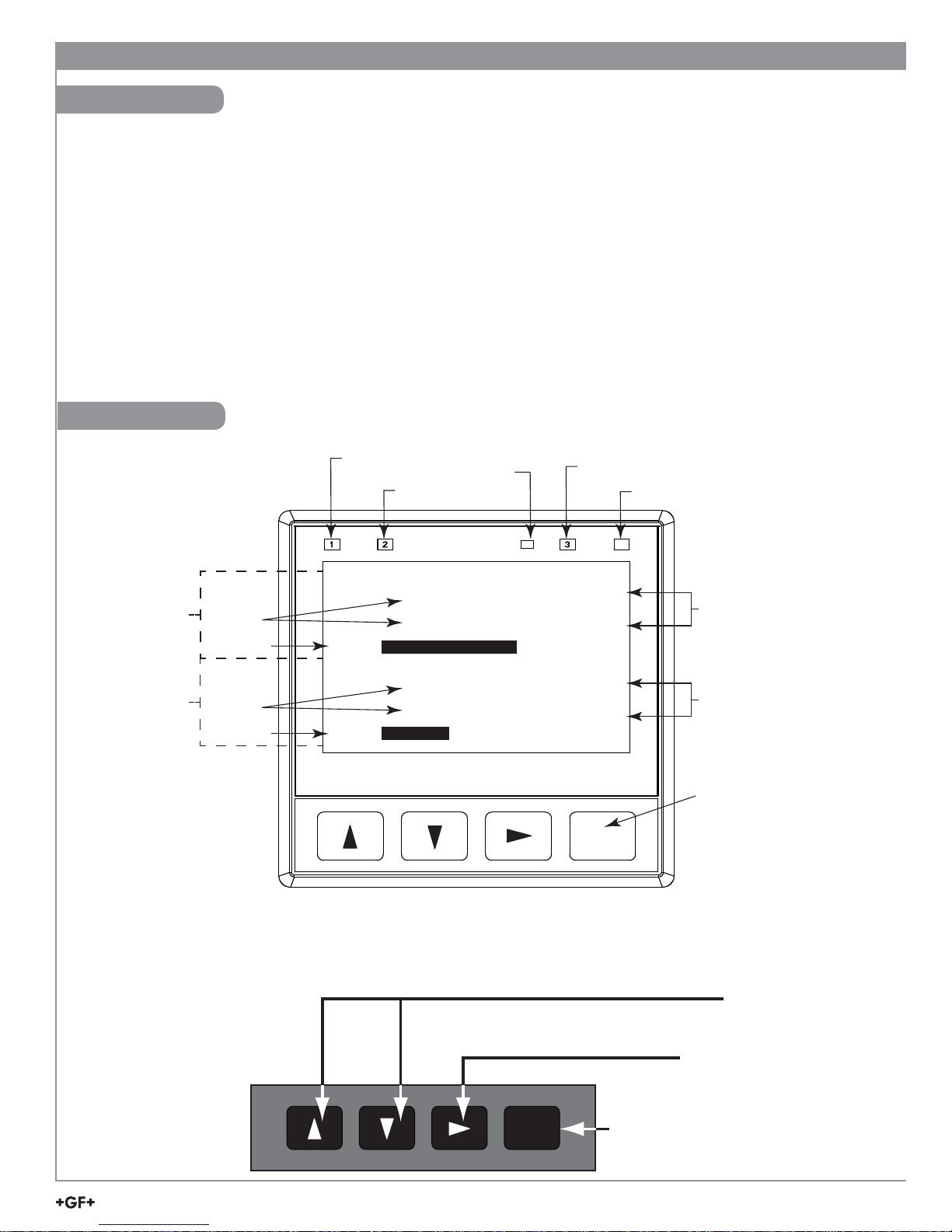

Operation

Channel 1

display area

Channel 2

display area

Numeric Values or labels

Bar Graph

Numeric Values or labels

Bar Graph

Relay 1 Indicator LED

CH1

0 0.0 0

CH2

0 0.0 0

Backlight Sensor (do not block)

Relay 2 Indicator LED

9999.9

Relay 3 Indicator LED

UOM UOM

9 9.9 9

UOM UOM

9 9.9 9

ENTER

Relay 4 Indicator LED

Units of Measure (GPM, pH, sec, %, etc.)

Menu Navigation Keys

UP, DOWN keys

Scroll through Menu options or adjust values during editing Press both together to exit a menu or escape without saving

RIGHT key

Select item or character to edit

ENTER

ENTER key

Access menus Save changes

9950 Transmitter

Page 10

Operating Instructions

Warranty Information Table of Contents

Refer to your local Georg Fischer Sales ofﬁ ce for the most current warranty statement.

All warranty and non-warranty repairs being returned must include a fully completed Service Form and goods must be returned to your local GF Sales ofﬁ ce or distributor. Product returned without a Service Form may not be warranty replaced or repaired.

Signet products with limited shelf-life (e.g. pH, ORP, chlorine electrodes, calibration solutions; e.g. pH buffers, turbidity standards or other solutions) are warranted out of box but not warranted against any damage, due to process or application failures (e.g. high temperature, chemical poisoning, dry-out) or mishandling (e.g. broken glass, damaged membrane, freezing and/or extreme temperatures).

Product Registration

Thank you for purchasing the Signet line of Georg Fischer measurement products.

If you would like to register your product(s), you can now register online in one of the following ways:

• Visit our website www.gfsignet.com. Under Service and Support click Product

Registration Form

• If this is a pdf manual (digital copy), click here

General Information .........................................................2

Safety Information/Installation..........................................2

Terminal Identiﬁ cation ......................................................3

Wiring ...............................................................................4

Sensor Wiring .............................................................4

Sensor Wiring .............................................................5

Power Wiring ..............................................................6

Relay Module Wiring ..................................................7

Operation .........................................................................8

Password ...................................................................9

Keypad Operation ......................................................9

Signal Type: 4 to 20 mA ...........................................10

Warranty Information ................................................10

Product Registration ................................................10

Table of Contents .....................................................10

Dimensions ..............................................................11

Module Installation ................................................... 11

Plug-In Modules .............................................................12

Relay Modules ...............................................................12

Signal Type: Frequency ................................................13

Signal Type: Digital (S3L) ..............................................13

Signal Type: 4 to 20 mA ................................................14

Relay Functions .............................................................14

Relay Modes ............................................................15

Derived Functions ....................................................19

Menu System .................................................................20

Common Menu ........................................................21

Loop Menus .............................................................21

Relay Menu ..............................................................22

Option Menu .............................................................24

View Mode ...............................................................26

Sensor-Speciﬁ c Menus ..................................................28

Flow ..........................................................................28

pH .............................................................................30

ORP ..........................................................................32

Conductivity/Resistivity ............................................34

Pressure ...................................................................36

Level/Volume ............................................................38

Temperature .............................................................41

4 to 20 mA ................................................................42

Salinity ......................................................................44

Dissolved Oxygen ....................................................46

Field Software Update ...................................................48

Updating the 9950 ..........................................................48

Troubleshooting .............................................................49

Appendix ........................................................................51

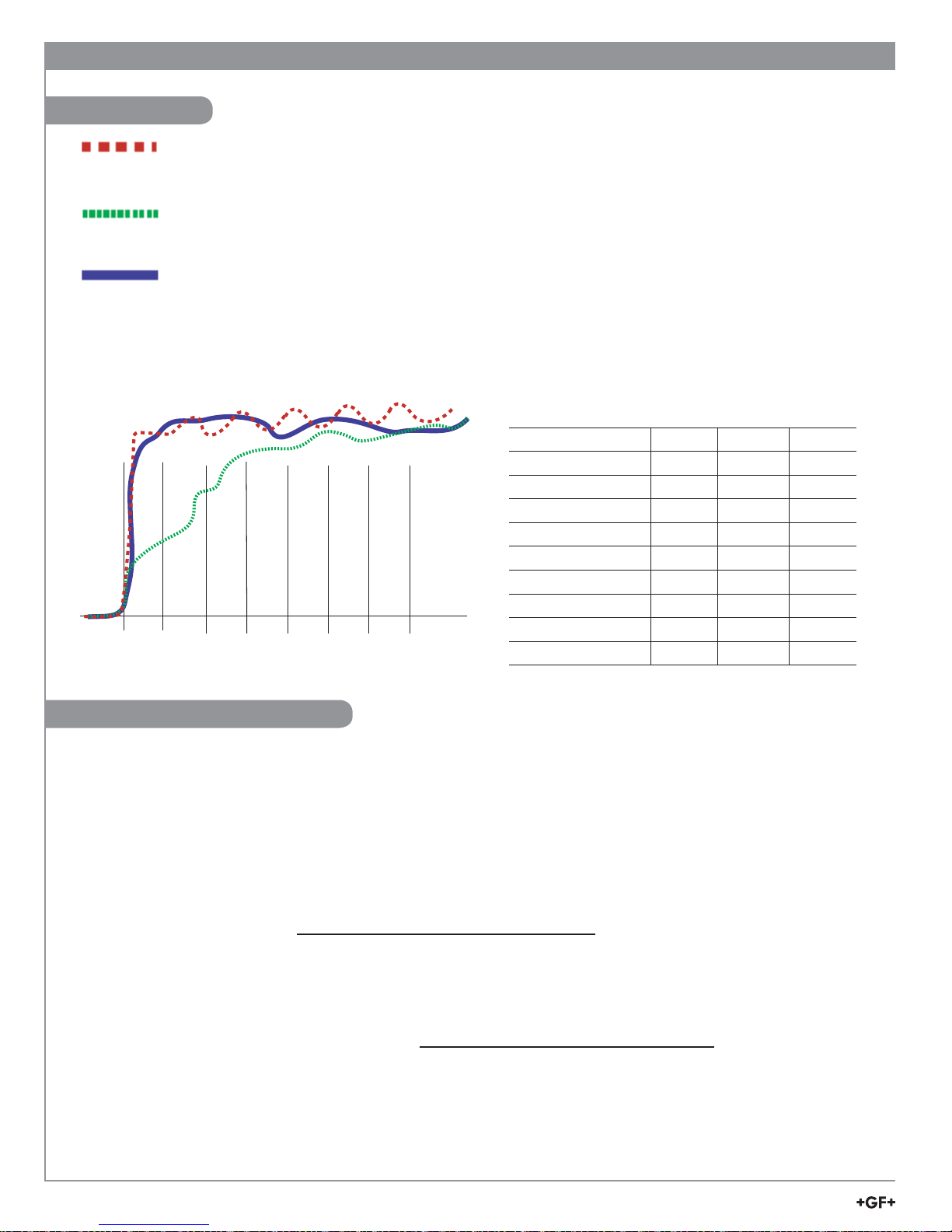

Averaging .................................................................51

LOG Current Loop Output .......................................51

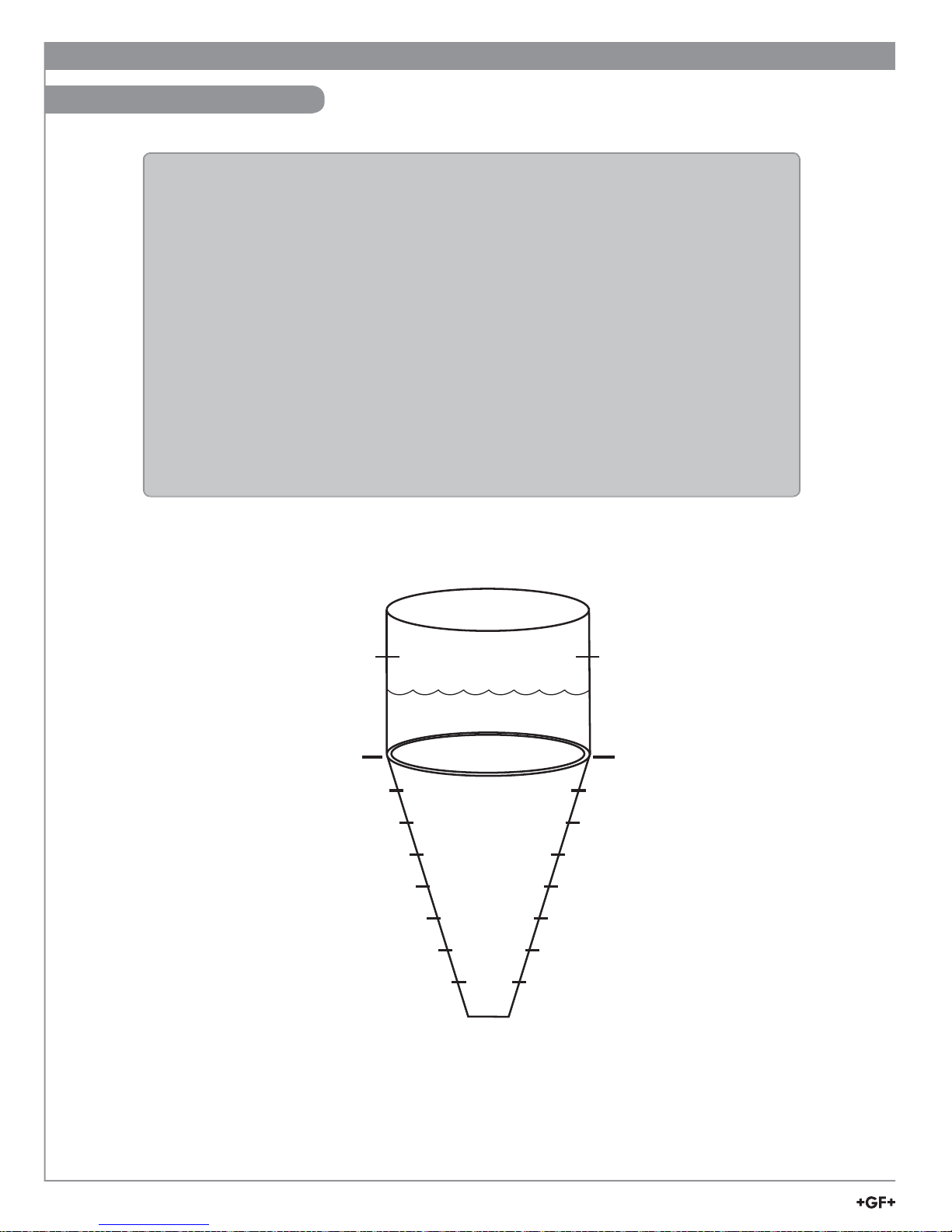

Custom Measurements ............................................52

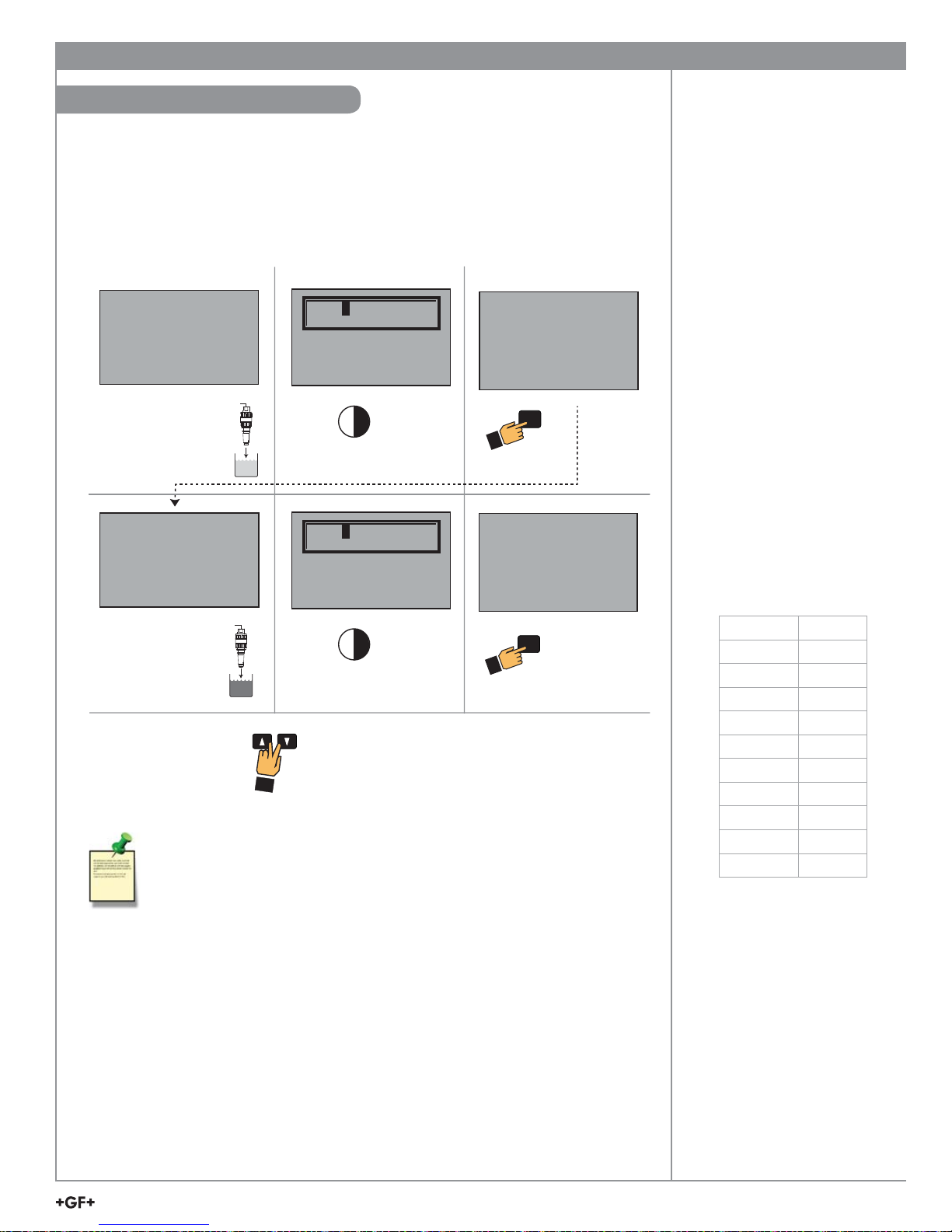

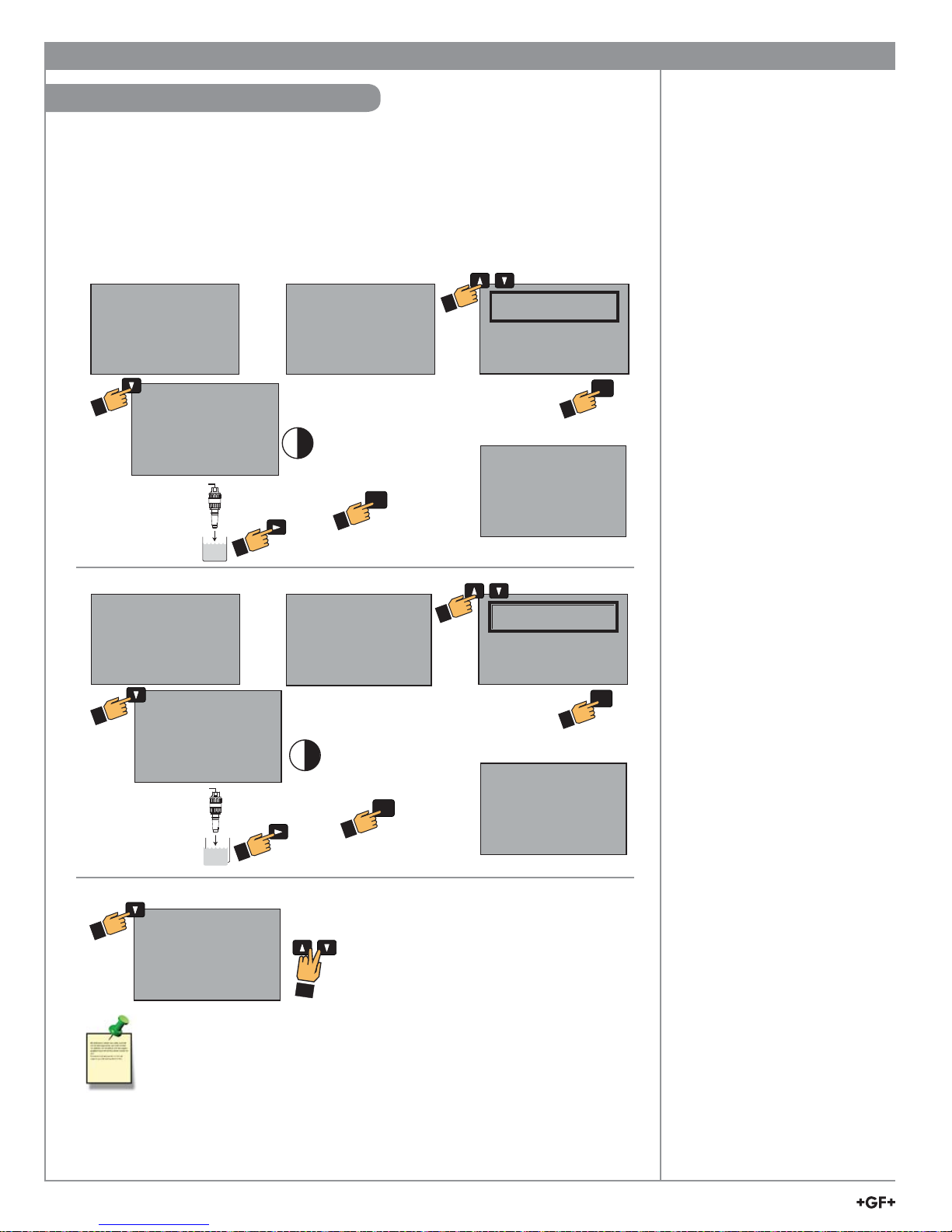

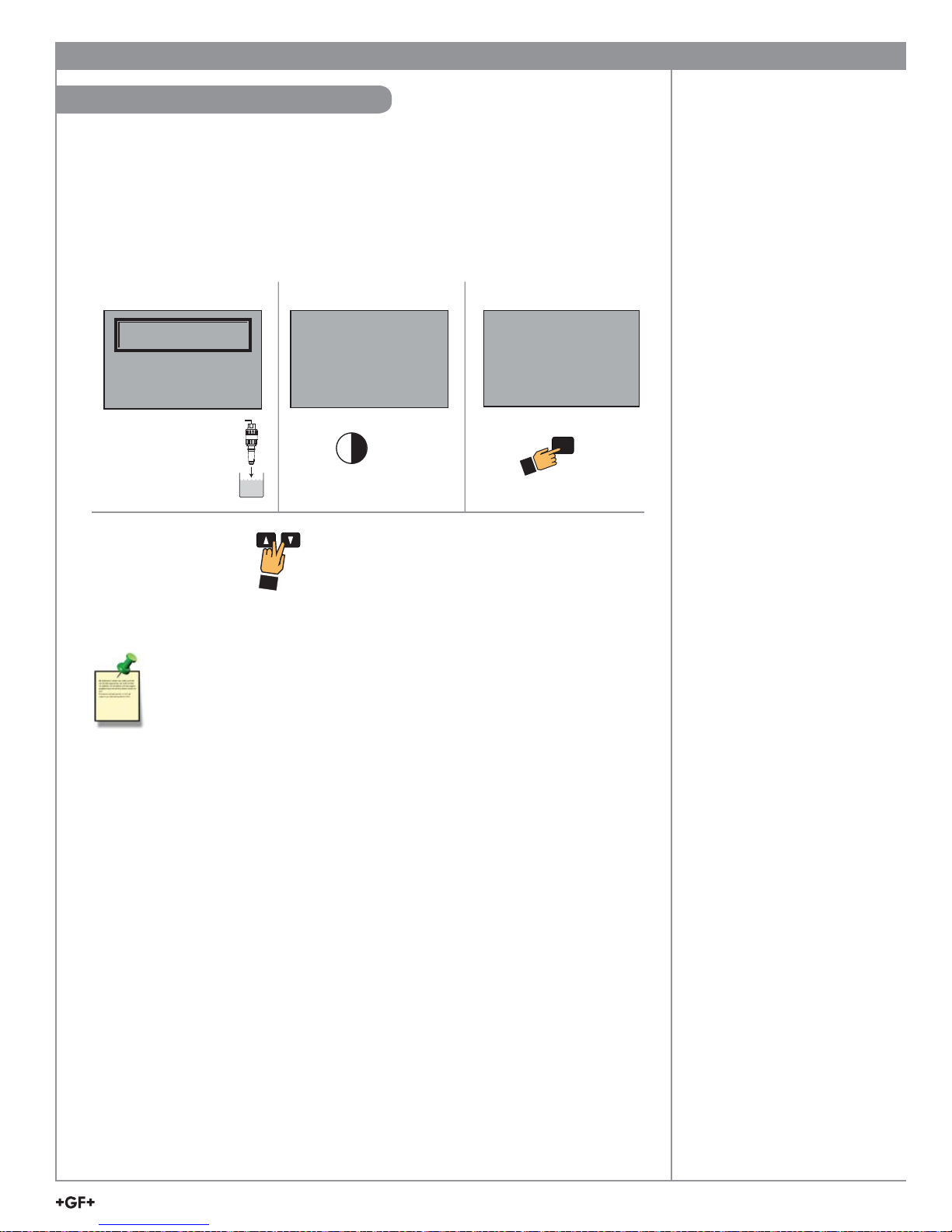

Calibration Procedures - pH.....................................56

Calibration Procedure - ORP ...................................58

Calibration Procedure - Conductivity/Resistivity ......60

Calibration Procedure - Flow ...................................61

Calibration Error Messages .....................................62

USP Limits ................................................................63

Maintenance .............................................................63

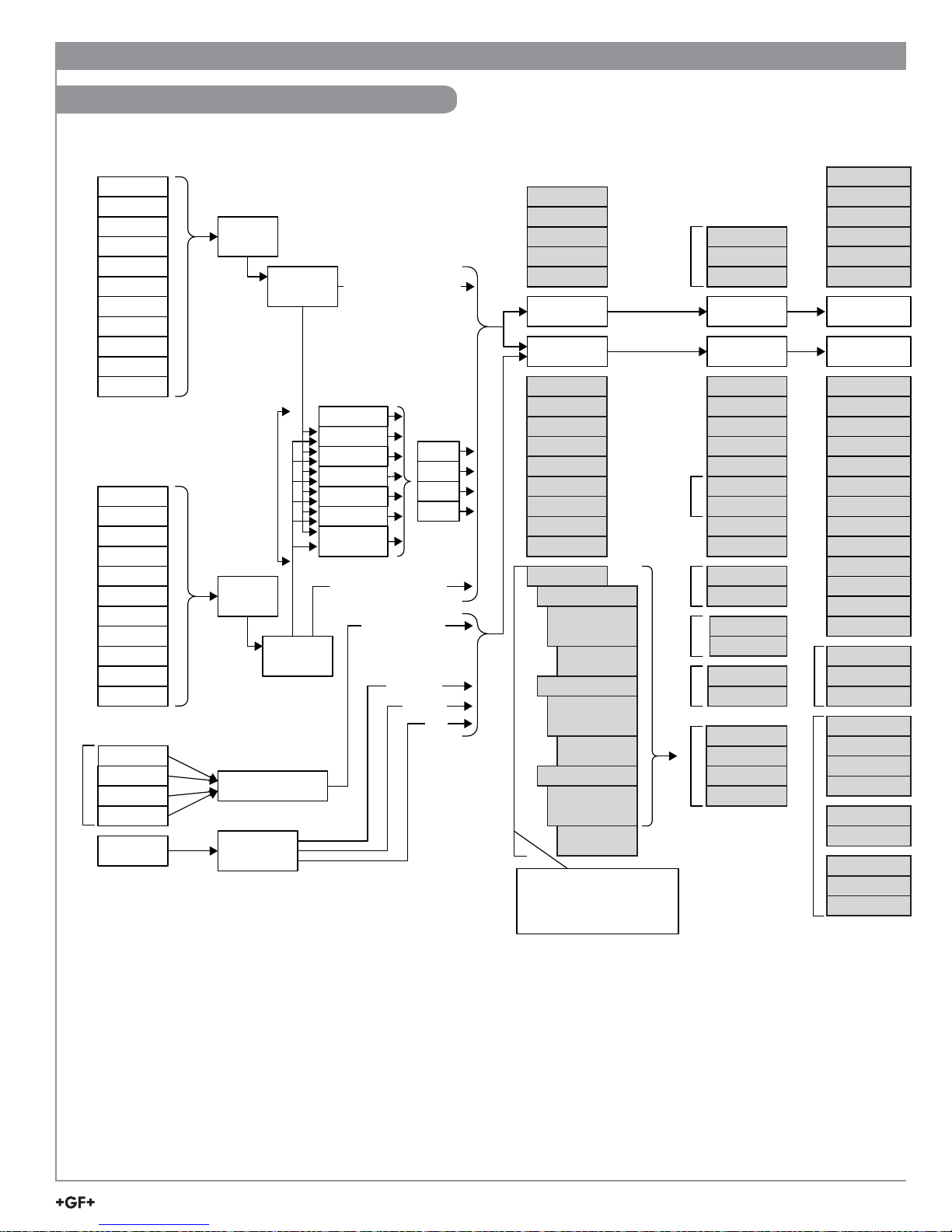

Map of 9950 Relay and Loop Sources ....................64

Speciﬁ cations .................................................................65

Ordering Information ......................................................68

9950 Transmitter

Page 11

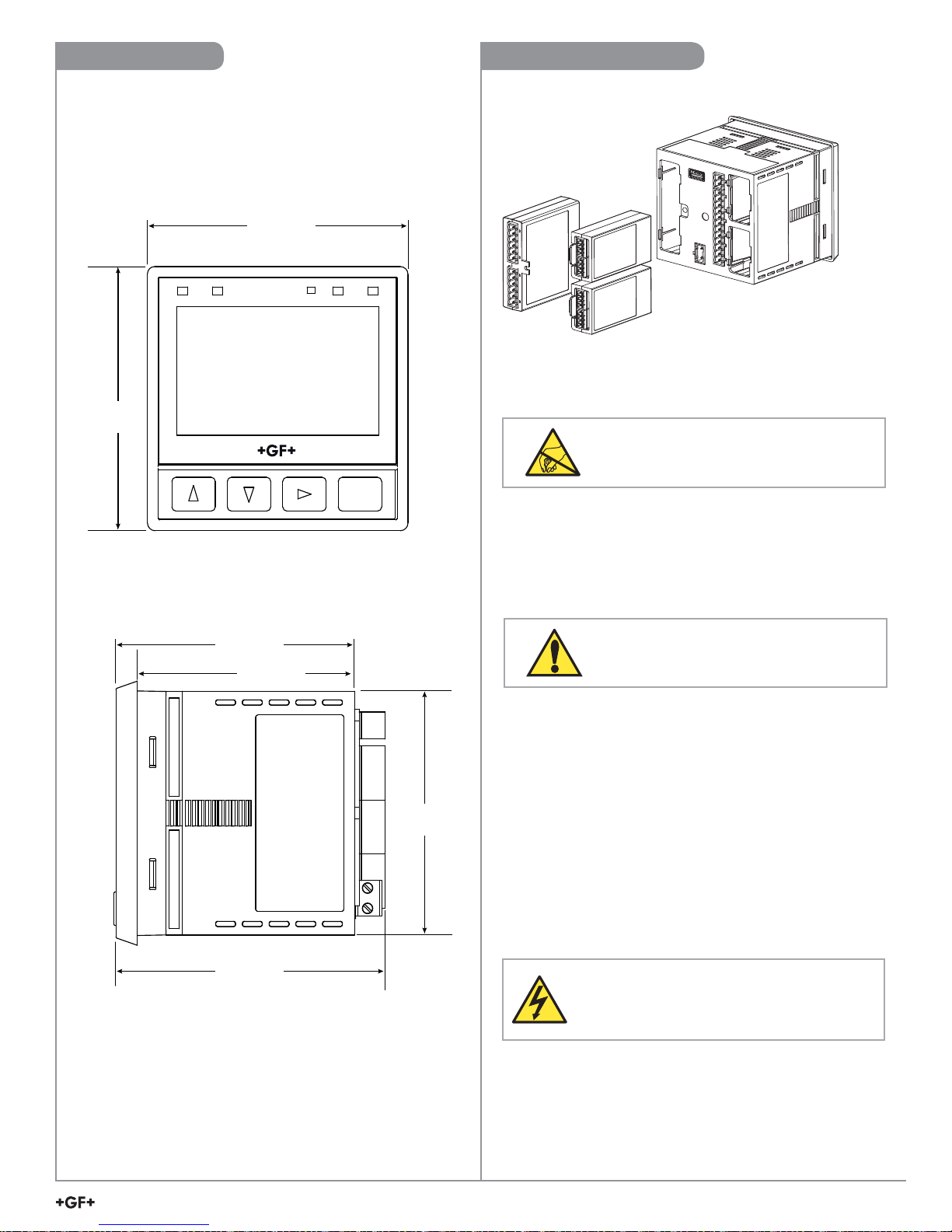

Dimensions Module Installation

3-9950-1/-2

Front View

99.06 mm (3.90 in.)

12 34

99.06 mm (3.90 in.)

CAUTION

Avoid Electrostatic Discharge (ESD).

ENTER

The plug-in modules may be installed either before or after the base unit is mounted. If the 9950 Base Unit will be mounted using the provided quick clip mounting bracket. Install plug-in modules ﬁ rst with power disconnected.

Side View

90.73 mm (3.57 in.)

82.60 mm (3.25 in.)

102.37 mm (4.03 in.)

91.44 mm (3.60 in.)

CAUTION

Exercise care when installing modules. Do not bend connecting pins.

To install modules:

Remove power from the 9950. Carefully align pins and connectors (do not bend connecting pins) and push module ﬁ rmly into place, then attach with screw(s)

To remove modules:

Remove power from the 9950.

For Relay Modules:

Unplug connectors, remove screw(s), and carefully pull module straight out from the base unit. Do not bend the connecting pins.

WARNING

Relays may be connected to external high-voltage power sources or multiple power sources creating an electrocution hazard.

9950 Transmitter

Page 12

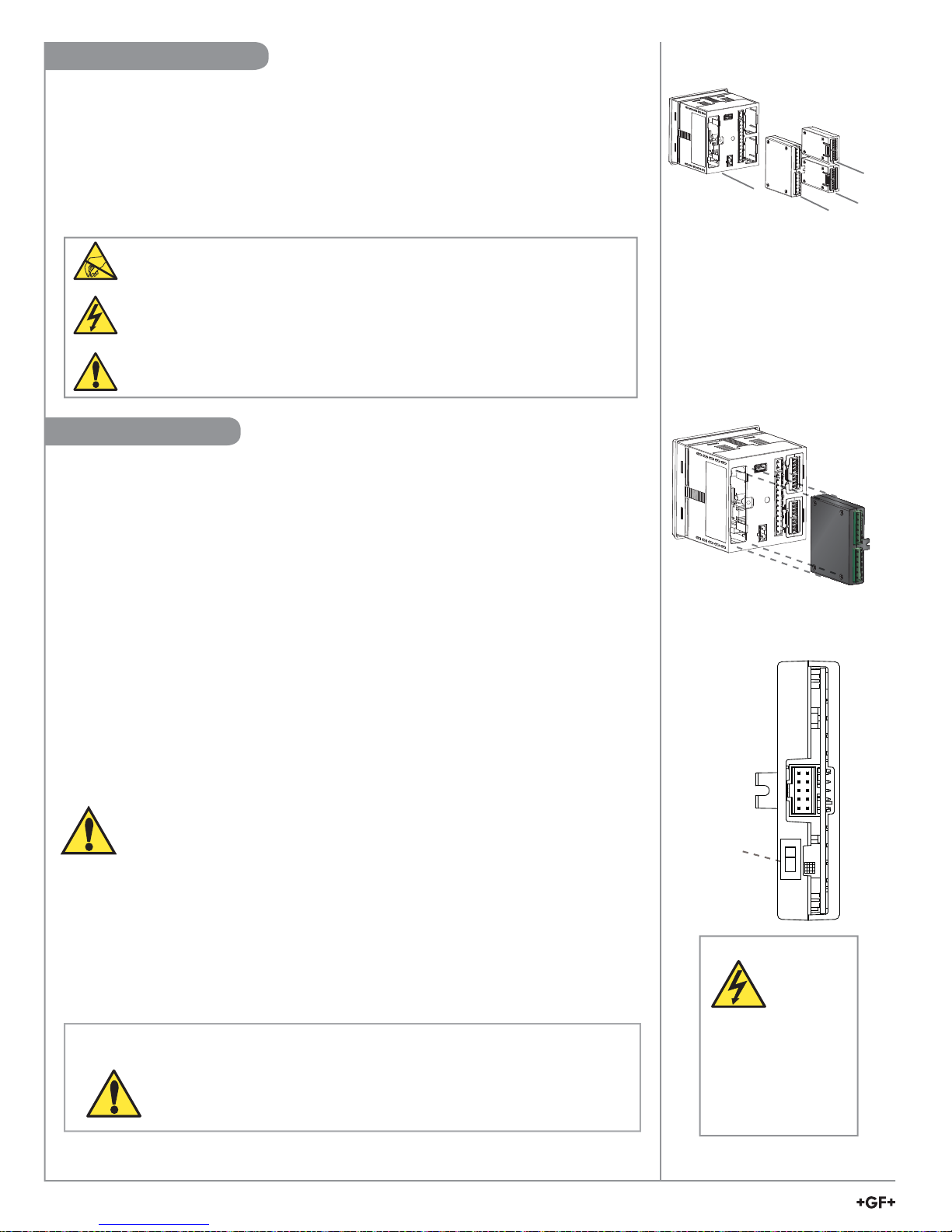

Plug-In Modules

a.b.c.d.

Optional modules and accessories are available for the 9950: a. Base Unit (required) b. Slot for optional Relay Module c. Slot for optional Module 1 d. Slot for optional Module 2

Each item is ordered separately. Modules are ﬁ eld-replaceable at any time. See Module Installation (pg. 11) and Ordering Information (pg. 68) sections for more details.

CAUTION

Avoid Electrostatic Discharge (ESD).

•

Minimize handling of the plug-in modules to reduce the possibility of damage due to ESD.

•

Handle modules by the edges.

Never touch any exposed circuitry or contacts.

•

Wear an anti-static wristband or stand on an anti-static mat, or keep one hand touching a

properly grounded pipe or other piece of properly grounded metal when handling modules.

Relay Modules

Mfr. Part No. Code Description

3-9950.393-1 159 310 268 Relay Module - 4 Mechanical Relays

3-9950.393-2 159 310 269 Relay Module - 2 Mechanical Relays, 2 Solid State Relays

3-9950.393-3 159 310 270 Relay Module - 2 Mechanical Relays , 4 Binary Inputs

The 9950 has a slot for an optional Relay Module for any of the modules listed above.

• Dry-contact relays are electromechanical switches with a moving contact armature. They are suitable for many general-purpose applications, AC or DC, including AC loads up to 250 V.

• Solid-state relays are electronic switches with no moving parts. They may be used with AC or DC loads, but have lower current handling capability and voltage ratings than Dry-contact relays. Solid-state relays will outlast Dry-contact relays in pulsing applications. 30 VDC/ VAC maximum.

• The four Binary Inputs can detect if an external sensor or switch is open or closed. The switch state can be used to control the relays in the module relay activation and are not considered an input measurement.

. The four binary inputs only control

3-9950.393-3

For wiring information, refer to the Relay Wiring section, page 7.

The 3-9950.393-3 module can be set to supply power to the external switch/ sensor. For switches/sensors that require power set the Int/Ext switch to the Int positions. If the external Switches/Sensors are powered set the Int/Ext switch to Ext. Important for externally powered switches/sensors ensure the output signal is within the allowable range for the 3-9950.393-3.

NOTE:

• The four red Indicator LEDs on the front panel of the 9950 show the status of relays 1, 2, 3, & 4. The LEDs will activate with or without a relay module installed.

• Hysteresis and time delay are adjustable for each relay.

CAUTION

Switching active loads (usually inductive) can cause contact arcing sufﬁ cient to damage the relays.

The RC Filter Kit or “snubber” (part number 3-8050.396) is available as an accessory to reduce or eliminate these damaging effects. Recommended for inductive loads greater than 50 VAC (remote relays, solenoids, pumps, etc.)

9950 Transmitter

Int / Ext

Switch

EXT

INT

CAUTION

Keep relay wiring separate from sensor and signal wiring to prevent interference and damage to the 9950 Transmitter.

Page 13

Signal Type: Frequency

Signet ﬂ ow sensors 515/8510, 525, 2000, 2100, 2507, 2536/8512 and 2540 provide a frequency output. (Flow sensors 2537, 2551 and 2552 can be conﬁ gured with either Digital (S3L) or Frequency outputs).

The maximum allowable cable length for sensors with frequency output is dependent upon the output signal strength of the sensors themselves, and the degree to which the signals are susceptible to EMI or "noise." This is largely a function of whether the sensors are self-powered (515/8510 and 525), or powered by an external source.

• The input terminals on the 9950 carry frequency data signals from the sensor.

• The 9950 has a selection for 515/525 under the input menu. Select "Yes" for optimum signal performance.

• Do not route sensor or output cables in conduit containing AC power wiring. Electrical noise may interfere with sensor signal.

• Routing cable in grounded metal conduit will help prevent electrical noise and mechanical damage.

• Seal cable entry points to prevent moisture damage.

• Only one wire should be inserted into a terminal. Splice double wires outside the terminal.

• In case of noise interference, ground the sensor SHIELD wire to a local earth ground at a point near the sensor.

• Consult the sensor manual for additional wiring information.

Signal Type: Digital (S3L)

Flow sensor models with

Frequency

Output

515/8510 X

525 X

2000 X

2100 X

2507 X

2536/8512 X

2537 X

2540 X

2551 X

2552 X

Maximum

Cable Length

60 m

(200 ft)

305 m

(1000 ft)

• The input terminals on the 9950 carry Digital (S3L) serial data from the sensor.

• Do not route sensor or output cables in conduit containing AC power wiring. Electrical noise may interfere with sensor signal.

• Routing cable in grounded metal conduit will help prevent electrical noise and mechanical damage.

• Seal cable entry points to prevent moisture damage.

• Only one wire should be inserted into a terminal. Splice double wires outside the terminal.

• The TOTAL cable length from I/O devices to the transmitter must not exceed 305 m (1000 ft).

• In case of noise interference, ground the sensor SHIELD wire to a local earth ground at a point near the sensor.

• Consult the sensor manual for additional wiring information.

• The maximum cable length of the Digital (S3L) bus varies depending on the types of sensors connected and the size of the conductors in the cable. For best results, determine the maximum cable length for the system before routing cables.

In case of noise interference, connect the cable shield to earth ground.

Maximum total cable length of the Digital (S3L) Bus:

The quality of the cable used in the bus determines the maximum length. The maximum cable length may not exceed 305 m (1000 ft), regardless of current requirements.

9950 Transmitter

Page 14

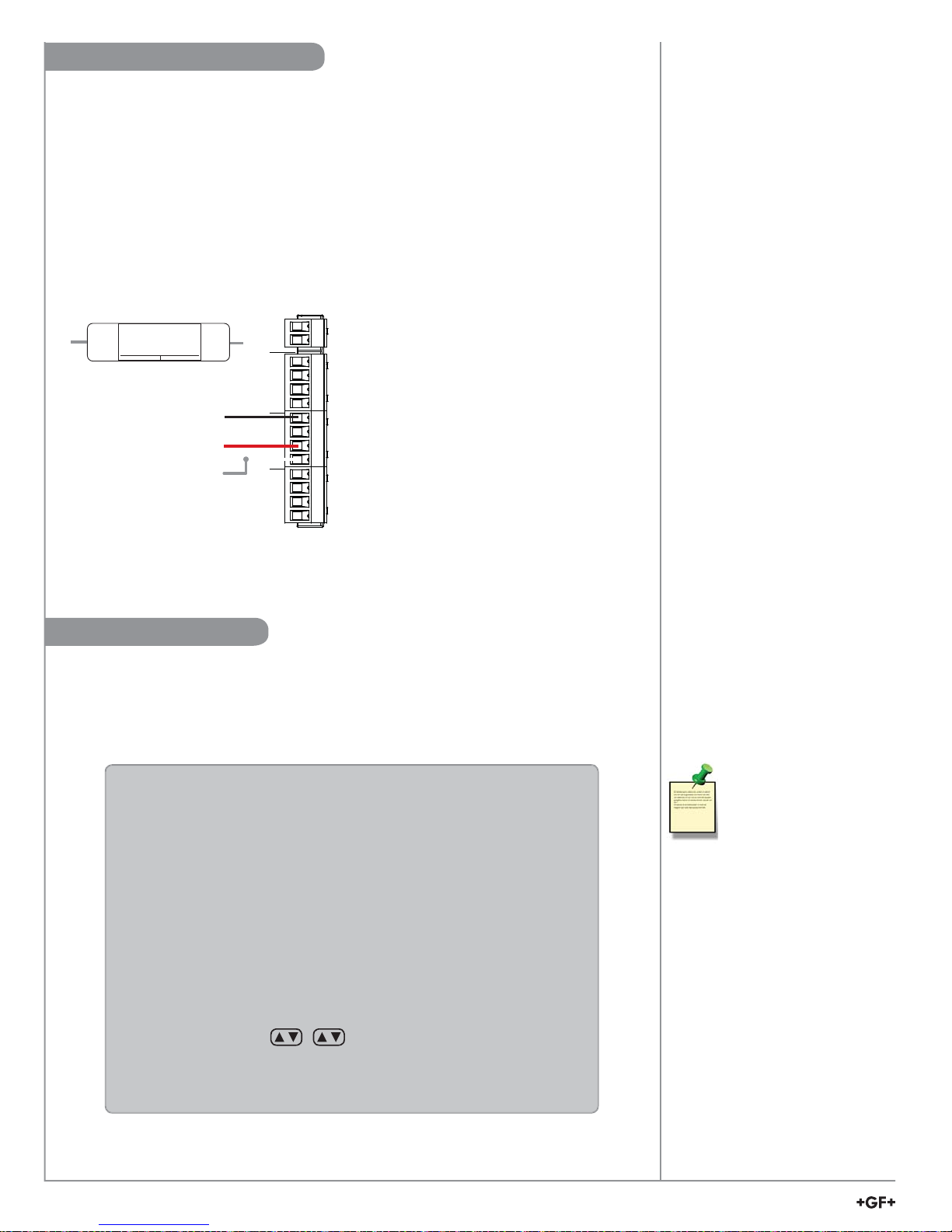

Signal Type: 4 to 20 mA

When connecting a non-Signet sensor to the 9950, the sensor’s 4 to 20 mA signal must be converted to Digital (S and converts it into Digital (S

1. Wire the 8058 between the 4 to 20 mA loop source and the 9950 Digital (S

L). The 8058 i-Go Signal Converter accepts any 4 to 20 mA signal

L).

L) input

terminals.

2. In the 9950 INPUT menu, sensor TYPE screen, select the '4 to 20 INPUT' sensor

(see System Setup Menu discussion, page 8).

9950 S3L Inputs

PWR+ PWR–

Loop1+ Loop1– Loop2+ Loop2–

FREQ

DATA

GND

CH2 CH1

FREQ

DATA

GND

DC POWER

+V FREQ DATA GND

8058-1

4-to-20 mA

+GF+

Input

Signet 8058 i-Go™

L Converter

4-20 mA to S

4-20 mA input S3L Output

Black

No connection

Red

White

Shield

Output

Relay Functions

Set your relay functions to your own application requirements.

Once a setting is saved it becomes immediately active.

1. Press and hold ENTER for 3 seconds

2. Go to the Relay Menu by pressing    then ENTER.

3. Press the  to select desired source. You will be asked to enter a code or

password. Select source and press ENTER to conﬁ rm.

4. Press  to enter the relay MODE selection screen.

5. Press  and then  to select R1 MODE LOW. Press ENTER to confirm.

6. Press  to R1 SET LOW. Press  to enter GPM value of 5.5.

7. Use the  and  to change Set Point. Press ENTER to save.

8. Scroll  to the R1 HYSTERESIS menu.

9. Press  to edit.

10. Set the hysteresis for this relay. Set the value to 2.5 gpm.

11. Press ENTER.

12. Scroll down  to the R1 ON DELAY menu.

13. Press  to edit.

14. Set the turn-on delay in seconds for the relay: 15.0.

15. Press ENTER Then

16. Exit to View Mode.

Example: Set a relay R1 to turn on at a low setpoint of

5.5 gpm with a time delay of 15 seconds and turn off at

8.0 gpm.

Remember,

SET LOW + hysteresis = OFF

Relay 1 Source = CH1 Primary Relay 1 Mode = Low R1 Set Low = 5.5 R1 Hysteresis = 2.50 R1 on delay = 15.0 sec

 Relay function can be tested in the RELAY menu.

9950 Transmitter

Page 15

Hysteresis

Time

Low Setpoint

Process

Low Setpoint + Hysteresis

Hysteresis

Time

High Setpoint

Process

High Setpoint - Hysteresis

Relay energized

Relay de-energized

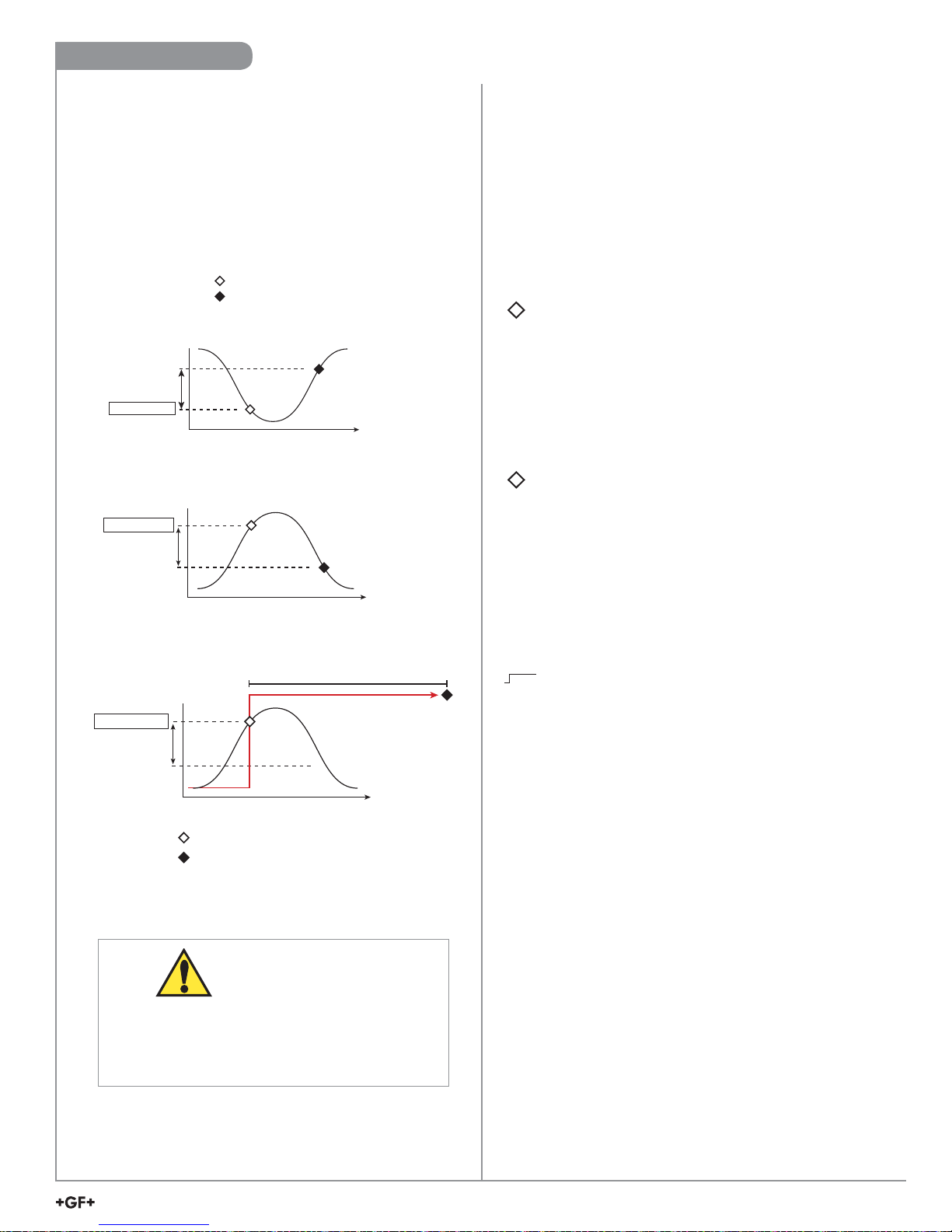

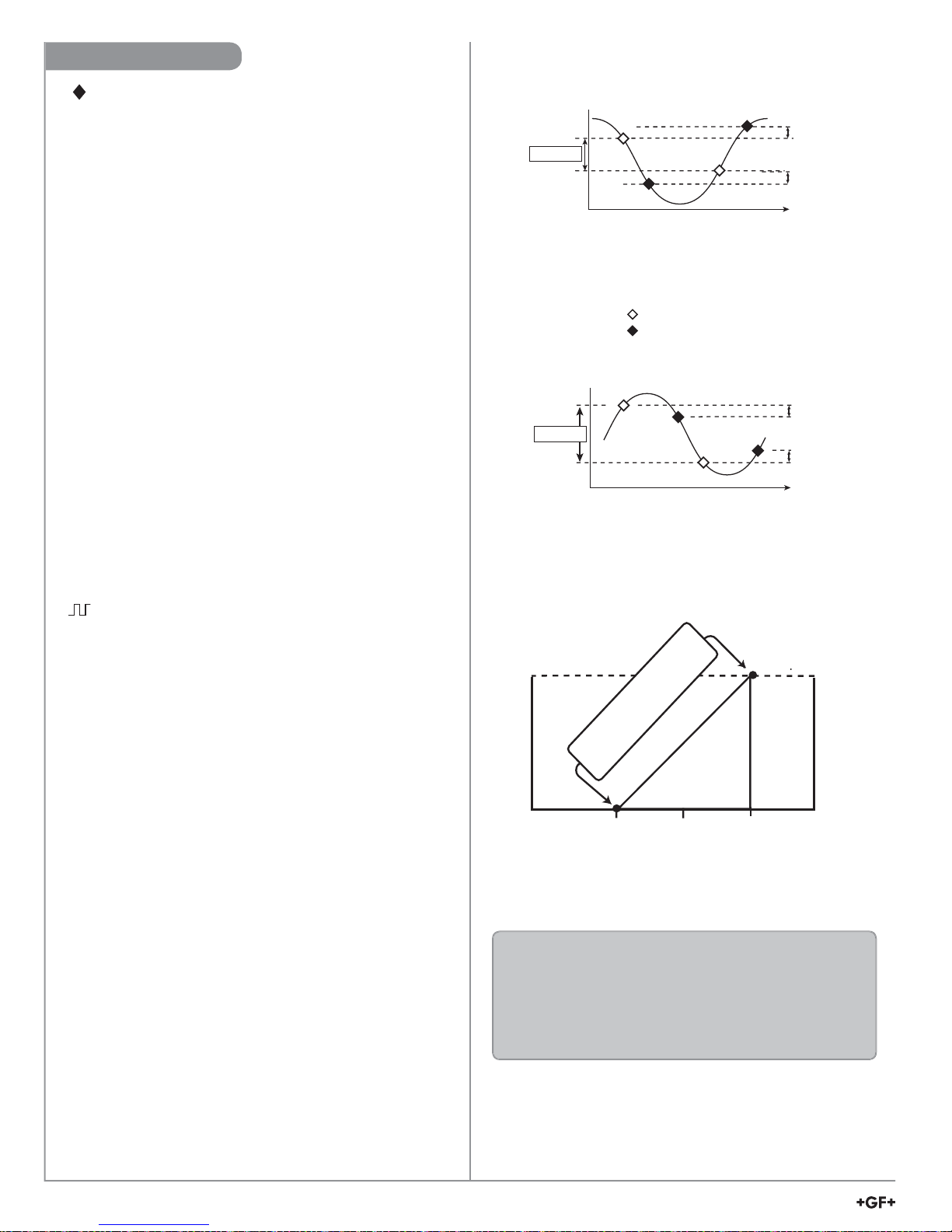

Relay Modes

The 9950 relays are selectable and conﬁ gurable and can be used as switches that respond when the process value moves above or below a user-deﬁ ned setpoint or it can be used to generate a pulse at a rate proportional to the process value. They can be used for Low Alarm, High Alarm or Proportional Pulse triggering related to the process value. All relay functions are set up in the RELAY menus.

Generation II, or greater, supports the ability to activate the Red Backlight when a relay is activated. An optional check box is displayed during the programming of a relay that will turn the Red Backlight on when the relay is activated. The Red Backlight can be activated by any relay or relay mode. Generation II, or greater, English, French, German, or Spanish Languages only. The relays can have a custom label assigned for easy of identiﬁ cation.

Low Setpoint:

Relay is on when the measured value is less than or equal to the setpoint. Relay turns off when the measured value is equal to or greater than the Low Setpoint + Hysteresis

High Setpoint:

Relay is on when the measured value is greater than or equal to the setpoint. The relay turns off when the measured value is less than or equal to the High Setpoint - Hysteresis.

Cycle Time

Process

High Setpoint

Hysteresis

Relay energized

Relay de-energized

CAUTION!

If power is lost to the 9950 Transmitter during a cycle, the Cycle Time will reset. If the condition still exists after power is restored, the relay will be energized for the complete Cycle Time.

Time

Cycle High/Low:

The relay will energize for a set length of time after the process value goes above (or below) the setpoint. The relay will stay on for the CYCLE TIME and then turn off, even if the process value is still above (or below) the setpoint. The cycle will not repeat until the cycle time completes and either the process value goes below the set point minus the hysteresis for Cycle High or goes above the setpoint plus the hysteresis for Cycle Low.

In FLOW, Cycle High activates the relay each time the volume reaches the SET VOLUME setpoint (see page 23).

NOTE: To reset the timer (or volume in Flow): in the RELAY menu, select TEST RELAY function. The timer will reset to 0 if the condition no longer exists when the TEST is performed. The timer will restart if the condition still exists.

9950 Transmitter

Page 16

Time

High Limit

Hysteresis

Low Limit

Process

Window

Relay Output Rate:

0 to 100 Pulses/min.

Pulse rate

0 pulses

100 pulses

7.5

Relay energized

Relay de-energized

Time

High Limit

Hysteresis

Low Limit

Process

Window

Hysteresis

Relay Modes

Window In/Out:

Relay is on when the value is equal to or higher or lower than the high or low setpoint. WINDow IN = relay on if measurement is inside the window

of two setpoints.

WINDow OUT = relay on if measurement is outside the

window of two setpoints.

Window IN example

Proportional Pulse Operation:

The transmitter can output a pulse at the rate deﬁ ned by the

settings in the CAL menu and the sensor input. The maximum

pulse output is 300 pulses per minute.

Example usage would be to control solenoid-operated

dosing pumps.

For example: As the process value rises above the setpoint,

the output will start pulsing in relation to the process value,

the maximum pulse endpoint and the programmed

pulses/minute. The pulse rate will change as the process

value changes and approaches the programmed endpoint.

This functionality can be used to precisely control the process.

The starting point, endpoint and maximum pulse rate are

select able in the RELAY menus.

NOTE: Relay LEDs will ﬂ ash in PULSE mode.

Window OUT example

100 pulses

Starting point Endpoint

In the example:

• The output will be 0 pulses/min. when value is less than 5.

• The output will be 50 pulses/min. when value is 7.5.

• The output will be 100 pulses/min. when value is 10 or greater.

9950 Transmitter

Page 17

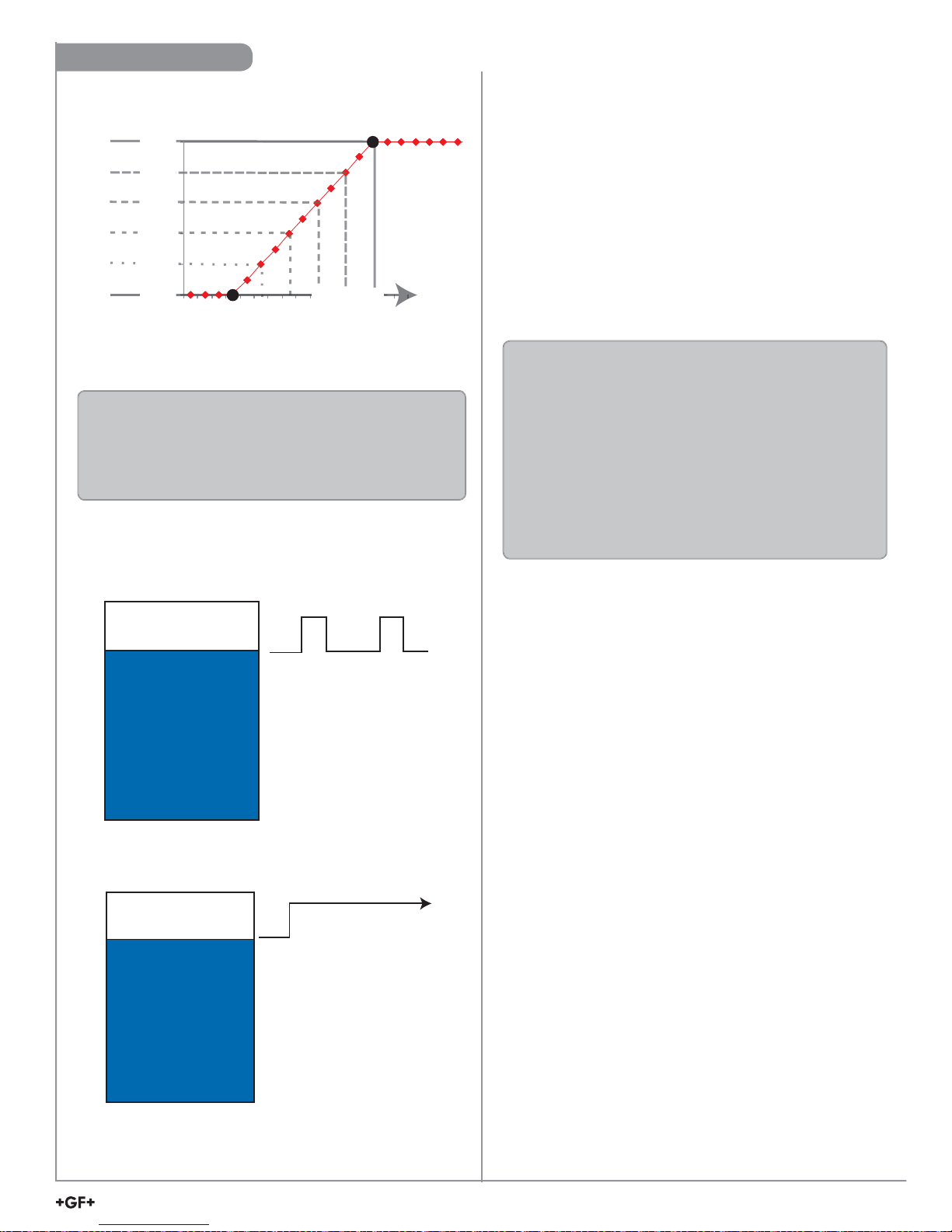

Relay Modes

PWM

Maximum

100%

80%

60%

40%

Relay Pulse Width

20%

(as a % of Relay period)

alwa

Relay is

s OFF

PWM Minimum

Process value

Range

Note

• The pulse width will be 100% of the relay period (relay always ON) when the process value is greater than the maximum range.

Relay is

always ON

• Pulse Width Modulation

PWM automatically varies the ratio of ON time to OFF time proportional to minimum and maximum range settings.

The relay period is the sum of the time a relay is ON and the time it is OFF.

Relay pulse width is the time the relay is ON.

The 9950 must be programmed with the relay period, and with the low and high setpoints.

NOTE: The PWM mode is not used for Pressure applications.

NOTE: Relay LEDs will ﬂ ash in PWM mode.

Example:

• The pulse width will be 0% of the relay period (relay always OFF) when the process value is less than the minimum range.

• The pulse width will be 100% of the relay period (relay always ON) when the process value is greater than the maximum range.

• The pulse width will be 60% of the relay period when the process value is at 60% of the span between the minimum and maximum range.

• Volumetric Pulse

The relay will activate for the set pulse width once the speciﬁ c volume of ﬂ uid is registered. Flow Inputs only.

NOTE: Relay LEDs will turn on when the relay is active

• Totalizer Volume

Relay activates and latches when a speciﬁ ed volume of ﬂ uid is registered on the resettable totalizer. For Flow inputs only.

Total Volume mode counts the TOTALIZER Units until the setpoint volume is reached, then turns on the relay until the resettable totalizer is reset.

If the Resettable Totalizer reading is greater than the setpoint, the relay will be turned on immediately. The relay will be off when the totalizer is below the set point or the resettable totalizer is reset to zero.

This mode is useful to trigger a reminder when a process is due, as for a backwash cycle or ﬁ lter change.

9950 Transmitter

Page 18

Relay Modes

• Multiple

When a Relay Source is set to "MULTIPLE," the mode presents four Boolean logic formulae called "Relay Operators." Each Operator can be programmed with up to three different conditions. The relay will only be activated when the complete formula is satisﬁ ed.

Boolean Relay Logic Operations

RELAY 1

MODE

FLO(A | B | C)NITS

(A l B l C) means "Activate this relay when any condition (A, B, or C) is true."

Example: Set Relay 1 Mode to A | B | C. "This relay will activate IF channel 1 pH falls below 6, OR if channel 2 pH rises above

7.8, OR if binary input 1 is active (On or Closed). Relay #1 will activate 30 seconds after any one the conditions are met" Condition A: The pH on Channel 1 is less than 6. Condition B: The pH on Channel 2 is greater than 7.8 Condition C: Binary Input 1 is On. On Delay: 30 When operating properly, all three of these conditions are FALSE. If any one of them becomes TRUE, then Relay 1 will be activated.

Relay 1 will remain activated until the TRUE condition becomes FALSE again, including the hysteresis band.

• Binary

When the relay source is set to “Binary." The Binary Inputs can sense if the input is ON (Closed) or OFF (Open). The four binary inputs only control relay activation and are not considered a measurement source. Each binary mode is independent and each of them can be assigned to a relay mode.

(A & B & C) means "Activate this relay only when all conditions (A, B, and C) are true."

RELAY 1

MODE

A & B & C

(A l (B & C) ) means "Activate this relay if A is true OR if B AND C are both true."

Example

A 2282 Guided Float Switch is mounted in a tank. The output of the Float Switch will prevent a relay from activation if the tank is below the position of the Float Switch.

RELAY 1

MODE

A | (B & C)

RELAY 1

MODE

A & (B | C)

(A & (B l C) ) means "Activate this relay only if A is true AND either B or C are also true."

• Timer

When the “Timer” relay source is selected, the time can be selected using Period or Weekday modes. Both relay modes work directly with the time settings and formats that are entered at start up or adjusted in the options menu. The relay is normally open until the speciﬁ ed time is reached, at which time the relay is closed, triggering the relay for a speciﬁ ed duration. The “Hold while” feature allows the user to hold the measurement from a channel input 1, 2, or both, or none for a speciﬁ ed recovery time. The 9950 will deactivate held relays and hold the 4 to 20 mA at previous value.

• Period Mode lets the user set a periodic interval, in days, hours or minutes, at which the relay will activate. A First Start screen lets the user set the day and time for the Period Mode to begin.

• Weekday Mode lets the user speciﬁ c the days of the week, Sunday, Monday, Tuesday, Wednesday, etc., at which the relay will activate. A Start Time screen lets the user set the time of day for the weekday activation. Weekday Mode does not have a Start Delay parameter.

Caution:

If HOLD WHILE RELAY # ACTIVE setting is changed while an Activation or Recovery is in process, the setting will be applied after the cycle is complete. To apply the change immediately, cycle power to the 9950.

Recovery

Activation

Time

Duration

Hold measurement

during activation

and recovery

Recovery

Activation

Time

Duration

Sun

Hold measurement

during activation

and recovery

Relay Period Mode

Period 1 Period 2

Activation

Recovery

Duration

Time

and recovery

Period 2

Recovery Time

and recovery

Hold measurement

during activation

Relay Weekday Mode

Sunday, Tuesday and Thursday activation

Activation Duration

Mon Tue Wed Thu Fri

Hold measurement

during activation

Activation Duration

...

Time

...

Time

9950 Transmitter

Page 19

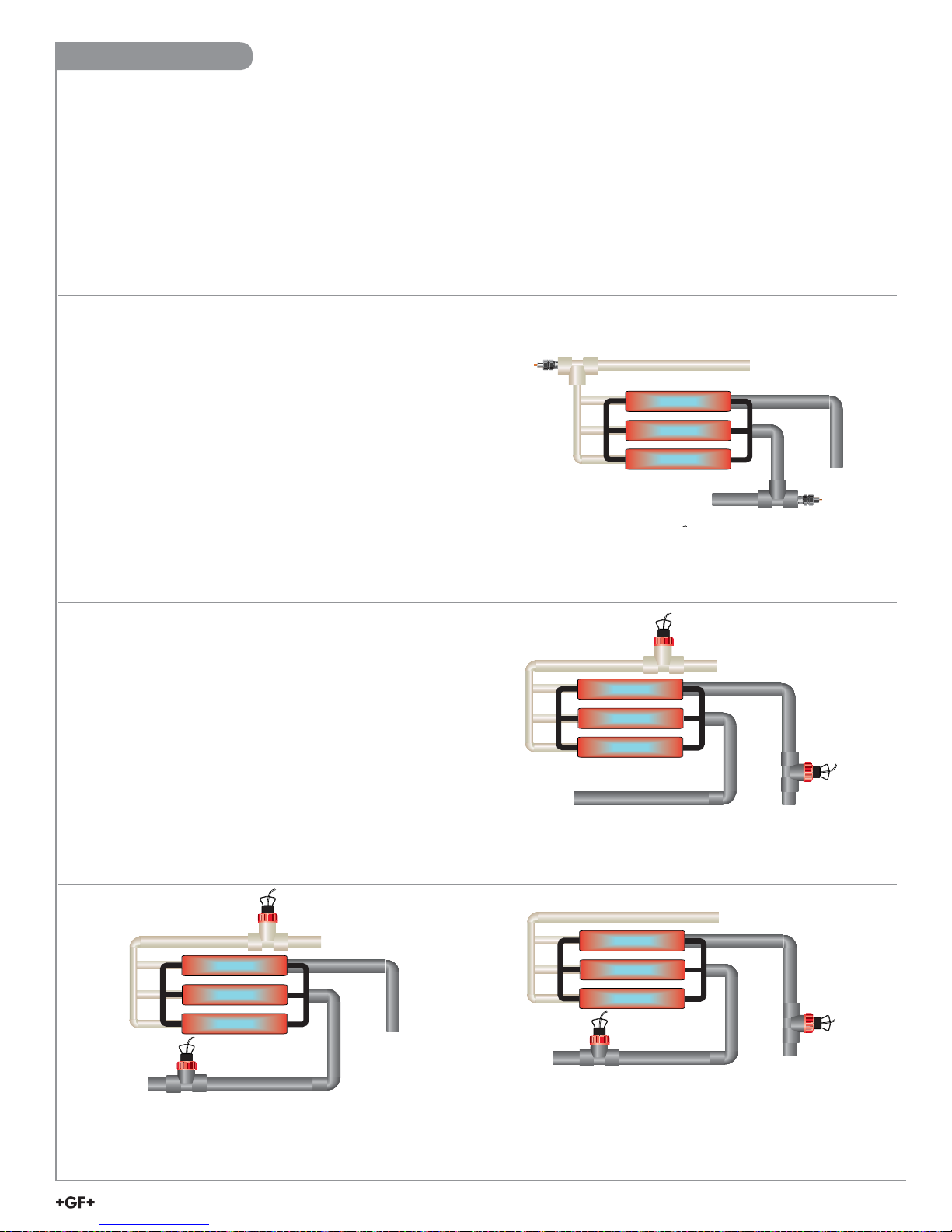

RO Membrane

Feed

Concentrate

Permeate

RO Membrane

Feed

Concentrate

Permeate

RO Membrane

Feed

Concentrate

Permeate

Feed

Concentrate

RO Membrane

Permeate

Derived Functions

When two of the same type of measurement are present, the 9950 can calculate several derived functions from like pairs of measurements. Up to four derived Functions can be deﬁ ned and used as the source for display and output functions.

• Flow, Temperature, Pressure, Conductivity and Level channels must have matching units. (Flow channels must also have same time base).

• Conductivity channels will automatically scale to S/cm before the function calculation is made.

• Three types of derived measurements can be applied to any set of sensors, regardless of type.

• Ratio: Measurement 1 ÷ Measurement 2 or Measurement 2 ÷ Measurement 1

• Delta (Difference): Measurement 1 - Measurement 2 or Measurement 2 - Measurement 1

• Sum: Measurement 1 + Measurement 2

• Custom labels can be assigned to Derived Functions for ease of identiﬁ cation

% Passage and % Reject

• % Passage and % Reject are derived functions based on conductivity measurements only, speciﬁ cally for use in reverse osmosis systems.

• % Passage is the amount of contaminates remaining in the product water compared to the level of contaminates in the feed water. For example, if the feed water measures 375 S and the product water measures 18.75 S, the % Passage is

(18.75/375) x 100= 5%.

• % Reject is the amount of contaminates rejected to the concentrate water compared to the amount of contaminates in the feed water. For example, if the feed water measures 375 uS and the product water measures 18.75 uS the % reject is [1-(18.75/375)] x 100 = 95%

• Decreasing Reject values and increasing Passage values usually indicate a problem with the RO membrane.

% Passage: (Permeate ÷ Feed) x 100

% Reject: [1 - (Permeate ÷ Feed)] x 100

% Recovery

• % Recovery is a derived function based on ﬂ ow rate, in a reverse osmosis system.

• To measure % Recovery, the 9950 must have two ﬂ ow sensors connected. They may be located in the Feed line, the Concentrate line or the Permeate line.

• The 9950 provides 3 different methods for calculating Recovery to accommodate any conﬁ guration.

• Both ﬂ ow sensors must use the same time base and units of measure.

% Recovery A: (Permeate ÷ Feed) x 100 In the Setup menu, select the option that states % Recovery A,

FEED: PERMEATE

% Recovery B: Permeate ÷ (Permeate + Concentrate) x 100 In the Setup menu, select the option that states

% Recovery B, PERMEATE: CONC

% Recovery C: [(Feed - Concentrate) ÷ Feed] x 100

In the Setup menu, select the option that states

% Recovery C, FEED: CONC

9950 Transmitter

Page 20

Menu System

VIEW Mode Overview

The top level of screens are referred to as the VIEW Mode. This view displays measurement values as well as current outputs, derived function values, and relay status. The horizontal bar graph represents the primary measurement value that is also displayed in the numeric ﬁ eld above the bar graph. The bar graph is primarily used to display the full scale range of the sensor, but can be scaled via the OPTION menu item.

During normal operation, the 9950 displays the VIEW mode.

• To select a display, press the  or  arrow keys.

The display selections scroll in a continuous loop.

• Changing the display selection does not interrupt system operations.

• No password is necessary to change display selection.

• Output settings cannot be edited from the View Mode.

• The display will return to the VIEW mode if no button is pressed for 10 minutes.

MENU Mode Overview

The MENU mode enables the user to view and conﬁ gure all menu items. The ﬁ ve menus available are: CAL, INPUT, LOOP, RELAY, and OPTION.

Error Handling

Errors occurring while on the measurement screens show a speciﬁ c message (e.g., Wrong Sensor). This message will ﬂ ash and stays on for 3 seconds and ﬂ ash off. Once the error is resolved or cleared, the error message stops.

_ _ _ _ ._

CH1

MISSING SENSOR

9999.9

00.0 0

CH2

6 2 .8

00.0 0

7 .0

GPMS

00.00

15.00

°F

MENU Mode is entered by pressing and holding ENTER for three seconds.

To select a menu use the  and  arrow keys to highlight the desired menu and press ENTER to select the menu.

In the selected menu, use the  and  keys to navigate through the menu. Use the ,  and  keys to edit the selected item (see Menu Navigation discussion, page 24).

To save the new selection, press the ENTER key. A message displaying “Saving” will be displayed for 3 seconds. After this message is displayed, the newly selected value will be displayed, if applicable. To abandon the changes press the  and  arrows simultaneously.

Password Overview

The password is often required to start editing. Once entered correctly, this password will not be needed for subsequent edits, until the menu system is exited. The password is required when the menu system is re-entered.

Your choice of password (STD or CODE) is selected in the Options Menu

• STD

The standard (STD) password is , pressed in sequence. This password is designed to protect the 9950 from unintentional changes. It is best suited for systems

where a group of people need to be able to change settings.

• CODE

The CODE default setting is 0000, adjustable to any 4-digit numerical code up to 9999.

Using a personal code provides the maximum degree of security. This code can be modiﬁ ed in the Options menu.

Password Reset

Turn off 9950. Press and hold all 4 keys on keypad while turning on 9950 and unit will revert back to STD password.

_ _ _ _ ._

CH1

WRONG SENSOR

9999.9

00.00

CH2

6 2 .8

00.00

7.0

GPMS

00.00

15.00

°F

Scrolling

In some cases, more than one message or measurement may need to be displayed. This is accomplished by alternating the message portions across the screen.

PASSWORD TYPE

WRONG CODE

TEXT 3

In the MENU mode, if the wrong code or password is entered, an ERROR message is displayed.

LANGUAGE

0000

LANGUAGE

ENTER CODE

LANGUAGE

PASSWORD

SAVING

TEXT 3

To change your CODE, go to OPTIONS mode, enter your desired code and press ENTER. (The STD password cannot be changed.)

9950 Transmitter

Page 21

Common Menus

The menu system shares certain modes between sensor types. The following describes the menus found in common between most sensor types.

INPUT Menu

NOTE:

Menu and Mode displays shown are examples only. Your displays may vary.

CAL INPUT

INPUT

LOOP RELAY OPTION

LOOP Menu

LOOP 1

SOURCE

CH SECONDARY

LOOP 1

LABEL

LOOP 1

MODE

LOG

L1 4 mA SETPOINT

(ALL) Manually select Sensor Type (See page 8 for further instruction). Allows user to reset 9950 Transmitter to Factory settings. Allows user to conﬁ gure sensor

ENTER

speciﬁ c parameters. Note: User is strongly discouraged from changing the sensor type away from the correct sensor.

ENTER

The following can individually be set for each loop on the 9950

Select source for each loop. Choose CH 1 PRIMARY, CH 1 SECONDARY, CH 2 PRIMARY, CH 2 SECONDARY, or DERIVED FUNCTION 1 - 4. Secondary Values are only available for pH, Conductivity/Resistivity, Level, Salinity, and Dissolved Oxygen. Derived Functions are only available for conﬁ gured Derived Functions

English, French, German, and Spanish languages only. A custom label can be assigned to the loop for ease of identiﬁ cation.

(COND/RES only) Select LIN/LOG. Default = LIN. See LOG Current LOOP Output discussion in Appendix.

0.00

UNITS

L1 20 mA SETPOINT

100.00

UNITS

LOOP 1

ERROR VALUE

22 mA

L1 ADJUST 4 mA

4.00

L1 ADJUST 20 mA

21.0

L1 TEST LOOP

12.05

(ALL) Set value corresponding to desired 4 mA output. 6 digits max. Default = 0 (ORP = -999).

(ALL) (Not shown in COND/RES LOG Mode) Set value corresponding to desired 20 mA output. 6 digits max. Defaults = 100 (Flow, Cond/Res, Temp), 14 (pH), 1000 (ORP), 10 (Lvl/Prs), 5 (4 to 20 mA), 80 (Sal).

(ALL) Set desired LOOP output value when sensor error (e.g., bad sensor, broken wire) is detected. Select (3.6 mA, 22 mA,

or NONE). Default = 22.

(ALL) Allows ﬁ ne-tuning to compensate for errors in other equipment connected to the 9950. Adjust the current output at 4 mA. The display value represents the precise current output.

Adjustment limits: from

3.80 mA minimum to 5.00 mA maximum. Default = 4.00 mA.

(ALL) Allows ﬁ ne-tuning to compensate for errors in other equipment connected to the 9900. Adjust the current output at 20 mA. The display value represents the precise current output. Adjustment limits: from 19.00 mA minimum to 21.00 mA maximum. Default = 20 mA.

(ALL) Press  or  to manually control the output current value from 3.8 mA to 21.00 mA to test the output of LOOP. The current loop will revert to automatic control when this menu item is left.

9950 Transmitter

Page 22

Common Menus

RELAY Menu

RELAY 1

SOURCE

CH 1 PRIMARY

RELAY 1

MODE

BINARY ON

RELAY 1

SOURCE

TIMER

RELAY 1

04/23/2016

mSSTART DATETA

RELAY 4

SUN

MON

WED

THU

SAT

RELAY 1

SOURCE

MULTIPLE

All relays select source for each Relay 1 - 4.

Choose CH 1 PRIMARY, CH 1 SECONDARY, CH 2 PRIMARY, CH 2 SECONDARY, BINARY 1 - 4, DERIVED FUNCTION 1 - 4, TIMER, or MULTIPLE. Secondary Values are only available for pH, Conductivity/Resistivity, Level, Salinity and Dissolved Oxygen. Derived Functions are only available for conﬁ gured Derived Functions

(All Binary) Binary Inputs can set to be active when On (Closed) or Off (Open). Requires the 3-9950.393-3 module for use.

(TIMER) Allows the user to select either Period or Weekday Modes

TIMER in PERIOD mode will allow the user to select a unit of time, a quantity of time, a speciﬁ c start date, a speciﬁ c start time, a duration, and a HOLD feature. Default HOURS, 2, 12/01/2015, 10:00, 60 secs, HOLD WHILE RELAY # ACTIVE NO

TIMER in WEEKDAY mode will allow the user to select a day or multiple days of the week with a START TIME,

TUE

FRI

DURATION, and a HOLD feature. Default 10:00, 60 secs, HOLD WHILE RELAY # ACTIVE NO

MULTIPLE will use up to 3 sources where the relay will only be activated if these sources meet speciﬁ ed conditions A|B|C, A&B&C, A|(B&C), A&(B|C) Default is OFF Refer to pg 18.

RELAY 1

MODE

A | B | C

RELAY 1

MODE

A & B & C

RELAY 1

MODE

CA | (B & C)T

RELAY 1

MODE

A & (B | C)

RELAY 1

MODE

OFF

RELAY 1

LABEL

RELAY 1

R1 SET LOW

0.00

mUNITSA

MULTIPLE MODE A|B|C will activate if any condition A, B, or C is true.

MULTIPLE MODE A & B & C will activate if all conditions A, B, and C are true.

MULTIPLE MODE A (B & C) will activate if A is true or if B and C are true.

MULTIPLE MODE A (B | C) will activate if A is true or if B and C are true.

(ALL) Select the desired mode of operation for the (R1) output (OFF, LOW, HIGH, WINDow IN, WINDow OUT, CYC LOW (except FLOW), CYC HIGH, PROP PuLSe, VOL PuLSe, PWM, TOTAL, USP, ERROR mode) (See page 15, Relay Modes). Default = OFF. Continue stepping through to select R2, R3 and R4 output modes. When MODE is set to ERROR, relay energizes if sensor problem is detected on either channel. ON DELAY delays the energizing of the relay until after the programmed delay time. (See Cycle High/Low discussion on page 15).

English, French, German, and Spanish only. A custom label can be assigned to the relay for ease of identiﬁ cation

(ALL) (Shown if LOW, WIND IN/OUT or CYC LOW mode) Relay turns on if process measurement is equal to or lower than this value. Set desired value.

9950 Transmitter

Page 23

Common Menus

RELAY Menu

R1 SET HIGH

100.0

mUNITSA

R1 SET VOLUME

100.00

mUNITSA

R1 HYSTERSIS

0.50

0UNITS

R1 USP PERCENT

0.20

R1 ON DELAY

5.0

SEC

R1 PULSE MIN

0.00

MULTUNITSIPLE

R1 PULSE MAX

100.00

OFUNITSF

R1 MAX RATE

120.00

mPULSES/MINA

R1 PWM MIN

00.0

mUNITSAA

R1 PWM MAX

10.00

mUNITSA

R1 PWM PERIOD

1.00

SEC

R1 CYCLE TIME

0.00

%SECE

(ALL) (Shown if HIGH, CYCLE HIGH (all except Flow) or WIND IN/OUT mode) Relay energizes if process measurement is equal to or higher than this value. Set desired value.

(FLOW only) (Shown if Cycle High (Flow), TOTAL or VOL PLS mode) Amount of accumulated ﬂ ow that must be counted before a pulse is sent out. Relay energizes if ﬂ ow volume exceeds this value. Set desired value.

(ALL) (Shown if LOW, HIGH, WIND IN/OUT, CYC LOW/HIGH or USP mode) Hysteresis prevents the system from chattering around the set point. Set amount (in units of measure from INPUT Mode) to add to SET LOW or SET HIGH values.

(COND/RES only) (Shown only in USP mode) Relay energizes if USP value drifts by this value away from USP limit. (See USP Limits discussion in the appendix, page 62). NOTE: Relay will activate if USP limit is exceeded, Temperature Comp is set to Linear or Pure Water, Conductivity Measurement is NOT in uS, or if the Conductivity is reporting a measurement error.

(ALL) (Shown if Low, High, WIND IN/OUT, CYC LOW/HIGH or Error mode) Set seconds (up to 9999.9) to wait before activating relay once the relay condition is true.

(ALL except PRESSURE) (Shown only if PROP PLS mode) Set minimum setpoint value for proportional pulsing.

(ALL except PRESSURE) (Shown only if PROP PLS mode) Set maximum setpoint value for proportional pulsing.

(ALL except PRESSURE) (Shown only if PROP PLS mode) Set desired maximum pulse rate (300 max) NOTE: Pulse width ﬁ xed at 100 ms.

(ALL except PRESSURE and FLOW) (Shown only if PWM mode) Set minimum value for pulse width modulation.

(ALL except PRESSURE and FLOW) (Shown only if PWM mode) Set maximum value for pulse width modulation.

(ALL except PRESSURE and FLOW) (Shown only if PWM mode) Set time value for one complete pulse cycle. (relay ON time + relay OFF time).

(ALL) (Shown only if CYC LOW/HIGH mode) Set time in seconds (up to 99999) for relay to remain on. (See discussion on page 15).

9950 Transmitter

Page 24

Common Menus

RELAY Menu

R1 PULSE WIDTH

1.00

SEC

R1 SET TOTAL

100.00

SEUNITSC

RELAY 1 ACTIVATE

RED BACKLIGHT

RELAY 1

TEST RELAY

OPTION Menu

ENGLISH FRANÇ

DEUTCH

ESPAÑOL

中文

TIME FORMAT

(FLOW only) (Shown only if VOL PULS mode) Set time value for one pulse width.

(FLOW only) (Shown only if TOTAL) Resettable value that, when exceeded, turns relay on. Must reset Totalizer (in VIEW Mode) to clear relay. Set maximum value.

Select Yes to have the Red Backlight illuminate during relay activation, No to not have the Red Backlight activated by the relay activation

(ALL) Press  or  to turn relay on or off for testing purposes. Can also be used to reset or latch/unlatch the relay. Does NOT reset the Totalizer.

Choose desired the language for the 9950. Default English

24 HR

BINARY ON

SET TIME

08:56

TIMER

DATE FORMAT

MM/DD/YYYY

MULTIPLE

SET DATE

02/25/2016

OFF

SET DECIMAL MARK

999.99

SELECT UNITS

METRIC

Choose a time format between a 24 Hour or an AM/PM clock. Default 24 HR

Set the time according to the format chosen 00:00

Date Format; MM/DD/YYYY, DD/MM/YYYY, YYYY/MM/DD

Set the date according to the format chosen 00/00/0000

Choose either comma or point according to local practices. Default 999.99 (point).

Choose METRIC or US CUSTOMARY

NOTE: Defaults for most relay functions are dependent upon sensor type and are not listed here.

9950 Transmitter

Page 25

Common Menus

OPTION Menu

WHITE BACKLIGHT

AUTO LOW

RED BACKLIGHT

DISPLAY

BAR GRAPH

CH2 BAR GRAPH MIN

0.00

GPM

CH2 BAR GRAPH MAX

100.00

GPM

FUNCTION 1

NONE

OFF

CH1

_ _ _ _._

GPM DECIMAL

CH1

_ _ _ _._

°F DECIMAL

CH1

_ _ _ _._

TOTAL DECIMAL

CH1

TOTAL LOCK

OFF

COND/RES

AUTORANGE

OFF

PASSWORD TYPE

STD

PASSWORD TYPE

CODE

White Backlight; Off, Low, High, Auto Low, Auto High

The Red Backlight illuminates when an error condition is detected; Default is ON

Display Bar Graph; On, Off

Enter a value to represent bar at minimum. Default = 0 (ORP = -999).

Enter a value to represent bar at maximum. Defaults = 100 (Flow, Cond/Res, Temp), 14 (pH), 1000 (ORP), 10 (Lvl/Prs), 5 (4 to 20 mA), 80 (Sal), 20 (DO)

Function 1 - 4, Conﬁ gure the derived function, up to four functions available. (Refer to page 19 for further detail).

(ALL) Set the decimal to the best resolution for your application for both CH1 and or CH2. The display will automatically scale up to this resolution for each channel. Select 0, 1, 2, 3, or 4 decimal places, (varies by parameter). Default = 1 Decimal Place.

(pH, COND/RES, TEMP, SAL, DO only) Set the Temperature decimal to the best resolution for your application for both CH1 and or CH 2. The display will automatically scale up to this resolution. Select 0, 1, or 2. Default = 1 Decimal Place.

(FLOW only) Set the decimal to the best resolution for the Permanent and Resettable 2 Totalizer display. The display will automatically scale up to this resolution. Select 0, 1, 2, 3, or 4 decimal places. Default = 1 Decimal Place

(FLOW only) requires password to reset the resettable totalizer. Select OFF, ON (Does not affect Permanent Totalizer). Default = OFF.

(CONDUCTIVITY/RESISTIVITY only) Set ON to automatically scale the conductivity/resistivity within range to be displayed. Default = OFF

(ALL) Select STD, CODE. Default = STD (Refer to page 20 for further detail).

(CODE) If code is selected Default Code = 0000 (Refer to page 20 for further detail).

9950 Transmitter

Page 26

Common Menus

12.00

OPTION Menu

MEMO

SEC

9950

(ALL) Enter 17-character string, if desired. Default = MEMO

GENERATION 2a

SEC

USER MANUAL

100.00

SEC

VIEW Mode

50.30

CH1

40560.0

0.00

CH2

987.9

65.5

0.00

50.30

0.00

987.9

0.00

CH1

50.30

FLOW

0.00

CH2

987.9

FLOW

0.00

Func 1 Func 2 Func 3 Func 4

GPM

100.00

GPM

100.00

GPM

100.00

GPM

100.00

GPM

100.00

GPM

100.00

50.00

100.00

2.00

0.00

Displays Transmitter Generation Version.

QR code for user manual.

Measurement View Mode Screens are depicted in the Sensor Speciﬁ c Menus. Below are the screens that all parameters share in common.

View Measurement 1 displays the primary value with the secondary value below. This is the normal display and does not time out.

View Measurement 2 displays the primary value in large type. This screen does not time out.

View Measurement 3 displays the primary value and the channel name. This screen does not time out.

Function values are stated to the right of the function number. Select a derived measurement function, up to four functions available. (SUM, DIFFERENCE, RATIO, %PASSAGE, % REJECT, % RECOVERY A, % RECOVERY B, % RECOVERY C.) See pg 19 for further details.

CH 1 TOTALIZER P 40560.0 R 40560.0 ->

LITERS

LOOP 1 LOOP 2

LOOP 3 LOOP 4

RELAY STATUS RELAY 1 RELAY 2 RELAY 3 RELAY 4

BINARY STATUS BINARY 1 BINARY 2 BINARY 3 BINARY 4

8.00

3.60

22.00

12/01 10:00

SUN 10:00

Parameter speciﬁ c screen. Flow totalizer, pH raw mV, ORP, pH Impedance, pH/ORP Sensor Data, raw mV, 4 - 20 mA input, conductivity, DO cap expiration date.

Displays the 4 to 20 mA LOOP output for each channels assigned primary and secondary sources. (3.6, 22.00 are error output values).

Relay status is stated to the right of the relay number as (OFF, ON, DATE/DAY and TIME) for each relay. If

Relay is using Timer Source, time and date of next activation will be displayed. counting down. The timer will restart if the condition still exists.

OFF

Binary status is stated to the right of the binary channel number as (OFF, ON) for each of the four binary inputs.

OFF

NOTE: (Reset the Timer) In the RELAY menu, select TEST RELAY function.

9950 Transmitter

The relay(s) will remain ON while

Page 27

Common Menus

VIEW Mode

SYS CONFIG CH1 CH2 RELAY

MOD1

GENERATION I

SW VER 9950 S/N

09/01/2016

CH2 ORP ->

EASYCAL

CH1 pH ->

399504033

00-20 DBG

0123456789

TEXT 1

MENU ->

TEXT 3

DATE

09:06

FLOW FLOW

4-20 OUT

SYS CONFIG shows channel and parameter and relay module part number.

Generation Screen shows version of software and serial number of unit. Note: Top shows the Generation of 9950

MENU-> will allow access to top level menu by pressing the  key.

DATE and TIME display show the current system date and time

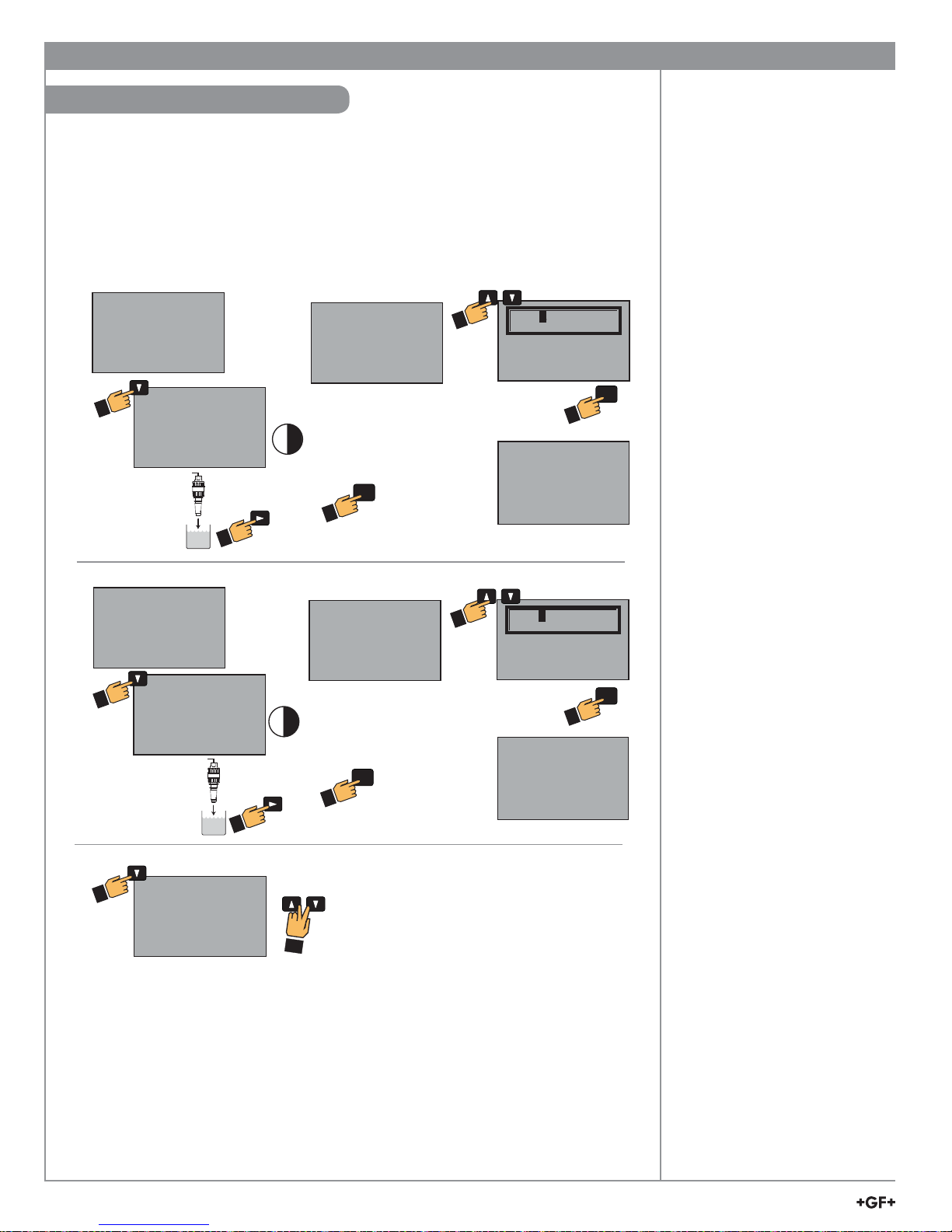

pH EASYCAL looks for buffers of 4, 7, or 10 pH buffers. (See page 55).

ORP EASYCAL looks for buffer of 87, 264, or 476 mV. Press the  to begin EASYCAL (See page 57).

9950 Transmitter

Page 28

Sensor-Speciﬁ c Menus

Flow

The following pages list the sensor-speciﬁ c settings for each sensor type. The user can conﬁ gure the unit to run each channel on different parameters if needed.

VIEW Mode Menu

CH1

50.30

40560.0

0.00

CH2

987.9

65.5

0.00

Displays the ﬂ ow rate and the resettable or permanent totalizer below. This is the normal display and does not time out.

50.30

0.00

987.9

0.00

CH1

50.30

FLOW

0.00

CH2

987.9

FLOW

0.00

CH 1 TOTALIZER P 40560.0 R 40560.0 ->

LITERS

GPM

100.00

GPM

100.00

GPM

100.00

GPM

100.00

GPM

100.00

GPM

100.00

View Measurement 2 displays primary value in large type. This screen does not time out.

View Measurement 3 displays the primary value and the channel name. This screen does not time out.

Displays the Permanent Totalizer and Resettable Totalizer for each FLOW channel (note the "P" indicating Permanent and "R" for resettable) Pressing  will prompt you to reset. Pressing  again will verify YES or NO. Pressing ENTER will reset the totalizer.

FLOW Setup Checklist

1. Make sure FLOW sensor type is selected (see System Setup Menu, page 8).

2. Set the Units of Measurement.

3. Set Sensor Type (Freq or S3L) and if 515 or 525 select Yes.

4. If LOOP is used, set the minimum and maximum 4 to 20 mA setpoints.

5. Set K-Factor (pulses per Unit Volume) from Flow Sensor manual.

6. Set Totalizer factor.

7. Set Last Cal Date and initials.

8. If applicable, set up relay functions for your application.

CAL Menu

CH 1 FLOW

HOLD OUTPUTS

CH 1 FLOW

RATE CAL ->

MULTIPLE

CH 1 FLOW

VOLUME CAL ->

CH1 FLOW

OFF

60.00

1.00

OFF

ON prevents relays from activating while making adjustments and relays in PULSE mode will suspend pulsing. Output is held until the user exits the CAL menu or turns it off. Select ON/OFF. Default = OFF.

Set K-Factor (pulses per unit volume) from Flow Sensor manual. Min: 0.0001, max. 9999999. Cannot be zero. Default = 60.0000.

Sets the volume of each count of the Totalizer as a multiple of the volume unit of the K-Factor. Min: 0.0001, max. 9999999. Cannot be zero. Default = 1.0000.

Select to calibrate using rate method (see Appendix, page 60).

Select to calibrate using Volume method (see Appendix, page 60).

LAST CAL ->

12-31-2015 XX

9950 Transmitter

Enter date of calibration (MM-DD-YYYY) and initials of calibrator (XX).

Page 29

Flow

INPUT Menu

CHANNEL 1

NAME

FLOW

CH 1 FLOW

MODE

SENSOR FREQ

CH 1 FLOW

515/2536

YES

CH 1 FLOW

GPM

FLOW UNITS

CH 1 FLOW

CUST/S

CUSTOM UNITS

TOTALIZER

TOTAL UNITS

GALLONS

CH1 FLOW

DISPLAY

R TOTALIZER

If desired, a custom name can be entered. Enter 17-character string. Default = FLOW

If your ﬂ ow sensor is conﬁ gured for frequency output, select FREQ. If conﬁ gured for Digital (S

L) output (recommended), select S3L.

Default = FREQ.

If your ﬂ ow sensor is self powered such as a 515/525 select YES If your ﬂ ow sensor is not self powered such as a 2536 select NO Default = YES

Select the unit of measure from the pull down menu. Custom units can be created and used. The last character sets the timebase: S (seconds) M (minutes) H (hours) D (days). Default = GPM.

Set UNITS to CUST/S, CUST/M, CUST/H, CUST/D allows user to set custom units for primary measurement. CUST/S, M, H, D label can be adjusted to reﬂ ect to user's custom units.

Identiﬁ es the Totalizer units. It has no effect on any calculation. Default = GALLONS.

Set the Totalizer displayed in view mode. Select R TOTALIZER for resettable or select PERM TOTALIZER for permanent. Default = R TOTALIZER.

CH1 FLOW

100.0

SENSITIVITY

CH1 FLOW

AVERAGE

OFF

CH 1 FLOW

MOTYPEDE

FLOW

The Sensitivity setting determines how the 9950 responds to sudden changes in the ﬂ ow rate for a frequency sensor. The value is expressed in units of measurement. If the setting is exceeded, it "overrides" the Averaging function brieﬂ y to allow for the actual change in ﬂ ow rate to be displayed. Averaging resumes shortly after. The result is a smooth ﬂ ow display and a quick response to large shifts in the ﬂ ow rate.

Dampens display, output and relay response rates. Select Low, Med, High, OFF. (See discussion in Appendix, page 50). Default = OFF.

Current channel type is listed. Manually change channel type to match sensor type if sensor is not found by S

L search. Default = FACTORY, S3L sensors will automatically be found by transmitter. All other sensors must be manually set.

9950 Transmitter

Page 30

VIEW Mode Menu

CH1

7.0

77.0

-1.00

CH2

4.0

99.0

-1.00

Displays the pH value and the temperature below. This is the normal display and does not time out.

°F

15.00

°F

15.00

pH Setup Checklist

1. Make sure pH sensor type is selected (see System Setup Menu, page 8).

2. Set the Temperature Units (°C or °F).

3. If LOOP is used, set the minimum and maximum 4 to 20 mA setpoints.

4. Perform calibration (EasyCal, Standard or Standard and Slope).

5. Set Last Cal Date and initials.

6. Select source for Relay output (pH or Temp).

7. If applicable, set up relay functions for your application.

-1.00

CH1 pH

-1.00

CH2 pH

-1.00

7.0

4.0

7.0

RAW

CH 1 264.10 mV

CH2 182.10 mV

GLASS IMPEDANCE

CH1 1049 MOhm ->

Sensor Data

CH1->

15.00

View Measurement 2 displays primary value in large type. This screen does not time out.

View Measurement 3 displays the primary value and the channel name. This screen does not time out.

Displays the RAW millivolt input from the electrode. Use this display to determine the relative condition of your electrode during periodic calibration.

[Glass Impedance] 2751 only, pH only, last measured glass Impedance, press [RIGHT] key to manually update reading

2571 only. Using the right arrow key, you will see the following screens: [Serial Number] Electrode Serial Number, [Model Number] Electrode Model Number, [pH Calibration Slope] Calibration Slope Value, [pH Offset] Calibration Offset, [Temperature Offset] pH only, Temperature Offset Value, [Factory Impedance] pH only, Factory pH glass Impedance, [Usage Time] Electrode Runtime in Hours, [Minimum pH] Minimum measured value, [Maximum pH] Maximum measured Value, [Minimum Temperature] pH only, minimum measured temperature, [Maximum Temperature] pH only, maximum measured temperature

EASYCAL

CH1 pH ->

CH2 pH ->

9950 Transmitter

pH EASYCAL looks for buffers of 4, 7, or 10 pH buffers. (Refer to page 55).

Page 31

CAL Menu

CH 2 pH

OFF

HOLD OUTPUTS

CH 2 pH

CAL

AT INSTRUMENT

CH 2 pH

EASYCAL ->

C ST CELL CON-

CH 2 pH

SET

TEMPERATURE ->

CH 2 pH

°SETF

pH STANDARD ->

CH2 pH

SET

pH SLOPE

ON prevents relays from activating while making adjustments and relays in PULSE mode will suspend pulsing. 4 to 20 mA output is held until the user exits the CAL menu or turns it OFF. Select ON/OFF. Default = OFF.

Select AT SENSOR to perform calibration using the Signet 2750 sensor electronics. Select AT INSTRUMENT to perform calibration at the 9950 via EasyCal or manual calibration. (See pH Calibration procedures in the Appendix, page 56). Default = AT INSTRUMENT

(CAL AT INSTRUMENT only) Press  to start the EasyCal process. The password prompt is the same as the other parameters. (See pH EasyCal procedure in the Appendix, page 55).

(CAL AT INSTRUMENT only) Applies a linear offset to the temperature measurement. "SAVING" will appear if offset is acceptable, "ERR TOO LARGE TO CALIBRATE" if offset is outside of range.

(CAL AT INSTRUMENT only) Applies an offset to the pH measurement. The slope value and the standard value must be at least 2 pH units apart. The ideal values are the minimum and maximum values of your process. (See pH Calibration procedures in the Appendix, page 55). Shows error message if offset is too high.

(CAL AT INSTRUMENT only) Applies a slope to the pH measurement. The slope value and the standard value must be at least 2 pH units apart. The ideal values are the minimum and maximum values of your process. (See pH Calibration procedures in the Appendix, page 55.) Shows error message if slope is too low or high

CH2 pH

SET

RESET pH CAL ->

CH2 pH

100.0

RESET TEMPCAL ->

CH 2 pH

100LAST CAL.00

12 - 31 - 2015 XX

(CAL AT INSTRUMENT only) Press  to reset pH Calibration to factory default.

(CAL AT INSTRUMENT only) Press  to reset temperature calibration to factory default.

Enter date of calibration (MM-DD-YYYY) and initials of calibrator (XX).

9950 Transmitter

Page 32

INPUT Menu

CHANNEL 2

NAME

CH 2 pH

°F

AT INSTRUMENT

CH 2 pH

AVERAGE

CUST CEOFFL CONST

CH 1 pH

IMP UPDATE TIME

CH 1 pH

HI IMP WARN

CH 2 pH

TYPE

If desired, a custom name can be entered. Enter 17-character string. Default = pH

Select °F or °C. Default = Determined by the SELECT UNITS screen menu. Metric = °C, U.S. Customary = °F.

Dampens display, output and relay response rates. Select Low, Med, High, OFF. Default = OFF. (See discussion in Appendix, page 50).

NOTE: Signet strongly recommends leaving averaging OFF for pH and Pressure measurements

2751, pH Only. Enter the time between automatic impedance measurement updates in 15 minute increments, 0 = Off - manual updates only

2751, pH only. Enter the high Impedance warning set point as off, or 3, 4, or 5 times the factory Impedance of the electrode.

Current channel type is listed. Manually change channel type to match sensor type if sensor is not found by S

L search. Default = FACTORY, S3L sensors will automatically be found by transmitter. All other sensors must be manually set.

9950 Transmitter

Page 33

ORP

VIEW Mode Menu

CH1

CUSTOM LABEL

-999.0

CH2

CUSTOM LABEL

-999.0

Displays the ORP millivolt value. This is the normal display and does not time out.

84.0

1000.0

74.0

1000.0

ORP Setup Checklist

1. Make sure ORP sensor type is selected (see System Setup Menu, page 8).

2. If LOOP is used, set the minimum and maximum 4 to 20 mA setpoints.

3. Set Averaging.

4. Perform calibration or set Standard (and Slope if desired).

5. Set Last Cal Date and initials.

6. If applicable, set up relay functions for your application.

84.0

-999.0

70.0

-999.0

CH1 ORP

-999.0

CH2 ORP

-999.0

CH 1 264.10 mV

CH2 182.10 mV

Sensor Data

EASYCAL

CH1 ORP ->

CH2 ORP ->

76.0

50.0

RAW

CH1->

1000.0

View Measurement 2 displays primary value in large type. The screen does not time out.

View Measurement 3 Displays the primary value along with the channel name. The screen does not time out.

Displays the RAW millivolt input from the electrode. Use this display to determine the relative condition of your electrode during periodic calibration.

2571 only. Using the right arrow key, you will see the following screens: [Serial Number] Electrode Serial Number, [Model Number] Electrode Model Number, [ORP Calibration Slope] Calibration Slope Value, [ORP Calibration Offset] Calibration Offset, [Usage Time] Electrode Runtime in Hours, [Minimum ORP] Minimum measured value, [Maximum ORP] Maximum measured Value.

ORP EASYCAL looks for buffer of 87, 264, or 476 mV. Press the  to begin EASYCAL (See page 57)

9950 Transmitter

Page 34

ORP

CAL Menu

CH 2 ORP

OFF

HOLD OUTPUTS

CH 2 ORP

CAL

AT INSTRUMENT

CH 2 ORP

EASYCAL ->

CUST CELL CONST

CH 2 ORP

SET

ORP STANDARD ->

CH 2 ORP

°SETF

ORP SLOPE ->

CH2 ORP

AVERAGE

ON prevents relays from activating while making adjustments and relays in PULSE mode will suspend pulsing. Output is held until the user exits the CAL menu or turns it OFF. Select ON/OFF. Default = OFF

Select AT SENSOR to perform calibration using the Signet 2750 sensor electronics. Select AT INSTRUMENT to perform calibration at the 9950 via EasyCal or manual calibration. (See ORP Calibration procedures in the Appendix, page 58). Default = AT INSTRUMENT.

(CAL AT INSTRUMENT only) Press  to start the EasyCal process. You will be prompted to enter your password. (See ORP EasyCal procedure in the Appendix, page 57).

(CAL AT INSTRUMENT only) Applies a linear offset to the ORP measurement. For two-point calibrations, assign the min or max value of your process to ORP STANDARD. (See ORP Calibration procedures in the Appendix, page 58).

(CAL AT INSTRUMENT only) Applies a slope to the ORP measurement. The ORP SLOPE is used for twopoint calibration along with the ORP STANDARD. If you applied the min value of your process to the ORP STANDARD, then apply the max value to the ORP SLOPE. Else, apply the min value to the ORP SLOPE. The slope value and the standard value must be at least 80 mV apart. (See ORP Calibration procedures in the Appendix, page 58).

(CAL AT INSTRUMENT only) Resets calibration to factory settings. After pressing , select YES/NO.

RESET ORP CAL ->

CH2 ORP

LAST CAL

12-31-2015 XX

INPUT Menu

CHANNEL 2

NAME

ORP

CH 2 ORP

AVERAGE

CUST CEOFFL CONST

CH 2 ORP

TYPE

CUST CEORPL CONST

Enter date of calibration (MM-DD-YYYY) and initials of calibrator (XX)

If desired, a custom name can be entered. Enter 17-character string. Default = ORP

Dampens display, output and relay response rates. Select Low, Med, High, OFF. (See discussion in Appendix, page 50). Default = OFF.

Current channel type is listed. Manually change channel type to match sensor type if sensor is not found by S

L search. Default = FACTORY, S3L sensors will automatically be found by transmitter. All other sensors must be manually set.

9950 Transmitter

Page 35

Conductivity / Resistivity

VIEW Mode Menu

CH1

1205.00

77.0

0.0000

CH2

987.9

65.5

0.0000

Displays the conductivity value and the temperature below. This is the normal display and does not time out.

°F

100.00

°F

100.00

Cond/Res Setup Checklist

1. Make sure COND/RES sensor type is selected (see System Setup Menu, page 8).

2. Set Cell Constant.

3. Set the Temperature Units (°C or °F).

4. Set Conductivity units.

5. If LOOP is used, set the minimum and maximum 4 to 20 mA setpoints.

6. Set Temperature Compensation.

7. Set Last Cal Date and initials.

8. Select source for Relay output (COND or TEMP).

9. If applicable, setup relay functions for your application.

1205.00

0.0000

9989.3

0.0000

1205.00

CH1 COND/RES

0.0000

9999.9

CH2 COND/RES

0.0000

CAL Menu

CH 2 COND/RES

HOLD OUTPUTS

CH 2 COND/RES

AUTO CAL ->

CH 2 COND/RES

MANUAL CAL ->

CL CONST

OFF

100.00

View Measurement 2 displays the conductivity in large type and the bar graph below. The screen does not time out.

View Measurement 3 displays the primary value and the channel name. The screen does not time out.

ON prevents relays from activating while making adjustments, and relays in PULSE mode will suspend pulsing. Output is held until the user exits the CAL menu or turns it OFF. Select OFF/ON. Default = OFF.

Shows real-time value and automatically selects closest standard. “PLACE SENSOR IN STANDARD”. Unit waits until reading is stable; if bad calibration, returns “ERROR, CANNOT DETERMINE STANDARD”. Refer to buffer values and AUTO CAL Procedure in the Appendix, page 59.

Shows “CONDUCTIVITY” on bottom line; when user presses any button the live value is frozen and the user edits that value. If bad calibration, returns “ERR TOO LARGE TO CALIBRATE”. See Manual Cal procedure in Appendix, page 59.

CH 2 COND/RES

SET

TEMPERATURE

CH 2 COND/RES

RESET CONDCAL ->

CH2 COND/RES

AVERAGE

RESET TEMPCAL ->

CH2 COND/RES

LAST CAL

12-31-2015 XX

Shows “TEMPERATURE” on bottom line; when user presses any button the live value is frozen and the user edits that value. If bad calibration, returns “ERR TOO LARGE TO CALIBRATE”.

Resets Conductivity calibration. After pressing , select YES/NO.

Resets Temperature calibration. After pressing , select YES/NO.

Enter date of calibration (MM-DD-YYYY) and initials of calibrator (XX)

9950 Transmitter

Page 36

Conductivity / Resistivity

INPUT Menu

CHANNEL 2

NAME

COND/RES

CH 2 COND/RES

SENSOR 1.0

CELL CONSTANT

CH 2 COND/RES

SENSOR 1.00000

CUST CELL CONST

If desired, a custom name can be entered. Enter 17-character string. Default = COND/RES

Enter cell constant of sensor. Select 20.0, 10.0, 1.0, 0.1, 0.01, or CUSTOM. Default = 1.0 (See NOTE below)

Enter the precise cell constant from the certiﬁ cate provided with your sensor or from the information label on the sensor if CUST (custom) cell constant is selected.

CH 2 COND/RES

COND UNITS

CH 2 COND/RES

0.50

TDS FACTOR

CH2 COND/RES

°F

TEMP UNITS

CH2 COND/RES

AVERAGE

OFF

CH2 COND/RES

TEMP COMP

LINEAR

CH 2 COND/RES

2.0

ADJ TEMP COMP

Select S, mS, PPM, PPB, KOhm, or MOhm. Default = S. NOTE: In USP Relay Mode, TEMP COMP must be set to NONE and Unit Of Measure must be set to S.

If PPM or PPB units are selected, a TDS factor for converting total dissolved solids is required. Default = 0.50

Select °F or °C. Default = Determined by the SELECT UNITS screen menu. Metric = °C, U.S. Customary = °F.

Dampens display, output and relay response rates. Select Low, Med, High, OFF. (See discussion in Appendix, page 50). Default = OFF.

Select temperature compensation (NONE, LINEAR, PURE H2O). Default = LINEAR. NOTE: In USP Relay Mode in Conductivity, Relay Source must be set to COND, TEMP COMP must be set to NONE and Unit Of Measure must be set to S.

Adjusted the % of temperature compensation. Maximum slope setting is 9.99 % per ºC. Default = 2.0 (If Temperature Compensation setting is NONE, this item will not be displayed)

CH2 COND/RES

TYPE

COND/RES

Current channel type is listed. Manually change channel type to match sensor type if sensor is not found by S

L search. Default = FACTORY, S3L sensors will automatically be found by transmitter. All other sensors must be manually set.

Factory-Set Span:

0.01 cell (2819, 2839) ......... 0 to 100 S

0.10 cell (2820, 2840) ......... 0 to 1000 S

1.0 cell (2821, 2841) ........... 0 to 10,000 S

10.0 cell (2822, 2842) ......... 0 to 200,000 S

20.0 cell (2823) ................... 0 to 400,000 S

NOTE: If using a 2850 Conductivity/Resistivity Sensor Electronics in conjunction with your 9950, the 2850 must be set for either the custom cell constant or the actual probe cell constant and the 9950 set for a 1.0 cell constant.

9950 Transmitter

NOTE: Relay will activate if USP limit is exceeded, Temperature Comp is set to Linear or Pure Water, Conductivity Measurement is NOT in uS, or if the Conductivity is reporting a measurement error.

Page 37

Pressure

VIEW Mode Menu

CH1

7.0

77.0

0.0

CH2

4.0

99.0

0.0

Displays the pressure reading. This is the normal display and does not time out.

PSI

°F

10.0

PSI

°F

10.0

PRESSURE Setup Checklist

1. Make sure PRESSURE sensor type is selected (see System Setup Menu, page 8).

2. If LOOP is used, set the minimum and maximum 4 to 20 mA setpoints.

3. Set Units of Measurement (PSI, BAR, KPa).

4. Set Last Cal Date and initials.

5. If applicable, set up relay functions for your application.

90.0

0.0

89.0

0.0

CH1 PRESSURE

0.0

CH2 PRESSURE

0.0

CAL Menu

CH 2 PRESSURE

HOLD OUTPUTS

CH 2 PRESSURE

SET ZERO

CH 2 PRESSURE

90.0

89.0

OFF

PSI

10.0

PSI

10.0

PSI

10.0

PSI

10.0

View Measurement 2 displays primary value in large type. This screen does not time out.

View Measurement 3 displays the primary value and the channel name. This screen does not time out.

With process pressure at zero, set zero point for measurement.

Calibrate pressure reading to external reference. Provides a maximum 5 psi offset.

SE SET PRESSUREELL

CH 2 PRESSURE

Resets calibration to factory default. After pressing , select YES/NO.

RESET CAL ->

CH2 ORP

LAST CAL

12-31-2015 XX

Enter date of calibration (MM-DD-YYYY) and initials of calibrator (XX)

9950 Transmitter

Page 38

Pressure

INPUT Menu

CHANNEL 2

NAME

PRESSURE

CH 2 PRESSURE

PSI

PRESS UNITS

CH 2 PRESSURE

AVERAGE

CUST CEOFFL CONST

CH 2 PRESSURE

TYPE

PRESSURE

If desired, a custom name can be entered. Enter 17-character string. Default = PRESSURE

Enter units of pressure measurement. Select PSI, BAR, or KPa. Default = Determined by the SELECT UNITS screen menu. Metric = Bar, U.S. Customary = PSI.

Dampens display, output and relay response rates. Select: Low, Med, High, OFF (see discussion in Appendix, page 50). Default = OFF. Signet strongly recommends leaving averaging OFF for pH and pressure measurements

Current channel type is listed. Manually change channel type to match sensor type if sensor is not found by S

L search. Default = FACTORY, S3L sensors will automatically be found by transmitter. All other sensors must be manually set.

9950 Transmitter

Page 39

Level / Volume

VIEW Mode Menu

CH1

25.0

78.5

0.0000

CH2

20.0

99.0

0.0000

Displays the level value and the volume below. This is the normal display and does not time out.

10.000

0.0000

CH1 LEVEL

0.0000

CH2 LEVEL

0.0000

25.0

20.0

25.0

42.0

GAL

10.000

GAL

10.000

View Measurement 2 displays primary value in large type. This screen does not time out.

View Measurement 3 displays the primary value and the channel name. This screen does not time out.

CAL Menu

LEVEL/VOLUME Setup Checklist

1. Make sure LEVEL/VOLUME sensor type is selected (see System Setup Menu, page 8).

2. Select Main Measurement (Level or Volume).

3. Set Units of Measurement for LEVEL display (FT, IN, M, CM).

4. If desired, set Units of Measurement for VOLUME display.

5. Set the minimum and maximum 4 to 20 mA setpoints.

6. Set Speciﬁ c Gravity.

7. Set Sensor Offset.

8. If VOLUME is used, set Shape.

9. Set Last Cal Date and initials.

10. If applicable, set up relay functions for your application.

CH 2 LEVEL

HOLD OUTPUTS

CH 2 LEVEL

LEVEL CAL

CH 2 LEVEL

REURESET CALELL

CH 2 LEVEL

CH2 LEVEL

LAST CAL

pH STANDARD ->

12-31-2015 XX

INPUT Menu

CHANNEL 2

NAME

LEVEL

OFF

SET

Shows SET LEVEL on bottom line. When user presses any key, the live value is frozen and the user edits that value. Returns either GOOD CAL or LEVEL OFFSET TOO LARGE.

Resets calibration to factory default. After pressing , select YES/NO.

Enter date of calibration (MM-DD-YYYY) and initials of calibrator (XX)

If desired, a custom name can be entered. Enter 17-character string. Default = LEVEL

CH 2 LEVEL

MAIN MEAS

LEVEL

Select between Level or Volume. Default = LEVEL.

9950 Transmitter

Page 40

Level / Volume

INPUT Menu

CH 2 LEVEL

C LEVEL UNITSL

Select unit of measure for LEVEL display (FT, IN, M, CM). Default = Determined by the SELECT UNITS screen menu. Metric = M, U.S. Customary = FT.

CH 2 LEVEL

DISP LEVEL AS %

OFF

CH2 LEVEL

VOLUME UNITS

CH 2 LEVEL

DISP VOL AS %

OFF

CH 2 LEVEL

1.00

SPEC GRAVITYS

CH 2 LEVEL

0.00

SENSOR OFFSET

CH2 LEVEL

AVERAGE

OFF

ON = Measurement will be displayed as a percentage of full scale. OFF = Measurement will be displayed in unit of measure selected in previous setting. Default = OFF.

Select unit of measure for VOLUME display (GAL, L, Lb, KG, FT

3,, in3

, M3, cm3).

Default = Determined by the SELECT UNITS screen menu. Metric = L, U.S. Customary = GAL.

ON = Measurement will be displayed as a percentage of full scale. OFF = Measurement will be displayed in unit of measure selected in previous setting. Default = OFF.

Enter the speciﬁ c gravity of the ﬂ uid at normal operating temperature. Default = 1.0000 (water).

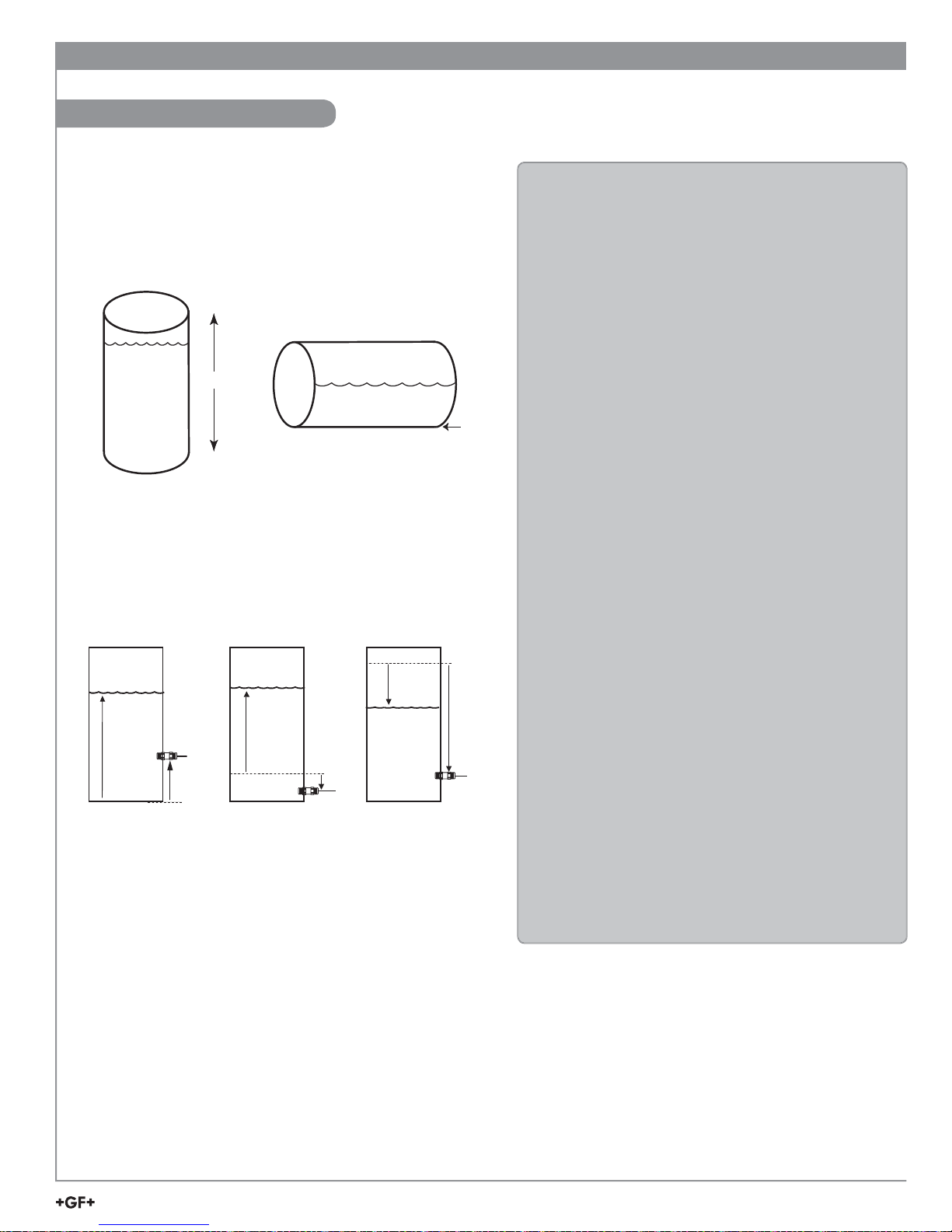

Enter the distance from sensor location to the Zero reference point in the vessel (see discussion in Appendix). Displayed in units of measure chosen in LEVEL UNITS. Default = 0.00.

Dampens display, output and relay response rates. Select Low, Med, High, OFF (See discussion in Appendix, page 50). Default = OFF

CH 2 LEVEL

VERT CYLINDER

SHAPE

2.00

TANK DIAMETER

Select the shape of the vessel where the level sensor is located. VERT CYLINDER, HORIZ CYLINDER, RECTANGLE, or CUSTOM. (To deﬁ ne a custom tank shape, see Appendix page 51, Deﬁ ning a Custom Tank.) Default = VERT CYLINDER

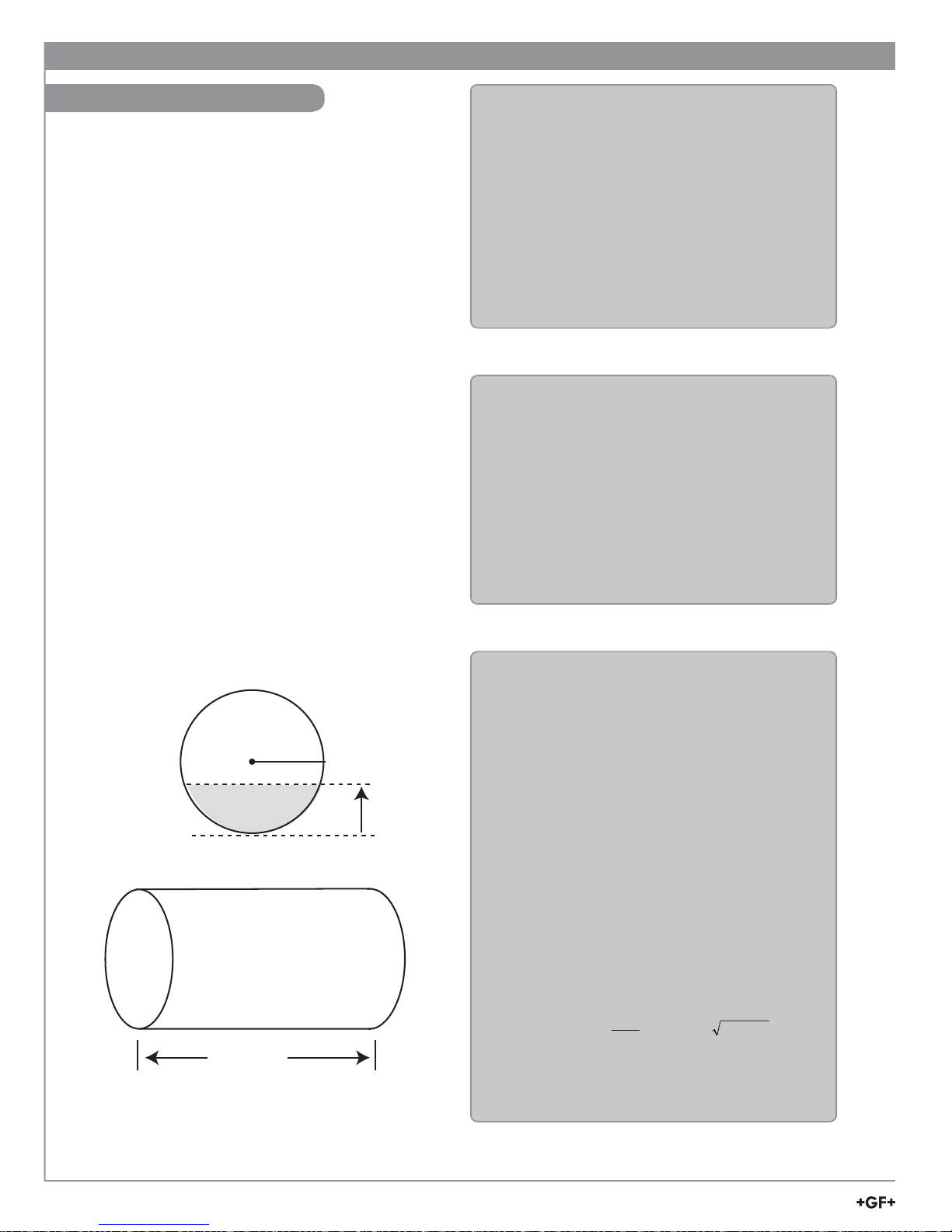

If VERT CYLINDER or HORIZ CYLINDER is selected, enter the diameter of the cylinder. Displayed in units of measure chosen in LEVEL UNITS. Default = 2.0000

9950 Transmitter

Page 41

Level / Volume

INPUT Menu

10.00

TANK LENGTH

10.0

TANK WIDTH

CH 2 LEVEL

NUM CUST POINTS

Set length of tank. Default = 10.00

Set width of tank Default = 10.00

If Custom shape is selected, enter the number of measurement points to be used to deﬁ ne the vessel shape (see Level and Volume Calculation in Custom Shaped Vessels discussion, page 52). Minimum 4 points, maximum 32 points. A larger number of points improves accuracy.

CH 2 LEVEL

MANUAL

LEVEL CALC

0.00

POINT X LEVEL

0.00

POINT X VOL

CHANNEL 2

TYPE

LEVEL

Select (AUTO, MANUAL). Manual allows you to edit both the Level and the corresponding Volume for your custom tank. Automatic allows you to edit the Volume measurement (while displaying an automatically calculated Level value).

Where (X) is number of custom points used to calculate level.

Current channel type is listed. Manually change channel type to match sensor type if sensor is not found by S

L search. Default = FACTORY, S3L sensors will automatically be found by transmitter. All other sensors must be manually set.

9950 Transmitter

Page 42

Temperature

VIEW Mode Menu

CH1

0.00

CH2

113.0

9999.9

89.0

GPMS

100.00

9999.9

0.00

Displays the temperature value. This is the normal display and does not time out.

100.00

°F

TEMPERATURE Setup Checklist

1. Make sure TEMPERATURE sensor type is selected (see System Setup Menu, page 8).

2. If LOOP is used, set the minimum and maximum 4 to 20 mA setpoints.

3. Set Units of Measurement (°C or °F).

4. Set Last Cal Date and initials.

5. If applicable, set up relay functions for your application.

113.0

0.00

89.0

0.00

113.0

CH1 TEMPERATURE

0.00

CH2 TEMPERATURE

0.00

CAL Menu

CH1 TEMPERATURE

HOLD OUTPUTS

CH1 TEMPERATURE

CSET TEMP->NT

CH1 TEMPERATURE

RESET CAL->T

CH1 TEMPERATURE

8 9.0

OFF

°F

100.00

°F

100.00

View Measurement 2 displays primary value in large type. This screen does not time out.

°F

View Measurement 3 displays the primary value and the channel name. This screen does not time out.

Provides a maximum 20 °C offset to match to a known standard (external reference).

Resets Temperature Calibration to factory settings. After pressing , select YES/NO.

LAST CAL

12-31-2015 XX

Enter date of calibration (MM-DD-YYYY) and initials of calibrator (XX)

INPUT Menu

CHANNEL 1

If desired, a custom name can be entered.

NAMEF

TEMPERATURE

CH1 TEMPERATURE

AV°FFE°°

TEMP UNITS

CH1 TEMPERATURE

AVERAGE

OFF

CH1 TEMPERATURE

TYPE

TEMPERATURE

9950 Transmitter

Enter 17-character string. Default = TEMPERATURE

Select °F or °C. Default = Determined by the SELECT UNITS screen menu. Metric = °C, U.S. Customary = °F.

Dampens display, output and relay response rates. Select Low, Med, High, OFF. (See discussion in Appendix, page 50). Default = OFF.

Current channel type is listed. Manually change channel type to match sensor type if sensor is not found by S

L search. Default = FACTORY, S3L sensors will automatically be found by transmitter. All other sensors must be manually set.

Page 43

4 to 20 mA

VIEW Mode Menu

CH1

50.0

CUSTOM LABEL

0.0

CH2

53.0

CUSTOM LABEL

0.0

Displays the input value. This is the normal display and does not time out.

UNIT

5.0

UNIT

5.0

4 to 20 mA Setup Checklist

1. Make sure 4 to 20 mA INPUT sensor type is selected (see System Setup Menu, page 8).

2. Set 4 mA value (refer to your 3rd-party sensor manual).

3. Set 20 mA value (refer to your 3rd-party sensor manual).

4. If LOOP is used, set the minimum and maximum 4 to 20 mA setpoints.

5. Set Last Cal Date and initials.

6. If applicable, set up relay functions for your application.

0.0

CH1 4-20 mA INPUT

0.0

CH2 4-20 mA INPUT

0.0

4-20 mA INPUT

CH1 12.00 mAh

CH2 4.50 mAh

CAL Menu

CH2 4-20mA INPUT

HOLD OUTPUTS

CH2 4-20mA INPUT

CSET STANDARDN-

CH2 4-20mA INPUT

SET SLOPEL

CH2 4-20mA INPUT

50.0

48.9

50.0

32.0

OFF

UNIT

5.0

UNIT

5.0

UNIT

5.0

UNIT

5.0

View Measurement 2 displays primary value in large type. This screen does not time out.

View Measurement 3 displays the primary value and the channel name. This screen does not time out.

4 to 20 mA input live readout.

ON prevents relays from activating while making adjustments, and relays in PULSE mode will suspend pulsing. Output is held until the user exits the CAL menu. Select OFF/ON. Default = OFF.

Applies a linear offset to the measurement. For single point calibrations, assign the average value of your process to STANDARD. For two-point calibrations, assign the min or max value of your process to STANDARD.

Applies a slope to the measurement. The SLOPE is used for two-point calibrations along with the STANDARD above. If you assigned the min value of your process to the STANDARD, then assign the max value to the SLOPE. Else, assign the min value to the SLOPE. The slope and standard values must be at least 0.1 units apart.

Resets Standard and Slope calibration to factory settings. After pressing , select YES/NO.

RESET CAL

CH2 4-20mA INPUT

LAST CALF

12-31-2015 XX

Enter date of calibration (MM-DD-YYYY) and initials of calibrator (XX).

9950 Transmitter

Page 44

4 to 20 mA

INPUT Menu

CHANNEL 2

AVNAMEFE°°

4-20mA INPUT

CH2 4-20mA INPUT

UNIT

SENSOR UNITS

CH2 4-20 mA INPUT

0.00

4 mA VALUE

CH2 4-20mA INPUT

100.00

20 mA VALUE

CH2 4-20mA INPUT

AVERAGE

COFF

CH2 4-20mA INPUT

TYPE

4-20mA INPUTST

If desired, a custom name can be entered. Enter 17-character string. Default = 4-20 mA

Enter up to 4 characters describing unit of measure. Default = UNIT.

Measurement value of your sensor when its output is 4.00 mA.

Measurement value of your sensor when its output is 20.00 mA.

Dampens display, output and relay response rates. Select Low, Med, High, OFF. (See discussion in Appendix, page 50). Default = OFF

Current channel type is listed. Manually change type to match sensor type if sensor is not found by

L search.

S Default - FACTORY, S3L sensors will automatically be found by transmitter. All other sensors must be manually set.

To program the 9950 for Dissolved Oxygen measurement using the 3-2610-31 sensor and 8058 iGo Signal Converter:

From the 4 to 20 mA View Mode display:

1. Press and hold the ENTER key for 2 seconds.

2. Press the  key to select the INPUT menu.

3. The ﬁ rst item is NAME. Press the  key to select correct channel (CH1 or CH2), change the displayed name from

“4-20 mA"INPUT” to a more descriptive name (e.g., DO) and press ENTER when done.

4. Press  to select SENSOR UNIT menu item.

5. Press  to change the label from UNIT to MG/L and press ENTER.

6. Press  and ensure the 4 mA VALUE is set to 0.0000.

7. Press  and change the 20 mA VALUE from 5.0000 to 20.000 and press ENTER.

8. Press both  and  simultaneously to return to the Menu.

9. Press  to select the LOOP menu and press ENTER. Set to source Channel x Primary.

10. Set the 4 mA SETPOINT to your desired value. The 2610 is factory set for a 0 to 20 mg/L output. Press ENTER when done.

11. Press the  key to select the 20 mA SETPOINT and set to your desired value. The 2610 is factory set for a 0 to 20 mg/L

output. Press ENTER when done.

12. Press both  and  simultaneously to return to the Menu.

13. Press  twice to select the OPTION menu and press ENTER.

14. Press  twice to select correct channel SET BAR MIN. Change this option if desired. The 2610 is factory set for a

0 to 20 mg/L output. Press ENTER on correct channel when done.

15. Press  to select SET BAR MAX. Change this option if desired. The 2610 is factory set for a 0 to 20 mg/L output. Press

ENTER when done.

16. Press both  and  simultaneously to return to the Menu.

17. ENTER the other menus and set the unit as desired for your application.

18. Press both  and  simultaneously to return to the View Menu.

9950 Transmitter

Page 45

Salinity

VIEW Mode Menu

CH1

81.9 77

0.0000

CH2

85.9 76

0.0000

Displays the value and the temperature below. This is the normal display and does not time out.

PPT

°F

80.000

PPT

°F

80.000

Setup Checklist

1. Make sure SALINITY sensor type is selected (see System Setup Menu, page 8).

2. Set Cell Constant.

3. Set the Temperature Units (°C or °F).

4. If LOOP is used, set the minimum and maximum 4 to 20 mA setpoints.

5. Set Last Cal Date and initials.

6. Select source for Relay output (SAL or TEMP).

7. If applicable, set up relay functions for your application.

81.9

0.0000

77.0

0.0000

CH1 SALINITY

0.0000

CH2 SALINITY

0.0000

CONDUCTIVITY

CH1 25 mS

CAL Menu

CH 2 SALINITY

HOLD OUTPUTS

CH 2 SALINITY

CSALINITYS

81.9

50.0

OFF

SET

PPT

80.00 0

PPT

80.00 0

PPT

80.00 0

PPT

80.00 0

View Measurement 2 displays primary value in large type. This screen does not time out.

View Measurement 3 displays the primary value and the channel name. This screen does not time out.

Displays the equivalent conductivity value in millisiemens.

Manually set value to match to a known standard (external reference).

CH 2 SALINITY

SET

CTEMPERATUREL

CH 2 SALINITY

Provides a maximum 20 °C offset to match to a known standard (external reference).

Resets Salinity calibration to factory settings. After pressing , select YES/NO.

RESET SAL CAL ->

CH 2 SALINITY

°NF

RESET TEMPCAL

CH 2 SALINITY

AVERLAST CALAGE

12-31-2015 XX

Resets Temperature calibration to factory settings. After pressing , select YES/NO.

Enter date of calibration (MM-DD-YYYY) and initials of calibrator (XX)

9950 Transmitter

Page 46

Salinity

INPUT Menu

CHANNEL 2

NAME

SALINITY

CH 2 SALINITY

20.0

CCELL CONSTANT

CH 2 DO

50.0000

CUST CELL CONSTT

CH2 SALINITY

°F

TEMP UNITS

CH 2 SALINITY

AVERAGE

COFF

CH 2 SALINITY

TEMP COMP

LINEARA

If desired, a custom name can be entered. Enter 17-character string. Default = SALINITY

Enter cell constant of sensor. Select 20.0, 10.0, 1.0 or CUSTOM. Default = 20.

Enter the precise cell constant from the certiﬁ cate provided with your sensor or from the information label on the sensor. Shown if CELL CONSTANT = CUSTOM.

Select °F or °C. Default = Determined by the SELECT UNITS screen menu. Metric = °C, U.S. Customary = °F.

Dampens display, output and relay response rates. Select Low, Med, High, OFF. (See discussion in Appendix, page 50). Default = OFF.

Select temperature compensation (NONE, LINEAR). Default = LINEAR.

CH 2 SALINITY

2.00

ADJ TEMP COMP

CH 2 SALINITY

TYPE

SALINITY

For LINEAR temperature compensation, select a % per ºC slope. Maximum slope setting is

9.99 % per ºC. (If Temperature Compensation setting is NONE, this item will not be displayed.) Default = 2.00

Current channel type is listed. Manually change channel type to match sensor type if sensor is not found by S

L search. Default = FACTORY, S3L sensors will automatically be found by transmitter. All other sensors must be manually set.

9950 Transmitter

Page 47

Dissolved Oxygen

VIEW Mode Menu

CH1

5.0

PPM

20.0

0.00

CH2

10.9

20.00

PPM

20.0

0.00

This is the normal display and does not time out.

5.0

0.00

10.9

0.00

5.0

CH1 DO

0.00

10.9

CH2 DO

0.00

CAP EXPIRATION

°NCH1 00/00/0000F

CH2 00/00/0000

PPM

20.00

PPM

20.00

PPM

20.00

PPM

20.00

View Measurement 2 displays primary value in large type. This screen does not time out.

View Measurement 3 displays the primary value and the channel name. This screen does not time out.

Displays Cap Expiration Date MM-DD-YYYY. If sensor cap is missing, CH# 00/00/0000 will be displayed.

°C

DISSOLVED OXYGEN Setup Checklist (3-2610-41)

2610 wiring on page 4.

1. Make sure DISSOLVED OXYGEN sensor type is selected (see System Setup Menu, page 8).

2. Set Units of Measurement (PPM, %SAT, TOR).

3. Set the Temperature Units (°C or °F).

4. Set Salinity reference value.

5. Set Barometric reference value.

6. If LOOP is used, set the minimum and maximum 4 to 20 mA setpoints.

7. Select source for Relay output (PPM or TEMP).

8. If applicable, set up relay functions for your application.

CAL Menu

CH 2 DO

OFF

HOLD OUTPUTS

CH 2 DO

SET ->

C100 % SOLUTIONS

CH 2 DO

SET ->

C0 % SOLUTIONL

CH 2 DO

RESET DO CAL ->

CHANNEL 2

°NLAST CALF

Allows user to initiate the calibration process. NOTE: Dissolved Oxygen sensors are calibrated at the factory and do not require regular calibration. Press  to begin the calibration process. User will be prompted to place sensor in 100% Solution standard. Press ENTER to save value and establish a calibration point. If a single point calibration is desired press the UP and DOWN keys to exit.

NOTE: 100% calibration must be performed ﬁ rst to allow access to the 0% calibration screen Dissolved Oxygen sensors are calibrated at the factory and do not require regular calibration. Press  to begin the calibration process. User will be prompted to place sensor in 0% Solution standard. Press ENTER to save value and establish a calibration point.

Resets Dissolved Oxygen calibration to factory settings. After pressing , select YES/NO.

Enter date of calibration (MM-DD-YYYY) and initials of calibrator (XX)

12-31-2015 XX

9950 Transmitter

Page 48

Dissolved Oxygen

INPUT Menu

CH2 DO

AVENAMEAGE

CH2 DO

PPM

MEASUREMENT

CH2 DO

0.0

SALINITY (PSU)

CH 2 DO

1013.20

BAROMETRIC

CH 2 DO

°F

TEMP UNITS

CH 2 DO

AVERAGE

C OFFL CONST

If desired, a custom name can be entered. Enter 17-character string. Default = DO

Set the units of measurement: PPM = DO in mg/L; %SAT = DO % saturation; TOR = Oxygen partial pressure. Default = PPM.

Manually set value to match application (0 - 42 PSU). Practical Salinity Units (1 PSU = 1g/kg, or 1 PPT (Parts per Thousand). Fresh water = 0.00 PSU. Default = 0.00

Manually set Barometric value to match application altitude above or below sea level (506.62 - 1114.7 mBAR). Default = 1013.2 (sea level)

Select °F or °C. Default = Determined by the SELECT UNITS screen menu. Metric = °C, U.S. Customary = °F.

Dampens display, output and relay response rates. Select Low, Med, High, OFF. (See discussion in Appendix, page 50). Default = OFF.

CH 2 DO

TYPE

Current channel type is listed. Manually change channel type to match sensor type if sensor is not found

L search.

by S Default = FACTORY, S3L sensors will automatically be found by transmitter. All other sensors must be manually set.

9950 Transmitter

Page 49

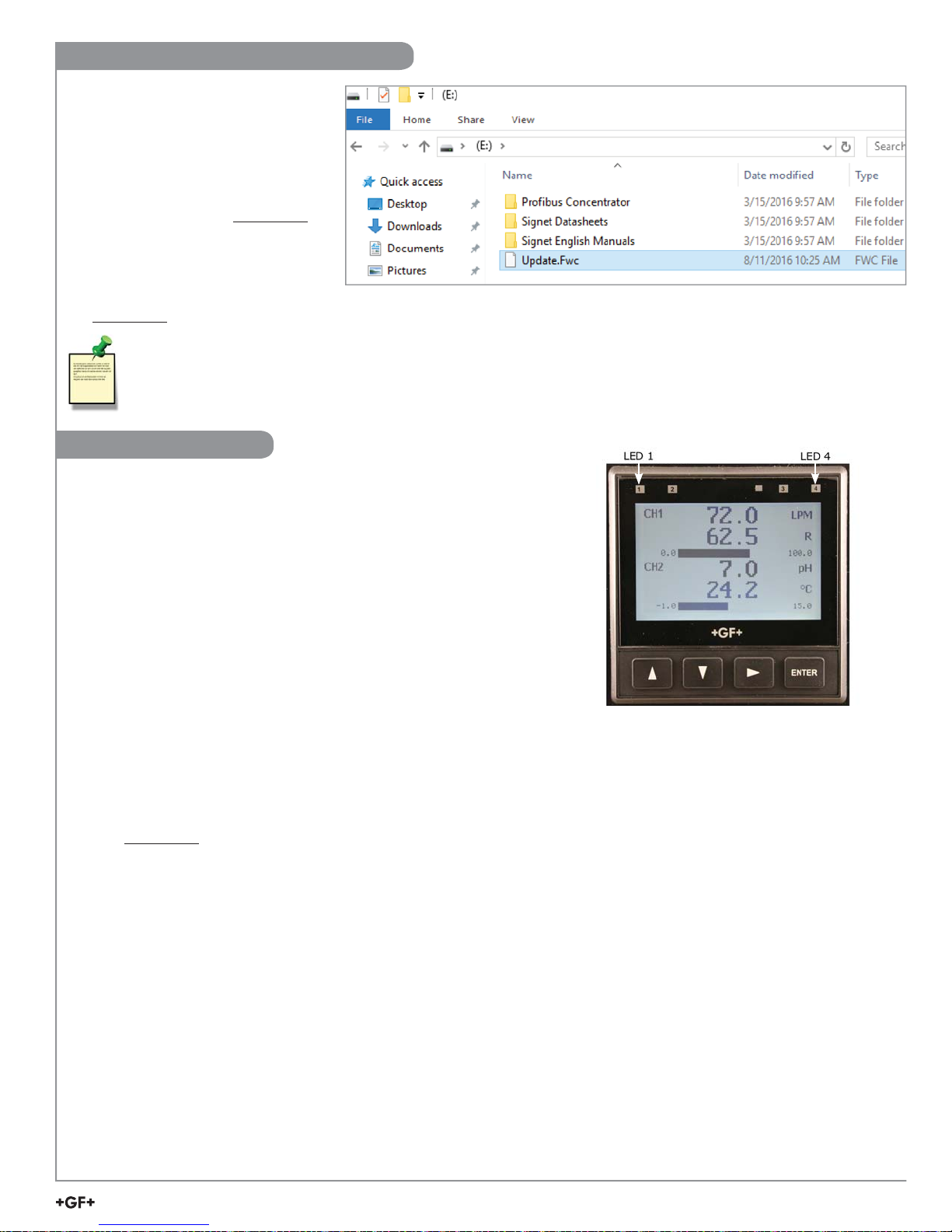

9950 Field Software Upgrade

The 9950 upgrade ﬁ le will be available on the Georg Fischer website. You will need a USB ﬂ ash drive that is formatted, using Microsoft Windows, in either FAT16 or FAT32 format. Do not use exFAT or NTSF formats. These are incompatible with the 9950.

The upgrade ﬁ le is named Update.Fwc. Copy the ﬁ le to the root directory of the Flash Drive. Do not change the name of the ﬁ le or store the ﬁ le in a sub directory on the Flash Drive. The 9950 will only look in the root directory for the speciﬁ c ﬁ le, Update.Fwc.

Important! Do not use a USB extension cable. The USB ﬂ ash drive must be directly connected to the 9950 USB port.

Sample Flash Drive Directory with Update File

Updating the 9950

1. Disconnect power from the 9950.

2. Insert the Flash Drive into the 9950 USB slot.

3. Reconnect power to the 9950.

4. LED 1 on the 9950 will ﬂ ash quickly as the unit searches for a Flash Drive and the correct ﬁ le.

5. When the 9950 detects a Flash Drive and a valid update ﬁ le, LED 2 will slowly ﬂ ash during the update process.

6. The update process takes approximately 30 seconds.

7. After a successful update the 9950 will boot to the normal screen.

8. After a successful update disconnect power, remove USB drive, reconnect

power, review application settings.

Troubleshooting

If, after 10 seconds, the unit boots to the normal screen, the 9950 was unable to ﬁ nd the Flash Drive or the ﬁ le.

a. Please ensure the Flash Drive has been formatted in

either FAT16 or FAT32 format, the upgrade ﬁ le is in the root directory of the Flash Drive, and the ﬁ le name is Update.Fwc. You may also need to try a different ﬂ ash drive.

b. If LED 4 on the 9950 is continuously illuminated, this

indicates either the ﬁ le found on the Flash Drive is corrupted, or power was interrupted during the upgrade process.

• Remove power from the 9950.

• Remove the Flash Drive.

• Apply power to the 9950.

c. If the 9950 starts normally, the ﬁ le on the Flash Drive was

corrupted.

• Download a new copy of the update ﬁ le and copy it to the Flash Drive.

• Repeat the update instruction with the new ﬁ le.

d. If the 9950 starts up and stops with LED 4 on and a

blank screen, this indicates that the update process was interrupted and the 9950 cannot start.

• Disconnect power from the 9950.

• Reattach the Flash Drive to the 9950.

• Repeat the upgrade procedure.

e. If the 9950 still does not respond after the second

upgrade attempt,

• Download a new copy of the update ﬁ le and copy it to a different Flash Drive.

• Repeat the update instruction with the new Flash Drive.

9950 Transmitter

Page 50

Troubleshooting

Condition Possible Causes Suggested Solution

Incorrect sensor installed on channel Connect correct sensor to channel

Wrong Sensor

Sensor Type set incorrectly in 9950

Wrong Code Wrong password entered Enter correct password (see page 20)

K-Factor Out Of Range K-Factors cannot be set to 0 Enter K-Factor from 0.0001 to 99999

Set correct sensor TYPE in INPUT menu (see page 8)

Backlight inoperative

Relays inoperative

Relay always on

– – – – –

Backlight turned OFF (NOTE: Backlight can turn off automatically in AUTO mode)

Set BACKLIGHT to LOW, HIGH, AUTO LOW or AUTO HIGH in OPTION menu.

Relay Module installed incorrectly Remove and reseat relay module

Wrong settings in RELAY menu

Use test relay to verify relay operation then check relay settings.

Hysteresis value too large Change the hysteresis value

Defective Relay Module Replace Relay Module

Measurement exceeds display capability

Increase Flow units time base

Change unit of measure

9950 Transmitter

Page 51

Troubleshooting

Condition Possible Causes Suggested Solution

No Probe

(pH/ORP only)

No Sensor

(Flow, Cond/Res, Press, Level, Temp, 4-20 mA, Sal, Batch, DO)

Check Preamp

Backlight of Screen is RED

Missing Cap

Replace Cap

Broken Glass

9950 "cannot communicate" to sensor

• Check wiring

Missing sensor or bad temperature

• Install or replace sensor

element.

• Check wiring

9950 "cannot communicate" to sensor

• Install or replace sensor

9950 "cannot communicate" to the preamp

Check wiring or replace preamp

Error is detected Correct error condition

Dissolved Oxygen sensor is missing the sensor cap.

Dissolved Oxygen sensor cap has expired.

pH sensor glass has been damaged, causing very low impedance.

Reinstall Dissolved Oxygen sensor cap

Install new Dissolved Oxygen sensor cap

Visually inspect pH/ORP sensor for cracked and/or chipped glass.

Hi Impedance

Check Cal

(pH/ORP only)

The measured pH sensor impedance is above the high impedance level.

Visually inspect the pH electrode and clean if necessary.

Electrode could be in air. Ensure electrode is submersed at all times.

Perform pH EasyCal (pg. 30 & 56)

Perform ORP EasyCal (pg. 32 & 58)

Slope and/or Offset are out of range

Set pH Slope or Standard (pg. 30 & 57)

Set ORP Slope or Standard (pg. 32 & 59)

Reset pH CAL (pg. 31)

Reset ORP CAL (pg. 33)

9950 Transmitter

Page 52

Appendix

Averaging

NO AVERAGING, NO SENSITIVITY

With SENSITIVITY set to 0 (zero) and AVERAGING set to OFF (0 seconds), the 9950 responds immediately to

every shift in the process. The dashed red line represents the actual output of the sensor in varying conditions.

AVERAGING ONLY

With SENSITIVITY still set to zero and AVERAGING set to MED or HIGH the rate is stabilized, but a sharp change

in rate is not represented for 8 to 32 seconds or longer.

AVERAGING AND SENSITIVITY

With SENSITIVITY at 50 and AVERAGING set to MED or HIGH, the rate is stabilized, while a sudden shift in ﬂ ow

rate exceeding 50 units of measure will be displayed immediately.

NOTE: The SENSITIVITY function applies only to FLOW.

The SENSITIVITY function has no effect if the AVERAGING function is set to OFF.

Averaging is different depending on the measurement type. Seconds to 99.5% of Final Value for Low, Med, and High are:

Sensor Type Low Medium High

Flow 10 40 120

pH 2 4 12

ORP 2 4 12

Cond/Res/Salinity 4 6 12

Pressure 4 10 30

Level/Volume 4 10 30

Temperature 3 10 30

5 s0 s 10 s 15 s 20 s 25 s 30 s 35 s

4 to 20 mA 4 10 30

Dissolved Oxygen 4 6 12

LOG Current Loop Output

In Conductivity/Resistivity, the logarithmic (LOG) mode can be used when a very large measurement range is required, yet high resolution is needed at the low end (e.g. in a clean-in-place application where a high-resolution conductivity reading is needed at the low end, while a very high conductivity reading is needed when a cleaning cycle is in progress).

Only two parameters need to be set up, the starting or base conductivity value (4 mA SETPOINT) and the ending or maximum conductivity value (20 mA SETPOINT). The 4 mA setpoint may be larger than the 20 mA point (reverse span).

What equation should be put in the PLC?

Conductivity = 10

n = (mA input

If only ﬁ xed thresholds are required, they can be calculated in mA. Then the mA value can be checked directly.

Inside the 9950 the following equation is used:

(Log

mA =

NOTE:

If ADJUST 4 mA or ADJUST 20 mA is used, the mA value can be affected. To prevent any problems the adjust function should only be used to get exactly 4.0 and 20.0 at the PLC. The 9950 is accurate and the adjust functions are only needed to compensate for an offset due to noise or a not-so-accurate PLC input card.

The error value of either 3.6 mA or 22 mA should be tested ﬁ rst before applying the conductivity equation.

–

4.0)

Conductivity – Log

(Log10 20 mA setpnt – Log10 4 mA setpnt)

16 mA

4 mA setpnt)

(Log10 20 mA setpnt – Log10 4 mA setpnt)

+ Log10 4 mA setpnt

+ 4

9950 Transmitter

Page 53

Custom Measurements

Appendix

Deﬁ ning a Custom Tank

1. Determine where the level measurement should start. This is the zero reference point (Z). Review the diagram to help select the best option.

2. Determine where you will mount the sensor. This is S

. Consult the Sensor manual for

LOC

information regarding the best location for the sensor.

3. Measure the distance between Z and S

LOC

This is O(ffset).

4. Enter the Offset into the INPUT Mode menu.

For most vessels, the zero reference point (Z) may be designated as any height in the vessel.

For horizontal cylinders only, the zero reference point MUST be the lowest point in the vessel.

L < 0

L > 0

Loc

O(ffset) > 0

Z(ero)

L > 0

O(ffset) < 0

Z(ero)

Loc

Z(ero)

O(ffset) < 0

Loc

Zero reference point (Z):

The point in the vessel where you want the 9950 to display zero (0 ft, 0 gal. etc.).

• If Z is located below the ﬂ uid surface, the 9950 will display a positive level measurement.

• If Z is located above the ﬂ uid surface, the 9950 will display a negative level measurement.

Sensor Location point (S

LOC

The point on the level sensor where the measurement is taken.

• The pressure sensor measures from the center line of the diaphragm.

Offset (O):

The distance from Z to S

LOC

• Enter a positive value in the Calibrate menu if the sensor is located above Z.

• Enter a negative value in the Calibrate menu if the sensor is located below Z.

• Enter 0 in the Calibrate menu if the sensor is located at Z.

Level (L):

The distance from Z to surface of ﬂ uid (displayed as “Level” by 9950).

9950 Transmitter

Page 54

Custom Measurements

Level and Volume Calculation in Custom Shaped Vessels

In the LEVEL/VOLUME menu, if Custom Shape is selected in the INPUT menu, you can deﬁ ne from three to ten Custom Points to establish the relationship of level to volume in the vessel.

• Select Manual Level Measurement mode to edit both level and volume data (dry conﬁ guration).

• Select Automatic Level Measurement mode to accept the sensor measurement of the Level, while you assign a volumetric value to each custom point (wet conﬁ guration).

• Enter from 4 to 32 custom points to link level and volume values.

• The ﬁ rst custom point must be the lowest ﬂ uid level in the vessel. Each successive point must be greater than the preceding point.

• The last point must be equal to or greater than the highest ﬂ uid level in the vessel.

• A custom point should be located at all transition points in the vessel shape (for example, at custom point #9, where the shape changes from a cylinder to a cone).

• The more complex sections should be deﬁ ned with more points. NOTE: The conical section of the illustration has been deﬁ ned by custom points 1 through 9. More complex tanks will require additional points to ensure an accurate calculation.

• Simpler sections require fewer deﬁ ning points.

NOTE: A cylinder requires only custom points 9 and 10.

Appendix

Custom point #10

Custom point #9

Custom point #8

Custom point #7

Custom point #6

Custom point #5

Custom point #4

Custom point #3

Custom point #2

Custom point #1

3000 gal.

1300 gal.

1000 gal.

700 gal.

380 gal.

250 gal.

160 gal.

118 gal.

45 gal.

0 gal.

9950 Transmitter

Page 55

Appendix

Custom Measurements

In the LEVEL/VOLUME INPUT menu (see page 40), if SHAPE is set to HORIZ CYLINDER, RECTANGLE or CUSTOM, the tank shape can be deﬁ ned with the following screens:

CH 2 LEVEL

NUM CUST POINTS

CH1 LEVEL

AUTO

LEVEL CALC

0.00

POINT 1 LEVEL

GAL

0.00

POINT 1 VOL

0.00

POINT X LEVEL

Select (AUTO, MAN). Manual allows you to edit both the Level and the corresponding Volume for your custom tank. Automatic allows you to edit the Volume measurement (while displaying an automatically calculated Level value). See example below.

Enter the Level (if MAN measurement is selected) at each custom point in your vessel. If AUTO is selected, indication will read actual tank level in LEVEL UNITS at that point in your tank.

Set the Volume (if manual measurement is selected) at each custom point in your vessel.

Where (X) is number of custom points used to calculate level.

0.00

POINT X VOL

Where (X) is number of custom points used to calculate volume.

To set AUTO LEVEL MEAS value:

1. Add a known quantity of ﬂ uid into a tank.

2. POINT 1 LEVEL indicates actual tank level.

3. Press  for POINT 1 VOL. Press  to enter quantity of ﬂ uid (in VOLUME UNITS) added to the tank in step 1. Press

ENTER.

4. Repeat for each point set in NUM CUST PNTS. For example, in a 25-gallon conical tank set for three custom points:

1. Add 10 gallons of ﬂ uid into the conical tank. POINT 1 LEVEL will indicate actual tank level.

2. In POINT 1 VOL, enter 10.

3. Add another 10 gallons into the tank. POINT 2 LEVEL will indicate actual tank level.

4. In POINT 2 VOL, enter 10.

5. Add the ﬁ nal 5 gallons into the tank. POINT 3 LEVEL will indicate actual tank level.

6. In POINT 3 VOL, enter 5.

9950 Transmitter

Page 56

()

⎥ ⎦

⎤

⎢ ⎣

⎡

−×⎟⎟

⎠

⎞

⎜

⎜ ⎝

⎛

−−

⎟ ⎠

⎞

⎜ ⎝

⎛

−

××=

−

2cos

hrhhr

Custom Measurements

Technical Reference for Level, Volume, and Mass Measurement

The 9950 can automatically perform level, volume and mass calculations:

• Pressure-to-level

• Mass

• Volume

Appendix

Pressure to level conversion:

Level = P ÷ (SG × D) where P = Pressure SG = Speciﬁ c Gravity of ﬂ uid

D = Density of water

With pressure in psi:

Level (meters) = 0.703069 × (P/SG)

With pressure in bar:

Level (meters) = 1.019715 × (P/SG)

Mass Conversion

m = D × SG × V

where m = mass of ﬂ uid D = density of water = 1000 kg/m

SG = Speciﬁ c Gravity of ﬂ uid V = Volume of ﬂ uid (m3)

m (kg) = 1000 × SG × V

Volume Calculations

Vertical cylinder:

V = π × r where r = radius of cylinder

× h

h = height of ﬂ uid

Rectangular vessel:

V = w × l × h

where w = width l = length h = height

Length

9950 Transmitter

Horizontal cylinder:

V = A × L

where A = area of segment L = length of vessel

where r = radius of vessel

h = height of segment

Page 57

Calibration Procedures - pH

EasyCal Procedure - pH

EasyCal is the fastest and simplest periodic calibration method. Requires prepared 4, 7 or 10 pH buffers (any two).

Appendix

To Calibrate: Response:

PLACE SENSOR

+04.3

AM/PM

IN BUFFER 1

START <ENTER>

Place electrode tip in first pH buffer. pH 4.0 = 177 mV pH 7.0 = 0 mV pH 10 = -177 mV Limit ± 50 mV

PLACE SENSOR

EASY 177.10 mV

Allow for stabilization

+06.7

AM/PM

IN BUFFER 2

START <ENTER>

Place electrode tip in second pH buffer.

To exit menus and return to

9,(:SUHVVŸDQGź

buttons at the same time.

EASY 0.00 mV

Allow for stabilization

NOTE: The solutions can be used for calibrating more than one sensor; however, the solution must remain free of debris and must not be diluted by rinse water from previous calibrations.

4.00

30s

30 seconds

7.00

30s

30 seconds

To Accept:

EASY 177.10 mV

ENTER

EASY 0.00 mV

ENTER

CH pH

SAVING

to accept

CH 1 pH

SAVING

to accept second buffer calibration

• This procedure simpliﬁ es pH calibration using standard 4.0, 7.0, 10.0 pH buffers only. If these pH buffers are not available, use MANUAL CAL and calibrate the system using the STANDARD and SLOPE settings.

• Set sensor temperature in the CAL Mode before performing EasyCal for new electrode installations.

Theoretical mV values

pH @ 25 °C mV

2 +296

3 +237

4 +177

5+118

6 +59

7+0

8 -59

9-118

10 -177

11 -237

12 -296

9950 Transmitter

Page 58

Appendix

Calibration Procedures - pH

Manual Calibration Procedure - pH

Requires prepared buffers. System calibration is possible with two known pH solutions within 0 to 14 pH (buffers of pH 4.01, 7, or 10 are recommended, but use a buffer close to your own process value.)

To Set Standard: To Change Reading:

CH2 pH

CAL

AT INSTRUMENT

pH STANDARD

Place electrode tip in pH buffer.

To Set Slope:

CH2 pH

SET

pH STANDARD

Place electrode tip in pH buffer two pH units different than standard.

CH2 pH

SET

CH2 pH

SET

pH SLOPE

30s

Allow for stabilization 30 seconds to several minutes

30s

Allow for stabilization 30 seconds to several minutes

CH2 pH

ENTER

to accept

CH2 pH

ENTER

to accept

3.98

7.02

+04.01

AM/PM

3.98

to accept

CH2 pH

SAVING

pH STANDARD

To Change Reading:

+07.01

AM/PM

7.02

to accept

CH2 pH

SAVING

pH SLOPE

ENTER

Single-point calibration sets STANDARD only; Signet recommends a two-point calibration to set SLOPE in addition to STANDARD.

Quick Manual Calibration Procedures:

1-Point Calibration:

1. Set solution standard.

2-Point Calibration

(recommended):

1. Set solution standard.

2. Set solution slope.

Refer to page 62 to troubleshoot Calibration Errors

To Set Calibration Date:

CH2 pH

LAST CAL

12 - 31 - 2015 XX

9950 Transmitter

Display returns to VIEW Mode

Page 59

Appendix

Calibration Procedures - ORP

EasyCal Procedure - ORP (one-point calibration)

EasyCal is the fastest and simplest periodic calibration method. Requires a prepared quinhydrone solution or Light's Solution: Saturate 50 mL of pH 7 (87 mV) or pH 4 (264 mV) buffers with 1/8 g quinhydrone. Premixed Light's Solution (476 mV) can be used instead of pH buffers with quinhydrone.

To Calibrate: To Accept:Response:

86.2

AM/PM

87.0

EASY 87.0mV

Place electrode tip in saturated pH 7.0 buffer. pH 7.0 = 87 mV

To exit menus and return to

9,(:SUHVVŸDQGź

buttons at the same time.

PLACE SENSOR

IN BUFFER

START <ENTER>

30s

Allow for stabilization

30 seconds

CH 1 ORP

SAVING

EASY 87.0 mV

ENTER

to accept

1. Press  once to display

EASY CAL setting.

2. Select the ORP CH you

would like to calibrate.

3. Press  to begin

one-point EasyCal.

4. Place sensor in solution:

• 87 mV (7 pH + quinhydrone)

• 264 mV (4 pH + quinhydrone)

• 476 mV (Light's Solution)

5. Press ENTER.

6. After 30 seconds, 9950 will recognize current buffer ±80 mV.

7. Press ENTER to accept mV value.

NOTE: ORP solutions made with quinhydrone are very unstable and may not read properly once exposed to air for a prolonged time. These solutions must be disposed of within an hour.

The solution can be used for calibrating more than one sensor. However, the solution must remain free of debris and must not be diluted by rinse water from previous calibrations.

Acceptable ranges for the readings are ± 80 mV (i.e., 87 ± 80 mV).

9950 Transmitter

Page 60

Appendix

Calibration Procedures - ORP

Manual Calibration Procedure - ORP

Requires prepared buffers and a prepared quinhydrone solution: Saturate 50 mL of pH 4 and 7 buffers with 1/8 g quinhydrone. (System calibration is possible with two known ORP solutions, but use a buffer close to your own process value).

To Calibrate: To Change Reading:

Single-point calibration sets STANDARD only.

CH2 ORP

CAL

AT INSTRUMENT

ORP STANDARD ->

Place electrode tip in saturated pH 7.0 buffer. pH 7.0 = 87 mV

To Set Slope:

CH2 ORP

ORP

264.0

ORP SLOPE ->

Place electrode tip in saturated pH 4 buffer. pH 4.0 = 264 mV

CH2 ORP

SET

CH2 ORP

SET

CH2 ORP

ORP

87.0

30s

Allow for stabilization 30 seconds to several minutes

ENTER

to accept

CH2 ORP

SET

ORP STANDARD ->

30s

Allow for stabilization 30 seconds to several minutes

to accept

ENTER

86.2

AM/PM

87.0

87.0mV

to accept

CH2 ORP

SAVING

ORP STANDARD

To Change Reading:

263.6

AM/PM

264.0

264.0mV

to accept

CH2 ORP

SAVING

ORP SLOPE

ENTER

Quick Manual Calibration Procedures:

1-Point Calibration:

1. Set solution standard.

2-Point Calibration :

1. Set solution standard.

2. Set solution slope.

Refer to page 62 to troubleshoot Calibration Errors

To Set Calibration Date:

CH2 ORP

LAST CAL

12 - 31 - 2015 XX

NOTE: ORP solutions made with quinhydrone are very unstable and may not read properly once exposed to air for a prolonged time. These solutions must be disposed of within an hour.

The solution can be used for calibrating more than one sensor. However, the solution must remain free of debris and must not be diluted by rinse water from previous calibrations.

Acceptable ranges for the readings are ± 80 mV (i.e., 87 ± 80 mV).

9950 Transmitter

Display returns to VIEW Mode

Page 61

Appendix

Calibration Procedures - Conductivity / Resistivity

Calibration Procedure - Conductivity/Resistivity

AutoCal is the fastest and simplest periodic calibration method. Requires prepared buffer of a value appropriate to your process.

AutoCal Procedure

AutoCal is a single-point calibration system. During this procedure, if the measured

value is within ± 10% of any of the test values listed below, the 9950 will automatically recognize the test value and calibrate the output to that value.

NOTE: The ﬁ rst step (Reset) is recommended each time an electrode is replaced, but is

NOT necessary upon initial installation or periodic calibration.

NOTE: Ensure that the buffer solution is within ± 5 °C of 25 °C.

1. Reset the sensor to factory calibration (refer to sensor manual for procedure).

2. On the 9950, select AUTO CAL from the CAL menu. Press .

3. Place the electrode/sensor assembly into the conductivity test solution appropriate to your operating range. Shake the electrode to dislodge any air bubbles visible on the surface of the electrode.

4. Allow at least 2 minutes for the electrode response to stabilize.

5. When the display stabilizes, press ENTER.

6. If calibration is successful, 9950 will display "SAVING". If error is too large, "OUT OF RANGE USE MANUAL CALIBRATION" will display.

Calibration is complete. Return the system to service.

Manual Cal Procedure

NOTE: The ﬁ rst step (Reset) is recommended each time an electrode is replaced,

but is NOT necessary upon initial installation or periodic calibration.

Conductivity units are displayed as selected in the CALIBRATE menu. Resistivity displayed when K or M ranges are selected.

Available buffer values are:

 10  100  146.93  200  500  1000  1408.8  5000  10,000  12856  50,000  100,000

(all values in S)

Refer to page 62 to troubleshoot Calibration Errors

NOTE: Ensure that the buffer solution is within ± 5 °C of 25 °C.

1. Reset the sensor to factory calibration (refer to sensor manual for procedure).

2. On the 9950, select MANUAL CAL from the CAL menu. Press .

4. Allow at least 2 minutes for the electrode response to stabilize.

5. When the display stabilizes, press the  key, and then enter the value of the buffer solution using the ,  and  buttons.

6. Press ENTER.

7. 9950 will display "SAVING". If error is too large, "ERR TOO LARGE TO CALIBRATE" will display.

Calibration is complete. Return the system to service.

9950 Transmitter

Page 62

Appendix

Calibration Procedures - Flow

Calibration Procedure - Flow

Select RATE CALIBRATION to match the dynamic ﬂ ow rate to an external reference. Entering a rate will modify the existing K-Factor.

Select VOLUME CALIBRATION if the ﬂ ow rate can be determined by ﬁ lling a vessel of known volume. The 9950 will count the number of pulses generated as the known volume of ﬂ uid passes through the sensor, and then use the information to calculate a new K-Factor.

Rate Calibration Procedure

1. Press the  to enter the rate calibration.

2. Allow the ﬂ ow to stabilize and then press the .

3. Using the , , and  keys, set the ﬂ ow rate in the text box to match the ﬂ ow rate of the system.

4. 4. Press

5. The 9950 displays the newly calculated K-Factor for your reference. (If the calculated K-Factor is less than 0.0001 or greater than 999999 (out of range at either extreme), the 9950 displays "ERROR NEW KF OUT OF RANGE" and returns to RATE CAL. If ﬂ ow is too low to accurately calibrate, the 9950 displays "ERROR FLOW RATE TOO LOW and returns to RATE CAL.

6. Press ENTER to accept the new K-Factor (9950 displays "SAVING") or press + keys simultaneously to escape without saving and return to Enter Volume. NOTE: You may enter your own calculated K-Factor in the CAL menu.

ENTER

to complete the ﬂ ow rate calculation.

CH 1 Flow

RATE CAL ->

FLOW UNITS

GPM

SET FLOW

50.00

0050.00

AM/PM

SET FLOW

50.00

Volume Calibration Procedure

1. Press ENTER to start the volumetric calibration period. The 9950 starts counting pulses from the ﬂ ow sensor.

2. Press ENTER to stop the volumetric calibration period. The 9950 stops counting pulses from the ﬂ ow sensor.

3. Enter the volume of ﬂ uid known to have ﬂ owed past the sensor during the volumetric calibration period. This will modify the existing Flow K-Factor.

4. The 9950 displays the newly calculated K-Factor for your reference. (If the calculated K-Factor is less than 0.0001 or greater than 999999 (out of range at either extreme), the 9950 displays "ERROR VOLUME TOO HIGH" (or LOW) and returns to VOLUME CAL.)

5. Press ENTER to accept the new K-Factor (9950 displays "SAVING") or press + keys simultaneously to escape without saving and return to Enter Volume. NOTE: You may enter your own calculated K-Factor in the CAL menu.

CH 1 Flow

VOLUME CAL ->

CH 1

START <ENTER>

CH 1

RUN

0050.00

AM/PM

ENTER VOLUME

FLOW UNITS

Refer to page 62 to troubleshoot Calibration Errors

9950 Transmitter

STOP <ENTER>

50.00

Page 63

Appendix

Calibration Error Messages

Message Cause Solution

(

Cond/Res) Error > 10% in AutoCal

Out Of Range Use Manual Calibration

Err Too Large To Calibrate

Error Volume Too Low

Error New KF Out Of Range The calculated K-Factor too low or high

Error Flow Rate Too Low

Cal Error Out Of Range

Slope Too Close To Standard

Standard Too Close To Slope

Level Offset Too Large Offset must be < 1.0 meter

Pressure Too High

Pressure Too Close To Zero

(pH) Buffer not found; Error > ±1.5 pH units

(ORP) No quinhydrone in buffer Error greater than ±80 mV

(

Cond/Res) Manual Cal when error >

100%

(pH) Offset > 1.3 pH units; Slope error > 100%

(Press) Slope must be < ±50% or offset must be < 2.75 PSI or equivalent.

(Sal) Slope error > 1000%

User-entered volume too small to calibrate

(Rate Cal) Flow too low to accurately calibrate

(4 to 20 mA) Slope error > 100 Check input at 4 mA and 20 mA settings

(Temp) Offset must be < ±20 °C or equivalent.

(4 to 20 mA) Difference in calibration values must be > 0.1 units

(pH) Difference in calibration values must be > 2 pH units

(ORP) Difference in calibration values must be > 30 mV

(4 to 20 mA) Difference in calibration values must be > 0.1 units

(pH) Difference in calibration values must be > 2 pH units

(ORP) Difference in calibration values must be > 30 mV

Pressure must be lower than 2.5 PSI or equivalent to do zero cal.

Pressure must be higher than 3 PSI or equivalent to do slope calibration.

Use manual calibration method

Use 4, & 7 pH buffers (with quinhydrone for ORP calibration) or Light's Solution Clean sensor and retry EasyCal Use manual calibration method

Inspect sensor and wiring for damage Clean sensor

Check reference Clean sensor Replace sensor

Correct volume entry Use longer calibration period

Verify volume or rate entered Verify ﬂ ow is present

Increase ﬂ ow

Check sensor range Check reference Replace sensor

Check sensor Use fresh buffer Use two different buffer values Clean sensor

Clean sensor Use fresh 4, 7, 10 pH buffers Use two different buffer values

Decrease offset Replace sensor

Decrease pressure

Increase pressure Check reference

9950 Transmitter

Page 64

Appendix

USP Limits

USP (United States Pharmacopeia) has deﬁ ned a set of conductivity values (limits) to be used for pharmaceutical water. The standard requires that conductivity measurement without temperature compensation be used for these applications. The limits vary according to the temperature of the sample. The 9950 has the USP limits stored in memory. It will automatically determine the proper USP limit based on the measured temperature. Important Conductivity TEMP COMP must be set to NONE and Unit Of Measure must be set to S.

Using the USP function

USP setpoints are deﬁ ned as a percentage below the USP limit, so a USP alarm is always a HIGH alarm. The 9950 can be set to warn you if the conductivity approaches within a set percentage of the USP limit.

The following settings and conditions are required for a USP relay function:

1. In the RELAY menu:

• RELAY MODE must be set to USP.

2. In the INPUT menu:

• COND UNITS must be set to μS.

• TEMP COMP must be set to None.

Example:

• The water temperature is 19 ºC, so the USP limit is 1.0 S.

• The USP PERCENT is set to 40%.

• The relay will be activated when the conductivity value reaches 40% below the

1.0 USP limit, or 0.6 S.

• If the water temperature drifts to more than 20 ºC, the 9950 will automatically adjust the USP limit to 1.1. The relay will now be activated when the conductivity value reaches 40% below 1.1 S (0.66 S).

Temperature

Range (ºC)

0 to < 5 0.6

5 to < 10 0.8

10 to < 15 0.9

15 to < 20 1.0

20 to < 25 1.1

25 to < 30 1.3

30 to < 35 1.4

35 to < 40 1.5

40 to < 45 1.7

45 to < 50 1.8

50 to < 55 1.9

55 to < 60 2.1

60 to < 65 2.2

65 to < 70 2.4

70 to < 75 2.5

75 to < 80 2.7

80 to < 85 2.7

85 to < 90 2.7

90 to < 95 2.7

95 to < 100 2.9

100 to < 105 3.1

USP limit

(μS)

NOTE: Relay will activate if USP limit is exceeded, Temperature Comp is set

to Linear or Pure Water, Conductivity Measurement is NOT in uS, or if the Conductivity Sensor Electronics is indicating a measurement error.

Maintenance

• Clean the instrument case and front panel with a soft cotton cloth dampened with a mild liquid soap solution.

• Never wipe the front window with static retentive cloths such as wool or polyester which may induce a static charge. If a static charge develops on the window, you may notice temporary blotches form on the screen. When this occurs, clean the front window with an anti-static cloth, or a soft cotton cloth and antistatic spray or a mild liquid soap solution to remove the static charge.

9950 Transmitter

Page 65

Appendix

Map of 9950 Relay and Loop Sources

Measurement Loop and Relay Control Parameters

Frequency

Flow

ORP

Input

Terminal

Block 1

Cond./Resist.

Pressure

Channel 1

CH1 Primary/Secondary

Level

Temperature 4-20 mA Input

Salinity

Derived

Measurements*

None

Sum

Difference

Ratio

Frequency

Flow

ORP

Cond./Resist.

Pressure

Level

Temperature 4-20 mA Input

Function Source**

Input

Terminal

Block 2

Channel 2

% Passage

% Reject

% Recovery

A, B, C

CH2 Primary/Secondary

Binary Input (1-4)

Salinity

Binary Input 1 Binary Input 2 Binary Input 3 Binary input 4

3-9950.393-3 Only

Real-time

Clock

*Derived measurements are available as source when channels are the same measurement type and the derived measurements are selected by the user.

Relay Module

Socket

Time Interval

Calculation

**CH1 + CH2, CH1 – CH2, CH2 – CH1, CH1 ÷ CH2, CH2 ÷ CH1.

Deriv. 1 Deriv. 2 Deriv. 3 Deriv. 4

Hours, Min,

Sec, Days

Weekday

Date

Loop and Relay

Input Sources

Loop n Source

None CH 1 Pri/Sec CH 2 Pri/Sec Function 1-4

Loop n Mode

Only

Conductivity

Loop Source

Relay Source Relay Mode

Relay n Source

Relay n Mode

None

CH 1 Primary

CH1 Secondary

CH 2 Primary

Window In/Out

Cycle Low/High

CH2 Secondary

Function 1-4

Binary 1-4

Exclude

Pressure

USP (Cond Only)

Timer

Multiple

Source A

Mode A

Off / Low / High

Binary On / Binary

Off

Parameters A

Set Low/High

Only

Flow

Binary

Source

Volume Pulse

Totalizer Pulse

Source B

Timer

Mode B

Off / Low / High

Binary On / Binary

Off

Parameters B

Set Low/High

Source

Source C

Mode C

Off / Low / High

Binary On / Binary

Off

Multiple Relay Source

Parameters C

Set Low/High

Multiple Relay Sources:

Channel1 (Primary or Secondary), Channel2 (Primary or Secondary) , and Binary Inputs. (The same source can be used for A, B, and C).

Multiple Operation

Linear

Log

Loop Mode

Off

Low/High

PWM

Prop Pulse

Error

Binary On

Binary Off

Period

Weekday

A | B | C

A & B & C A | (B & C) A & (B | C)

Loop n Param.

4 mA Setpoint

20 mA Setpoint

Error Value

Adjust 4 mA

Adjust 20 mA

Loop

Parameters

Relay

Parameters

Relay n Param.

Set Low

Set High

Hysteresis

Cycle Time

Pulse Min

Pulse Max

Max Rate PWM Min

PWM Max

PWM Period

USP Percent

On Delay

Set Volume

Pulse Width

Flow Only

Total Volume

Set Period Units

(Min, Hours, Days)

Set Period

Interval

First Start

Start Delay

(Days)

Activation Days

Start Time

Duration

Seconds

Recovery

Seconds

Hold While Active

Relay Period Mode and Weekday Mode

9950 Transmitter

Page 66

Speciﬁ cations

General

Input channels ............Two channels, programmable for

Digital (S

L) or frequency input

Outputs.......................Two passive 4 to 20 mA loop outputs

standard Two or four programmable relay outputs optional

Enclosure and Display

Case Material .............PBT

Window ....................... Shatter-resistant glass

Keypad ....................... 4 buttons, injection-molded

silicone rubber seal

Display ........................ Dot Matrix LCD

Update Rate ...............1 s

LCD Contrast .............. 5 settings

Indicators .................... Two horizontal digital bar graphs,

four LED relay status indicators

Enclosure

Size .....................¼ DIN

Mounting

Panel ................... ¼ DIN, ribbed on four sides for panel

mounting clip inside panel, silicon gasket included

Wall ...................... Large enclosure (sold as an accessory)

Terminal Blocks

Pluggable screw type: use minimum 105 °C rated wire Torque ratings

Power/Loop..........0.49 Nm (4.4 lb-in.)

Freq/S

L ...............0.49 Nm (4.4 lb-in.)

Relay....................0.49 Nm (4.4 lb-in.)

Connector wire gauge:

Power, Loop .........12 to 28 AWG

Freq/S

L ...............16 to 28 AWG

Module connector wire gauge:

Relay....................12 to 28 AWG

Environmental

Ambient Temperature:

DC Power ...............-10 °C to 70 °C (14 °F to 158 °F)

AC Power ...............-10 °C to 60 °C (14 °F to 140 °F)

Storage Temp .........-15 °C to 70 °C (5 °F to 158 °F)

Relative Humidity........ 0 to 100% condensing for (front only);

0 to 95% non-condensing (rear panel)

Maximum Altitude .......4,000 m (13,123 ft)

Enclosure Rating .......... NEMA 4X/IP65 (front face only)

Installation Category Cat II Pollution Degree 2

Performance Speciﬁ cations

System Accuracy

• Primarily dependent upon the sensor.

System Response

• Primarily dependent upon the sensor. Controller adds a maximum of 150 ms processing delay to the sensor electronics.

• Minimum update period is 100 ms

• System response is tempered by the display rate, output averaging and sensitivity feature.

Electrical Requirements

Power to Sensors

Voltage...............................

+4.9 to 5.5 VDC @ 25 °C, regulated

Current............................... 30 mA Maximum

Short Circuit .......................Protected

Isolation ............................. Low voltage (< 48 V AC/DC)

Power Requirements

DC (3-9950-1,

3-9950-2) ... 24 VDC nominal (12 to 32 VDC,

±10% regulated). A UL60950-1 or UL61010-1 certiﬁ ed power supply must be used. Power supply shall also be rated for operation at

4000 m altitude.

AC (3-9950-2).................. 100-240 VAC 50-60 Hz, 24 VA max

Maximum Current

............... 200 mA (w/o optional relay module)*

500 mA (with optional relay module)*

Current

Loop ...................... 12 to 32 VDC, ±10% regulated

4 to 20 mA (30 mA max.) Overvoltage protection

....... 48 V Transient Protection Device

(for DC ONLY) Current limiting for circuit protection Reverse-Voltage protection

*The current draw of the other modules and the sensors are minimal

Sensor Input Speciﬁ cations

Digital (S

L) Sensors .......Serial ASCII, TTL level, 9600 bps

Frequency (Flow) Sensors: 0.5 to 1500 Hz

Accuracy ..........................

± 0.5% of reading max error @ 25 °C

Resolution........................ 1 s

Repeatability .................... ± 0.2% of reading

Power Supply

Rejection.......................... No Effect ± 1 A per volt

Short Circuit ..................... Protected

Reverse Polarity .............. Protected

Update Rate ....................(1/frequency) + 100 ms

Shipping Weights

Base Unit ....................0.63 kg (1.38 lb)

Relay Module..............0.19 kg (0.41 lb)

Standards and Approvals

• CE, UL, CUL, WEEE

• RoHS Compliant

China RoHS (Go to www.gfsignet.com for details)

Declaration of Conformity according to FCC Part 15

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

• Manufactured under ISO 9001 for Quality, ISO 14001 for Environmental Management and OHSAS 18001 for Occupational Health and Safety.

9950 Transmitter

Graphical User Interface created with emWin licensed by SEGGER

Page 67

Speciﬁ cations

Binary Input Speciﬁ cations (3-9950.393-3)

Input voltage range

(without damage) .................. -5 VDC to 30 VDC

(no operation below 0 VDC)

Max. Voltage Rating ............. 30 VDC

Max. Current Rating ............. 6.0 mA

Maximum input voltage for

signal “Off” (low or "0") ........ 1.5 VDC

Minimum input voltage for

signal “On” (high or "1") ........ 3.0 VDC

Maximum current draw for

signal “0” (low): ..................... <500 A DC

Minimum current draw for

signal “1” (high): ................... 500 A

Typical current draw for

signal “1” (high): ................... 6.0 mA at 30 VDC

4.8 mA at 24 VDC

2.4 mA at 12 VDC

1.0 mA at 5 VDC

Current Loop Speciﬁ cations

Current Loop Out ........... ANSI-ISA 50.00.01 Class H (Passive,

external voltage required)

Voltage........................... 12 to 32 VDC, ±10% regulated. Use

UL60950-1 or UL61010-1 certiﬁ ed power supply. Power supply shall also be rated for operation at 4000 m altitude.

Max. Impedance: ........... 250  @ 12 VDC

500  @ 18 VDC 750  @ 24 VDC

Span .............................. 3.8 to 21 mA Adjustable, reversible

Accuracy ........................ ± 32 A max. error @ 25 °C @ 24

VDC

Resolution...................... 6 A or better

Temp. Drift ..................... ± 1 A per °C

Isolation ......................... Low voltage (< 48 VAC/DC)

Update Rate ..................100 mS nominal

Zero ............................... 4.0 mA factory set; user programmable

from 3.8 to 5.0 mA

Full Scale .......................

20.00 mA factory set; user programmable from 19.0 to 21.0 mA

Power Supply Rejection ± 1 A per V Actual update rate determined by sensor type Short circuit and reverse polarity protected Adjustable span, reversible

Error Condition ..............

Selectable error condition 3.6 or 22 mA or None

Test Mode ...................... Increment to desired current

(range 3.8 to 21.00 mA)

Analog Outputs .............. 2 Passive

Relay Speciﬁ cations

Dry-Contact Relays

Type ...................................... SPDT

Form ..................................... C

Max. Voltage Rating ............. 30 VDC or 250 VAC

Max. Current Rating ............. 5 A resistive

Solid-State Relays

Type ...................................... SPDT

Form ..................................... C

Max. Voltage Rating ............. 30 VDC or 30 VAC

Max. Current Rating ............. 0.050 A

Hysteresis ............................. Adjustable (absolute in

Engineering Units)

On Delay............................... 9999.9 seconds (max.)

Cycle Delay .......................... 99999 seconds (max.)

Test Mode ............................. Set On or Off

Maximum Pulse Rate ........... 300 pulses/minute

Proportional Pulse ................ 300 pulses/minute

Volumetric Pulse Width......... 0.1 to 3200 s

PWM period .......................... 0.1 to 320 s

Input Types

• Digital (S

L) or AC frequency

• 4 to 20 mA input via the 8058 iGo Signal Converter

• Open collector

• pH/ORP input via the Digital (S3L) output from the 2750/2751 pH/ORP Sensor Electronics

• Raw Conductivity/Resistivity via the Digital (S3L) output from the 2850 Conductivity/Resistivity Sensor Electronics

Sensor Types:

Flow, pH/ORP, Conductivity/Resistivity, Pressure,

Temperature,

Level/Volume, Salinity, Dissolved Oxygen, Other (4 to 20 mA)

Current Outputs

• Two 4 to 20 mA output in base unit

• Linear scaling

• Logarithmic scaling for Conductivity

• Reverse span

• Selectable error mode: 3.6 mA or 22 mA or None

• Test Output mode: allows testing of the current output

• Adjustable 4 to 20 mA end points

Display Ranges:

pH ...............................-1.00 to 15.00 pH

pH Temp. ....................-99 °C to 350 °C (-146 °F to 662 °F)

ORP ............................-1999 to +1999.9 mV

Flow Rate ................... -9999 to 99999 units per second,

minute, hour or day

Totalizer ......................0.00 to 99999999 units

Conductivity ................ 0.0000 to 99999 S, mS, PPM and

PPB (TDS), k, M

Cond. Temp. ...............-99 °C to +350 °C (-146 °F to 662 °F)

Temperature ...............-99 °C to +350 °C (-146 °F to 662 °F)

Pressure .....................-40 to 1000 psi

Level ...........................-9999 to +99999 m, cm, ft, in, %

Volume ......................... 0 to 99999 cm3, m3, in3, ft3, gal, L, lb, kg, %

Salinity ........................0 to 100 PPT

Dissolved O

...............0 to 50 mg/L, 0 to 200%

9950 Transmitter

Page 68

Ordering Information

9950 Transmitter Base Unit: Dual Channel, Multi-Parameter, AC Power and DC Power

Mfr. Part No Code Description

3-9950-1 159 001 841

3-9950-2 159 001 842

9950 Base Unit – Two Channel Multi-Parameter Inputs, Two 4 to 20 mA Outputs, Panel Mount, DC Power

9950 Base Unit – Two Channel Multi-Parameter Inputs, Two 4 to 20 mA Outputs, Panel Mount, AC or DC Power

Optional Modules

3-9950.393-1 159 310 268 Relay Module with 4 Mechanical Relays 3-9950.393-2 159 310 269 Relay Module with 2 Mechanical and 2 Solid State Relays 3-9950.393-3 159 310 270 Relay Module with 2 Mechanical Relays and 4 Binary Inputs

Accessories

3-8050.396 159 000 617 RC Filter Kit (for relay use), 2 per kit 3-8058-1 159 000 966 i-Go® Signal Converter, wire-mount 3-9950.391 159 310 278 Connector Kit, In-Line, 9950 Transmitter 3-9950.392 159 310 279 Relay Module Connector Kit, 9950 Transmitter

3-9900.392 159 001 700 Wall Mount Enclosure Kit 3-9000.392-1 159 000 839 Liquid Tight Connector Kit, NPT (1 pc.) 3-5000.399 198 840 224 5 x 5 inch Retroﬁ t Adapter 3-8050.392 159 000 640 CR200 ¼ DIN Retroﬁ t Adapter

Georg Fischer Signet LLC, 3401 Aero Jet Avenue, El Monte, CA 91731-2882 U.S.A. • Tel. (626) 571-2770 • Fax (626) 573-2057 For Worldwide Sales and Service, visit our website: www.gfsignet.com • or call (in the U.S.): (800) 854-4090 For the most up-to-date information, please refer to our website at www.gfsignet.com
