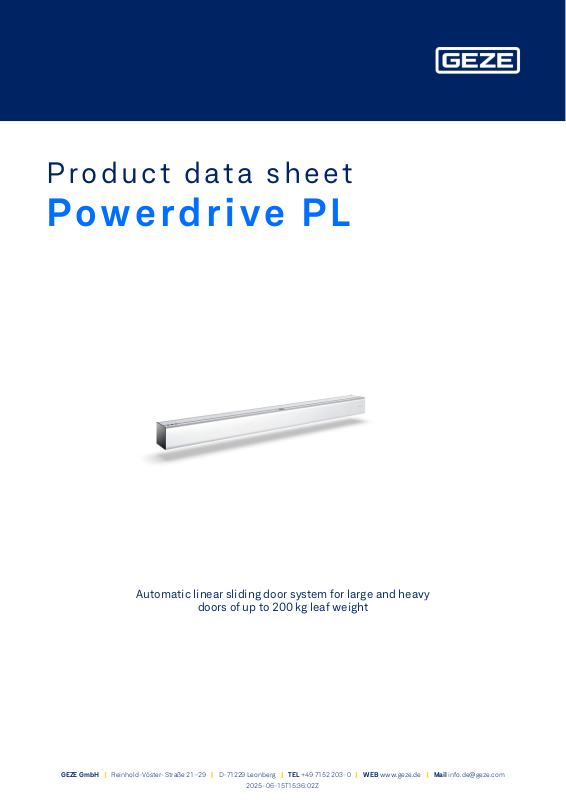

GEZE Powerdrive PL Datasheet

Product data sheet

Powerdrive PL

AREAS OF APPLICATION

AREAS OF APPLICATION

Single and double leaf sliding door systems

Single and double leaf sliding door systems

Interior and exterior doors with high access frequency

Interior and exterior doors with high access frequency

Opening widths from 700 to 3000 mm possible

Opening widths from 700 to 3000 mm possible

Door leaf weights up to 200 kg per leaf

Door leaf weights up to 200 kg per leaf

Suitable profile systems are fine-framed profile systems with ISO and mono glass, toughened safety glass

Suitable profile systems are fine-framed profile systems with ISO and mono glass, toughened safety glass
clamping profile, on-site frame and wooden leaves

clamping profile, on-site frame and wooden leaves
Suitable for various profile systems

Suitable for various profile systems

Automatic linear sliding door system for large and heavy

doors of up to 200 kg leaf weight

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

2025-06-15T15:36:02Z

Product data sheet | Page 2 of 13

Powerdrive PL

AREAS OF APPLICATION

AREAS OF APPLICATION

Single and double leaf sliding door systems

Single and double leaf sliding door systems

Interior and exterior doors with high access frequency

Interior and exterior doors with high access frequency

Opening widths from 700 to 3000 mm possible

Opening widths from 700 to 3000 mm possible

Door leaf weights up to 200 kg per leaf

Door leaf weights up to 200 kg per leaf

Suitable profile systems are fine-framed profile systems with ISO and mono glass, toughened safety glass

Suitable profile systems are fine-framed profile systems with ISO and mono glass, toughened safety glass
clamping profile, on-site frame and wooden leaves

clamping profile, on-site frame and wooden leaves
Suitable for various profile systems

Suitable for various profile systems

PRODUCT FEATURES

PRODUCT FEATURES

Very powerful drive for large, heavy leaves and wide opening widths

Very powerful drive for large, heavy leaves and wide opening widths

Can be networked, and integrated into the building automation via open standard (BACnet)

Can be networked, and integrated into the building automation via open standard (BACnet)

Independent error recognition and recording

Independent error recognition and recording

Adjustment options for all door movement parameters

Adjustment options for all door movement parameters

Freely configurable inputs and outputs for different functions

Freely configurable inputs and outputs for different functions

Integrated battery for emergency opening and closing in the event of a power failure

Integrated battery for emergency opening and closing in the event of a power failure

Various mechanical and electrical locks are optionally available

Various mechanical and electrical locks are optionally available

TECHNICAL DATA

Productname Powerdrive PL

For 1-leaf door systems Yes

For 2-leaf door systems Yes

Fine-framed insulating glass Yes

MONO glass fine-framed Yes

ESG clamping profile Yes

Framed leaf (on site) Yes

Wooden leaf (on site) Yes

Height 150 mm

Depth 185 mm

Leaf weight (max.) 1-leaf 200 kg

Leaf weight (max.) 2-leaf 200 kg

Opening width 1-leaf 700 mm - 3000 mm

Opening width 2-leaf 800 mm - 3000 mm

Service temperature -15 - 50 °C

IP rating IP20

Disconnection from mains Main switch in the drive

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

2025-06-15T15:36:02Z

Product data sheet | Page 3 of 13

Powerdrive PL

Standard conformity DIN 18650, DIN EN ISO 13849: Performance Level D, EN 16005

ACCESSORIES

EFT ELBOW SWITCH *

Stainless steel elbow switch with IP65 IP rating for activating automatic
doors

Designation Description Ident-No. Colour Dimensions Type of installation

EFT elbow switch Very flat design / IP rating IP65 119898 Stainless steel 75 x 250 x 17 mm Surface-mounted

KFT ELBOW SWITCH

Plastic elbow switch, IP rating IP20, for activation of automatic doors

Designation Description Ident-No. Colour Dimensions Type of installation

KFT elbow switch Very flat design, IP rating IP20 114077 stainless steel colour 90 x 179 x 23 mm Surface-mounted

KFT elbow switch Very flat design, IP rating IP20 114078 white 90 x 179 x 23 mm Surface-mounted

LS 990 ELBOW SWITCH

Elbow switch for activating automatic doors

Designation Description Ident-No. Colour Dimensions Type of installation

LS 990 elbow switch IP rating IP30 H=223mm 128583 Stainless steel 81 x 223 x 18 mm Flush-mounted installation

LS 990 elbow switch IP rating IP30 H=223mm 128582 Stainless steel 81 x 223 x 51 mm Surface-mounted

LS 990 elbow switch IP rating IP30 H=223mm 141041 alpine white 81 x 223 x 51 mm Surface-mounted

LS 990 elbow switch IP rating IP30 H=223mm 141042 alpine white 81 x 223 x 18 mm Flush-mounted installation

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

2025-06-15T15:36:02Z

Product data sheet | Page 4 of 13

Powerdrive PL

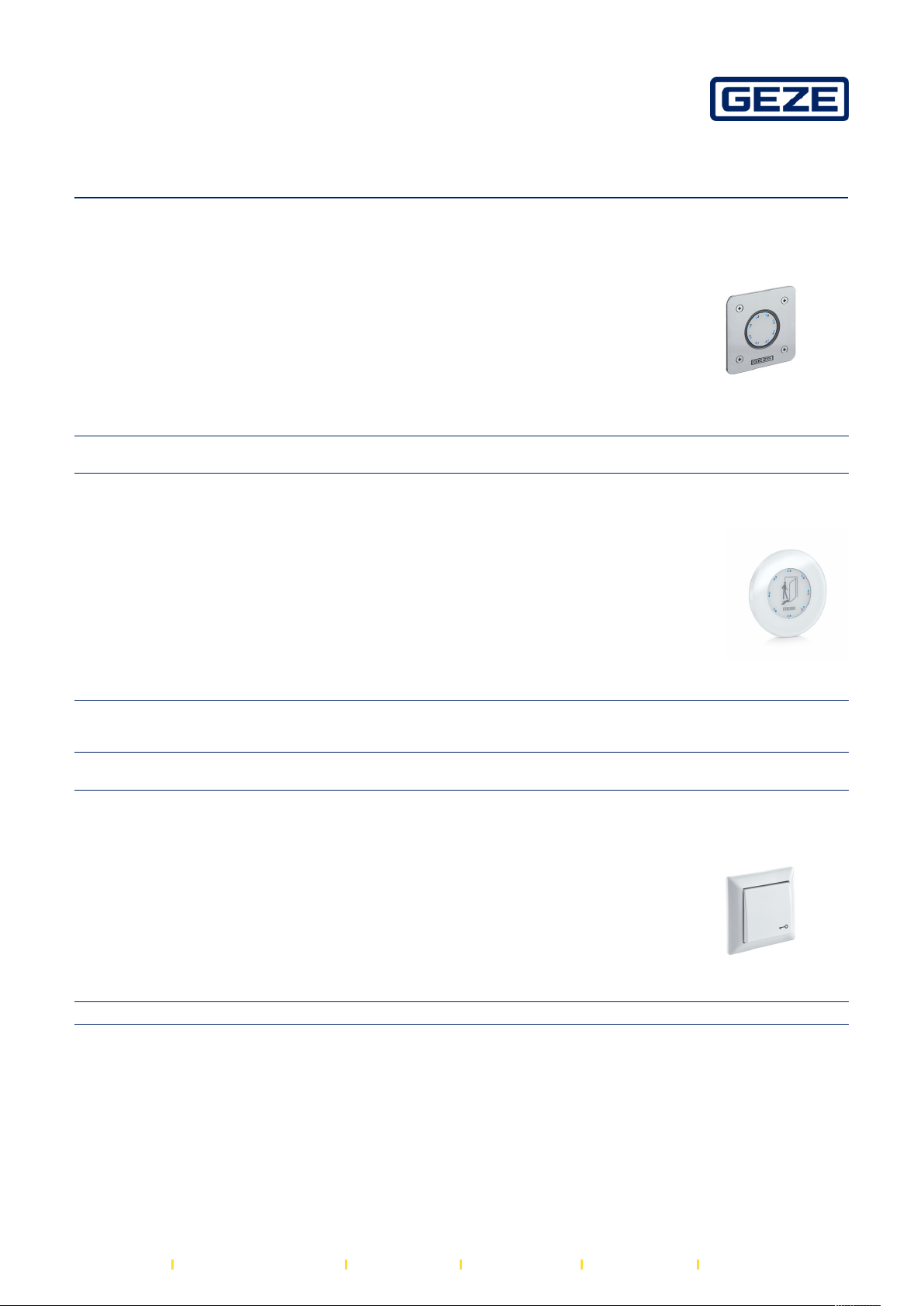

LED SENSOR FOOT SWITCH *

Switch for activating automatic doors

Designation Description

LED sensor foot
switch *

Capacitive push button for activating automatic
door systems. Protection rating IP69K

LED SENSOR SWITCH *

Switch for activating automatic doors

Designation Description

LED sensor
switch *

LED sensor
switch glass *

Capacitive push button with blue LED lighting and haptic
Braille lettering for activating automatic door systems.
Protection rating IP69K

Capacitive push button with blue LED lighting for activating
automatic door systems. Protection rating IP69K

AS 500 ROCKER PUSH BUTTON

Ident­No. Colour Dimensions Output

182936 Stainless

steel

Ident­No. Colour Dimensions Output

137529 black 100 x 100 x

143412 white 100 x 100 x

100 x 100 x 3 x
14 mm

10 mm

8 mm

PNP transistor
output

PNP transistor
output

PNP transistor
output

Activation of all GEZE automatic doors

Designation Ident-No. Colour Dimensions Type of installation IP rating

AS 500 rocker push button 120888 alpine white 80 x 80 x 9 mm Flush-mounted installation IP20

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

2025-06-15T15:36:03Z

Product data sheet | Page 5 of 13

Powerdrive PL

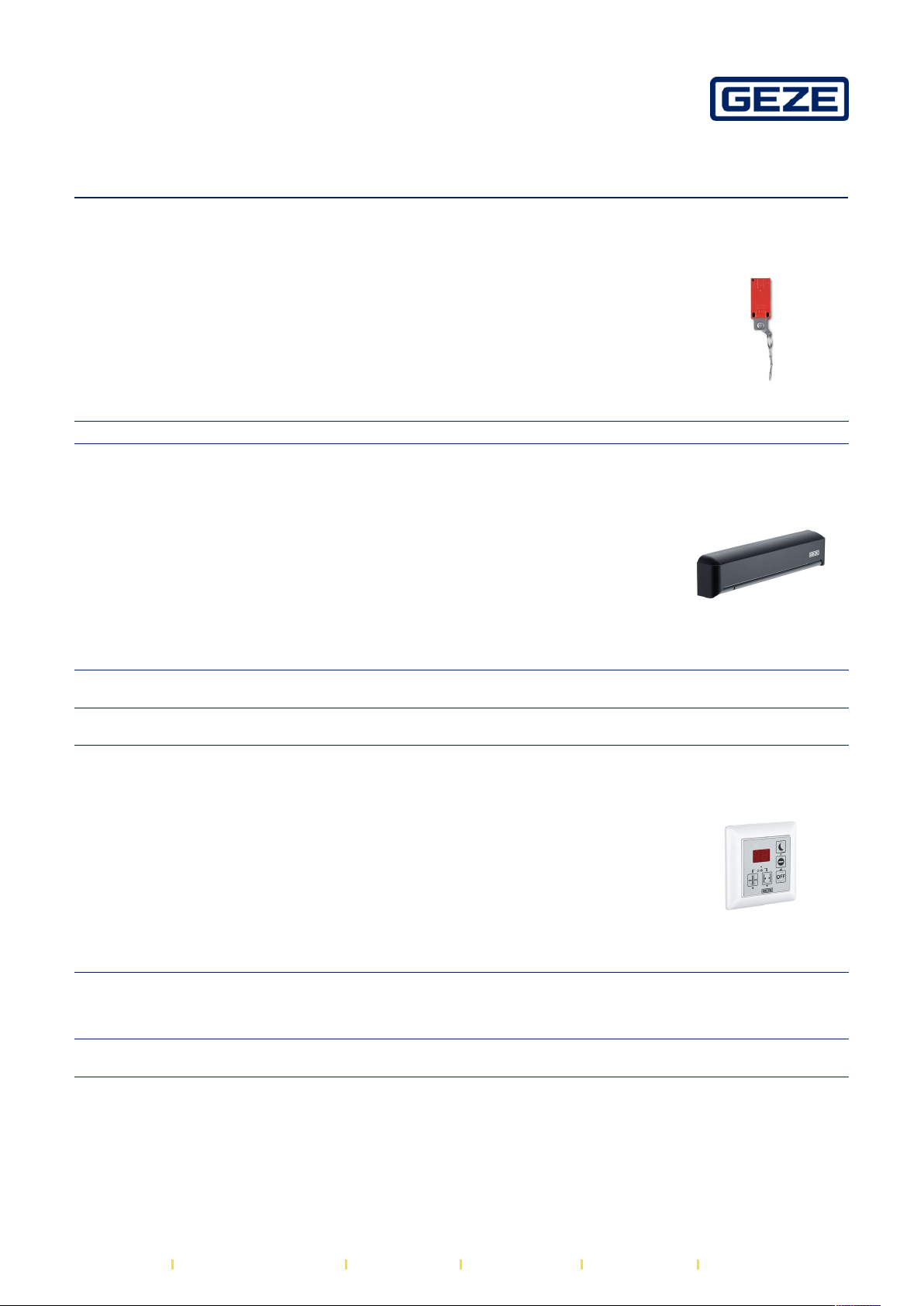

PULL SWITCH *

For triggering calls in barrier-free bathrooms or WCs

Designation Description Ident-No. Colour Dimensions Type of installation

Pull switch Incl. pull chain 500 mm long 008607 red 36 x 94 x 34 mm Surface-mounted

GC 365 *

Combined detector for activating and protecting automatic sliding doors
with four different infrared light curtain configuration settings

Designati
on Description

GC 365 R*Combined detector for the activation and safeguarding of

GC 365 SF*Combined detector for the activation and safeguarding of

automatic sliding doors

automatic sliding doors in escape route direction

DPS

Display programme switch for setting the mode of operation for
automatic doors

Designation Description

Display programme
switch DPS with OFF
switch

DPS with OFF switch
and SCT key switch

Configuring the mode of operation as well as
commissioning and parameter setting for automatic
doors / with 5x control keys, 2x7 segment display,
alphanumerical fault display, IP rating IP40

in combined double frame without Euro profile half
cylinder

Ident­No. Colour Dimensions Output

160283 black 267 x 61 x 38mmPotential-free relay

160284 black 267 x 61 x 38mmRelay, frequency,

Ident­No. Colour

151524 alpine

white

155810 alpine

white

contact

voltage

DimensionsOperating

80 x 80 x
53 mm

80 x 151 x
50 mm

voltage

24 V DC

24 V DC

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

2025-06-15T15:36:03Z

Product data sheet | Page 6 of 13

Powerdrive PL

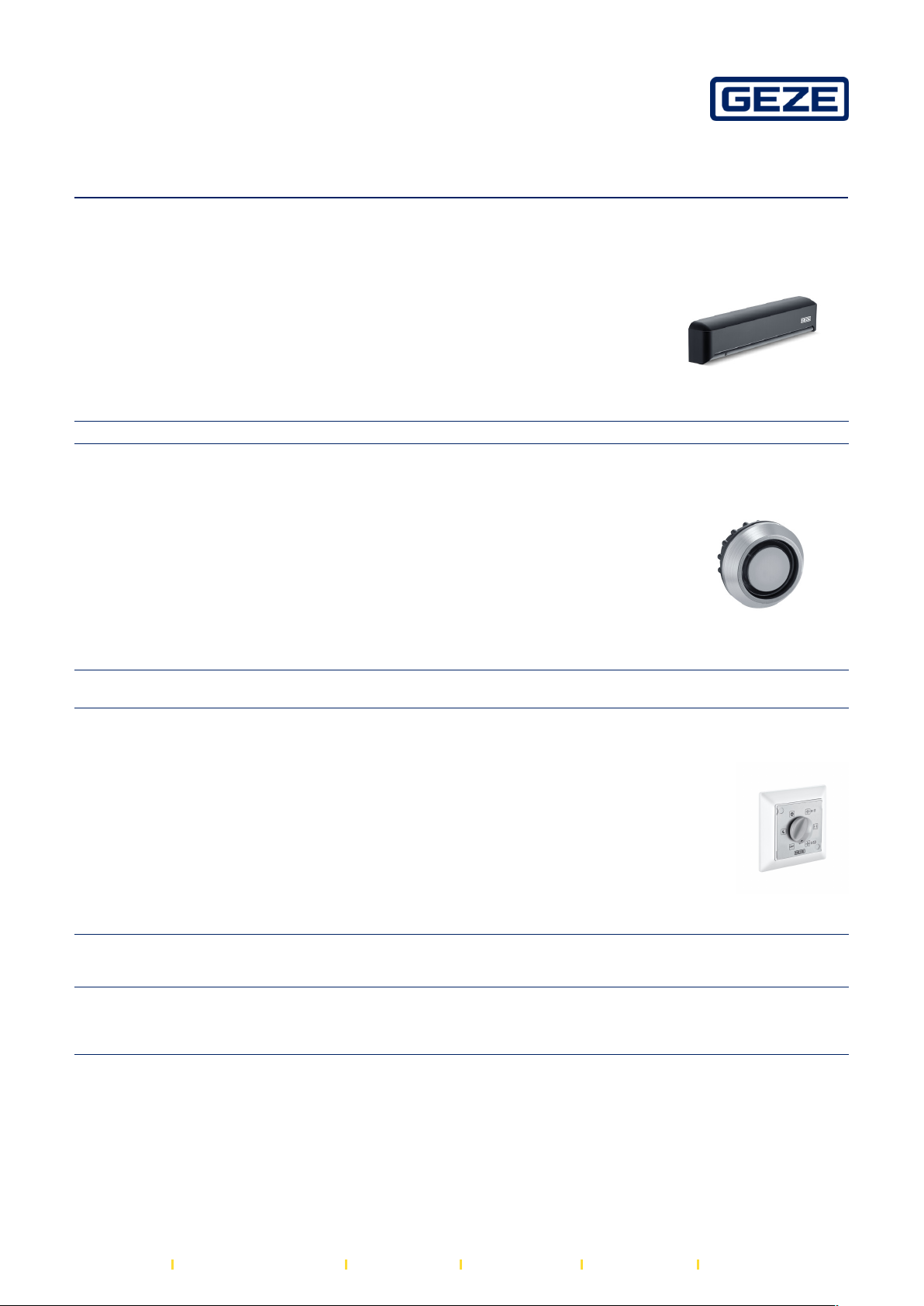

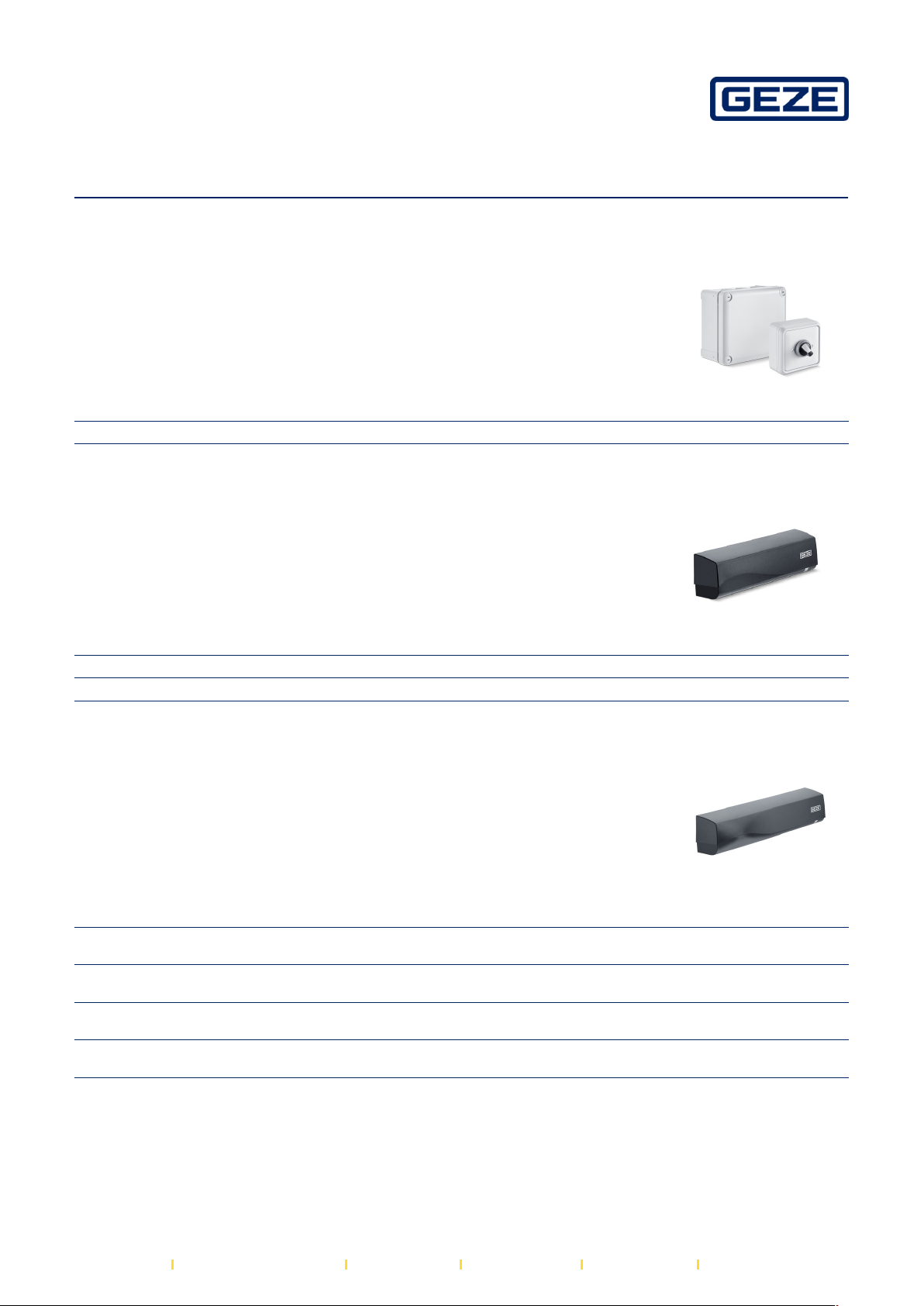

GC 341 *

Safety sensor for automatic doors

Designation Description Ident-No. Colour Dimensions Operating voltage

GC 341 * Safety sensor for automatic doors 160285 black 267 x 61 x 38 mm 24 V DC

MINI LED SENSOR SWITCH *

Activation of all GEZE automatic doors

Designation Description

LED sensor
switch 20 mm *

Capacitive push button for activating automatic
door systems. Protection rating IP69K

Ident­No. Colour Dimensions Output

143273 Aluminium,

MPS

Mechanical programme switch for setting the mode of operation for
automatic doors

Designation Description

MPS mechanical
programme switch

MPS ST mechanical
programme switch

Setting of the mode of operation of automatic doors
with rotary knob, LED fault display, IP rating IP40 /
suitable for switch ranges with 55x55mm switch insert

Setting of the mode of operation of automatic doors
with key, LED fault display, IP rating IP40, keyed alike
cylinder, incl. 2× keys / suitable for switch ranges with
55x55mm switch insert

matt

Ident­No. Colour

113226 alpine

white

113227 alpine

white

28.5 x 28.5 x
21 mm

DimensionsOperating

80 x 80 x
24 mm

80 x 80 x
24 mm

PNP transistor
output

voltage

24 V DC

24 V DC

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

2025-06-15T15:36:03Z

Product data sheet | Page 7 of 13

Powerdrive PL

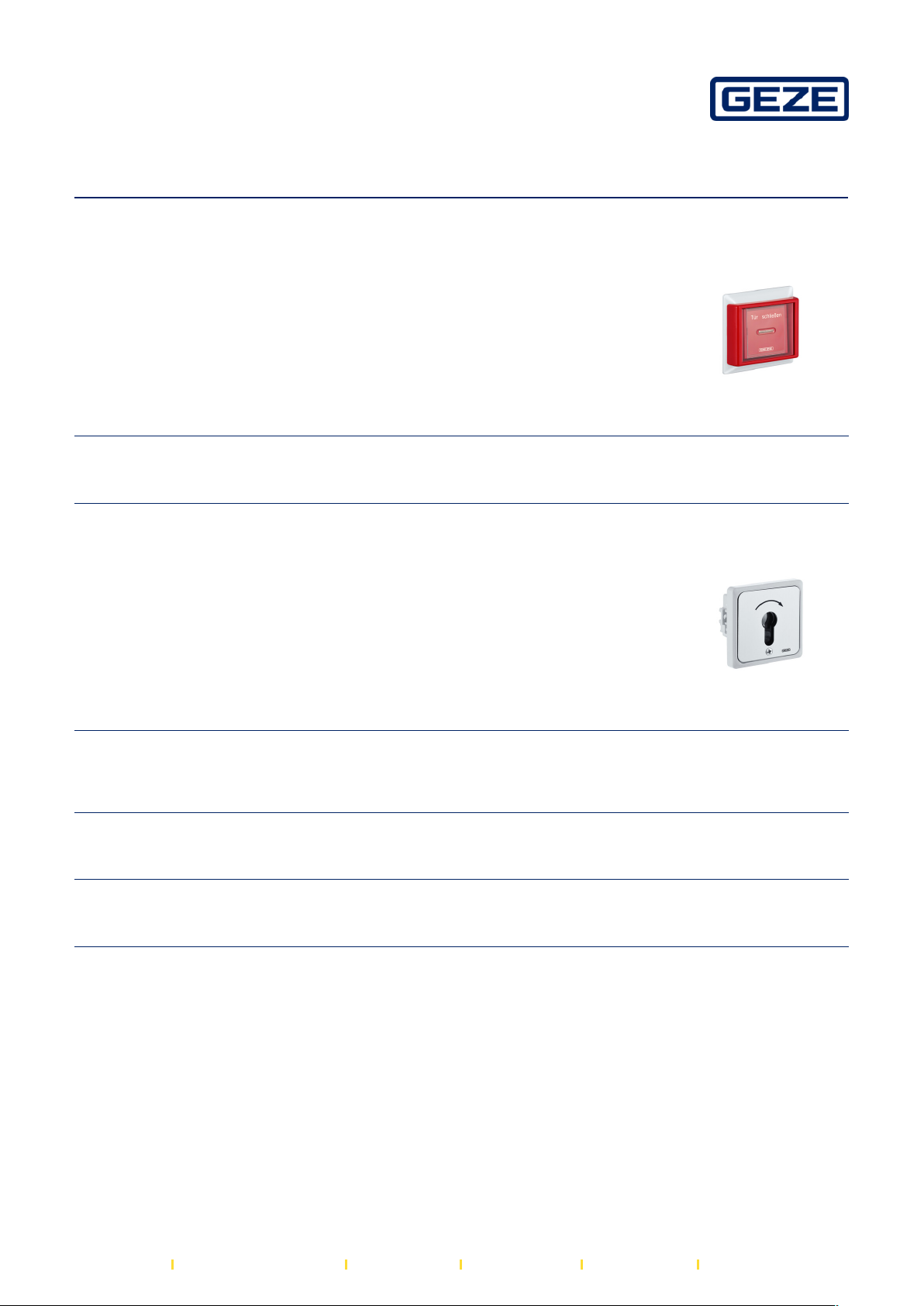

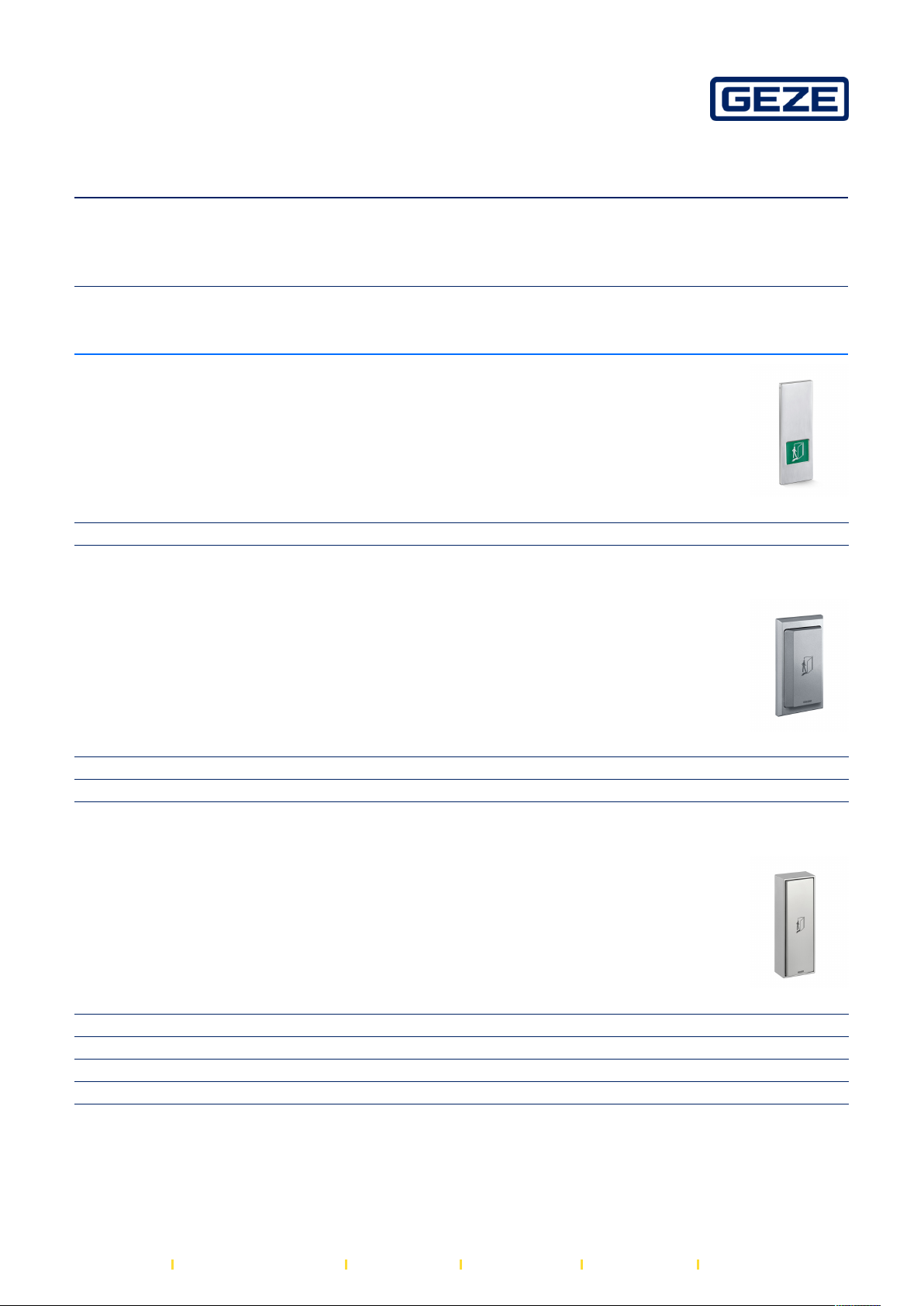

AS 500 *

AS emergency stop switch with glass pane and five interchangeable
labels ("Nottaster öffnen", "Notschalter", "Emergency switch", "Tür
schließen" and without text)

Designation Description

AS 500 emergency
stop switch *

Rocker control switch with glow lamp, glass pane
and five exchangeable labels (“Emergency push
button open”, “Emergency push button”, “Emergency
switch”, “Close door” and no lettering)

Ident­No. Colour

120881 alpine

white/red

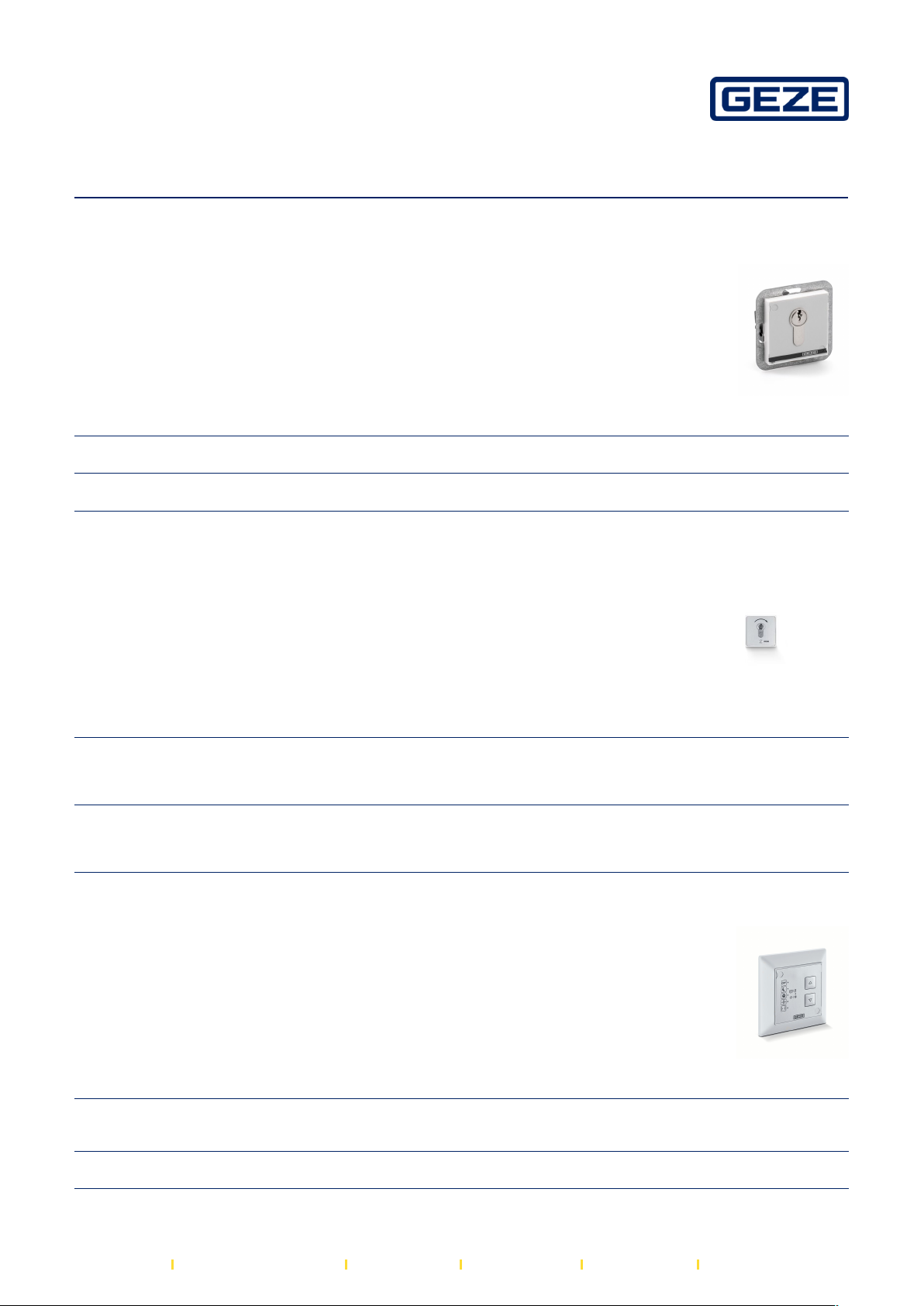

SCT STAINLESS STEEL *

Key switch stainless steel for authorised activation and for changing the
mode of operation of automatic doors

Designation Description Ident-No. Colour

Key switch, switching
operation without Euro
profile half cylinder

Key switch with Euro
profile half cylinder and
three keys

Key switch, stay-put
without Euro profile half
cylinder

Mounting with claws or screws, one-sided
switching operation (key can be removed in
the central position), cover can only be
removed with key, light alloy housing, IP
rating IP54

adjustable stay-put or switching operation
on both sides (key can be pulled out in the
central position), cover can only be removed
with key, light alloy housing, IP rating IP54

Mounting with claws or screws, one-sided
stay-put (key can be removed in the central
position), cover can only be removed with
key, aluminium casement, IP rating IP54

098870 silver-

coloured

137056 silver-

coloured

111357 silver-

coloured

DimensionsType of

80 x 80 x
21 mm

DimensionsType of

79 x 79 x

12.5 mm

75 x 74 x
66 mm

79 x 79 x
12 mm

installation

Flush-mounted
installation

installation

Flush-mounted
installation

Surface-mounted

Flush-mounted
installation

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

2025-06-15T15:36:03Z

Product data sheet | Page 8 of 13

Powerdrive PL

SCT KEY SWITCH

Key switch for authorised activation and for changing the mode of
operation of automatic doors

Designation Description

SCT key
switch *

SCT key
switch

2-pin with Euro profile half cylinder, two-sided
switching operation, without AS 500 frame

1 pin without Euro profile half cylinder, single-sided
switching operation

Ident­No. Colour Dimensions Type of installation

118478 alpine

white

117996 alpine

white

SCT 221

Key switch for authorised activation and changing the mode of operation
of automatic doors, surface and flush-mounted

Designation Description Ident-No. Colour

SCT 221 key
switch

SCT 221 key
switch

One-sided switching operation, without Euro profile half
cylinder / One-sided switching operation (key can only
be removed in the central position), cover can only be
removed with key, light alloy housing, IP rating IP54

One-sided switching operation, without Euro profile half
cylinder / One-sided switching operation (key can only
be removed in the central position), cover can only be
removed with key, light alloy housing, IP rating IP54

054240 silver-

coloured

054532 silver-

coloured

80 x 80 x 11mmFlush-mounted

Dimension
s Type of installation

75 x 75 x 11mmFlush-mounted

75 x 75 x
50 mm

installation

installation

Surface-mounted

TPS

Keypad programme switch for setting the mode of operation for
automatic doors

Designation Description

TPS keypad programme
switch

TPS keypad programme
switch and SCT key switch

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

with 2 control keys, LED display, coded fault
display, IP rating IP40 / suitable for switch ranges
with 55x55mm switch insert

in combined double frame without Euro profile half
cylinder

2025-06-15T15:36:03Z

Ident­No. Colour

113231 alpine

white

113232 alpine

white

DimensionsOperating

80 x 80 x 11mm24 V DC

80 x 152 x
11 mm

voltage

24 V DC

Product data sheet | Page 9 of 13

Powerdrive PL

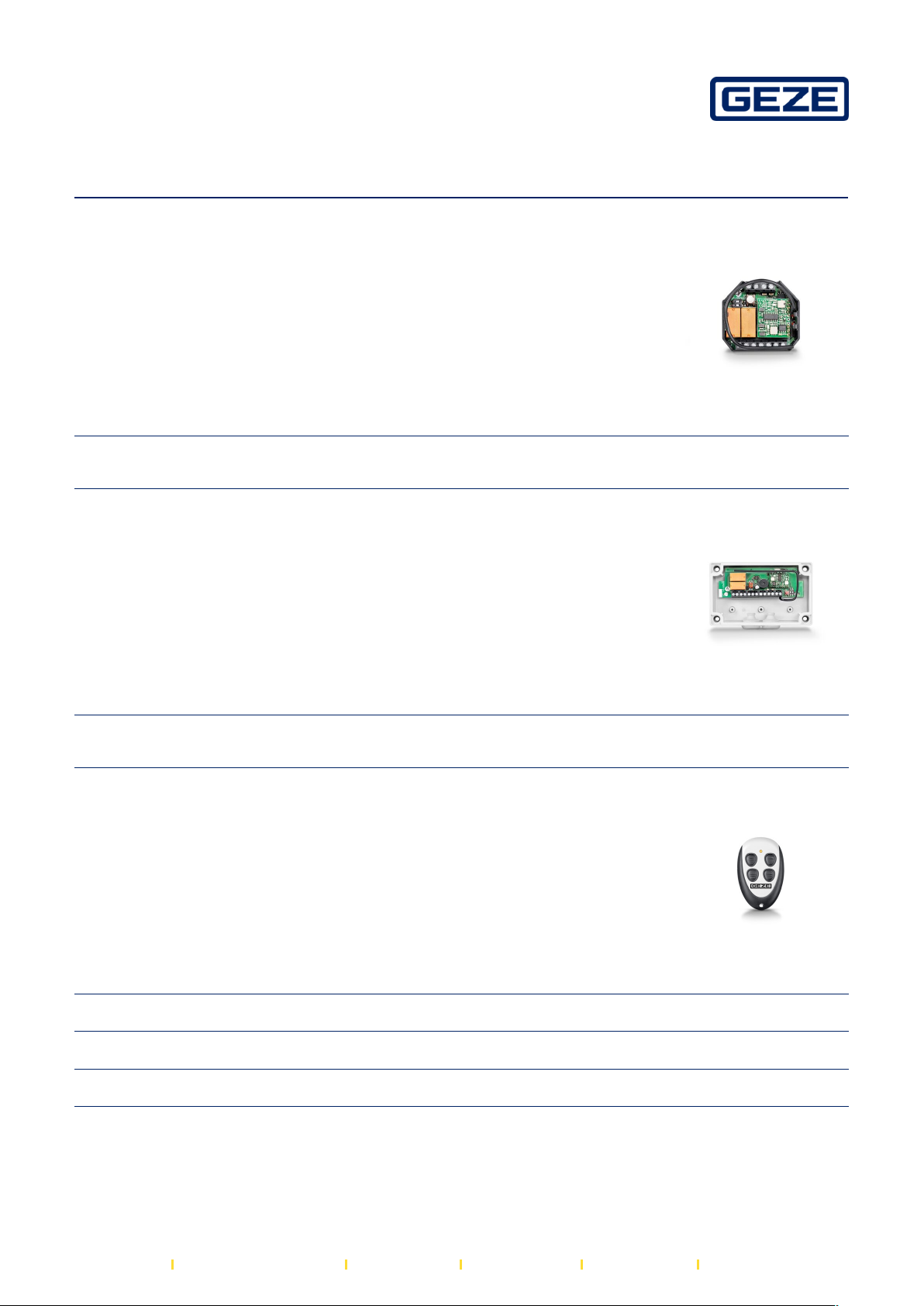

WRM-24

Receiving module for activating automatic doors and window drives with
24 V DC

Designation Description

WRM-24
receiving
module

52 x 47 x 23 mm (W x H x D), for installation in a standard
flush-mounted socket / 24 V DC operating voltage,
pulsed operation or pulsed and continuous operation

WRM-24B

Receiving module for activating automatic doors and window drives with
24 V DC

Designation Description

WRM-24B
receiving module

130 x 80 x 35 mm (W x H x D), for surface mounting with
protection class IP54 / 24 V DC operating voltage,
pulsed operation or pulsed and continuous operation

WTH

Remote control for activating GEZE automatic doors and window drives
via the GEZE wireless programme

Ident­No. Colour Dimensions Output

131213 black 52 x 52 x 47

x 23 mm

Ident­No. Colour Dimensions Output

131214 white 130 x 130 x

80 x 35 mm

2 potential-free
relay contacts

2 potential-free
relay contacts

Designation Description Ident-No. Dimensions

WTH-2 remote control 2
channel

WTH-4 remote control 4
channel

WTH-1 remote control 1
channel

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

with wall fixing and IP rating
IP54

with wall fixing and IP rating
IP54

with wall fixing and IP rating
IP54

2025-06-15T15:36:04Z

131210 78 x 51 x 15

mm

131211 78 x 51 x 15

mm

131209 78 x 51 x 15

mm

Operating
voltage

12 V DC Wall

12 V DC Wall

12 V DC Wall

Type of
installation

Product data sheet | Page 10 of 13

Powerdrive PL

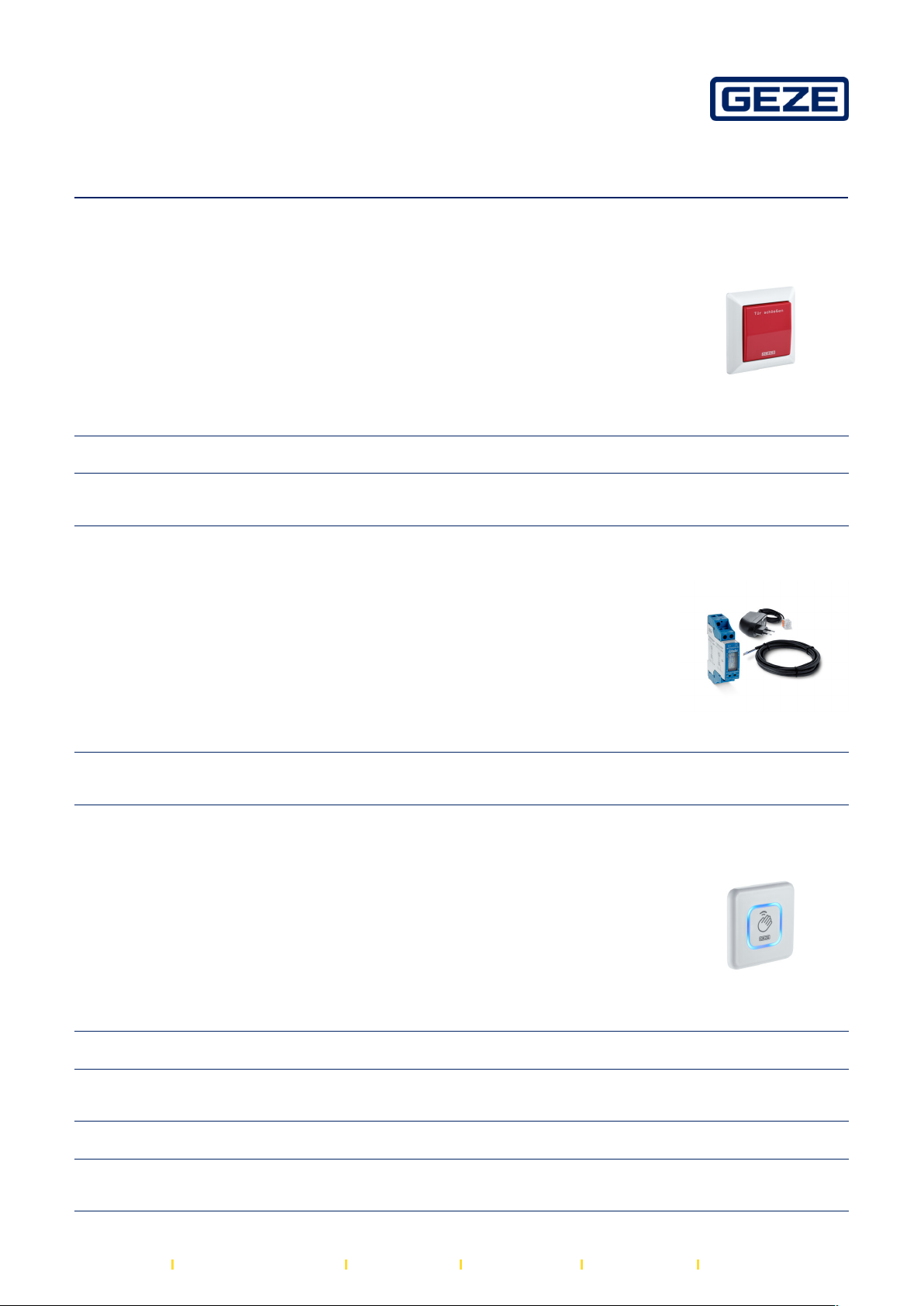

AS 500

Manual trigger switch for the manual release of electrically controlled
hold-open devices

Designation Description

AS 500 manual
trigger switch

AS 500 manual
trigger switch,
glass

for the manual release of electrically controlled hold-open
devices including terminating resistor for line monitoring

for the manual release of electrically controlled hold-open
devices including terminating resistor for line monitoring,
glass pane and 5 interchangeable labels

MULTI-FUNCTION RELAY *

Digitally adjustable multifunction time relay with 18 functions

Designation Description

Multifunction relay 10­250V AC/DC *

Relay with built-in time-dependent activation, times for On
and Off phase separately adjustable from 0.75 s to 60 min
Possible applications: response delay, flashing relay, etc.

Ident­No. Colour

116266 alpine

white/red

120880 alpine

white/red

Ident­No.

182160 18 x 86 x

DimensionsOperating

80 x 80 x 9mm24 V DC

80 x 80 x
21 mm

DimensionsType of

58 mm

voltage

24 V DC

installation

Top hat rail
mounting

GC 307+ *

Non-contact proximity switch for activating automatic doors

Designation Description

GC 307+
(hand icon) *

GC 307+ (WC
icon) *

GC 307+
(hand icon) *

GC 307+ (WC
icon) *

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

Proximity switch for the activation of automatic doors 195727 alpine

Proximity switch for the activation of automatic doors /
Suitable for Powerturn, EMD, and standard sliding
doors

Proximity switch for the activation of automatic doors 193226 alpine

Proximity switch for the activation of automatic doors /
Suitable for Powerturn, EMD, and standard sliding
doors

2025-06-15T15:36:04Z

Ident­No. Colour Dimensions Type of installation

white

195751 alpine

white

white

195750 alpine

white

80 x 80 x 21mmSurface-mounted

80 x 80 x 21mmSurface-mounted

80 x 80 x 8mmFlush-mounted

installation

80 x 80 x 8mmFlush-mounted

installation

Product data sheet | Page 11 of 13

Powerdrive PL

INTERLOCKING DOOR SYSTEM FUNCTION *

Prevents simultaneous opening of two doors that are installed in a row

Designation Ident-No. Dimensions Type of installation IP rating

Interlocking door system function * 109072 192 x 164 x 87 mm Surface-mounted, Flush-mounted installation IP66

GC 339+ *

Safety sensor for automatic sliding, revolving, and curved sliding doors,
as well as for windows

Designation Description Ident-No. Colour Dimensions Output

GC 339+ * Safety sensor for automatic doors 203859 according to RAL 209 x 58 x 47 mm Potential-free relay contact

GC 339+ * Safety sensor for automatic doors 203858 black 209 x 58 x 47 mm Potential-free relay contact

GC 363+ *

Combined detector for activating and protecting automatic sliding doors
with ten different infrared light curtain configuration settings

Designatio
n Description Ident-No. Colour Dimensions

GC 363+ R*Combined detector for the activation and safeguarding

of automatic sliding doors

GC 363+ R*Combined detector for the activation and safeguarding

of automatic sliding doors

GC 363+ SF*Combined detector for the activation and safeguarding

of automatic sliding doors

GC 363+ SF*Combined detector for the activation and safeguarding

of automatic sliding doors

203855 according to

RAL

203854 black 270 x 58 x 58mm24 V

203857 according to

RAL

203856 black 270 x 58 x 58mm24 V

270 x 58 x 58mm24 V

270 x 58 x 58mm24 V

Operating
voltage

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

2025-06-15T15:36:04Z

Product data sheet | Page 12 of 13

Powerdrive PL

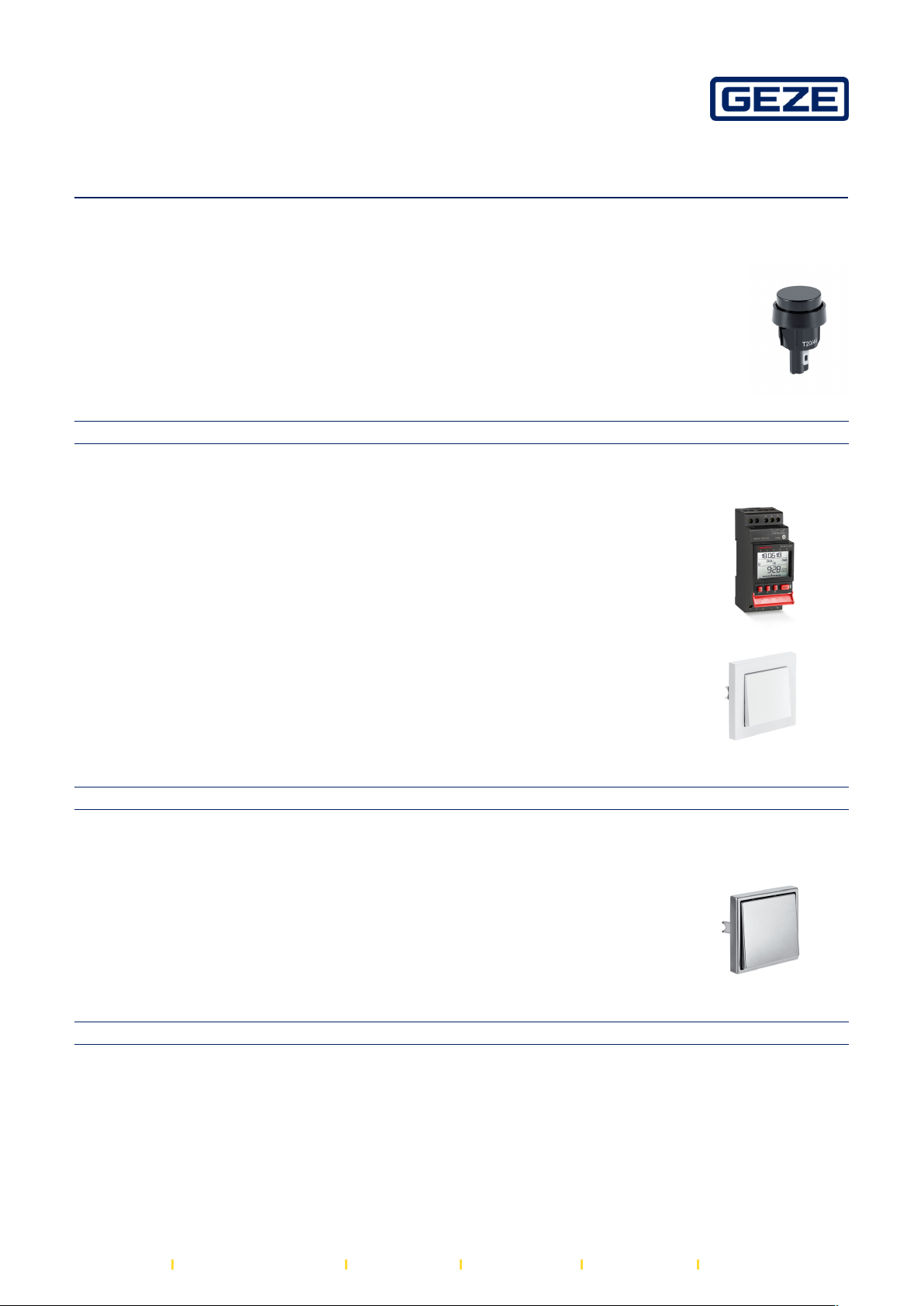

SW MINI-BUTTON *

Can be used in the retail sector for one-time opening of automatic doors
to leave the building in night mode

Designation Ident-No. Colour Dimensions Type of installation IP rating

SW mini-button * 098861 black 20 x 20 x 11 x 22 mm Flush-mounted installation IP40

DIGITAL PROGRAMMABLE TIMER *

For time-controlled changes of modes of operation on automatic doors

E2 ROCKER PUSH BUTTON

Activation of all GEZE automatic doors

Designation Ident-No. Colour Dimensions Type of installation IP rating

E2 rocker push button 094013 pure white matt 80.8 x 80.8 x 9.3 mm Flush-mounted installation IP20

LS 990 ROCKER PUSH BUTTON

Activation of all GEZE automatic doors

Designation Ident-No. Colour Dimensions Type of installation IP rating

LS 990 rocker push button 098396 Stainless steel 81 x 81 x 11 mm Flush-mounted installation IP20

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

2025-06-15T15:36:05Z

Product data sheet | Page 13 of 13

Powerdrive PL

SERVICE INTERFACE

Faster diagnosis and maintenance

Designation Description

Service interface
EC T2

to be mounted onto cover of sliding doors. Allows the connection of Service Terminal or
Bluetooth Interface.Connector cable length: 3 meters

Ident­No.

181028 3000 mm

Dimension
s

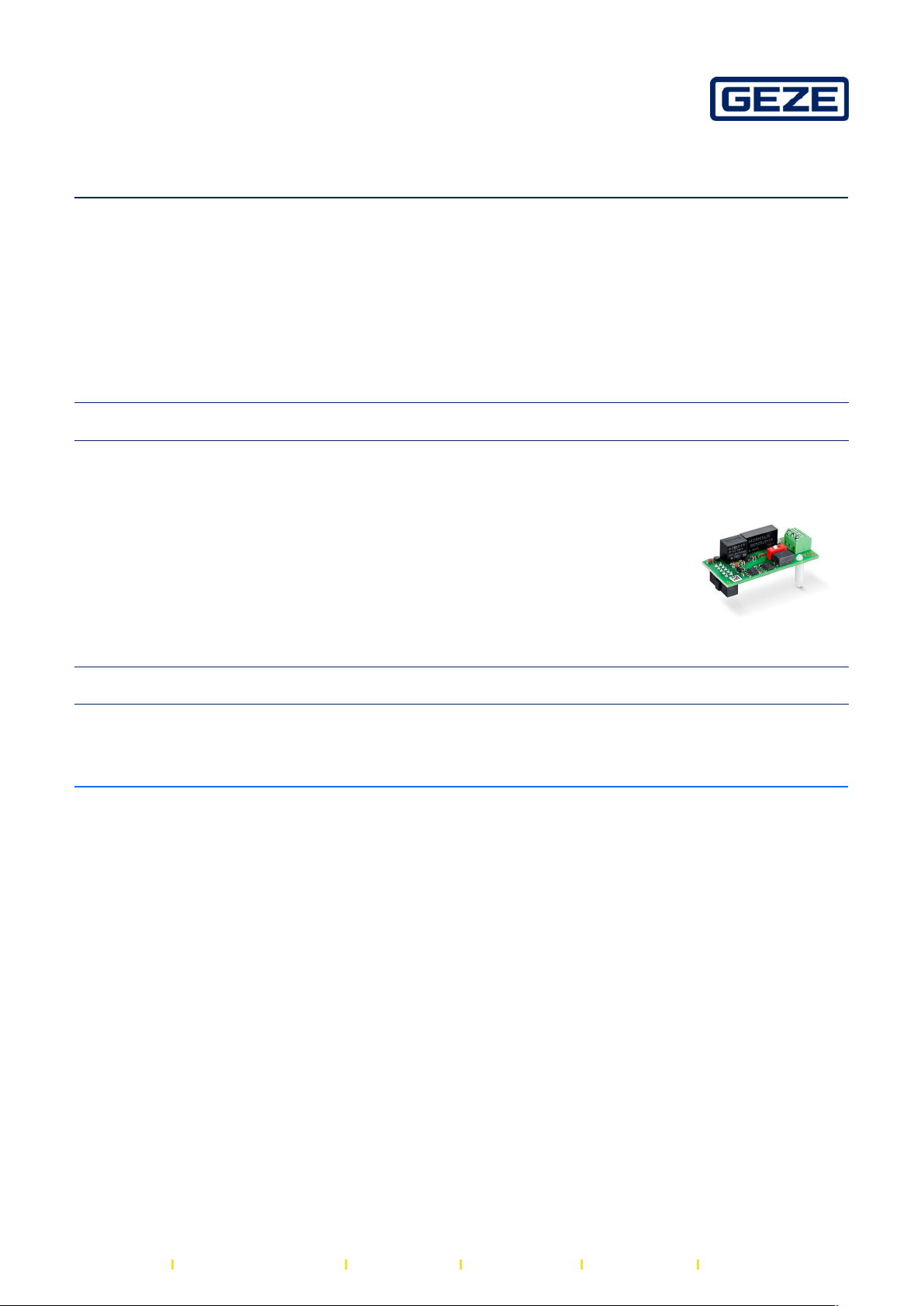

CAN/CAN INTERFACE GALVANICALLY ISOLATED *

CAN extension module for automatic sliding, revolving, and swing door
drives

Designation Description

CAN/CAN interface
galvanically isolated *

CAN extension module for automatic sliding,
revolving, and swing door drives

Ident­No. Dimensions Type of installation

119952 55 x 25 x 22mmcan be plugged in to DCU

control units

* The products designated above may vary in form, type, characteristics, function, or availability depending on the country.
Please get in touch with your GEZE contact person if you have any questions.

GEZE GmbH Reinhold-Vöster-Straße 21–29 D-71229 Leonberg TEL [phone] WEB www.geze.de Mail [email protected]

2025-06-15T15:36:05Z
