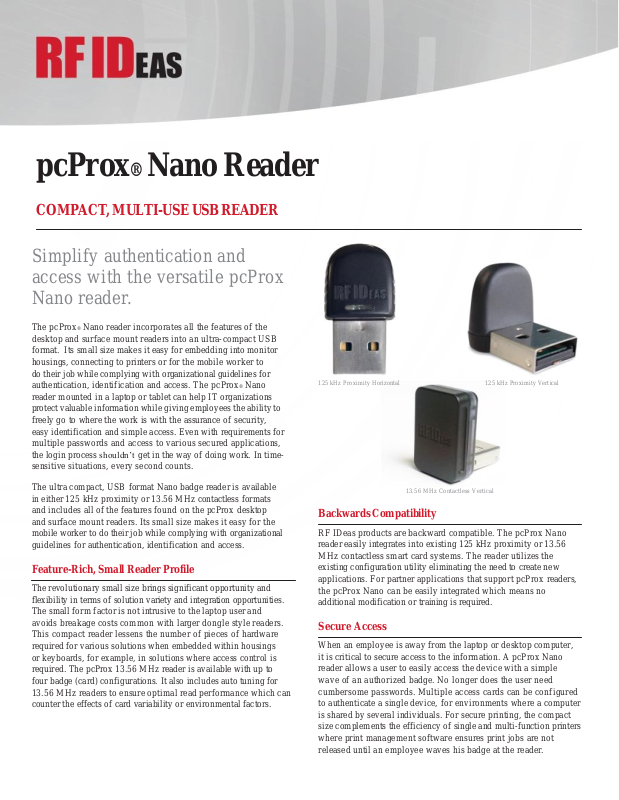

pcProx® Nano Reader

COMPACT, MULTI-USE USB READER

Simplify authentication and
access with the versatile pcProx
Nano reader.

The pcProx® Nano reader incorporates all the features of the
desktop and surface mount readers into an ultra-compact USB
format. Its small size makes it easy for embedding into monitor
housings, connecting to printers or for the mobile worker to
do their job while complying with organizational guidelines for
authentication, identification and access. The pcProx® Nano
reader mounted in a laptop or tablet can help IT organizations
protect valuable information while giving employees the ability to
freely go to where the work is with the assurance of security,
easy identification and simple access. Even with requirements for
multiple passwords and access to various secured applications,
the login process shouldn’t get in the way of doing work. In time-
sensitive situations, every second counts.

The ultra compact, USB format Nano badge reader is available
in either 125 kHz proximity or 13.56 MHz contactless formats
and includes all of the features found on the pcProx desktop
and surface mount readers. Its small size makes it easy for the
mobile worker to do their job while complying with organizational
guidelines for authentication, identification and access.

Feature-Rich, Small Reader Profile

The revolutionary small size brings significant opportunity and
flexibility in terms of solution variety and integration opportunities.
The small form factor is not intrusive to the laptop user and
avoids breakage costs common with larger dongle style readers.
This compact reader lessens the number of pieces of hardware
required for various solutions when embedded within housings
or keyboards, for example, in solutions where access control is
required. The pcProx 13.56 MHz reader is available with up to
four badge (card) configurations. It also includes auto tuning for

13.56 MHz readers to ensure optimal read performance which can
counter the effects of card variability or environmental factors.

125 kHz Proximity Horizontal 125 kHz Proximity Vertical

13.56 MHz Contactless Vertical

Backwards Compatibility

RF IDeas products are backward compatible. The pcProx Nano
reader easily integrates into existing 125 kHz proximity or 13.56
MHz contactless smart card systems. The reader utilizes the
existing configuration utility eliminating the need to create new
applications. For partner applications that support pcProx readers,
the pcProx Nano can be easily integrated which means no
additional modification or training is required.

Secure Access

When an employee is away from the laptop or desktop computer,
it is critical to secure access to the information. A pcProx Nano
reader allows a user to easily access the device with a simple
wave of an authorized badge. No longer does the user need
cumbersome passwords. Multiple access cards can be configured
to authenticate a single device, for environments where a computer
is shared by several individuals. For secure printing, the compact
size complements the efficiency of single and multi-function printers
where print management software ensures print jobs are not
released until an employee waves his badge at the reader.

Model Series RDR-6X11AKU Enroll Vertical, RDR-6X12AKU 82 Series Vertical,

RDR-6X21AKU Enroll Horizontal, RDR-6X22AKU 82 Series
Horizontal (Note: X = Card Type)

RDR-7011AKU, RDR-7012AKU, RDR-7511AKU,
RDR-75 12AKU

Operating Frequency 125 kHz or 132 kHz

13.56 MHz

Dimensions (inches) Vertical: Height 0.72” x Width 0.62” x Length 0.72” (18.3 mm x

15.7 mm x 18.3 mm) Horizontal: Height 0.36" x Width 0.62" x
Length 1.14" (99.1 mm x15.7 mm x 29 mm)

Height 0.88” x Width 0.62” x Length 0.76”
(22.4 mm x 15.7 mm x 19.3 mm)

Weight 0.14 oz (3.96 g)

0.20 oz (5.67 g)

Indicators LED (horizontal model only)

LED

Form Factors Vertical mobile reader, Horizontal mobile reader

Vertical mobile reader

pcProx® Nano 125 kHz Proximity or

13.56 MHz Contactless Reader

FEATURES & SPECIFICATIONS

Common Applications

The introduction of mobile badge readers opens the door to an unlimited number of applications. The Software Developer’s Kit (SDK) allows
independent developers to give their application the ability to read badge identification information directly off any contactless smart card.
Below are some of the most common applications in key industries.

HEALTHCARE GOVERNMENT MANUFACTURING ENTERPRISE

Single Sign-on + + + +
Time & Attendance + + + +
Training Compliance + + + +
Point-of-Sale + + + +
Secure Print Management + + + +

STANDARD FEATURES Proximity Card Readers Contactless Smart Card Readers

Interface USB
Software Developer Kit (SDK) Yes

PHYSICAL CHARACTERISTICS Proximity Card Readers Contactless Smart Card Readers

Housing Color Black
Cable Length Not applicable

Power Supply USB self-powered
Power Consumption 70 mA typical, 100 mA maximum 60 mA typical, 150 mA maximum

ENVIRONMENT Proximity Card Readers Contactless Smart Card Readers

Operating Temperature Range -22º to 150ºF (-30º to 65ºC)
Operating Humidity Range 5% to 95% relative humidity, non-condensing
Storage Temperature Range -40º to 185ºF (-40º to 85ºC)

OTHER Proximity Card Readers Contactless Smart Card Readers

Certifications (Please contact RF IDeas

for information about other global certifications)

Compatible Operating Systems Windows XP® , 7® , 8® , 10® and Linux Ubuntu 12.04
Card Types

HID® Prox, Indala® , EM 410x, AWID, CASI-RUSCO,
Kantech ioProx
Contact RF IDeas for additional card types.

FCC-United States; CE Mark-Europe; RCM-Australia; IC-Industry Canada; UL

Environmental: RoHS, REACH

For RDR-701xAKU: HID iCLASS SE, HID iCLASS Seos™ PAC
For RDR-751xAKU CSN reader: HID iCLASS, ISO 14443A,

MIFARE® , ISO 15693, NFC 1 (Topaz),FeliCa (NFC 3),
ISO 14443B, CEPAS, MIFARE® DESFire®
