E100
USER’S MANUAL
Rugged Mobile Computing Solutions
August 2010
TRADEMARKS
The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc.
All brand and product names are trademarks or registered trademarks of
their respective companies.
NOTE
The information in this manual is subject to change without notice.
For the latest version of the manual, please visit the Getac website at
www.getac.com.
Table of Contents
Table of Contents .............................................................................................................................................. i
Getting Started ............................................................................................................................................... 1-1
Getting the Tablet PC Running ............................................. 1-2
Unpacking ............................................................................ 1-2
Installing the Battery Pack and Connecting to AC Power
............................................................................................... 1-3
Using the Hand Strap .......................................................... 1-6
Turning On and Off the Tablet PC .................................... 1-7
Taking a Look at the Tablet PC ............................................. 1-8
Front Components .............................................................. 1-8
Rear Components ............................................................. 1-11
Right-Side Components ................................................... 1-12
Left-Side Components...................................................... 1-12
Top Components .............................................................. 1-13
Bottom Components ........................................................ 1-13
Operating Your Tablet PC ......................................................................................................................... 2-1
Using the Touchscreen............................................................ 2-2
Using Multi-touch Gestures (Optional) ............................. 2-3
Using the Input Panel .............................................................. 2-6
Using the Keypad .................................................................... 2-7
Control Buttons .................................................................... 2-7
Numeric Keypad with Alternative Functions .................. 2-8
Cursor-Control Keys with Alternative Functions.............. 2-8
Using the Network Features ................................................. 2-10
i

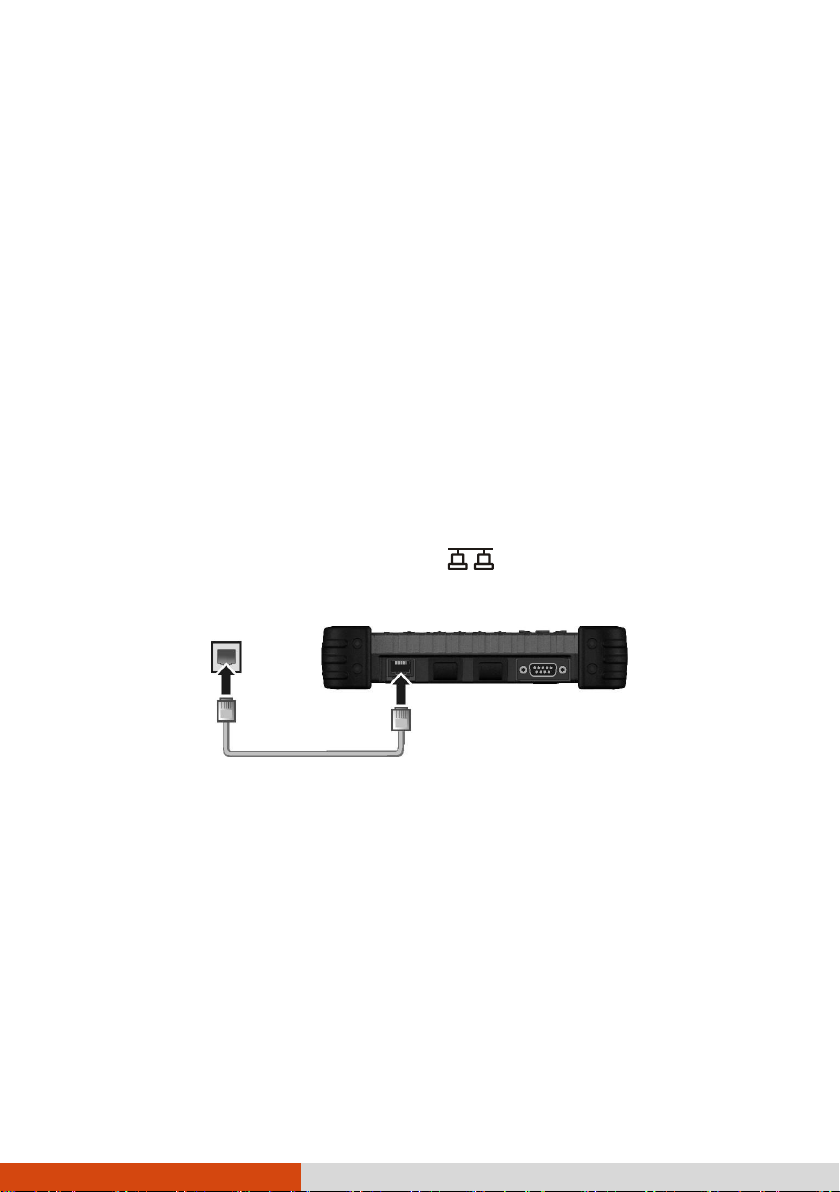

Using the LAN ..................................................................... 2-10

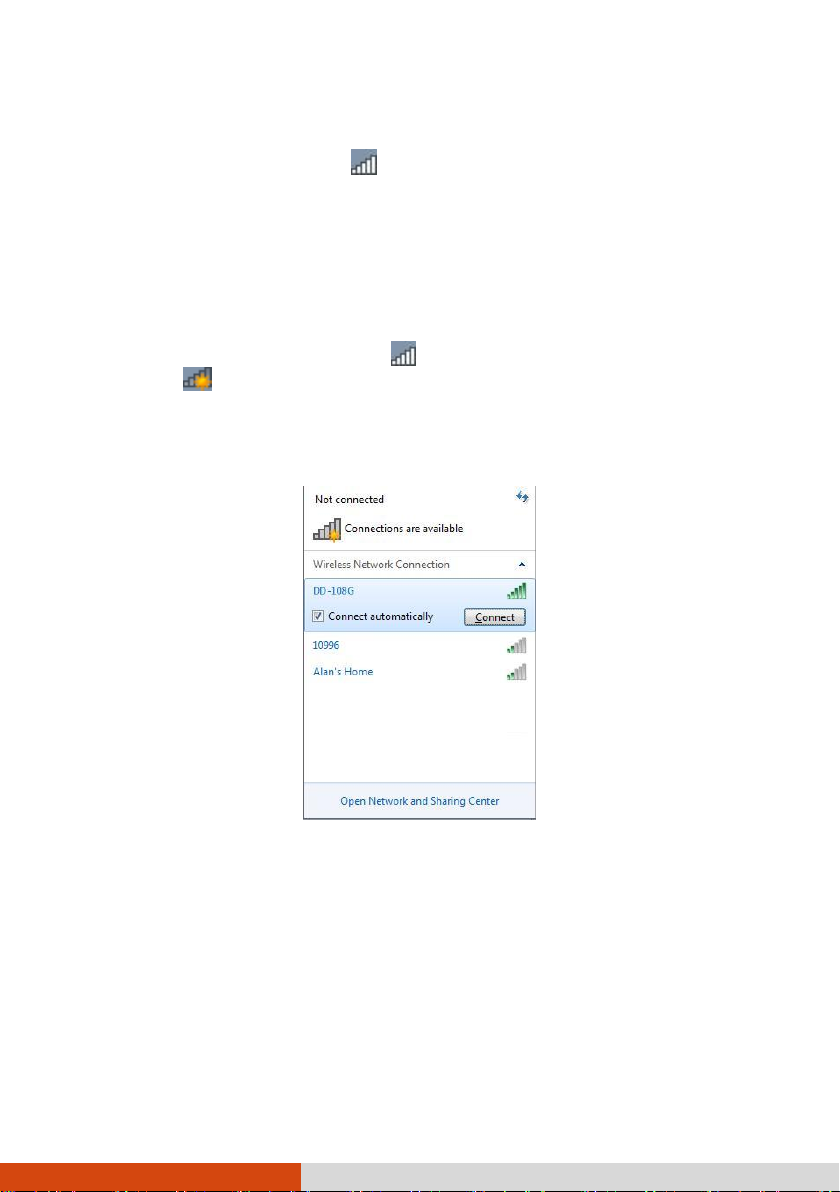

Using the Wireless LAN (Optional) ................................... 2-10
Using the Bluetooth Feature (Optional) ............................. 2-14

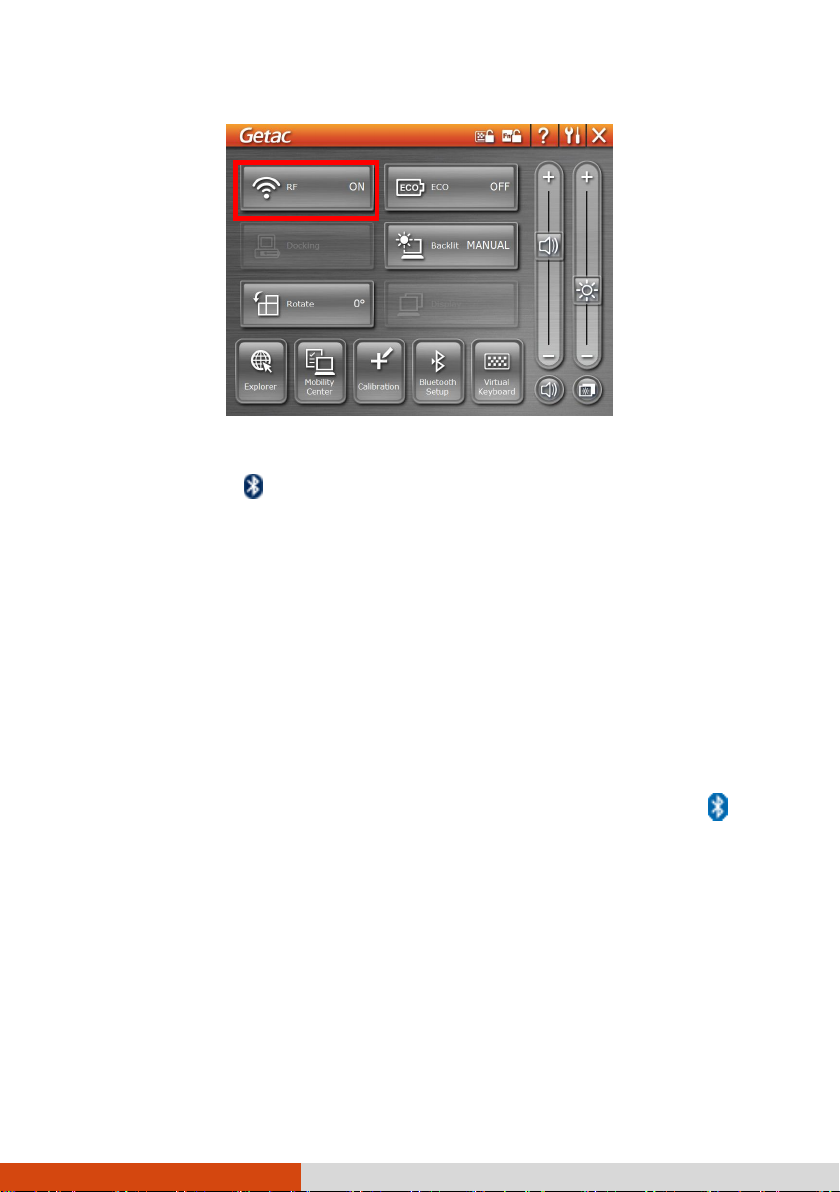

Turning On/Off the Bluetooth Radio .............................. 2-14

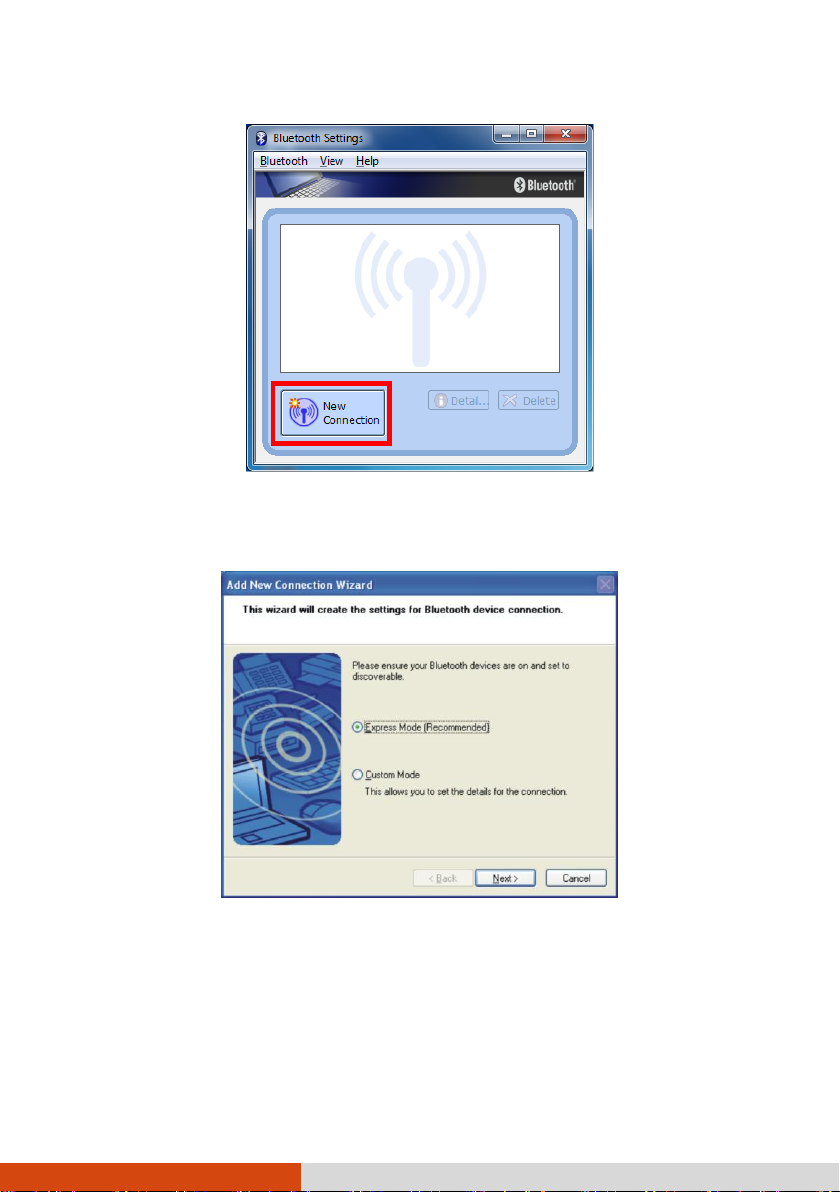

Connecting to another Bluetooth Device .................... 2-15
Using the Camera (Optional) .............................................. 2-18
Using the Fingerprint Scanner (Optional) .......................... 2-19
Managing Power .......................................................................................................................................... 3-1
AC Adapter .............................................................................. 3-2
Battery Pack ............................................................................. 3-3
Charging the Battery Pack ................................................ 3-3
Checking the Battery Level ............................................... 3-4
Replacing the Battery Pack .............................................. 3-5
Battery Low Signals and Actions ....................................... 3-6
Power Management .............................................................. 3-7
Hibernation ........................................................................... 3-8
Power-Saving Tips .................................................................... 3-9
Expanding Your Tablet PC ........................................................................................................................ 4-1

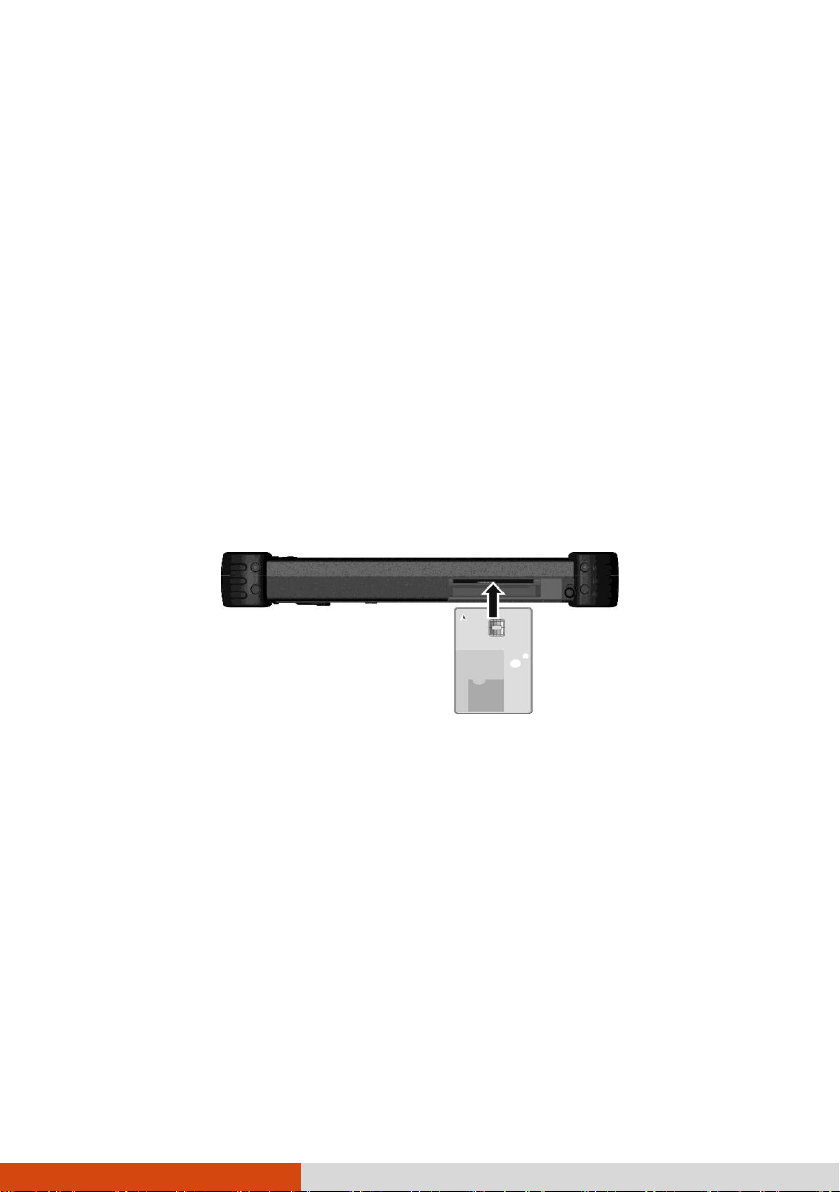

Using Smart Cards .................................................................... 4-2
Using PC Cards ......................................................................... 4-3

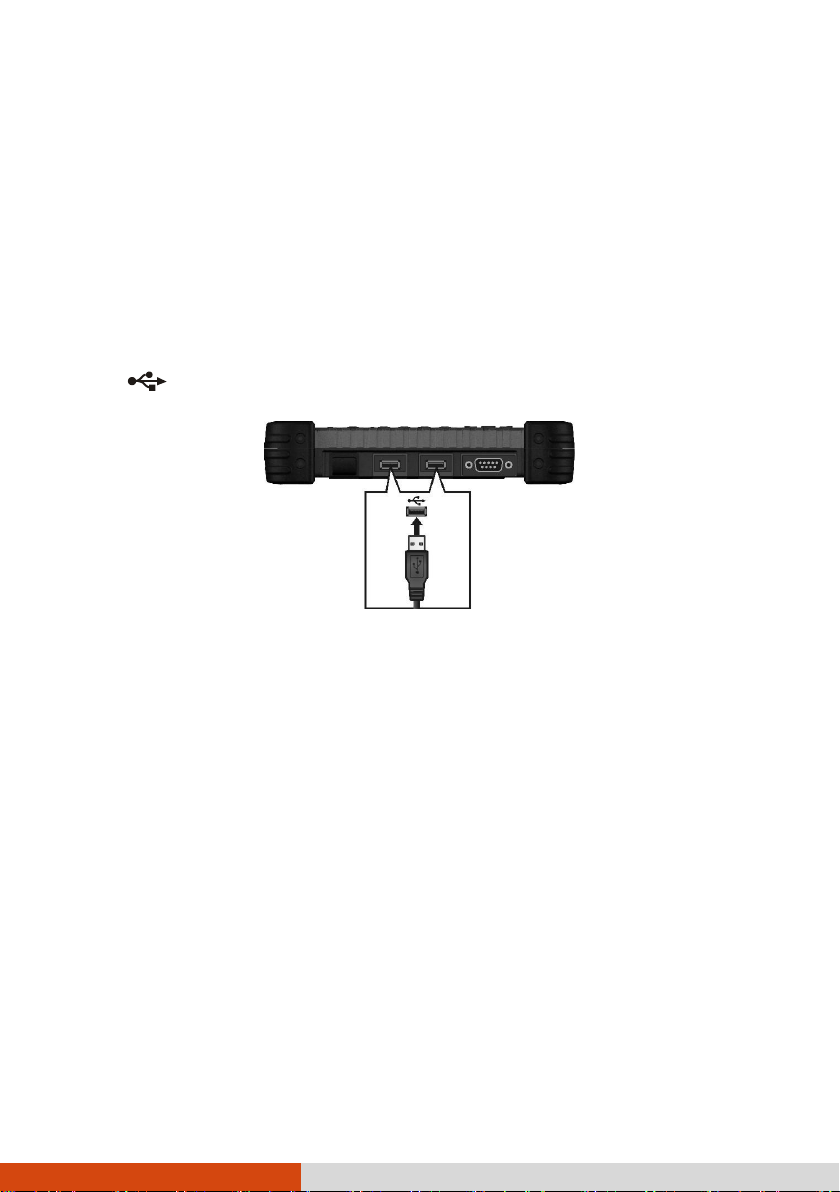

Connecting a USB Device ..................................................... 4-4

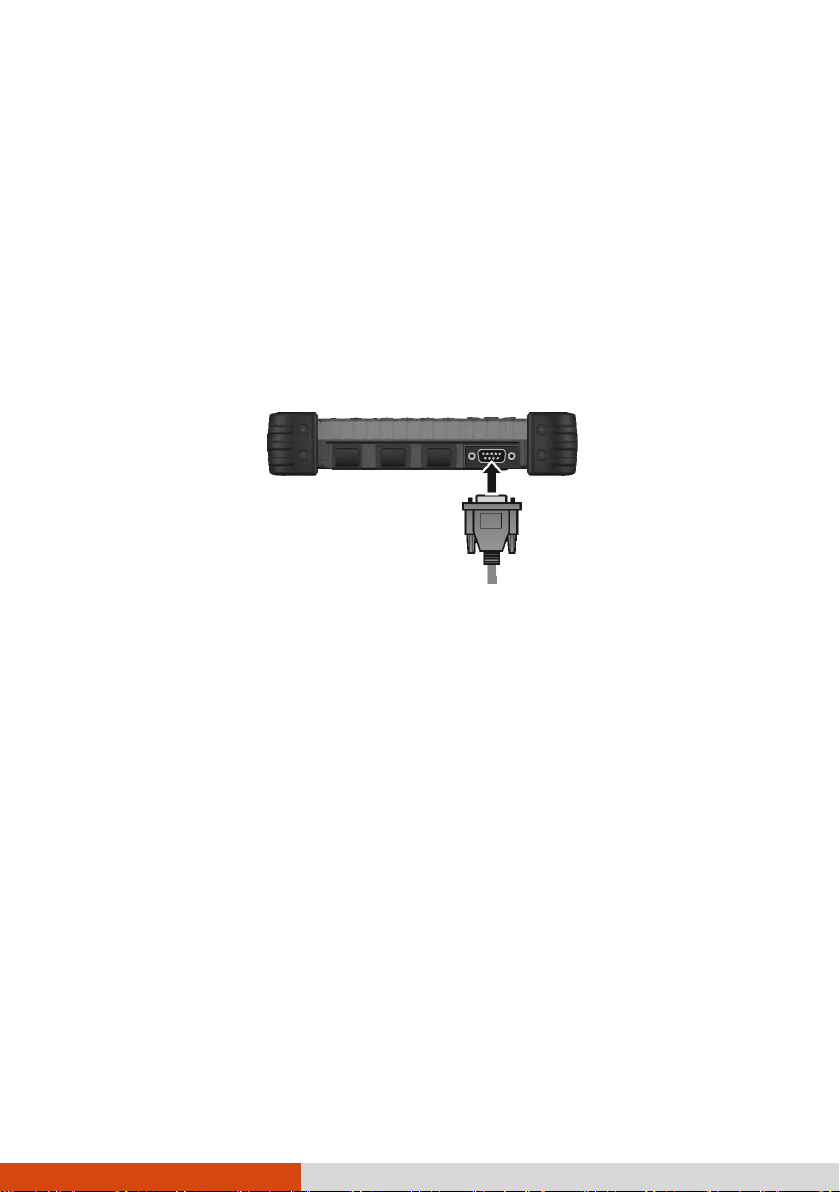

Connecting a Serial Device .................................................. 4-5
Connecting an Audio Device ............................................... 4-6
Using the Docking Station ...................................................... 4-7
Using BIOS Setup and System Recovery .......................................................................................... 5-1
BIOS Setup ................................................................................ 5-2

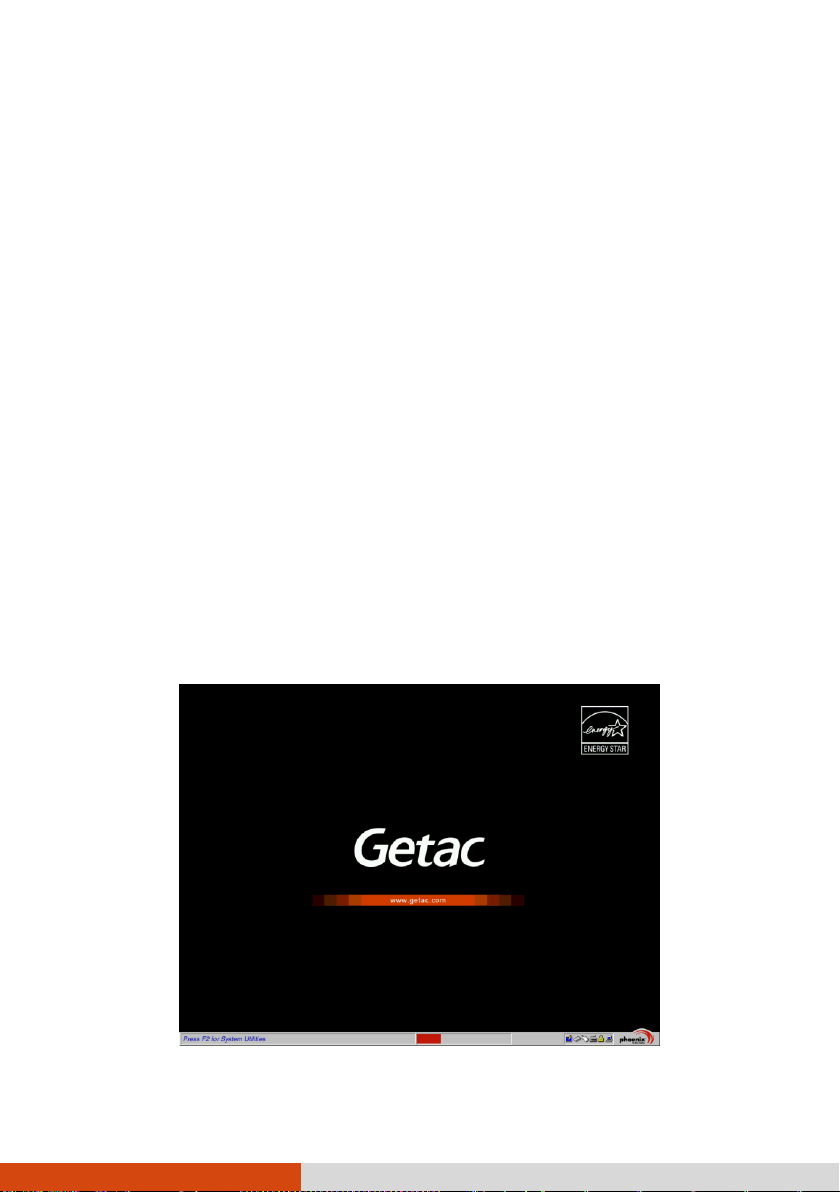

When and How to Use ........................................................ 5-2
Information Menu................................................................ 5-3
Main Menu ........................................................................... 5-4
Advanced Menu ................................................................. 5-5
Security Menu ...................................................................... 5-7
ii
Boot Menu ............................................................................ 5-8
Exit Menu .............................................................................. 5-9

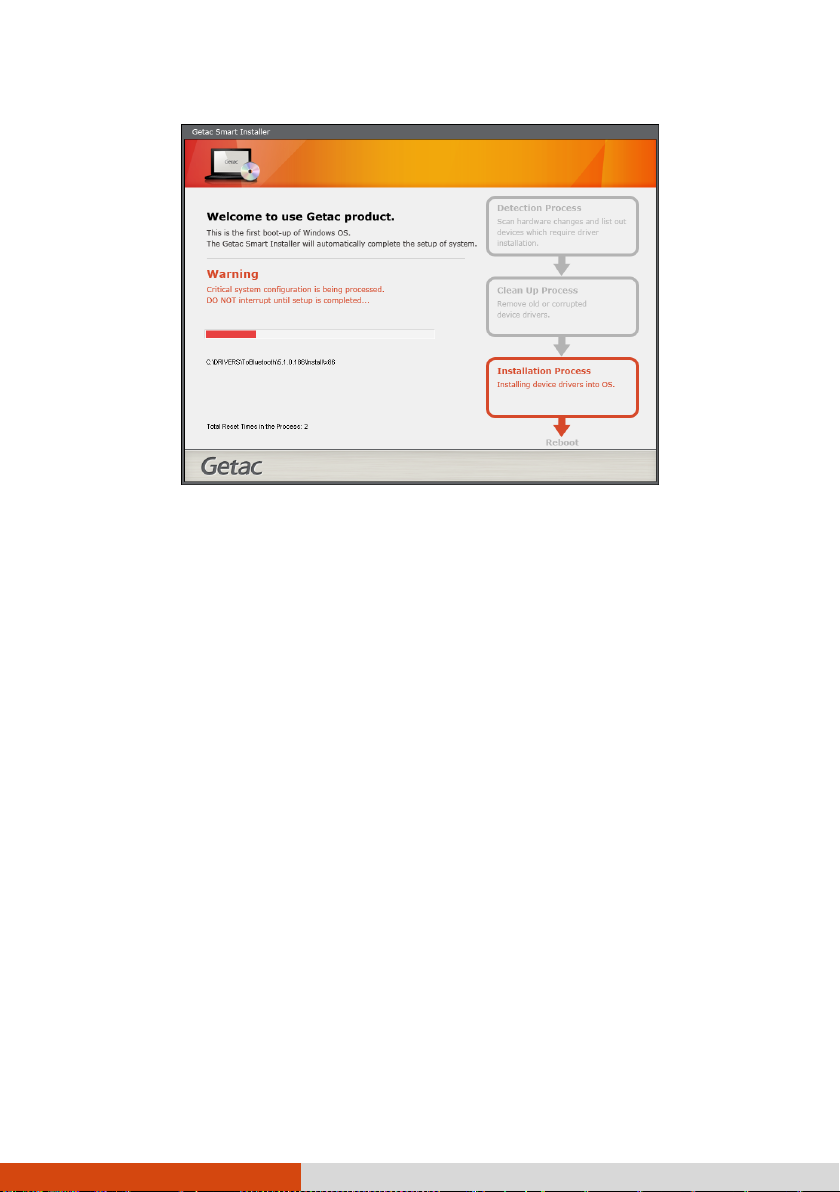

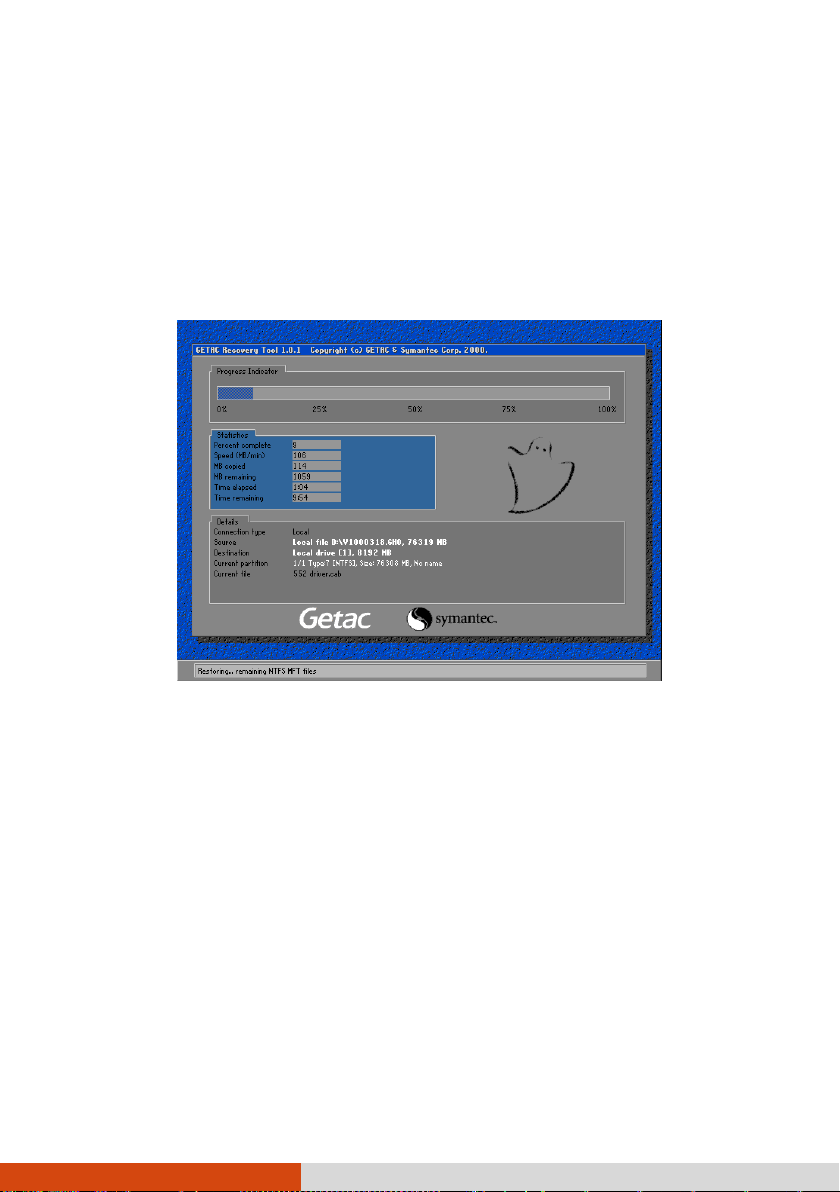

System Recovery ................................................................... 5-10
Using Special Utilities ............................................................................................................................... 6-1

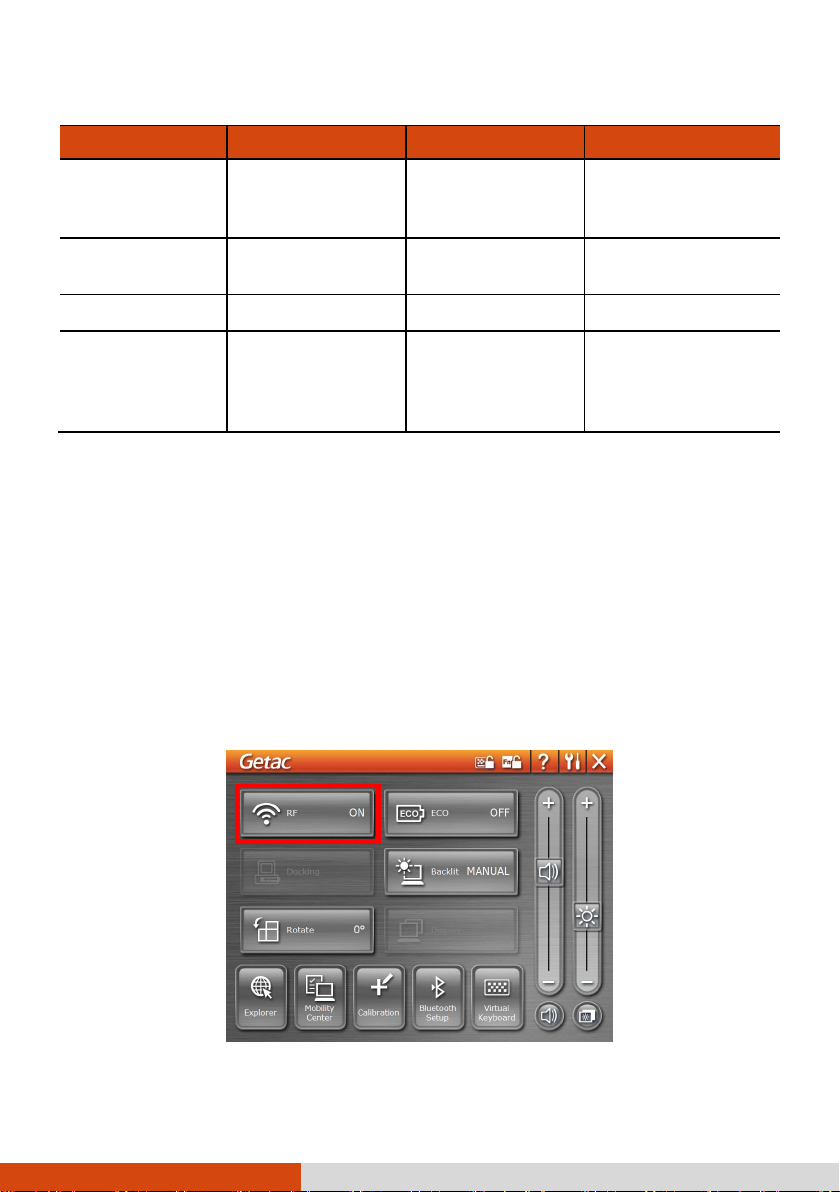

Using the OSD Control Panel ................................................. 6-2
Quick Button Setup ............................................................. 6-6
Using G-Manager .................................................................... 6-8
Starting G-Manager ............................................................ 6-8
System Tab ........................................................................... 6-9
Battery Tab ......................................................................... 6-10

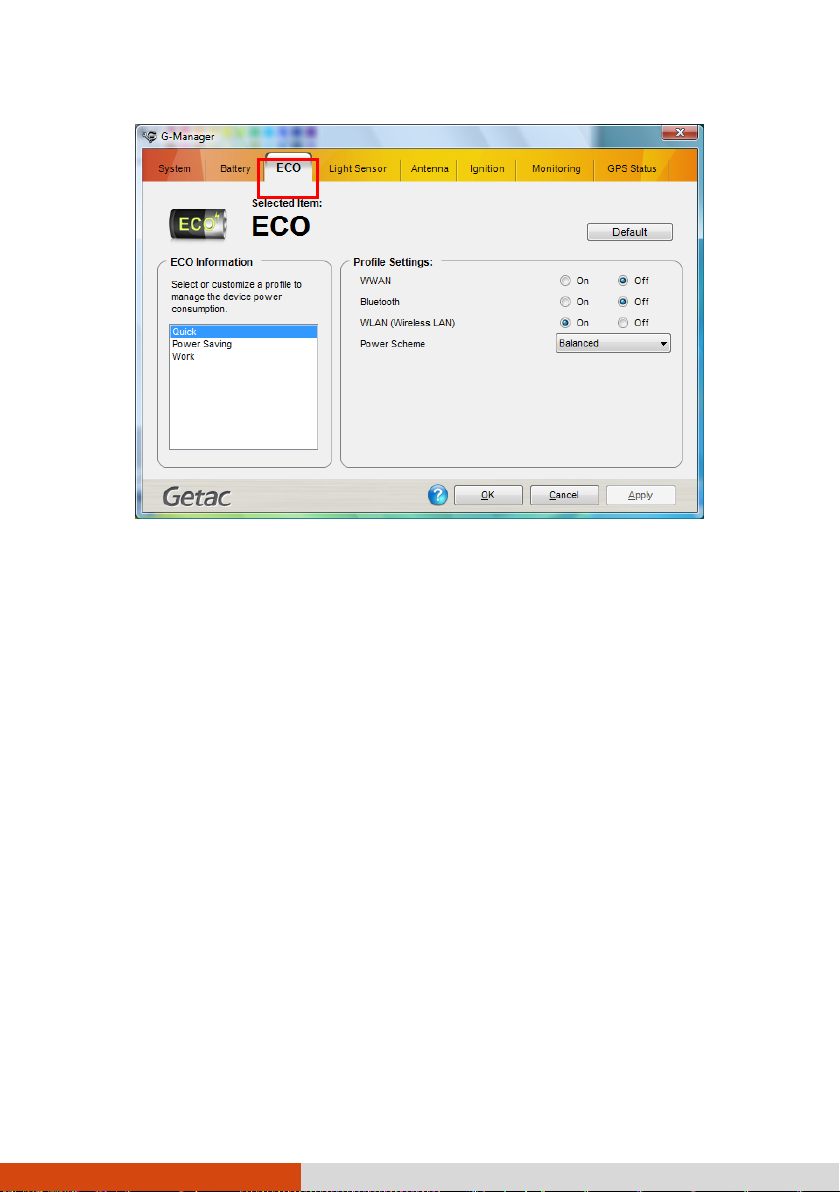

ECO Tab .............................................................................. 6-12
ECO Information ................................................................ 6-13

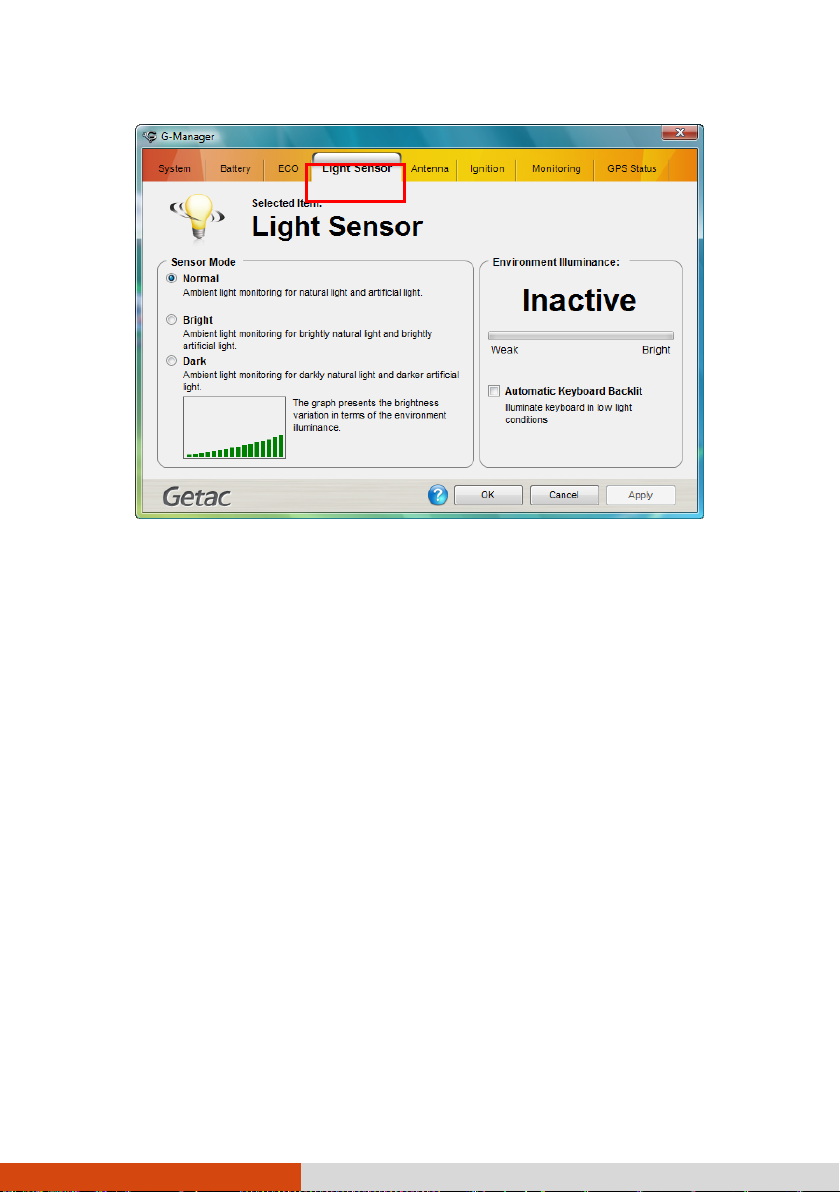

Light Sensor Tab ................................................................. 6-14

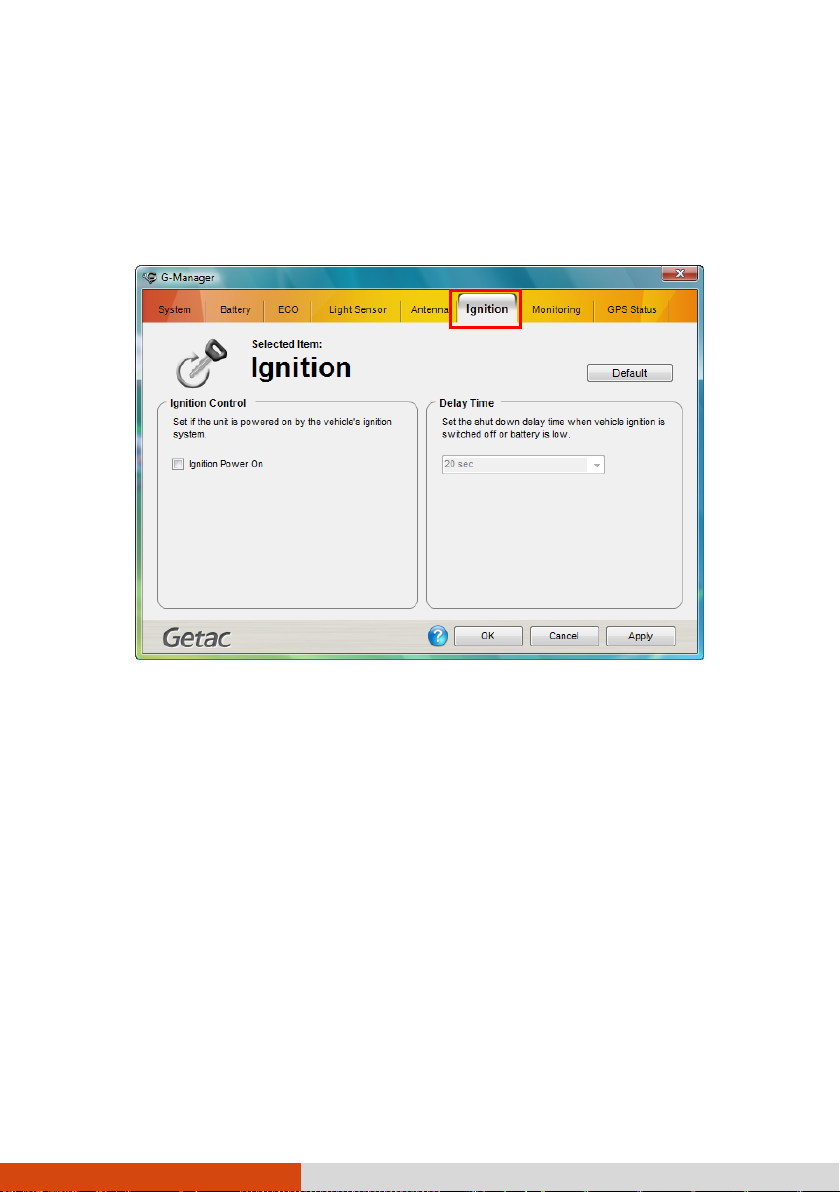

Ignition Tab ......................................................................... 6-16

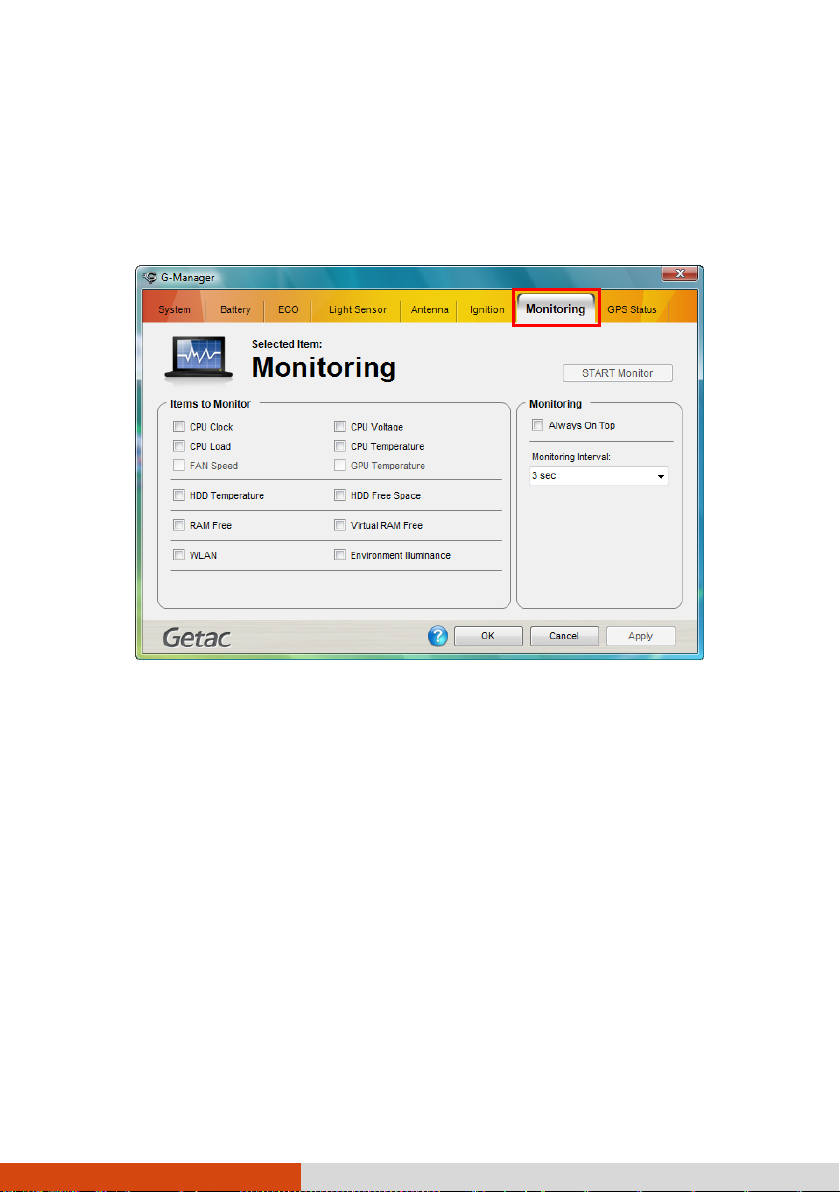

Monitoring Tab ................................................................... 6-17

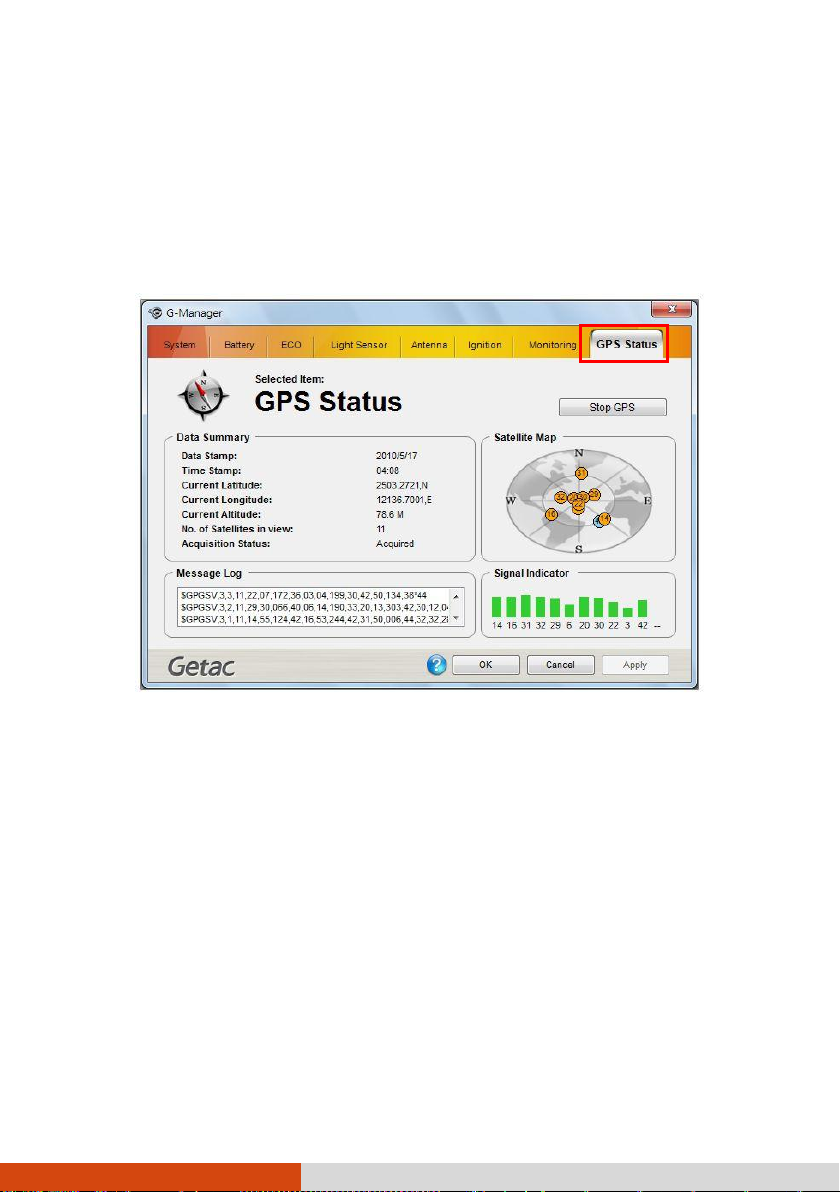

GPS Status Tab ................................................................... 6-19
Caring for the Tablet PC ............................................................................................................................. 7-1
Protecting the Tablet PC ........................................................ 7-2
Using the Cable Lock ......................................................... 7-2
Using an Anti-Virus Strategy ............................................... 7-3
Using Action Center (for Windows 7) ............................... 7-3
Taking Care of the Tablet PC ................................................ 7-4
Location Guidelines ............................................................ 7-4
General Guidelines ............................................................. 7-4
Cleaning Guidelines ........................................................... 7-5
Battery Pack Guidelines ..................................................... 7-5
Touchscreen Guidelines ..................................................... 7-6
When Traveling ........................................................................ 7-8
Troubleshooting .......................................................................................................................................... 8-1
Preliminary Checklist ............................................................... 8-2
Solving Common Problems .................................................... 8-3
iii
Battery Problems ................................................................. 8-3
Bluetooth Wireless Transmission Problems ....................... 8-3
Display Problems ................................................................. 8-4
Hardware Device Problems .............................................. 8-4
Hard Disk Drive Problems ................................................... 8-5
LAN Problems ....................................................................... 8-5
PC Card Problems ............................................................... 8-5
Power Management Problems ......................................... 8-6
Software Problems .............................................................. 8-6
Sound Problems ................................................................... 8-7
Startup Problems ................................................................. 8-7
Wireless LAN Problems ........................................................ 8-8
Other Problems .................................................................... 8-9
Resetting the Tablet PC ........................................................ 8-10
Specifications 1
Regulatory Information ................................................................................................................................ 1
On the Use of the System .......................................................... 2
Class B Regulations ................................................................ 2
Safety Notices ......................................................................... 3
On the Use of the RF Device ..................................................... 6
USA and Canada Safety Requirements and Notices ...... 6
European Union CE Marking and Compliance Notices .. 9
iv
Chapter 1
Getting Started
Congratulations on purchasing this rugged Tablet PC.
This chapter first tells you step by step how to get the Tablet PC up and
running. Then, you will find a section briefly introducing the external
components of the Tablet PC.
Getting Started 1-1
Getting the Tablet PC Running
Unpacking
After unpacking the shipping carton, you should find these standard
items:
Tablet PC
Accessories:
AC adapter
AC power cord
Hand strap
Screen protector film (already attached to the screen)
Stylus
Inspect all the items. If any item is damaged or missing, notify your dealer
immediately.
Keep the shipping carton and packing materials in case you need to ship
or store the Tablet PC in the future.
1-2 Getting Started
Unlock
position
Installing the Battery Pack and Connecting to AC
Power
The Tablet PC operates either on the external AC power or internal
battery power. It is suggested that you use AC power when starting up the
Tablet PC for the very first time.
CAUTION: Use only the AC adapter included with your Tablet PC. Using other
AC adapters may damage the Tablet PC.
1. Make sure that the Tablet PC is turned off.
2. Place the Tablet PC upside down.
3. Lift the latch handle of the battery cover and turn it counterclockwise
to the unlock position. Then, detach the cover from the Tablet PC.
Getting Started 1-3
Lock
position
4. Fit the battery pack into place (). Tightening the two screws () is
optional. The lack of the screws will not affect the rugged and
waterproof feature of the Tablet PC.
5. Replace the battery cover and turn the latch clockwise to the lock
position.
1-4 Getting Started
6. Plug the DC cord of the AC adapter to the power connector of the
Tablet PC (). Plug the female end of the AC power cord to the AC
adapter and the male end to an electrical outlet ().
7. Power is being supplied from the electrical outlet to the AC adapter
and onto your Tablet PC. Now, you are ready to turn on the Tablet PC.
CAUTION:
When you disconnect the AC adapter, disconnect from the electrical outlet
first and then from the Tablet PC. A reverse procedure may damage the AC
adapter or the Tablet PC.
When unplugging the connector, always hold the plug head. Never pull on the
cord.
NOTE: When the AC adapter is connected, it also charges the battery pack. For
information on using battery power, see Chapter 3.
Getting Started 1-5
Using the Hand Strap
Align the four hooks of the hand strap with the four corresponding holes
on the Tablet PC and tighten the screws.
The hand strap allows you to firmly hold the Tablet PC by inserting your
hand through the hand strap.
1-6 Getting Started
To...
Do this...
Power off
(Shutdown)
Use the Windows Start menu in the lower left and follow
the shutdown procedure.
Sleep
Press the power button* or use the Windows Start menu
to put the Tablet PC in Sleep mode.
Hibernate
Use the Windows Start menu to put the Tablet PC in
Hibernation mode.
Turning On and Off the Tablet PC
Turning On
Press the power button ( ). The operating system such as Microsoft
Windows should start.
Turning Off
When you finish a working session, you can stop the system by turning off
the power or leaving it in Sleep or Hibernation mode:
* “Sleep” is the default setting of the power button. You may change
what the power button does in Windows Control Panel.
Press the power button to resume or turn on the system from any of these
modes.
Getting Started 1-7
Ref
Component
Description
See Also
Touchscreen
Displays and receives information for the
Tablet PC.
P. 2-2
Power Button
Turns the power ON and OFF (Sleep mode
by default).
The green LED beside the button glows
when the power is on and blinks when the
system is in Sleep mode.
P. 1-7
Taking a Look at the Tablet PC
NOTE: Depending on the model you purchased, the appearance of your Tablet
PC may not be exactly the same as those shown in this manual.
CAUTION: When not using a connector, make sure that the connector cover is
completely closed to ensure the waterproof integrity of the Tablet PC.
Front Components
1-8 Getting Started
Ref
Component
Description
See Also
Microphone
Receives sound and voice to record
voice.
Light Sensor
Senses the ambient light for automatic
adjustments of the display and keypad
backlight. The features can be enabled
through OSD Control Panel and
G-Manager.
NOTE: Do not cover the sensor when in use.
P. 6-2
P. 6-14
Control Buttons
Fn
Toggles the Fn keylock ON and OFF.
P. 2-7
Toggles the keypad lock ON and OFF.
P. 2-7
Menu
Toggles the “OSD Control Panel” ON and
OFF.
P. 6-2
Indicators
P. 6-2
Battery Charge
Lights green when the battery is fully
charged.
P. 3-3
Lights amber when the battery is being
charged.
Blinks red (once per second) when the
battery’s capacity is below 10%.
Blinks red rapidly (once per 0.5 second)
when there is a thermal protection
problem with the battery. Ask for repair
service in case this happens.
Blinks amber when the battery charging is
in an abnormal state. Replace the battery
in case this happens.
Getting Started 1-9
Ref
Component
Description
See Also
Hard Disk Drive
Lights green when hard disk drive is being
accessed.
Lights red when the optional heater is on
during system operation.
Blinks red when the optional heater is in an
abnormal state.
Numeric Keypad
Provides number, Delete, and Enter keys.
When Fn keylock is on, the keys provide
alternative functions.
P. 2-7
Can be one of the below depending on your model:
Cursor-control
Keys
Serves as the arrow keys. When Fn keylock
is on, the keys provide alternative
functions.
P. 2-8
Fingerprint
Scanner
(optional)
Uses fingerprint verification to protect
against unauthorized access.
P. 2-18
Speaker
Sends out sound and voice from your
Tablet PC.
1-10 Getting Started
Ref
Component
Description
See Also
Camera Lens
(optional)

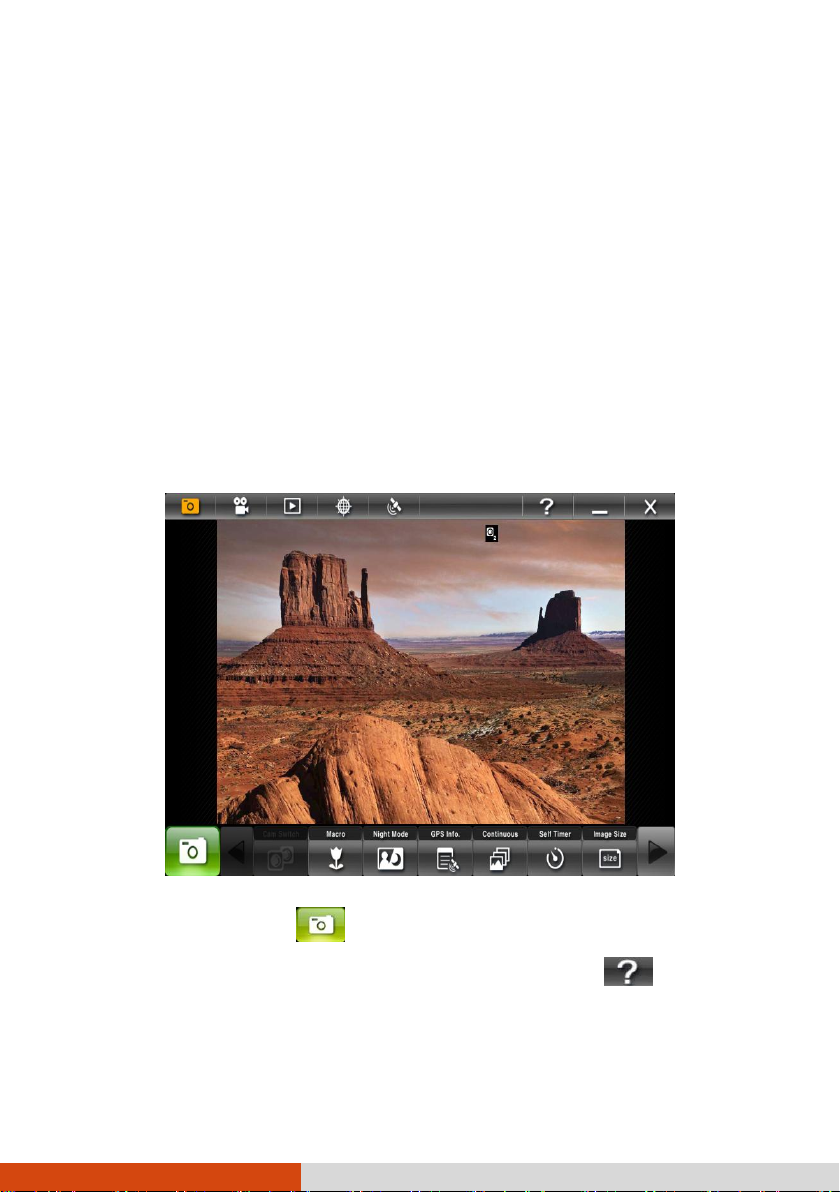

Allows you to use the camera function.
P. 2-18
Battery Pack
Inside is the battery pack that supplies
power to your Tablet PC when external
power is not connected.
P. 3-3
Contains the SIM card slot (optional).
P. 錯誤!
尚未定義
書籤。
Backup Battery
(optional)
Provides temporary backup power when
the main battery pack is removed. The
battery will be recharged when AC
power is connected.
NOTE: This battery is not user-replaceable.
It never functions as the power source as
long as the main battery pack is
installed.
P. 3-5
Rear Components
Getting Started 1-11
Ref
Component
Description
See Also
Kensington Lock
Locks the Tablet PC to a stationary
object for security.
P. 7-2
Stylus
Serves as the input device by tapping
on the touchscreen to make selections
and enter information.
P. 2-2
Tether Hole
Stylus tethered to this hole.
Ref
Component
Description
See Also
RJ-45 Connector
Connects the LAN cable.
P. 2-10
USB Ports
Each of the two ports connects a USB
device, such as a USB flash disk, printer,
digital camera, joystick, and more.
P. 4-2
Serial Port
Connects a serial device.
P. 4-5
Right-Side Components
Left-Side Components
1-12 Getting Started
Ref
Component
Description
See Also
Smart Card Reader
Accepts a Smart Card for additional
security feature.
P. 4-2
Can be one of the below depending on your model:
PC Card Slot
Accepts a PC card for additional
functions.
P. 4-3
Smart Card Reader
(optional)
Accepts a Smart Card for additional
security feature.
P. 4-2
None (optional)
There is no card slot if your model
comes with the backup battery option.
Headphone Out
Connector
Connects a set of headphones or
external speakers with amplifier
P. 4-6
Top Components
Bottom Components
Getting Started 1-13
Ref
Component
Description
See Also
GPS Pass-through
Connector
(optional)
Connects to the external antenna for
GPS receiver.
NOTE: Must be connected via a
docking station.
Docking Connector
Connects to the Docking Station
(available as an option).
P. 4-5
Power Connector
Connects the AC adapter.
P. 1-3
1-14 Getting Started
Chapter 2
Operating Your Tablet PC
This chapter provides information about the use of the Tablet PC.
If you are new to Tablet PCs, reading this chapter will help you learn the
operating basics. If you are already a computer user, you may choose to
read only the parts containing information unique to your Tablet PC.
CAUTION: The Tablet PC can get uncomfortably warm when you use it in high
temperatures. As a safety precaution in such a circumstance, do not place the
Tablet PC on your lap or touch it with your bare hands for extended periods of
time. Prolonged body contact can cause discomfort and potentially a burn.
Operating Your Tablet PC 2-1
Using the Touchscreen
NOTE:
The touchscreen function is not available when running the BIOS Setup
program or when using the full screen in DOS mode.
When there is a noticeable discrepancy in the placement of the stylus on the
screen and the indicated position of the onscreen pointer, use the calibration
utility by clicking the CalTouch shortcut on Windows desktop.
CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the
touchscreen. Doing so may damage the touchscreen surface. Use your finger or
the included stylus. A screen protector film has been attached to the screen
before shipment. The film is a consumable, which will be worn out after a period of
use (6 months in average). You can purchase a new one when replacement is
required.
The screen of your Tablet PC is touch-sensitive. You can control the
location of the cursor/pointer on the screen using your finger or the
included stylus to communicate with the Tablet PC.
2-2 Operating Your Tablet PC
Term
Action
Click/Point
Tap gently on the touchscreen.
Double-click
Tap twice on the touchscreen rapidly.
Drag and
drop
Press lightly on the touchscreen and move your finger
until you reach your destination (drag). Finally, release
your finger (drop) when you finish dragging your
selection to the destination. The object will drop into
the new location.
Gestures
Actions
( = finger down; = finger up)
Descriptions
Pan
(Scroll)
or
Drag 1 or 2 fingers up or down.
Use panning to see
another part of a
page that has scroll
bars.
Here are some common terms that you should know when using the
touchscreen:
Using Multi-touch Gestures (Optional)
If your model comes with multi-touch-capable screen and Windows 7, you
can interact with your Tablet PC by placing two fingers on the screen. The
movement of the fingers across the screen creates “gestures,” which send
commands to the computer.
Here are the multi-touch gestures that you can use:
Operating Your Tablet PC 2-3
Gestures
Actions
( = finger down; = finger up)
Descriptions
Zoom
(Pinch)
Move two fingers apart/toward
each other.
Use zooming to make
an item (a photo for
example) on the
screen larger or
smaller. The gesture
works in applications
that support mouse
wheel zooming.
Rotate
or
Move two fingers in opposing
directions.
-orUse one finger to pivot around
another.
Use rotating to move
a picture or other
item on the screen in
a circular direction
(clockwise or counterclockwise). The
gesture works in
applications that
support the specific
gesture.
Press
and Tap
Press on target and tap using a
second finger.
Use press and tap to
access the shortcut
menu.
2-4 Operating Your Tablet PC
Gestures
Actions
( = finger down; = finger up)
Descriptions
Twofinger
Tap
Tap two fingers at the same time
(where the target is in the midpoint
between the fingers).
The function is
defined by
applications that
support the specific
gesture.
Flicks
Make quick drag gestures in the
desired direction.
Flick left or right to
navigate back and
forward in a browser
and other
applications. The
gesture works in most
applications that
support back and
forward.
Operating Your Tablet PC 2-5
Using the Input Panel
Use the Input Panel to enter text and perform various keyboard functions.
There are two types of Input Panels for you to use in Windows 7:
Touch Keyboard allows you to enter text by tapping the keys with your
stylus, like pressing the keys on a standard keyboard.
Writing Pad allows you to write on the writing pad, like writing on a piece
of paper. Your handwriting will be converted into typed text.
To open the Input Panel, tap the Input Panel tab, which appears by
default on the left edge of the screen. To switch between the two types,
tap or at the upper left corner of the Input Panel.
NOTE: For more information on using the Input Panel, see Windows’ online help.
2-6 Operating Your Tablet PC
Using the Keypad
The keypad of your Tablet PC can be divided into three areas:
Control buttons
Numeric, Delete (Del), and Enter (Ent) keys
Cursor-control keys
Control Buttons
Located on top of the keypad are three control buttons:
Fn button toggles the Fn keylock ON and OFF. When ON (indicated by
the icon on the taskbar), you can use the alternative functions of
the keypad keys (as described in the next two sections).
button toggles the keypad lock ON and OFF. Press the button to
lock the keypad (indicated by the icon on the taskbar) so that
accidental pressing of the keypad does not result in unexpected
operation. To unlock, press and hold the button for more than three
second.
Menu button toggles the OSD Control Panel ON and OFF. (See “Using
the OSD Control Panel” in Chapter 6 for detailed information.)
NOTE: The status of Fn lock and keypad lock will persist through
Sleep/Hibernation mode or system power off.
Operating Your Tablet PC 2-7
Numeric Keypad with Alternative Functions
Shown below is the 12-key numeric keypad with Delete and Enter keys.
When the Fn keylock is ON (indicated by the icon on the taskbar), the
keys with orange icons provide alternative functions as described below.
rotates the screen display by 90 with each press.
switches the keypad backlight ON and OFF.
switches the sunlight-readable mode ON and OFF. When ON, the
display brightness is set to the highest level.
serves as the mouse right-click button.
C+A+D serves as the Ctrl+Alt+Del key combination for resetting the
system.
ESC serves as the Escape key.
Cursor-Control Keys with Alternative Functions
NOTE: The cursor-control keys do not exist on models having the fingerprint
scanner option.
2-8 Operating Your Tablet PC
Cursor-control keys control cursor movement. The word “cursor” refers to
the indicator on the screen (except for pointer on screen) that lets you
know exactly where on your screen anything you type will appear. It can
take the form of a vertical or horizontal line, a block, or one of many other
shapes.
When the Fn keylock is ON (indicated by the icon on the taskbar), the
keys with orange icons provide alternative functions as described below.
increase the sound volume.
decrease the sound volume.
increase the brightness of LCD display.
decrease the brightness of LCD display.
Operating Your Tablet PC 2-9
Using the Network Features
Using the LAN
NOTE: You Tablet PC implements DSM (Deep Slumber Mode) for the LAN
module to save battery power. Power is supplied to the LAN module only when
the LAN cable is connected. This means the LAN module will not appear in
Windows’ Device Manager if the LAN cable is not connected and appear if the
cable is connected. (The “LAN DSM” feature is enabled in the BIOS Setup by
default.)
The internal 10/100/1000Base-T LAN (Local Area Network) module allows
you to connect your Tablet PC to a network. It supports data transfer rate
up to 1000 Mbps.
To connect the network cable to the LAN module, connect one end of
the LAN cable to the RJ-45 connector ( ) on the Tablet PC and the
other end to the network hub.
Using the Wireless LAN (Optional)
The WLAN features include:
Peer-to-Peer (Ad-Hoc) and Access Point (Infrastructure) modes
support
WEP (Wired Equivalent Privacy) 64/128-bit data encryption
IEEE 802.11a/g/n standard compliance
2-10 Operating Your Tablet PC
Technology
802.11a
802.11g
802.11n
Stated Maximum
Throughput
(Mbps)
11
54
100 Mbps or more
Data Rates
(Mbps)
11, 5.5, 2, 1
54, 36, 18, 9
100 ~ 210
Band (GHz)
2.412 ~ 2.462
2.4
2.4 / 5
Modulation
Technology
OFDM
(Orthogonal
Frequency Division
Multiplexing)
OFDM
(Orthogonal
Frequency Division
Multiplexing)
Spatial multiplexing,
uses MIMO (multipleinput multiple-output)
Turning On/Off the WLAN Radio
NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate
wireless devices in aircraft as this may interfere with flight safety. Remember to
turn off wireless LAN when using your Tablet PC in the airplane.
1. Press the Menu button on your Tablet PC to open the OSD Control
Panel.
2. Click the RF button to switch the wireless radio on/off. The word ON or
OFF on the button indicates the current status.
Operating Your Tablet PC 2-11
3. Windows Mobility Center has wireless network turned on by default.
The Wireless Network icon on the taskbar should appear without a
red X. (In case you have previously turned it off in Windows Mobility
Center, be sure to turn it on when using the function the next time.)
Connecting to a Wireless Network
1. Make sure that the WLAN function is enabled (as described above).
2. Tap the Wireless Network icon on the taskbar. (An orange light in
the icon indicates connections are available.)
3. In the list of available wireless networks, select a network, and then
click Connect.
4. Some networks require a network security key or passphrase. To
connect to one of those networks, ask your network administrator or
Internet service provider (ISP) for the security key or passphrase.
NOTE:
Once you have connected to a wireless network, a profile is added in
Windows. By default, Windows will automatically connect to the wireless
network when it is in range.
2-12 Operating Your Tablet PC
For more information on connecting to a wireless network, see Windows’
online help.
Operating Your Tablet PC 2-13

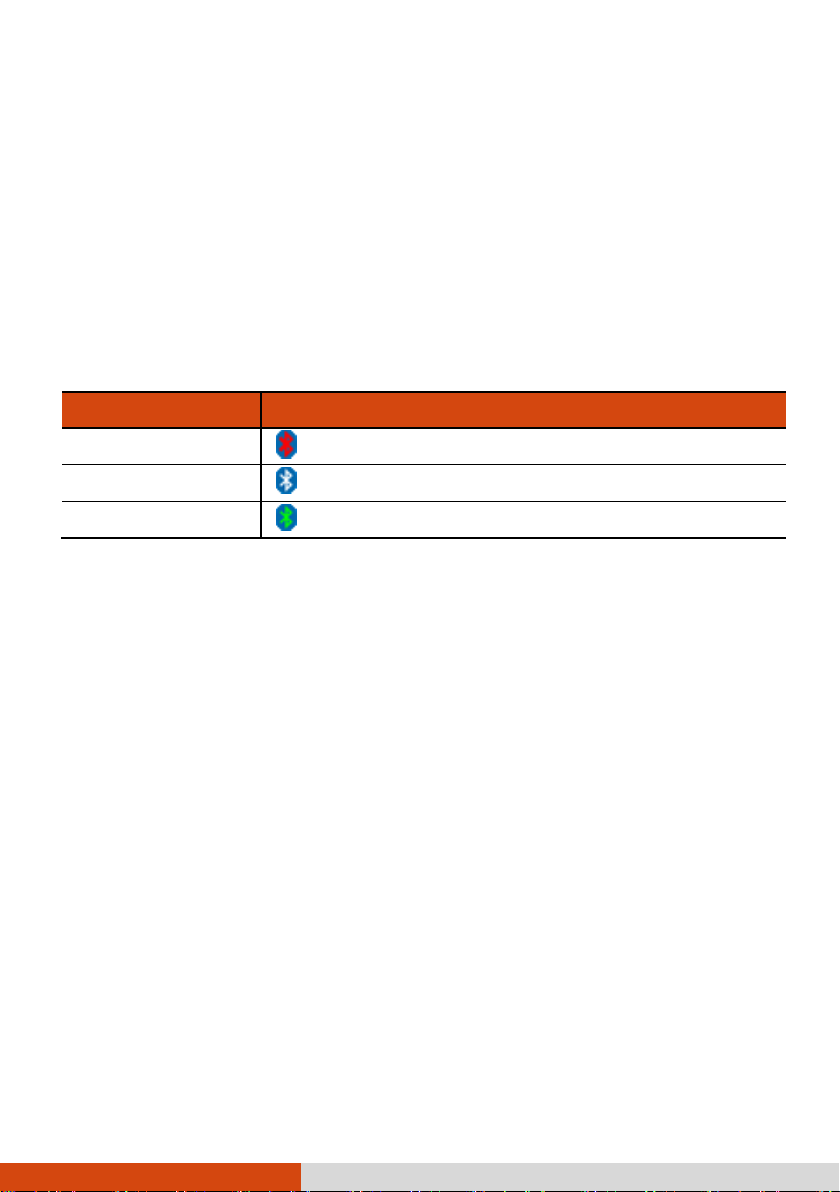

Status
Icon
Off (blue with red logo)
On
(blue with white logo).
Connected
(blue with green logo)
Using the Bluetooth Feature (Optional)
The Bluetooth technology allows short-range (about 10 meters) wireless
communications between devices without requiring a cable connection.
Data can be transmitted through walls, pockets and briefcases as long as
two devices are within range.
The status of the Bluetooth connection is indicated by the Bluetooth icon
located in the taskbar.
You can use the Bluetooth Utility to configure Bluetooth connection
settings and transfer files.
Turning On/Off the Bluetooth Radio
1. Press the Menu button on your Tablet PC to open the OSD Control
Panel.
2. Click the RF button to switch the wireless radio on/off. The word ON or
OFF on the button indicates the current status.
2-14 Operating Your Tablet PC
3. The Bluetooth function is enabled by default, as indicated by the
Bluetooth icon on the Windows taskbar. (In case you have
previously disabled the function in the Bluetooth utility, be sure to
enable it when using the function the next time.)
Connecting to another Bluetooth Device
1. Make sure that the Bluetooth function is enabled (as described
above).
2. Make sure that the target Bluetooth device is turned on, discoverable
and within close range. (See the documentation that came with the
Bluetooth device.)
3. Start the Bluetooth utility by double-clicking the Bluetooth icon on
the taskbar and click New Connection.
Operating Your Tablet PC 2-15
4. The Add New Connection Wizard window appears. Select Express Mode
(Recommended), and then click Next.
5. Select the device to connect to and click Next.
2-16 Operating Your Tablet PC
6. Depending on the type of Bluetooth device that you want to connect
to, you will need to enter the pertinent information.
For detailed information on using the Bluetooth Utility, see the Bluetooth
Utility Help.
Operating Your Tablet PC 2-17
Using the Camera (Optional)
You can use G-Camera to perform the following:
Take pictures
Record video
Path tracking and capture (for models having the GPS module)
GPS information and settings (for models having the GPS module))
To start G-camera, double click the G-Camera shortcut icon on the
Windows desktop. The camera control panel appears.
Click the Shutter button
For detailed descriptions of G-Camera, click the button .
2-18 Operating Your Tablet PC
or press Enter to take photos.
Using the Fingerprint Scanner
(Optional)
The fingerprint scanner provides a strong authentication mechanism
based on fingerprint recognition. You can log on to your computer or sign
in to a web site with your fingerprint instead of a password. You can also
encrypt files and folders with your fingerprint.
NOTE: You can register a fingerprint only after creating a password for the
Windows user account.
CAUTION: For the fingerprint file/folder encryption feature, the maximum
file/folder size allowed is 2GB.
To register your fingerprint, click Start All Programs Fingerprint Software
Fingerprint Registration. Click the finger you want to register and follow the
onscreen instructions to complete.
Operating Your Tablet PC 2-19
You can then use the Fingerprint Software to set up how the fingerprint
authentication works.
For detailed information, click Start All Programs Fingerprint Software
Help.
2-20 Operating Your Tablet PC
Chapter 3
Managing Power
Your Tablet PC operates either on external AC power or on internal
battery power.
This chapter tells you how you can effectively manage power. To
maintain optimal battery performance, it is important that you use the
battery in the proper way.
Managing Power 3-1
AC Adapter
CAUTION:
The AC adapter is designed for use with your Tablet PC only. Connecting the
AC adapter to another device can damage the adapter.
The AC power cord supplied with your Tablet PC is for use in the country
where you purchased your Tablet PC. If you plan to go overseas with the
Tablet PC, consult your dealer for the appropriate power cord.
When you disconnect the AC adapter, disconnect from the electrical outlet
first and then from the Tablet PC. A reverse procedure may damage the AC
adapter or Tablet PC.
When unplugging the connector, always hold the plug head. Never pull on the
cord.
The AC adapter serves as a converter from AC (Alternating Current) to DC
(Direct Current) power because your Tablet PC runs on DC power, but an
electrical outlet usually provides AC power. It also charges the battery
pack when connected to AC power.
The adapter operates on any voltage in the range of 100~240 V AC.
3-2 Managing Power
Battery Pack
The battery pack is the internal power source for the Tablet PC. It is
rechargeable using the AC adapter.
The operating time of a fully charged battery pack depends on how you
are using the Tablet PC. When your applications often access peripherals,
you will experience a shorter operating time.
NOTE: Care and maintenance information for the battery is provided in the
“Battery Pack Guidelines” section in Chapter 7.
Charging the Battery Pack
NOTE:
As a battery protection, charging will not start if the battery’s temperature is
below 2 C (28 F) or above 50 C (122 F) and charging will stop if the
temperature goes below 2 C (28 F) or above 60 C (140 F).
During charging, do not disconnect the AC adapter before the battery has
been fully charged; otherwise you will get a prematurely charged battery.
To charge the battery pack, connect the AC adapter to the Tablet PC
and an electrical outlet. The Battery Charge Indicator ( ) on the Tablet
PC glows amber to indicate that charging is in progress. You are advised
to keep the Tablet PC power off while the battery is being charged. When
the battery is fully charged, the Battery Charge Indicator glows green.
It takes approximately 3 hours to fully charge the Li-Ion battery pack at a
room temperature of 25 C (77 F) (may need a longer charging time at
lower temperatures).
CAUTION: After the Tablet PC has been fully recharged, do not immediately
disconnect and reconnect the AC adapter to charge it again. Doing so may
damage the battery.
NOTE: The battery level may automatically lessen due to the self-discharge
process (0.21% per day), even when the battery pack is fully charged (100%).
This happens no matter if the battery pack is installed in the Tablet PC.
Managing Power 3-3
Switch
Checking the Battery Level
NOTE: Any battery level indication is an estimated result. The actual operating
time can be different from the estimated time, depending on how you are using
the Tablet PC.
By Operating System
You can check the approximate battery level using the battery meter
function of the operating system. To read the battery level in Windows,
click the battery icon on the taskbar.
By Gas Gauge
On the exterior side of the battery pack is a gas gauge for displaying the
estimated battery charge. When the battery pack is not installed in the
Tablet PC and you want to know the battery charge, you can press the
switch with a pointed device to see the corresponding value of indicator
segment that light green.
The value of the corresponding green segment indicates the relative
percentage of the battery charge. The battery pack is fully discharged
when you see no segment glowing green.
3-4 Managing Power
Unlock
position
Replacing the Battery Pack
CAUTION:
There is danger of explosion if the battery is incorrectly replaced. Replace the
battery only with the Tablet PC manufacturer’s battery packs. Discard used
batteries according to the dealer’s instructions.
Do not attempt to disassemble the battery pack.
If you often rely on battery power for a long period of time while traveling,
you may consider the purchase of an additional battery pack from your
dealer and keep it with you in a fully charged state as a backup.
To replace the battery pack, follow these steps:
1. Make sure that the Tablet PC is not turned on or connected to AC
power. (If your model comes with the backup battery option, you can
keep the power on when replacing the battery pack. The backup
battery can sustain power for up to 3 minutes, which should be long
enough for you to replace the battery pack.)
2. Lift the latch handle of the battery cover and turn it counterclockwise
to the unlock position. Then, detach the cover from the Tablet PC.
Managing Power 3-5
3. Remove the two screws if existing (
battery pack off the computer ().
4. Fit another battery pack into place.
5. Replace the battery cover and turn the latch clockwise to the lock
position.
). Pull on the ribbon strip to lift the
Battery Low Signals and Actions
When the battery is low, Windows gives warning messages and the Battery
Charge Indicator ( ) blinks red to alert you.
NOTE: You can set up your threshold and signals of Battery Low under Windows.
Immediately save your data upon Battery Low. The remaining operating
time depends on how you are using the Tablet PC.
Always respond to Battery Low by placing your Tablet PC on the Sleep or
Hibernation mode, turning off the Tablet PC, or connecting the AC
adapter. If you do not take any action, the Tablet PC will automatically
hibernate and turn off.
3-6 Managing Power
What...
When...
Power to the hard disk is turned
off
When the hard disk has been idle for a
set period.
Power to the display is turned off
When the display has been idle for a
set period.
The Tablet PC enters the Sleep
mode. The hard disk and display
are turned off and the entire
system consumes less power.
When the entire system has been idle
for a set period.
When you manually activate the
mode.
The Tablet PC enters the
Hibernation mode. (See the next
subsection for more information.)
When the entire system has been idle
for a set period.
When you manually activate the
mode.
Power Management
Your Tablet PC supports ACPI (Advanced Configuration and Power
Interface) for power management. The power management feature
allows you to reduce the power consumption for energy saving.
With an ACPI-compliant operating system such as Windows, power supply
to different Tablet PC components is controlled on an as-needed basis.
This allows maximum power conservation and performance at the same
time.
In general, Windows’ power management works in this way:
For detailed information on power management, see Windows’ Help.
Managing Power 3-7
Hibernation
Hibernation is a very useful feature. People frequently open many
applications when they use computers. It takes some time to get all these
applications open and running, and normally they all have to be closed
before the computer can be turned off.
When you use the hibernation feature, you do not have to close the
applications. The Tablet PC stores the state of your Tablet PC to a file on
the hard disk and then shuts down. The next time you turn on your Tablet
PC, you return to exactly where you left off.
3-8 Managing Power
Power-Saving Tips
Aside from enabling your Tablet PC’s power saving mode (see previous
section), you can do your part to maximize the battery’s operating time
by following these suggestions.
Do not disable Power Management.
Decrease the LCD brightness to the lowest comfortable level.
Shorten the length of time before Windows turn off the display.
Many USB devices use power just by being connected. If you use a
USB mouse, you can save power by disconnecting the mouse and
using the optional stylus. If you use a USB flash drive, unplug it when
you are not using it.
Remove the card (such as PC card and Smart Card) if not using it.
Turn off the wireless radio if you are not using the wireless module (such
as WLAN or Bluetooth).
Turn off the Tablet PC when you are not using it.
Managing Power 3-9
Chapter 4
Expanding Your Tablet PC
You can expand the capabilities of your Tablet PC by connecting other
peripheral devices. When using a device, be sure to read the instructions
accompanying the device together with the relevant section in this
chapter.
Expanding Your Tablet PC 4-1
Using Smart Cards
Depending on your model, your Tablet PC has one or two smart card
readers.
With an embedded microcontroller, smart cards have the unique ability
to store large amounts of data, carry out their own on-card functions (e.g.,
encryption and mutual authentication), and interact intelligently with a
smart card reader.
To insert a smart card:
1. Locate the smart card reader.
2. Slide the smart card, with its label and embedded computer chip
facing up into the slot.
To remove a smart card:
1. Make sure that the software is not accessing the smart card.
2. Pull the card out of the slot.
4-2 Expanding Your Tablet PC
Eject button
Using PC Cards
The PC card slot supports type II card and CardBus specifications.
NOTE:
Some PC cards require additional system resources. Before using such PC
card, you may have to free other system resources for the PC card.
Avoid removing or inserting PC cards during Sleep mode.
To insert a PC card:
1. Locate the PC card slot (the one with the eject button).
2. Slide the PC card, with its label facing up, into the slot until the eject
button pops out.
3. When a new card is seated, the Tablet PC will detect it and try to install
To remove a PC card:
1. Double-click on the Safely Remove Hardware icon found on the
2. Select (highlight) the PC card from the list to disable the card.
3. Push the eject button and the card will slide out slightly.
4. Pull the card out of the slot.
the appropriate driver. Follow the on-screen instructions to complete
the process.
Windows taskbar and the Safely Remove Hardware window appears on
screen.
Expanding Your Tablet PC 4-3
Connecting a USB Device
Your Tablet PC has two USB ports for connecting USB devices, such as a
digital camera, scanner, printer, modem, and mouse.
The USB ports support transfer rates up to 12 MB/s for USB 1.1 devices and
480 MB/s for USB 2.0 devices.
To connect a USB device, simply plug the device cable to one of the USB
ports ( ).
4-4 Expanding Your Tablet PC
Connecting a Serial Device
Your computer has a serial port for connecting a serial device such as a
serial mouse or serial communication device.
Follow this procedure to connect a serial device:
1. Make sure the computer is not turned on.
2. Plug the device cable to the serial port.
3. Turn on the computer.
Expanding Your Tablet PC 4-5
Connecting an Audio Device
For higher audio quality, you can send sound through external audio
devices such as speakers, headphones, or earphone set using the
headphone out connector.
4-6 Expanding Your Tablet PC
Using the Docking Station
Docking Station is available as an option. The device eliminates the
hassles of having you connect and disconnect the various cables when
carrying your Tablet PC around and allows a variety of peripherals to be
connected.
1. Locate the docking connector.
2. Connect the Docking Station to the docking connector.
For more detailed information, refer to the operating Instructions of the
Docking Station.
NOTE: Hot/warm docking and hot/warm undocking are possible with the docking
connector but it is recommended that prior to undocking, press the Menu button
and the OSD Control Panel appears. Click the Docking button.
Expanding Your Tablet PC 4-7
Chapter 5
Using BIOS Setup and
System Recovery
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output
System) settings of the Tablet PC. BIOS is a layer of software, called
firmware, that translates instructions from other layers of software into
instructions that the Tablet PC hardware can understand. The BIOS
settings are needed by your Tablet PC to identify the types of installed
devices and establish special features.
System Recovery reinstalls Windows to your system and configures it to the
system’s factory default settings.
This chapter tells you how to use the BIOS Setup and System Recovery.
Using BIOS Setup and System Recovery 5-1
Information
Main
Advanced
Security
Boot
Exit
Model NO:
Serial NO:
Processor Info:
Installed System Memory:
SATA Port 1
BIOS Revision:
EC Revision:
LAN MAC Address:
Operating Time:
E100-A
0123456789
Intel(R) Atom(TM) CPU N450 @1.66GHz
2048MB
[INTEL SSDSA1M080G2GN] 80GB
R0.51.070520F
R0.51b
00-E0-4C-68-00-0C
57 Hours
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
BIOS Setup
When and How to Use
You need to run BIOS Setup Utility when:
You see an error message on the screen requesting you to run BIOS
Setup Utility.
You want to restore the factory default BIOS settings.
You want to modify some specific settings according to the hardware.
You want to modify some specific settings to optimize the system
performance.
To run BIOS Setup utility, press the Ent key when the prompt appears on the
screen during system startup. The prompt shows up on the screen for only
a few seconds. You must press the Ent key quickly. A small window
appears, press Ent again to perform the first option (Launch System Setup).
The BIOS Setup Utility main screen appears as shown next.
5-2 Using BIOS Setup and System Recovery
Information
Main
Advanced
Security
Boot
Exit
Model NO:
Serial NO:
Processor Info:
Installed System Memory:
SATA Port 1
BIOS Revision:
EC Revision:
LAN MAC Address:
Operating Time:
E100-A
0123456789
Intel(R) Atom(TM) CPU N450 @1.66GHz
2048MB
[INTEL SSDSA1M080G2GN] 80GB
R0.51.070520F
R0.51b
00-E0-4C-68-00-0C
57 Hours
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
In general, you can use the arrow keys to move around and + / – keys to
change the setup values. Keyboard information can be found at the
bottom of the screen. The keypad of your Tablet PC does not provide all
the keys for operating the utility. You will need to connect a USB keyboard
before running BIOS Setup. (To use the USB keyboard, make sure that the
item “Legacy USB Support” under the Main menu is set to Enabled.)
NOTE:
The BIOS Setup Utility screens shown in this chapter are for your reference
only. The actual items or settings on your Tablet PC may differ.
The BIOS Setup Utility program may have been updated after the publication
of this manual.
The settings you select in your operating system might override similar
settings in BIOS Setup Utility.
Information Menu
The Information menu contains the basic configuration information of the
system. There are no user-definable items in this menu.
Using BIOS Setup and System Recovery 5-3
Information
Main
Advanced
Security
Boot
Exit
System Time:
System Date:
Legacy USB Support:
SATA Controller Mode Option:
SATA AHCI Enable
[ :33:08]
[05/14/2010]
[Enabled]
[Enhanced]
[Enabled]
Item Specific Help
<Tab>, <Shift-Tab>, or
<Enter> selects field.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
11
Main Menu
The Main menu contains the various system settings.
System Time sets the system time.
System Date sets the system date.
Legacy USB Support enables or disables the system’s support for Legacy USB
device in DOS mode.
SATA Controller Mode Option sets to Enhanced for Native IDE mode or sets to
Compatible for Legacy mode. SATA/PATA drives will be auto-detected
and SATA drives will be placed in the mode specified.
SATA AHCI Enable sets if SATA AHCI is enabled. (This item appears only if the
previous item is set to Enhanced.)
5-4 Using BIOS Setup and System Recovery
Information
Main
Advanced
Security
Boot
Exit
IGD – Memory Size:
DVMT Graphics Memory:
Power Button Delay:
AC Initiation:
Emergency Button:
Emergency Button Delay:
High temperature Protection:
LAN DSM (Deep Slumber Mode):
Smart Card Power management:
Charging Backup battery:
RTC wakeup from S4 mode(with AC-in):
[ ]
120MB
[Disabled]
[Disabled]
[Enabled]
[Disabled]
[Enabled]
[Enabled]
[Disabled]
[Disabled]
[Disabled]
Item Specific Help
Select the amount of
Main Memory that the
Internal Graphics
Device will use.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
128MB
Advanced Menu
The Advanced menu contains the advanced settings.
IGD – Memory Size sets the amount of total graphics memory (pre-allocated
+ fixed + DVMT) for use by the internal graphics device.
DVMT Graphics Memory shows the size of DVMT graphics memory.
Power Button Delay sets the amount of time (2, 4, 6, or 8 seconds) to press
and hold the power button for it to function.
AC Initiation sets if connecting AC power will automatically start or resume
your Tablet PC.
Emergency Button enables or disables the emergency button (5 on the
numeric keypad). This is only for customized applications that support the
button.
Emergency Button Delay sets the amount of time to press and hold the
emergency button for it to function.
Using BIOS Setup and System Recovery 5-5
HDD Preheat keeps the hard disk drive’s temperature above 3oC (37oF)
during system shutdown period. When set to Enabled, the optional heater
will automatically turn on whenever the hard disk drive’s temperature
drops below 3oC (37oF). (The availability of this item depends on your
model.)
High Temperature Protection enables or disables the hard disk protection
against high temperatures. When set to Enabled, a warning message will
appear on the screen when the hard disk temperature goes above the
safe range. You will not be able to use the system before the hard disk
cools down and the message disappears.
LAN DSM enables or disables the Deep Slumber Mode feature of the LAN
module. When set to Enabled, power is supplied to the LAN module only
when the LAN cable is connected.
SmartCard power management allows you to save power for the Smart Card
reader. When set to Auto, power is supplied only to the reader only when
a Smart Card is inserted. When set to Enabled, power is supplied all the
time.
Charging Backup Battery allows the main battery to charge the backup
battery (option). When set to Enabled, the backup battery will be
charged by the main battery when the AC adapter is not connected and
the main battery has more than 70% capacity left. When set to Disabled,
the backup battery will be charged by the AC adapter only. (The
availability of this item depends on your model.)
RTC wake up from S4 mode (with AC-in) enables or disables the RTC (Real Time
Clock) wakeup from S4 (Hibernation) feature when AC power is
connected. Set this item to Enabled if you use Windows task scheduler to
have the computer automatically perform tasks at specific times.
5-6 Using BIOS Setup and System Recovery
Information
Main
Advanced
Security
Boot
Exit
Supervisor Password Is:
Set Supervisor Password
Current TPM State:
Change TPM State
Clear
[Enter]
Disabled & Deactivated
[No Change ]
Item Specific Help
Supervisor Password
controls access to the
Setup utility.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Enter
Security Menu
The Security menu contains the security settings, which safeguard your
system against unauthorized use.
Supervisor Password Is shows whether you have set the supervisor password
or not for the system.
Set Supervisor Password sets the supervisor password. When typing the
password, first make sure that Num Lock is off, and then type the password
in the entry fields and press Enter. Confirm your password by typing it again
and pressing Enter. When set, the supervisor password is required for
entering BIOS Setup.
Current TPM State shows the current TPM state. TPM (Trusted Platform
Module) is a component on your computer’s mainboard that is
Using BIOS Setup and System Recovery 5-7
Information
Main
Advanced
Security
Boot
Exit
Boot priority order:
1: USB KEY:
2: SATA HDD: INTEL SSDSA1M080G2GN-(S1)
3: SATA HDD:
4: USB FDC:
5: USB CDROM:
6: USB HDD:
7: PCI BEV: Realtek Boot Agent
8:
Excluded from boot order:
: Other USB:
: PCI:
Item Specific Help
Keys used to view or
configure devices:
Up and Down arrows select
a device.
<+> and <-> moves the
device up or down.
<x> exclude or include
the device to boot.
<Shift + 1> enables or
disables a device.
<1 – 4> Loads default
boot sequence.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
specifically designed to enhance platform security by providing a
protected space for key operations and other security critical tasks.
Change TPM State allows you to select among No Change, Enable &
Activate, Deactivate & Disable, and Clear.
Boot Menu
The Boot menu sets the sequence of the devices to be searched for the
operating system.
The bootable devices will be automatically detected during POST and
shown here, allowing you to set the sequence that the BIOS uses to look for
a device from which to load the OS. See the information on the right side
of the menu for keyboard usage.
5-8 Using BIOS Setup and System Recovery
Information
Main
Advanced
Security
Boot
Exit
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Item Specific Help
Exit System Setup and
save your changes to
CMOS.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Exit Menu
The Exit menu displays ways of exiting BIOS Setup Utility. After finishing with
your settings, you must save and exit so that the changes can take effect.
Exit Saving Changes saves the changes you have made and exits BIOS Setup
Utility.
Exit Discarding Changes exits BIOS Setup Utility without saving the changes
you have made.
Load Setup Defaults loads the factory default values for all the items.
Discard Changes restores the previous values for all the items.
Saves Changes saves the changes you have made.
Using BIOS Setup and System Recovery 5-9
System Recovery
Use System Recovery when:
The Windows operating system does not start at all.
You want to restore the system to the factory state.
WARNING:
Using this feature will reinstall Windows to your system and configure it to the
system’s factory default settings. All data on the hard disk drive will be lost.
Make sure that power is not interrupted during the recovery process. An
unsuccessful recovery may result in Windows startup problems.
To run System Recovery:
1. It is recommended that you connect the AC adapter to ensure power
supply throughout the process.
2. During system startup when the following screen appears, press Ctrl +
Alt + F2 keys for four seconds or press Ent and select HDI Recovery when a
small window appears on the screen.
5-10 Using BIOS Setup and System Recovery
3. A message appears asking if you want to continue. Type 1 to continue.
4. A warning message appears asking if you accept the terms as shown
on the screen. Type 1 to continue.
5. Type 1 again when the next message appears asking for confirmation.
6. The recovery process starts. The screen as below appears.
7. Wait till the process completes. A message will appear asking you to
press any key to continue. Press any key for the system to restart.
8. The Windows setup wizard starts. Follow the onscreen prompts to
continue.
9. When the system restarts, the installer screen as below appears. The
installer will perform system hardware detection and driver installation.
Using BIOS Setup and System Recovery 5-11
10. When completed, the system restarts and displays Windows desktop.
5-12 Using BIOS Setup and System Recovery
Chapter 6
Using Special Utilities
Special utilities are provided for enhanced capabilities and
management.
This chapter describes how to use these utilities.
Using Special Utilities 6-1
Using the OSD Control Panel
The OSD (On Screen Display) Control Panel provides a user-friendly
interface for you to quickly activate or operate certain functions on your
Tablet PC with a simple tap of the screen.
To open the OSD Control Panel, press the Menu button on your Tablet PC.
The following screen appears.
6-2 Using Special Utilities
Icon
Function
/
Shows the current ON/OFF status of keypad lock.
/
Shows the current ON/OFF status of Fn keylock.
Opens the Help file explaining the OSD Control Panel.
Opens the Quick Button Setup menu (refer to the next
section for details).
Closes the OSD Control Panel.
Serves as the master ON/OFF control of the RF radio.
The word on the button indicates the current status.
When set to OFF, all wireless modules (WLAN/Bluetooth)
cannot be used. When set to ON, individual settings of
the module work.
The on/off status will persist through Sleep/Hibernation
mode but it will always be on upon restarting.
Switches the ECO mode to the next choice (MAX, QUICK,
WORK, or OFF). The word on the button indicates the
current status. (For information on ECO modes, see
“ECO Tab” later in this chapter.)
This button works only when using battery power. The
ECO mode will return to the default OFF setting
whenever AC power is connected, backlight status is
changed by using the button , the computer
resumes from Sleep/Hibernation mode, or the
computer is restarted.
The status would display IN when you connect your
Tablet PC to the Docking Station.
To turn off power to the Docking Station without
disconnecting from your Tablet PC, click the Docking
button. Before removing your Tablet PC from the
Docking Station, make sure to click the Docking button to
The following table shows the various functions on the OSD Control Panel.
Using Special Utilities 6-3
Icon
Function
show OUT.
Switches the LCD backlight to the next choice (MAX,
AUTO, or MANUAL.) The word on the button indicates the
current status.
When set to MAX, the backlight is adjusted to the highest
brightness level. When set to AUTO, the brightness will be
automatically adjusted according to the current
ambient light.
The backlight will return to the default MANUAL setting
whenever the computer resumes from
Sleep/Hibernation mode or the computer is restarted.
Rotates the orientation from default landscape to 90o
portrait, 180o landscape, or 270o portrait.
The status will persist through Sleep/Hibernation mode
or system power off.
Switches the display output to the next choice: VGA
(external monitor), BOTH (LCD and external monitor), or
LCD.
This button works only when an external display is
connected.
Starts Microsoft Internet Explorer by default.
You can assign a different function to this button (refer
to the next section for details).
Starts Windows Mobility Center by default.
You can assign a different function to this button (refer
to the next section for details).
Starts the touchscreen calibration tool by default.
You can assign a different function to this button (refer
to the next section for details).
6-4 Using Special Utilities
Icon
Function
Starts the Bluetooth Setup utility by default.
You can assign a different function to this button (refer
to the next section for details).
Opens the Input Panel by default.
You can assign a different function to this button (refer
to the next section for details).
Allows you to adjust the sound volume by dragging the
knob along the bar.
Switches the system sound output OFF (mute) and ON.
Allows you to adjust the LCD brightness level by
dragging the knob along the bar.
System enters “black-out” mode by turning off the LCD
display, LED indicators, touchscreen, and sound.
Press the power button ( ) to wake up the system
from “black-out” mode.
Using Special Utilities 6-5
Quick Button Setup
By default, the five quick buttons on the OSD Control Panel have
pre-assigned functions. You can re-define the buttons:
1. Click the Quick Button Setup button ( ) on the OSD control panel
and the Quick Button Setup window appears.
2. At the bottom of the screen are the five quick buttons. Click the
button you want to change.
3. Depending on the type of task to be associated with the button, click
the Open button of the Executed Program or Open Folder type.
4. A dialog box appears. Select the desired program or folder and click
Open or Select. After your selection, the entry field will display the
program or folder information.
6-6 Using Special Utilities
or
5. You can change the image appearing on the button by clicking the
Select Image button. After selecting the image file, the original image
on the button will be replaced.
6. Click Set to complete the changes.
NOTE: You can restore the quick buttons to the default settings by clicking Reset
All.
Using Special Utilities 6-7
Using G-Manager
G-Manager is a unified user interface utility that allows you to manage
and configure the following:
System
Battery
ECO (economic mode)
Light Sensor
Ignition
Monitoring
Antenna
GPS Status
Starting G-Manager
You can start up G-Manager by any of the following methods:
Click Start All Programs Getac Utility G-Manager, or
Click and hold the icon located on the taskbar until a ring
appears. From the small menu that pops up, click G-Manager.
The G-Manager window appears, containing 8 tabs as described later.
NOTE: Depending on your model, the actual items appearing on the screen may
differ from those shown in this manual.
6-8 Using Special Utilities
System Tab
The System tab provides system information.
To view specific information, select the component from the list on the left
side of the screen. The information of the selected component will be
displayed on the right side of the screen.
Using Special Utilities 6-9

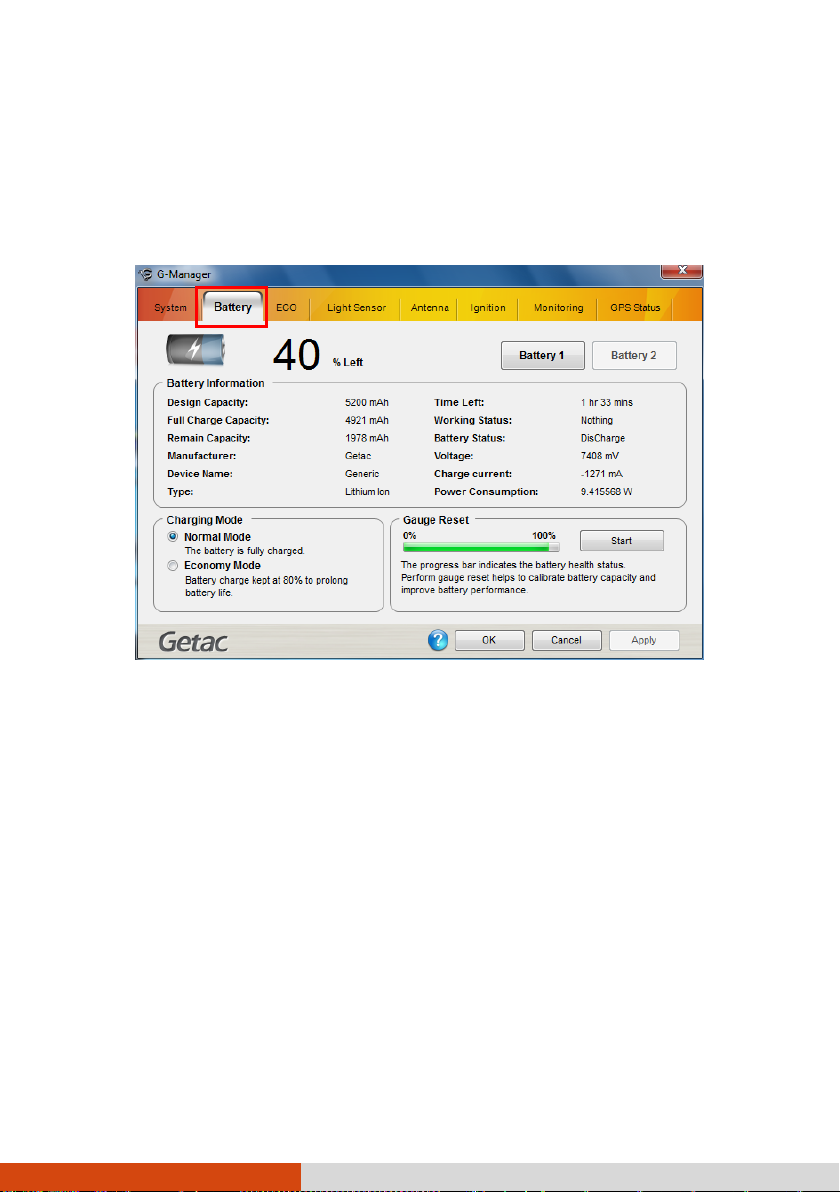

Battery Tab
The Battery tab allows you to check the battery status and configure the
battery.
At most two batteries may be supported. Click Battery 1 or Battery 2 to view
the information of each battery (if your model has a second battery).
NOTE:
When the percentage % Left is less than 10% then the value will be displayed
in red.
When an abnormal battery condition is detected Battery Status value will be
displayed in red.
Battery Information
The upper portion of the screen displays the current status of the selected
battery.
6-10 Using Special Utilities
Charging Mode
The lower left portion of the screen allows you to select the charging
mode.
Normal Mode – The battery will be fully charged. When remaining
charge reaches below 95%, then charging will start until it is fully
charged.
Economy Mode – This mode helps prolong battery life by charging up to
80% of its total capacity only. It is highly recommended if you are using
AC power most of the time.
Gauge Reset
The lower right portion of the screen contains the battery health bar and
provides the battery calibration function.
The health bar shows the batter’s health by percentage. A low
percentage indicates poor health and therefore the need to perform a
gauge reset to calibrate the battery’s capacity and improve the battery’s
performance. The gauge reset process includes discharging and then fully
recharging the battery in two cycles. It can take several hours.
To perform a gauge reset:
1. Connect the AC adapter.
2. Click Start, located next to the health bar
3. In the pop-up dialog box, click Yes to start the process. The window as
below appears displaying the progress bar.
Using Special Utilities 6-11
4. Wait till the process is completed. Click Exit when finished.
ECO Tab
The ECO tab allows you to configure ECO modes (or called power profiles).
6-12 Using Special Utilities
To put the system into an ECO mode, use the ECO button (one of the
buttons in the OSD Control Panel). (See “Using the OSD Control Panel”
earlier in this chapter for information.)
ECO Information
The left portion of the screen lists the available power profiles (Quick, Power
Saving, and Work). Each profile is a combination of power settings that
results in different power consumptions. To change the settings of a profile,
select (highlight) the profile name in the list.
Profile Settings
The right portion of the screen displays the settings of the current selected
profile. You can set up the following items:
Bluetooth, and WLAN – can be on or off.
Power Scheme – can be Balanced, High Performance or Power Saver. The
settings here correspond to the settings in Windows. (See Windows
Help for the description to each of the power scheme.)
Using Special Utilities 6-13
After changing the settings, click Apply or OK to save the changes. To
restore the settings to the default values, click Default.
Light Sensor Tab
The Light Sensor tab allows you configure how the light sensor works.
6-14 Using Special Utilities
Sensor Mode
The left portion of the screen lists the sensor modes:
Normal – Light sensor sensitivity is set at normal environment lighting
condition.
Bright – Light sensor sensitivity is set at bright environment lighting
condition (e.g. outdoors).
Dark – Light sensor sensitivity is set at dark environment lighting
condition (e.g. indoors, storage warehouse, etc.).
Click to select a mode. Click Apply or OK to save the changes.
Environment Illuminance
To have the keypad backlight automatically turn on in poor lighting
environment, click the checkbox Automatic Keyboard Backlit. Click Apply or OK
to save the changes.
Using Special Utilities 6-15
Ignition Tab
The Ignition tab allows you to configure how your system works with the
vehicle ignition.
Ignition Control
When your system is connected to the Vehicle Dock (available as an
option), you can have your system derive power from the vehicle and
have the on/off of the vehicle ignition turn on/off your system. To enable
the feature, select the checkbox Ignition Power On. Click Apply or OK to save
the changes.
Delay Time
When the Ignition Power On feature is enabled, the system will automatically
shut down after the vehicle ignition is turned off or the battery is low. You
can set the amount of time (20 seconds, 30 seconds, 45 seconds, 1
minute, or 2 minute) the system waits before shutting down. Click Apply or
OK to save the changes.
6-16 Using Special Utilities
Monitoring Tab
The Monitoring tab allows you to configure the monitoring function of
G-Manager.
Items to Monitor
The left portion of the screen lists the items. Click the checkbox before an
item to include it as a monitored component. Click Apply or OK to save the
changes.
NOTE: Different models have different supported monitoring items;
non-supported items cannot be selected (grayed out items).
Monitoring Options
The right portion of the screen allows you to set how the monitored items
are displayed and how often the monitoring is updated.
Using Special Utilities 6-17
Always On Top – allows the monitoring window to remain on top of your
display.
Monitoring Interval – sets the frequency of updates on the monitoring
window (1/3/5/10/30 seconds or 1/5/30 minutes).
Click Apply or OK to save the changes.
Starting and Stopping the Monitoring
To start monitoring, click START Monitor. The monitoring window similar to the
one below appears displaying requested information at specified
intervals.
To stop monitoring, click the Close button at the upper right corner of the
monitoring window or click Stop Monitor on the Monitoring tab page of
G-Manager.
6-18 Using Special Utilities
GPS Status Tab
The GPS Status tab shows the GPS status for models having the GPS module.
To start GPS positioning, click Start GPS. The screen displays:
Ongoing raw data strings in the Message Log section
Overhead satellite positions in the Satellite Map section
Signal strength of the satellites in the Signal Indicator section
When GPS positioning is completed, the Data Summary section shows the
GPS information of the current location.
To stop GPS positioning, click Stop GPS.
Using Special Utilities 6-19
Chapter 7
Caring for the Tablet PC
Taking good care of your Tablet PC will ensure a trouble-free operation
and reduce the risk of damage to your Tablet PC.
This chapter gives you guidelines covering areas such as protecting,
storing, cleaning, and traveling.
Caring for the Tablet PC 7-1
Protecting the Tablet PC
To safeguard the integrity of your Tablet PC data as well as the Tablet PC
itself, you can protect the Tablet PC in several ways as described in this
section.
Using the Cable Lock
You can use a Kensington-type cable lock to protect your Tablet PC
against theft. The cable lock is available in computer stores.
To use the lock, loop the lock cable around a stationary object such as a
table. Insert the lock to the Kensington lock hole and turn the key to
secure the lock. Store the key in a safe place.
7-2 Caring for the Tablet PC
Using an Anti-Virus Strategy
You can install a virus-detecting program to monitor potential viruses that
could damage your files.
Using Action Center (for Windows 7)
Action Center alerts you to take action on the following security essentials:
Windows Firewall
Windows Update
Malware Protection (anti-virus, anti-spyware)
Others (Internet security, user account control)
For detailed information, see Windows’ online Help.
Caring for the Tablet PC 7-3
Taking Care of the Tablet PC
Location Guidelines
For optimal performance, use the Tablet PC where the recommended
temperature is between 10 C (50 F) and 35 C (95 F) – actual
operating temperature depending on product specifications.
Avoid placing the Tablet PC in a location subject to high humidity,
extreme temperatures, mechanical vibration, direct sunlight, or heavy
dust.
Do not cover or block any ventilation openings on the Tablet PC. For
example, do not place the Tablet PC on a bed, sofa, rug, or other
similar surface. Otherwise, overheating may occur that results in
damage to the Tablet PC.
Keep the Tablet PC at least 13 cm (5 inches) away from electrical
appliances that can generate a strong magnetic field such as a TV,
refrigerator, motor, or a large audio speaker.
Avoid moving the Tablet PC abruptly from a cold to a warm place. A
temperature difference of more than 10 C (18 F) may cause
condensation inside the unit, which may damage the storage media.
Do not place the Tablet PC on an unsteady surface.
General Guidelines
Do not place heavy objects on top of the Tablet PC as this may
damage the display.
The screen surface is easily scratched. Do not use paper towels to
clean the display but use the included soft cloth. Avoid touching it
with your fingers, pen, or pencil.
To maximize the life of the backlight in the display, allow the backlight
to automatically turn off as a result of power management. Avoid
7-4 Caring for the Tablet PC
using a screen saver or other software that prevents the power
management from working.
Cleaning Guidelines
Never clean the Tablet PC with its power on.
Use a soft cloth moistened with water or a non-alkaline detergent to
wipe the exterior of the Tablet PC.
Gently wipe the display with a soft, lint-free cloth. Do not use alcohol
or detergent on the display.
If water or liquid is split onto the computer, wipe it dry and clean when
possible. Though your computer is water-proof, do not leave the
computer wet when you can dry it.
Battery Pack Guidelines
Recharge the battery pack when it is nearly discharged. When
recharging, make sure that the battery pack is fully charged. Doing so
may avoid harm to the battery pack.
The battery pack is a consumable product and the following
conditions will shorten its life:
– when frequently charging the battery pack (it is recommended that
you set the Charging Mode on the G-Manager utility’s Battery tab to
Economy Mode – see “Charging Mode” in Chapter 6 for details).
– when using, charging, or storing the battery in high temperature
condition
To avoid hastening the deterioration of the battery pack thereby
prolonging its useful life, minimize the number of times you charge it so
as not to frequently increase its internal temperature.
Charge the battery pack between 5
o
C ~ 45oC (41oF ~ 113oF)
temperature range.
A higher environment temperature will cause the battery pack’s
temperature to rise. Avoid charging the battery pack inside a closed
Caring for the Tablet PC 7-5
vehicle and in hot weather condition.
Also, charging will not start if the battery pack is not within the allowed
temperature range.
It is recommended that you do not charge the battery pack more
than once a day.
It is recommended that you charge the battery pack with the Tablet
PC’s power off.
To maintain the battery pack’s operating efficiency, store it in a cool
dark place removed from the Tablet PC and with 30 % ~ 40 % charge
remaining.
Important guidelines when using the battery pack.
When installing or removing the battery pack take note of the
following:
– avoid installing or removing the battery pack when the Tablet PC is
in Sleep mode. Abruptly removing the battery pack may cause
loss of data or the Tablet PC may become unstable.
– avoid touching the battery pack terminals or damage may occur,
thereby causing improper operation to it or the Tablet PC.
The Tablet PC’s input voltage and surrounding temperature will
directly affect the battery pack’s charge and discharge time:
– charging time will be prolonged when the Tablet PC is turned on.
To shorten the charging time, it is recommended that you place the
Tablet PC in Sleep or hibernation mode.
– a low temperature will prolong the charging time as well as hasten
the discharge time.
Touchscreen Guidelines
Use the finger or the included stylus on the display. Using a sharp or
metallic object other than your finger or stylus may cause scratches
and damage the display, thereby causing errors.
7-6 Caring for the Tablet PC
A screen protector film has been attached to the screen before
shipment. The film is a consumable, which will be worn out after a
period of use (6 months in average). You can purchase a new one
when replacement is required.
Avoid using excessive force that may cause damage to the display.
Use a soft cloth to remove dirt on the display. The touchscreen surface
has a special protective coating that prevents dirt from sticking to it.
Not using a soft cloth may cause damage to the special protective
coating on the touchscreen surface.
To remove hard to remove dirt, blow some steam on the particular
area and gently wipe away using a soft cloth.
Turn off the Tablet PC power when cleaning the display. Cleaning the
display with the power on may cause improper operation.
Use the touchscreen within the intended area only. The display area
and touchscreen operating area is the same.
Do not use excessive force on the display. Avoid placing objects on
top of the display as this may cause the glass to break thereby
damaging the display.
Using the touchscreen during low temperature (less than 5
o
C) may
cause a slower response time, this is normal. A normal response time
may be restored upon returning to room temperature.
When there is noticeable discrepancy in the operation of the
touchscreen function (wrong location on intended operation or
improper display resolution), calibrate the touchscreen using the
calibration utility called CalTouch.
Caring for the Tablet PC 7-7
When Traveling
Before traveling with your Tablet PC, make a backup of your hard disk
data into flash disks or other storage devices. As an added
precaution, bring along an extra copy of your important data.
Make sure that the battery pack is fully charged.
Make sure that the Tablet PC is turned off.
Disconnect the AC adapter from the Tablet PC and take it with you.
Use the AC adapter as the power source and as a battery-charger.
Hand-carry the Tablet PC. Do not check it in as luggage.
If you need to leave the Tablet PC in the car, put it in the trunk of the
car to avoid exposing the Tablet PC to excessive heat.
When going through airport security, it is recommended that you send
the Tablet PC and flash disks through the X-ray machine (the device
you set your bags on). Avoid the magnetic detector (the device you
walk through) or the magnetic wand (the handheld device used by
security personnel).
If you plan to travel abroad with your Tablet PC, consult your dealer for
the appropriate AC power cord for use in your country of destination.
7-8 Caring for the Tablet PC
Loading...
