Getac Technology E03 Users manual

TRADEMARKS

The Bluetooth Bluetooth SIG, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.

NOTE The information in this manual is subject to change without notice.

word mark and logos are registered trademarks owned by

Table of Contents

Preface ......................................................................................v

Chapter 1 Getting Started...................................................1-1

Getting the Tablet PC Running ............................................ 1-2

Unpacking ........................................................................ 1-2

Connecting to AC Power ................................................. 1-2

Turning On and Off the Tablet PC................................... 1-5

Taking a Look at the Tablet PC ........................................... 1-7

Right-Side Components ................................................... 1-7

Left-Side Components ..................................................... 1-8

Rear Components ............................................................. 1-9

Front Components.......................................................... 1-10

Bottom Components....................................................... 1-11

Top Components ............................................................ 1-12

Where to Go from Here...................................................... 1-14

Chapter 2 Operating Your Tablet PC.................................2-1

Starting and Stopping the Tablet PC .................................... 2-2

Starting the Tablet PC ...................................................... 2-2

Stopping the Tablet PC .................................................... 2-2

Using the Quick Buttons ...................................................... 2-4

Using the Keypad ................................................................. 2-5

Numeric Keypad .............................................................. 2-5

Cursor-Control Keys ........................................................ 2-6

Using the On-screen Keyboard ............................................ 2-7

Using the Touchscreen ......................................................... 2-8

Using the Video Features ................................................... 2-10

Configuring the Display Modes ..................................... 2-10

Using the Audio Features................................................... 2-11

Connecting Audio Devices ............................................ 2-12

Using the Communication Features ................................... 2-13

Using the LAN ............................................................... 2-13

Using the Wireless LAN ................................................ 2-13

Using the Bluetooth

Using the GPS (Optional) .............................................. 2-19

Using the 3G Feature (Optional).................................... 2-20

Using the Hand Strap ......................................................... 2-13

Wireless Feature.......................... 2-16

Chapter 3 Managing Power ................................................3-1

AC Adapter .......................................................................... 3-2

Battery Pack ......................................................................... 3-3

Charging the Battery Pack ............................................... 3-3

Initializing the Battery Pack............................................. 3-4

Checking the Battery Level.............................................. 3-4

Replacing the Battery Pack .............................................. 3-5

Battery Low Signals and Actions..................................... 3-7

Power Management.............................................................. 3-8

Hibernation....................................................................... 3-9

Power-Saving Tips ............................................................. 3-10

Chapter 4 Expanding Your Tablet PC................................4-1

Connecting a USB Device.................................................... 4-2

Using Smart Cards ............................................................... 4-3

Inserting and Removing a Smart Card ............................. 4-3

Using the Docking Station ................................................... 4-4

Chapter 5 Using BIOS Setup and

System Recovery Feature.................................5-1

When and How to Use BIOS Setup ..................................... 5-2

When to Use..................................................................... 5-2

Starting BIOS Setup......................................................... 5-2

Moving Around and Making Selections .......................... 5-4

Information Menu ................................................................ 5-5

Main Menu ........................................................................... 5-6

Advanced Menu ................................................................... 5-7

Security Menu ...................................................................... 5-8

Boot Menu............................................................................ 5-9

Exit Menu........................................................................... 5-10

When and How to Use the System Recovery Feature........ 5-11

When to Use................................................................... 5-11

Starting System Recovery .............................................. 5-11

Chapter 6 Using the TPM and EasyTap Utilities...............6-1

Using TPM (Trusted Platform Module)............................... 6-2

Using the EasyTap Utility .................................................... 6-3

Quick Button Setup Utility............................................... 6-8

Chapter 7 Caring for the Tablet PC....................................7-1

Protecting the Tablet PC ...................................................... 7-2

Using the Cable Lock....................................................... 7-2

Taking Care of the Tablet PC............................................... 7-3

Location Guidelines ......................................................... 7-3

General Guidelines........................................................... 7-3

Cleaning Guidelines ......................................................... 7-4

Battery Pack Guidelines................................................... 7-4

Touchscreen Guidelines ................................................... 7-5

When Traveling.................................................................... 7-7

Chapter 8 Troubleshooting.................................................8-1

Preliminary Checklist........................................................... 8-2

Solving Common Problems.................................................. 8-3

Battery Problems.............................................................. 8-4

Bluetooth Wireless Transmission Problems..................... 8-4

Display Problems ............................................................. 8-5

Hardware Device Problems.............................................. 8-5

Hard Disk Drive Problems ............................................... 8-6

LAN Problems ................................................................. 8-6

Wireless LAN Problems................................................... 8-6

iii

Power Management Problems.......................................... 8-8

Software Problems ........................................................... 8-9

Sound Problems ............................................................... 8-9

Startup Problems ............................................................ 8-10

Other Problems............................................................... 8-10

Resetting the Tablet PC...................................................... 8-11

Appendix A Specifications ...................................................A-1

Appendix B Regulatory Information .................................... B-1

On the Use of the System.....................................................B-2

Class B Regulations .........................................................B-2

Safety Notices ..................................................................B-3

On the Use of the RF Device................................................B-6

USA and Canada Safety Requirements and Notices........B-6

European Union CE Marking and Compliance Notices ..B-8

Preface

This manual contains information that will help you operate the tablet PC. It is divided into 8 chapters and 2 appendices.

z Chapter 1, Getting Started, takes you through the process of setting

up the tablet PC and identifying its external components.

z Chapter 2, Operating Your Tablet PC, tells you how to use the

tablet PC’s components and features.

z Chapter 3, Managing Power, provides information on power. z Chapter 4, Expanding Your Tablet PC, provides information on

installing and using peripheral devices.

z Chapter 5, Using BIOS Setup and System Recovery Feature,

describes the BIOS Setup program that configures the tablet PC’s BIOS settings as well as the System Recovery function.

z Chapter 6, Using the TPM and EasyTap Utilities, describes how to

use TPM (Trusted Platform Module) and EasyTap utilities.

z Chapter 7, Caring for the Tablet PC, gives you tips in care and

maintenance.

z Chapter 8, Troubleshooting, gives solutions to common problems

you may encounter when using the tablet PC.

z Appendix A, Specifications, gives a brief specification of the tablet

PC.

z Appendix B, Regulatory Information, provides regulatory

statements and safety notices on your tablet PC.

Notational Conventions

Throughout this manual, the following conventions are used to distinguish elements of text.

NOTE: identifies additional information that requires special attention. CAUTION: identifies important information that, if not followed, may result in loss of

data or damage to the tablet PC.

Keypad keys are shown in a bold typeset. For example:

Press the

Ent key to complete.

A title, command, setup item, or button that you can see on the screen is shown in boldface. A value or an option that you can select for a setup item is shown in italic. For example:

Select When I press the power button, set it to Shut down, and then click the Save changes button.

Chapter 1

CHAPTER

Getting Started

Congratulations on purchasing this rugged tablet PC.

This chapter first tells you step by step how to get the tablet PC up and running. You will find instructions for these procedures:

z Unpacking

z Connecting to AC power

z Turning on the tablet PC

z Turning off the tablet PC

Then, you will find a section briefly introducing the external components of the tablet PC. And the last section navigates you to the information you may need after the tablet PC is ready for use.

Getting Started 1-1

Getting the Tablet PC Running

This section guides you through the procedures for getting the tablet PC ready for operation.

Unpacking

After unpacking the shipping carton, you should find these standard items:

z Tablet PC

z Accessories:

− AC adapter

− AC power cord

− Touchscreen stylus

Inspect all the items. If any item is damaged or missing, notify your dealer immediately.

Keep the shipping carton and packing materials in case you need to ship or store the tablet PC in the future.

Connecting to AC Power

The tablet PC operates either on the external AC power or internal battery power. It is suggested that you use AC power when you start up the tablet PC for the very first time.

CAUTION: Use only the AC adapter included with your tablet PC. Using other AC

1-2 Getting Started

adapters may damage the tablet PC.

1. Make sure that the tablet PC is turned off.

2. Place the tablet PC upside down.

3. Remove the four screws securing the battery compartment cover and

remove it.

4. Fit the battery pack into place (n) and secure with two screws (o).

5. Replace the battery compartment cover and secure with four screws.

6. Plug the DC cord of the AC adapter to the power connector (

) of

the tablet PC (n).

Getting Started 1-3

7. Plug the female end of the AC power cord to the AC adapter and the

male end to an electrical outlet (o).

8. Power is being supplied from the electrical outlet to the AC adapter

and onto your tablet PC. Now, you are ready to turn on the tablet PC.

9. When the AC adapter is connected, it also charges the battery pack.

The Battery Charge Indicator (

) on the tablet PC glows amber to

indicate that charging is in progress. When the battery is fully charged, the Battery Charge Indicator glows green. (For information on using battery power, see Chapter 3.)

CAUTION:

z When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the tablet PC. A reverse procedure may damage the AC adapter or the tablet PC.

1-4 Getting Started

z When unplugging the connector, always hold the plug head. Never pull on the cord.

Turning On and Off the Tablet PC

Turning On

1. Place your tablet PC on a flat and stable surface or, the tablet PC can

be operated while holding it as shown.

2. Make sure that the tablet PC is either connected to AC power or the

battery has power.

3. Press the power button (

Getting Started 1-5

4. Each time the tablet PC is turned on, it performs a Power-On Self

Test (POST), and the operating system Windows XP Tablet PC edition should start (may support Windows Vista Business and Ultimate in the future).

Turning Off

To turn off the tablet PC power, use the “Shut Down” command of your operating system.

NOTE: There are other ways you can stop the tablet PC so that you will be back to where you left off when you next turn on the tablet PC. (See “Stopping the Computer” in Chapter 2 for information.)

CAUTION: If you have to turn the tablet PC on again immediately after turning it off, wait for at least five seconds. Turning the tablet PC off and on rapidly can damage it.

1-6 Getting Started

Taking a Look at the Tablet PC

This section identifies the external components of the tablet PC and briefly describes the function of each component.

NOTE: Depending on the model you purchased, the appearance of your tablet PC may not be exactly the same as those shown in this manual.

Right-Side Components

Ref Component Description See Also

Kensington Lock

Touchscreen

Stylus Tether Hole

Getting Started 1-7

Locks the tablet PC to a stationary object for security.

Provides a convenient way to use the touchscreen.

Touchscreen stylus tethered to this hole.

P. 7-2

P. 2-8

Left-Side Components

Ref Component Description See Also

RJ-45 Connector

USB Ports

Connects the LAN cable. P. 2-13

Each of the two ports connects a USB device, such as a USB flash disk, printer, digital camera, joystick, and more.

P. 4-2

1-8 Getting Started

Rear Components

Ref Component Description See Also

Smart Card

Reader Audio Output

Connector

(Future option)

3G Antenna

Accepts a smart card for additional security feature.

Connects a set of headphones, external speakers with amplifier, or an audio recording device.

Serves as the antenna for wireless modem.

NOTE: For data transmission only.

P. 4-3

P. 2-12

P. 2-20

Getting Started 1-9

Front Components

Ref Component Description See Also

3G Antenna

pass-through Connector

GPS Antenna

pass-through Connector

Docking

Connector Power Connector

Connects to the antenna for wireless WAN (wide area network) 3G transmission.

NOTE: Must be connected via a docking station.

Connects to the antenna for GPS receiver. P. 2-19

Connects to a docking station. P. 4-4

Connects the AC adapter. P. 1-2

P. 2-20

1-10 Getting Started

Bottom Components

Ref Component Description See Also

Battery Pack /

3G SIM Card Slot Compartment

Inside is the battery pack that supplies power to your tablet PC when external power is not connected.

Also contains the 3G SIM card slot.

P. 3-5

P. 2-20

Getting Started 1-11

Top Components

Ref Component Description See Also

LCD

Touchscreen Power Button

Light Sensor

Quick Buttons

Displays and receives information for the tablet PC.

Turns the tablet PC power ON and OFF. The LED lights green when tablet PC is on.

Adjusts the LCD brightness automatically based on your tablet PC’s surrounding lighting condition.

Toggles the Fn keylock ON and OFF. P. 2-4

Toggles the keypad lock ON and OFF by pressing for three seconds to prevent accidental pressing of keypad during transport.

Toggles the “EasyTap” utility ON and OFF. P. 2-4

P. 2-10

P. 1-5

P. 2-4

1-12 Getting Started

Ref Component Description See Also

Indicators

WLAN/WWAN

Battery Charge

Hard Disk Drive / Heater (option)

Numeric Keypad

Cursor-control

Keys

Show the current status of the tablet PC’s devices.

Lights green when WLAN is on.

Lights amber when WWAN is on.

Lights green when the battery is fully charged.

Lights amber when the battery is being charged.

Blinks red when the battery’s capacity is below 10 %.

Lights green when hard disk drive is in use.

Lights red when optional heater is on (temperature is lower than 5 your tablet PC).

Facilitates entering of numbers, also includes

the Del (Delete) and Ent (Enter) keys. When Fn keylock is on, the alternative function of a

key is activated. The alternative functions are identified by the color of blue on the keytop.

Serves as the UP / DOWN / LEFT / RIGHT arrow keys (except pointer on screen). When

Fn keylock is on, the alternative function of a

key is activated. The alternative functions are identified by the color of blue on the keytop.

C when booting

P. 2-14

P. 3-3

P. 2-5

Speaker

Getting Started 1-13

Sends out sound and voice from your tablet PC.

P. 2-11

Where to Go from Here

As your tablet PC is ready for operation, you may want to do any of the following now:

For this purpose... Do this...

To know more about the tablet PC... Go on to the next chapter.

To install the operating system if your dealer has not already done so...

To know more about the operating system...

To set a power-on password... Read the operating system manual.

To charge the battery pack for the first time...

See the operating system manual.

Read the operating system manual.

See “Charging the Battery Pack” in Chapter 3.

1-14 Getting Started

Chapter 2

CHAPTER

Operating Your Tablet PC

This chapter provides information about the use of the tablet PC.

If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user but are new to tablet PCs, you may choose to read only the parts containing information unique to your tablet PC.

Described in this chapter are the operating basics of these components/ features:

z Starting and stopping the tablet PC

z Quick buttons

z Keypad

z Touchscreen

z Video features

z Audio features

z Communication features

Operating Your Tablet PC 2-1

Starting and Stopping the Tablet PC

There are a number of ways to start and stop the tablet PC.

Starting the Tablet PC

You always start the tablet PC using the power button ( ).

A computer starts up with an operating system (OS) existing on the storage device such as the hard disk. The computer will automatically load the OS after you turn it on. This process is called booting.

NOTE: An operating system is the platform for all your software application programs to run on. Your computer uses the Microsoft Windows XP Tablet PC edition operating system.

Stopping the Tablet PC

When you finish a working session, you can stop the tablet PC by turning off the power or leaving the tablet PC in Standby or Hibernation mode:

To stop in

this mode...

Off Follow the shutdown procedure of your

operating system. This can prevent loss of unsaved data or damage to your software programs.

If the system is locked up because of hardware or software problems, press the power button to turn off the tablet PC.

Standby

Hibernation

2-2 Operating Your

Depending on your settings in Windows, you can place the tablet PC in Standby mode by pressing the power button.

Depending on your settings in Windows, you can place the tablet PC in Hibernation mode by pressing the power button.

Do this... To start up or

resume again

Press the power button.

If you choose to stop in Standby or Hibernation mode, you can return to where you left off the next time you start up the tablet PC. (See “Power Management” in Chapter 3 for more information.)

Operating Your Tablet PC 2-3

Using the Quick Buttons

Located on top of the keypad are three quick buttons:

z Fn button toggles the Fn keylock ON and OFF ( icon appears on

the system tray when ON). You can use the secondary functions of keypad buttons with blue color on top of each button (as described in the next section).

z button toggles the keypad lock ON and OFF. Press the button to

turn on or press continuously for more than three seconds to turn off. This would prevent accidental pressing of the keypad buttons during transport.

z Menu button toggles the EasyTap utility ON and OFF. Upon pressing

it the following screen appears.

2-4 Operating Your

Using the Keypad

Your keypad can be divided into two major categories:

z Numeric, Delete (Del), and Enter (Ent) keys

z Cursor-control keys

NOTE: To use the keypad during poor lighting conditions, turn the keypad backlight ON by pressing the Fn button, then press the “8” ( ) button.

Numeric Keypad

The 12-key numeric keypad with Delete and Enter keys is shown next:

When the Fn keylock is ON (

can use the following secondary functions with blue color on top of each button.

switches between landscape and portrait LCD display.

–

switches the keypad backlight ON and OFF.

–

switches the touchscreen or active digitizer OFF and ON.

–

Operating Your Tablet PC 2-5

icon appears on the system tray), you

– switches the sunlight-readable mode ON and OFF.

–

serves as the mouse right-click button.

– C+A+D serves as the Ctrl + Alt + Del key. – ESC serves as the Escape button.

Cursor-Control Keys

The word “cursor” refers to the indicator on the screen (except for pointer on screen) that lets you know exactly where on your screen anything you type will appear. It can take the form of a vertical or horizontal line, a block, or one of many other shapes.

When the Fn keylock is ON (

can use the following secondary functions with blue color on top of each button.

increase the sound volume of your tablet PC.

–

decrease the sound volume of your tablet PC.

increase the brightness of LCD display.

–

decrease the brightness of LCD display.

–

2-6 Operating Your

icon appears on the system tray), you

Using the On-screen Keyboard

Use the on-screen keyboard to enter text and perform various keyboard functions.

1. Click the on-screen keyboard icon (

system tray and the software keyboard will appear onscreen.

2. Tap the characters on the on-screen keyboard with the touchscreen

stylus.

NOTE: To protect the LCD display, use the touchscreen stylus on your touchscreen.

) located on the Windows

Operating Your Tablet PC 2-7

Using the Touchscreen

NOTE: The touchscreen function is not available when running the BIOS Setup program.

CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the touchscreen. Doing so may damage the touchscreen surface. Use the included touchscreen stylus.

The touchscreen is a touch-sensitive device that allows you to easily communicate with the tablet PC by controlling the location of the pointer on the screen.

Here are some common terms that you should know when using the touchscreen:

Term Action

Click/Point Tap gently on the touchscreen.

Double-click Tap twice on the touchscreen rapidly.

Right-click Press lightly on the display until a pop-up menu appears,

then select the desired function.

2-8 Operating Your

Term Action

Drag and drop

Press lightly on the touchscreen and move your finger until you reach your destination (drag). Finally, release your finger (drop) when you finish dragging your selection to the destination. The object will drop into the new location.

Operating Your Tablet PC 2-9

Using the Video Features

The video subsystem of your tablet PC features:

z 8.4-inch wide TFT (Thin-Film Transistor) color LCD with SVGA

transmissive display

z Toggle display between landscape view and portrait view using the

LCD rotate button

z Built-in light sensor to automatically adjust the LCD brightness

z Manually adjust the display brightness using the LCD brightness up

) and down ( ) buttons

(

z Power Management

z Sunlight-readable LCD display using the sunlight-readable mode

button

(option)

Configuring the Display Modes

Your tablet PC has been set to a default resolution and number of colors before shipment. You can view and change display settings through your operating system. See your operating system documentation or online help for specific information.

2-10 Operating Your

Using the Audio Features

The audio subsystem of your tablet PC features:

z High density audio codec

z Manually adjust the sound volume using the sound volume up ( )

and down (

z Audio-out connector ( ) (n) and

z Integrated speaker (o)

) buttons

Ways of playing and recording sound vary with the operating system used. See your operating system documentation or online help for specific information.

Operating Your Tablet PC 2-11

Connecting Audio Devices

For higher audio quality, you can send sound through external audio devices such as speakers, headphones, or earphone set using the audio-out connector.

NOTE:

z After connecting an external audio device, make sure that you specify the use of the

correct audio device in Windows.

z When using the external speakers/headphones, you cannot use the internal one.

2-12 Operating Your

Using the Communication Features

Using the LAN

The internal 10/100/1000Base-T LAN (Local Area Network) module allows you to connect your tablet PC to a network. It supports data transfer rate up to 1000 Mbps.

To connect the network cable to the LAN module, connect one end of the LAN cable to the RJ-45 connector ( end to the network hub.

) on the tablet PC and the other

Using the Wireless LAN

The WLAN features include:

z Peer-to-Peer (Ad-Hoc) and Access Point (Infrastructure) modes

support

z WEP (Wired Equivalent Privacy) 64/128-bit data encryption

z IEEE 802.11b/g standard compliance

Technology 802.11b 802.11g

Stated Maximum Throughput (Mbps)

Data Rates (Mbps) 11, 5.5, 2, 1 54, 36, 18, 9

Band (GHz) 2.412 ~ 2.462 2.4

Modulation Technology DSSS (Direct Sequence

Operating Your Tablet PC 2-13

11 54

OFDM (Orthogonal Frequency

Spread Spectrum)

Division Multiplexing)

NOTE: 802.11g mode is backward compatible with 802.11b mode.

Turning Off/On the WLAN Radio

NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate wireless devices in aircraft as this may interfere with flight safety. Remember to turn off wireless LAN when using your tablet PC in the airplane.

1. Press the Menu button to start up the EasyTap utility.

2. Click the RF button to switch the WLAN radio on/off, indicated by

the WLAN indicator (

) glowing in green when on.

If you need to temporarily turn off the radio, click the RF button. To resume network connection, click the RF button again. Upon restarting your system, wireless LAN radio would be on even if you turned it off before system shutdown.

It takes approximately 30 seconds for your tablet PC to make a successful WLAN connection and approximately 10 seconds to disconnect.

2-14 Operating Your

Connecting to a Wireless Network

To connect to a wireless network:

1. Make sure that the wireless LAN radio is “on” indicated by the

wireless LAN indicator (

) glowing in green.

2. Double-click the Wireless Network Connection icon

your Windows system tray. If any wireless network is detected, the following window appears on screen.

3. Click to select a wireless network to connect to, and then click

Connect.

located on

4. Depending on the settings, you may be asked to enter a WEP key

(refer to your Windows online help for more information on setting a wireless network connection).

Operating Your Tablet PC 2-15

Using the Bluetooth® Wireless Feature

Depending on your model, your tablet PC may incorporate the Bluetooth capability for short-range (about 10 meters) wireless communications between devices without requiring a cable connection.

With Bluetooth, data can be transmitted through walls, pockets and briefcases as long as two devices are within range. By default, your tablet PC’s Bluetooth feature is active (always ON) upon booting your tablet PC and is in the general discoverable and pairable mode.

The status of the Bluetooth connection is indicated by the Bluetooth icon located in the system tray in the lower-right part of the screen.

Status Icon

Connected

You can use the Bluetooth Utility to configure Bluetooth connection settings and transfer files.

(blue with white logo).

(blue with green logo)

Connecting to Another Bluetooth Device

1. Make sure that the target Bluetooth device is turned on, discoverable

and within close range. (See the documentation that came with the

Bluetooth device.)

2. Right-click (press lightly until a pop-up menu appears) the

and then click Add New Connection.

2-16 Operating Your

icon,

3. The Add New Connection Wizard window appears. Select Express

Mode (Recommended), and then click Next.

4. Select the device to connect to and click Next.

Operating Your Tablet PC 2-17

5. Depending on the type of Bluetooth device that you want to connect

to, you will need to enter the pertinent information.

Sending a File

1. Make sure that the target Bluetooth device is turned on, discoverable

and within close range. (See the documentation that came with the

Bluetooth device.)

2. Right-click the

3. In the Wireless File Transfer window, click Add to browse for the file

to send.

icon, and then click Wireless File Transfer.

2-18 Operating Your

4. Click the target device from the list, and then click Send to start the

transfer procedure.

Using the GPS (Optional)

Depending on the model you purchased, your tablet PC may have the GPS receiver module built in.

GPS (Global Positioning System) is a constellation of 24 well-spaced satellites that orbit the Earth and make it possible for devices enabled with GPS receivers to pinpoint their location.

You need to install third-party GPS navigation software to take advantage of the GPS feature.

Operating Your Tablet PC 2-19

Using the 3G Feature (Optional)

3G is the third generation of mobile phone standards and technology, after 2G. It is based on the International Telecommunication Union (ITU) family of standards under the International Mobile Telecommunications programme.

Unlike IEEE 802.11 networks, 3G networks are wide area cellular telephone networks. IEEE 802.11 networks are short range,

high-bandwidth networks primarily developed for data.

To use the 3G feature (GSM/UMTS/EDGE/GPRS/EVDO/HSUPA) on your computer, you need to subscribe to 3G service and install the 3G SIM card from your service provider, network operator, or other vendor.

NOTE:

z Your model only supports data transmission, voice transmission is not supported. z When using the wireless modem feature, pull out the 3G antenna.

To install the SIM card, follow these steps:

1. Make sure that the tablet PC is not turned on or connected to AC

power.

2. Place the tablet PC upside down.

2-20 Operating Your

3. Remove the four screws securing the battery compartment cover and

remove it.

4. Remove the two screws securing the battery pack to the battery

compartment ( off the computer (

) and, pull on the ribbon strip to lift the battery pack

Operating Your Tablet PC 2-21

5. Locate the SIM card slot and push the SIM card into the slot. Make

sure the beveled corner on the SIM card is facing towards the tablet PC and that the golden contact area on the card is facing downwards.

To remove the SIM card, just push in (n) the SIM card to pop-out (o) and remove the card.

2-22 Operating Your

6. Fit the battery pack into place and secure with two screws.

7. Replace the battery compartment cover and secure with four screws.

WARNING: Keep all SIM cards out of the reach of small children. For availability and information on using SIM card services, contact your SIM card vendor. This may be the service provider, network operator, or other vendor.

Operating Your Tablet PC 2-23

Using Hand Strap

The hand strap in accessory box is designed to help you hold E100 stable. Use the 4 screws to fix the hand strap in 4 corners on the back.

2-24 Operating Your

Chapter 3

CHAPTER

Managing Power

Your tablet PC operates either on external AC power or on internal battery power.

This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.

The topics in this chapter include:

z What is an AC adapter

z How to charge the battery pack

z When and how to initialize the battery pack

z How to check the battery level

z How to replace the battery pack

z What happens when the battery is low and what actions to take

z What is Power Management

z How to save power

Managing Power 3-1

AC Adapter

CAUTION:

z The AC adapter is designed for use with your tablet PC only. Connecting the AC

adapter to another device can damage the adapter.

z The AC power cord supplied with your tablet PC is for use in the country where you

purchased your tablet PC. If you plan to go overseas with the tablet PC, consult your dealer for the appropriate power cord.

z When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the tablet PC. A reverse procedure may damage the AC adapter or tablet PC.

z When unplugging the connector, always hold the plug head. Never pull on the cord.

The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct Current) power because your tablet PC runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power.

The adapter operates on any voltage in the range of 100~240 V AC.

3-2 Managing Power

Battery Pack

The battery pack is the internal power source for the tablet PC. It is rechargeable using the AC adapter.

The operating time of a fully charged battery pack depends on how you are using the tablet PC. When your applications often access peripherals, you will experience a shorter operating time.

NOTE: Care and maintenance information for the battery is provided in the “Battery Pack Guidelines” section in Chapter 7.

Charging the Battery Pack

NOTE:

z Charging will not start if the battery’s temperature is below 0 °C (32 °F). It is also

recommended not to charge the battery when temperature is above 35 °C (95 °F).

z To prevent damage, the charging process may stop and the Battery Charge

Indicator flashes red when the environmental temperature gets above 55 °C (131 °F).

z During charging, do not disconnect the AC adapter before the battery has been fully

charged; otherwise you will get a prematurely charged battery.

To charge the battery pack, connect the AC adapter to the tablet PC and

an electrical outlet. The Battery Charge Indicator (

) on the tablet PC

glows amber to indicate that charging is in progress. You are advised to keep the tablet PC power off while the battery is being charged. When the battery is fully charged, the Battery Charge Indicator glows green.

It takes approximately 3 hours to fully charge the Li-Ion battery pack at a room temperature of 25 °C (may need a longer charging time at lower temperatures).

CAUTION: After the tablet PC has been fully recharged, do not immediately disconnect

Managing Power 3-3

and reconnect the AC adapter to charge it again. Doing so may damage the battery. NOTE: The battery level may automatically lessen due to the self-discharge process

(0.21 % per day), even when the battery pack is fully charged (100 %). This happens no matter if the battery pack is installed in the tablet PC.

Initializing the Battery Pack

You need to initialize a new battery pack before using it for the first time or when the actual operating time of a battery pack is much less than expected.

Initializing is the process of fully charging, discharging, and then charging. It can take several hours.

1. Make sure that the tablet PC power is turned off. Connect the AC

adapter to fully charge the battery pack.

2. After the battery pack is fully charged, turn on the tablet PC. Press the

Ent key when the prompt appears on the screen during system startup.

The prompt shows up on the screen for only a few seconds. You must press the

3. A small window appears, select Launch System Setup to invoke the

program.

4. Disconnect the AC adapter and leave the tablet PC on until the battery

is fully discharged. The tablet PC will shut down automatically.

Ent key quickly.

5. Connect the AC adapter to fully charge the battery pack.

Checking the Battery Level

NOTE: Any battery level indication is an estimated result. The actual operating time can

3-4 Managing Power

be different from the estimated time, depending on how you are using the tablet PC.

By Operating System

You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows, click the using AC power.)

icon on the taskbar. (Click the icon if the tablet PC is

By Gas Gauge

On the exterior side of the battery pack is a gas gauge for displaying the estimated battery charge. When the battery pack is not installed in the tablet PC and you want to know the battery charge, you can press the switch with a pointed device to see the corresponding value of indicator segment that light green. The value of the corresponding green segment indicates the relative percentage of the battery charge. The battery pack is fully discharged when you see no segment glowing green.

Switch

Replacing the Battery Pack

CAUTION:

z There is danger of explosion if the battery is incorrectly replaced. Replace the

battery only with the tablet PC manufacturer’s optional battery packs. Discard used batteries according to the dealer’s instructions.

Managing Power 3-5

z Do not attempt to disassemble the battery pack.

If you often rely on battery power for a long period of time while traveling, you may consider the purchase of an additional battery pack from your dealer and keep it with you in a fully charged state as a backup.

To replace the battery pack, follow these steps:

1. Make sure that the tablet PC is not turned on or connected to AC

power.

2. Place the tablet PC upside down.

3. Remove the four screws securing the battery compartment cover and

remove it.

4. Remove the two screws securing the battery pack to the battery

compartment ( off the tablet PC (

) and, pull on the ribbon strip to lift the battery pack

3-6 Managing Power

5. Fit another battery pack into place and secure with two screws.

6. Replace the battery compartment cover and secure with four screws.

Battery Low Signals and Actions

Battery Low occurs when the battery has approximately 10 % (Windows default setting) of its charge remaining. The tablet PC’s Battery Charge

Indicator (

) blinks red to alert you to take actions.

NOTE: You can set up your threshold and signals of Battery Low under Windows.

Immediately save your data upon Battery Low. The remaining operating time depends on how you are using the tablet PC. If you are using the audio subsystem, hard or USB flash disk, the battery might run out of charge very quickly.

Always respond to Battery Low by placing your tablet PC on the Standby or Hibernation mode, turning off the tablet PC, or connecting the AC adapter.

If you do not take any action, the tablet PC will automatically hibernate and turn off.

CAUTION: If you fail to save your data when the battery completely runs out of charge, then you lose your data.

Managing Power 3-7

Power Management

Your tablet PC supports ACPI (Advanced Configuration and Power Interface) for power management. The power management feature allows you to reduce the power consumption for energy saving.

With an ACPI-compliant operating system such as Windows XP, power supply to different tablet PC components is controlled on an as-needed basis. This allows maximum power conservation and performance at the same time.

In general, Windows’ power management works in this way:

What... When...

Power to the hard disk is turned off When the hard disk has been idle for a

set period.

Power to the display is turned off When the display has been idle for a

set period.

The tablet PC enters the Standby mode. The hard disk and display are turned off and the entire system consumes less power.

The tablet PC enters the Hibernation mode. (See the next subsection for more information.)

* Depends on your settings in Windows.

When the entire system has been idle for a set period.

When you press the power button. *

When the entire system has been idle for a set period

When you press the power button. *

For detailed information on power management, see Windows’ Help.

3-8 Managing Power

Hibernation

NOTE: Make sure that the hibernation feature is enabled in the Hibernate tab of the Power Options Properties from the Control Panel in Windows XP.

Hibernation is a very useful feature. People frequently open many applications when they use computers. It takes some time to get all these applications open and running, and normally they all have to be closed before the computer can be turned off.

When you use the hibernation feature, you do not have to close the applications. The tablet PC stores the state of your tablet PC to a file on the hard disk and then shuts down. The next time you turn on your tablet PC, you return to exactly where you left off.

Managing Power 3-9

Power-Saving Tips

Aside from enabling your tablet PC’s power saving mode (see previous section), you can do your part to maximize the battery’s operating time by following these suggestions.

z Do not disable Power Management.

z Decrease the LCD brightness to the lowest comfortable level.

z Shorten the length of time before Windows turn off the display.

z Many USB devices use power just by being connected. If you use a

USB mouse, you can save power by disconnecting the mouse and using the touchscreen stylus. If you use a USB flash drive, unplug it when you are not using it.

z Deactivate the Wireless LAN function if you are not using it

(see Chapter 2).

z Deactivate the Bluetooth wireless feature if you are not using it

(see Chapter 2).

z Turn off the tablet PC when you are not using it.

3-10 Managing Power

Chapter 4

CHAPTER

Expanding Your Tablet PC

You can expand the capabilities of your tablet PC by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter.

This chapter gives guidelines on installing and using these devices:

z USB device

z Smart Card

z Docking Station

Expanding Your 4-1

Connecting a USB Device

Your tablet PC has two USB ports for connecting USB devices, such as a digital camera, scanner, printer, modem, and mouse.

The USB ports support transfer rates up to 12 MB/s for USB 1.1 devices and 480 MB/s for USB 2.0 devices.

To connect a USB device, simply plug the device cable to one of the USB ports (

4-2 Expanding Your

Using Smart Cards

Your tablet PC has a smart card slot for additional security feature, providing tamper-proof storage of user and account identity. A smart card is a type of plastic card embedded with a computer chip that stores and transacts data between you (user) and the tablet PC.

You need to install third-party smart card software to take advantage of the smart card feature.

Inserting and Removing a Smart Card

To insert a smart card:

1. Locate the smart card slot on the rear of the tablet PC.

2. Slide the smart card, with its label and embedded computer chip

facing up into the slot.

3. When a new card is seated, use the third-party smart card software to

allow your tablet PC to read it.

To remove a smart card:

1. Make sure that the third-party smart card software is not accessing the

smart card.

2. Pull the card out of the slot.

Expanding Your 4-3

Using the Docking Station

A docking station is available as an option. This device eliminates the hassles of having you connect and disconnect the various cables when carrying your tablet PC around and allows a variety of peripherals to be connected including a headphone or microphone, etc. The docking station connects to the docking connector at the front of your tablet PC.

1. Locate the docking connector.

2. Connect your docking station to the docking connector.

For more detailed information, refer to the Operating Instructions of the docking station.

NOTE: Hot/warm docking and hot/warm undocking are possible with the docking connector but it is recommended that prior to undocking, press the Menu button and the EasyTap utility screen appears. Click the Docking button.

4-4 Expanding Your

Chapter 5

CHAPTER

Using BIOS Setup and System Recovery Feature

BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the tablet PC.

BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the tablet PC hardware can understand. The BIOS settings are needed by your tablet PC to identify the types of installed devices and establish special features.

The System Recovery feature allows your system’s hard disk drive to return back to its factory default state with Windows operating system in its initial setting.

This chapter tells you how to use the BIOS Setup program as well as the System Recovery feature.

Using BIOS Setup and System Recovery Feature 5-1

When and How to Use BIOS Setup

When to Use

You need to run BIOS Setup utility when:

z You see an error message on the screen requesting you to run BIOS

Setup utility.

z You want to restore the factory default settings.

z You want to modify some specific settings according to the hardware.

z You want to modify some specific settings to optimize the system

performance.

Starting BIOS Setup

NOTE:

z The BIOS Setup utility screens shown in this chapter are for your reference only.

The actual items or settings on your tablet PC may differ.

z The BIOS Setup utility program may have been updated after the publication of this

manual.

z The settings you select in your operating system might override similar settings in

BIOS Setup utility.

To run BIOS Setup utility, press the Ent key when the prompt appears on

the screen during system startup. The prompt shows up on the screen for only a few seconds. You must press the

Ent key quickly. A small window

appears, select Launch System Setup. The BIOS Setup Utility main

screen appears as shown next.

5-2 Using BIOS Setup and System Recovery Feature

The BIOS Setup utility screen can be divided into four areas:

z On the top is the menu bar containing the titles of the available

menus. Each menu title brings a specific menu.

z The left column of the menu displays the menu items.

z The right column of the menu provides more detailed information

when a menu item is highlighted.

z The bottom of the menu provides keyboard instructions for moving

around and making selections.

Using BIOS Setup and System Recovery Feature 5-3

Moving Around and Making Selections

You must go through two or three levels to complete the setting for an item. In most cases, there are two levels: menu title and submenu.

Use the arrow buttons to move around and make selections. Button information can be found at the bottom of the screen. A brief description of button usage is listed next:

Button Function

← , →

↑ , ↓

Ent

NOTE: You can press the F1, F9, F10, –/+, and Esc keys by connecting a USB

keyboard to your tablet PC. Make sure that the item “Legacy USB Support” under the Main menu is set at Enabled (default).

Selects a menu title.

Selects an item or option.

1) Brings up the sub-menu when available.

2) Opens or closes the option window when an item is selected.

5-4 Using BIOS Setup and System Recovery Feature

Information Menu

The Information menu contains the basic configuration information of the system.

Using BIOS Setup and System Recovery Feature 5-5

Main Menu

The Main menu contains the system time and date, as well as the USB setting of the system.

System Time sets the system time. System Date sets the system date. Power Button Delay allows you to prevent accidental pressing of the

power button.

Legacy USB Support enables the system’s support for Legacy USB

device in DOS mode.

5-6 Using BIOS Setup and System Recovery Feature

Advanced Menu

The Advanced menu contains the advanced settings as shown next.

Total Graphics Memory allows you to select the amount of total

graphics memory (pre-allocated + fixed + DVMT) for use by the internal graphics device.

DVMT Graphics Memory shows the size of DVMT graphics memory. HDD Preheat allows your system to automatically turn on the optional

heater when temperature of the hard disk drive is lower than 5

NOTE: The optional heater can function when your tablet PC is connected to AC power or using battery power but the preheat feature can only function when your tablet PC is connected to AC power.

High Temperature Protection allows you to turn off hard disk drive

power to prevent damage to data when HDD temperature goes above the safe range. System will also show a warning message.

Using BIOS Setup and System Recovery Feature 5-7

Security Menu

The Security menu contains the TPM (Trusted Platform Module) setting. The TPM is a component on your tablet PC’s mainboard that is specifically designed to enhance platform security above-and-beyond the capabilities of today’s software by providing a protected space for key operations and other security critical tasks. Using both hardware and software, TPM protects encryption and signature keys at their most vulnerable stages – operations when the keys are being used unencrypted in plain-text form. TPM is specifically designed to shield unencrypted keys and platform authentication information from software-based attacks.

TPM Support enables or disables TPM support. Current TPM State shows the current TPM state. Change TPM State allows you to select between No Change, Clear,

Deactivate & Disable, and Enable & Activate.

5-8 Using BIOS Setup and System Recovery Feature

Boot Menu

The Boot menu sets the sequence of the devices to be searched for the operating system.

The bootable devices will be automatically detected during POST and shown here, allowing you to set the sequence that the BIOS uses to look for a boot device from which to load the operating system. A brief description of button usage is listed next:

Button Function

↑ , ↓

1 ~ 4 Loads the default boot sequence.

NOTE: You can press the f, r, x, –/+, and Shift + 1 keys by connecting a USB keyboard

to your tablet PC. Make sure that the item “Legacy USB Support” under the Main menu is set at Enabled (default).

Using BIOS Setup and System Recovery Feature 5-9

Selects (highlight) a boot device.

Exit Menu

The Exit menu displays ways of exiting BIOS Setup utility. After finishing with your settings, you must save and exit so that the changes can take effect.

Exit Saving Changes saves the changes you have made and exits BIOS

Setup utility.

Exit Discarding Changes exits BIOS Setup utility without saving the

changes you have made.

Load Setup Defaults loads the factory default values for all the items. Discard Changes restores the previous values for all the items. Saves Changes saves the changes you have made.

5-10 Using BIOS Setup and System Recovery Feature

When and How to Use the System Recovery Feature

When to Use

You need to run System Recovery when:

z Your tablet PC does not start correctly.

z Your Windows operating system does not start at all.

z You want to restore the factory default Windows settings.

Starting System Recovery

To run System Recovery:

1. During system startup when the following screen appears, press

Alt + F2

when a small window appears on the screen.

Using BIOS Setup and System Recovery Feature 5-11

keys for four seconds or press Ent and select HDI Recovery

Ctrl +

2. The message This will help you reinstall Windows to the whole

HDD to factory default. All data on HDD will be lost appears

on the screen to ask if you want to access System Recovery. Type 1 to

continue or type

0 to exit.

3. A warning message appears as follows:

****************************************

You must accept the following terms before performing the recovery process:

1. The recovery software is solely the purpose of reinstalling or restoring software associated with the hard disk of this operating GETAC machine.

2. Except the above, no other use is granted hereunder.

****************************************

(1)Yes, I agree to the provisions of this agreement and wish to continue. (0)No, I do not agree to the provisions of this agreement and do not wish to continue.

Type 1 to continue.

4. Type 1 again when the message

now? (1)Yes (0)No appears onscreen.

Are you sure you want to recover

5. Your system will start the recovery process and Windows operating

system will be re-installed to its default setting.

5-12 Using BIOS Setup and System Recovery Feature

Chapter 6

CHAPTER

Using the TPM and EasyTap Utilities

Your tablet PC comes with an added security feature known as the TPM (Trusted Platform Module) – a component on your tablet PC’s mainboard that is specifically designed to enhance platform security above-andbeyond the capabilities of today’s software by providing a protected space for key operations and other security critical tasks.

The EasyTap utility allows you to activate or operate certain functions on your tablet PC.

This chapter describes how to use these utilities.

Using the TPM and EasyTap Utilities 6-1

Using TPM (Trusted Platform Module)

TPM is a hardware-based security feature that can be used to create and manage computer-generated digital certificates. When combined with security software, the TPM enhances existing network and computer security by enabling features such as file protection capabilities and protected e-mail.

NOTE:

z Make sure you select Enable on the TPM Support item under the Security menu

of your BIOS Setup (see chapter 5 for details).

z Make sure you select Enable & Activate on the Change TPM State item under the

Security menu of your BIOS Setup (see chapter 5 for details).

z You only need to activate these items once.

You can use the certificates to:

z Send and receive secure email from email clients like Microsoft

Windows Mail/Outlook Express, Microsoft Outlook or Netscape Messenger

z Set up browser (e.g. Netscape Navigator or Internet Explorer) and

web server (e.g. Microsoft Internet Information Server) for Client Authentication

z Sign Microsoft Word macros

z Encrypt files and folders

z Secure network connections

NOTE: For information on using the program and the different security features, click Start Æ All Programs Æ Infineon Security Platform Solution Æ Help.

6-2 Using the TPM and EasyTap Utilities

Using the EasyTap Utility

The EasyTap utility allows you to activate or operate certain functions on your tablet PC.

To start up the EasyTap utility:

1. Press the Menu button on your tablet PC.

Using the TPM and EasyTap Utilities 6-3

2. Upon pressing the Menu button, the following screen appears.

The following table shows the various functions on the EasyTap utility screen.

Operation EasyTap Description

6-4 Using the TPM and EasyTap Utilities

Switches the keypad lock ON and OFF. Press the button one second to turn ON (lock) and continuously for more than three seconds to turn OFF (unlock).

This would prevent accidental pressing of the keypad buttons during transport.

Switches the Fn keylock ON and OFF (

appears on the system tray when ON).

You can use the secondary functions of keypad buttons with blue color on top of each button.

An abbreviated Help file for using the EasyTap utility is available.

Turns on the Quick Button Setup utility (refer to the next section for details).

icon

Operation EasyTap Description

Closes and exits the EasyTap utility screen.

Switches the RF module OFF and ON (wireless LAN, Bluetooth, 3G).

Upon restarting your system, wireless LAN radio would be on even if you turned it off before system shutdown.

Toggles the system power saving mode between

OFF / Work / Quick and Power Saving.

While entering into power saving mode, the system will turn down the panel backlight and sacrifices processing speed to gain more battery

life. The ECO button works only when using

battery power.

The status would display IN when you connect

your tablet PC to a docking station.

To turn off power to the docking station without disconnecting from your tablet PC, click the

Docking button.

Before removing your tablet PC from the

docking station, make sure to click the Docking button to show OUT.

Toggles between NORMAL, MAX, and AUTO

brightness for LCD backlight.

Rotates the LCD display orientation from

default landscape to 90

portrait, and vice versa.

270

portrait, 180

landscape,

Using the TPM and EasyTap Utilities 6-5

Operation EasyTap Description

Toggles between LCD, VGA (external device e.g., monitor), and BOTH (LCD and external

device).

Switches the display output when external devices are connected. If the external device is

not connected, the choice would only be LCD.

Upon restarting your system, the setting would

be LCD only.

Serves as the default Microsoft Explorer quick launch button.

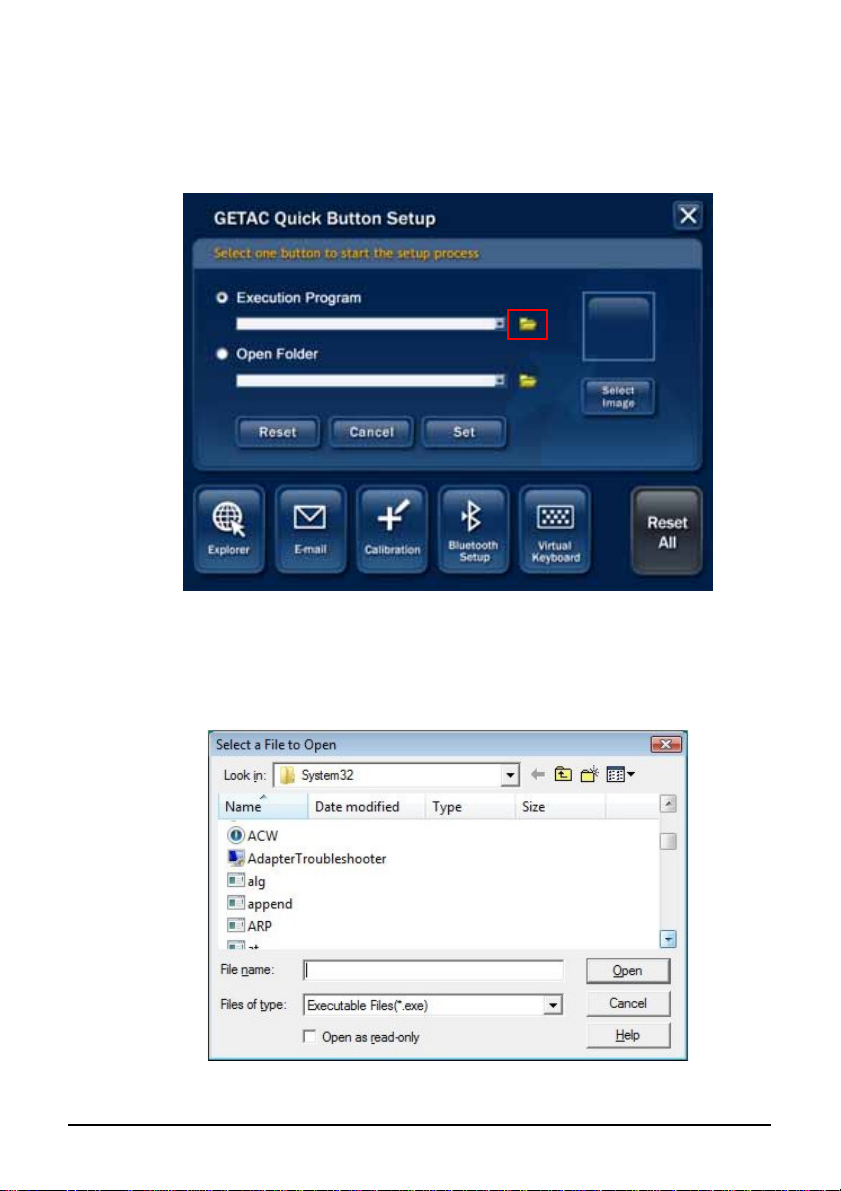

You can use the Quick Button Setup utility to assign a different function to this button (refer to the next section for details).

Serves as the default Microsoft Express quick launch button.

You can use the Quick Button Setup utility to assign a different function to this button (refer to the next section for details).

Internet

Outlook

Serves as the default LCD display calibration tool quick launch button.

You can use the Quick Button Setup utility to assign a different function to this button (refer to the next section for details).

Serves as the default Bluetooth

wireless setup

quick launch button.

You can use the Quick Button Setup utility to assign a different function to this button (refer to the next section for details).

Serves as the default virtual keyboard quick launch button.

You can use the Quick Button Setup utility to assign a different function to this button (refer to the next section for details).

6-6 Using the TPM and EasyTap Utilities

Operation EasyTap Description

Increases or decreases the sound volume. This function adjusts the volume of sound output both from the speakers and headphones. It is synchronized with your Windows main volume controller.

Upon restarting your system, Windows will memorize the last setting before system shutdown.

Increases or decreases the LCD brightness level.

Upon restarting your system, Windows will memorize the last setting before system shutdown.

Switches the system sound output OFF (mute)

Using the TPM and EasyTap Utilities 6-7

and ON. This function mutes the sound output both from the speakers and headphones. It is synchronized with your Windows main volume controller.

Upon restarting your system, Windows will memorize the last setting before system shutdown.

Operation EasyTap Description

System enters “black-out” mode by turning off the LCD display, LED indicators, touchscreen, and sound volume.

Press the power button ( system from “black-out” mode.

) to wake up the

Quick Button Setup Utility

By default, the five quick launch buttons on the EasyTap utility have pre-assigned functions.

The Quick Button Setup utility allows you to re-define the above five quick launch buttons.

6-8 Using the TPM and EasyTap Utilities

To re-define:

1. Click the Quick Button Setup utility button (

Button Setup window appears as shown next.

) and the Quick

Using the TPM and EasyTap Utilities 6-9

2. To re-assign a program to a button, click to select a particular button

to change (e.g., Explorer), then click the folder icon.

3. The Select a File to Open dialog box appears as shown next. Select the

desired program, then click Open to complete the process.

6-10 Using the TPM and EasyTap Utilities

4. You can change the image appearing on the button by clicking the

Select Image icon.

5. The Select Picture dialog box appears as shown next.

Using the TPM and EasyTap Utilities 6-11

6. After selecting the image file, the appropriate icon will then appear in

the button. To launch the program, click the particular quick launch

button. Click Set to complete the changes.

6-12 Using the TPM and EasyTap Utilities

Chapter 7

CHAPTER

Caring for the Tablet PC

Taking good care of your tablet PC will ensure a trouble-free operation and reduce the risk of damage to your tablet PC.

This chapter gives you guidelines covering these areas of maintenance:

z How to protect the tablet PC

z What to note when using and storing the tablet PC

z How to clean the tablet PC

z What to note when using the battery pack

z What to note when traveling with the tablet PC

Caring for the 7-1

Protecting the Tablet PC

To safeguard the integrity of your tablet PC data as well as the tablet PC itself, you can protect the tablet PC in several ways as described in this section.

Using the Cable Lock

You can use a Kensington-type cable lock to protect your tablet PC against theft. The cable lock is available in most computer stores.

To use the lock, loop the lock cable around a stationary object such as a table. Insert the lock to the Kensington lock hole ( secure the lock. Store the key in a safe place.

) and turn the key to

7-2 Caring for the

Taking Care of the Tablet PC

Location Guidelines

z For optimal performance, use the tablet PC where the recommended

temperature is between 10 °C (50 °F) and 35 °C (95 °F) – operating temperature depending on product specifications.

z Avoid placing the tablet PC in a location subject to high humidity,

extreme temperatures, mechanical vibration, direct sunlight, or heavy dust.

z Do not cover or block any ventilation openings on the tablet PC. For

example, do not place the tablet PC on a bed, sofa, rug, or other similar surface. Otherwise, overheating may occur that results in damage to the tablet PC.

z Keep the tablet PC at least 13 cm (5 inches) away from electrical

appliances that can generate a strong magnetic field such as a TV, refrigerator, motor, or a large audio speaker.

actual

z Avoid moving the tablet PC abruptly from a cold to a warm place. A

temperature difference of more than 10 °C (18 °F) may cause condensation inside the unit, which may damage the storage media.

z Do not place the tablet PC on an unsteady surface.

General Guidelines

z Do not place heavy objects on top of the tablet PC as this may damage

the display.

z The screen surface is easily scratched. Do not use paper towels to

clean the display but use the included soft cloth. Avoid touching it with your fingers, pen, or pencil.

z To maximize the life of the backlight in the display, allow the

backlight to automatically turn off as a result of power management. Avoid using a screen saver or other software that prevents the power management from working.

Caring for the 7-3

Cleaning Guidelines

z Never clean the tablet PC with its power on.

z Use a soft cloth moistened with water or a non-alkaline detergent to

wipe the exterior of the tablet PC.

z Gently wipe the display with a soft, lint-free cloth. Do not use alcohol

or detergent on the display.

Battery Pack Guidelines

z Recharge the battery pack when it is nearly discharged. When

recharging, make sure that the battery pack is fully charged. Doing so may avoid harm to the battery pack.

z The battery pack is a consumable product and the following

conditions will shorten its life: – when frequently charging the battery pack. – when using, charging, or storing the battery in high temperature condition

z To avoid hastening the deterioration of the battery pack thereby

prolonging its useful life, minimize the number of times you charge it so as not to frequently increase its internal temperature.

z Charge the battery pack between 5

C ~ 45 oC (41 oF ~ 113 oF) temperature range. A higher environment temperature will cause the battery pack’s temperature to rise. Avoid charging the battery pack inside a closed vehicle and in hot weather condition. Also, charging will not start if the battery pack is not within the allowed temperature range.

z It is recommended that you do not charge the battery pack more than

once a day.

z It is recommended that you charge the battery pack with the tablet

PC’s power off.

7-4 Caring for the

z To maintain the battery pack’s operating efficiency, store it in a cool

dark place removed from the tablet PC and with 30 % ~ 40 % charge remaining.

z Important guidelines when using the battery pack.

When installing or removing the battery pack take note of the following: – avoid installing or removing the battery pack when the tablet PC is in Standby mode. Abruptly removing the battery pack may cause loss of data or the tablet PC may become unstable. – avoid touching the battery pack terminals or damage may occur, thereby causing improper operation to it or the tablet PC.

The tablet PC’s input voltage and surrounding temperature will directly affect the battery pack’s charge and discharge time: – charging time will be prolonged when the tablet PC is turned on. To shorten the charging time, it is recommended that you place the tablet PC in standby or hibernation mode. – a low temperature will prolong the charging time as well as hasten the discharge time.

Touchscreen Guidelines

z Use the finger or the included touchscreen stylus on the display.

Using a sharp or metallic object other than your finger or touchscreen pen may cause scratches and damage the display, thereby causing errors.

z Avoid using excessive force that may cause damage to the display.

z Use a soft cloth to remove dirt on the display. The touchscreen

surface has a special protective coating that prevents dirt from sticking to it. Not using a soft cloth may cause damage to the special protective coating on the touchscreen surface. To remove hard to remove dirt, blow some steam on the particular area and gently wipe away using a soft cloth.

z Turn off the tablet PC power when cleaning the display. Cleaning the

display with the power on may cause improper operation.

Caring for the 7-5

z Use the touchscreen within the intended area only. The display area

and touchscreen operating area is the same.

z Do not use excessive force on the display. Avoid placing objects on

top of the display as this may cause the glass to break thereby damaging the display.

z Using the touchscreen during low temperature (less than 5

C) may cause a slower response time, this is normal. A normal response time may be restored upon returning to room temperature.

z When there is noticeable discrepancy in the operation of the

touchscreen function (wrong location on intended operation or improper display resolution), refer to the Windows operating system for instructions on recalibrating the touchscreen display.

7-6 Caring for the

When Traveling

z Before traveling with your tablet PC, make a backup of your hard

disk data into flash disks or other storage devices. As an added precaution, bring along an extra copy of your important data.

z Make sure that the battery pack is fully charged.

z Make sure that the tablet PC is turned off.

z Disconnect the AC adapter from the tablet PC and take it with you.

Use the AC adapter as the power source and as a battery-charger.

z Hand-carry the tablet PC. Do not check it in as luggage.

z If you need to leave the tablet PC in the car, put it in the trunk of the

car to avoid exposing the tablet PC to excessive heat.

z When going through airport security, it is recommended that you

send the tablet PC and flash disks through the X-ray machine (the device you set your bags on). Avoid the magnetic detector (the device you walk through) or the magnetic wand (the handheld device used by security personnel).

z If you plan to travel abroad with your tablet PC, consult your dealer

for the appropriate AC power cord for use in your country of destination.

Caring for the 7-7

Chapter 8

CHAPTER

Troubleshooting

Tablet PC problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved.

This chapter tells you what actions to take when solving common computer problems. It is divided into three sections:

z Preliminary checklist

z Solving common problems

z Resetting the tablet PC

Troubleshooting 8-1

Preliminary Checklist

Here are helpful hints to follow before you take further actions when you encounter any problem:

z Try to isolate which part of the tablet PC is causing the problem.

z Make sure that you turn on all peripheral devices before turning on

the tablet PC.

z If an external device has a problem, make sure that the cable

connections are correct and secure.

z Make sure that the configuration information is properly set in the

BIOS Setup program.

z Make sure that all the device drivers are correctly installed.

z Make notes of your observations. Are there any messages on the

screen? Do any indicators light? Detailed descriptions are useful to the service personnel when you need to consult one for assistance.

If any problem persists after you follow the instructions in this chapter, contact an authorized dealer for help.

8-2 Troubleshooting

Solving Common Problems

For easy reference, the problems are divided into these categories.

Problem Type Go to

Battery Problems P. 8-4

Bluetooth Wireless Transmission Problems P. 8-4

Display Problems P. 8-5

Hardware Device Problems P. 8-5

Hard Disk Drive Problems P. 8-6

LAN Problems P. 8-6

Wireless LAN Problems P. 8-6

Power Management Problems P. 8-8

Software Problems P. 8-9

Sound Problems P. 8-9

Startup Problems P. 8-10

Getac Technology E03 Users manual

Specifications and Main Features

Frequently Asked Questions

User Manual
