Getac Technology AP6255BC03 Users manual

Getac BWC BC-03 User Guide
R1.1 1
BWC BC-03
User Guide
Copyright © Getac Technology Corporation.
All Rights Reserved.
Phone +886 (0)2-2785 7888
Rev: 1.2
Getac BWC BC-03 User Guide
R1.1 2
Contents
Chapter 0: Revision History .............................................................................. 3
Chapter 1: Unpacking ..................................................................................... 4
Chapter 2: System Architecture ..................................................................... 5
Chapter 3: System Requirement .................................................................... 7
Chapter 4: System Specification .................................................................... 8
Chapter 5: System Operation ....................................................................... 10
Chapter 6: Management ............................................................................. 15
Chapter 7: Troubleshooting .......................................................................... 21
Getac BWC BC-03 User Guide
R1.1 3
Chapter 0: Revision History
Title
Getac BWC BC-03
User Guide
Rev
Date
Description
V1.0
2018/08/30
Initiation version.
V1.1
2018/12/05
V1.2
2019/01/23
Getac BWC BC-03 User Guide
R1.1 4
Chapter 1: Unpacking
Standard Package
Item
Description
Outlook
Quantity
1
BWC BC-03 Body-Worn Camera
1
Optional Accessories
Item
Description
Outlook
Quantity
1
Chest Mount
2
Molle Mount
3
Pocket Mount
4
Chest Clip
5
Epaulette Clip
6
Charging Dock
7
Magnetic Mount
8
Swivel Clip
9
Breakaway Cable
Getac BWC BC-03 User Guide
R1.1 5
Chapter 2: System Architecture
2.1. Getac Video Solution components
BWC BC-03 BWC VD-03 BWC MD-03 Enterprise Server
YOUR SERVER
HYBRID
IRSA Light
4G LTE
Getac BWC BC-03 User Guide
R1.1 6
2.2. What is Getac BWC solution? In the wake of recent years of police controversy as well as subsequent protests, there has been a call to mandate the use of Body Worn Cameras to promote Accountability and Transparency. Getac Video solution helps police officers automatically recording, data offloading and view media evidence and secure it.
BWC is a video recording system that is typically utilized by law enforcement to record their interactions with the public or gather video evidence at crime scenes, and has been known to increase both officer and citizen accountability.
If the video is being sent to the Enterprise Server (Intranet), it is immediately uploaded directly from the BWC to Enterprise server. If the video is being transferred to the Azure, the data is temporarily stored at the Network Attached Storage till there is adequate bandwidth to upload.
BWCs Office docks can be centralized and mounted on the wall for more efficient use of space. Simple LED Indicators on the BWC
allows for quick status recognition for express check in/out.
Getac BWC BC-03 User Guide
R1.1 7
Chapter 3: System Requirement
3.1. Operating System.
Operating
System
Version
Supported
Remark
Win7
64bit
Yes
Win10
64bit
Yes
3.2. System Requirement
Item
Specification
Remark
1
CPU
Intel Core i3 or i5 above
2
Memory
4.00 GB
3
Disk
4
Software
Getac BWC BC-03 User Guide
R1.1 8
Chapter 4: System Specification
4.1. BWC BC-03 Hardware Specifications
Item
Specification
Remark
Dimension
83.7 X 73 x 21 mm
Weight
180g
RAM
8Gb
eMMC
64GB; Built-In
Lens FOV
140 degree(H)
Wireless - WIFI
802.11 b/g/n/ac
Wireless - Bluetooth
BLE
LTE
Cat-4
GPS
Yes
Slide Switch
Normal/Covert
Video Categorize
64 Category
Mark Button
Save "Mark" into Metadata file Power/RF Button
Yes
Resolution
1920x1080/30FPS 1280x720/30FPS 768x432/30FPS
File Format
.MP4
Operation Temp.
-20 ~ 50 degree C
Drop
1.8 meter
IP Rating
IP67
FCC
Yes
CE
Yes
IC
Yes
RoHS
Yes
LTE
Yes
Getac BWC BC-03 User Guide
R1.1 9
4.2. BWC VD-03 Hardware Specifications
Product Name
Getac VD-03
Vehicle mounting
function
Support pass-through holes on
backside and bottom side for "vertical installation".
Vehicle dock
function
Support BWC B3 for battery
charging(both still & moving states) in "vertical" installation
Office dock
function
Support BWC B3 for battery charging
on office table docking in "vertical direction"
I/O Port
Ethernet Port * 1(10/100Mb) DC Jack * 1
AC Adapter
12V, 2A, 24W
Warranty
Standard 1 year, extendable for 2nd & 3rd year.
Operation Temp.
-20~50 degree C; battery charging
temp > 0°C, <40°C
Humidity
5% to 95%
Vibration test
(non OP)
MIL-STD-810G Fig. 514.6 E-1
Storage Temp.
-40~70 degree C
Dock/Undock
Support 10,000 times life
Status Indicator
Support Green LED, "On" =
power-connected, "Off" = power-disconnected.
Regulation
FCC, CE
ID and label
Getac Logo printing & rating label.
Getac BWC BC-03 User Guide
R1.1 10
Chapter 5: System Operation
5.1. BWC Operation
No.
Description
On/Off Button: Wi-Fi wake-up supported
Microphone
Power Status LED
Camera Status LED
Mode Switch (Normal/Covert)
HD Camera Lens
Wheel Switch
Main Button (Start/Stop/Mark/Confirm)
Speaker
Dock Connector: Connects to the charging dock.
Interlocking Grooves: Fit the tongues of the Getac mount and clip.
Microphone
On/Off Button;
WIFI Wake-up
Mode Switch (Normal/Covert)
Wheel Switch
Charging LED
Status LED
Getac BWC BC-03 User Guide
R1.1 11
5.2. BWC Button Function
Key
Function
Remark
1
Power Button
To power on/off body worn camera
2
Power Button
To wake up Wi-Fi forcedly
3
Main Button
To start/stop recording
4
Main Button
To confirm categorize operation & mark
5.2.1. LED Please refer to 5.3.
5.2.2. Microphone For audio recording purpose.
5.2.3. On/Off Button Press power button one time to boot BWC. Press power button 10 seconds to shutdown BWC.
5.2.4. Mode Switch Normal mode and Covert mode switch.
5.2.5. Wheel Switch When stopping recording, you can use wheel switch to categorize the instant.
5.2.6. Main Button To start recording/stop recording and mark/confirm function.
5.2.7. Speaker To provide audio notifications.
Getac BWC BC-03 User Guide
R1.1 12
5.2.8. Action Description
Action
State
Audio
Press Power button 1 sec
Power on
Hello
Press Power button for 10 sec
Power off
Goodbye
Wheel select
Category
Clarify
Event-1
Event-
Event-….
Event-64
Confirm
Press REC button 1 sec
Start Recording
Recording
Press REC button 3 sec
Stop Recording
Stop Recording
Press Power button
Video Mark
Mark
Mode switch
Covert On
No sound
Mode switch
Covert Off
Covert Off (or no sound)
Battery low at 3.1V, Shutdown at 3.0V
Battery Low
Battery Low
Put on dock
Battery Charge
Battery Charge
Memory full at 0byte remaining
Memory Full
Memory Full
Memory low at 4GB remaining
Memory Low
Memory Low
Press power button 1sec when REC
Mute On
Mute On
Press power button 1sec when REC and mute on
Mute Off
Mute Off
Press power button for 3 sec when pre-rec or standby
Audio only Recording
Audio Only
Press Power button 3 sec
Audio Stop
Audio Stop
Server send live on
Live On
Live on
Server send live off
Live Off
Live off
Press Power button 3 sec
WIFI On (power 3 second press)
Wifi on
Getac BWC BC-03 User Guide
R1.1 13
5.3. BWC LED Indicator
LED
Function
Remark
1
Left
Charging LED
2
Right
Status LED
5.3.1. Charging LED
Operation LED
Operation Mode
Green Solid
Battery Fully Charge
Red Solid
Battery Low/Storage Full
Red Fast Blinking
Storage Low<4GB
Red Slow Blinking
Charging or battery fail
Yellow Solid
Battery Charging
5.3.2. Status LED
Operation LED
Operation Mode
Green Solid
Available camera(Data Offloaded/Full Charged)
Red Solid
Storage Full
Red Fast Blinking
Recording and Live Streaming
Red Slow Blinking
Recording
Yellow Fast Blinking
Offloading data
Yellow Slow Blinking
Mute in Recording
Getac BWC BC-03 User Guide
R1.1 14
5.4. Audio Prompt
Operation Mode
Beep Sound
Audio Prompt
Video Tag
Beep/Every press
Storage Full
Beep/5 sec
Storage Low<4GB
Beep/5 sec with 10 times
Buffer mode and WiFi connected
Beep * 2 within 1 second
Recording mode and WiFi connected
Beep * 2 within 1 second
Buffer mode and LTE connected
Beep * 2 within 1 second
Recording mode and LTE connected
Beep * 2 within 1 second Power On
Hello
Power Off
Goodbye
Category
Depend on event
Start Recording
Recording
Stop Recording
Stop Recording
Video Mark
Mark
Covert Off
Covert Off
Battery Low
Battery Low
Battery Charge
Battery Charge
Memory Full
Memory Full
Memory Low
Memory Low
Mute On
Mute On
Mute Off
Mute Off
Audio only recording
Audio Only Audio Stop
Audio Stop
Live On
Live On
Live Off
Live Off
Wifi On
Wifi on
Getac BWC BC-03 User Guide
R1.1 15
Chapter 6: Management
6.1. Operation Introduction
Automatic uploading is Quick, Secure and requires no action from the officer.
Getac BWC BC-03 User Guide
R1.1 16
6.2. Real time Monitoring
The BWC can wirelessly transmit real-time footage when connected to the In-Car Video DVR or In-Car PC.
This footage can then be further transmitted to the squad car computer or the police command center to be viewed by the commanding officer.
4G LTE
Video Upload
Live Streaming
Real-time Location
Geo-fencing Activation
Dispatch
Alert
Event Alerts
Tracking
BC-03
Getac BWC BC-03 User Guide
R1.1 17

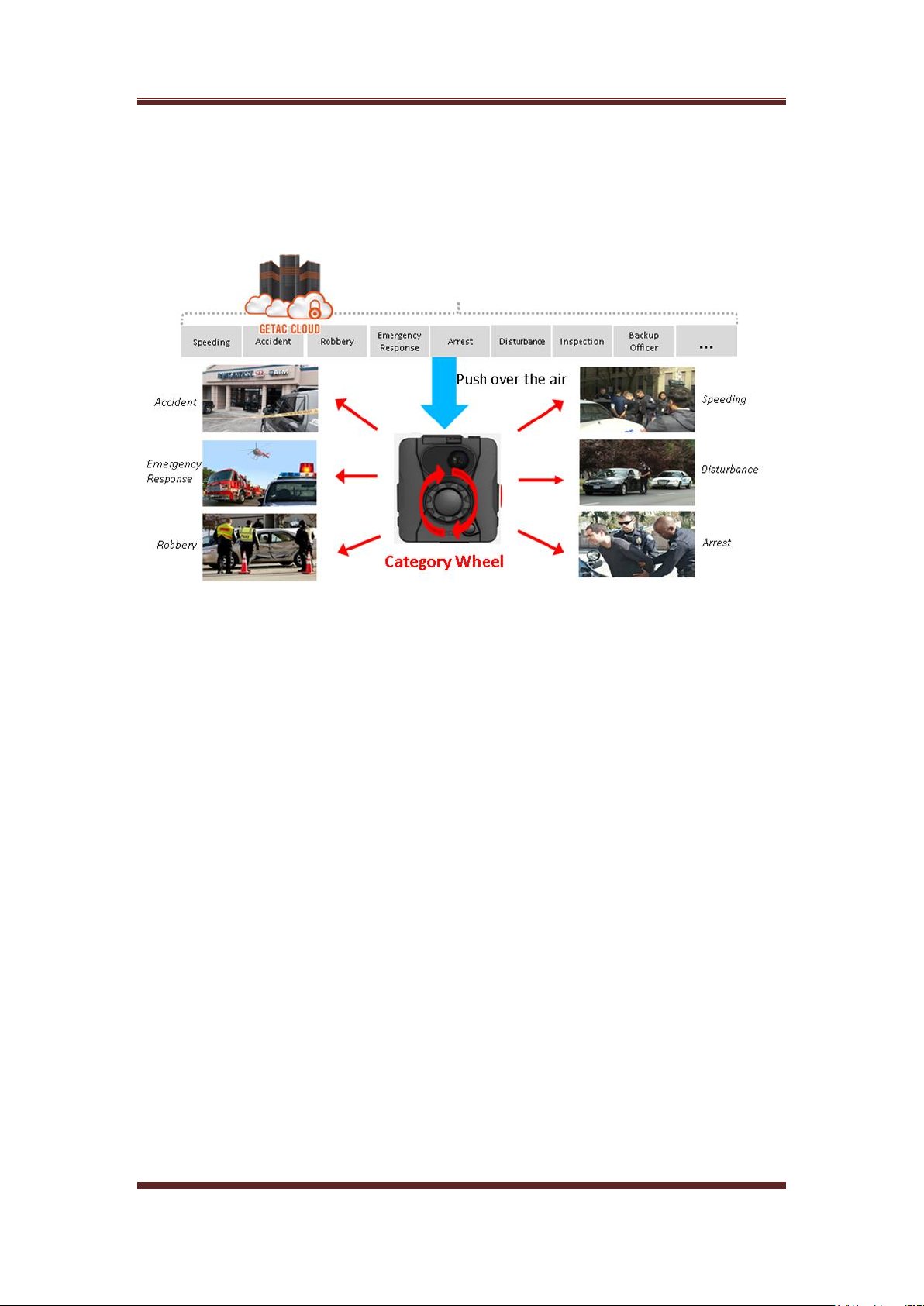

6.3. Instant tag
Turning the Dial allows officers to classify incidents into one of 64 different preset classifications for quicker and easier access.
The 64 preset BWC evidence categories can be specified for each department.
Unlimited incident types can be defined and managed in the cloud
Getac BWC BC-03 User Guide
R1.1 18
6.4. BLE Mesh Network
BC-03 can be triggered to start recording automatically by BLE signal, when trigger box receive event from police car, police officer dont need to press recording button manually.
Each of the BC-03 can talk each other by BLE to have a small group of mesh network.
Live Streaming Video Upload
Real-time Location
Geo-fencing Event Alerts
Geo-fencing
140° (H)
BC-03
4G WiFi Hotspot
VR-X20
125° (H)
CA-NF21-W
Auto-record Triggers
125°
Getac BWC BC-03 User Guide
R1.1 19
6.5. Mobile APP
With the mobile Getac BWC App, Police officers can perform video playback and categorize the videos. Videos are not downloaded, but merely played off the BWC.
6.5.1. Remote Recording
6.5.2. Video Playback
Getac BWC BC-03 User Guide
R1.1 20
6.5.3. Instant Category
Getac BWC BC-03 User Guide
R1.1 21
Chapter 7: Troubleshooting
If your issue is more detailed and has not been covered here, please check the rest of the website to see if it has been answered.
http://us.getac.com/index.html
If you need assistance with any of the steps, or you cannot resolve your issue, please contact a member of Getac Technology for further help.
FCC Warning statement
15.19 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
15.105 This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
15.21
Any changes or modifications not expressly approved by the party
responsible for compliance could void the authority to operate equipment.
This device and its antenna must not be co-located or operating in
conjunction with any other antenna or transmitter.
End-users and installers must be provided with antenna
installation instructions and transmitter operating conditions for satisfying RF exposure compliance.
Getac BWC BC-03 User Guide
R1.1 22
For product available in the USA/Canada market, only channel
1~11 can be operated. Selection of other channels is not possible
FCC RF Radiation Exposure Statement: This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment for body-worn configuration in direct contact to the phantom.
(i) l'appareil pour fonctionner dans la bande 5150-5250 MHz est ré servé à une utilisation en inté rieur afin de ré duire les risques d'interfé rences nuisibles à la co-canal systè mes mobiles par satellite; (ii) pour les appareils avec antenne (s) dé tachable, le gain d'antenne maximal autorisé pour les appareils dans les bandes 5250-5350 MHz et
IC Warning statement
RSS-Gen Issue 4 8.4 This device complies with Industry Canada’s licence-exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.
Le pré sent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisé e aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioé lectrique subi, mê me si le brouillage est susceptible d'en compromettre le fonctionnement.
RSS-247 6.4(5) (i)the device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; (ii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit; (iii) for devices with detachable antenna(s), the maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate; and (iv) the worst-case tilt angle(s) necessary to remain compliant with the e.i.r.p. elevation mask requirement set forth in Section 6.2.2(3) shall be clearly indicated.
Users should also be advised that high-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650-5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices.
Getac BWC BC-03 User Guide
R1.1 23
5470-5725 MHz doit ê tre telle que l'é quipement satisfait encore la pire limite; (iii) pour les appareils avec antenne (s) dé tachable, le gain d'antenne maximal autorisé pour les appareils dans la bande 5725-5850 MHz doit ê tre telle que l'é quipement satisfait encore la pire limites spécifié es pour le point-à -point et non point-à -point, le cas é ché ant; opé ration et (iv) l'angle d'inclinaison du pire (s) né cessaire pour rester conforme à la pire exigence de masque d'é lé vation é noncé es dans la section 6.2.2 (3) doit ê tre clairement indiqué .
Devraient é galement ê tre informé s les utilisateurs que les radars à haute puissance sont dé signé s comme utilisateurs principaux (c.-à -utilisateurs prioritaires) des bandes 5250-5350 MHz et 5650-5850 MHz et que ces radars pourraient provoquer des interfé rences et / ou endommager les appareils LE-LAN.
This device complies with Industry Canada licenceexempt RSS standard(s). Operation is subject to the following two conditions: (1) this
device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le pré sent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisé e aux deux conditions suivantes: (1) il ne doit pas produire de brouillage et (2) l’ utilisateur du dispositif doit é tre prê t à accepter tout brouillage radioé lectrique reç u, mê me si ce brouillage est susceptible de compromettre le fomctionnement du dispositif.
FCC SAR value: 0.156
IC SAR value: 0.176
Loading...
