AMPAK
AP6234
WiFi 11a/b/g/n +Bluetooth 4.0
SIP Module Spec Sheet
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
Revision History
Date Revision Content Revised By Version
2012/10/18 - Initial released Brian 1.0
2012/12/18 - Pin definition modify Joe 1.1
2013/01/23 - Pin definition modify Joe 1.2
2013/04/26 - Specification modify Joe 1.3
2013/10/12 - Block Diagram modify Brian 1.4
AMPAK Technology Inc. www.ampak.com.tw Proprietary & Confidential Information
Doc. NO:
1
AP6234 Datasheet
Contents
Contents ................................................................................................................... 2
1. Introduction ......................................................................................................... 3
2. Features ............................................................................................................... 4
3. Deliverables ........................................................................................................ 5
3.1 Deliverables .................................................................................................... 5
3.2 Regulatory certifications ................................................................................. 5
4. General Specification ......................................................................................... 6
4.1 General Specification ...................................................................................... 6
4.2 Voltages .......................................................................................................... 6
4.2.1 Absolute Maximum Ratings .................................................................... 6
4.2.2 Recommended Operating Rating ........................................................... 6
The module requires two power supplies: VBAT and VDDIO. ......................... 6
5. WiFi RF Specification ......................................................................................... 7
5.1 2.4GHz & 5GHz RF Specification ................................................................... 7
6. Bluetooth Specification ...................................................................................... 9
6.1 Bluetooth Specification ................................................................................... 9
7. Pin Assignments ............................................................................................... 10
7.1 Pin Outline .................................................................................................... 10
7.2 Pin Definition ................................................................................................ 10
8. Dimensions ....................................................................................................... 12
8.1 Physical Dimensions..................................................................................... 12

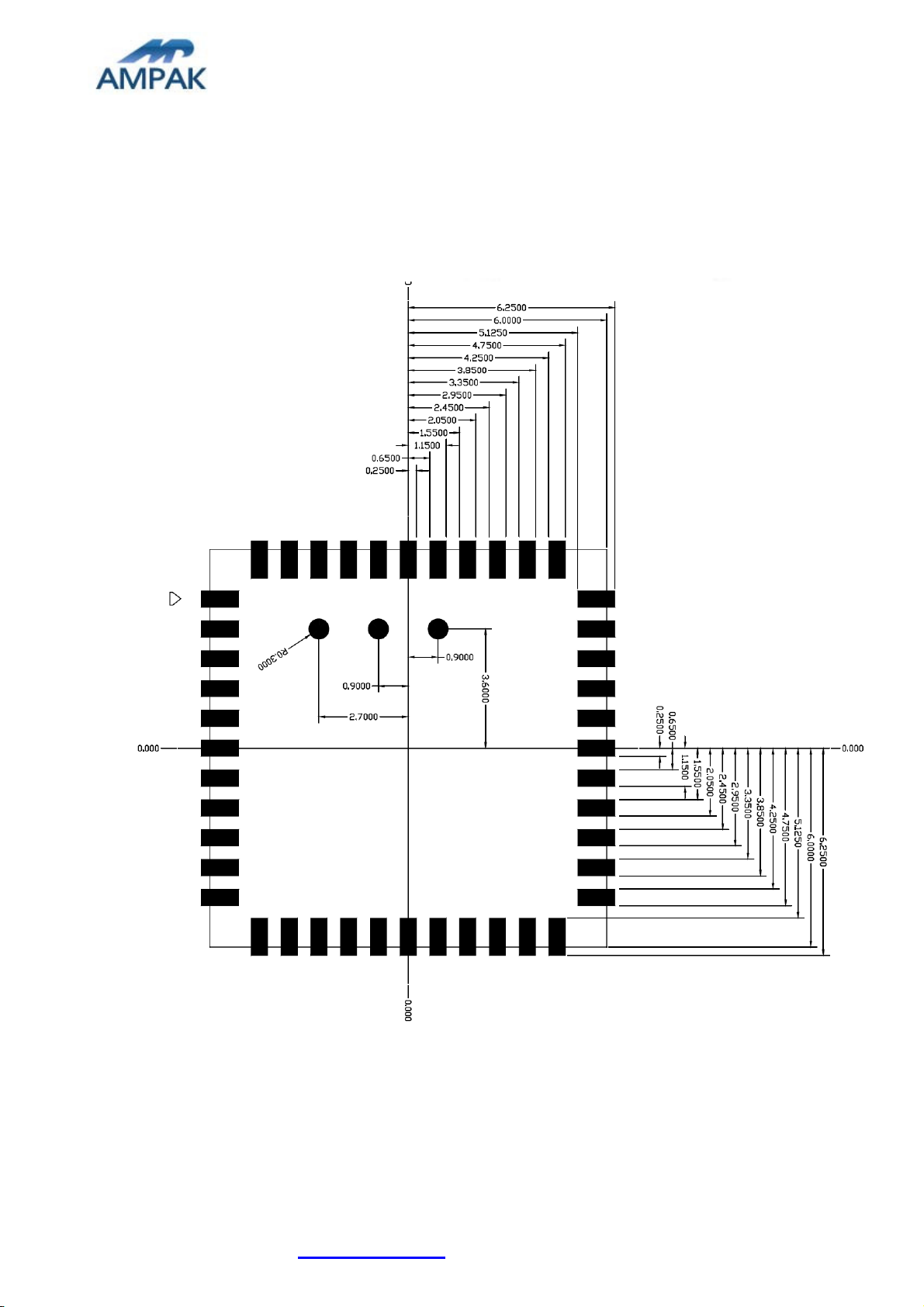

8.2 Layout Recommendation .............................................................................. 13
9. External clock reference .................................................................................. 14
9.1 SDIO Pin Description .................................................................................... 14
10.Host Interface Timing Diagram ........................................................................ 15

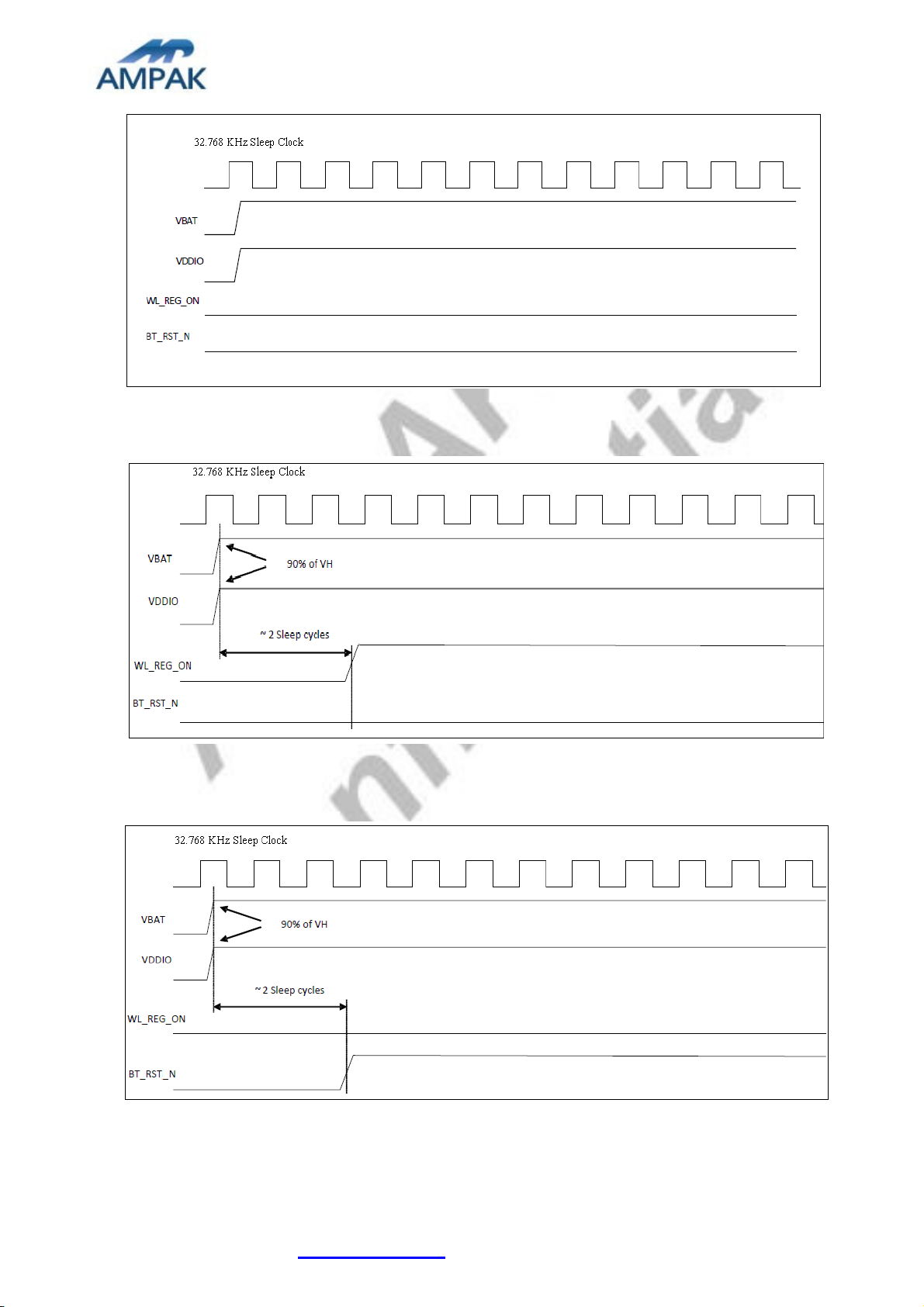

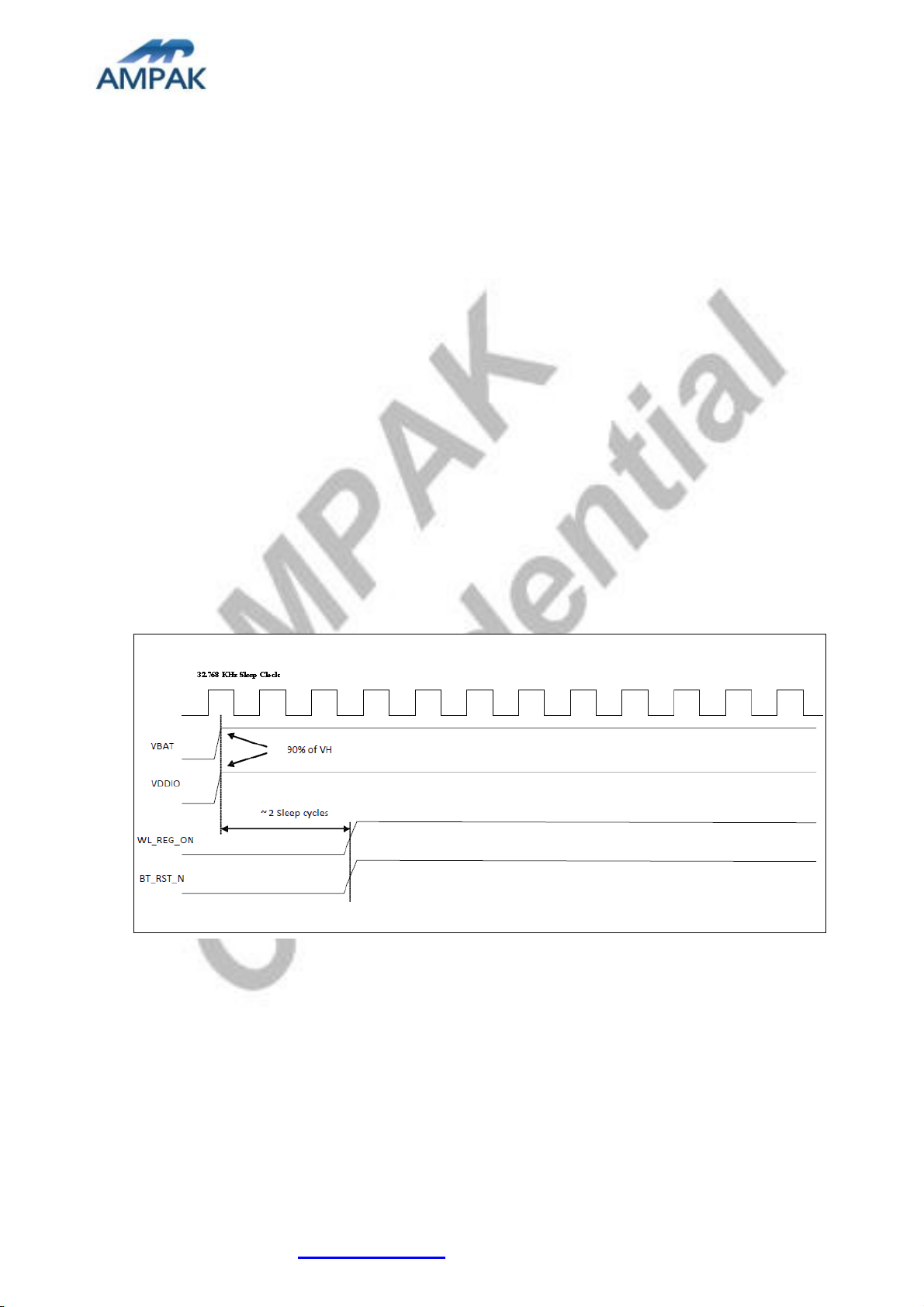

10.1 Power-up Sequence Timing Diagram ......................................................... 15
10.2 SDIO Default Mode Timing Diagram........................................................... 17
10.3 SDIO High Speed Mode Timing Diagram ................................................... 18
11.Recommended Reflow Profile ......................................................................... 19
12. Package Information ........................................................................................ 20
12.1Label ............................................................................................................ 20
Label C
Label D Carton box label . ................................................................................. 20
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Inner box label . .................................................................................... 20
12.2 Dimension ................................................................................................... 21
12.3 MSL Level / Storage Condition ................................................................... 23
Proprietary & Confidential Information
2
AP6234 Datasheet
1. Introduction
AMPAK Technology would like to announce a low-cost and low-power consumption module,
with integrated dual band (2.4GHz/5GHz) IEEE 802.11 a/b/g and single-stream IEEE
802.11n MAC/baseband/radio and Bluetooth 4.0.
The integrated module provides SDIO V2.0 Host interface for Wi-Fi, high-speed UART is
provided for the Bluetooth Host interface.
This compact module is a total solution for a combination of Wi-Fi dual mode + BT4.0
technologies. The module is specifically developed for mobiles, tablets or handheld wireless
system devices.
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
3
2. Features
IEEE 802.11x Key Features
• Dual-band 2.4GHz/5GHz 802.11a/b/g/n.
• Single-stream IEEE 802.11n support for 20MHz and 40MHz channels
provides PHY layer rates up to 150Mbps.
• WLAN host interface options: SDIO v2.0 — up to 50 MHz clock rate
• Support a single antenna shared between WLAN and Bluetooth.
• Security: WEP, WPS, WPA, WPA2, WMM, WAPI, AES,…
Bluetooth Features
• Bluetooth V4.0(BLE) Low Energy with provisions for supporting future
specifications.
• Bluetooth Class1 or Class2 transmitter operation.
AP6234 Datasheet
• BT host digital interface UART(up to 4 Mbps) with support all Bluetooth4.0
package types
• Multipoint operation with up to seven active ACL links, three active SCO and
eSCO connections.
• Full support for power savings modes (standard sniff, deep sleep modes)
• ECI - enhanced coexistence support, ability to coordinate BT SCO
transmissions around WLAN receives
A simplified block diagram of the module is depicted in the figure below.
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
4
AP6234 Datasheet
3. Deliverables
3.1 Deliverables
The following products and software will be part of the product.
Module with packaging
Evaluation Kits
Software utility for integration, performance test.
Product Datasheet.
Agency certified pre-tested report with the adapter board.
3.2 Regulatory certifications
The product delivery is a pre-tested module, without the module level certification. For
module approval, the platform’s antennas are required for the certification.
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
5
4. General Specification
4.1 General Specification
AP6234 Datasheet
Model Name AP6234
Product Description Supports Wi-Fi dual mode /Bluetoothfunctionalities
Dimension
WiFi Interface
BT Interface UART/ PCM
Operating temperature -30°C to 85°C
Storage temperature -40°C to 85°C
Humidity
L x W x H: 12.0 x 12.0 x 1.5 (typical) mm
SDIOV2.0
Operating Humidity 10% to 95% Non-Condensing
4.2 Voltages
4.2.1 Absolute Maximum Ratings
Symbol Description Min. Max. Unit
VBAT Input supply Voltage -0.5 5 V
VDDIO Digital/Bluetooth/SDIO/ I/O Voltage -0.5 3.6 V
4.2.2 Recommended Operating Rating
The module requires two power supplies: VBAT and VDDIO.
Min. Typ. Max. Unit
Operating Temperature -30 25 85
VBAT 3.0 3.6 4.8 V
VDDIO 1.6 3.3 3.4 V
deg.C
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
6
5. WiFi RF Specification
5.1 2.4GHz & 5GHz RF Specification
Conditions : VBAT=3.6V ; VDDIO=3.3V ; Temp:25°C
Feature Description
AP6234 Datasheet
WLAN Standard
Frequency Range
Number of Channels
Modulation
Output Power
Receive Sensitivity
(11n,20MHz)
@10% PER
IEEE 802.11a/b/g/n, WiFi compliant
2.400 GHz ~ 2.4835 GHz (2.4 GHz ISM Band)
5.150 GHz ~ 5.850 GHz (5.0 GHz ISM Band)
2.4GHz：Ch1 ~ Ch11
5.0GHz：Please see the table1
802.11a : OFDM /64-QAM,16-QAM, QPSK, BPSK
802.11b : DQPSK, DBPSK, CCK
802.11 g/n : OFDM /64-QAM,16-QAM, QPSK, BPSK
802.11a /54Mbps : 13 dBm ± 1.5 dB @ EVM -25dB
802.11b /11Mbps : 16 dBm ± 1.5 dB @ EVM -9dB
802.11g /54Mbps : 15 dBm ± 1.5 dB @ EVM -25dB
802.11n /MCS7 : 14 dBm ± 1.5 dB @ EVM -28dB
- MCS=0 PER @ -88 dBm, typical
- MCS=1 PER @ -84 dBm, typical
- MCS=2 PER @ -82 dBm, typical
- MCS=3 PER @ -80 dBm, typical
- MCS=4 PER @ -77 dBm, typical
- MCS=5 PER @ -74dBm, typical
- MCS=6 PER @ -72 dBm, typical
- MCS=7 PER @ -70 dBm, typical
- MCS=0 PER @ -87 dBm, typical
- MCS=1 PER @ -83 dBm, typical
- MCS=2 PER @ -81 dBm, typical
Receive Sensitivity
- MCS=3 PER @ -79 dBm, typical
(11n,40MHz)
- MCS=4 PER @ -77 dBm, typical
@10% PER
- MCS=5 PER @ -76 dBm, typical
- MCS=6 PER @ -71 dBm, typical
- MCS=7 PER @ -70 dBm, typical
- 6Mbps PER @ -89 dBm, typical
Receive Sensitivity (11g)
- 9Mbps PER @ -88 dBm, typical
@10% PER
- 12Mbps PER @ -86 dBm, typical
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
7
AP6234 Datasheet
- 18Mbps PER @ -84 dBm, typical
- 24Mbps PER @ -82 dBm, typical
- 36Mbps PER @ -78 dBm, typical
- 48Mbps PER @ -75 dBm, typical
- 54Mbps PER @ -73 dBm, typical
- 1Mbps PER @ -95 dBm, typical
Receive Sensitivity (11b)
@8% PER
Receive Sensitivity (11a)
@10% PER
Maximum Input Level
Data Rate
- 2Mbps PER @ -94 dBm, typical
- 5.5Mbps PER @ -90 dBm, typical
- 11Mbps PER @ -87 dBm, typical
- 6Mbps PER @ -88 dBm, typical
- 9Mbps PER @ -86 dBm, typical
- 12Mbps PER @ -84 dBm, typical
- 18Mbps PER @ -82 dBm, typical
- 24Mbps PER @ -80 dBm, typical
- 36Mbps PER @ -78 dBm, typical
- 48Mbps PER @ -75 dBm, typical
- 54Mbps PER @ -73 dBm, typical
802.11b : -10 dBm
802.11a/g/n : -20 dBm
802.11a : 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11b : 1, 2, 5.5, 11Mbps
802.11g : 6, 9, 12, 18, 24, 36, 48, 54Mbps
802.11n: MCS0, MCS1, MCS2, MCS3, MCS4, MCS5,
MCS6, MCS7
Antenna Reference Small antennas with 0~2 dBi peak gain
1
5GHz Channel table
Band (GHz)
5.15GHz~5.25GHz
5.25GHz~5.35GHz
5.5GHz~5.7GHz
Operating Channel
Numbers
36 5180
40 5200
44 5220
48 5240
52 5260
56 5280
60 5300
64 5320
100 5500
104 5520
108 5540
112 5560
116 5580
120 5600
124 5620
Channel center
frequencies(MHz)
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
8
AP6234 Datasheet
128 5640
132 5660
136 5680
140 5700
149 5745
5.725GHz~5.825GHz
153 5765
157 5785
161 5805
6. Bluetooth Specification
6.1 Bluetooth Specification
Conditions : VBAT=3.6V ; VDDIO=3.3V ; Temp:25°C
Feature Description
General Specification
Bluetooth Standard Bluetooth V4.0 of 1, 2 and 3 Mbps.
Host Interface UART
Antenna Reference Small antennas with 0~2 dBi peak gain
Frequency Band 2.400 GHz ~ 2483.5 GHz
Number of Channels 79 channels
Modulation FHSS, GFSK, DPSK, DQPSK
RF Specification
Min. Typical. Max.
Output Power (Class 1.5) 10 dBm
Output Power (Class 2) 2 dBm
Sensitivity @ BER=0.1%
-86 dBm
for GFSK (1Mbps)
Sensitivity @ BER=0.01%
-86 dBm
for π/4-DQPSK (2Mbps)
Sensitivity @ BER=0.01%
-80 dBm
for 8DPSK (3Mbps)
GFSK (1Mbps):-20dBm
Maximum Input Level
π/4-DQPSK (2Mbps) :-20dBm
8DPSK (3Mbps) :-20dBm
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
9
7. Pin Assignments
7.1 Pin Outline
< TOP VIEW >
AP6234 Datasheet
7.2 Pin Definition
NO Name Type Description
1
2
3
4
5
6
7
8
9
10
GND
WL_BT_ANT I/O RF I/O port
GND
NC
NC
BT_WAKE I HOST wake-up Bluetooth device
BT_HOST_WAKE O Bluetooth device to wake-up HOST
NC
VBAT P Main power voltage source input
XTAL_IN I XTAL oscillator input
－
－
－
－
－
Ground connections
Ground connections
Floating (Don’t connected to ground)
Floating (Don’t connected to ground)
Floating (Don’t connected to ground)
11
12
13
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
XTAL_OUT O XTAL oscillator output
WL_REG_ON I Internal regulators power enable/disable
WL_HOST_WAKE O WLAN to wake-up HOST
Proprietary & Confidential Information
10
AP6234 Datasheet
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
SDIO_DATA_2 I/O SDIO data line 2
SDIO_DATA_3 I/O SDIO data line 3
SDIO_DATA_CMD I/O SDIO command line
SDIO_DATA_CLK I/O SDIO clock line
SDIO_DATA_0 I/O SDIO data line 0
SDIO_DATA_1 I/O SDIO data line 1
GND
－
Ground connections
VIN_LDO_OUT P Internal Buck voltage generation pin
VDDIO P I/O Voltage supply input
VIN_LDO P Internal Buck voltage generation pin
LPO I Low power oscillator clock input (32.768KHz)
PCM_OUT O PCM Data output
PCM_CLK I/O PCM clock
PCM_IN I PCM data input
PCM_SYNC I/O PCM sync signal
NC
－
Floating (Don’t connected to ground)
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
NC
GND
NC
GND
－
－
－
－
Floating (Don’t connected to ground)
Ground connections
Floating (Don’t connected to ground)
Ground connections
BT_RST_N I Low asserting reset for Bluetooth core
NC
GND
NC
NC
NC
NC
－
－
－
－
－
－
Floating (Don’t connected to ground)
Ground connections
Floating (Don’t connected to ground)
Floating (Don’t connected to ground)
Floating (Don’t connected to ground)
Floating (Don’t connected to ground)
UART_RTS_N O Bluetooth UART interface
UART_TXD O Bluetooth UART interface
UART_RXD I Bluetooth UART interface
UART_CTS_N I Bluetooth UART interface
TP1
－
Floating (Don’t connected to ground)
46
47
TP2
TP3
－
－
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Floating (Don’t connected to ground)
Floating (Don’t connected to ground)
Proprietary & Confidential Information
11
AP6234 Datasheet
8. Dimensions
8.1 Physical Dimensions
(Unit: mm)
< TOP VIEW > < Side View >
< TOP VIEW >
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
12
8.2 Layout Recommendation
(Unit: mm)
< TOP VIEW >
AP6234 Datasheet
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
13
AP6234 Datasheet
9. External clock reference
External LPO signal characteristics
Parameter Specification Units
Nominal input frequency 32.768 kHz
30
Frequency accuracy
Duty cycle 30 - 70 %
Input signal amplitude 400 to 1800
Signal type Square-wave -
mV, p-p
ppm
Input impedance
>100k
<5
Clock jitter (integrated over 300Hz – 15KHz) <1 Hz
Output high voltage 0.7Vio - Vio V
pF
9.1 SDIO Pin Description
The module supports SDIO version 2.0 for 4-bit modes (100 Mbps), and high speed 4-bit (50
MHz clocks – 200 Mbps). It has the ability to stop the SDIO clock and map the interrupt
signal into a GPIO pin. This ‘out-of-band’ interrupt signal notifies the host when the WLAN
device wants to turn on the SDIO interface. The ability to force the control of the gated
clocks from within the WLAN chip is also provided.
Function 0 Standard SDIO function (Max BlockSize / ByteCount = 32B)
Function 1 Backplane Function to access the internal System On Chip (SOC)
address space (Max BlockSize / ByteCount = 64B)
Function 2 WLAN Function for efficient WLAN packet transfer through DMA (Max
BlockSize/ByteCount=512B)
SDIO Pin Description
SD 4-Bit Mode
DATA0 Data Line 0
DATA1 Data Line 1 or Interrupt
DATA2 Data Line 2 or Read Wait
DATA3 Data Line 3
CLK Clock
CMD Command Line
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
14
AP6234 Datasheet
10. Host Interface Timing Diagram
10.1 Power-up Sequence Timing Diagram
The module has signals that allow the host to control power consumption by enabling or
disabling the Bluetooth, WLAN and internal regulator blocks. These signals are described
below.
Additionally, diagrams are provided to indicate proper sequencing of the signals for carious
operating states. The timing value indicated are minimum required values: longer delays are
also acceptable.
※ WL_REG_ON: Used by the PMU to power up the WLAN section. When this pin is
high, the regulators are enabled and the WLAN section is out of reset. When this
pin is low the WLAN section is in reset.
※ BT_RST_N: Low asserting reset for Bluetooth only. This pin has no effect on
WLAN and does not control any PMU functions. This pin must be driven high or low
(not left floating).
WLAN=ON, Bluetooth=ON
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
15
AP6234 Datasheet
WLAN=OFF, Bluetooth=OFF
WLAN=ON, Bluetooth=OFF
WLAN=OFF, Bluetooth=ON
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
16
10.2 SDIO Default Mode Timing Diagram
AP6234 Datasheet
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
17
AP6234 Datasheet
10.3 SDIO High Speed Mode Timing Diagram
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
18
AP6234 Datasheet
11. Recommended Reflow Profile
Referred to IPC/JEDEC standard.
Peak Temperature : <250°C
Number of Times : 2 times
250℃
2.5°C/sec
2.5 /sec℃
40~70 sec
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
19
12. Package Information
12.1Label
Label A Anti-static and humidity notice
Label B MSL caution / Storage Condition
AP6234 Datasheet
Label C Inner box label .
Label D Carton box label .
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
20
12.2 Dimension
AP6234 Datasheet
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
21
AP6234 Datasheet
B
Humidity indicator
Desiccant
C
C
D
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
22
12.3 MSL Level / Storage Condition
AP6234 Datasheet
※NOTE : Accumulated baking time should not exceed 96hrs
AMPAK Technology Inc. www.ampak.com.tw
Doc. NO:
Proprietary & Confidential Information
23
Loading...
