Getac Technology 043 User Manual

Download

V100

USER’S MANUAL

Rugged Mobile Computing Solutions

July 2010

TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies.

NOTE The information in this manual is subject to change without notice.

For the latest version of the manual, please visit the Ge tac website at

www.getac.com

ENERGY STAR

is a government program that offers businesses and consumers energy-efficient solutions, making it easy to save money while protecting the environment for future generations.

Please reference ENERGY STAR

related information from

www.energystar.gov.

As an ENERGY STAR determined that this product meets the ENERGY STAR

Partner, Getac Technology Corporation has

guidelines for

energy efficiency. An ENERGY STAR

qualified computer uses 70 % less electricity than

computers without enabled power management features.

Earning the ENERGY STAR®

 When every home office is powered by equipment that has earned

the ENERGY STAR greenhouse gases out of the air.

 If left inactive, ENERGY STAR

mode and may use 15 watts or less. New chip technologies make power management features more reliable, dependable, and user-friendly than even just a few years ago.

, the change will keep over 289 billion pounds of

qualified computers enter a low-power

 Spending a large portion of time in low-power mode not only saves

energy, but helps equipment run cooler and last longer.

 Businesses that use ENERGY STAR

enabled office equipment may

realize additional savings on air conditioning and maintenance.

 Over its lifetime, ENERGY STAR

qualified equipment in a single home office (e.g., computer, monitor, printer, and fax) can save enough electricity to light an entire home for more than 4 years.

 Power management (“sleep settings”) on computers and monitors

can result in much savings annually.

Remember, saving energy prevents pollution

Because most computer equipment is left on 24 hours a day, power management features are important for saving energy and are an easy way to reduce air pollution. By using less energy, these products help lower consumers’ utility bills, and prevent greenhouse gas emissions.

Table of Contents

Chapter 1 Getting Started................................................................. 1-1

Getting the Computer Running............................................1-2

Unpacking............................................................................1-2

Connecting to AC Power ..................................................1-3

Opening and Closing the Cover......................................1-4

Operating in Tablet Mode.................................................1-6

Turning On and Off the Computer...................................1-8

Attaching the Hand Strap .................................................1-9

Taking a Look at the Computer..........................................1-11

Front Components............................................................1-11

Rear Components.............................................................1-13

Right-Side Components...................................................1-14

Left-Side Components......................................................1-14

Bottom Components........................................................1-16

Top-open Components ...................................................1-17

Chapter 2 Operating Your Computer............................................. 2-1

Starting and Stopping the Computer ..................................2-2

Starting the Computer .......................................................2-2

Stopping the Computer.....................................................2-2

Using the Internal Keyboard ..................................................2-4

Typewriter Keys....................................................................2-4

Cursor-Control Keys ............................................................2-4

Numeric Keypad.................................................................2-5

Function Keys.......................................................................2-6

Fn Key....................................................................................2-6

Hot Keys ................................................................................2-6

Using the Software Keyboard................................................2-8

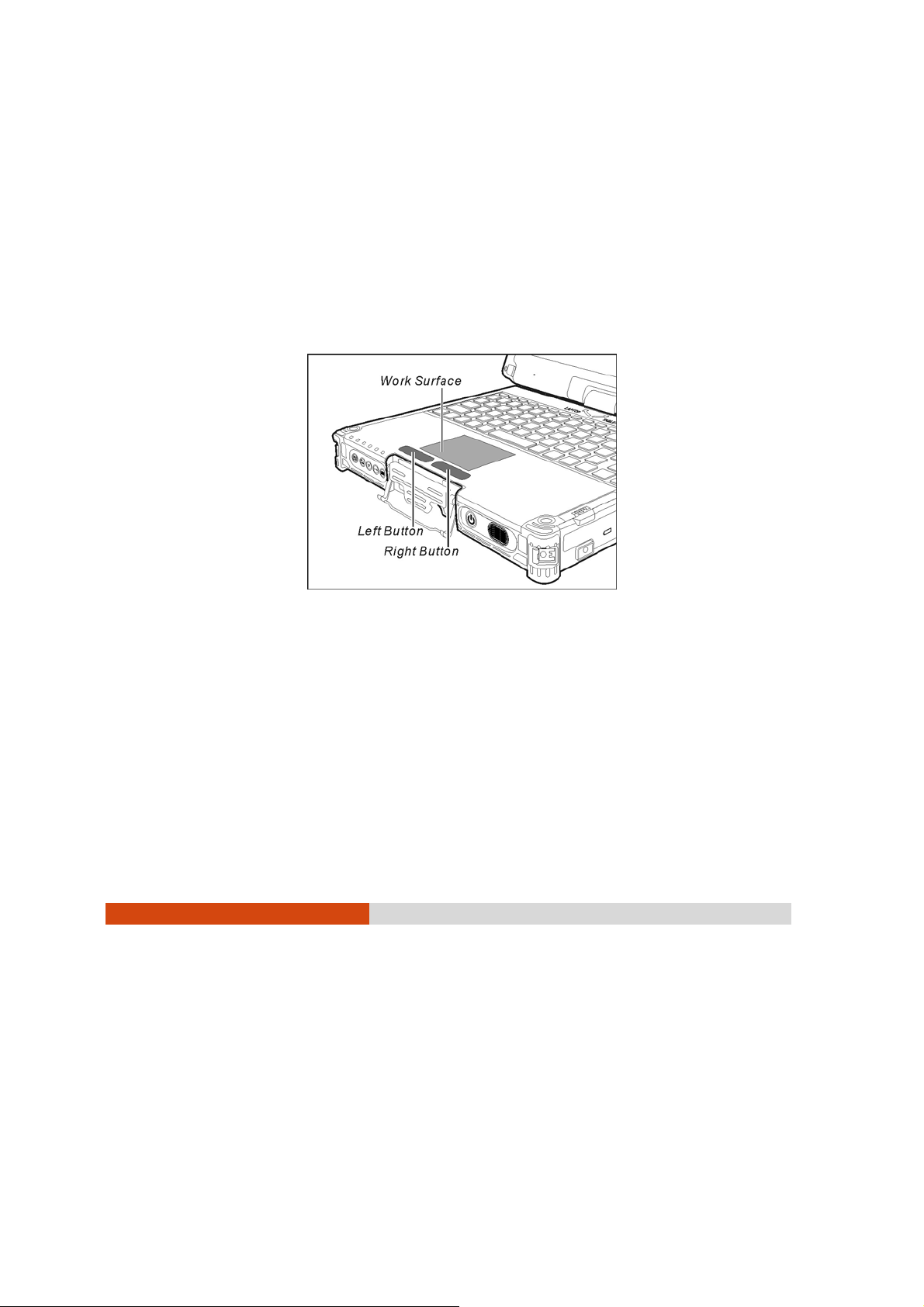

Using the Touchpad................................................................2-9

Configuring the Touchpad..............................................2-11

Navigating on the Screen....................................................2-12

Using the Touchscreen .....................................................2-12

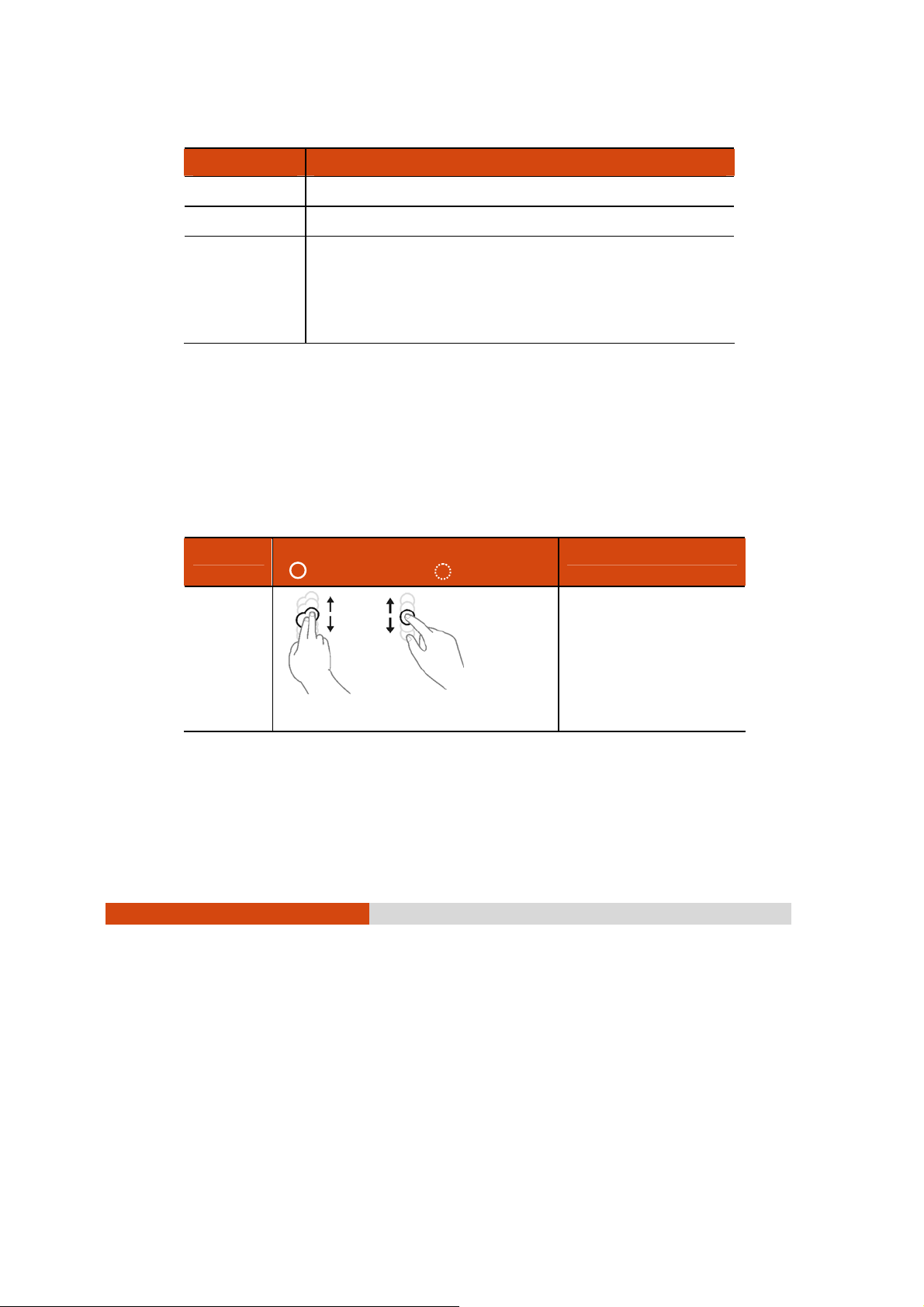

Using Multi-touch Gestures (Windows 7 Only)..............2-13

Using the Dual Mode Display (Optional).......................2-16

Using the Hard Disk Drive......................................................2-19

Using OSD Control Panel ......................................................2-20

Using the Fingerprint Scanner (Optional) ..........................2-21

Using the Video Features......................................................2-23

Configuring the Display Modes ......................................2-24

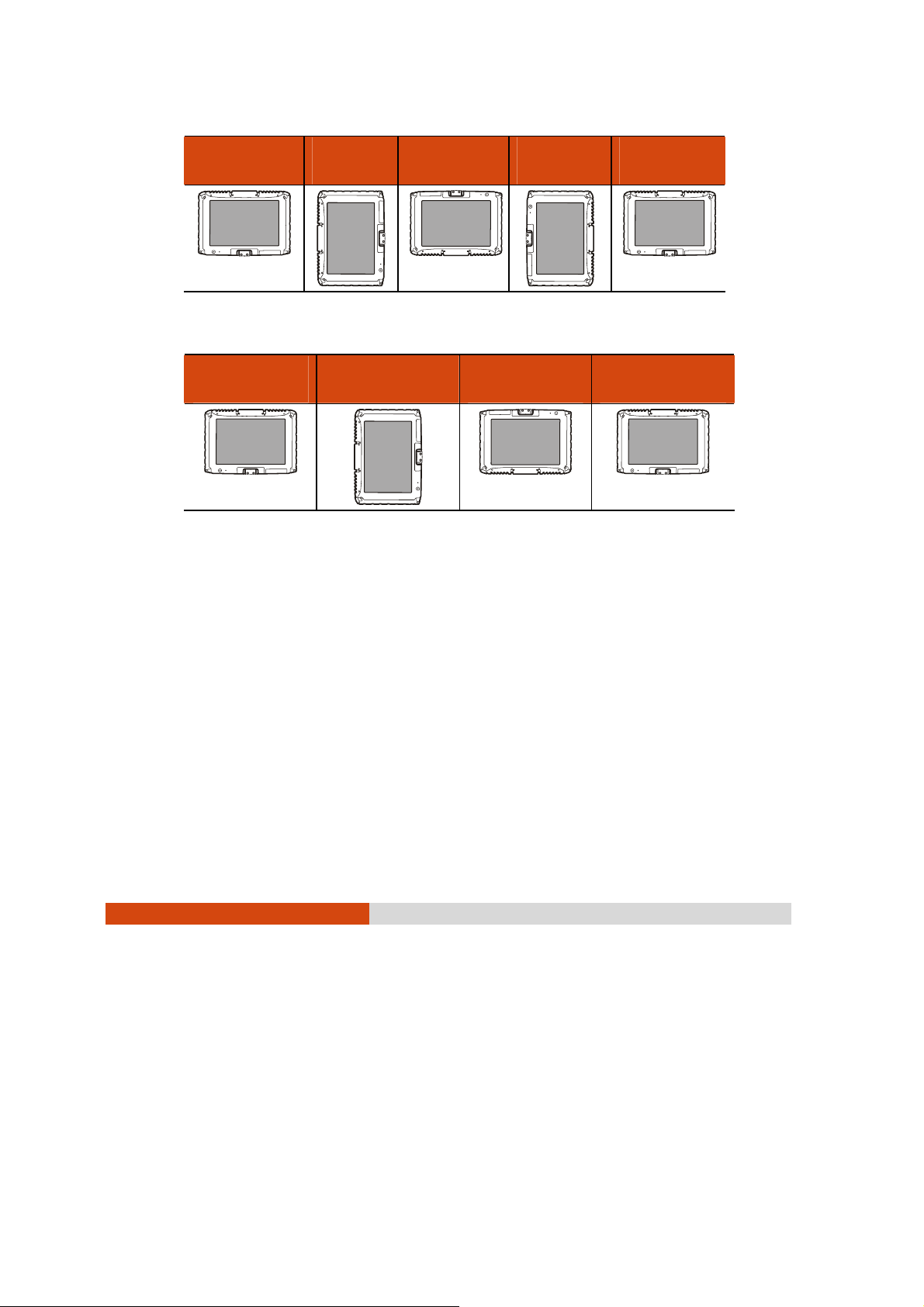

Using Landscape or Portrait View...................................2-24

Using the Audio Features......................................................2-26

Connecting Audio Devices.............................................2-27

Using G-Camera Lite.............................................................2-28

Using the Communication Features....................................2-29

Using the Modem..............................................................2-29

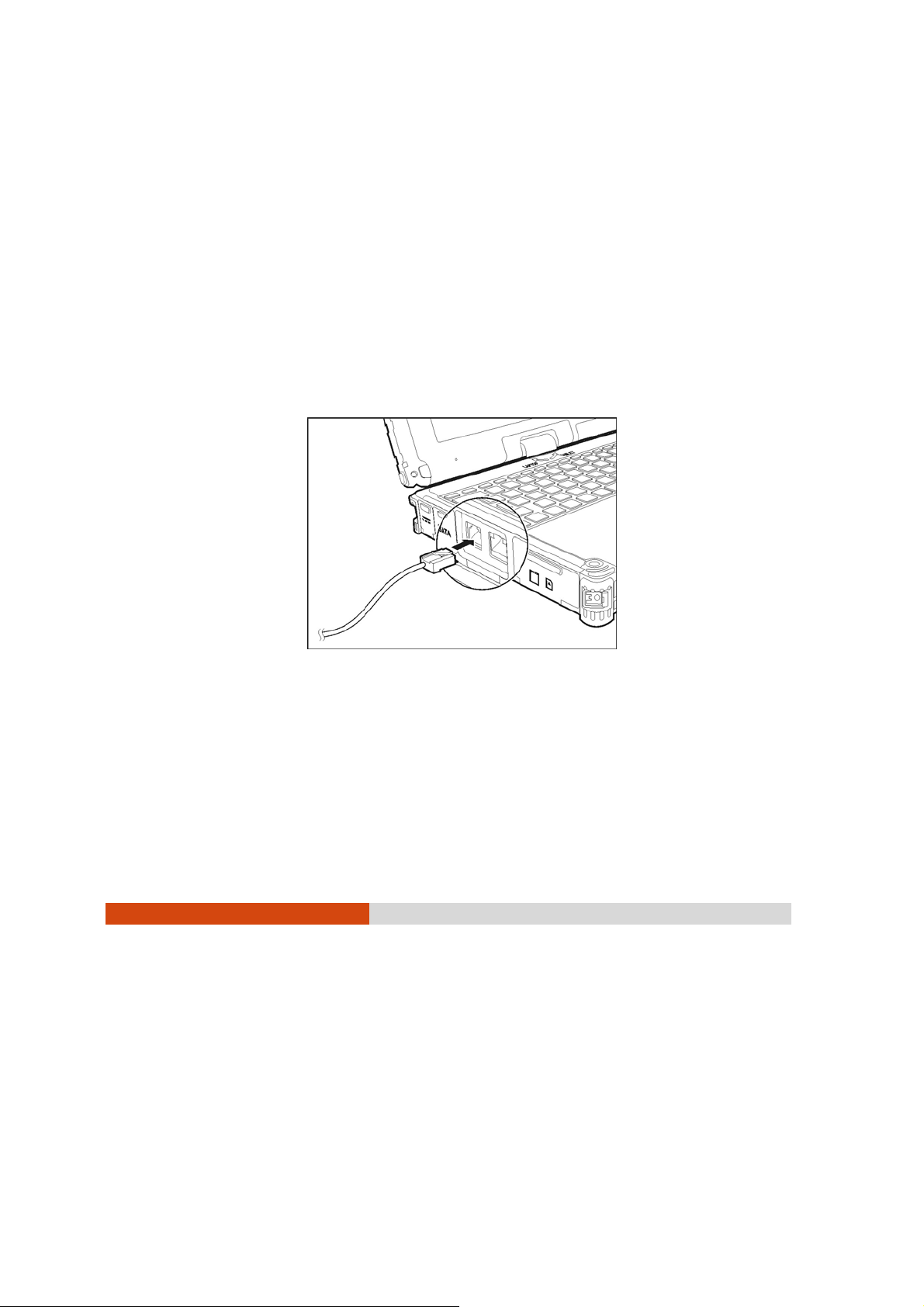

Using the LAN.....................................................................2-30

Using the Wireless LAN......................................................2-31

Using the Bluetooth Feature (Optional).........................2-33

Using the GPS.........................................................................2-37

Chapter 3 Managing Power ............................................................3-1

AC Adapter..............................................................................3-2

Battery Pack.............................................................................3-3

Charging the Battery Pack................................................3-3

Checking the Battery Level...............................................3-4

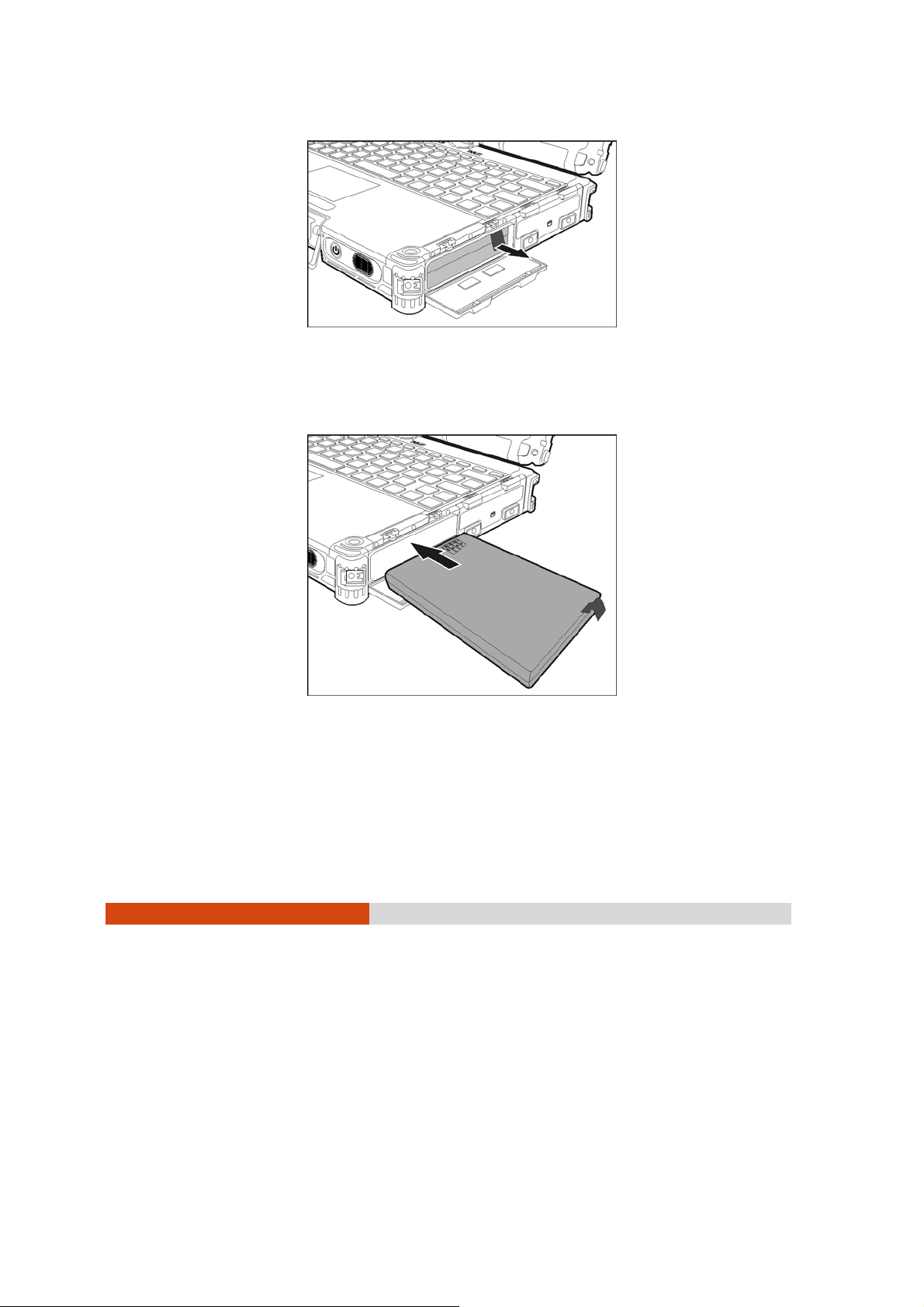

Replacing the Battery Pack ..............................................3-5

Battery Low Signals and Actions.......................................3-7

Power Management ..............................................................3-8

Hibernation...........................................................................3-9

Power-Saving Tips ..................................................................3-10

Chapter 4 Expanding Your Computer............................................ 4-1

Connecting an External Monitor (Optional).......................4-2

Connecting a Serial Device ..................................................4-4

Connecting a USB Device .....................................................4-5

Connecting an eSATA Device ..............................................4-6

Using Smart Cards (Optional)................................................4-7

Inserting and Removing a Smart Card............................4-7

Using PC Cards.........................................................................4-9

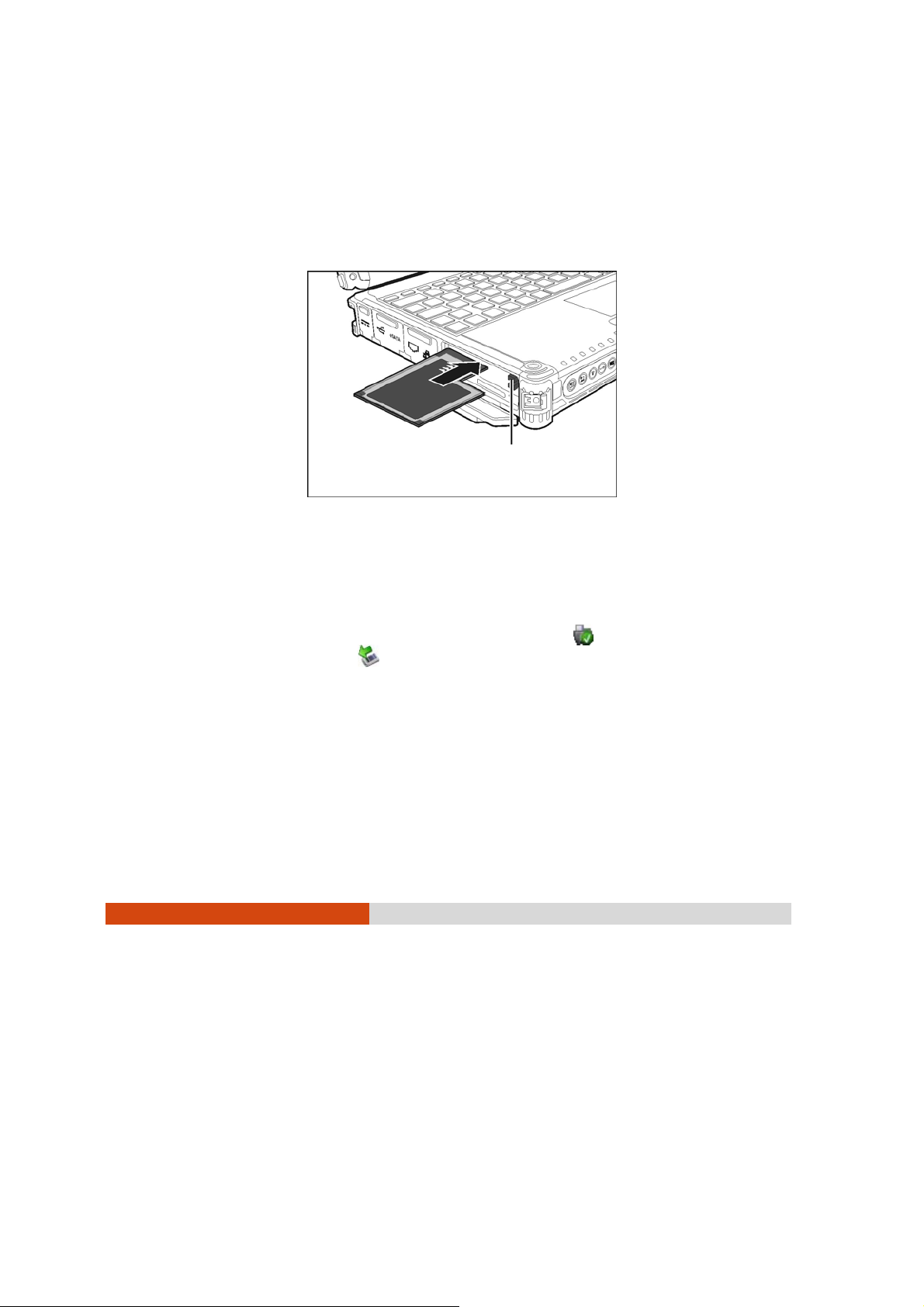

Inserting and Removing a PC Card.................................4-9

Using ExpressCards (Optional).............................................4-11

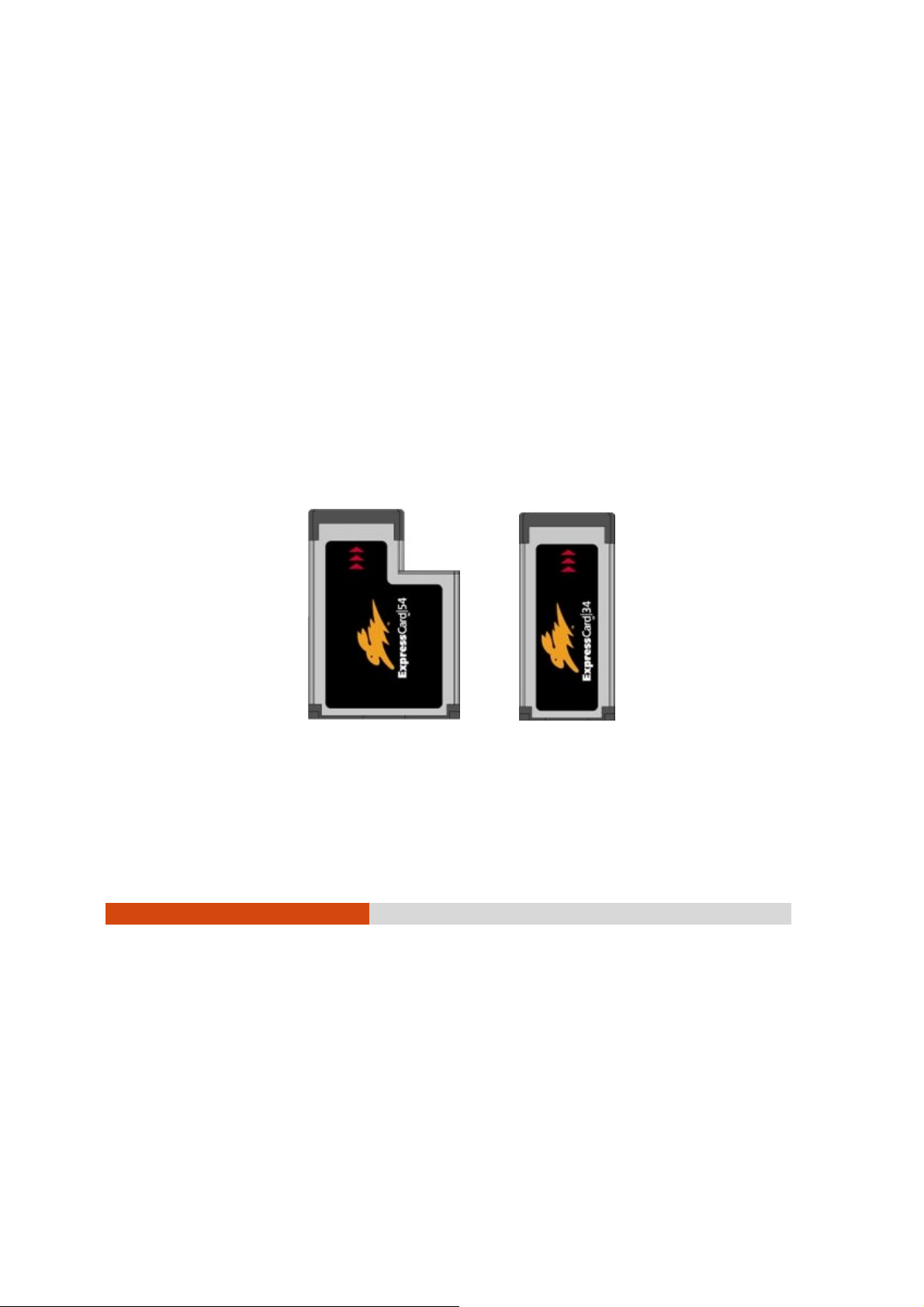

ExpressCard Type..............................................................4-11

Inserting and Removing an ExpressCard ......................4-12

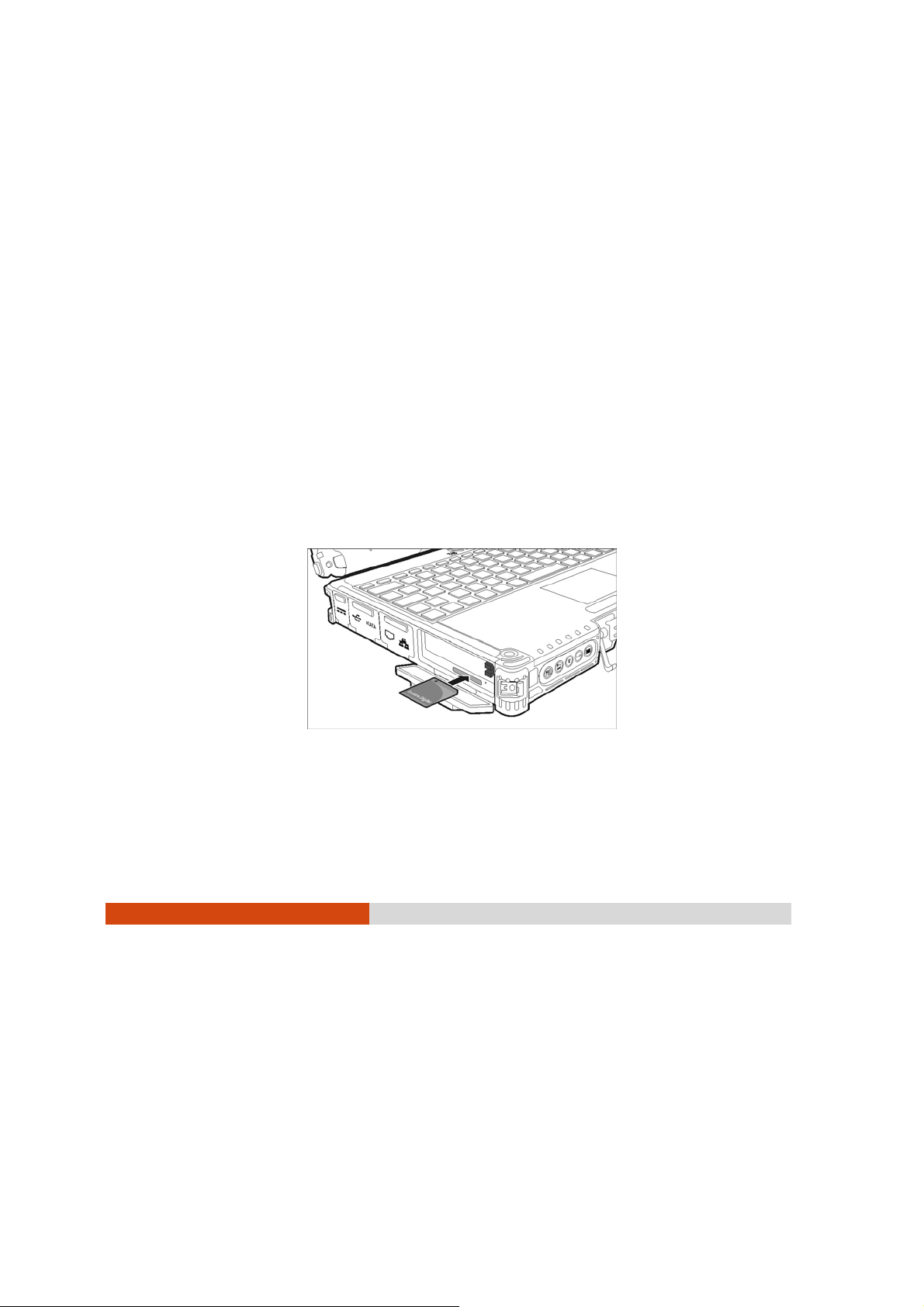

Using the Card Reader.........................................................4-13

Using the Port Replicator (Optional)...................................4-15

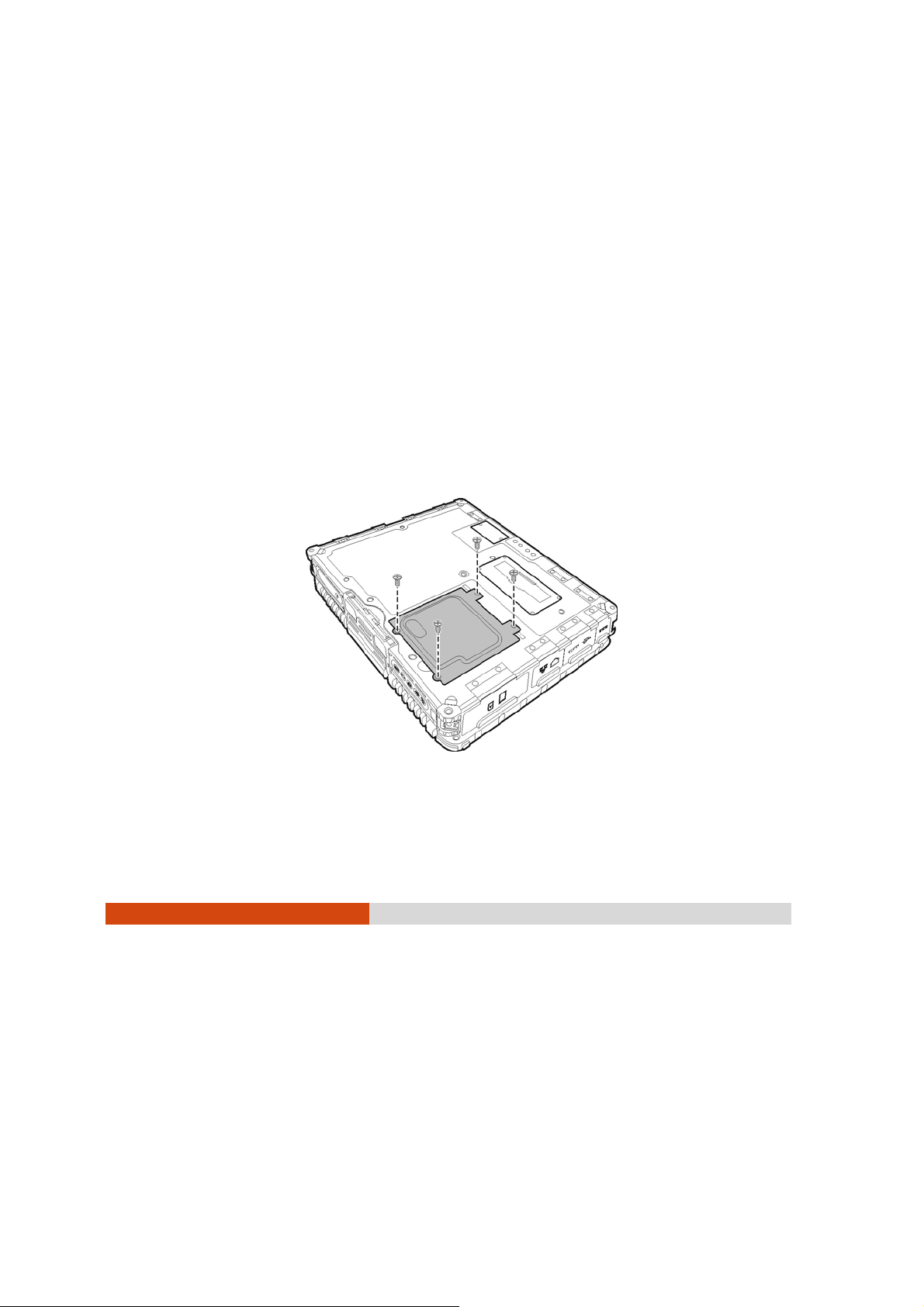

System Memory Upgrade.....................................................4-17

Chapter 5 Using BIOS Setup and System Recovery....................... 5-1

BIOS Setup ................................................................................5-2

When to Use.........................................................................5-2

How to Use ...........................................................................5-2

Main Menu...........................................................................5-5

Advanced Menu.................................................................5-6

Security Menu......................................................................5-7

Boot Menu............................................................................5-9

Exit Menu ............................................................................5-10

System Recovery ...................................................................5-12

Chapter 6 Installing Software Drivers and Utilities ......................6-1

How to Use the Driver Disc.....................................................6-2

Installation for Windows XP.....................................................6-3

iii

Drivers on the First Page.....................................................6-3

Drivers on the Second Page .............................................6-4

Drivers on the Third Page ...................................................6-5

Installation for Windows Vista ................................................6-8

Drivers on the First Page.....................................................6-8

Drivers on the Second Page .............................................6-9

Drivers on the Third Page.................................................6-10

Installation for Windows 7.....................................................6-13

Drivers on the First Page...................................................6-13

Drivers on the Second Page ...........................................6-14

Drivers on the Third Page.................................................6-15

Chapter 7 Using Getac Software.....................................................7-1

Using G-Manager ....................................................................7-2

Using Button Manager............................................................7-4

Using Getac Camera (Optional)..........................................7-6

Taking Pictures.....................................................................7-8

Viewing Images.................................................................7-10

Viewing Image Properties................................................7-13

Adding Notes to an Image .............................................7-14

Camera Settings................................................................7-15

Using Getac Barcode Reader (Optionl)............................7-21

Reading Barcodes............................................................7-21

Toolbar................................................................................7-24

Floating Button and Shortcut Menu...............................7-25

Barcode Reader Settings.................................................7-26

Chapter 8 Caring for the Computer................................................ 8-1

Protecting the Computer.......................................................8-2

Using an Anti-Virus Strategy...............................................8-2

Using Security Center (for Windows Vista) or Action Center

(for Windows 7)....................................................................8-2

Using the Cable Lock .........................................................8-3

Taking Care of the Computer ...............................................8-4

Location Guidelines............................................................8-4

General Guidelines.............................................................8-4

Cleaning Guidelines ...........................................................8-5

Battery Pack Guidelines.....................................................8-5

Touchscreen Guidelines.....................................................8-6

When Traveling ........................................................................8-8

Chapter 9 Troubleshooting............................................................. 9-1

Preliminary Checklist ...............................................................9-2

Solving Common Problems....................................................9-3

Battery Problems .................................................................9-3

Bluetooth Problems.............................................................9-3

Display Problems .................................................................9-4

Hardware Device Problems ..............................................9-5

Hard Disk Drive Problems ...................................................9-5

Keyboard, Mouse, and Touchpad Problems .................9-6

LAN Problems.......................................................................9-6

Modem Problems................................................................9-7

PC Card Problems...............................................................9-7

Power Management Problems.........................................9-7

Software Problems ..............................................................9-8

Sound Problems...................................................................9-8

Startup Problems .................................................................9-9

WLAN Problems .................................................................9-10

Other Problems..................................................................9-11

Resetting the Computer.......................................................9-12

Appendix A Specifications................................................................. A-1

Appendix B Regulatory Information.................................................B-1

On the Use of the System.......................................................B-2

Class B Regulations .............................................................B-2

UL1604 Installation Instructions..........................................B-3

Safety Notices......................................................................B-4

On the Use of the RF Device..................................................B-7

USA and Canada Safety Requirements and Notices...B-7

European Union CE Marking and Compliance NoticesB-9

Chapter 1

Getting Started

Congratulations on purchasing this rugged computer. This chapter first tells you step by step how to get the computer up and

running. Then, you will find a section briefly introducing the external components of the computer.

Getting Started 1-1

Getting the Computer Running

This section guides you through the procedures for getting the computer ready for operation.

Unpacking

After unpacking the shipping carton, you should find these standard items:

 Notebook computer  Accessories:

 AC adapter  AC power cord  Grid-type hand strap  Driver disc  Stylus (option)  Digitizer pen and size “AAAA” battery (option)

Inspect all the items. If any item is damaged or missing, notify your dealer immediately.

Keep the shipping carton and packing materials in case you need to ship or store the computer in the future.

1-2

Getting Started

Connecting to AC Power

The computer operates either on the external AC power or internal battery power. It is suggested that you use AC power when you start up the computer for the very first time.

CAUTION: Use only the AC adapter included with your computer. Using other AC adapters may damage the computer.

1. Make sure that the computer is turned off.

2. Plug the DC cord of the AC adapter to the power connector of the computer ().

3. Plug the female end o f the A C pow er cor d to the A C adap ter and the male end to an electrical outlet ().

4. When the AC adapter is connected, power is being supplied from the electrical outlet to the AC adapter and onto your com puter. Now, you are ready to turn on the computer.

Getting Started 1-3

CAUTION:

 When you disconnect the AC adapter, disconnect from the electrical outlet

first and then from the computer. A reverse procedure may damage the AC adapter or the computer.

 When unplugging the connector, always hold the plug head. Never pull on the

cord.

NOTE: When the AC adapter is connected, it also charges the battery pack. For information on using battery power, see Chapter 3.

Opening and Closing the Cover

Open the top cover by pulling up on latch A and releasing latch B () and lifting up the cover (). You can tilt the cover forward or backward for optimal viewing clarity.

Latch B

Latch A

Close the top c over by closin g the dis play ( ). Then p ositi on la tch B on the display side and bring latch A down () to fix the display in place.

1-4

Getting Started

Latch B

Latch A

Getting Started 1-5

Operating in Tablet Mode

In addition to being used as a regular notebook computer (Laptop mode), your computer can also be operated in Tablet mode. In Tablet mode, you operate the computer with a stylus or digitizer pen, or a fingertip, instead of a keyboard or mouse.

1. Open the top cover so that it is almost perpendicular with the keyboard of the computer.

2. Turn the display counter-clockwise by 165

CAUTION: Do not rotate the display more than 165

, or attempt to rotate the

display clockwise.

1. Close the computer with the display facing up (). Then pull up on the latch A.

1-6

Getting Started

2. Position the latch B on the display side, then bring latch A down () to fix the display in place.

Latch B

Latch A

In Tablet mode, the computer can be operated while holding it as shown.

To return to Laptop mode, perform the steps for changing the computer into Tablet mode in reverse order.

Getting Started 1-7

Turning On and Off the Computer

Turning On

1. Make sure that the computer is connected to AC power.

2. Press the power button (

3. Each time the computer is turned on, it performs a Power-On Self Test (POST), and the operating system such as Windows should start.

Turning Off

To turn off the computer power, use the “Shut Down” command of your operating system.

NOTE: There are other ways you can stop the computer so that you will be back to where you left off when you next turn on the computer. (See “Stopping the Computer” in Chapter 2 for information.)

CAUTION: If you have to turn the computer on again immediately after turning it off, wait for at least five seconds. Turning the computer off and on rapidly can damage it.

1-8

Getting Started

Attaching the Hand Strap

The hand strap can be attached to any two sides of the four (option) corners of your computer.

Standard setup: two buckles on the left/right front side of your computer.

To release, pr ess on th e ri gh t spr in g la tch f ir st to deta ch th e ri ght si de . T hen release the left side.

Getting Started 1-9

Optional setup: buckles on four corners of your computer.

CAUTION:

 The strap has been designed to carry only the weight of the computer.

Therefore, be sure that the strap does not carry a weight that exceeds the weight of the computer. The strap may accidentally come loose from the computer.

 Do not use a strap that is damaged or about to tear.

1-10

Getting Started

Taking a Look at the Computer

NOTE: Depending on the model you purchased, the appearance of your computer may not be exactly the same as those shown in this manual.

Front Components

Ref Component Description

 



Hand Strap Holder

OSD Control Button

Sunlightreadable

Button

The hand strap can be attached to the two holders for convenient handling of your computer.

Toggles the OSD (On Screen Display) control panel ON and OFF.

Can be re-defined using the Button Manager utility. (See “Using Button Manager” in Chapter 7 for information.)

Toggles the sunlight-readable function ON and OFF. IMPORTANT: To prevent burns to your fingers if using the

computer (especially in Tablet Mode) with sunlight-readable mode turned on, do wear gloves when touching the top portion of the LCD display as it may be hot to the touch.

Can be re-defined using the Button Manager utility. (See “Using Button Manager” in Chapter 7 for information.)

Getting Started 1-11

Ref Component Description

RF Button



Reset Button



Software



Keyboard Button

Top Cover



Latch Power Button



Toggles the wireless LAN /Bluetooth/3G radio frequency ON and OFF.

Can be re-defined using the Button Manager utility. (See “Using Button Manager” in Chapter 7 for information.)

Serves as the Ctrl+Alt+Del keyboard keys.

Can be re-defined using the Button Manager utility. (See “Using Button Manager” in Chapter 7 for information.)

Shows or hides the software keyboard on your LCD display.

Can be re-defined using the Button Manager utility. (See “Using Button Manager” in Chapter 7 for information.)

Locks the to p cover.

Turns the computer power ON and OFF.



1-12

Speaker

Getting Started

Sends out sound and voice from your computer.

Rear Components

Ref Component Description

Hand Strap Holder



Audio Output



Connector Microphone



Connector Kensington Lock



VGA Connector



Serial Connector



The hand s trap can be attach ed to th e two ho lders for convenient handling of your computer.

Connects a set of headphones, external speakers with amplifier, or an audio recording device.

Connects an external microphone.

Locks the computer to a stationary object for security.

Connects an external display monitor. NOTE: Depending on your model, this port could be

a serial connector. Connects a serial mouse or serial communication

device.

Getting Started 1-13

Right-Side Components

Ref Component Description

Battery Pack



Compartment

Hard Disk Drive



Compartment

Inside is the battery pack that supplies power to your computer when external power is not connected.

Inside is the hard disk drive.

Left-Side Components

Ref Component Description

Power Connector



Connects the AC adapter.

1-14

Getting Started

USB Port



Connects a USB device, such as a flash disk, printer, digital camera, joystick, and more.

Ref Component Description

eSATA/USB Combo



Port



RJ-11 Connector RJ-45 Connector



ExpressCard Slot



(upper)

PCMCIA Slot

(lower) or

PCMCIA Slot (upper)

Smart Card Reader (lower)



Card Reader

Connects an eSATA device such as an external hard drive or optical drive.

Can also function as a USB port. Connects the telephone line.

Connects the LAN cable. Accepts an ExpressCard for additional functions

(option). Accepts a PC card for additional functions.

Accepts a PC card for additional functions.

Accepts a smart card for additional security feature (option).

Accepts a SD (Secure Digital) card for removable storage media.

Getting Started 1-15

Bottom Components

Ref Component Description

 

1-16

Expansion Bus Connector

Memory Slots

Getting Started

Inside is the expansion bus connector for using the Port Replicator option.

Inside are the memory slots for expanding the memory size of your computer.

Top-open Components

Ref Component Description

Webcam Lens



(option)

GPS Antenna



(option) WLAN Antenna



WWAN 3G Antenna



(option)

LCD Screen



Allows you to use your computer’s camera function.

Inside is the antenna for receiving GPS signals.

Inside is the antenna for wireless LAN (local area network) transmission.

Inside is the antenna for optional wireless WAN (wide area network) 3G transmission.

Displays the output of the computer.

Getting Started 1-17

Ref Component Description

Light Sensor



Fingerprint



Scanner (option) Keyboard



Touchpad



Indicators



AC Power

Battery

Charge

Hard Disk

Drive In-Use

Detects the surrounding lighting condition for automatic adjustment of the LCD brightness and optional keyboard backlight.

Uses fingerprint verification to protect your computer against unauthorized access.

Serves as the data input device. Serves as the pointing device. Show the current status of the computer’s devices.

Lights green when the computer is turned on and using AC power.

Lights green when the battery is fully charged. Lights yellow when the battery is being charged. Blinks yel low wh en th e ba tter y’ s ca pa ci ty i s b elo w

10%. Blinks green and yellow by turns when battery’s

temperature is too high (over 60 Lights green when the computer is accessing the

hard disk drive.

C).

1-18

Num Lock Caps Lock

Stylus/Digitizer Pen

Bluetooth Antenna

Getting Started

Lights red when the optional hard disk drive heater is on for low temperature operation.

Lights when the wireless LAN/Bluetooth/3G radio frequency is on.

Lights when Num Lock is on. Lights when Caps Lock is on. Serves as the input device by tapping on the

screen to make selections and enter information. Inside is th e antenna for optional B luetooth feature

Ref Component Description

(option) transmission.

Getting Started 1-19

Chapter 2

Operating Your Computer

This chapter provides information about the use of the computer. If you are new to computers, reading this chapter will help you learn the

operating basics. If you are already a computer user, you may choose to read only the parts containing information unique to your computer.

CAUTION: The computer can get uncomfortably warm when you use it in high temperatures. As a safety precaution in such a circumstance, do not place the computer on your lap or touch it with your bare hands for extended periods of time. Prolonged body contact can cause discomfort and potentially a burn.

Operating Your Computer 2-1

Starting and Stopping the Computer

There are a number of ways to start and stop the computer.

Starting the Computer

You always start the computer using the power button. A computer starts up with an operating system (OS) existing on the

storage device such as the hard disk. The computer will automatically load the OS after you turn it on. This process is called booting.

NOTE: An operating system is the platform for all your software application programs to run on. Your computer uses the Microsoft Windows operating system.

Stopping the Computer

When you finish a working session, you can stop the computer by turning off the power or leaving the computer in Standby/Sleep or Hibernation mode:

To stop in this

mode...

Off Follow the shutdown procedure of

your operating system. This can prevent loss of unsaved data or damage to your software programs.

If the system is locked up because of hardware or software problems, press the power bu tton to turn off the computer.

Standby/Sleep Depending on your settings in

Windows, you can place the

2-2

Operating Your Computer

Do this... To start up or

resume again

Press the power button.

Press any key.

To stop in this

mode...

Do this... To start up or

resume again

computer in Standby/Sleep mode by:

 Closing the display cover  Pressing the Fn+F10 hot key  Pressing the power button

Hibernation Depending on your settings in

Windows, you can place the

Press the power button.

computer in Hibernation mode by:

 Closing the display cover  Pressing the power button

If you choose to stop in Standby/Sleep or Hibernation mode, you can return to where you left off the next time you start up the computer. (See “Power Management” in Chapter 3 for more information.)

Operating Your Computer 2-3

Using the Internal Keyboard

Your keyboard has all the standard functions of a full-sized computer keyboard plus an Fn key added for specific functions.

The standard functions of the keyboard can be further divided into four major categories:

 Typewriter keys  Cursor-control keys  Numeric keys  Function keys

Typewriter Keys

Typewriter keys are similar to the keys on a typewriter. Several keys are added such as the Ctrl, Alt, Esc, and lock keys for special purposes. When the lock keys (Caps Lock and Num Lk) are pressed, their corresponding indicators light up.

The Control (Ctrl) / Alternate (Alt) key is normally used in combination with other keys for program-specific functions. The Escape (Esc) key is usually used for stopping a process. Examples are exiting a program and canceling a command. The function depends on the program you are using.

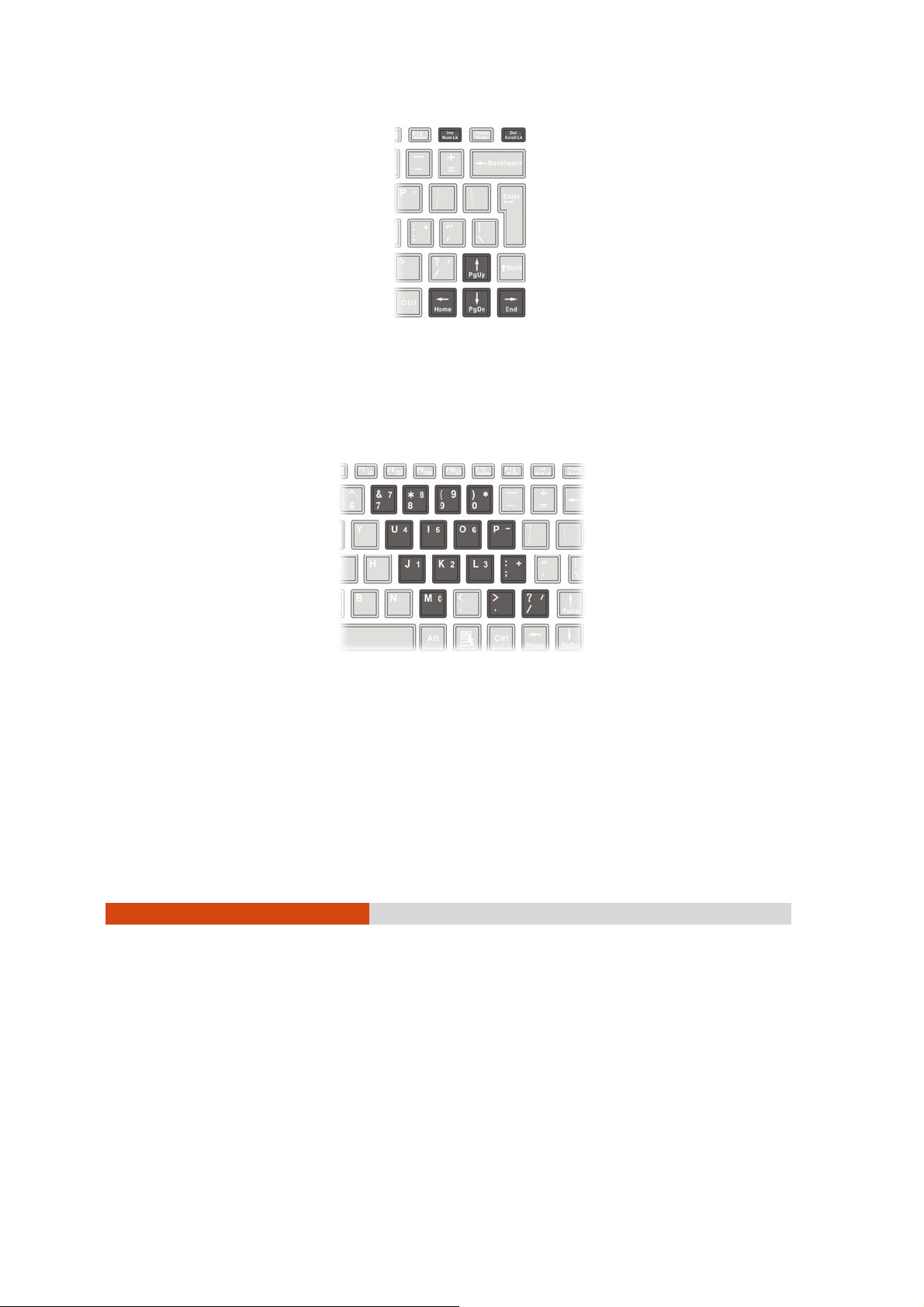

Cursor-Control Keys

Cursor-control keys are generally used for moving and editing purposes. They are Home, End, Page Up, and Page Down. When used with Fn key, they become Left, Right, Up, and Down arrow keys.

NOTE: The word “cursor” refers to the indicator on the screen that lets you know exactly where on your screen anything you type will appear. It can take the form of a vertical or horizontal line, a block, or one of many other shapes.

2-4

Operating Your Computer

Numeric Keypad

A 15-key numeric keypad is embedded in the typewriter keys as shown next:

Numeric keys facilitate entering of numbers and calculations. When Num Lock is on, the numeric keys are activated; meaning you can use these keys to enter numerals.

NOTE:

 When the numeric keypad is activated and you need to type the English letter

in the keypad area, you can turn Num Lock off or you can press Fn and then the letter without turning Num Lock off.

Operating Your Computer 2-5

 Some software may not be able to use the numeric keypad on the computer.

If so, use the numeric keypad on an external keyboard instead.

Function Keys

On the top row of the keys are the function keys: F1 to F12. Function keys are multi-purpose keys that perform functions defined by individual programs.

Fn Key

The Fn key, at the lower left corner of the keyboard, is used with another key to perform the alternative function of a key. The letter “Fn” and the alternative functions are identified by the color of blue on the keytop. To perform a desired function, first press and hold Fn, then press the other key.

Hot Keys

Hot keys refer to a combination of keys that can be pressed any time to activate special functions of the computer. Most ho t keys operate in a cyclic way. Each time a hot key combination is pressed, it shifts the corresponding function to the other or next choice.

You can easi ly iden tify th e hot ke ys with the ico ns imp rinted on the key top. The hot keys are described next.

Key Description

Switches the keyboard backlight on and off (optional).

Switches the wireless LAN radio on and off. NOTE: This function works only if an optional mini PCI-E

wireless LAN card is installed.

2-6

Operating Your Computer

Key Description

Decreases the sound volume.

Increases the sound volume.

Decreases the LCD brightness (20 levels).

Increases the LCD brightness (20 levels).

Switches the system sound output off (mute) and on.

Switches LCD backlight on and off.

Switches the display output when external devices are connected.

NOTE: This function only applies to Plug & Play display devices.

Serves as the sleep button that you can define with Windows’ Power Options. (See the “Power Management” in Chapter 3.)

Windows Keys

The keyboard has two keys that perform Windows-specific functions: Windows Logo key and

The Windows Logo key opens the Start menu and performs software-specific functions when used in combination with other keys. The

Application key usually has the same effect as a right mouse click. (See

your Windows manual for more information.)

Application key.

Operating Your Computer 2-7

Using the Software Keyboard

When using the computer in Tablet mode, you can use the software keyboard.

1. Press the software keyboard button ( will appear onscreen.

(The above is for reference only. The actual one depends on your Windows version.)

2. Enter the cha racters with the stylus.

NOTE: To protect the LCD display, use the included stylus or digitizer pen on your touchscreen.

) and the software keyboard

2-8

Operating Your Computer

Using the Touchpad

CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may damage the touchpad surface.

NOTE: For optimal performance of the touchpad, keep your fingers and the pads clean and dry. When tapping on the pad, tap lightly. Do not use excessive force.

The touchpad is a pointing device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons.

The touchpad consists of a rectangular pad (work surface) and a left and right buttons. To use the touchpad, place your forefinger or thumb on the pad. The rectangular pad acts like a miniature duplicate of your display. As you slide your fingertip across the pad, the pointer (also called cursor) on the screen moves accordingly. When your finger reaches the edge of the pad, simply relocate yourself by lifting the finger and placing it on the other side of the pad.

Here are some common terms that you should know when using the touchpad:

Operating Your Computer 2-9

Term Action

Point Move your f i n ger on the pad u n ti l th e c u r s o r p oints to the

selection on the screen.

Click Press and release the left button.

–or– Tap gently anywhere on the pad.

Double-click Press and release the left button twice in quick

succession. –or– Tap twice on the pad rapidly.

Drag and drop

Press and hold the lef t button , the n move yo ur fi nger until you reach your destination (drag). Finally, release the button (drop) when you finish dragging your selection to the destination. The object will drop into the new location.

–or– Gently tap twice on the pad and on the second tap,

keep your finger in contact with the pad. Then, move your fing er ac ro ss the p ad to d rag the s elec ted o bj ect to your destination. When you lift your finger from the pad, the selected object will drop into place.

Scroll To scroll is to move up and down or left and right in the

working area on the screen. To move vertically, place your finger on the right or left

edge of the pad and slide your finger up and down along the edge. To move horizontally, place your finger on the top or bottom edge of the pad and slide your finger left and right.

This function works only after you install the touchpad driver supplied with the computer and it may not work for all applications.

2-10

Operating Your Computer

TABLE NOTE: If you swap the left and right buttons, “tapping” on the touchpad as an alternative method of pressing the left button will no longer be valid.

Configuring the Touchpad

You may wan t to c on fi gur e th e tou chp ad to suit your needs. For example, if you are a left-handed user, you can swap the two buttons so that you can use the right button as the left button and vice versa. You can also change the size of the on-screen pointer, the speed of the pointer, and so on.

To configure the touchpad, go to Control Panel  Mouse Properties.

Operating Your Computer 2-11

Navigating on the Screen

The screen of your computer is touch-sensitive. You can control the location of the cursor/pointer on the screen using your finger or the included stylus or digitizer pe n to communicate with the computer.

CAUTION: Do not use sharp objects on the LCD display. Doing so may damage the display surface. Use your finger or the included stylus or digitizer pen.

NOTE: When there is a noticeable discrepancy in the placement of the stylus on the screen and the indicated position of the onscreen pointer, calibrate the touchscreen using the calibration utility called IdeaCom Calibration on Windows XP/Vista or CalTouch on Windows 7.

Using the Touchscreen

NOTE: Make sure the touchscreen driver has been installed properly.

If your computer is equipped with the touchscreen feature, you can use your finger or the included stylus to navigate and select objects on the screen.

2-12

Operating Your Computer

Here are some common terms that you should know when using the touchscreen:

Term Action

Click/Point Tap gently on the touchscreen. Double-click Tap twice on the touchscreen rapidly. Drag and

drop

Tap lightly on the touchscreen and move your finger until you reach your destination (drag). Finally, release your finger (drop) when you finish dragging your selection to the destination. The object will drop into the new location.

Using Multi-touch Gestures (Windows 7 Only)

If your computer model comes with multi-touch-capable screen and Windows 7, you can interact with your computer by placing two fingers on the screen. The movement of the fingers across the screen creates “gestures,” which send commands to the computer.

Here are the multi-touch gestures that you can use:

Gestures Actions

( = finger down; = finger up)

Pan (Scroll)

Descriptions

Use panning to see another part of a page that has scroll bars.

Drag 1 or 2 fingers up or down.

Operating Your Computer 2-13

Gestures Actions

( = finger down; = finger up)

Zoom (Pinch)

Move two fi ngers apart/toward each other.

Rotate

Move two fingers in opposing directions.

-orUse one finger to pivot around

another.

Press and Tap

Descriptions

Use zooming to make an item (a photo for example) on the screen larger or smalle r . The gesture works in applications that support mouse wheel zooming.

Use rotating to move a picture or other item on the screen in a circular direction (clockwise or counterclockwise). The gesture works in applications that support the specific gesture.

Use press and tap to access the shortcut menu.

2-14

Operating Your Computer

Press on target and tap using a second finger.

Gestures Actions

( = finger down; = finger up)

Twofinger Tap

Tap two fingers at the same time (where the target is in the midpoint between the fingers).

Flicks

Make quick drag gestures in the desired direction.

Descriptions

The function is defined by applications that support the specific gesture.

Flick left or right to navigate back and forward in a browser and other applications. The gesture works in most applications that support back and forward.

Operating Your Computer 2-15

Using the Dual Mode Display (Optional)

NOTE: Make sure both the touchscreen driver and digitizer driver have been installed properly.

Dual mode display incorporates both touchscreen and digitizer functions. The display is set to Touchscreen mode by default. Touchscreen mode

provides all the functionalities that an ordinary touchscreen has. When the computer receives signals from the active digitizer pen, the display automatically switches to Digitizer mode.

When using the digitizer pen, be sure to install the included size “AAAA” battery.

Here are some common terms that you should know when using the active dig itizer feature:

2-16

Operating Your Computer

Term Action

Wake up The digitizer pen automatically enters

Sleep mode after 30 seconds of inactivity . T o s ta rt u si n g th e p en , tap the tip of the pe n to activate it.

Move

Click/Point

Double-clic k

Drag and drop

Right-click

Move the curs o r p o i nte d by the di g iti z er pen.

Tap gently on the display.

Tap twice on th e display rapidly.

Tap lightly on the display and move your digitizer pen until you reach your destination (drag). Fi nally, release your digitizer pen (drop) when you finish dragging your selection to the destination. The object will drop into the new location.

Press and hold down the digitizer pen button (A ), then tap g ently the object.

CAUTION:

 When the LCD display is used alone or with an external display

simultaneously, the digitizer function cannot be used when the area of either display is set larger than the default setting of the display resolution.

Operating Your Computer 2-17

 Even when only an external display is in use, the cursor will move on the

external display if you touch the surface of the LCD display with the pen or bring the pen close to the surface of the LCD display when the digitizer driver is active. Therefore, do not touch the LCD display when only an external display is in use.

 The active digitizer feature cannot be used in the BIOS Setup program or

when using the full screen in DOS mode.

NOTE:

 You can move the cursor by bringing the digitizer pen close to the screen,

without actually touching the screen’s surface.

 Do not move the digitizer pen too quickly. If the pen moves too quickly, the

cursor may be unable to follow its movement.

 If you cannot click on the edge of the screen, hold the digitizer pen

perpendicular to the display and try clicking again.

2-18

Operating Your Computer

Using the Hard Disk Drive

WARNING: DO NOT replace the hard disk drive by yourself. Refer all servicing to qualified personnel or your dealer.

Your computer comes with a removable 2.5-inch SATA (serial ATA) hard disk drive.

You can enable AHCI (Advanced Host Controller Interface), a programming interface for SATA host controllers. AHCI defines transactions between the SATA controller and software and enables advanced performance and usability with SATA. When the SATA AHCI mode is enabled, your system can support SATA native command queuing, aggressive power management, and so on.

Select models are equipped with a hard disk heater that automatically turns on for low temperature operation.

CAUTION:

 Make regular backups of your data files from your hard disk drive to USB flash

disks or other storage media.

 Never turn off or reset the computer while the hard disk drive in-use indicator

is on.

Operating Your Computer 2-19

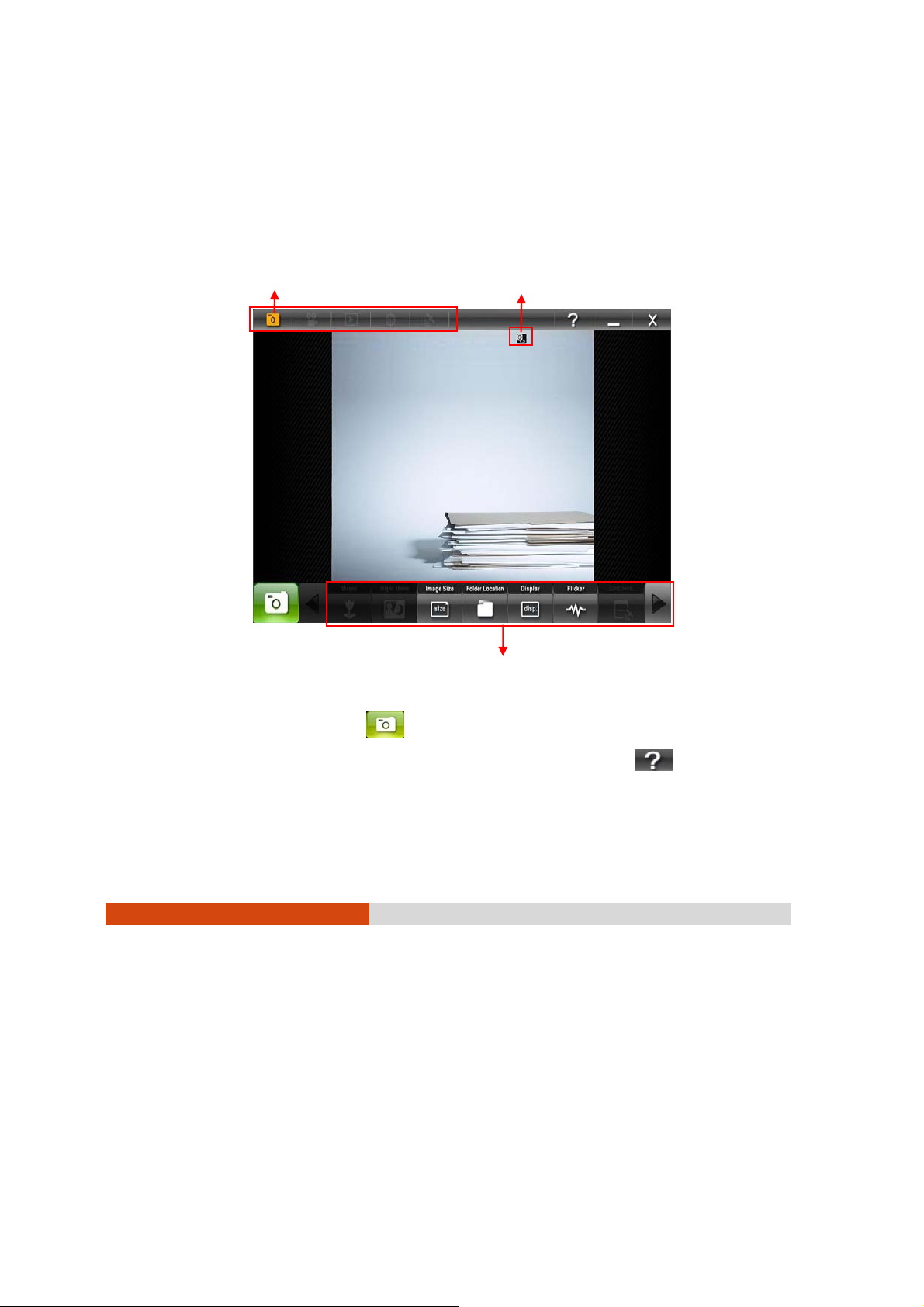

Using OSD Control Panel

The OSD Control Panel allows you to easily activate or operate certain functions on your computer.

To use the OSD Control Panel:

1. Press the button

2. The following screen appears, providing several control buttons.

on the front of your computer.

For detailed descriptions of the Control Panel, click the

3. To close the Control Panel, either press the button computer again or click the

2-20

Operating Your Computer

button .

on your

button.

Using the Fingerprint Scanner (Optional)

The fingerprint scanner provides a strong authentication mechanism based on fingerprint recognition. You can log on to your computer or sign in to a web site with your fingerprint instead of a password. You can also encrypt files and folders with your fingerprint.

NOTE: You can register a fingerprint only after creating a password for the Windows user account.

CAUTION: For the fingerprint file/folder encryption feature, the maximum file/folder size allowed is 2GB.

To register your fingerprint, click Start  All Programs  Fingerprint Software  Fingerprint Registration. Click the finger you want to register and follow the

onscreen instructions to complete.

Operating Your Computer 2-21

You can then use the Fingerprint Softw are to set up how the fingerprint authentication works.

For detailed information, click Start  All Programs  Fingerprint Software  Help.

2-22

Operating Your Computer

Using the Video Features

The video subsystem of your computer features:

 10.4-inch wide TFT (Thin-Film Transistor) color LCD display with 1024×768

XGA resolution

 Simultaneous display on LCD and external monitor, which is useful

when you have a presentation as you can control the screen from your computer and face the audience at the same time (option)

 Multi-display capability, whic h allows you to expand your desktop on

the screen to another display device so that you have more desktop space to work on



Built-in lig ht sensor to auto matically adjust the LCD brigh tness and optional keyboard backlight

 Power Management  Sunlight-readable LCD display

NOTE:

 Before using the multi-display capability or taking advantage of the enhanced

video capabilities, the VGA driver supplied with your computer must be installed.

 The computer enters the Standby/Sleep or Hibernation mode when the LCD

is closed. If you want to use the computer with the LCD closed, set according in Windows Control Panel so the computer does not enter the Standby/Sleep or Hibernation mode when the LCD is closed.

Operating Your Computer 2-23

Configuring the Display Modes

NOTE: When using an external CRT monitor, the resolution depends on the CRT monitor’s supported resolution.

Your computer has been set to a default resolution and number of colors before shipment. You can view and change display settings through your operating system. See your operating system documentation or online help for specific information.

For displaying in higher resolutions, you can connect an external monitor that supports higher resolutions. (See “Connecting an External Monitor” in Chapter 4 for more information.)

Using Landscape or Portrait View

After Windows is started up, you can rotate the display and perfor m the touchscreen and active digitizer operation s in the rotate d mode.

To rotate the display, press the button computer to open the OSD control panel and click

time this Rotate button is clicked, the screen display rotates counter-clockwise by 90

NOTE:

 If the screen display resolution has been set to 800×600 pixels, you can rotate

the display to Primary Landscape and Secondary Landscape only.

 While the display is rotated:

– Do not set the display resolution larger than the resolution of the LCD display. – If you exit Windows, the next time Windows is started up, the operation of the touchpad will not match the display angle for a few seconds. – The computer’s performance will decrease slightly. – If a video is played, the picture may not be displayed properly or the sound may be broken up. This problem can be corrected by rotating the display to Primary Landscape. – The touchpad’s scroll function does not work.

 The display cannot be rotated when DOS mode is set to “Full Screen.”

2-24

Operating Your Computer

located on the front of your

. Each

For a Model without 3G Module

Primary

Landscape

Display

Primary

Portrait

Display

Secondary

Landscape

For a Model with 3G Module

Primary

Landscape

Display

Primary Portrait Secondary

Display

Secondary

Portrait

Display

Landscape

Display

Primary

Landscape

Display

Primary

Landscape

Display

Operating Your Computer 2-25

Using the Audio Features

NOTE:

 To take advantage of the enhanced audio capabilities, the audio driver

supplied with your computer must be installed.

 If you experience interference while recording, try lowering the microphone

recording volume.

The audio subsystem of your computer features:

 Built-in sound system for recording and playing sound on your

computer

 Azalia interface (high density audio codec)  Built-in Speaker  External audio connectors

Ways of playing and recording sound vary with the operating system used. See your operating system documentation or online help for specific information.

2-26

Operating Your Computer

Connecting Audio Devices

For higher audio quality, you can send or receive sound through external audio devices.

NOTE: After connecting an external audio device, make sure that you specify the use of the correct audio device in Windows.



Audio Output Connector (

) can be connected to speakers,

headphones, or earphone set.

 Microphone Connector (

) can be connected to an external

microphone for recording voice or sound.

NOTE: When using the external speakers/headphones or microphone, you cannot use the internal one.

Operating Your Computer 2-27

Using G-Camera Lite

G-Camera Lite allows you to take pictures with the Webcam, if sup plied with

your computer. To start G-Camera Lite, click Start  All Prog rams  G-Camera Lite  G-Camera

Lite. The camera control panel appears.

Mode

Current settings

Setting buttons for different modes

Click the Shutter button

For detailed descriptions of G-Camera Lite, click the button

2-28

Operating Your Computer

or press Enter to take photo s.

Using the Communication Features

Using the Modem

NOTE: To take advantage of the modem feature, the modem driver supplied with your computer must be installed.

The internal 56 K fax/data modem allows you to use the telephone lin e to communicate with others by fax, email, or connect to an online service or bulletin board.

To connect the telephone line to the modem, connect one end of the modem cable to the RJ-11 connector on the computer and the other end to the phone line.

NOTE:

 When using the communication software, you may have to disable power

management.

 Set parameters such as modem speed (baud rate) and line type (pulse dialing

or tone dialing).

 Do not enter the Standby/Sleep mode when using the communication

software.

Operating Your Computer 2-29

Using the LAN

NOTE: To take advantage of the LAN feature, the LAN driver supplied with your computer must be installed.

The internal 10/100/1000Base-T LAN (Local Area Network) module allows you to connect your computer to a network. It supports data transfer rate up to 1000 Mbps.

To connect the network cable to the LAN module, connect one end of the LAN cable to the RJ-45 connector on the computer and the other end to the network hub.

2-30

Operating Your Computer

Using the Wireless LAN

Depending on your model, an internal mini PCI-E wireless LAN (WLAN) card may have been pre-installed by your computer manufacturer at the factory. This card allows you to access corporate networks or the Internet in a wireless environment.

The WLAN features include:

 Peer-to-Peer (Ad-Hoc) and Access Point (Infrastructure) modes

support

 WEP (Wired Equivalent Privacy) 64/128-bit data encryption  IEEE 802.11a/g/n standard compliance

Technology 802.11a 802.11g 802.11n

Stated Maximum Throughput (Mbps)

Data Rates (Mbps) 54, 48, 36, 24, 18,

Band (GHz) 5.15 ~ 5.35 2.4 2.4 / 5 Modulation

Technology

54 54 100 Mbps or more

54, 36, 18, 9 100 ~ 210

12, 9, 6

OFDM (Orthogonal Frequency Division Multiplexing)

Spatial multiplexing, uses MIMO (multipleinput multipleoutput)

To take advantage of the WLAN feature, make sure that the WLAN driver is installed correctly. If your WLAN card was provided by your dealer instead of the computer manufacturer, contact your dealer for the correct driver to use.

Operating Your Computer 2-31

Turning Off/On the WLAN Radio

NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate wireless devices in aircraft as this may interfere with flight safety. Remember to turn off wireless LAN when using your computer in the airplane.

Your computer has a built-in Fn+F2 WLAN hot key to switch the WLAN on/off. If you need to temporarily turn off the radio, press Fn+F2. To resume network connection, press Fn+F2 again.

It takes approximately 30 seconds for your computer to make a successful WLAN connection and approximately 10 seconds to disconnect.

Connecting to a Wireless Network

To connect to a wireless network:

1. Make sure that the WLAN radio is on (controlled by Fn+F2).

2. Click Start  Programs  Intel PROSet Wireless  Intel PROSet Wireless.

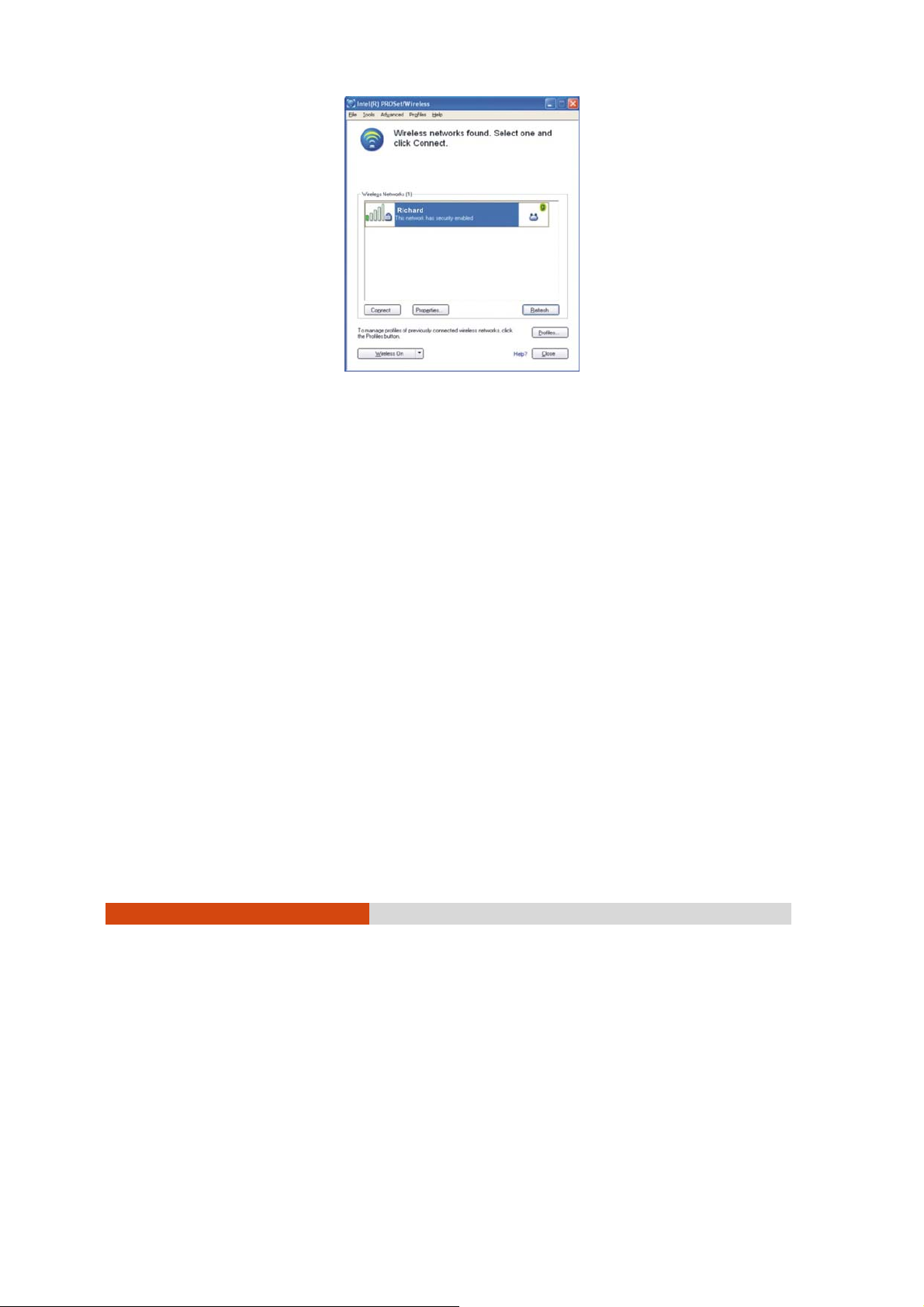

3. If any wireless network is detected, the following window appears on screen.

2-32

Operating Your Computer

4. Click to select a wireless network to connect to, and then click

Connect.

5. Depending on the settings, you may be asked to enter a wireless security password (encryption key).

For more information on the Intel PROSet Wireless utility, click Help? in the

Intel(R) PROSet/Wireless window.

Using the Bluetooth Feature (Optional)

NOTE: To take advantage of the Bluetooth feature, the Bluetooth driver supplied with your computer must be installed.

Depending on your model, your computer may incorporate the Bluetooth capability for short-range (about 10 meters) wireless communications between devi ces without r equiring a cable connection.

With Bluetooth, data can be transmitted through walls, pocke ts and briefcases as long as two devices are within range. By default, your computer’s Bluetooth feature is active (always ON) upon booting your computer and is in the general discoverable and pairable mode.

Operating Your Computer 2-33

The status of the Bluetooth connection is indicated by the Bluetooth icon located in the taskbar in the lower-right p art of the screen.

Status Icon

On Connected

You can use the Bluetooth Utility to configure Bluetooth connection settings and transfer files.

(blue with white logo).

(blue with green logo)

Connecting to another Bluetooth Device

1. Make sure that the target Bluetooth device is turned on, discoverable and within close range. (See the documentation that came with the Bluetooth device.)

2-34

Operating Your Computer

2. To search for Bluetooth devices, use any of the following three methods:

Method 1:

Right click the Bluetooth icon

located in the taskbar in the

lower-right part of the screen. Select Explore Bluetooth Places.

Method 2: Right click the Bluetooth icon

located in the taskbar in the lower-right part of the screen. Select Display Classic View. The Bluetooth utility screen appears. Right click the central icon (the yellow sun) and select Search Devices.

Operating Your Computer 2-35

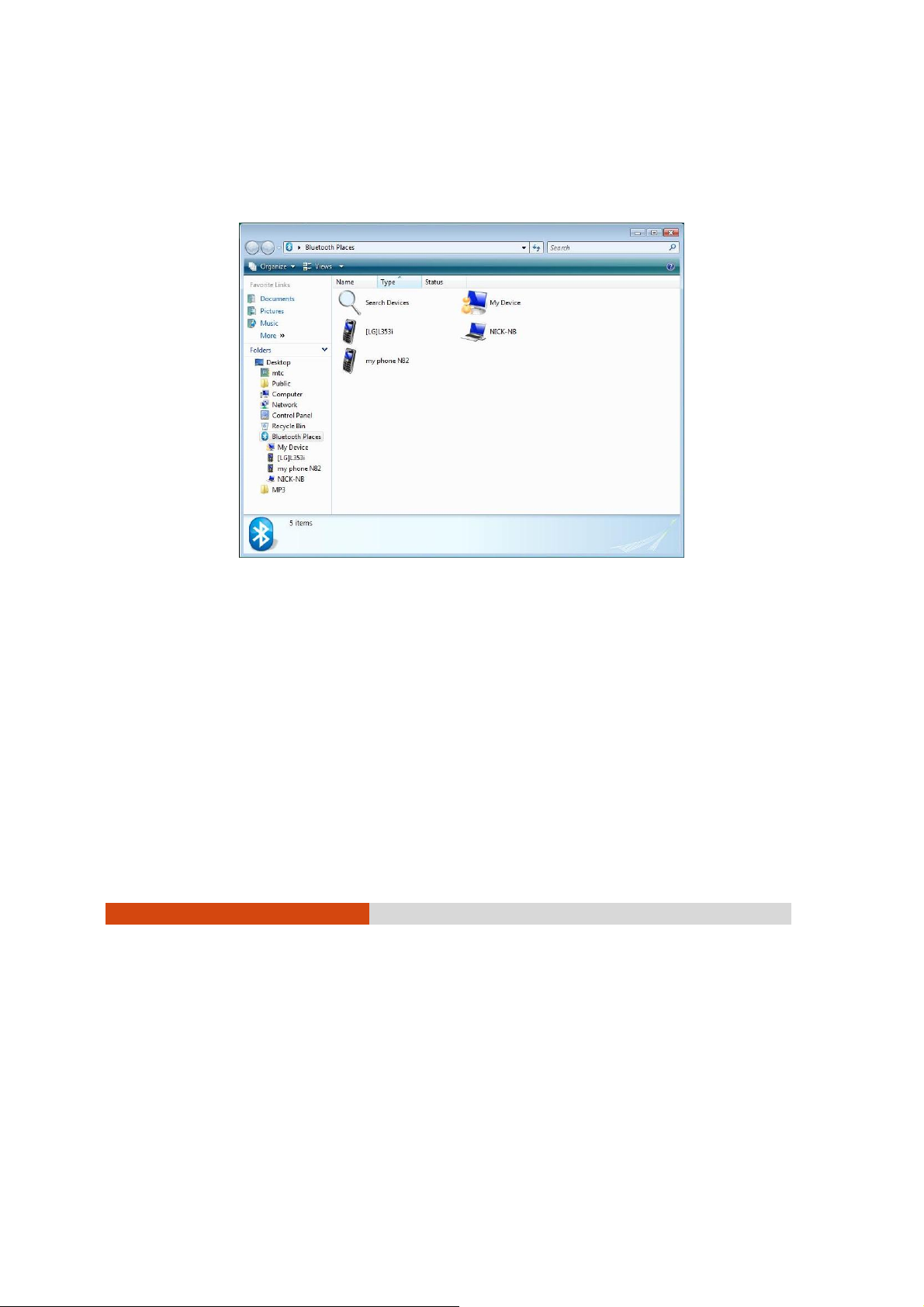

Method 3: Use Windows File Manager to browse to Bluetooth Places and select

Search Devices.

3. Select the device you want to connect from the search results.

4. Dependin g o n the typ e o f B lueto oth de vic e tha t yo u w an t to c onn ec t to, you will need to enter the pertinent information.

For detailed information on using the Bluetooth Utility, see the Bluetooth Utility Help.

2-36

Operating Your Computer

Using the GPS

NOTE: To take advantage of the GPS feature, the GPS and GPS filter driver supplied with your computer must be installed.

GPS (Global Positioning System) is a constellation of 24 well-spaced satellites that or bit the E arth an d mak e it pos sibl e for de vices en abled wi th GPS receivers to pinpoint their location.

You need to insta ll thir d-pa rty GP S navi gati on so ftwar e to tak e adva ntage of the GPS feature.

Operating Your Computer 2-37

Chapter 3

Managing Power

Your computer operates either on external AC power or on internal battery power.

This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that yo u use the battery in the proper way.

Managing Power 3-1

AC Adapter

CAUTION:

 The AC adapter is designed for use with your computer only. Connecting the

AC adapter to another device can damage the adapter.

 The AC power cord supplied with your computer is for use in the country

where you purchased your computer. If you plan to go overseas with the computer, consult your dealer for the appropriate power cord.

 When you disconnect the AC adapter, disconnect from the electrical outlet

first and then from the computer. A reverse procedure may damage the AC adapter or computer.

 When unplugging the connector, always hold the plug head. Never pull on the

cord.

The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct Current) power because your computer runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power.

The adapter operates on any voltage in the range of 100~240 V AC.

3-2

Managing Power

Battery Pack

The battery pack is the internal power source for the computer. It is rechargeable using the AC adapter.

The operating time of a fully charged battery pack depends on how you are using the computer. When your applications often access peripherals, you will experience a shorter operating time.

NOTE: Care and maintenance information for the battery is provided in the “Battery Pack Guidelines” section in Chapter 7.

Charging the Battery Pack

NOTE:

 Charging will not start if the battery’s temperature is below 0C (32F) or

above30C (86F).

 The charging process will stop and the Battery Charge Indicator flashes

green and yellow by turns when the battery’s temperature gets above 60C (140F). If this happens, the battery pack may be damaged. Please contact your dealer.

 During charging, do not disconnect the AC adapter before the battery has

been fully charged; otherwise you will get a prematurely charged battery.

To charge the battery pack, connect the AC adapter to the computer and an electrical outlet. The Battery Charge Indicator ( computer glows yellow to indicate that charging is in progress. You are advised to keep the computer power off while the battery is being charged. When the battery is fully charged, the Battery Charge Indicator is off.

) on the

It takes approx ima tely 3 hour s to f ully c harg e the Li -Ion batter y pac k when the computer is off, and approximately 6 hours to fully charge the Li-Ion battery pack when the computer is on.

Managing Power 3-3

CAUTION: After the computer has been fully recharged, do not immediately disconnect and reconnect the AC adapter to charge it again. Doing so may damage the battery.

NOTE: The battery level may automatically lessen due to the self-discharge process (0.21 % per day), even when the battery pack is fully charged (100 %). This happens no matter if the battery pack is installed in the computer.

Checking the Battery Level

NOTE: Any battery level indication is an estimated result. The actual operating time can be different from the estimated time, depending on how you are using the computer.

By Operating System

You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows, click the battery icon on the taskbar.

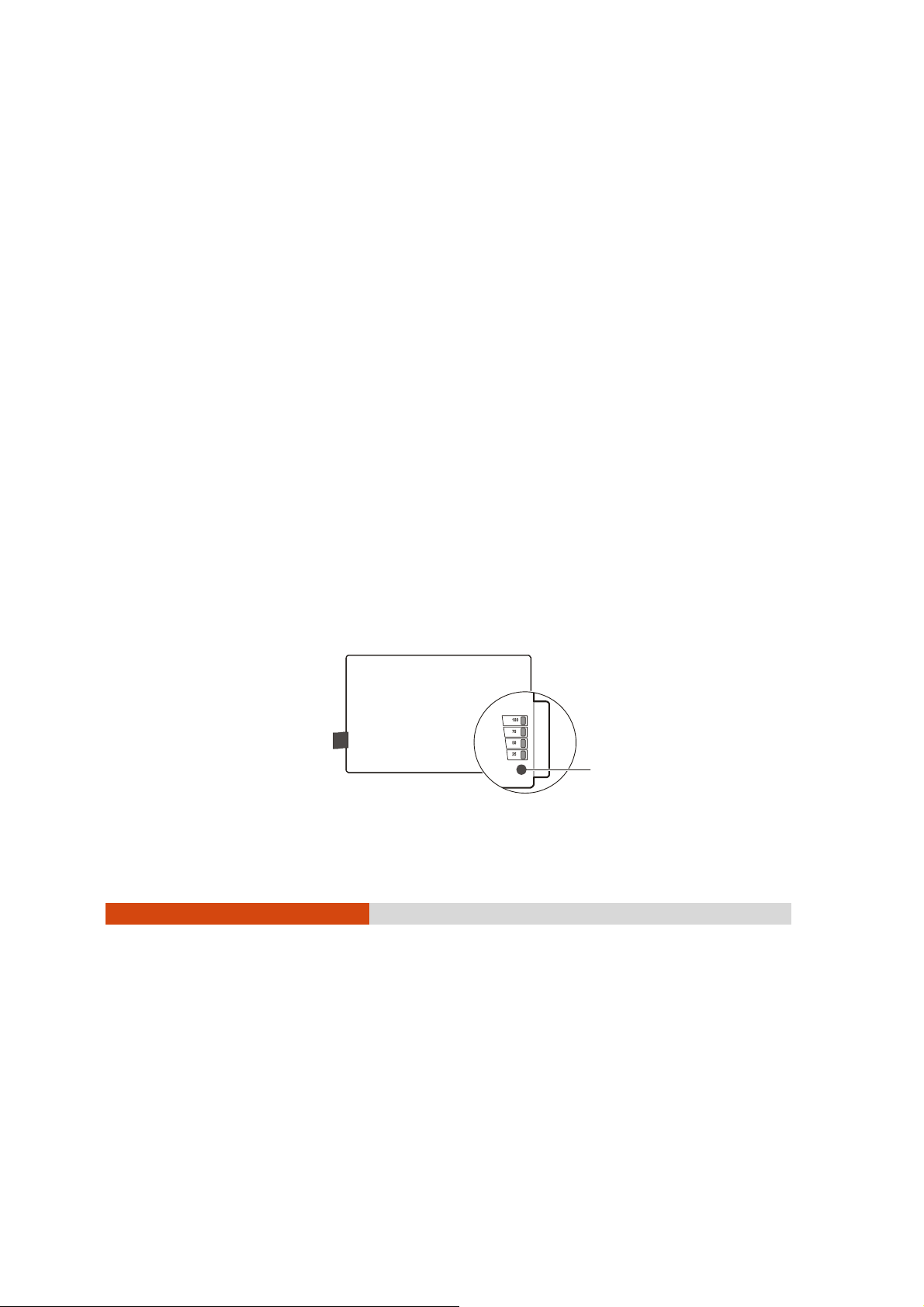

By Gas Gauge

On the exterior side of the battery pack is a gas gauge for displaying the estimated battery charge. When the battery pack is not installed in the computer and you want to know the battery charge, you can press the switch with a pointed device to see the corresponding value of indicator segment that lig ht green.

Switch

3-4

Managing Power

The value of the corresponding green segment indicates the relative percentage of the battery charge. The battery pack is fully discharged when you see no segment glowing green.

Replacing the Battery Pack

CAUTION:

 There is danger of explosion if the battery is incorrectly replaced. Replace the

battery only with the computer manufacturer’s optional battery packs. Discard used batteries according to the dealer’s instructions.

 Do not attempt to disassemble the battery pack.

If you often rely on battery power for a long period of time while traveling, you may consider the purchase of an additional battery pack from your dealer and keep it with you in a fully charged state as a backup.

To replace the battery pack, follow these steps:

1. Make sure that the computer is not turned on or connected to AC power.

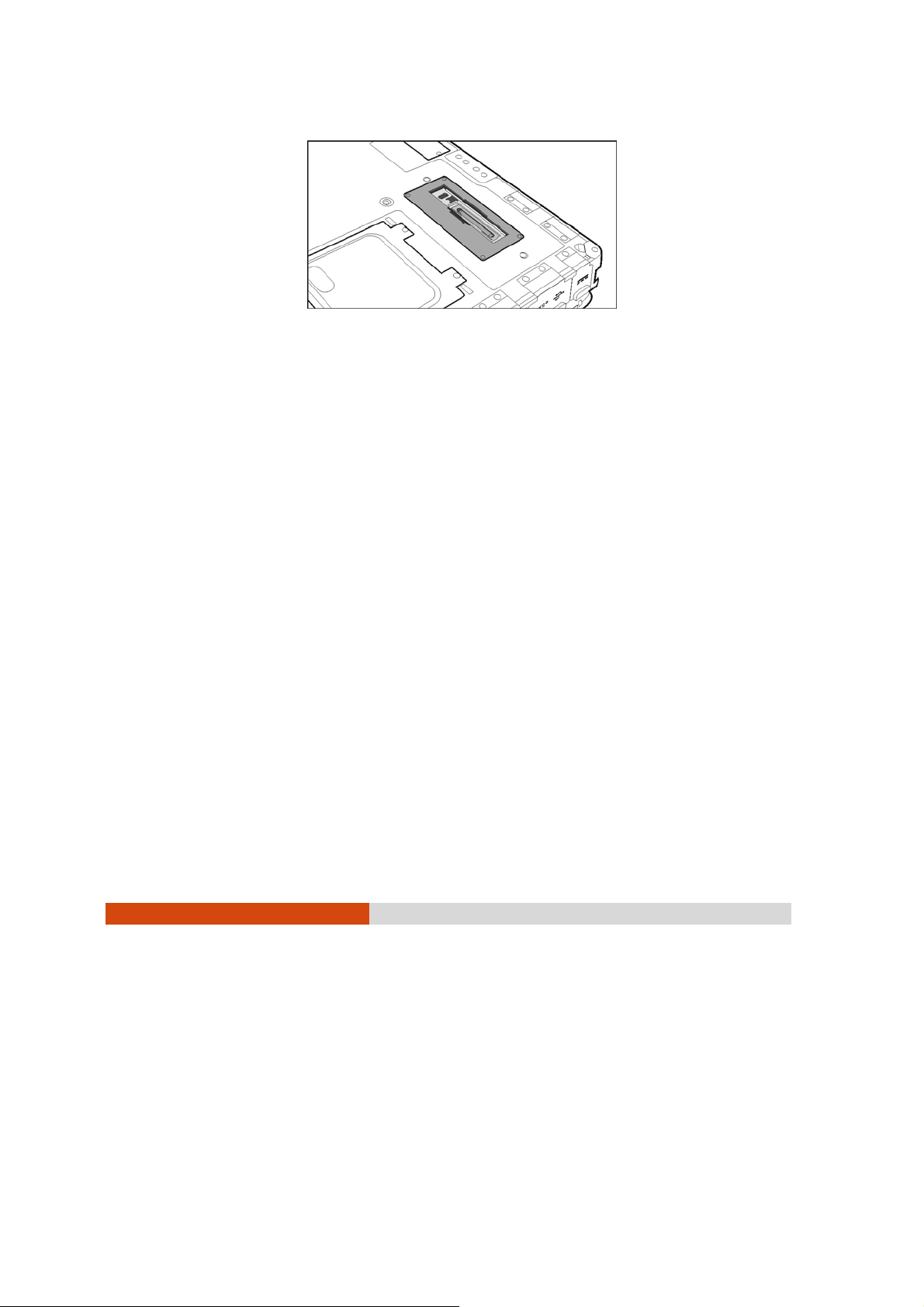

2. Locate the battery compartment on the right side of the computer.

3. Open the compartment cover by pressing on both sides of the release latch using your thumb and index fingers.

Managing Power 3-5

4. Pull on the ribbon strip to remove the battery pack.

5. Slide the new battery pack all the way into the slot. Make sure to observe the correct orientation (the ribbon strip must face outward for future battery back removal).

6. Close the co mpartment cover to secure th e battery pac k.

3-6

Managing Power

Battery Low Signals and Actions

When th e batte ry i s low, W i ndow s gi ves war ning messa ges a nd the Batter y Charge Indicator (

Immediately save your data upon Battery Low. The remaining operating time depends on how you are using the computer. If you are using the audio sub s ys tem , PC card , h a rd o r U S B f la s h d i sk , the battery m i gh t r un ou t of charge very quickly.

Always re s p o n d to Battery Low by conne c ti n g the AC adap te r , turning of f the computer, or placing your computer in Hibernation mode. If you do not take any action, the computer will automatically hibernate and turn off.

NOTE: You can set up the threshold of Battery Low and actions for Windows to take with Windows Power Options. (For more information, see Windows’ Help.)

CAUTION:

 If you are using a PC card, do not access the card during battery low periods.

This is because the access may take longer than the time it takes the battery to run out of charge, thus making your access to the card unsuccessful.

 If you fail to save your data when the battery completely runs out of charge,

then you lose your data.

) blinks yellow to alert you.

Managing Power 3-7

Power Management

Your computer supports ACPI (Advanced Configuration and Power Interface) for power management. The power management feature allows you to reduce the power consumption for energy saving.

With an ACPI-compliant operating system such as Windows, power supply to different computer components is controlled on an as-needed basis. This allows maximum power conservation and performance at the same time.

In general, Windows’ power management works in this way:

What... When...

Power to the hard disk is turned off

Power to the display is tur n e d o ff When the display has been idle for a

The computer enters the Standby/Sleep mode. The hard disk and display are turned off and the entire system consumes less power.

The computer enters the Hibernation mode. (See the next subsection for more

information.) * Depends on your settings in Windows. For detailed information on power management, see Windows’ Help.

When the hard disk has been idle fo r a set period.

set period. When the entire system has been idle

for a set period. When you press the Fn+F10 hot key. * When you close the cover. * When you press the power button. * When you press the Fn+F10 hot key. * When you close the cover. * When you press the power button. *

3-8

Managing Power

Hibernation

Hibernation is a very useful feature. People frequently open many applications when they us e computers. It takes some time to get all these applications open and running, and normally they all have to be closed before the computer can be turned off.

When you use the hibernation feature, you do not have to close the applications. The computer stores the state of your computer to a file on the hard disk and then shuts down. The next time you turn on your computer, you return to exactly where you left off.

Managing Power 3-9

Power-Saving Tips

Aside from enabling your computer’s power saving mode (see previous section), you can do your part to maximize the battery’s operating time by following these suggestions.

 Do not disable Power Management.  Decrease the LCD brightness to the lowest comfortable level.  Shorten the length of time before Windows turn off the display.  Many USB devices use power just by being connected. If you use a

USB mouse, you can save power by disconnecting the mouse and using the touchpad. If you use a USB flash drive, unplug it when you are not using it.

 If you work with an application that uses a PC card, exit the

application when you finish using it.

 If you have a PC card installed, remove it when not in use. Some PC

cards drain power even while they are inactive.

 Turn off the wireless radio if you are not using the wireless module.  Turn off the computer when you are not using it.

3-10

Managing Power

Chapter 4

Expanding Your Computer

You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the devi ce together with the relevant section in this chapter.

Expanding Your Computer 4-1

Connecting an External Monitor (Optional)

If you want the benefits of a larger display screen with higher resolution, you can connect an external display monitor to your com puter. Follow this procedure to connect an external monitor:

1. Make sure that the computer is not turned on.

2. Plug the monitor’s D-type signal connector to the computer’ s VGA

connector.

3. Plug one end of the monitor’s power cord into the power socket on

the monitor and the other e nd to an electrical outlet.

4. To use the monitor, turn on the monitor before turning on the

computer.

5. The monitor should respond by default. If not, you can switch the

display to th e monitor or to both (si multaneous display), or to multi-display by pressing the Fn+F9 hot key. In Windows, you can also change the display through the settings in Display Properties.

6. You can change display settings through your operating system. See

your operating system documentation or online help for specific information.

4-2

Expanding Your Computer

CAUTION: Do not disconnect the external monitor while the computer is in the Standby/Sleep mode or Hibernation mode. If no external monitor is connected when the computer resumes, the LCD might not display properly.

Expanding Your Computer 4-3

Connecting a Serial Device

Your computer has one or two serial port (depending on model) for connecting a serial device such as a serial mouse or serial communication device (modem).

Follow this procedure to connect a serial device:

1. Make sure the computer is not turned on

2. Plug the device cable to the serial port on the rear of the computer.

3. Turn on the computer.

NOTE: Portable modems that derive power through the serial port cannot be used with the computer. Instead, use a modem that is powered by its own internal battery or external AC power.

4-4

Expanding Your Computer

Connecting a USB Device

Your computer has a USB port for connecting USB devices, such as a digital camera, scanner, printer, modem, and mouse.

NOTE: The eSATA/USB Combo port can also function as a USB port.

The USB port support transfer rates up to 12 MB/s for USB 1.1 devices and 480 MB/s for USB 2.0 devices.

To connect a USB device, simply plug the device cable to one of the USB ports.

Expanding Your Computer 4-5

Connecting an eSATA Device

Your computer has an eSATA/USB Combo port for connecting eSATA devices (such as an external hard drive and external optical drive) / USB devices (see previous section).

The port supports SATA II with transfer rate up to 3.0Gbit/s. It can provide 5V power if a certified USB-eSata combo cable is used.

To connect an external eSATA device, simply plug the d evice c able to th e eSATA port.

4-6

Expanding Your Computer

Using Smart Cards (Optional)

Your computer may have a smart card slot for additional security feature, providing tamper-proof stora ge of user and account identity. A smart card is a type of plastic card embedded with a computer chip that stores and transacts data betwe en you (user) and the computer.

You need to install third-party smart card software to take advantage of the smart card feature.

Inserting and Removing a Smart Card

To insert a smart card:

1. Locate the smart card slot.

2. Slide the smart card, with its label and embedded computer chip

facing up into the slot.

Eject button

3. When a new card is seated, use the third-party smart card software to

allow your computer to read it.

Expanding Your Computer 4-7

To remove a smart card:

1. Make sure th at the th ird -par ty sm art ca rd s oftw are i s not a cces sing the

smart card.

2. Pull the card out of the slot.

4-8

Expanding Your Computer

Using PC Cards

NOTE: To take advantage of the PC Card interface, the PC Card Controller driver supplied with your system must be installed.

Your computer has one or two PC card slots that support CardBus specifications. The slots can accommodate a type II card. Typical type II cards are flash memory, SRAM, modem, LAN, and SCSI cards.

Inserting and Removing a PC Card

NOTE:

 Some PC cards require additional system resources. Before using such PC

card, you may have to free other system resources for the PC card.

 Although some PC cards can be inserted and removed without turning off the

computer, you cannot remove or install PC cards during Standby mode.

To insert a PC card:

1. Locate the PC card slot on the left side of the computer.

2. Slide the PC card, with its label facing u p, into the slot until the eject

button pops out.

Eject button

Expanding Your Computer 4-9

3. When a new card is seated, the computer will detect it and try to

install the appropriate driver. Follow the on-screen instructions to complete the pro cess.

To remove a PC card:

1. Double-click on the Safely Remove Hardware icon (

Vista/Windows 7 or

for Windows XP) found on the Windows taskbar

for Windows

and the Safely Remove Hardware window appears on screen.

2. Select (highlight) the PC card from the list to disable the card.

3. Push the eject button and the card will slide out slightly.

4. Pull the card out of the slot.

4-10

Expanding Your Computer

Using ExpressCards (Optional)

NOTE: The ExpressCard interface is not compatible with the PC card interface.

Your computer may have an ExpressCard slot. ExpressCard supports the PCI Express and USB 2.0 serial data interfaces

(supporting speeds of up to 2.5 Gbps and 480 Mbps respectively), improving speed in data transfer while conserving power usage.

ExpressCard Type

The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm (ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very extensive range of applications including memory, wired and wireless communication cards, and security devices.

Shown next are the appearances of ExpressCards for your reference.

ExpressCard/54 ExpressCard/34

Expanding Your Computer 4-11

Inserting and Removing an ExpressCard

To insert an ExpressCard:

1. Locate the ExpressCard slot on the left side of the computer.

2. Slide the ExpressCard, with its label facing up, all the way into the slot

until the rear connectors click into place.

Eject button

3. When a new card is seated, the computer will detect it and try to

install the appropriate driver. Follow the on-screen instructions to complete the pro cess.

To remove an ExpressCard:

1. Double-click on the Safely Remove Hardware icon (

Vista/Windows 7 or and the Safely Remove Hardware window appears on screen.

2. Select (highlight) the ExpressCard from the list to disable the card.

3. Push the eject button and the card will slide out slightly.

4. Pull the card out of the slot.

4-12

Expanding Your Computer

for Windows XP) found on the Windows taskbar

for Windows

Using the Card Reader

NOTE:

 To use the Card Reader, the SD Reader driver supplied with your computer

must be installed.

 If your hard disk is divided into several drives, make sure that all drives have

been formatted before using the Card Reader. Otherwise, you may encounter problems when using the Card Reader.

 You can use only storage cards. Your Card Reader does not support cards

with I/O (input/output) functions such as a wireless network card or Bluetooth card.

Your computer has a Card Reader. The Card Reader is a small drive for reading from and writing to removable storage cards (or called memory cards). The Card Reader supports Secure Digital (SD) cards.

To insert a storage card:

1. Locate the Card Reader slot on the left side of the computer.

2. Align the card with its connector pointi ng to the slot and its label

facing up. Slide the card into the slot until it reaches the end.

3. Windows will detect the card and assign it a drive name.

Expanding Your Computer 4-13

To remove a storage card:

1. Double-click My Computer.

2. Right-cli ck the drive with the card and select Eject.

3. Pull the card out of the slot.

4-14

Expanding Your Computer

Using the Port Replicator (Optional)

NOTE: To use the port replicator, the Vehicle Dock driver supplied with your computer must be installed.

A port replicator is available as an option. This device eliminates the hassles of having you connect and disconnect the various cables when carrying your computer around and allows a variety of peripherals to be connected including a headphone or microphone, etc. The port replicator connects to the expansion bus connector at the botto m of yo ur computer.

1. Slide open the expansion bus connector cover.

Expanding Your Computer 4-15

2. Connect your port replicator to the expansion bus connector.

For more detailed information, refer to the instructions supplied with the port replicator.

4-16

Expanding Your Computer

System Memory Upgrade

You can upgrade your computer by changing system memory to a maximum of 8 GB on the DDR3 SO-DIMM slot.

CAUTION: RAM modules are extremely sensitive to static electricity. There are cases where static electricity generated by the human body has adversely affected such modules. When inserting or removing a RAM module, do not touch the terminals or internal components, insert objects other than the module, or allow foreign particles to enter. Doing so has been known to cause damage, fire, or electrical shock.

To install the RAM module:

1. Remove the battery pack (see chapter 3) and make sure that the

computer is not connected to AC power.

2. Carefully place the notebook computer upside down.

3. Remove the four screws to open the compartment cover.

Expanding Your Computer 4-17

4. To install the RAM module, ma tch the module's notched part with the

socket's projected part and firmly insert the module into the socket at a 20-degree angle. Then push down until the reta ining clips lock the module into position.

CAUTION: If the RAM module is difficult to insert or difficult to push down, do not force it. Check once more to ensure that the module is positioned correctly.

5. Close the compartment cover and secure with four screws.

4-18

Expanding Your Computer

Chapter 5

Using BIOS Setup and System Recovery

BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the computer. BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand. The BIOS settings are needed by your computer to identify the types of installed devices and establish special features.

System Recovery reinstalls Windows to your computer and restores it to the factory default status.

This chapter tells you how to use the BIOS Setup and System Recovery.

Using BIOS Setup and System Recovery 5-1

BIOS Setup

When to Use

You need to run BIOS Setup Utility when:

 You see an error message on the screen requesting you to run BIOS

Setup Utility.

 You want to restore the factory default BIOS settings.  You want to modify some specific settings according to the hardware.  You want to modify some specific settings to optimize the system

performance.

How to Use

Starting BIOS Setup

NOTE:

 The BIOS Setup Utility screens shown in this chapter are for your reference

only. The actual items or settings on your computer may differ.

 The BIOS Setup Utility program may have been updated after the publication

of this manual.

 The settings you select in your operating system might override similar

settings in BIOS Setup Utility.

To run BIOS Setup Utility, press the F2 key when the prompt appears on the screen during the system startup. The prompt shows up on the screen for only a few seconds. You must press the F2 key quickly. The BIOS Setup Utility main screen appears as shown next.

5-2

Using BIOS Setup and System Recovery

Main Advanced Security Boot Exit

Model:

SATA HDD:

System Time:

System Date:

Processor Info: Installed System Memory:

System BIOS Version: KBC/EC BIOS Version:

LAN MAC Address: Serial Number:

F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults Esc Exit ←→ Select Menu Enter Select  Sub-Menu F10 Save and Exit

V100

[INTEL SSDSA2M080G2GC] 80026MB

[16:33:08] [06/10/2010]

Intel(R)Core(TM)i7 CPU U640@1.20GHz 4096 MB

R1.01 R1.01e

00-22-20-0A-74-F9 RA539V0013

The BIOS Setup Utility screen can be divided into four areas:

 On the top is the menu bar con taining the titles of the available

menus. Each menu title brings a specific menu.

 The left column of the menu displays the menu items.  The right column of the menu provides more detailed information

when a menu item is highlighted.

 The bottom of the menu provides keyboard instructions for moving

around and making selections.

Moving Around and Making Selections

You must go through two or thre e levels to complete the setting for an item. In most cases, there are two levels: menu title and submenu.

Use the keyboard to move around and make selections. Keyboard information can be found at the bottom of the screen. A brief description of keyboard usage is listed next:

Using BIOS Setup and System Recovery 5-3

Key Function

 ,  Selects a me nu title.  ,  Selects an item or option.

+ / – Changes the value.

Enter

Esc

F1 F9 F10

1) Brings up the sub-menu when available.

2) Opens or closes the option window when an item is selected.

1) Exits BIOS Setup Utility.

2) Closes the option window if one is open. Provides help information. Loads setup defaults. Saves and exit the BIOS Setup Utility.

5-4

Using BIOS Setup and System Recovery

Getac Technology 043 User Manual
