V100 Operation Manual

(This version is for Safety Approval only)

(October 2008)

TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies.

NOTE The information in this manual is subject to change without notice.

ENERGY STAR

is a government program that offers businesses and consumers energy-efficient solutions, making it easy to save money while protecting the environment for future generations.

Please reference ENERGY STAR

related information from

www.energystar.gov.

As an ENERGY STAR determined that this product meets the ENERGY STAR

Partner, MiTAC Technology Corporation has

guidelines for

energy efficiency.

An ENERGY STAR

qualified computer uses 70 % less electricity than

computers without enabled power management features.

Earning the ENERGY STAR®

z When every home office is powered by equipment that has earned the

ENERGY STAR

, the change will keep over 289 billion pounds of

greenhouse gases out of the air.

z If left inactive, ENERGY STAR

qualified computers enter a low-power mode and may use 15 watts or less. New chip technologies make power management features more reliable, dependable, and user-friendly than even just a few years ago.

z Spending a large portion of time in low-power mode not only saves

energy, but helps equipment run cooler and last longer.

z Businesses that use ENERGY STAR

enabled office equipment may

realize additional savings on air conditioning and maintenance.

z Over its lifetime, ENERGY STAR

qualified equipment in a single home office (e.g., computer, monitor, printer, and fax) can save enough electricity to light an entire home for more than 4 years.

z Power management (“sleep settings”) on computers and monitors can

result in much savings annually.

Remember, saving energy prevents pollution

Because most computer equipment is left on 24 hours a day, power management features are important for saving energy and are an easy way to reduce air pollution. By using less energy, these products help lower consumers’ utility bills, and prevent greenhouse gas emissions.

Table of Contents

Table of Contents........................................................................i

Preface v

Notational Conventions.......................................................vi

Getting Started........................................................................1-1

Getting the Computer Running ............................................ 1-2

Unpacking ........................................................................ 1-2

Connecting to AC Power ................................................. 1-2

Opening and Closing the Cover ....................................... 1-4

Operating in Tablet Mode ................................................ 1-4

Turning On and Off the Computer................................... 1-5

Attaching the Hand Strap ................................................. 1-7

Taking a Look at the Computer............................................ 1-8

Right-Side Components ................................................... 1-8

Left-Side Components ..................................................... 1-9

Rear Components ........................................................... 1-11

Front Components.......................................................... 1-12

Bottom Components....................................................... 1-13

Top-open Components................................................... 1-14

Where to Go from Here...................................................... 1-17

Operating Your Computer......................................................2-1

Starting and Stopping the Computer .................................... 2-2

Starting the Computer ...................................................... 2-2

Stopping the Computer .................................................... 2-2

Using the Internal Keyboard ................................................ 2-5

Typewriter Keys............................................................... 2-5

Cursor-Control Keys ........................................................ 2-6

Numeric Keypad .............................................................. 2-6

Function Keys .................................................................. 2-7

Fn Key.............................................................................. 2-7

Hot Keys .......................................................................... 2-7

Using the Software Keyboard ............................................ 2-10

Using the Touchpad ........................................................... 2-11

Configuring the Touchpad ............................................. 2-12

Using the Touchscreen (Optional) ..................................... 2-13

Using the Active Digitizer Feature (Optional) ................... 2-14

Using the Hard Disk Drive................................................. 2-16

Using the Video Features ................................................... 2-17

Configuring the Display Modes ..................................... 2-17

Using the Audio Features................................................... 2-19

Connecting Audio Devices ............................................ 2-19

Using the Communication Features ................................... 2-21

Using the Modem........................................................... 2-21

Using the Bluetooth Feature........................................... 2-22

Using the GPS................................................................ 2-25

Managing Power......................................................................3-1

AC Adapter .......................................................................... 3-2

Battery Pack ......................................................................... 3-3

Charging the Battery Pack ............................................... 3-3

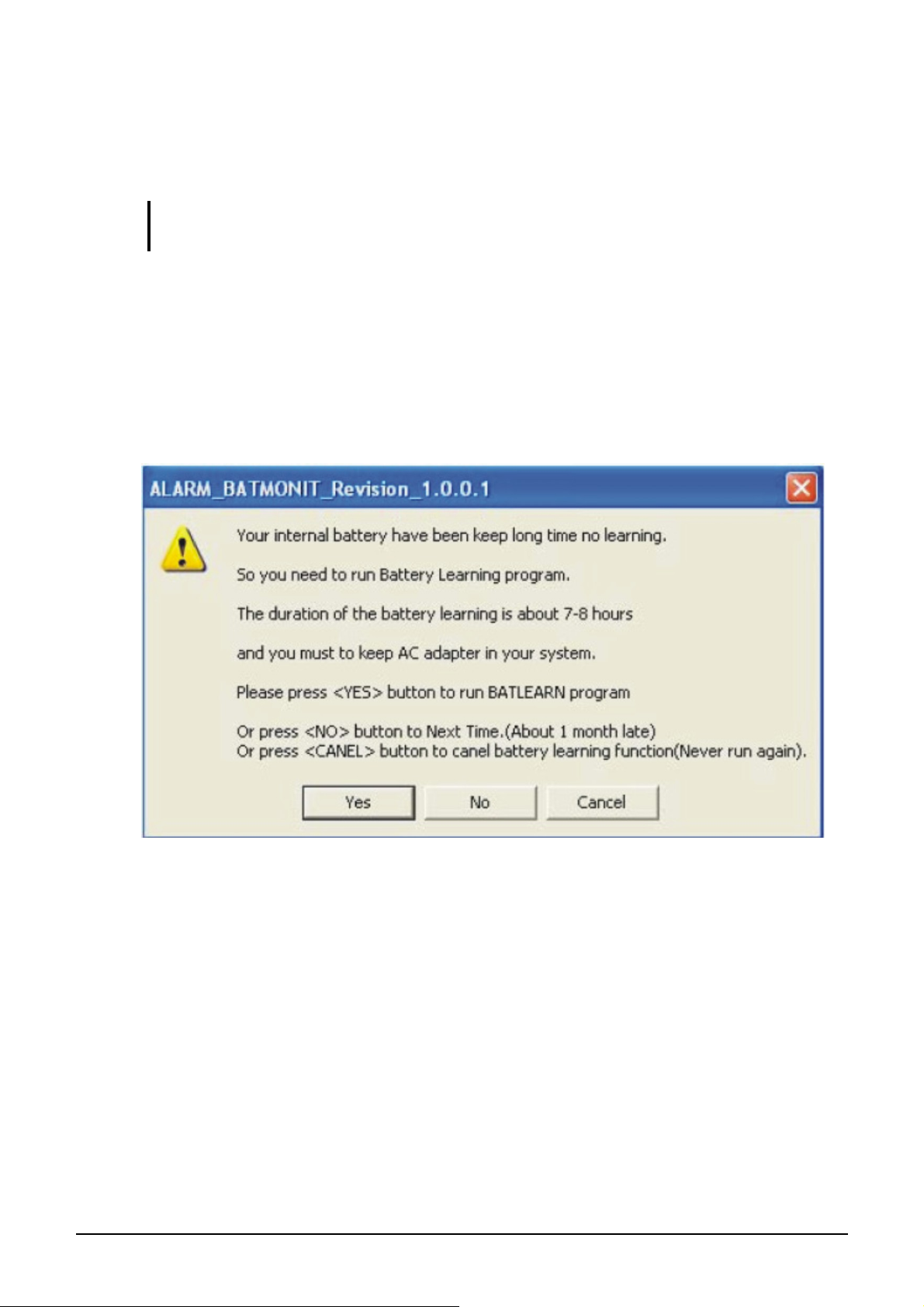

Battery Automatic Calibration Utility.............................. 3-5

Checking the Battery Level.............................................. 3-7

Replacing the Battery Pack .............................................. 3-8

Battery Low Signals and Actions................................... 3-10

Power Management............................................................ 3-11

Hibernation..................................................................... 3-12

Power-Saving Tips ............................................................. 3-13

Expanding Your Computer.....................................................4-1

Connecting an External Monitor (Optional) ........................ 4-2

Connecting a Serial Device .................................................. 4-3

Connecting a USB Device.................................................... 4-4

Using Smart Cards (Optional).............................................. 4-5

Inserting and Removing a Smart Card ............................. 4-5

Using PC Cards .................................................................... 4-6

Inserting and Removing a PC Card.................................. 4-6

Using ExpressCards (Optional)............................................ 4-7

ExpressCard Type ............................................................ 4-7

Inserting and Removing an ExpressCard ......................... 4-8

Using the Card Reader ......................................................... 4-9

Using the Port Replicator (Optional).................................. 4-11

System Memory Upgrade................................................... 4-12

Using BIOS Setup ...................................................................5-1

When to Use BIOS Setup..................................................... 5-2

When to Use..................................................................... 5-2

When and How to Use the System Recovery Feature.......... 5-3

When to Use..................................................................... 5-3

Starting System Recovery ................................................ 5-3

Installing Software Drivers.....................................................6-1

How to Use the Driver Disc ................................................. 6-2

Caring for the Computer.........................................................7-1

Protecting the Computer....................................................... 7-2

Using the Windows Security Center ................................ 7-2

Using the Cable Lock....................................................... 7-4

Taking Care of the Computer............................................... 7-5

Location Guidelines ......................................................... 7-5

General Guidelines........................................................... 7-5

Cleaning Guidelines ......................................................... 7-6

Battery Pack Guidelines................................................... 7-6

When Traveling.................................................................... 7-7

Troubleshooting......................................................................8-1

Preliminary Checklist........................................................... 8-2

Solving Common Problems.................................................. 8-3

Battery Problems.............................................................. 8-4

iii

Bluetooth Problems.......................................................... 8-4

Display Problems ............................................................. 8-5

Hardware Device Problems.............................................. 8-6

Hard Disk Drive Problems ............................................... 8-6

Keyboard, Mouse, and Touchpad Problems .................... 8-7

LAN Problems ................................................................. 8-8

Modem Problems ............................................................. 8-8

PC Card Problems ............................................................ 8-8

Power Management Problems.......................................... 8-9

Software Problems ......................................................... 8-10

Sound Problems ............................................................. 8-10

Startup Problems ............................................................ 8-11

Other Problems............................................................... 8-11

Resetting the Computer...................................................... 8-12

Specifications.........................................................................A-1

Regulatory Information..............................................................1

On the Use of the System.........................................................2

Class B Regulations .............................................................2

Safety Notices ......................................................................3

On the Use of the RF Device....................................................6

USA and Canada Safety Requirements and Notices............6

European Union CE Marking and Compliance Notices ......9

Preface

This manual contains information that will help you operate the computer. It is divided into 8 chapters and 2 appendices.

z Chapter 1, Getting Started, takes you through the process of setting

up the computer and identifying its external components.

z Chapter 2, Operating Your Computer, tells you how to use the

computer’s components and features.

z Chapter 3, Managing Power, provides information on power. z Chapter 4, Expanding Your Computer, provides information on

installing and using peripheral devices.

z Chapter 5, Using BIOS Setup, describes the BIOS Setup program

that configures the computer’s BIOS settings.

z Chapter 6, Installing Software Drivers, describes how to install the

drivers and utilities supplied with the computer.

z Chapter 7, Caring for the Computer, gives you tips in care and

maintenance.

z Chapter 8, Troubleshooting, gives solutions to common problems

you may encounter when using the computer.

z Appendix A, Specifications, gives a brief specification of the

computer.

z Appendix B, Regulatory Information, provides regulatory

statements and safety notices on your computer.

Notational Conventions

Throughout this manual, the following conventions are used to distinguish elements of text.

NOTE: identifies additional information that requires special attention. CAUTION: identifies important information that, if not followed, may result in loss of

data or damage to the computer.

Keyboard keys are shown in a bold typeset. For example:

Press the

Enter key to complete.

When keys are joined by a plus sign (+), press the first key, and, while keeping the first key down, press the remaining keys, finally release all the keys. When necessary, keys are also shown in graphics.

A title, command, setup item, or button that you can see on the screen is shown in boldface. A value or an option that you can select for a setup item is shown in italic. For example:

Select Power Schemes, set it to Portable/Laptop, and then click

the

OK button.

Chapter 1

Getting Started

Congratulations on purchasing this rugged computer.

This chapter first tells you step by step how to get the computer up and running. You will find instructions for these procedures:

z Unpacking

CHAPTER

z Connecting to AC power

z Opening and closing the cover

z Turning on the computer

z Turning off the computer

z Attaching the grid-type hand strap

Then, you will find a section briefly introducing the external components of the computer. And the last section navigates you to the information you may need after the computer is ready for use.

Getting Started 1-1

Getting the Computer Running

This section guides you through the procedures for getting the computer ready for operation.

Unpacking

After unpacking the shipping carton, you should find these standard items:

z Notebook computer

z Accessories:

− AC adapter

− AC power cord

− Grid-type hand strap

− Driver disc

− Stylus (option)

− Digitizer pen (option)

− Size “AAAA” battery (option)

Inspect all the items. If any item is damaged or missing, notify your dealer immediately.

Keep the shipping carton and packing materials in case you need to ship or store the computer in the future.

Connecting to AC Power

The computer operates either on the external AC power or internal battery power. It is suggested that you use AC power when you start up the computer for the very first time.

CAUTION: Use only the AC adapter included with your computer. Using other AC adapters may damage the computer.

1. Make sure that the computer is turned off.

Getting Started 1-2

2. Plug the DC cord of the AC adapter to the power connector of the

computer (n).

3. Plug the female end of the AC power cord to the AC adapter and the

male end to an electrical outlet (o).

4. When the AC adapter is connected, power is being supplied from the

electrical outlet to the AC adapter and onto your computer. Now, you are ready to turn on the computer.

CAUTION:

z When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the computer. A reverse procedure may damage the AC adapter or the computer.

z When unplugging the connector, always hold the plug head. Never pull on the cord.

NOTE: When the AC adapter is connected, it also charges the battery pack. For information on using battery power, see Chapter 3.

Getting Started 1-3

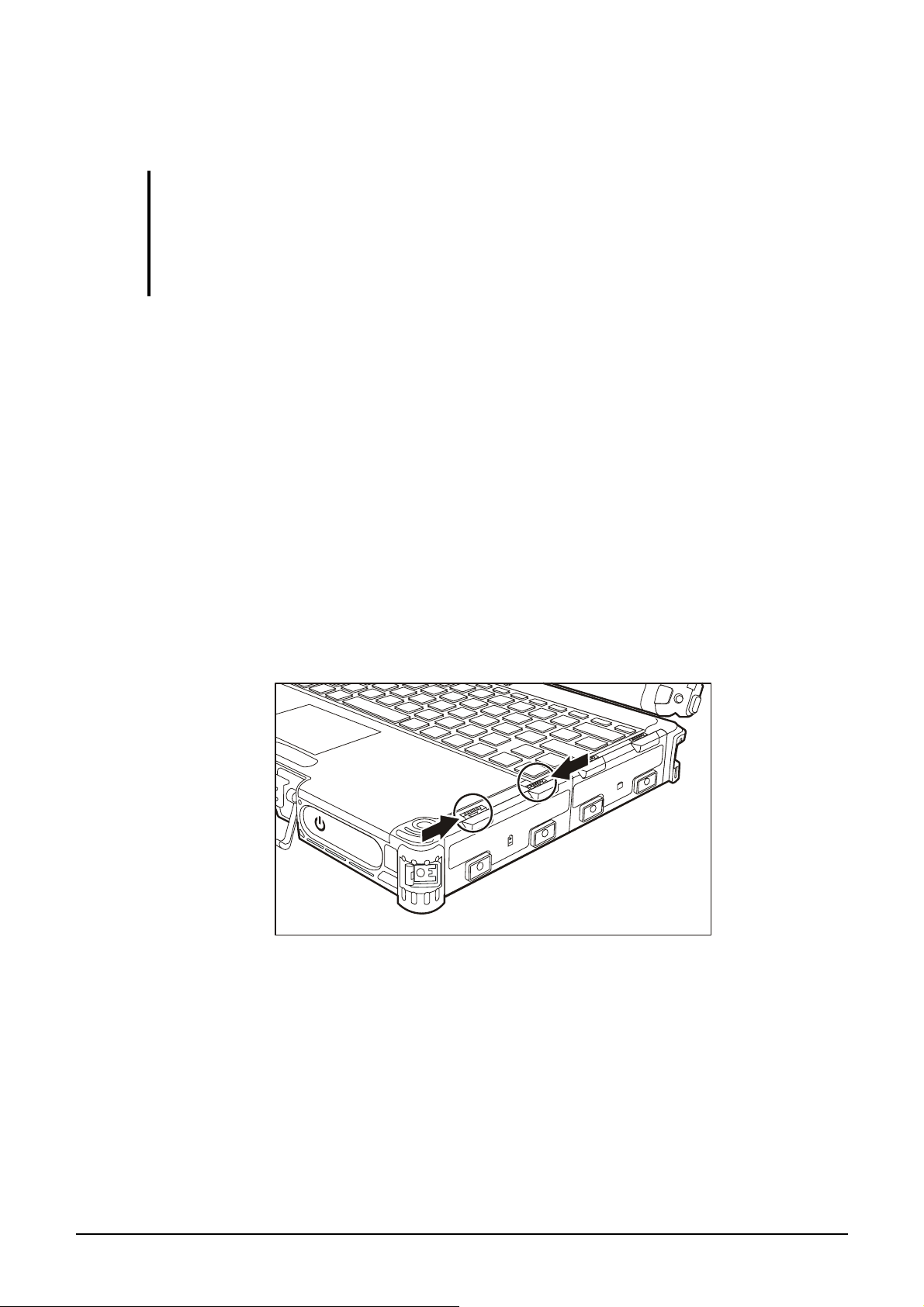

Opening and Closing the Cover

Open the top cover by pulling up on latch A and releasing latch B and lifting up the cover. You can tilt the cover forward or backward for optimal viewing clarity.

Close the top cover by closing the display. Then position latch B on the display side and bring latch A down to fix the display in place.

Operating in Tablet Mode

In addition to being used as a regular notebook computer (Laptop mode), your computer can also be operated in Tablet mode. In Tablet mode, the computer can be operated using the touchscreen or active digitizer feature with the software keyboard (see chapter 2), and the tablet buttons (see later section on “Front Components”), instead of the internal keyboard and the touchpad.

1. Open the top cover so that it is almost perpendicular with the

keyboard of the computer.

2. Turn the display counter-clockwise by 180

Getting Started 1-4

CAUTION: Do not rotate the display more than 180o, or attempt to rotate the display clockwise.

3. Close the computer with the display facing up. Then pull up on the

latch A.

4. Position the latch B on the display side, then bring latch A down to fix

the display in place.

In Tablet mode, the computer can be operated while holding it as shown.

To return to Laptop mode, perform the steps for changing the computer into Tablet mode in reverse order.

Turning On and Off the Computer

Turning On

1. Make sure that the computer is connected to AC power.

Getting Started 1-5

2. Press the power button ( ).

3. Each time the computer is turned on, it performs a Power-On Self

Test (POST), and the operating system such as Windows should start.

Turning Off

To turn off the computer power, use the “Shut Down” command of your operating system.

NOTE: There are other ways you can stop the computer so that you will be back to where you left off when you next turn on the computer. (See “Stopping the Computer” in Chapter 2 for information.)

CAUTION: If you have to turn the computer on again immediately after turning it off, wait for at least five seconds. Turning the computer off and on rapidly can damage it.

Getting Started 1-6

Attaching the Hand Strap

The hand strap can be attached to any two sides of the four (option) corners of your computer.

Standard setup: two buckles on the left/right front side of your computer.

To release, press on the right spring latch first to detach the right side. Then release the left side.

Optional setup: buckles on four corners of your computer.

CAUTION:

z The strap has been designed to carry only the weight of the computer. Therefore,

be sure that the strap does not carry a weight that exceeds the weight of the computer. The strap may accidentally come loose from the computer.

z Do not use a strap that is damaged or about to tear.

Getting Started 1-7

Taking a Look at the Computer

This section identifies the external components of the computer and briefly describes the function of each component.

NOTE: Depending on the model you purchased, the appearance of your computer may not be exactly the same as those shown in this manual.

Right-Side Components

Ref Component Description

Battery Pack Compartment

Hard Disk Drive Compartment

Inside is the battery pack that supplies power to your computer when external power is not connected.

Inside is the hard disk drive.

Getting Started 1-8

Left-Side Components

Ref Component Description

Power Connector

USB Ports

RJ-11 Connector

RJ-45 Connector

ExpressCard Slot

(upper)

PCMCIA Slot

(lower)

PCMCIA Slot

(upper)

Connects the AC adapter.

Each of the two ports connects a USB device, such as a flash disk, printer, digital camera, joystick, and more.

Connects the telephone line.

Connects the LAN cable.

Accepts an ExpressCard for additional functions (option).

Accepts a PC card for additional functions.

Smart Card Reader (lower)

Card Reader

Getting Started 1-9

Accepts a smart card for additional security feature (option).

Accepts a SD (Secure Digital) card for removable storage media.

Rear Components

Ref Component Description

Hand Strap

Holder Audio Output

Connector Microphone

Connector Kensington Lock

VGA Connector

Serial Connector

The hand strap can be attached to the two holders for convenient handling of your computer.

Connects a set of headphones, external speakers with amplifier, or an audio recording device.

Connects an external microphone.

Locks the computer to a stationary object for security.

Connects an external display monitor.

NOTE: Depending on your model, this port could be a serial

connector.

Connects a serial mouse or serial communication device.

Getting Started 1-10

Front Components

Ref Component Description

Hand Strap Holder

EasyTap Utility Button

Sunlightreadable Button

Reset Button

Software Keyboard Button

RF Button Top Cover Latch

Power Button

The hand strap can be attached to the two holders for convenient handling of your computer.

Toggles the “EasyTap” utility ON and OFF.

Toggles the sunlight-readable function ON and OFF.

Serves as the Ctrl+Alt+Del keyboard buttons.

Shows or hides the software keyboard on your LCD display.

Bluetooth

Locks the top cover.

Turns the computer power ON and OFF.

wireless power ON and OFF.

Getting Started 1-11

Bottom Components

Ref Component Description

Antenna Connector

Expansion Bus

Connector

Speaker

Memory Slot

Inside is the connector for using an external antenna.

Inside is the expansion bus connector for using a Port Replicator.

Sends out sound and voice from your computer.

Inside is the memory slot for expanding the memory size of your computer.

Getting Started 1-12

Top-open Components

Ref Component Description

CMOS Camera

LCD Screen Light Sensor

Keyboard Touchpad Indicators

Allows you to use your computer’s camera function.

Displays the output of the computer.

Adjusts the LCD brightness and optional keyboard backlight automatically surrounding.

Serves as the data input device of the computer.

Serves as the pointing device of the computer.

Show the current status of the computer’s devices.

Getting Started 1-13

Ref Component Description

AC Power indicator

Lights green when the computer is turned on and using AC power.

Battery Charge indicator

Lights green when the battery is fully charged.

Lights yellow when the battery is being charged.

Blinks yellow when the battery’s capacity is below 10 %.

Blinks green when battery’s temperature is too high (over 60

Hard disk drive in-use indicator

Lights green when computer is accessing the hard disk drive.

Lights red when optional hard disk drive heater is on for low temperature operation.

C).

Stylus

Bluetooth

Antenna (option)

RF ( Bluetooth

Num Lock indicator

Caps Lock indicator

Provides a convenient way to use the touchscreen. Can be stretched for better grip and handling.

Inside is the antenna for optional Bluetooth feature transmission.

wireless ) indicator

Getting Started 1-14

Where to Go from Here

As your computer is ready for operation, you may want to do any of the following now:

For this purpose... Do this...

To know more about the computer... Go on to the next chapter.

To install the operating system if your dealer has not already done so...

To know more about the operating system...

To install the drivers if your dealer has not already done so...

To charge the battery pack for the first time...

See the operating system manual.

Read the operating system manual.

See Chapter 6.

See “Charging the Battery Pack” in Chapter 3.

Getting Started 1-15

Chapter 2

CHAPTER

Operating Your Computer

This chapter provides information about the use of the computer.

If you are new to computers, reading this chapter will help you learn the operating basics. If you are already a computer user but are new to notebook computers, you may choose to read only the parts containing information unique to your computer.

Described in this chapter are the operating basics of these components:

z Keyboard

z Touchpad

z Touchscreen

z Active Digitizer (option)

z Hard disk drive

And these features:

z Starting and stopping the computer

z Video features

z Audio features

z Communication features

Operating Your Computer 2-1

Starting and Stopping the Computer

There are a number of ways to start and stop the computer.

Starting the Computer

You always start the computer using the power button.

A computer starts up with an operating system (OS) existing on the storage device such as the hard disk. The computer will automatically load the OS after you turn it on. This process is called booting.

NOTE: An operating system is the platform for all your software application programs to run on. Your computer uses the Microsoft Windows Vista operating system.

Stopping the Computer

When you finish a working session, you can stop the computer by turning off the power or leaving the computer in Sleep or Hibernation mode:

To stop in

this mode...

Off Follow the shutdown procedure of your

operating system. This can prevent loss of unsaved data or damage to your software programs.

If the system is locked up because of hardware or software problems, press the power button to turn off the computer.

Sleep Depending on your settings in Windows,

you can place the computer in Sleep mode by:

Do this... To start up or

resume again

Press the power button.

Press any key.

• Closing the display cover

• Pressing the Fn+F10 hot key

• Pressing the power button

Operating Your Computer 2-2

To stop in

this mode...

Hibernation Depending on your settings in Windows,

you can place the computer in

Do this... To start up or

resume again

Press the power button.

Hibernation mode by:

• Closing the display cover

• Pressing the power button

If you choose to stop in Sleep or Hibernation mode, you can return to where you left off the next time you start up the computer. (See “Power Management” in Chapter 3 for more information.)

Operating Your Computer 2-3

Using the Internal Keyboard

Your keyboard has all the standard functions of a full-sized computer keyboard plus a

The standard functions of the keyboard can be further divided into four major categories:

z Typewriter keys

z Cursor-control keys

z Numeric keys

z Function keys

Typewriter Keys

Typewriter keys are similar to the keys on a typewriter. Several keys are added such as the the lock keys (

Caps Lock and Num Lk) are pressed, their corresponding

Fn key added for specific functions.

Ctrl, Alt, Esc, and lock keys for special purposes. When

indicators light up.

The Control ( with other keys for program-specific functions. The Escape (

Ctrl) / Alternate (Alt) key is normally used in combination

Esc) key is

usually used for stopping a process. Examples are exiting a program and canceling a command. The function depends on the program you are using.

Operating Your Computer 2-4

Cursor-Control Keys

NOTE: The word “cursor” refers to the indicator on the screen that lets you know exactly where on your screen anything you type will appear. It can take the form of a vertical or horizontal line, a block, or one of many other shapes.

Numeric Keypad

A 15-key numeric keypad is embedded in the typewriter keys as shown next:

Operating Your Computer 2-5

Numeric keys facilitate entering of numbers and calculations. When Num Lock is on, the numeric keys are activated; meaning you can use these keys to enter numerals.

NOTE:

z When the numeric keypad is activated and you need to type the English letter in the

keypad area, you can turn Num Lock off or you can press Fn and then the letter without turning Num Lock off.

z Some software may not be able to use the numeric keypad on the computer. If so,

use the numeric keypad on an external keyboard instead.

Function Keys

On the top row of the keys are the function keys: F1 to F12. Function keys

are multi-purpose keys that perform functions defined by individual programs.

Fn Key

The Fn key, at the lower left corner of the keyboard, is used with another

key to perform the alternative function of a key. The letter “Fn” and the alternative functions are identified by the color of blue on the keytop. To perform a desired function, first press and hold key.

Hot Keys

Hot keys refer to a combination of keys that can be pressed any time to activate special functions of the computer. Most hot keys operate in a cyclic way. Each time a hot key combination is pressed, it shifts the

Fn, then press the other

corresponding function to the other or next choice.

Operating Your Computer 2-6

You can easily identify the hot keys with the icons imprinted on the keytop. The hot keys are described next.

Key Description

Decreases the sound volume.

Increases the sound volume.

Decreases the LCD brightness (64 levels).

Increases the LCD brightness (64 levels).

Switches the system sound output off (mute) and on.

Switches LCD display on and off.

Switches the display output when external devices are connected.

NOTE: This function only applies to Plug & Play display devices.

Serves as the sleep button that you can define with Windows’

Power Options. (See the “Power Management” in Chapter 3.)

Euro Symbol

You can press the euro dollar sign on various keyboards.

z To press the euro sign on a United States-International keyboard, hold

down the

Alt Gr key and press 5 (which has an euro sign on it).

z To press the euro sign on a standard United States keyboard, hold

down either of the

Alt keys and type 0128 on the numeric keypad part

of your keyboard.

z To press the euro sign on an UK keyboard, hold down the Alt Gr key

and press

Operating Your Computer 2-7

4 (which has an euro sign on it).

Windows Keys

The keyboard has two keys that perform Windows-specific functions:

Windows Logo key and

The software-specific functions when used in combination with other keys. The click. (See your Windows manual for more information.)

Windows Logo key opens the Start menu and performs

Application key usually has the same effect as a right mouse

Application key.

Operating Your Computer 2-8

Using the Software Keyboard

When using the computer in Tablet mode, you can use the software keyboard.

1. Press the software keyboard button (

will appear onscreen.

2. Enter the characters with the stylus.

) and the software keyboard

NOTE: To protect the LCD display, use the stylus on your touchscreen.

Operating Your Computer 2-9

Using the Touchpad

CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may damage the touchpad surface.

NOTE: For optimal performance of the touchpad, keep your fingers and the pads clean and dry. When tapping on the pad, tap lightly. Do not use excessive force.

The touchpad is a pointing device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons.

The touchpad consists of a rectangular pad (work surface) and a left and right buttons. To use the touchpad, place your forefinger or thumb on the pad. The rectangular pad acts like a miniature duplicate of your display. As you slide your fingertip across the pad, the pointer (also called cursor) on the screen moves accordingly. When your finger reaches the edge of the pad, simply relocate yourself by lifting the finger and placing it on the other side of the pad.

Here are some common terms that you should know when using the touchpad:

Term Action

Point Move your finger on the pad until the cursor points to the

selection on the screen.

Click Press and release the left button.

–or–

Tap gently anywhere on the pad.

Double-click Press and release the left button twice in quick succession.

–or–

Tap twice on the pad rapidly.

Operating Your Computer 2-10

Term Action

Drag and drop

Scroll To scroll is to move up and down or left and right in the

Press and hold the left button, then move your finger until you reach your destination (drag). Finally, release the button (drop) when you finish dragging your selection to the destination. The object will drop into the new location.

–or–

Gently tap twice on the pad and on the second tap, keep your finger in contact with the pad. Then, move your finger across the pad to drag the selected object to your destination. When you lift your finger from the pad, the selected object will drop into place.

working area on the screen.

To move vertically, place your finger on the right or left edge of the pad and slide your finger up and down along the edge. To move horizontally, place your finger on the top or bottom edge of the pad and slide your finger left and right.

This function works only after you install the touchpad driver supplied with the computer and it may not work for all applications.

TABLE NOTE: If you swap the left and right buttons, “tapping” on the touchpad

as an alternative method of pressing the left button will no longer be valid.

Configuring the Touchpad

You may want to configure the touchpad to suit your needs. For example, if you are a left-handed user, you can swap the two buttons so that you can use the right button as the left button and vice versa. You can also change the size of the on-screen pointer, the speed of the pointer, and so on.

To configure the touchpad, go to Control Panel Æ Hardware and Sounds Æ Mouse Properties.

Operating Your Computer 2-11

Using the Touchscreen (Optional)

NOTE:

z Your computer comes with either the touchscreen function or the Active Digitizer

feature.

z Make sure the touchscreen driver has been installed properly.

CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the touchscreen. Doing so may damage the touchscreen surface. Use your finger or the included stylus.

The touchscreen is a touch-sensitive device that allows you to easily use the computer without a mouse or touchpad to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons.

Here are some common terms that you should know when using the touchscreen:

Term Action

Click/Point Tap gently on the touchscreen.

Double-click Tap twice on the touchscreen rapidly.

Drag and drop

Press lightly on the touchscreen and move your finger until you reach your destination (drag). Finally, release your finger (drop) when you finish dragging your selection to the destination. The object will drop into the new location.

Operating Your Computer 2-12

Using the Active Digitizer Feature (Optional)

NOTE:

z Your computer comes with either the Active Digitizer feature or the touchscreen

function.

z Make sure the digitizer driver has been installed properly.

CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the LCD display. Doing so may damage the display surface. Use your included digitizer pen (option).

The active digitizer feature allows you to easily use the computer without a mouse, keyboard, or touchpad to communicate with the computer by using the optional digitizer pen.

When using the digitizer pen, be sure to install the included size “AAAA” battery.

Here are some common terms that you should know when using the active digitizer feature:

Term Action

Move Move the cursor pointed by the digitizer

pen.

Click/Point Tap gently on the display.

Double-click Tap twice on the display rapidly.

Operating Your Computer 2-13

Term Action

Drag and drop

Press lightly on the display and move your digitizer pen until you reach your destination (drag). Finally, release your digitizer pen (drop) when you finish dragging your selection to the destination. The object will drop into the new location.

Right-click Press and hold down the digitizer pen

button (A), then tap gently the object.

CAUTION:

z When the LCD display is used alone or with an external display simultaneously, the

digitizer function cannot be used when the area of either display is set larger than the default setting of the display resolution.

z Even when only an external display is in use, the cursor will move on the external

display if you touch the surface of the LCD display with the pen or bring the pen close to the surface of the LCD display when the digitizer driver is active. Therefore, do not touch the LCD display when only an external display is in use.

z The active digitizer feature cannot be used in the BIOS Setup program or when

using the full screen in DOS mode.

NOTE:

z You can move the cursor by bringing the digitizer pen close to the screen, without

actually touching the screen’s surface.

z Do not move the digitizer pen too quickly. If the pen moves too quickly, the cursor

may be unable to follow its movement.

z If you cannot click on the edge of the screen, hold the digitizer pen perpendicular to

the display and try clicking again.

Operating Your Computer 2-14

Using the Hard Disk Drive

WARNING: DO NOT replace the hard disk drive by yourself. Refer all servicing to qualified personnel or your dealer.

Your computer comes with a removable hard disk drive as drive C. A hard disk drive is a storage device with non-removable, rotating, magnetic storage platters inside it. It is where your operating system and application software programs are stored.

Your hard disk drive is a 2.5-inch SATA (serial ATA) hard disk drive. This type of drive embodies the latest in fast, reliable mass storage by integrating all the control circuitry necessary for operation directly onto the drive itself.

You can enable the Advanced Host Controller Interface (AHCI), a programming interface for SATA host controllers. AHCI defines transactions between the SATA controller and software and enables advanced performance and usability with SATA. When the SATA AHCI mode is enabled, your system can support SATA native command queuing, aggressive power management, and so on.

The system may come with an optional heater that automatically turns on for low temperature operation.

CAUTION:

z Make regular backups of your data files from your hard disk drive to USB flash disks

or other storage media.

z Never turn off or reset the computer while the hard disk drive in-use indicator is on.

Operating Your Computer 2-15

Using the Video Features

The video subsystem of your computer features:

z 10.4-inch wide TFT (Thin-Film Transistor) color LCD display with

1024×768 XGA resolution or

z Simultaneous display on LCD and external monitor, which is useful

when you have a presentation as you can control the screen from your computer and face the audience at the same time (option)

z Multi-display capability, which allows you to expand your desktop

on the screen to another display device so that you have more desktop space to work on

Built-in light sensor ( ) to automatically adjust the LCD brightness and optional keyboard backlight

z Power Management

z Sunlight-readable LCD display (option)

NOTE:

z Before using the multi-display capability or taking advantage of the enhanced video

capabilities, the VGA driver supplied with your computer must be installed.

z The computer enters the Sleep or Hibernation mode when the LCD is closed. If you

want to use the computer with the LCD closed, set Do Nothing to the “When I Close the lid” option in the Power Options Æ System Settings Properties. Thus the computer does not enter the Sleep or Hibernation mode when the LCD is closed.

Configuring the Display Modes

NOTE: When using an external CRT monitor, the resolution depends on the CRT monitor’s supported resolution.

Your computer has been set to a default resolution and number of colors before shipment. You can view and change display settings through your operating system. See your operating system documentation or online help for specific information.

Operating Your Computer 2-16

For displaying in higher resolutions, you can connect an external monitor that supports higher resolutions. (See “Connecting an External Monitor” in Chapter 4 for more information.)

Operating Your Computer 2-17

Using the Audio Features

NOTE:

z To take advantage of the enhanced audio capabilities, the audio driver supplied

with your computer must be installed.

z If you experience interference while recording, try lowering the microphone

recording volume.

The audio subsystem of your computer features:

z Built-in sound system for recording and playing sound on your

computer

z Azalia interface (high density audio codec)

z Speaker (located on bottom side), and

z External audio connectors

Ways of playing and recording sound vary with the operating system used. See your operating system documentation or online help for specific information.

Connecting Audio Devices

For higher audio quality, you can send or receive sound through external audio devices.

NOTE: After connecting an external audio device, make sure that you specify the use of the correct audio device in Windows.

Audio Output Connector (

headphones, or earphone set.

) can be connected to speakers,

z Microphone Connector (

) can be connected to an external

microphone for recording voice or sound.

NOTE: When using the external speakers/headphones or microphone, you cannot use the internal one.

Operating Your Computer 2-18

Using the Communication Features

Using the Modem

NOTE: To take advantage of the modem feature, the modem driver supplied with your computer must be installed.

The internal 56 K fax/data modem allows you to use the telephone line to communicate with others by fax, email, or connect to an online service or bulletin board.

To connect the telephone line to the modem, connect one end of the modem cable to the RJ-11 connector on the computer and the other end to the phone line.

NOTE:

z When using the communication software, you may have to disable power

management.

z Set the COM port of the modem to COM3. z Set parameters such as modem speed (baud rate) and line type (pulse dialing or

tone dialing).

z Do not enter the Sleep mode when using the communication software.

Operating Your Computer 2-19

Using the Bluetooth Feature

NOTE: To take advantage of the Bluetooth feature, the Bluetooth driver supplied with your computer must be installed.

Depending on your model, your computer may incorporate the Bluetooth capability for short-range (about 10 meters) wireless communications between devices without requiring a cable connection.

With Bluetooth, data can be transmitted through walls, pockets and briefcases as long as two devices are within range. By default, your computer’s Bluetooth feature is active (always ON) upon booting your computer and is in the general discoverable and pairable mode.

The status of the Bluetooth connection is indicated by the Bluetooth icon located in the system tray in the lower-right part of the screen.

Status Icon

Connected

(blue with white logo).

(blue with green logo)

You can use the Bluetooth Utility to configure Bluetooth connection settings and transfer files.

Connecting to Another Bluetooth Device

1. Make sure that the target Bluetooth device is turned on, discoverable

and within close range. (See the documentation that came with the Bluetooth device.)

2. Click Start and then Programs.

Operating Your Computer 2-20

3. Click IVT BlueSoleil and then BlueSoleil. The following screen

appears.

4. Click View, then Refresh Devices to check if any Bluetooth device is

detected.

Operating Your Computer 2-21

5. To connect to a new device, click Tools then click Add New Device.

6. Depending on the type of Bluetooth device that you want to connect

to, you will need to enter the pertinent information.

For detailed information on using the Bluetooth Utility, see the Bluetooth

Utility Help on your computer by clicking on Help, then Contents and Index.

Operating Your Computer 2-22

Using the GPS

NOTE:

z To take advantage of the GPS feature, the GPS driver supplied with your computer

must be installed.

z You may need to install third-party software to fully take advantage of the GPS

feature.

Navigation and positioning are crucial to so many activities. To try to figure out where you are and where you are going, you need GPS technology. The Global Positioning System (GPS) is a worldwide radio-navigation system.

Operating Your Computer 2-23

Chapter 3

Managing Power

Your computer operates either on external AC power or on internal battery power.

This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.

CHAPTER

The topics in this chapter include:

z What is an AC adapter

z How to charge the battery pack

z When and how to initialize the battery pack

z How to use the Battery Automatic Calibration Utility

z How to check the battery level

z How to replace the battery pack

z What happens when the battery is low and what actions to take

z What is Power Management

z How to save power

Managing Power 3-1

AC Adapter

CAUTION:

z The AC adapter is designed for use with your computer only. Connecting the AC

adapter to another device can damage the adapter.

z The AC power cord supplied with your computer is for use in the country where you

purchased your computer. If you plan to go overseas with the computer, consult your dealer for the appropriate power cord.

z When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the computer. A reverse procedure may damage the AC adapter or computer.

z When unplugging the connector, always hold the plug head. Never pull on the cord.

The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct Current) power because your computer runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power.

The adapter operates on any voltage in the range of 100~240 V AC.

Managing Power 3-2

Battery Pack

The battery pack is the internal power source for the computer. It is rechargeable using the AC adapter.

The operating time of a fully charged battery pack depends on how you are using the computer. When your applications often access peripherals, you will experience a shorter operating time.

NOTE: Care and maintenance information for the battery is provided in the “Battery Pack Guidelines” section in Chapter 7.

Charging the Battery Pack

NOTE:

z Charging will not start if the battery’s temperature is below 0 °C (32 °F) or above

60 °C (140 °F).

z The charging process will stop and the Battery Charge Indicator flashes green

when the battery’s temperature gets above 60 °C (140 °F). If this happens, the battery pack may be damaged. Please contact your dealer.

z During charging, do not disconnect the AC adapter before the battery has been fully

charged; otherwise you will get a prematurely charged battery.

To charge the battery pack, connect the AC adapter to the computer and an electrical outlet. The Battery Charge Indicator (

) on the computer glows yellow to indicate that charging is in progress. You are advised to keep the computer power off while the battery is being charged. When the battery is fully charged, the Battery Charge Indicator is off.

It takes approximately 3 hours to fully charge the Li-Ion battery pack when the computer is off, and approximately 6 hours to fully charge the Li-Ion battery pack when the computer is on.

CAUTION: After the computer has been fully recharged, do not immediately disconnect and reconnect the AC adapter to charge it again. Doing so may damage the battery.

NOTE: The battery level may automatically lessen due to the self-discharge process (0.21 % per day), even when the battery pack is fully charged (100 %). This happens no matter if the battery pack is installed in the computer.

Managing Power 3-3

Battery Automatic Calibration Utility

NOTE: To use the Battery Automatic Calibration Utility, the Battery Calibration driver supplied with your computer must be installed.

After installing the Battery Pack Automatic Calibration Utility, the

Battery Monitor will call up the Battery Learning program every month. Before running Battery Monitor, it will check if the battery

temperature is between 10

C, the following screen appears.

C and 39 oC. When it is between 10 oC and

Click Yes to run the Battery Learning program’s recalibration function

to fully charge the battery pack, discharge it completely, then fully charge it again.

Click No if you do not wish to run the Battery Learning program’s

recalibration function now.

Click Cancel if you do not wish the Battery Monitor to call up the Battery Learning program every month to run the Battery Learning

program’s recalibration function.

Managing Power 3-4

Error Messages

The battery’s performance would degrade as part of its normal wear-and-

tear after using it for a considerable length of time. The Battery Monitor

program would check the battery’s condition and may display the following error messages. You are recommended to replace the battery.

Error Message What it means ...

The Battery is BAD !! Battery Discharge FAIL, Discharge Timer <= Minimum Discharge Time

The Battery is BAD !! Battery Charge FAIL, Charge Timer over time

The Battery is BAD !! Battery Charge FAIL, Charge Timer <= Minimum Charge time

The Battery is BAD !! Battery Discharge FAIL, Discharge Timer >= Maximum Discharge Time

NOTE: Running the Battery Learning program does not increase the battery's capacity. CAUTION: Performing Battery Learning at frequent intervals will degrade the battery

pack.

Battery’s performance has gradually deteriorated. The discharge time is quite short.

Battery’s performance has deteriorated. It cannot be charged.

Battery’s performance has gradually deteriorated. Battery capacity is too little.

Battery's discharge circuit is bad. It cannot discharge.

Managing Power 3-5

Checking the Battery Level

NOTE: Any battery level indication is an estimated result. The actual operating time can be different from the estimated time, depending on how you are using the computer.

By Operating System

You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows, click the using AC power.)

icon on the taskbar. (Click the icon if the computer is

By Gas Gauge

On the exterior side of the battery pack is a gas gauge for displaying the estimated battery charge. When the battery pack is not installed in the computer and you want to know the battery charge, you can press the switch with a pointed device to see the corresponding value of indicator segment that light green. The value of the corresponding green segment indicates the relative percentage of the battery charge. The battery pack is fully discharged when you see no segment glowing green.

Switch

Managing Power 3-6

Replacing the Battery Pack

CAUTION:

z There is danger of explosion if the battery is incorrectly replaced. Replace the

battery only with the computer manufacturer’s optional battery packs. Discard used batteries according to the dealer’s instructions.

z Do not attempt to disassemble the battery pack.

If you often rely on battery power for a long period of time while traveling, you may consider the purchase of an additional battery pack from your dealer and keep it with you in a fully charged state as a backup.

To replace the battery pack, follow these steps:

1. Make sure that the computer is not turned on or connected to AC

power.

2. Locate the battery compartment on the right side of the computer.

3. Open the compartment cover by pressing on both sides of the release

latch using your thumb and index fingers.

Managing Power 3-7

4. Pull on the ribbon strip to remove the battery pack.

5. Slide the new battery pack all the way into the slot. Make sure to

observe the correct orientation (the ribbon strip must face outward for future battery back removal).

6. Close the compartment cover to secure the battery pack.

Managing Power 3-8

Battery Low Signals and Actions

The battery icon

changes appearance to display the current state of the battery so that you can see how much charge remains (Windows default setting). When the battery charge is above 25 % the battery icon is green. When the battery charge reaches 25 % a yellow triangle with an exclamation point (!) appears above the green battery icon. When the

charge reaches the low battery level a red circle with a white “X” appears

above the green icon. The computer’s Battery Charge Indicator (

)

blinks yellow to alert you to take actions.

Immediately save your data upon Battery Low. The remaining operating time depends on how you are using the computer. If you are using the audio subsystem, PC card, hard or USB flash disk, the battery might run out of charge very quickly.

Always respond to Battery Low by placing your computer on Hibernation mode, turning off the computer, or connecting the AC adapter.

CAUTION:

z If you are using a PC card, do not access the card during battery low periods. This

is because the access may take longer than the time it takes the battery to run out of charge, thus making your access to the card unsuccessful.

z If you fail to save your data when the battery completely runs out of charge, then

you lose your data.

Managing Power 3-9

Power Management

Your computer supports ACPI (Advanced Configuration and Power Interface) for power management. The power management feature allows you to reduce the power consumption for energy saving.

With an ACPI-compliant operating system such as Windows Vista, power supply to different computer components is controlled on an as-needed basis. This allows maximum power conservation and performance at the same time.

In general, Windows’ power management works in this way:

What... When...

Power to the hard disk is turned off When the hard disk has been idle for a

set period.

Power to the display is turned off When the display has been idle for a

set period.

The computer enters the Sleep mode. The hard disk and display are turned off and the entire system consumes less power.

The computer enters the Hibernation mode. (See the next subsection for more information.)

* Depends on your settings in Windows.

When the entire system has been idle for a set period.

When you press the Fn+F10 hot key. *

When you close the cover. *

When you press the power button. *

When you press the Fn+F10 hot key. *

When you close the cover. *

When you press the power button. *

For detailed information on power management, see Windows’ Help.

Managing Power 3-10

Hibernation

NOTE: Make sure that the hibernation feature is enabled in the “When I press the power button,” “When I press the sleep button,” and “When I close the lid” of the Power Options Æ System Settings Properties from the Control Panel Æ Mobile PC in Windows Vista.

Hibernation is a very useful feature. People frequently open many applications when they use computers. It takes some time to get all these applications open and running, and normally they all have to be closed before the computer can be turned off.

When you use the hibernation feature, you do not have to close the applications. The computer stores the state of your computer to a file on the hard disk and then shuts down. The next time you turn on your computer, you return to exactly where you left off.

Managing Power 3-11

Power-Saving Tips

Aside from enabling your computer’s power saving mode (see previous section), you can do your part to maximize the battery’s operating time by following these suggestions.

z Do not disable Power Management. Choose a Windows power plan

that saves power. A power plan is a collection of hardware and system settings that control how your computer manages power.

z Decrease the LCD brightness to the lowest comfortable level.

z Shorten the length of time before Windows turn off the display.

z Many USB devices use power just by being connected. If you use a

USB mouse, you can save power by disconnecting the mouse and using the touchpad. If you use a USB flash drive, unplug it when you are not using it.

z If you work with an application that uses a PC card, exit the

application when you finish using it.

z If you have a PC card installed, remove it when not in use. Some PC

cards drain power even while they are inactive.

z Deactivate the Bluetooth

wireless function if you are not using it

(see Chapter 2).

z Turn off the computer when you are not using it.

Managing Power 3-12

Chapter 4

CHAPTER

Expanding Your Computer

You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter.

This chapter gives guidelines on installing and using these devices:

z External monitor (option)

z Serial device

z USB device

z Smart Card

z PC card

z ExpressCard

z Card Reader

z Port Replicator

z System memory

Expanding Your Computer 4-1

Connecting an External Monitor (Optional)

If you want the benefits of a larger display screen with higher resolution, you can connect an external display monitor to your computer. Follow this procedure to connect an external monitor:

1. Make sure that the computer is not turned on.

2. Plug the monitor’s D-type signal connector to the computer’s VGA

connector.

3. Plug one end of the monitor’s power cord into the power socket on

the monitor and the other end to an electrical outlet.

4. To use the monitor, turn on the monitor before turning on the

computer.

5. The monitor should respond by default. If not, you can switch the

display to the monitor or to both (simultaneous display), or to multi-display by pressing the

also change the display through the Display Settings Properties.

6. You can change display settings through your operating system. See

your operating system documentation or online help for specific information.

CAUTION: Do not disconnect the external monitor while the computer is in the Sleep mode or Hibernation mode. If no external monitor is connected when the computer resumes, the LCD might not display properly.

Fn+F9 hot key. In Windows, you can

Expanding Your Computer 4-2

Connecting a Serial Device

Your computer has one or two serial port (depending on model) for connecting a serial device such as a serial mouse or serial communication device (modem).

Follow this procedure to connect a serial device:

1. Make sure the computer is not turned on

2. Plug the device cable to the serial port on the rear of the computer.

3. Turn on the computer.

NOTE: Portable modems that derive power through the serial port cannot be used with the computer. Instead, use a modem that is powered by its own internal battery or external AC power.

Expanding Your Computer 4-3

Connecting a USB Device

Your computer has two USB ports for connecting USB devices, such as a digital camera, scanner, printer, modem, and mouse.

The USB ports support transfer rates up to 12 MB/s for USB 1.1 devices and 480 MB/s for USB 2.0 devices.

To connect a USB device, simply plug the device cable to one of the USB ports.

Expanding Your Computer 4-4

Using Smart Cards (Optional)

Your computer may have a smart card slot for additional security feature, providing tamper-proof storage of user and account identity. A smart card is a type of plastic card embedded with a computer chip that stores and transacts data between you (user) and the computer.

You need to install third-party smart card software to take advantage of the smart card feature.

Inserting and Removing a Smart Card

To insert a smart card:

1. Locate the smart card slot.

2. Slide the smart card, with its label and embedded computer chip

facing up into the slot.

3. When a new card is seated, use the third-party smart card software to

allow your computer to read it.

To remove a smart card:

1. Make sure that the third-party smart card software is not accessing the

smart card.

2. Pull the card out of the slot.

Expanding Your Computer 4-5

Using PC Cards

Your computer has one or two PC card slots that support CardBus specifications. The slots can accommodate a type II card. Typical type II cards are flash memory, SRAM, modem, LAN, and SCSI cards.

Inserting and Removing a PC Card

NOTE:

z Some PC cards require additional system resources. Before using such PC card,

you may have to free other system resources for the PC card.

z Although some PC cards can be inserted and removed without turning off the

computer, you cannot remove or install PC cards during Sleep mode.

To insert a PC card:

1. Locate the PC card slot on the left side of the computer.

2. Slide the PC card, with its label facing up, into the slot until the eject

button pops out.

3. When a new card is seated, the computer will detect it and try to

install the appropriate driver. Follow the on-screen instructions to complete the process.

To remove a PC card:

1. Double-click on the Safely Remove Hardware

icon found on the

Windows taskbar and the Safely Remove Hardware window appears

on screen.

2. Select (highlight) the PC card from the list to disable the card.

3. Push the eject button and the card will slide out slightly.

4. Pull the card out of the slot.

Expanding Your Computer 4-6

Using ExpressCards (Optional)

NOTE:

z The ExpressCard interface is not compatible with the PC card interface. z To take advantage of the ExpressCard interface, the ExpressCard driver supplied

with your system must be installed.

Your computer may have an ExpressCard slot.

ExpressCard supports the PCI Express and USB 2.0 serial data interfaces (supporting speeds of up to 2.5 Gbps and 480 Mbps respectively), improving speed in data transfer while conserving power usage.

ExpressCard Type

The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm (ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very extensive range of applications including memory, wired and wireless communication cards, and security devices.

Shown next are the appearances of ExpressCards for your reference.

ExpressCard/54 ExpressCard/34

Expanding Your Computer 4-7

Inserting and Removing an ExpressCard

To insert an ExpressCard:

1. Locate the ExpressCard slot on the left side of the computer.

2. Slide the ExpressCard, with its label facing up, all the way into the

slot until the rear connectors click into place.

3. When a new card is seated, the computer will detect it and try to

install the appropriate driver. Follow the on-screen instructions to complete the process.

To remove an ExpressCard:

1. Double-click on the Safely Remove Hardware

Windows Vista taskbar and the Safely Remove Hardware window

appears on screen.

2. Select (highlight) the ExpressCard from the list to disable the card.

3. Push the eject button and the card will slide out slightly.

4. Pull the card out of the slot.

icon found on the

Expanding Your Computer 4-8

Using the Card Reader

NOTE:

z To use the Card Reader, the SD Reader driver supplied with your computer must

be installed.

z If your hard disk is divided into several drives, make sure that all drives have been

formatted before using the Card Reader. Otherwise, you may encounter problems when using the Card Reader.

z You can use only storage cards. Your Card Reader does not support cards with I/O

(input/output) functions such as a wireless network card or Bluetooth card.

Your computer has a Card Reader. The Card Reader is a small drive for reading from and writing to removable storage cards (or called memory cards). The Card Reader supports Secure Digital (SD) cards.

Shown next is the appearance and size of Secure Digital (SD) card type for your reference.

24×32×2.1 (mm)

To insert a storage card:

1. Locate the Card Reader slot on the left side of the computer.

2. Align the card with its connector pointing to the slot and its label

facing up. Slide the card into the slot until it reaches the end.

3. Windows will detect the card and assign it a drive name (typically E).

To remove a storage card:

1. Double-click My Computer.

2. Right-click the drive with the card and select Eject.

3. Pull the card out of the slot.

Expanding Your Computer 4-9

Using the Port Replicator (Optional)

NOTE: To use the port replicator, the Vehicle Dock (1) and Vehicle Dock (2) driver supplied with your computer must be installed.

A port replicator is available as an option. This device eliminates the hassles of having you connect and disconnect the various cables when carrying your computer around and allows a variety of peripherals to be connected including a headphone or microphone, etc. The port replicator connects to the expansion bus connector at the bottom of your computer.

1. Slide open the expansion bus connector cover.

2. Connect your port replicator to the expansion bus connector.

For more detailed information, refer to the Operating Instructions of the port replicator.

CAUTION: Hot/warm docking and hot/warm undocking are not possible with the port replicator.

Expanding Your Computer 4-10

System Memory Upgrade

You can upgrade your computer by changing system memory to a maximum of 4 GB on the DDR2 SO-DIMM slot.

CAUTION: RAM modules are extremely sensitive to static electricity. There are cases where static electricity generated by the human body has adversely affected such modules. When inserting or removing a RAM module, do not touch the terminals or internal components, insert objects other than the module, or allow foreign particles to enter. Doing so has been known to cause damage, fire, or electrical shock.

To install the RAM module:

1. Remove the battery pack (see chapter 3) and make sure that the

computer is not connected to AC power.

2. Carefully place the notebook computer upside down.

3. Remove the two screws to open the compartment cover.

4. To install the RAM module, match the module's notched part with the

socket's projected part and firmly insert the module into the socket at

a 20-degree angle. Then push down until the retaining clips lock the

module into position.

CAUTION: If the RAM module is difficult to insert or difficult to push down, do not force it. Check once more to ensure that the module is positioned correctly.

5. Close the compartment cover and secure with two screws.

Expanding Your Computer 4-11

Chapter 5

Using BIOS Setup

BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output System) settings of the computer.

BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand. The BIOS settings are needed by your computer to

CHAPTER

identify the types of installed devices and establish special features.

This chapter tells you how to use the BIOS Setup program.

Using BIOS Setup 5-1

When to Use BIOS Setup

When to Use

You need to run BIOS Setup Utility when:

z You see an error message on the screen requesting you to run BIOS

Setup Utility.

z You want to restore the factory default settings.

z You want to modify some specific settings according to the hardware.

z You want to modify some specific settings to optimize the system

performance.

Using BIOS Setup 5-2

When and How to Use the System Recovery Feature

When to Use

You need to run System Recovery when:

z Your computer does not start correctly.

z Your Windows operating system does not start at all.

z You want to restore the factory default Windows settings.

Starting System Recovery

WARNING: Using this feature will reinstall Windows to your system and configure it to the system’s factory default settings. All data on the hard disk drive will be lost.

Using BIOS Setup 5-3

To run System Recovery:

1. During system startup when the following screen appears, press

Alt + F2

keys for four seconds or press Enter and select HDI Recovery

when a small window appears on the screen.

Ctrl +

2. The message

HDD to factory default. All data on HDD will be lost

This will help you reinstall Windows to the whole

appears

on the screen to ask if you want to access System Recovery. Type 1 to

continue or type

0 to exit.

3. A warning message appears as follows:

****************************************

You must accept the following terms before performing the recovery process:

1. The recovery software is solely the purpose of reinstalling or restoring software associated with the hard disk of this operating GETAC machine.

2. Except the above, no other use is granted hereunder.

****************************************

(1)Yes, I agree to the provisions of this agreement and wish to continue. (0)No, I do not agree to the provisions of this agreement and do not wish to continue.

Type 1 to continue.

Using BIOS Setup 5-4

4. Type Y when the message Are you sure you want to recover now?

(Y)Yes (N)No

appears onscreen. The following screen appears and system will perform the recovery process and Windows operating system will be re-installed to its default setting:

Using BIOS Setup 5-5

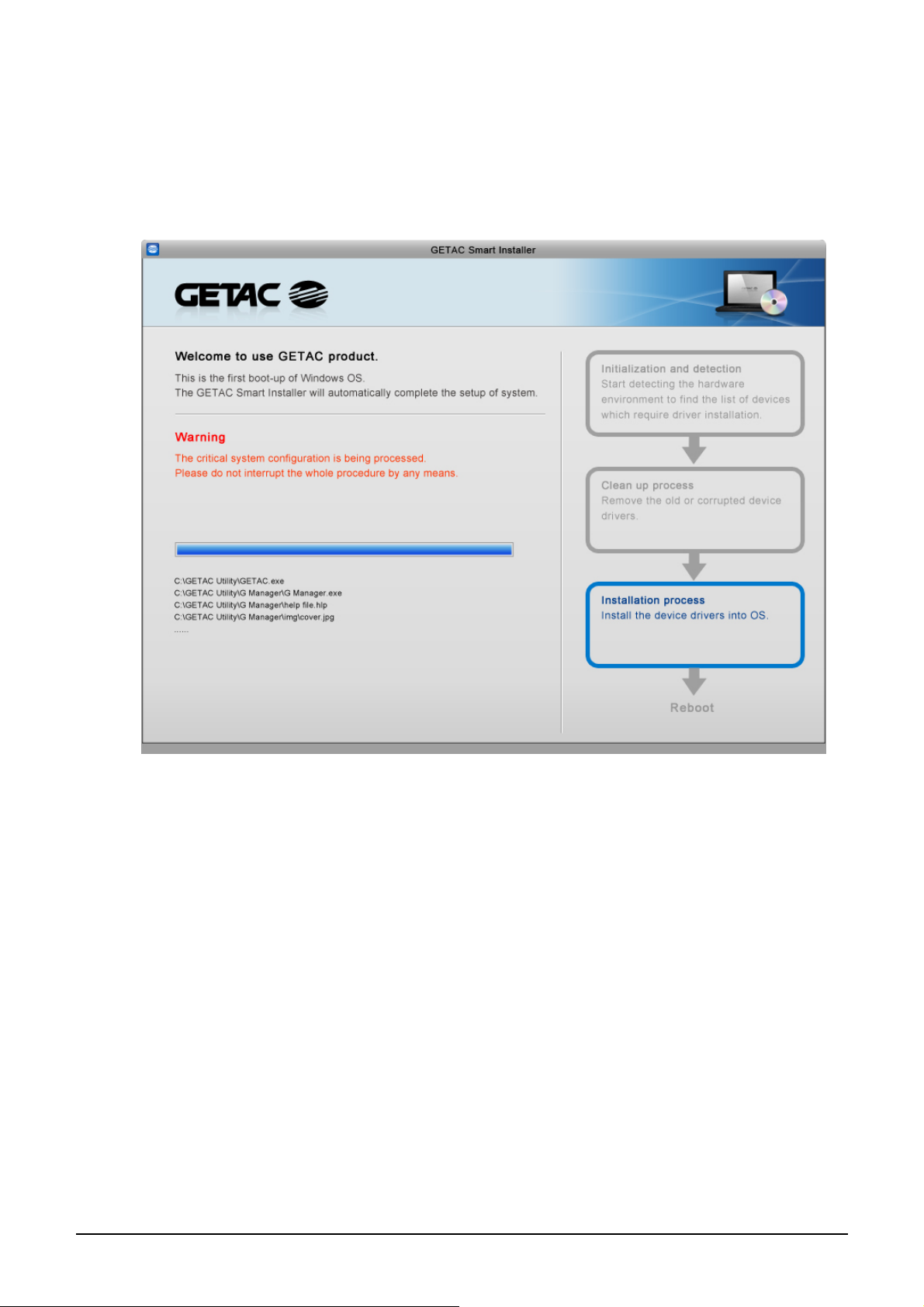

5. After the recovery process has been completed successfully, the GSI

(GETAC Smart Installer) screen is displayed at the first boot-up of Windows operating system.

6. GSI will automatically perform system hardware detection and driver

installation. After GSI has completed the whole process successfully, system will reboot.

Using BIOS Setup 5-6

Chapter 6

CHAPTER

Installing Software Drivers

To take full advantage of the unique features of your computer, some operating systems require custom software, known as drivers, to be installed.

If you purchased the computer with Windows pre-installed, your dealer may have already installed the drivers. If not, you need to install the drivers using the disc supplied with your computer.

This chapter describes how to install the drivers.

Installing Software Drivers 6-1

How to Use the Driver Disc

NOTE:

z The drivers may have been updated after this manual was published. For driver

upgrade, please contact your dealer.

z This disc supports Windows Vista. z The available items may differ according to your computer model. z Do not remove the driver disc when installing the driver.

An autorun program is provided on the driver disc to help you easily install the drivers. As you insert the disc, the autorun program automatically starts. If you need to start the program manually, run the

Autorun.exe program from the driver disc. The main screen appears.

Installing Software Drivers 6-2

Chapter 7

CHAPTER

Caring for the Computer

Taking good care of your computer will ensure a trouble-free operation and reduce the risk of damage to your computer.

This chapter gives you guidelines covering these areas of maintenance:

z How to protect the computer

z What to note when using and storing the computer

z How to clean the computer

z What to note when using the battery pack

z What to note when traveling with the computer

Caring for the Computer 7-1

Protecting the Computer

To safeguard the integrity of your computer data as well as the computer itself, you can protect the computer in several ways as described in this section.

Using the Windows Security Center

Windows Security Center protects your computer against intrusion.

Caring for the Computer 7-2

Windows Security Center alerts you to take action on the following security essentials:

z Windows Firewall

z Windows Update

z Malware Protection (anti-virus, anti-spyware)

z Others (Internet security, user account control)

For detailed information on Windows Security Center, see Windows’ Help.

Using the Cable Lock

You can use a Kensington-type cable lock to protect your computer against theft. The cable lock is available in most computer stores.

To use the lock, loop the lock cable around a stationary object such as a table. Insert the lock to the Kensington lock hole and turn the key to secure the lock. Store the key in a safe place.

Caring for the Computer 7-3

Taking Care of the Computer

Location Guidelines

z Use the computer where the temperature is between 0 °C (32 °F) and

55 °C (131 °F).

z Avoid placing the computer in a location subject to high humidity,

extreme temperatures, mechanical vibration, direct sunlight, or heavy dust.

z Do not cover or block any ventilation openings on the computer. For

example, do not place the computer on a bed, sofa, rug, or other similar surface. Otherwise, overheating may occur that results in damage to the computer.

z Keep the computer at least 13 cm (5 inches) away from electrical

appliances that can generate a strong magnetic field such as a TV, refrigerator, motor, or a large audio speaker.

z Do not move the computer abruptly from a cold to a warm place. A

temperature difference of more than 10 °C (18 °F) will cause condensation inside the unit, which may damage the storage media.

z Do not place the computer on an unsteady surface.

General Guidelines

z Do not place heavy objects on top of the computer when it is closed as

this may damage the display.

z The screen surface is easily scratched. Do not use paper towels to

clean the display. Avoid touching it with your fingers, pen, or pencil.

z To maximize the life of the backlight in the display, allow the

backlight to automatically turn off as a result of power management. Avoid using a screen saver or other software that prevents the power management from working.

Caring for the Computer 7-4

Cleaning Guidelines

z Never clean the computer with its power on.

z Use a soft cloth moistened with water or a non-alkaline detergent to

wipe the exterior of the computer.

z Gently wipe the display with a soft, lint-free cloth. Do not use alcohol

or detergent on the display.

z Dust or grease on the touchpad can affect its sensitivity. Clean the pad

by using adhesive tape to remove the dust and grease on its surface.

Battery Pack Guidelines

z Recharge the battery pack when it is nearly discharged. When

recharging, make sure that the battery pack is fully charged. Doing so may avoid harm to the battery pack.

z Operate the computer with the battery pack installed even when using

external power. This ensures that the battery is fully charged.

z If you will not be using the computer for a long period of time (more

than two weeks), remove the battery pack from the computer.

z If you remove the battery pack, make sure that the battery terminals

do not contact any conductors such as metal objects or water. Otherwise, the battery may become unusable as a result of a short circuit.

z If you need to store the battery pack, store it in a cool, dry place.

Never allow the temperature to exceed 60 °C (140 °F).

z Do not leave the battery pack in storage for more than 6 months

without recharging it.

Caring for the Computer 7-5

When Traveling

z Before traveling with your computer, make a backup of your hard

disk data into flash disks or other storage devices. As an added precaution, bring along an extra copy of your important data.

z Make sure that the battery pack is fully charged.

z Make sure that the computer is turned off and the top cover is

securely closed.

z Do not leave objects in between the keyboard and closed display.

z Disconnect the AC adapter from the computer and take it with you.

Use the AC adapter as the power source and as a battery-charger.

z Hand-carry the computer. Do not check it in as luggage.

z If you need to leave the computer in the car, put it in the trunk of the

car to avoid exposing the computer to excessive heat.

z When going through airport security, it is recommended that you

send the computer and flash disks through the X-ray machine (the device you set your bags on). Avoid the magnetic detector (the device you walk through) or the magnetic wand (the handheld device used by security personnel).

z If you plan to travel abroad with your computer, consult your dealer

for the appropriate AC power cord for use in your country of destination.

Caring for the Computer 7-6

Chapter 8

Troubleshooting

Computer problems can be caused by hardware, software, or both. When you encounter any problem, it might be a typical problem that can easily be solved.

This chapter tells you what actions to take when solving common computer problems. It is divided into three sections:

CHAPTER

z Preliminary checklist

z Solving common problems

z Resetting the computer

Troubleshooting 8-1

Preliminary Checklist

Here are helpful hints to follow before you take further actions when you encounter any problem:

z Try to isolate which part of the computer is causing the problem.

z Make sure that you turn on all peripheral devices before turning on

the computer.

z If an external device has a problem, make sure that the cable

connections are correct and secure.

z Make sure that the configuration information is properly set in the

BIOS Setup program.

z Make sure that all the device drivers are correctly installed.

z Make notes of your observations. Are there any messages on the

screen? Do any indicators light? Do you hear any beeps? Detailed descriptions are useful to the service personnel when you need to consult one for assistance.

If any problem persists after you follow the instructions in this chapter, contact an authorized dealer for help.

Troubleshooting 8-2

Solving Common Problems

For easy reference, the problems are divided into these categories.

Problem Type Go to

Battery Problems P. 8-4

Bluetooth Problems P. 8-4

Display Problems P. 8-5

Hardware Device Problems P. 8-6

Hard Disk Drive Problems P. 8-6

Keyboard, Mouse, and Touchpad Problems P. 8-7

LAN Problems P. 8-8

Modem Problems P. 8-8

PC Card Problems P. 8-8

Power Management Problems P. 8-8

Software Problems P. 8-10

Sound Problems P. 8-10

Startup Problems P. 8-11
