Getac Technology 017 Users manual

ML900

Operation Manual

Part Number: 7990 0114 3001 R00

(June 2005)

TRADEMARKS
All brand and product names are trademarks or registered trademarks of their
respective companies.

NOTE
Information in this manual is subject to change without notice.

Table of Contents

Preface......................................................................................vii

Chapter 1 Getting Started.....................................................1-1

Getting the Computer Running................................................1-2

Unpacking..........................................................................1-2

Connecting to AC Power ...................................................1-3

Opening the Cover.............................................................1-4

Turning On and Off the Computer.....................................1-5

Taking a Look at the Computer...............................................1-6

Right-Side Components.....................................................1-6

Left-Side Components .......................................................1-7

Rear Components...............................................................1-8

Front Components............................................................1-10

Bottom-Side Components................................................1-11

Top-open Components.....................................................1-13

Where to Go from Here.........................................................1-16

i

Chapter 2 Operating Your Computer.......................................... 2-3

Starting and Stopping the Computer............................................... 2-4

Starting the Computer................................................................2-4

Stopping the Computer ..............................................................2-4

Using the Keyboard.........................................................................2-6

Typewriter Keys.........................................................................2-6

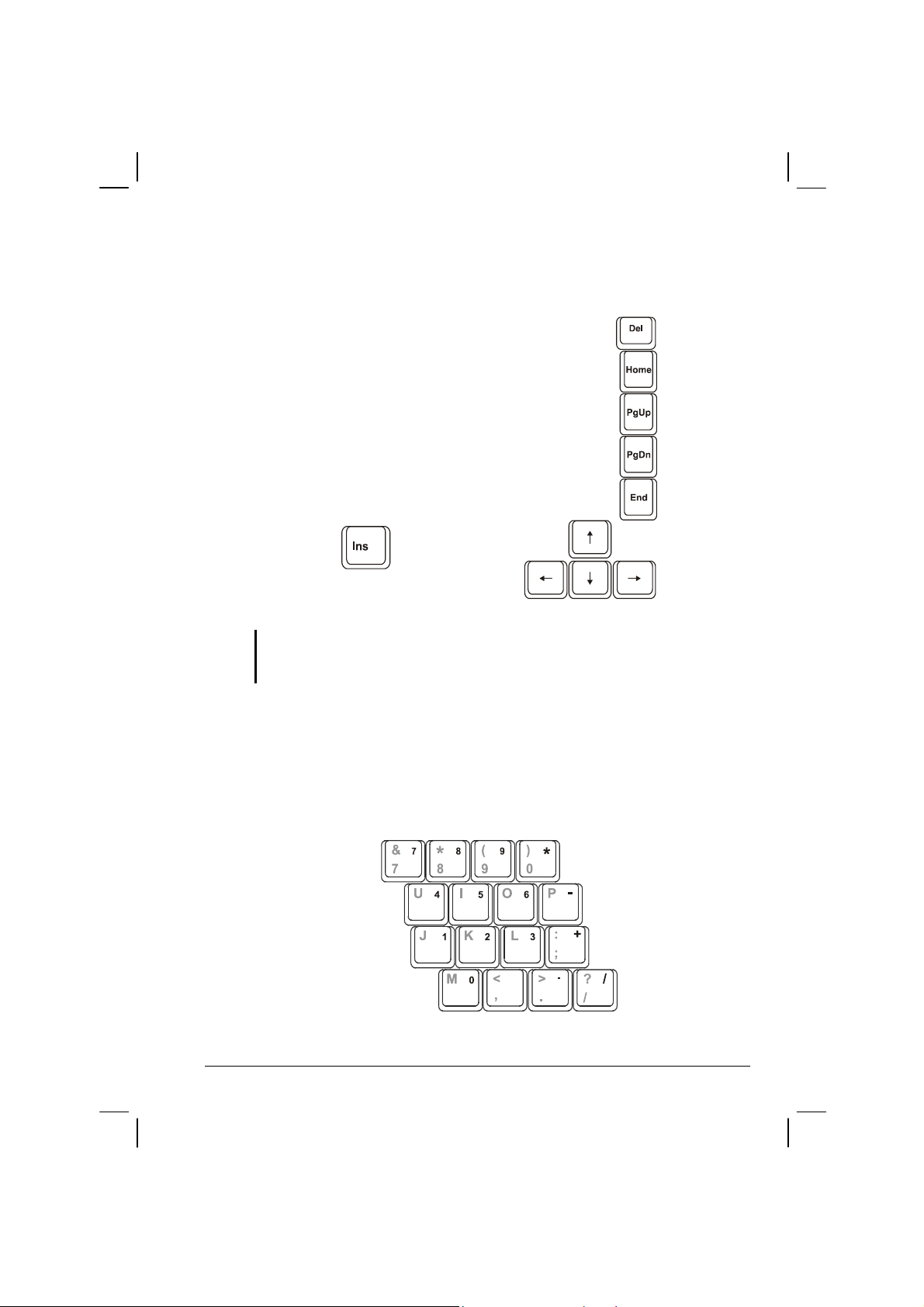

Cursor-Control Keys..................................................................2-7

Numeric Keypad........................................................................2-7

Euro Symbol ..............................................................................2-8

Windows Keys...........................................................................2-8

Function Keys............................................................................2-8

Fn Key........................................................................................2-9

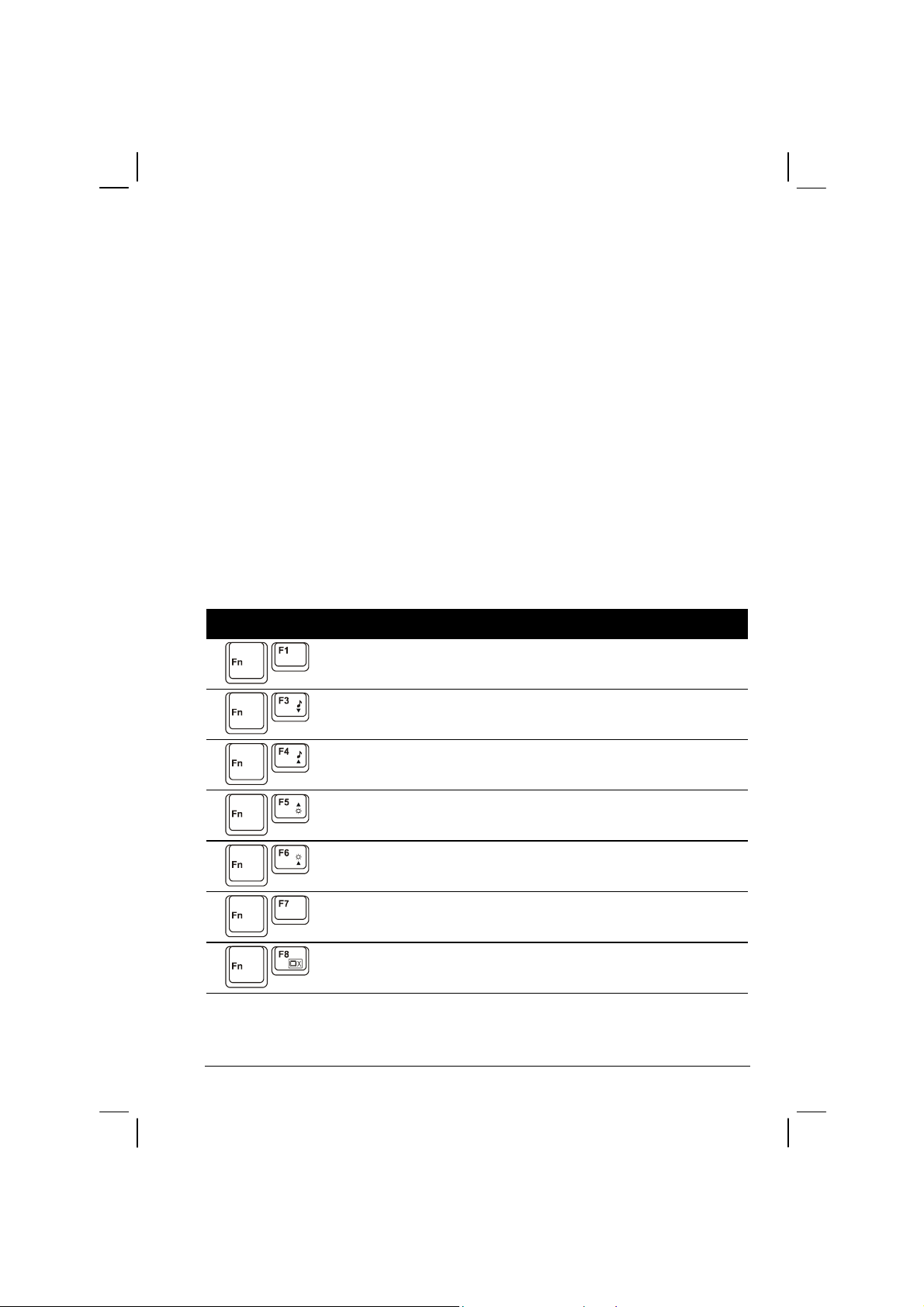

Hot Keys ....................................................................................2-9

Using the Touchpad ......................................................................2-11

Configuring the Touchpad.......................................................2-13

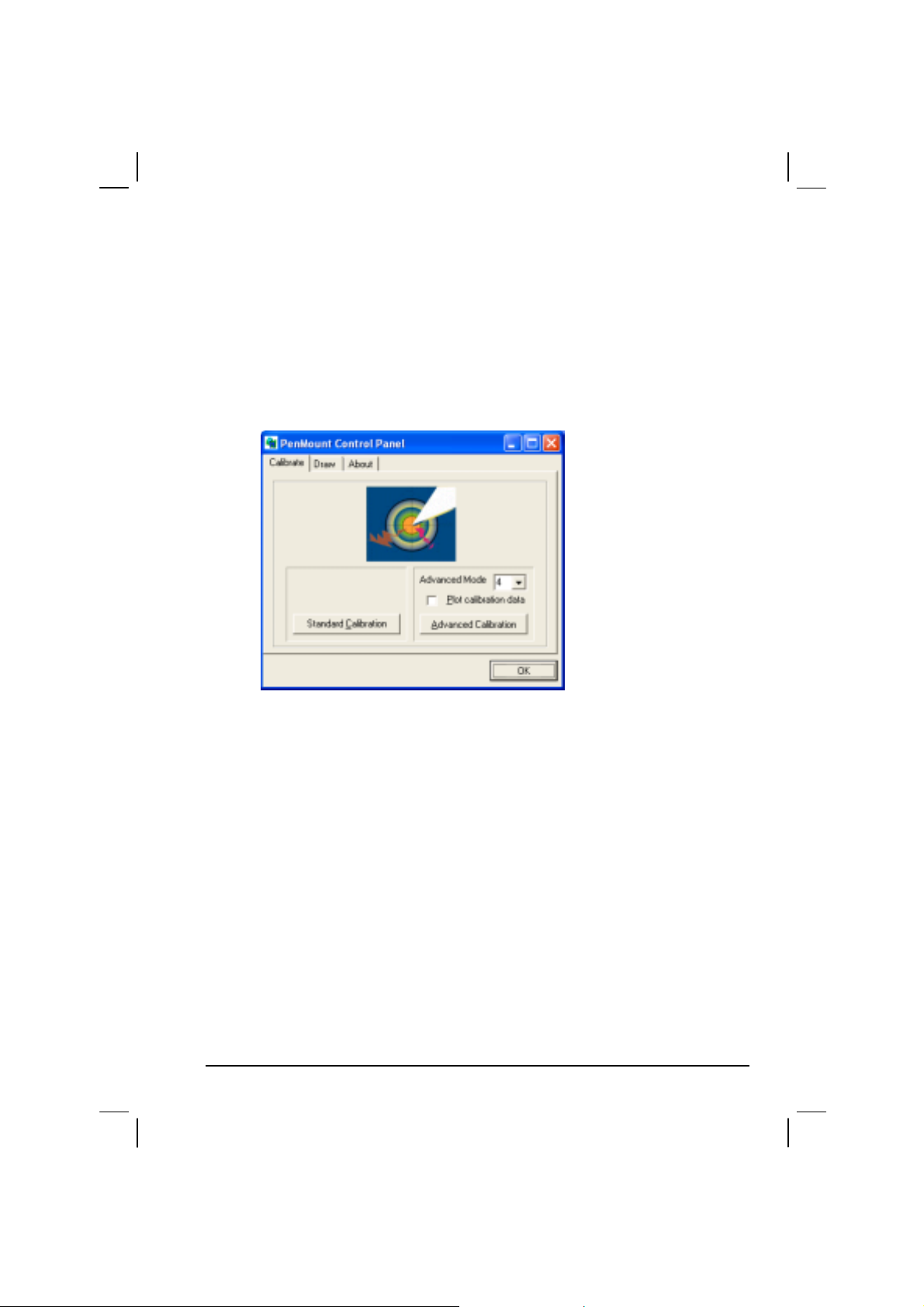

Using the Touchscreen (option)....................................................2-14

Using the Hard Disk Drive............................................................2-15

Using the DVD/Combo/DVD Dual Drive ....................................2-16

Installing the DVD/Combo/DVD Dual Drive..........................2-17

Inserting and Removing a Disc................................................2-18

Using the Video Features.............................................................. 2-19

Configuring the Display Modes...............................................2-19

Using the Audio Features..............................................................2-21

Connecting Audio Devices.......................................................2-22

Using the Communication Features ..............................................2-23

Using the LAN.........................................................................2-23

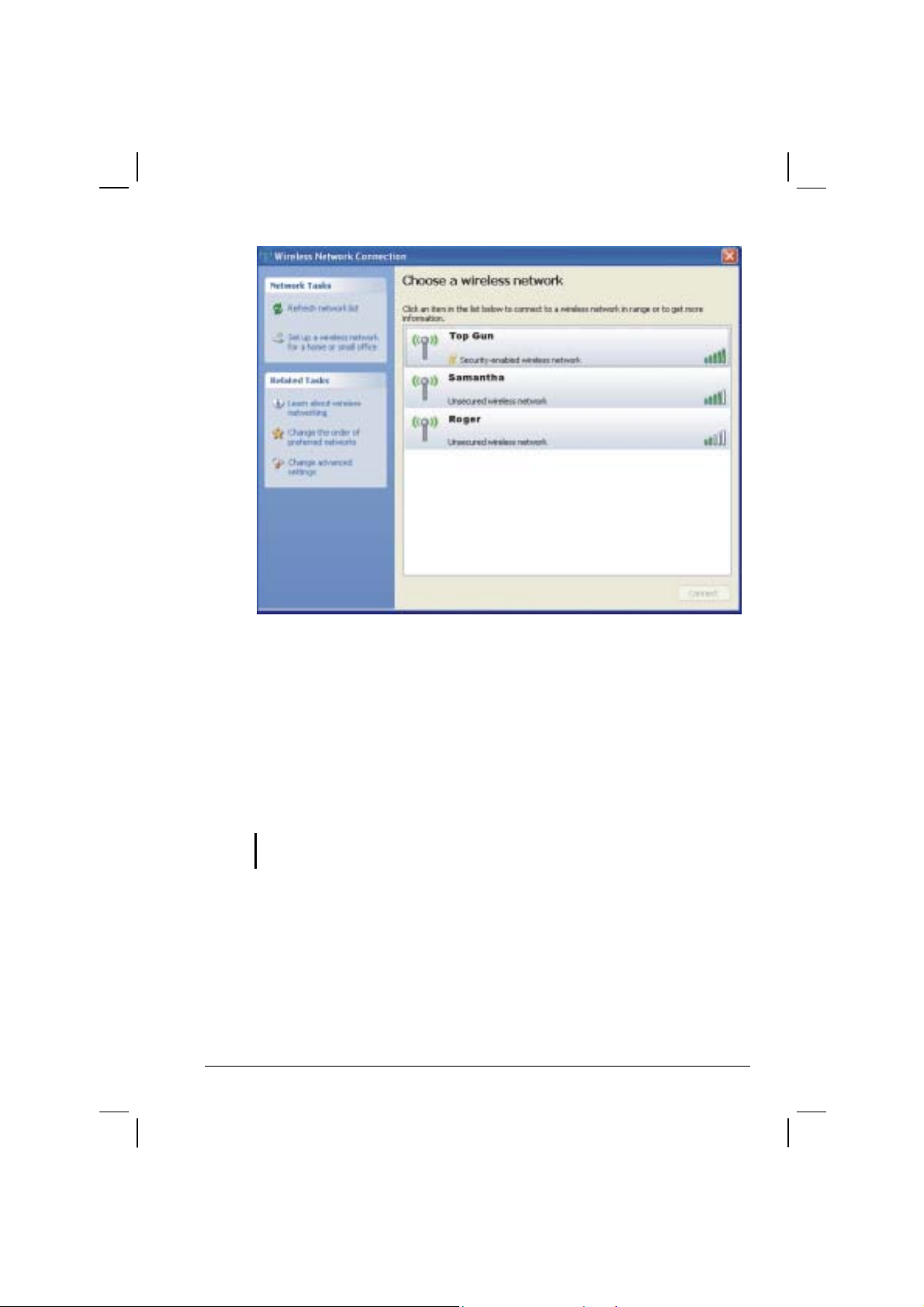

Using the Wireless LAN (option) ............................................2-24

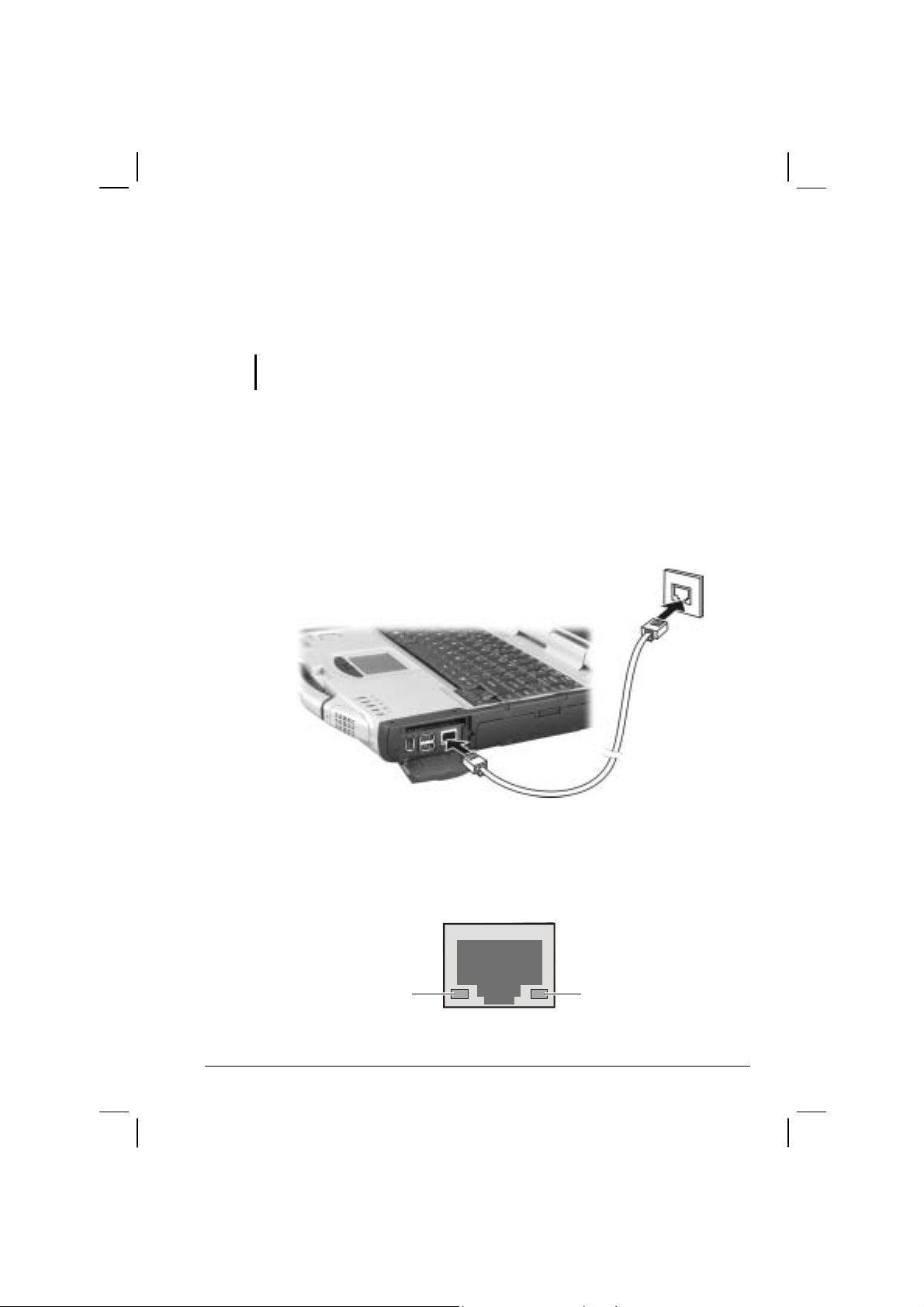

Using the Modem.....................................................................2-25

Using the Wireless Modem (option)........................................2-26

Using the GPS (option)............................................................2-28

Using the Bluetooth (option)....................................................2-29

Chapter 3 Managing Power ..................................................3-1

AC Adapter..............................................................................3-2

Battery Pack.............................................................................3-3

Charging the Battery Pack .................................................3-3

Initializing the Battery Pack...............................................3-4

Checking the Battery Level................................................3-4

Replacing the Battery Pack................................................3-5

Battery Low Signals and Actions.......................................3-6

Power Management.................................................................3-7

Hibernation ........................................................................3-8

Power-Saving Tips ..................................................................3-9

Chapter 4 Expanding Your Computer..................................4-1

Connecting an External Monitor .............................................4-2

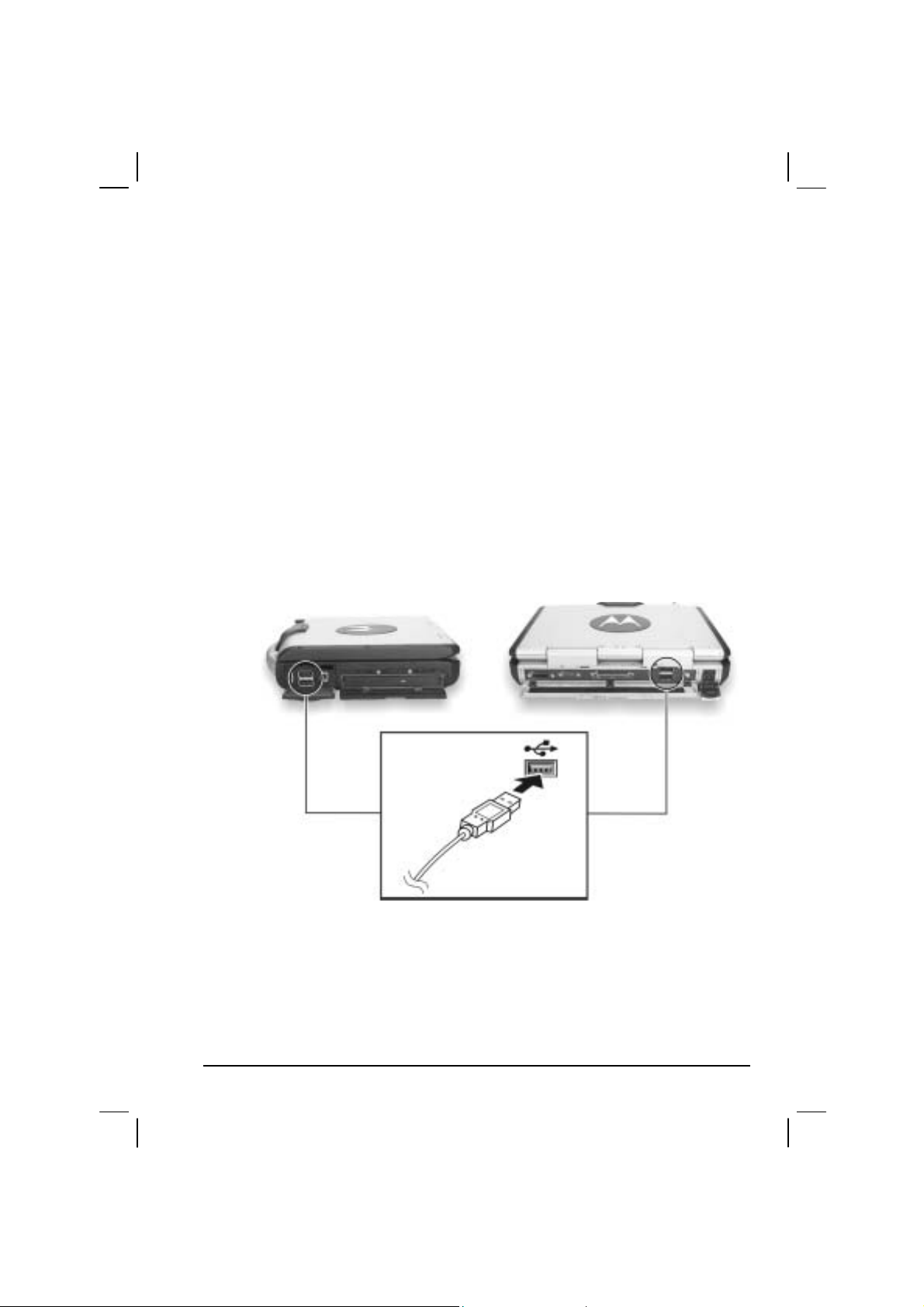

Connecting a USB Device.......................................................4-3

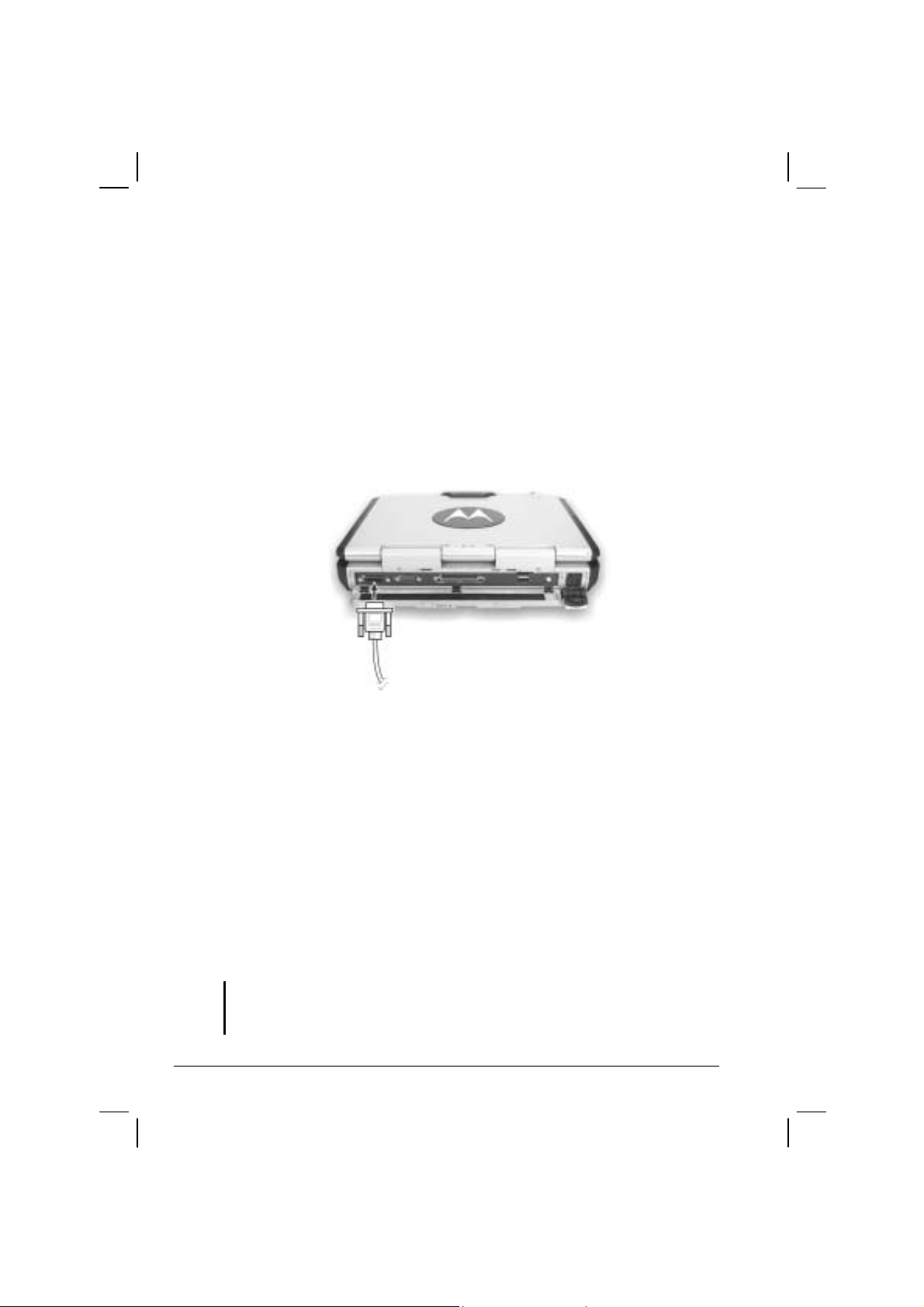

Connecting a Serial Device .....................................................4-4

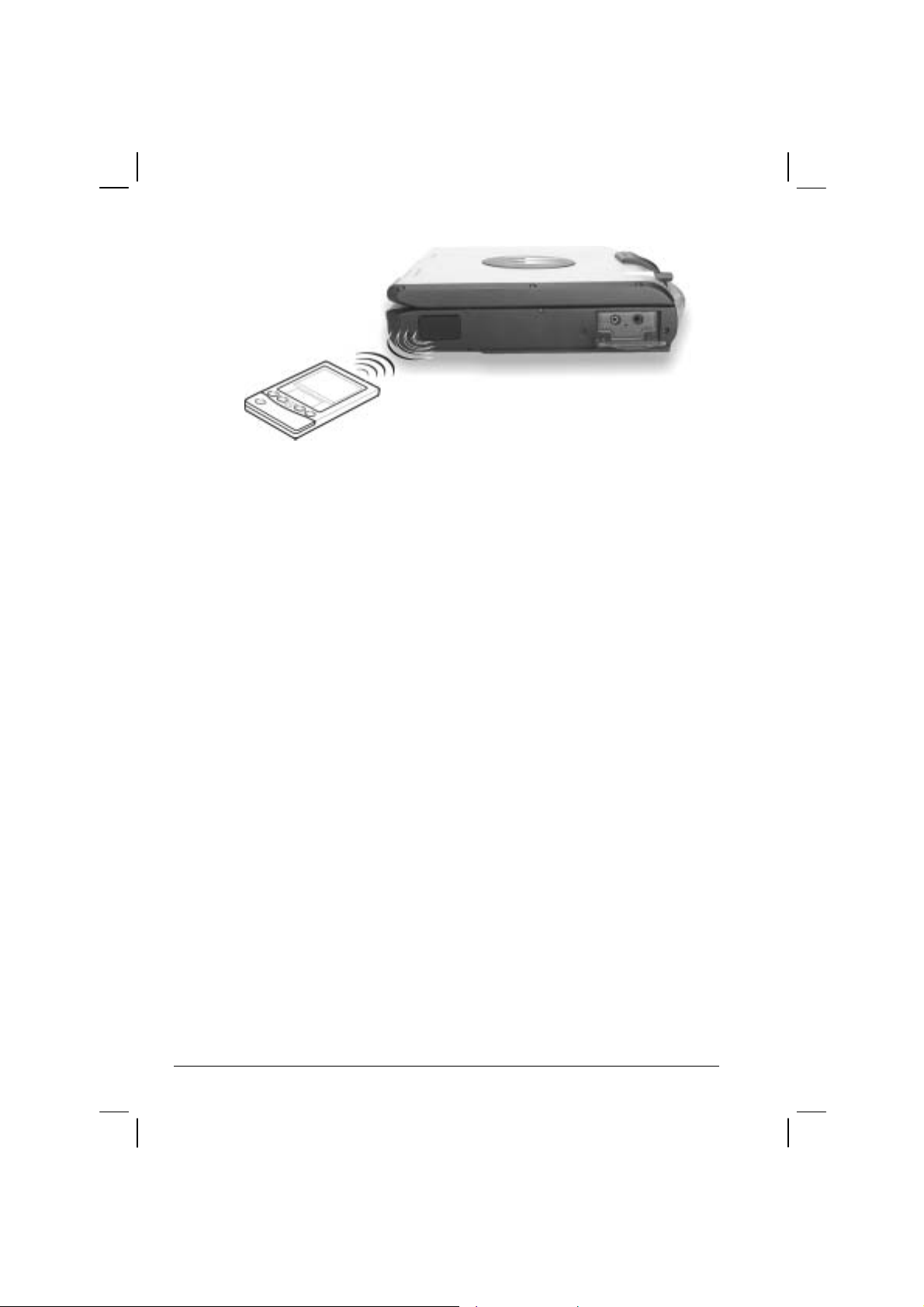

Connecting an IR Device.........................................................4-5

Connecting a Bluetooth-compliant Device (option)................4-7

Connecting a Video Capture Device .....................................4-10

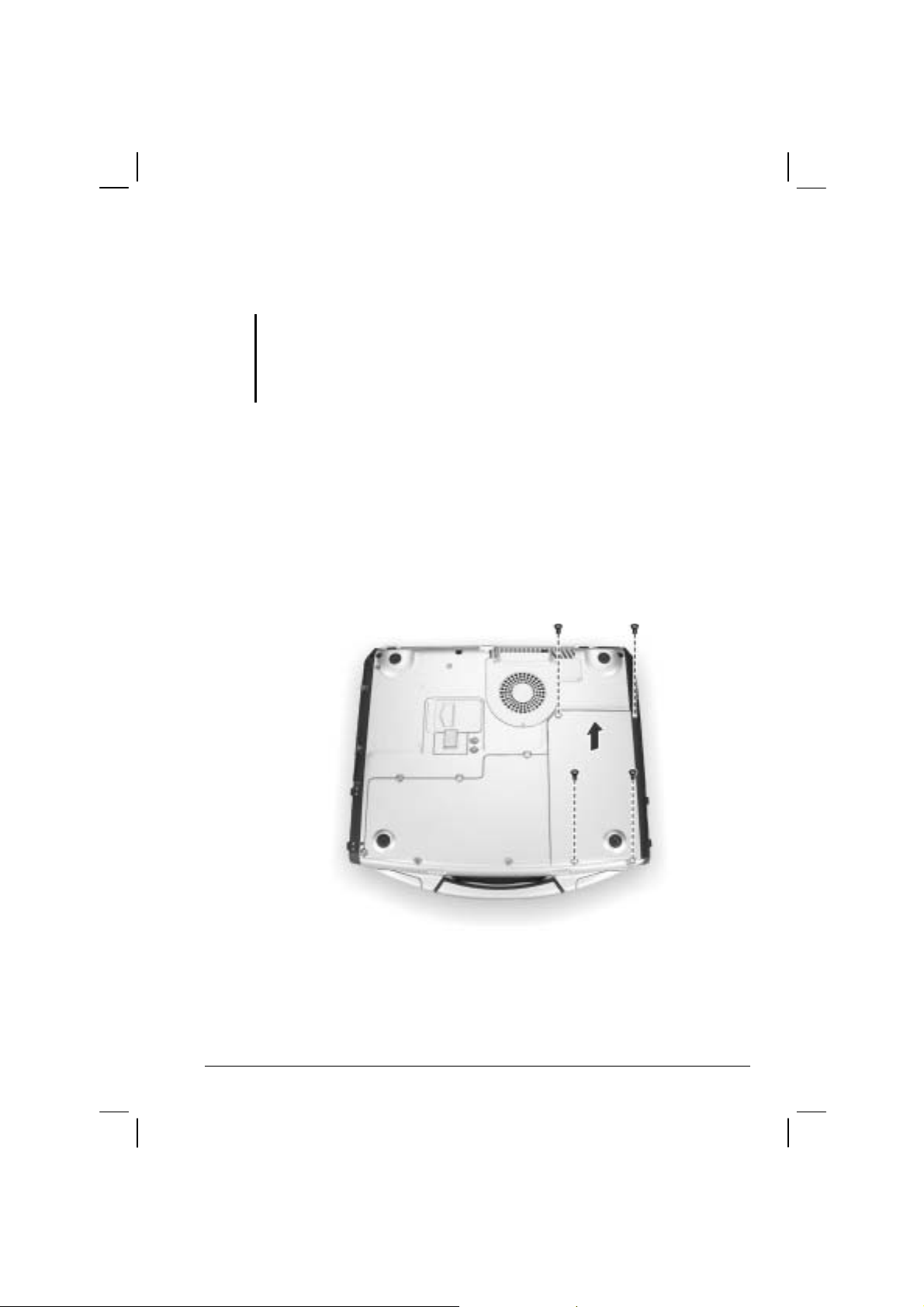

System Memory Upgrade......................................................4-11

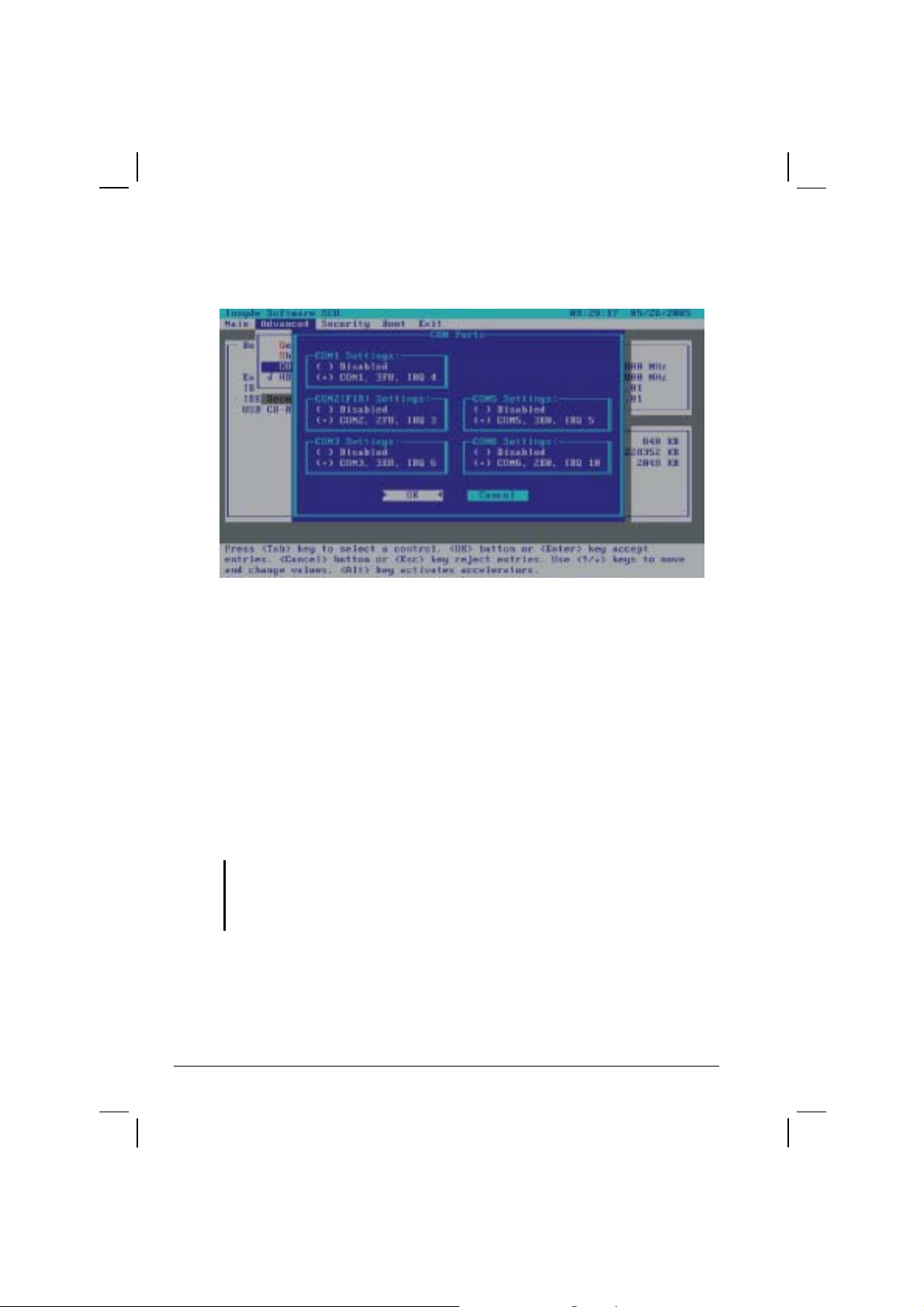

Chapter 5 Setup Configuration Utility (SCU).......................5-1

When and How to Use the SCU Program................................5-2

When to Use.......................................................................5-2

Starting SCU......................................................................5-2

Moving Around and Making Selections............................5-4

Main Menu ..............................................................................5-5

Advanced Menu.......................................................................5-8

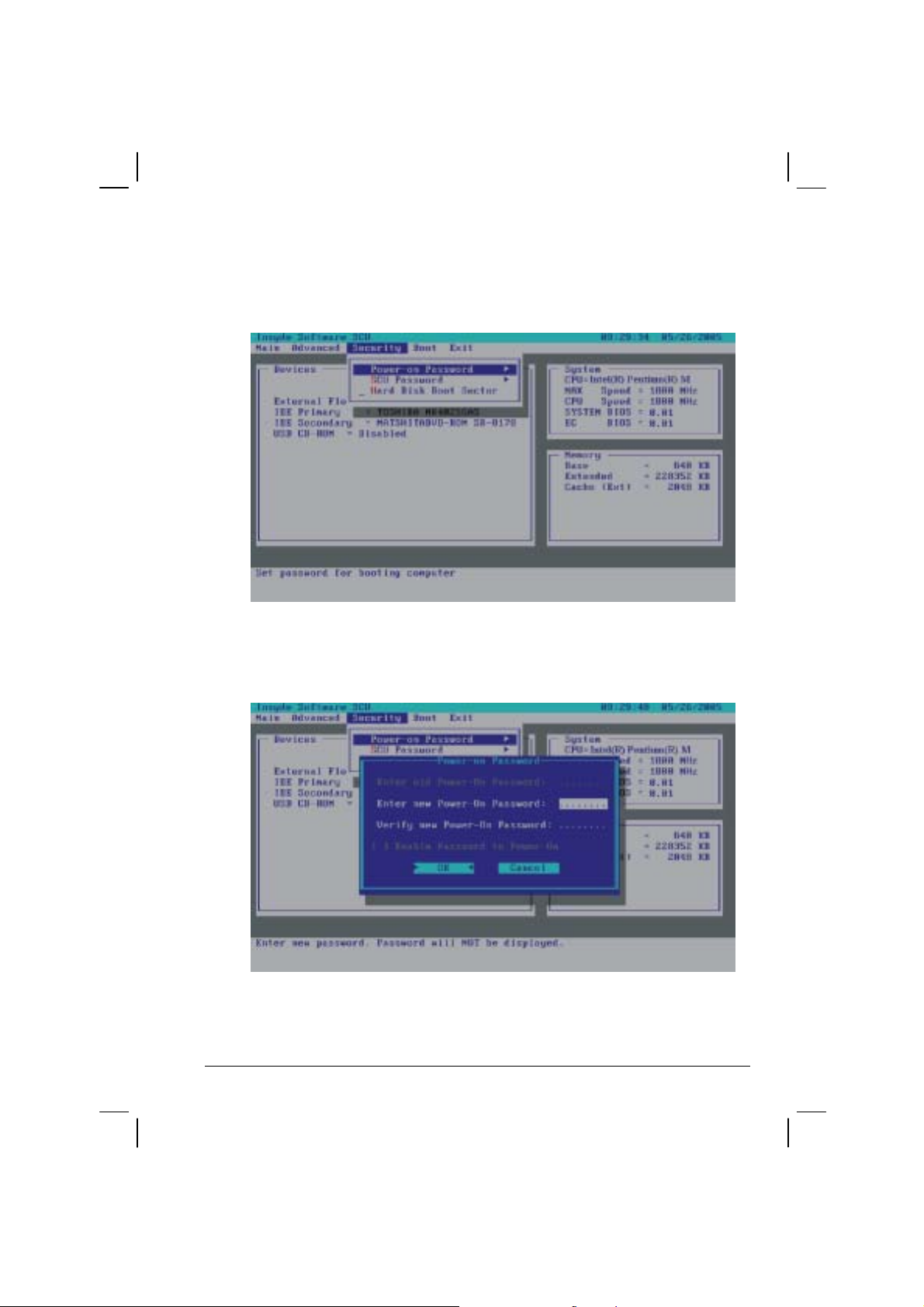

Security Menu..........................................................................5-9

Boot Menu.............................................................................5-13

Exit Menu..............................................................................5-14

Chapter 6 Installing Software Drivers..................................6-1

How to Use the Driver CD ......................................................6-2

iii

Installing the Fingerprint Driver ........................................6-6

Installing the Video Capture Driver.................................6-10

Chapter 7 Caring for the Computer .....................................7-1

Protecting the Computer..........................................................7-2

Using the Password............................................................7-2

Using an Anti-Virus Strategy.............................................7-2

Taking Care of the Computer ..................................................7-3

Location Guidelines...........................................................7-3

General Guidelines.............................................................7-3

Cleaning Guidelines...........................................................7-4

Battery Pack Guidelines.....................................................7-4

When Traveling .......................................................................7-5

Chapter 8 Troubleshooting...................................................8-1

Preliminary Checklist ..............................................................8-2

Solving Common Problems.....................................................8-3

Battery Problems................................................................8-4

Bluetooth Problems.................................................................

DVD/Combo/DVD Dual Drive Problems..........................8-4

Display Problems...............................................................8-5

Fingerprint Recognition Problems.....................................8-7

Hardware Device Problems................................................8-7

Hard Disk Drive Problems.................................................8-7

Infrared Problems...............................................................8-8

Keyboard, Mouse, and Touchpad Problems ......................8-8

LAN Problems ...................................................................8-9

WLAN Problems................................................................8-9

Modem Problems...............................................................8-9

Power Management Problems..........................................8-11

Printer Problems...............................................................8-12

Software Problems...........................................................8-12

Sound Problems ...............................................................8-13

Startup Problems..............................................................8-14

Other Problems.................................................................8-15

iv

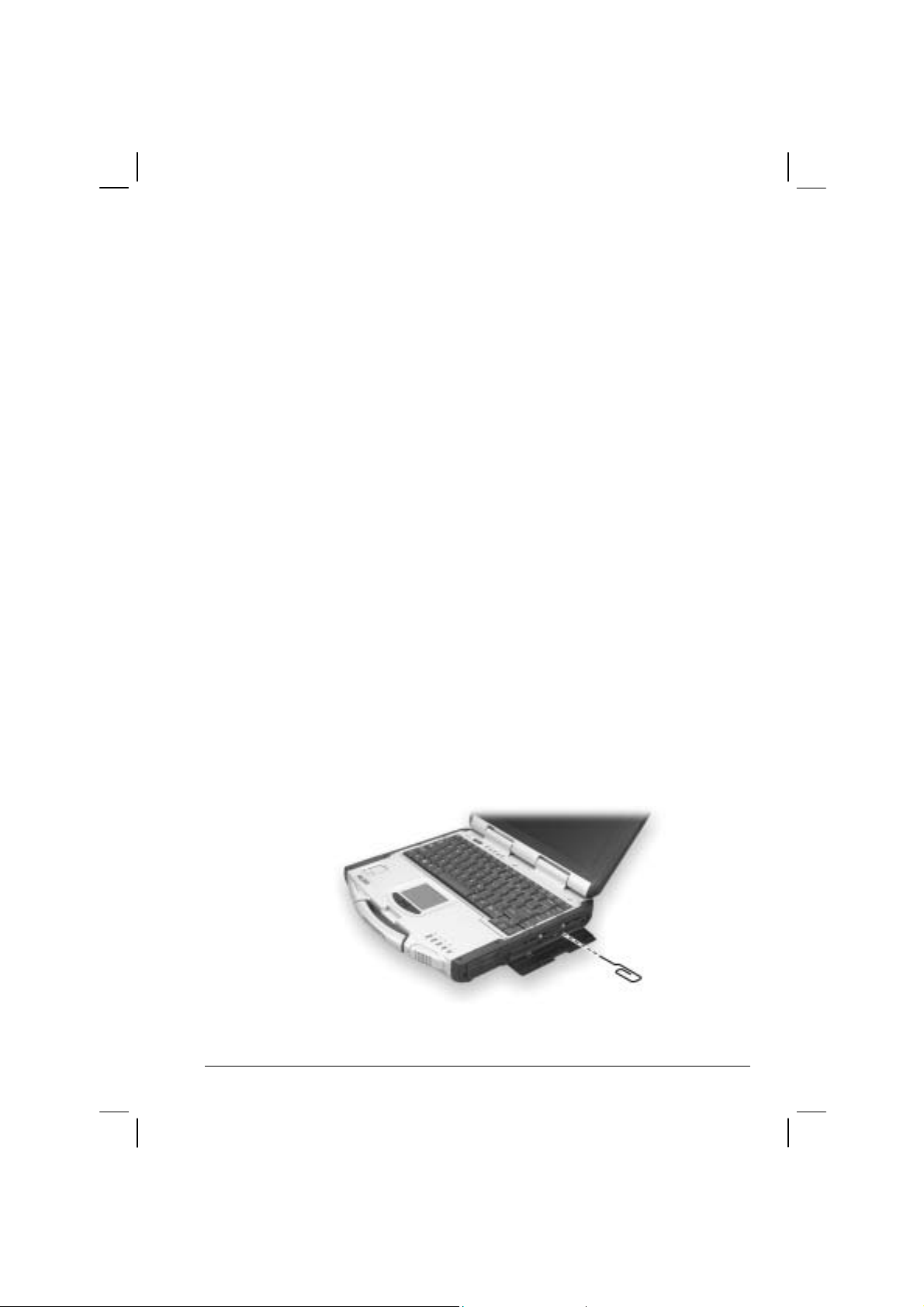

Resetting the Computer .........................................................8-16

Appendix A Specifications ...................................................A-1

Appendix B Fingerprint Recognition System .....................B-1

Finger Placement.................................................................... B-2

Using the Fingerprint Recognition System Utility................. B-3

Appendix C Regulatory Information ..................................... C-1

On the Use of the System .......................................................C-2

Class B Regulations.......................................................... C-2

Safety Notices................................................................... C-3

On the Use of RF Device........................................................ C-6

USA and Canada Safety Requirements and Notices......... C-6

European Union CE Marking and Compliance Notices... C-9

v

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference

that may cause undesired operation.

INFORMATION TO USER

To assure continued compliance, (example - use only shielded interface
cables when connecting to computer or peripheral devices) any changes or
modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.

IMPORTANT NOTE:
FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.

Preface

This manual contains information that will help you operate the
computer. It is divided into 8 chapters and 3 appendices.

 Chapter 1, Getting Started, takes you through the process of setting

up the computer and identifying its external components.

 Chapter 2, Operating Your Computer, tells you how to use the

computer’s components and features.

 Chapter 3, Managing Power, provides information on power.
 Chapter 4, Expanding Your Computer, provides information on

installing and using peripheral devices.

 Chapter 5, SCU (Setup Configuration Utility), describes the SCU

program that configures the computer’s BIOS settings.

 Chapter 6, Installing Software Drivers, describes how to install the

drivers and utilities supplied with the computer.

 Chapter 7, Caring for the Computer, gives you tips in care and

maintenance.

 Chapter 8, Troubleshooting, gives solutions to common problems

you may encounter when using the computer.

 Appendix A, Specifications, gives a brief specification of the

computer.

vii

 Appendix B, Fingerprint Recognition System, provides

information on using the system’s fingerprint recognition system.

 Appendix C, Regulatory Information, provides regulatory

statements and safety notices on your computer.

Notational Conventions

Throughout this manual, the following conventions are used to
distinguish elements of text.

NOTE: identifies additional information that requires special attention.
CAUTION: identifies important information which, if not followed, may result in loss of

data or damage to the computer.

Keyboard keys are shown in a bold typeset. For example:

Press

Enter to complete.

When keys are joined by a plus sign (+), press the first key, and, while
keeping the first key down, press the remaining keys, finally release all
the keys. When necessary, keys are also shown in graphics.

A title, command, setup item, or button that you can see on the screen is
shown in boldface. A value or an option that you can select for a setup
item is shown in italic. For example:

Select Power Management, set it to Enabled, and then click the
OK button.

viii

CHAPTER

Getting Started

Congratulations on purchasing this computer.
This high performance notebook computer is especially designed for the

practical applications of warehouses, automobiles, vehicles, public
security, repairing, assisting the handicapped, and other demanding
situations where conventional notebook computers just cannot measure
up.

This chapter first tells you step by step how to get the computer up and
running. You will find instructions for these procedures:

 Unpacking
 Connecting to AC power

1

 Opening the cover
 Turning on the computer
 Turning off the computer

Then, you will find a section briefly introducing the external components
of the computer. And the last section navigates you to the information
you may need after the computer is ready for use.

Getting the Computer Running

This section guides you through the procedures for getting the computer
ready for operation.

Unpacking

After unpacking the shipping carton, you should find these standard
items:

 Notebook computer
 Accessories:

− AC adapter (100~240 VAC, 50/60 Hz)

− AC power cord (US/CE/UK/SA)

− Driver CD

− This Operation Manual

Inspect all the items. If any item is damaged or missing, notify your
dealer immediately.

Keep the shipping carton and packing materials in case you need to ship
or store the computer in the future.

Connecting to AC Power

The computer operates either on the external AC power or internal
battery power. It is suggested that you use AC power when you start up
the computer for the first time.

CAUTION: Use only the AC adapter included with your computer. Using other AC

1-2 Getting Started

adapters may damage the computer.

NOTE:
Power Supply Cord: (optional) Detachable, minimum 1.5 m long. Listed, rated

minimum 125 V, 7 A, having a 2/18 AWG, type SVT flexible cord. One end terminates
with a parallel blade, molded-on, attachments plug with a 7 A, 125 V (NEMA 1-15P)
configuration; other end terminates with a molded-on appliance coupler.

Alternative: (optional) Detachable, maximum 4.5 m (14.76 ft) long. Listed, rated
minimum 250 V, 6 A, having a 3/18 AWG, type SVT flexible cord. One end terminates
with a Tandem blade, grounding, listed molded-on, attachments plug with a 6 A, 250 V
(NEMA 6-15P) configuration; other end terminates with a molded-on appliance
coupler.

1. Make sure the computer is turned off.

2. Plug the DC cord of the AC adapter to the power connector on the
rear side of the computer () .

3. Plug the female end of the AC power cord to the AC adapter and the
male end to an electrical outlet () .

4. When the AC adapter is connected, the indicator on the AC adapter
lights up, indicating that power is being supplied from the electrical
outlet to the AC adapter and onto your computer. Now, you are ready
to turn on the computer.

Getting Started 1-3

CAUTION:

 When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the computer. A reverse procedure may damage the AC adapter or the
computer.

 When unplugging the connector, always hold the plug head. Never pull on the cord.

NOTE: When the AC adapter is connected, it also charges the battery pack. For
information on using battery power, see Chapter 3.

Opening the Cover

CAUTION: Be gentle when opening and closing the cover. Opening it vigorously or
slamming it shut could damage the computer.

1. Open the top cover by pulling on the handle, inserting your index
finger, and then pulling on the cover latch.

2. Lift up the cover. You can tilt the cover forward or backward for
optimal viewing clarity.

Turning On and Off the Computer

Turning On

1. Make sure the computer is connected to AC power.

2. Press the power button.

1-4 Getting Started

3. Each time the computer is turned on, it performs a Power-On Self
Test (POST), and the operating system such as Windows should
start.

Turning Off

To turn off the computer power, use the “Shut Down” command of your
operating system.

NOTE: There are other ways you can stop the computer so that you will be back to
where you left off when you next turn on the computer. (See “Stopping the Computer”
in Chapter 2 for information.)

CAUTION: If you have to turn the computer on again immediately after turning it off,
wait for at least five seconds. Turning the computer off and on rapidly can damage it.

Getting Started 1-5

Taking a Look at the Computer

This section identifies the external components of the computer and
briefly describes the function of each component.

NOTE: Depending on the model you purchased, the appearance of your computer may
not exactly be the same as those shown in this manual.

Right-Side Components

Ref Component Description See Also

PC Card Slot



RJ-11



Connector
USB Ports



RJ-45



Connector
DVD/Combo/



DVD Dual
Drive

Accepts a PC card for additional functions. P. 4-5
Connects the telephone line. P. 2-19

Each of the two ports connects a USB device,
such as a USB floppy drive, printer, digital
camera, joystick, and more.

Connects the LAN cable. Includes a Link
Indicator and an Active Indicator.

Accepts a compact disc (CD) for installing or
loading software, accessing data, and playing
music/video.

P. 4-3

P. 2-21

P. 2-14

1-6 Getting Started

Left-Side Components

Ref Component Description See Also

IR Port



Bluetooth



Antenna
Microphone



Connector
Keyboard BIOS



Reset Switch
Audio Output



Connector

Connects an IrDA-compliant device fo r wire less
data transfer.

Serves as the antenna for the Bluetooth.

Connects an external microphone. P. 2-20

Use this to turn off the system when resetting the
system using Ctrl+Alt+Del does not work.

Connects a set of headphones, external speakers
with amplifier, or an audio recording device.

P. 4-5

P. 8-17

P. 2-20

Getting Started 1-7

Rear Components

Ref Component Description See Also

DVI-I Port



Serial Port



Docking Port



Rear Cover



Latch
AV Input Port



Power



Connector
AC Power



Indicator

Battery Charge



Indicator

Connects an external monitor with a DVI
interface.

Connects a serial device, such as an external
modem.

For connecting to a Port Replicator / car mount
(both are available as an option).

Locks the rear cover.

Connects to a video recording device. P. 4-8
Connects the AC adapter. P. 1-3

Glows green when the computer is using AC
power.

Blinks amber (orange) when the computer, using
AC power, is in Standby mode.

Glows green when the battery is fully charged
and connected to AC power.

Glows amber (orange) when the battery is being
charged.

P. 4-2

P. 4-4

P. 1-4

P. 3-3

1-8 Getting Started

Front Components

Ref Component Description See Also

Wireless



Modem
Antenna

Stereo Speaker



Set
Handle



Wireless LAN
Antenna

GPS Antenna



(option)

Top Cover
Latch

Serves as the antenna for the optional wireless
modem (RDLAP, GPRS, iDEN, and CDMA).

Sends out sound and voice from the computer. P. 2-20

Allows you to carry your computer for an easy
grip.

Serves as the antenna for the WLAN. It is
built-in the handle.

Serves as the antenna for the Global Positioning
System (GPS). It is built-in the top cover latch.

Locks the top cover. P. 1-4

P. 2-23

P. 2-22

P. 2-24

Getting Started 1-9

Bottom-Side Components

Ref Component Description See Also

X-bay Module



Antenna
Connector

DVD/Combo/



DVD Dual
Drive Lock/
Unlock Switch

DVD/Combo/



DVD Dual
Drive Eject
Latch

GPS Antenna



Connector

Serves as the interface between the system and
antenna of the optional X-bay module.

Allows you to lock the DVD/Combo/DVD Dual
drive in place.

Allows you to remove the DVD/Combo/DVD
Dual drive.

Serves as the interface between the system and
external GPS antenna.

P. 2-15

P. 2-15

P. 2-24

1-10 Getting Started

Ref Component Description See Also

CPU Socket and



Sealed CPU
Cooling Fan

Ventilation



Openings
Battery Pack



X-bay Interface



(top right)
Hard Disk

Drive
Compartment
(top left)

Memory Slot
(bottom left)

Inside is the CPU of your computer and cooling
fan to protect it from overheating.

Do not cover or block the ventilation openings
for air circulation thus preventing overheating.

Supplies power to your computer when external
power is not connected.

Connects additional wireless modem (GPRS /
GSM or iDEN).

Contains the hard disk drive of your computer. P. 2-13

Contains the memory slot for expanding the
memory size of your computer.

P. 3-3

P. 4-9

Getting Started 1-11

Top-open Components

Ref Component Description See Also

Fingerprint



Scanner
Keyboard



Power Button



1-12 Getting Started

Contains the fingerprint sensor. P. B-1

Serves as the data input device of the computer. P. 2-4
Turns the computer power ON and OFF. P. 1-5

Ref Component Description See Also



Device
Indicators

Show the current status of the computer’s
devices.

LCD Screen



Light Sensor



Touchpad



Device



Indicators

Power on / Standby mode indicator P. 1-3
Hard disk drive in-use indicator P. 2-13

Num Lock indicator P. 2-6
Caps Lock indicator P. 2-4

Scroll Lock indicator P. 2-4
Displays the output of the computer. P. 2-17

Automatic light sensor for dimming the
display’s backlight. Will function only if your
system comes with the optional sunlight
readable transflective LCD display and/or
keyboard with optional backlight funct ion.

Serves as the pointing device of the computer. P. 2-9
Show the current status of the computer’s

devices.
DVD/Combo/DVD Dual drive in-use indicator P. 2-14

Battery power indicator –
Glows green when the comput er is using battery
power.
Blinks green when the computer, using battery
power, is in Standby mode.
Blinks amber (orange) when the battery is
almost completely discharged.

P. 2-17

P. 3-3

Getting Started 1-13

Battery charge indicator –
Glows green when the battery is fully charged
and connected to AC power.
Glows amber (orange) when the battery is being
charged.

Touchpad indicator –
Glows red when the touchpad is disabled. Can
be enabled/disabled using the hot keys Fn+F7.

P. 3-3

P. 2-9

Ref Component Description See Also

AC in and HDD heater on indicator –
Glows green when the computer is connected to
AC power.
Blinks red when the hard disk heater is on.

P. 1-4

P. 2-13

1-14 Getting Started

Where to Go from Here

As your computer is ready for operation, you may want to do any of the
following now:

For this purpose… Do this…

To know more about the computer… Go on to the next chapter.
To install the operating system if your

dealer has not already done so…
To know more about the operating

system…
To install the drivers if your dealer has

not already done so…
To set a power-on password… See “Security Menu” in Chapter 5.
To charge the battery pack for the first

time…

See the operating system manual.

Read the operating system manual.

See Chapter 6.

See “Charging the Battery Pack” in
Chapter 3.

Getting Started 1-15

CHAPTER

Operating Your Computer

This chapter provides information about the use of the computer.
If you are new to computers, reading this chapter will help you learn the

operating basics. If you are already a computer user but are new to
notebook computers, you may choose to read only the parts containing
information unique to your computer.

Described in this chapter are the operating basics of these components:

 Keyboard
 Touchpad
 Touchscreen

2

 Hard disk drive
 DVD/Combo/DVD Dual drive

And these features:

 Starting and stopping the computer
 Video features
 Audio features
 Communication features

Starting and Stopping the Computer

There are a number of ways to start and stop the computer.

Starting the Computer

You always start the computer using the power button.
A computer starts up with an operating system (OS) existing on the

storage device such as the hard disk; or from a CD if you have the
respective modules installed. The computer will automatically load the
OS after you turn it on. This process is called booting.

NOTE: An operating system is the platform for all your software application programs to
run on. The most widely used operating system today is Microsoft Windows.

Stopping the Computer

When you finish a working session, you can stop the computer by turning
off the power or leaving the computer in Standby or Hibernation mode:

To stop in
this mode…

Off Follow the shutdown procedure of your

operating system. This can prevent loss of
unsaved data or damage to your software
programs.

If the system is locked up because of
hardware or software problems, press the
power button to turn off the computer.

Standby

Depending on your settings in Windows,
you can place the computer in Standby
mode by:

• Closing the display cover

• Pressing the power button

Do this… To start up or

resume again

Press the power
button.

Press any key.

2-2 Operating Your Computer

To stop in
this mode…

Hibernation

Depending on your settings in Windows,
you can place the computer in

Do this… To start up or

resume again

Press the power
button.

Hibernation mode by:

• Closing the display cover.

• Pressing the power button

If you choose to stop in Standby or Hibernation mode, you can return to
where you left off the next time you start up the computer. (See “Power
Management” in Chapter 3 for more information.)

Operating Your Computer 2-3

Using the Keyboard

Your keyboard has all the standard functions of a full-sized computer
keyboard plus a

The standard functions of the keyboard can be further divided into four
major categories:

 Typewriter keys
 Cursor-control keys
 Numeric keys
 Function keys

Fn key added for specific functions.

Typewriter Keys

Typewriter keys are similar to the keys on a typewriter. Several keys are
added such as the
the lock keys (
corresponding indicators light up.

The Control key is normally used in combination with other keys for
program-specific functions. The Alternate key is normally used in
combination with other keys for program-specific functions. The Escape
key is usually used for stopping a process. Examples are exiting a
program and canceling a command. The function depends on the program
you are using.

Ctrl, Alt, Esc, and lock keys for special purposes. When

Caps Lock, Num Lk, and Scroll Lk) are pressed, their

2-4 Operating Your Computer

Cursor-Control Keys

NOTE: The word “cursor” refers to the indicator on the screen that lets you know
exactly where on your screen anything you type will appear. It can take the form of a
vertical or horizontal line, a block, or one of many other shapes.

Numeric Keypad

A 15-key numeric keypad is embedded in the typewriter keys as shown
next:

Operating Your Computer 2-5

Numeric keys facilitate entering of numbers and calculations. When Num
Lock is on, the numeric keys are activated; meaning you can use these
keys to enter numerals.

NOTES:

 When the numeric keypad is activated and you need to type the English letter in the

keypad area, you can turn Num Lock off or you can press Fn and then the letter
without turning Num Lock off.

 Some software may not be able to use the numeric keypad on the computer. If so,

use the numeric keypad on an external keyboard instead.

Euro Symbol

You can press the Euro dollar sign on the keyboard.

 To press the Euro sign on the keyboard, hold down either of the Alt

keys and type

0128 on the numeric keypad of your keyboard.

 To press the Euro sign on an UK keyboard, hold down the Alt Gr key

and press

4 (which has an Euro sign on it).

Windows Keys

The keyboard has two keys that perform Windows-specific functions:

Windows Logo key and

The

Windows Logo key opens the Start menu and performs

Application key.

software-specific functions when used in combination with other keys.
The

Application key usually has the same effect as a right mouse

click. (See your Windows manual for more information.)

Function Keys

On the top row of the keys are the function keys: F1 to F12. Function keys
are multi-purpose keys that perform functions defined by individual
programs.

2-6 Operating Your Computer

Fn Key

The Fn key, at the lower left corner of the keyboard, is used with another
key to perform the alternative function of a key. The letter “Fn” and the
alternative functions are identified by the color of blue on the keytop. To
perform a desired function, first press and hold

Fn, then press the other

key.

Hot Keys

Hot keys refer to a combination of keys that can be pressed any time to
activate special functions of the computer. Most hot keys operate in a
cyclic way. Each time a hot key combination is pressed, it shifts the
corresponding function to the other or next choice.

You can easily identify the hot keys with the icons imprinted on the
keytop. The hot keys are described next.

Key Description

Switches the optional keyboard backlight function on /off with
10 levels of brightness in-between.

Decreases the sound volume.

Increases the sound volume.

Decreases the LCD brightness.

Increases the LCD brightness.

Switches the touchpad on and off.

Switches LCD off and on.

Operating Your Computer 2-7

Key Description

Switches the display output to one of the following when an
external device is connected.

Upon booting the system with CRT:
LCD LCD & CRT

CRT
Upon booting the system with DVI:

LCD LCD & DVI
DVI
NOTES:

 When in full screen DOS mode, or when playing DVD or

MPEG file, display switching is not allowed.

 If the display mode is set to 256 colors or lower, or in DOS

mode, there will be only two modes for selecting: CRT only
and LCD & CRT.

 This function only applies to Plug & Play CRT monitors.

Serves as the sleep button that you can define with Windows’
Power Management. (See the “Power Management” in
Chapter 3.)

Switches the LCD backlight on and off.

Switches the optional GPS function on and off.

2-8 Operating Your Computer

Using the Touchpad

CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may
damage the touchpad surface.

NOTES:

 By default, the touchpad is disabled. Use the Fn+F7 hot keys to enable/disable this

function. The touchpad indicator found on the keyboard panel glows red when it is
disabled.

 For optimal performance of the touchpad, keep your fingers and the pads clean and

dry. When tapping on the pad, tap lightly. Do not use excessive force.

The touchpad is a pointing device that allows you to communicate with
the computer by controlling the location of the pointer on the screen and
making selection with the buttons.

The touchpad consists of a rectangular pad and four buttons. To use the
touchpad, place your forefinger or thumb on the pad. The rectangular pad
acts like a miniature duplicate of your display. As you slide your fingertip
across the pad, the pointer (also called cursor) on the screen moves
accordingly. When your finger reaches the edge of the pad, simply
relocate yourself by lifting the finger and placing it on the other side of
the pad.

Here are some common terms that you should know when using the
touchpad:

Operating Your Computer 2-9

Term Action

Point Move your finger on the pad until the cursor points to the

selection on the screen.

Click Press and release the left button.

–or–
Tap gently anywhere on the pad.

Double­click

Drag
and
drop

Scroll To scroll is to move up and down or left and right in the working

Press and release the left button twice in quick succession.
–or–
Tap twice on the pad rapidly.
Press and hold the left button, then move your finger until you

reach your destination (drag). Finally, release the button (drop)
when you finish dragging your selection to the destination. The
object will drop into the new location.

–or–
Gently tap twice on the pad and on the second tap, keep your

finger in contact with the pad. Then, move your finger across the
pad to drag the selected object to your destination. When you lift
your finger from the pad, the selected object will drop into place.

area on the screen.
The scroll button located between the two buttons under the

touchpad can be used to move vertically in a convenient way.
Press the upper part of the scroll button to m ove up and the lower
part of the scroll button to move down.

–or–
To move vertically, place your finger on the right edge of the

pad and slide your finger up and down along the edge. To move
horizontally, place your finger on the bottom edge of the pad and
slide your finger left and right.

This function works only after you install the touchpad driver
supplied with the computer and it may not work for all
applications.

TABLE NOTE: If you swap the left and right buttons, “tapping” on the touchpad
as an alternative method of pressing the left button will no longer be valid.

2-10 Operating Your Computer

Configuring the Touchpad

You may want to configure the touchpad to suit your needs. For example,
if you are a left-handed user, you can swap the two buttons so that you
can use the right button as the left button and vise versa. You can also
change the size of the on-screen pointer, the speed of the pointer, and so
on.

To configure the touchpad, you can use the standard Microsoft or IBM
PS/2 driver if you are using Windows. However, you can install the
touchpad driver supplied with your computer to take advantage of more
powerful features. (For information on installing the driver, see “How to
Use the Driver CD” in Chapter 6.)

Operating Your Computer 2-11

Using the Touchscreen (option)

CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the
touchscreen. Doing so may damage the touchscreen surface.

The touchscreen is a touch-sensitive device that allows you to
communicate with the computer by controlling the location of the pointer
on the screen and making selection with the buttons.

The touchscreen needs a special device driver support that allows you to
easily use the computer without a mouse or touchpad.

Here are some common terms that you should know when using the
touchscreen:

Term Action

Click/Point Tap gently on the touchscreen.
Double-click Tap twice on the touchscreen rapidly.
Drag and

drop

Scroll To scroll is to move up and down or left and right in the

Press lightly on the touchscreen and move your finger
until you reach your destination (drag). Finally, release
your finger (drop) when you finish dragging your selection
to the destination. The object will drop into the new
location.

working area on the screen.
To move vertically, place your finger on the right edge of

the touchscreen and slide your finger up and down along
the edge. To move horizontally, place your finger on the
bottom edge of the touchscreen and slide your finger left
and right.

This function works only after you install the touchscreen
driver supplied with the computer and it may not work for
all applications.

2-12 Operating Your Computer

A

Using the Hard Disk Drive

Your computer comes with a hard disk drive as drive C. A hard disk drive
is a storage device with non-removable, rotating, magnetic storage
platters inside it. It is where your operating system and application
software programs are stored.

Your hard disk drive is a 2.5-inch IDE (Integrated Drive Electronics) hard
disk drive. This type of drive embodies the latest in fast, reliable mass
storage by integrating all the control circuitry necessary for operation
directly onto the drive itself. This allows the drive manufacturer to
carefully optimize drive performance.

C in /
HDD heater on
indicator

The system comes with a built-in heater that automatically turns on for
low temperature operation. The AC in / HDD heater on indicator blinks
red when heater is on.

CAUTION:

 Make regular backups of your data files from your hard disk drive to CD discs or

other storage media.

 Never try to remove or install the hard disk drive while the computer is powered on.

Doing so can result in loss of data, and can damage the computer and the hard disk
drive’s sensitive circuitry.

 Never turn off or reset the computer while the hard disk drive in-use indicator is on.

Operating Your Computer 2-13

Using the DVD/Combo/DVD Dual Drive

Depending on the model, your computer comes with a DVD, Combo, or
DVD Dual drive located on the right side of the computer. This drive is
usually configured as drive D.

The drive uses removable 5.25-inch silver discs, which look like standard
music CDs. It is an ideal medium to use for distributing multimedia
because of the huge amount of data that a disc can store.

Depending on the model, your drive is one of the following:

 DVD drive can read DVD (Digital Versatile Disc) discs in addition

to CDs, audio CDs, CD-R, and CD-RW discs.

 Combo drive can work both as a DVD drive and CD-RW drive.
 DVD Dual d rive aside from working as a Combo drive, can also

write to DVD-R, DVD-RW, DVD+R, DVD+RW discs.

NOTE: If the DVD/Combo/DVD Dual drive would be operating for more than half an
hour (such as showing a DVD title), use the AC power source instead of the battery. If
not, the battery may run out of power before the operation is complete.

CAUTION:

1. When inserting a disc, do not use force.

2. Make sure the disc is correctly inserted into the tray, and then close the tray.

3. Do not leave the DVD tray open. Also, avoid touching the lens in the tray with your
hand. If the lens becomes dirty, the drive may malfunction.

4. Do not wipe the lens using materials with rough surface (such as paper towel).
Instead, use a cotton swab to gently wipe the lens.

FDA regulations require the following statement for all laser-based devices:
“Caution, Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.”

NOTES:

 This product incorporates copyright protection technology that is protected by

method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

2-14 Operating Your Computer

 The DVD/Combo/DVD Dual drive is classified as a Class 1 laser product. This label

is located on the DVD/Combo/DVD Dual drive.

Installing the DVD/Combo/DVD Dual Drive

To install the DVD/Combo/DVD Dual drive:

1. Insert the DVD/Combo/DVD Dual drive into the DVD drive bay
located on the right side of the computer.

DVD drive

2. Slide the DVD drive lock/unlock switch to the lock position to secure
the DVD/Combo/DVD Dual drive in place.

Operating Your Computer 2-15

Inserting and Removing a Disc

Follow this procedure to insert or remove a disc.

1. Turn on the computer.

2. Press the eject button and the DVD tray will slide out partially.
Gently pull on it until it is fully extended.

3. To insert a disc, place down the disc in the tray with its label facing
up. Slightly press the center of the tray until it clicks into place.

Eject button

In-use
indicator

To remove a disc, hold the disc by its outer edge and lift it up from
the tray.

4. Gently push the tray back into the drive.

NOTE: In the unlikely event that you are unable to release the DVD tray by pressing the
eject button, you can manually release the DVD. (See “DVD/Combo/DVD Dual Drive

2-16 Operating Your Computer

Problems” in Chapter 8.)

Using the Video Features

The video subsystem of your computer features:

 12.1-inch TFT (Thin-Film Transistor) color LCD display with

1024

×768 XGA (eXtended Graphics Array) resolution

 64 MB integrated video memory
 Simultaneous display on LCD and external monitor, which is useful

when you have a presentation as you can control the screen from your
computer and face the audience at the same time.

 Dual view capability, which allows you to expand your desktop on

the screen to another display device so that you have more desktop
space to work on.

 Power Management.
 Polarizer touchscreen function (option).
 Transmissive and hi-contrast LCD display (option).

NOTES:

 Before using the dual view capability, the video driver supplied with your computer

must be installed.

 System enters Standby/Hibernation mode when the LCD is closed. If you want to

use the computer with the LCD closed, set Do Nothing to the “When I close the lid
of my portable computer” option in the Power Options Properties. Thus the
computer does not enter Standby or Hibernation mode when the LCD is closed.

Configuring the Display Modes

NOTE: To take advantage of the enhanced video capabilities, the video driver supplied
with your computer must be installed.

Your computer has been set to a default resolution and number of colors
before shipment. You can view and change display settings through your
operating system. See your operating system documentation or online
help for specific information.

Operating Your Computer 2-17

For displaying in higher resolutions, you can connect an external CRT
monitor that supports higher resolutions. (See “Connecting an External
Monitor” in Chapter 4 for more information.)

The following table lists the display modes supported by your computer.

Display Mode LCD Only CRT Only Simultaneous Display

Resolution Colors

800×600

1024×768

16-bit
32-bit
16-bit
32-bit

√ √ √
√ √ √
√ √ √
√ √ √

TABLE NOTES:

 16-bit = High Color or 65,536 (64 K) colors; 32-bit = True Color 16,770,000 (16 M)

colors.

 When using CRT only, the resolution would depend on the supported resolution by

the CRT.

2-18 Operating Your Computer

Using the Audio Features

NOTES:

 To take advantage of the enhanced audio capabilities, the audio driver supplied

with your computer must be installed (see chapter 6 for details).

 If you experience interference while recording, try lowering the microphone

recording volume.

The audio subsystem of your computer features:

 Digital audio and analog mixing functions required for recording and

playing sound on your computer

 Microsoft Windows Sound System support
 A set of speakers (
 External audio connectors (



)

)



Ways of playing and recording sound vary with the operating system
used. See your operating system documentation or online help for
specific information.

Operating Your Computer 2-19

Connecting Audio Devices

For higher audio quality, you can send or receive sound through external
audio devices.

 Microphone Connector (

) can be connected to an external

microphone for recording voice or sound.

 Audio Output Connector (

) can be connected to the line-in
connector of powered speakers with built-in amplifiers, headphones,
or earphone set.

NOTE: When using external speakers/headphones or microphone, you cannot use the
internal one.

2-20 Operating Your Computer

A

k

r

Using the Communication Features

Using the LAN

NOTE for Windows 2000: To take advantage of the LAN feature, the LAN driver
supplied with your computer must be installed.

The internal 10/100Base-T Ethernet LAN (Local Area Network) module
allows you to connect your computer to a network. It supports data
transfer rate up to 100 Mbps.

To connect the network cable to the LAN module, connect one end of the
LAN cable to the RJ-45 connector on the computer and the other end to
the network hub.

Link Indicator Glows green when the system has an available

connection to LAN.

Active Indicator Blinks green when the system is accessing the LAN.

Lin

indicato

Operating Your Computer 2-21

ctive

indicator

Using the Wireless LAN (option)

Depending on your model, an internal Mini PCI wireless LAN (WLAN)
card may have been pre-installed by your computer manufacturer at the
factory. This card allows you to access corporate networks or the Internet
in a wireless environment.

The WLAN features include:

 2.4 GHz DSSS (Direct Sequence Spread Spectrum) technology
 Peer-to-Peer (Ad-Hoc) and Access Point (Infrastructure) modes

support

 WEP (Wired Equivalent Privacy) 64/128-bit data encryption
 Transmission rate at 9 / 18 / 36 / 54 Mbps (802.11g mode), with

automatic data rating at 1 / 2 / 11 Mbps (802.11b mode)

It takes approximately 30 seconds for your computer to make a successful
WLAN connection and approximately 10 seconds to disconnect.

NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate wireless
devices in aircraft as this may interfere with flight safety. Remember to select turn off
wireless LAN when using your computer in the airplane.

Connecting to a Wireless Network

1. Double-click the Wireless Network Connection icon located on

your Windows system tray. If any wireless network is detected, the
following window appears on screen.

2-22 Operating Your Computer

2. Select a wireless network to connect to by clicking on a selection,

then click on Connect.

3. Depending on the settings, you may be asked to enter a WEP key
(refer to your Windows online help for more information on setting a
wireless network connection).

Using the Modem

NOTE: To take advantage of the modem feature, the modem driver supplied with your
computer must be installed.

The internal 56 K fax/data modem allows you to use the telephone line to
communicate with others by fax, email, or connect to an online service or
bulletin board.

To connect the telephone line to the modem, connect one end of the
modem cable to the RJ-11 connector on the computer and the other end to
the phone line.

Operating Your Computer 2-23

NOTES:

 When using communication software, you may have to disable power

management.

 Set the COM port of the modem to COM3.
 Set parameters such as modem speed (baud rate) and line type (pulse dialing or

tone dialing).

 Do not enter Standby mode when using communication software.

Using the Wireless Modem (option)

Depending on your model, your computer includes an integrated GSM
(Global System for Mobile Communications) / GPRS (General Packet
Radio Service) feature.

After you establish a subscription with a GSM/GPRS service provider,
you can use the wireless data features of your computer. Check with your
service provider for a list of available wireless data services. Your service
provider may charge additional fees for use of data services.

There are two methods for wirelessly connecting to an ISP or network:

 GSM data transmission (circuit-switched data)

GSM data services enable you to use the GSM component of your
computer as a built-in modem. You can use the service to connect to
the Internet through an ISP or dial in to a corporate network to browse
the Web or send and receive e-mail messages.

2-24 Operating Your Computer

 GPRS data transmission

GPRS is a high-speed data-on service that enables you to transmit
data over a mobile network. Subscribing to a GPRS service allows
you to transfer files, browse the Web and receive streaming audio and
video on your computer.

Connecting Using the GSM Modem

Your computer can send and receive data via a mobile network using the
GSM protocol.

To send or receive data over a GSM network, you must have an account
with a service provider that supports GSM data services, and the service
provider must enable the data features on your account.

Configuring a GSM Modem Connection

Before you can use the GSM modem connection, make sure that you have
a subscription to the Circuit-Switched Data (CSD) network with your
service provider and you have an account with your service provider or
corporate network you are connecting to.

To connect to an ISP or dial in to a specific computer, you must configure
a connection for that service on your computer.

Connecting Using GPRS

Your computer can receive General Packet Radio Services (GPRS), a
high-speed data-only service that transmits data over a mobile telephone
network. In addition, GPRS provides permanent on-line connection.

To use GPRS, you must have a subscription to the function with a service
provider that supports GPRS.

Configuring a GPRS Connection

To connect to a GPRS network, you must configure a connection for that
service on your computer.

Operating Your Computer 2-25

Using the GPS (option)

Navigation and positioning are crucial to so many activities and yet the
process has always been quite cumbersome. To try to figure out where
you are and where you are going, you need GPS technology.

The Global Positioning System (GPS) is a worldwide radio-navigation
system formed from a constellation of 24 satellites and their ground
stations. GPS uses these "man-made stars" as reference points to calculate
positions accurate to a matter of meters. In fact, with advanced forms of
GPS you can make measurements to better than a centimeter! In a sense it
is like giving every square meter on the planet a unique address.

Here's how GPS works in five logical steps:

 The basis of GPS is "triangulation" from satellites.
 To "triangulate," a GPS receiver measures distance using the travel

time of radio signals.

 To measure travel time, GPS needs very accurate timing that it

achieves with some tricks.

 Along with distance, you need to know exactly where the satellites are

in space. High orbits and careful monitoring are the secret.

 Finally you must correct for any delays the signal experiences as it

travels through the atmosphere.

Five broad categories of GPS application:

 Location – determining a basic position
 Navigation – getting from one location to another
 Tracking – monitoring the movement of people and things
 Mapping – creating maps of the world
 Timing – bringing precise timing to the world

2-26 Operating Your Computer

Using the Bluetooth (option)

NOTE: To take advantage of the Bluetooth feature, the Bluetooth driver supplied with
your computer must be installed.

Your computer is compliant with Bluetooth Class 1. To ensure
interoperability between other devices supporting Bluetooth technology,
check with the manufacturers of other devices to determine their
compatibility with your computer.

NOTES:

 There may be restrictions on using Bluetooth technology in some locations. Check

with your local authorities or service provider.

 Features using Bluetooth technology, or allowing such features to run in the

background while using other features, increase the demand on battery power and
reduces the battery life.

Bluetooth technology enables wireless connections between electronic
devices. A Bluetooth connection can be used to send files or to connect
wirelessly to compatible devices using Bluetooth technology, such as
cellular phones and PDAs.

Since devices using Bluetooth technology communicate using radio
waves, your computer and the other devices do not need to be in direct
line-of-sight. Your computer and the other device only need to be within
a maximum of 10 meters of each other, although the connection can be
subject to interference from obstructions such as walls or from other
electronic devices.

Operating Your Computer 2-27

CHAPTER

Managing Power

Your computer operates either on external AC power or internal battery
power.

This chapter tells you how you can effectively manage power. To
maintain optimal battery performance, it is important that you use the
battery in the proper way.

The topics in this chapter include:

 What is an AC adapter
 How to charge the battery pack
 When and how to initialize the battery pack

3

 How to check the battery level
 How to replace the battery pack
 What happens when the battery is low and what actions to take
 What is Power Management
 How to save power

AC Adapter

CAUTION:

 The AC adapter is designed for use with your computer only. Connecting the AC

adapter to another device can damage the adapter.

 The AC power cord supplied with your computer is for use in the country where you

purchased your computer. If you plan to go overseas with the computer, consult
your dealer for the appropriate power cord.

 When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the computer. A reverse procedure may damage the AC adapter or
computer.

 When unplugging the connector, always hold the plug head. Never pull on the cord.

The AC adapter serves as a converter from AC (Alternating Current) to
DC (Direct Current) power because your computer runs on DC power,
but an electrical outlet usually provides AC power. It also charges the
battery pack when connected to AC power.

The AC adapter operates on any voltage in the range of 100 ~ 240 V AC.

3-2 Managing Power

Battery Pack

The battery pack is the internal power source for the computer. It is
rechargeable using the AC adapter.

The operating time of a fully charged battery pack depends on how you
are using the computer. When your applications often access peripherals,
you will experience a shorter operating time.

NOTE: Care and maintenance information for the battery is provided in the “Battery
Pack Guidelines” section in Chapter 7.

Charging the Battery Pack

NOTES:

 Charging will not start if the battery’s temperature is below -5 °C (32 °F) or above

46 °C (122 °F).

 The thermal protection of battery pack is 75 °C (147°F) for both Charge and

discharger mode. In any case, once the temperature of battery pack reach to
75°C(147°F), the battery pack will cut off the output and input MOSFET
immediately, the means is battery stop the charge and discharge. If this happens,
the battery pack may be damaged. Please contact your dealer.

 During charging, do not disconnect the AC adapter before the battery has been fully

charged; otherwise you will get a prematurely charged battery.

To charge the battery pack, connect the AC adapter to the computer and
an electrical outlet. Battery status indicator (

) will light amber when
battery is charging, and light green when battery is charged full. You are
advised to keep the computer power off while the battery is being
charged. Battery low indicator will blink amber when battery capacity is
below 10 percentages.

It takes approximately 180 minutes (3 hours) to charge the battery pack
when the computer is off and 240 minutes (4 hours) to fully charge the
battery pack when the computer is on.

CAUTION: After the computer has been fully recharged, do not immediately disconnect

Managing Power 3-3

and reconnect the AC adapter to charge it again. Doing so may damage the battery.
NOTE: The battery level may automatically lessen due to the self-discharge process

(0.21% per day), even when the battery pack is fully charged (100%). This happens no
matter if the battery pack is installed in the computer.

Initializing the Battery Pack

You need to initialize a new battery pack before using it for the first time
or when the actual operating time of a battery pack is much less than
expected.

Initializing is the process of fully charging, discharging, and then
charging. It can take several hours.

1. Make sure the computer power is turned off. Connect the AC adapter
to fully charge the battery pack.

2. After the battery pack is fully charged, turn on the computer.

3. Disconnect the AC adapter and leave the computer on until the
battery is fully discharged. The computer will shut down
automatically.

4. Connect the AC adapter to fully charge the battery pack.

Checking the Battery Level

NOTE: Any battery level indication is an estimated result. The actual operating time can
be different from the estimated time, depending on how you are using the computer.

You can check the approximate battery level using the battery meter
function of the operating system. To read the battery level in Windows,
click the

icon on the taskbar. (Click the icon if the computer is

using AC power.)

3-4 Managing Power

Replacing the Battery Pack

CAUTION:

 There is danger of explosion if the battery is incorrectly replaced. Replace the

battery only with the computer manufacturer’s optional battery packs. Discard used
batteries according to the dealer’s instructions.

 Do not attempt to disassemble the battery pack.

If you often rely on battery power for a long period of time while
traveling, you may consider the purchase of an additional battery pack
from your dealer and keep it with you in a fully charged state as a backup.

To replace the battery pack, follow these steps:

1. Make sure the computer is not turned on or connected to AC power.

2. Remove the four screws and lift the battery pack compartment cover
to take it off the computer.

3. Pull on the ribbon and take the battery pack off the computer.

4. Insert the new battery pack into the compartment.

Managing Power 3-5

5. Replace the battery pack compartment cover and secure the four
screws.

Battery Low Signals and Actions

Battery Low occurs when the battery has approximately 10% (Windows
default setting) of its charge remaining. The computer gives warning
beeps or messages and the Battery Power Indicator (
(orange) to alert you to take actions.

) blinks amber

NOTE: You can set up your threshold and signals of Battery Low under Windows.

Immediately save your data upon Battery Low. The remaining operating
time depends on how you are using the computer. If you are using the
audio subsystem, hard or DVD/Combo/DVD Dual drives, the battery
might run out of charge very quickly.

Always respond to Battery Low by placing your computer on Standby or
Hibernation mode, turning off the computer, or connecting the AC
adapter.

If you do not take any action, the computer will automatically hibernate
and turn off.

CAUTION: If you fail to save your data when the battery completely runs out of charge,

then you lose your data.

3-6 Managing Power

Power Management

Your computer supports ACPI (Advanced Configuration and Power
Interface) for power management. The power management feature allows
you to reduce the power consumption for energy saving.

With an ACPI-compliant operating system such as Windows 2000 and
Windows XP, power supply to different computer components is
controlled on an as-needed basis. This allows maximum power
conservation and performance at the same time.

In general, Windows’ power management works in this way:

What… When…

Power to the hard disk is turned off When the hard disk has been idle for a

set period.

Power to the display is turned off When the display has been idle for a set

period.

The computer enters Standby mode.
The hard disk and display are turned
off and the entire system consumes
less power.

The computer enters Hibernation
mode. (See the next subsection for
more information.)

* depends on your settings in Windows.

For detailed information on power management, see Windows’ Help.

When the entire system has been idle
for a set period.

When you press Fn+F10. *
When you close the cover. *
When you press the power button. *
When you press the power button. *
When you press Fn+F10. *
When you close the cover. *

Managing Power 3-7

Hibernation

Hibernation is a very useful feature. People frequently open many
applications when they use computers. It takes some time to get all these
applications open and running, and normally they all have to be closed
before the system can be turned off.

When you use the hibernation feature, you do not have to close the
applications. The computer stores the state of your computer to a file on
the hard disk and then shut down. The next time you turn on your
computer, you return to exactly where you left off.

3-8 Managing Power

Power-Saving Tips

In addition to your computer’s automatic power management, you can do
your part to maximize the battery’s operating time by following these
suggestions.

 Do not disable Power Management.
 Decrease the LCD brightness to the lowest comfortable level.
 Disable the serial port if no device is connected to this port. (See

“Advanced Menu” in Chapter 5.)

 If you work with an application that uses the serial port or features

wireless connectivity (LAN/WLAN/modem/GPS/Bluetooth), exit
the application when you finish using it.

 Turn off the computer when you are not using it.

Managing Power 3-9

3-10 Managing Power

CHAPTER

4

Expanding Your Computer

You can expand the capabilities of your computer by connecting other
peripheral devices. When using a device, be sure to read the instructions
accompanying the device together with the relevant section in this
chapter.

This chapter gives guidelines on installing and using these devices:

 External monitor
 USB device
 Serial device
 IR device
 Video capture device

Connecting an External Monitor

If you want the benefits of a larger display screen with higher resolution,
you can connect an external CRT monitor that supports the DVI interface
to your computer.

Follow this procedure to connect an external monitor:

1. Make sure that the computer is not turned on.

2. Plug the monitor’s signal connector to the computer’s DVI-I port.

3. Plug one end of the monitor’s power cord into the power socket on
the monitor and the other end to an electrical outlet.

4. To use the monitor, turn on the monitor before turning on the
computer.

5. The monitor should respond by default. If not, you can switch the
display to the monitor or to both (simultaneous display), or to
multi-display by pressing
the display through the settings in Display Properties.

6. You can change display settings through your operating system. See
your operating system documentation or online help for specific
information.

CAUTION: Do not disconnect the external monitor while the computer is in Standby
mode or Hibernation mode. If no external monitor is connected when the computer
resumes, the LCD remains blank and the output is not displayed.

4-2 Expanding Your Computer

Fn+F9. In Windows, you can also change

Connecting a USB Device

Your computer has two USB ports that supports transfer rates up to 12
MB/s for USB 1.1 devices and 480 MB/s for USB 2.0 devices, such as
digital camera, scanner, printer, modem, and mouse.

USB is specified to be an industry standard extension to the PC
architecture. It supports “Plug-and-Play” technology so you can install
and remove USB devices without turning off the computer. With its
multiple connection capability, up to 127 devices can be connected in a
daisy-chain configuration. In addition, you can use a USB hub that
converts a single USB connector into multiple ports where USB devices
can be connected.

To connect a USB device, simply plug the device cable to one of the USB
ports.

Expanding Your Computer 4-3

Connecting a Serial Device

Your computer has a serial port for connecting a serial device such as an
external modem.

Follow this procedure to connect a serial device:

1. Make sure the “COM1 Settings” item is set properly in the SCU
program. (See “Advanced Menu” in Chapter 5 for information.)

2. Make sure the computer is not turned on.

3. Plug the device cable to the serial port on the rear of the computer.

4. Turn on the computer.

NOTE: Portable modems that derive power through the serial port cannot be used with
the computer. Instead, use a modem that is powered by its own internal battery or
external AC power.

4-4 Expanding Your Computer

Connecting an IR Device

Your computer has an IR (infrared) port for connecting an
infrared-equipped device wirelessly such as another computer, printer, or
PDA (Personal Digital Assistant).

Follow this procedure to connect an IR device:

1. Under Windows, make sure that the IrDA Fast Infrared Port is set to
HP HSDL-2300/3600.

2. Make sure that the “COM Ports” and its “COM2 (FIR) Settings”
items are set properly in the SCU program. (See “Advanced Menu”
in Chapter 5 for information.)

3. When using the IR port:
Place the transmitting device where its IR port faces the IR port of
your computer within the effective range − within ±20-degrees
vertical angle and within ±20-degrees horizontal angle at no greater
than 0.8~1.0 meter distance.
Place the receiving device where the IR port of your computer faces
its IR port within the effective range − within ±15-degrees vertical
angle and within ±15-degrees horizontal angle at no greater than

0.8~1.0 meter distance.

4. To take advantage of IR communications, you need a third party
software.

NOTES: During infrared communication, take note of the following:

 Do not move the computer and IR device.
 Do not enter Standby mode.
 Do not use a cell phone or another IR device near the computer.
 Avoid strong light such as sunlight or fluorescent light.
 Disable the screen saver.

Expanding Your Computer 4-5

4-6 Expanding Your Computer

Connecting a Video Capture Device

NOTE: To take advantage of the AV input port, the Video Capture driver supplied with
your computer must be installed (see chapter 6 for details).

Your computer has an AV input port on the rear of the computer for
connecting a video capture device such as high-quality CCD, as well as
consumer electronic equipment such as DVCAM and VCR.

To connect a video capturing device, simply plug the device cable to the
AV input port (conexant 878A PCI; BNC-type) of the system.

Expanding Your Computer 4-7

System Memory Upgrade

You can upgrade your computer by changing system memory to a
maximum of 2 GB on the two 200-pin DDR SO-DIMM slots. However,
to avoid damage during the installation procedure, please ask your dealer
for help.

4-8 Expanding Your Computer

CHAPTER

5

Setup Configuration Utility (SCU)

SCU is a program for configuring the BIOS (Basic Input/Output System)
settings of the computer.

BIOS is a layer of software, called firmware, that translates instructions
from other layers of software into instructions that the computer hardware
can understand. The BIOS settings are needed by your computer to
identify the types of installed devices and establish special features.

This chapter tells you how to use the SCU program.

When and How to Use the SCU Program

When to Use

You need to run the SCU program when:

 You see an error message on the screen requesting you to run Setup.
 You want to restore the factory default settings.
 You want to modify some specific settings according to the hardware.
 You want to modify some specific settings to optimize system

performance.

Starting SCU

NOTES:

 The Setup screens shown in this chapter are for your reference only. The actual

items or settings on your computer may differ.

 The Setup program may have been updated after the publication of this manual.
 The settings you select in your operating system might override similar settings in

Setup.

To run SCU, press F2 when the prompt appears in the lower left corner of
the screen during system startup. The prompt shows up on the screen for
only a few seconds. You must press

F2 quickly. The SCU menu appears

as shown next.

5-2 Setup Configuration Utility (SCU)

Moving Around and Making Selections

A brief description of keyboard usage is listed next:

Key Function

←, →
↑, ↓

Enter

Tab
Esc

Selects a menu title.

1) Selects an item or option.

2) Brings up/down the value.

1) Brings up the sub-menu when available.

2) Opens or closes the options window when an item is selected.
Jumps from one item to another.

1) Exits the SCU program.

2) Returns to the previous menu if in a sub-menu.

3) Closes the options window if one is open.

Setup Configuration Utility (SCU) 5-3

Main Menu

Date and Time

Sets the system time (Hour, Minute, Second) and date (Month, Day,
Year).

5-4 Setup Configuration Utility (SCU)

Internal Numlock

Sets if you can enter a number when Num Lock is turned off. When this
item is enabled, you can press and hold
enter a number even if
you cannot enter a number with the above method. A check mark ()
indicates enabled while underline (_) indicates disabled. Default setting is
enabled.

Num Lock is turned off. When this item is disabled,

Fn, and then press a letter key to

USB Emulation

Enables or disables the system’s support for the USB port in DOS mode.
A check mark () indicates enabled while underline (_) indicates
disabled. Default setting is enabled.

Setup Configuration Utility (SCU) 5-5

Advanced Menu

Geyserville Support

5-6 Setup Configuration Utility (SCU)

Enables or disables the Geyserville feature of the CPU. The Geyserville
feature helps conserve battery life by decreasing the CPU’s running speed
under certain conditions while still maintaining a high performance. If
this item is enabled, the CPU will automatically change its speed
whenever necessary based on the “Power Scheme” setting in Windows’
Control Panel. If this item is disabled, the CPU will always run in the
lowest speed. The options are Enabled and Disabled. The default setting
is Enabled.

NOTE: This item is available only when the CPU supports the Geyserville feature.

Shared Video Memory

Sets the shared memory size of the video controller. The options are 4M,
8M, 16M, and 32M. Default setting is 32M.

Setup Configuration Utility (SCU) 5-7

COM Ports

Allows you to configure the COM ports of the computer.

COM1 / 2 (FIR) / 3 / 5 / 6 Settings sets the I/O (Input/Output)
address and the Interrupt ReQuest line (IRQ) settings of the COM
ports. The options are Disabled; COM1, 3F8, IRQ4; COM2, 2F8,
IRQ3; COM3, 3E8, IRQ6; COM5, 3E0, IRQ5; COM6, 2E0, IRQ10.

HDD Heater

Sets if the system automatically turns on the built-in hard disk drive
heater for low temperature operation. A check mark (√) indicates
enabled, while underline (_) indicates disabled.

NOTES:

 To use the HDD heater feature, the MTCCTRL driver supplied with your computer

must be installed (see chapter 6 for details).

 Disable this item to conserve energy when using battery power.

5-8 Setup Configuration Utility (SCU)

Security Menu

Power-on Password

Setup Configuration Utility (SCU) 5-9

Allows you to set the password for your system. When typing the
password, first make sure that
the entry fields and press
and pressing

Enter. If the Enable Password to Power-on sub-item is

Num Lock is off, then type your password in

Enter. Confirm your password by typing it again

enabled, the set password is always required to boot the computer.

SCU Password

Allows you to set the password for entering SCU Setup. When typing the
password, first make sure that
the entry fields and press
and pressing

Enter. If the Enable SCU Password sub-item is enabled, the

Num Lock is off, then type your password in

Enter. Confirm your password by typing it again

SCU password is always required to enter SCU Setup.

Hard Disk Boot Sector

Sets if a warning message will appear when the hard disk boot sector
(partition table) has been changed. A checkmark () indicates enabled,
while an underline (_) indicates disabled. The default setting is disabled.

CAUTION: Set this item to disabled before installing an operating system, running

Fdisk or Format program. Otherwise, the intended action will fail.

5-10 Setup Configuration Utility (SCU)

Boot Menu

Boot Sequence

Sets the first, second, third, and fourth booting device. The system will
try to boot from the first device but if it is not available, will try the next
boot device. If you set the first boot device to LAN Boot, the system will
boot from the LAN server first. The options are Hard Disk Drive,

CD-ROM Drive, Floppy Disk Drive, and LAN Boot. The default setting is
Floppy Disk Drive, Hard Disk Drive, CD-ROM Drive, then LAN Boot.

NOTE: If you set all booting options to the same device, then the computer will try to
boot from that device only.

Setup Configuration Utility (SCU) 5-11

Exit Menu

Save Changes and Exit

Saves the changes you have made and exit the SCU program.

Discard Changes and Exit

Exits the SCU program without saving the changes you have made.

Get Default Values

Loads factory default values for all the items.

Load Previous Values

Restores previous values for all the items.

5-12 Setup Configuration Utility (SCU)

CHAPTER

6

Installing Software Drivers

To take full advantage of the unique features of your computer, some
operating systems require custom software, known as drivers, to be
installed.

If you purchased the computer with Windows pre-installed, your dealer
may have already installed the drivers. If not, you need to install the
drivers using the driver CD supplied with your computer.

This chapter describes how to install the drivers.

How to Use the Driver CD

NOTES:

• The drivers may have been updated after this manual was published. For driver
upgrade, please contact your dealer.

• You can always find README or document files on the driver CD. These files
contain the latest information from the software supplier. Please read the files
together with this chapter.

• This driver CD supports Windows 2000 and Windows XP only.

• The available items may differ according to your computer model and operation

system.

An autorun program is provided on the driver CD to help you easily
install the drivers. As you insert the driver CD, the autorun program
automatically starts. If you need to start the program manually, run the
Autorun.exe program from the Setup directory of the driver CD.

The main screen appears as shown next:

6-2 Installing Software Drivers

Drivers on the First Page

To install the necessary driver, just click on the particular option and
follow the onscreen instructions to continue and complete installation.

Device Driver Installs the device drivers (chipset, VGA, LAN, audio,

modem, etc.).

Video Capture Shows you the instructions on installing the driver that

allows you to connect a video capture device through
the AV input port.

Fingerprint Shows you the instructions on installing the driver that

allows you to use the fingerprint recognition system
and its application software.

Bluetooth Allows you to connect to Bluetooth-compliant

devices.

Touchpad Allows you to take full advantage of the touchpad and

the scroll button features.

User Guide Allows you to view the Operation Manual on screen.
Browse CD Browses the contents of this CD.

Installing Software Drivers 6-3

Upon clicking “Next Page,” the following screen appears:

Drivers on the Second Page

PROSet Installs the WLAN Utility that allows your system to

connect wirelessly to the Internet.

SpeedStep Allows you to use the SpeedStep function of the

computer (for Windows 2000 only).

USB-to-LAN Allows you to use the network function of the

computer when the optional docking station is
connected.

MotoCrtl Installs the Motorola proprietary control utility
XBayCtrl Installs the X-bay control utility.

6-4 Installing Software Drivers

Install Touch Screen Driver for Windows 2000, Windows XP

1. After the system has finished rebooting, click on the
“PenMount Monitor icon located on the taskbar to bring up the
“PenMount Control Panel.”

2. Select the “ Standard Calibration” folder and click on “OK” button.

When the “PENMOUNT Control Panel” dialog box appears, click
on the “Calibrate” folder and click on the “Standard Calibration” button.

3. If you need 4,9,16,25 dot of the calibrate, we suggest select “Advanced
Calibration” button to calibrate.

4. Click on the four sides (points) and the plus-sign “+” on the screen
to calibrate your “PENMOUNT” pen for use on the computer.

Installing Software Drivers 6-5

CHAPTER

Caring for the Computer

Taking good care of your computer will ensure a trouble-free operation
and reduce the risk of damage to your computer.

This chapter gives you guidelines covering these areas of maintenance:

 How to protect the computer
 What to note when using and storing the computer
 How to clean the computer
 What to note when using the battery pack
 What to note when traveling with the computer

7

Protecting the Computer

To safeguard the integrity of your computer data as well as the computer
itself, you can protect the computer in several ways as described in this
section.

Using the Password

The power-on password protects your computer against unauthorized
use. If the password is set, the prompt requesting for the password
appears on the screen whenever the computer is turned on.

The password is set via the SCU program. See “Security Menu” in
Chapter 5 for instructions.

Using an Anti-Virus Strategy

New viruses are always being developed nowadays and they are attacking
computers even more easily with emails so commonly used worldwide.

The Security feature of the SCU program protects the boot sector of the
hard disk. To enable the function, see “Security Menu” in Chapter 5 for
instructions.

You can also install a virus-detecting program to monitor potential
viruses that could damage your files.

7-2 Caring for the Computer

Taking Care of the Computer

Location Guidelines

 Use the computer where the temperature is between 0 °C (32 °F) and

50 °C (122 °F).

 Avoid placing the computer in a location subject to high humidity,

extreme temperatures, mechanical vibration, direct sunlight, or heavy
dust.

 Do not cover or block any ventilation openings on the computer. For

example, do not place the computer on a bed, sofa, rug, or other
similar surface. Otherwise, overheating may occur that results in
damage to the computer.

 Keep the computer at least 13 cm (5 inches) away from electrical

appliances that can generate a strong magnetic field such as a TV,
refrigerator, motor, or a large audio speaker.

 Do not move the computer abruptly from a cold to a warm place. A

temperature difference of more than 10 °C (18 °F) will cause
condensation inside the unit, which may damage the storage media.

 Do not place the computer on an unsteady surface.

General Guidelines

 Do not place heavy objects on top of the computer as this may

damage the display.

 The screen surface is easily scratched. Do not use paper towels to

clean the display. Avoid touching it with a ballpoint pen or pencil.

 To maxi mize the life of the backlight in the display, allow the

backlight to automatically turn off as a result of power management.
Avoid using a screen saver or other software that prevents the power
management from working.

Caring for the Computer 7-3

Cleaning Guidelines

 Never clean the computer with its power on.
 Use a soft cloth moistened with water or a non-alkaline detergent to

wipe the exterior of the computer.

 Gently wipe the display with a soft, lint-free cloth. Do not use alcohol

or detergent on the display.

 Dust on the IR/Bluetooth port can interfere with data transfer. Wipe

the port with a soft, dry cloth.

 Dust or grease on the touchscreen can affect its sensitivity. Clean the

touchscreen by using adhesive tape to remove the dust and grease on
its surface.

Battery Pack Guidelines

 Recharge the battery pack when it is nearly discharged. When

recharging, make sure the battery pack is fully charged. Doing so
may avoid harm to the battery pack.

 Operate the computer with the battery pack installed even when using

external power. This ensures that the battery is fully charged.

 If you will not be using the computer for a long period of time (more

than two weeks), remove the battery pack from the computer.

 If you remove the battery pack, make sure the battery terminals do

not contact any conductors such as metal objects or water. Otherwise,
the battery may become unusable as a result of a short circuit.

 If you need to store the battery pack, store it in a cool, dry place.

Never allow the temperature to exceed 70 °C (158 °F).

 Do not leave the battery pack in storage for more than 3 months

without recharging it.

7-4 Caring for the Computer

When Traveling

 Before traveling with your computer, make a backup of your hard

disk data into optical discs or other storage devices. As an added
precaution, bring along an extra copy of your important data.

 Make sure the battery pack is fully charged.
 Make sure the computer is turned off.
 Do not leave objects that will press onto the display.
 Disconnect the AC adapter from the computer and take it with you.

Use the AC adapter as the power source and as a battery-charger.

 Hand-carry the computer. Do not check it in as luggage.
 Allow extra time for airport security. Many airports inspect

electronic devices carefully.

 If you need to leave the computer in the car, put it in the trunk of the

car to avoid exposing the computer to excessive heat.

 When going through airport security, it is recommended that you

send the computer and USB disks through the X-ray machine (the
device you set your bags on). Avoid the magnetic detector (the device
you walk through) or the magnetic wand (the hand-held device used
by security personnel).

 If you plan to travel abroad with your computer, consult your dealer

for the appropriate AC power cord for use in your country of
destination.

Caring for the Computer 7-5

7-6 Caring for the Computer

CHAPTER

Troubleshooting

Hardware, software, or a combination of both can cause computer
problems. When you encounter any problem, it might be a typical
problem that can easily be solved.

This chapter tells you what actions to take when solving common
computer problems. It is divided into three sections:

 Preliminary checklist
 Solving common problems
 Resetting the computer

8

Preliminary Checklist

Here are helpful hints to follow before you take further actions when you
encounter any problem:

 Try to isolate which part of the computer is causing the problem.
 Make sure that you turn on all peripheral devices before turning on

the computer.

 If an external device has a problem, make sure that the cable

connections are correct and secure.

 Make sure that the configuration information is properly set in the

SCU program.

 Make sure that all the device drivers are correctly installed.
 Make notes of your observations. Are there any messages on the

screen? Do any indicators light? Do you hear any beeps? Detailed
descriptions are useful to the service personnel when you need to
consult one for assistance.

If any problem persists after you follow the instructions in this chapter,
contact an authorized dealer for help.

8-2 Troubleshooting

Solving Common Problems

For easy reference, the problems are divided into these categories.

Problem Type Go to

Battery Problems P. 8-4
Bluetooth Problems P. 8-4
DVD Drive Problems P. 8-4
Display Problems P. 8-5
Fingerprint Recognition Problems P. 8-7
Hardware Device Problems P. 8-7
Hard Disk Drive Problems P. 8-8
Infrared Problems P. 8-8
Keyboard, Mouse and Touchpad Problems P. 8-9
LAN Problems P. 8-9
WLAN Problems P. 8-10
Modem Problems P. 8-10
Power Management Problems P. 8-12
Software Problems P. 8-12
Sound Problems P. 8-13
Startup Problems P. 8-13
Other Problems P. 8-14

Troubleshooting 8-3

Battery Problems

The battery does not charge (Battery Charge indicator does not light
amber).

 Make sure that the AC adapter is properly connected.
 Make sure that the battery is not too hot or cold. Allow time for the

battery pack to return to room temperature.

 Make sure that the battery pack is installed correctly.
 Make sure that the battery terminals are clean.

The operating time of a fully charged battery becomes shorter.

 If you often partially recharge and discharge, the battery might not be

charged to its full potential. Initialize the battery to solve the problem.
(See “Initializing the Battery Pack” in Chapter 3 for instructions.)

The battery operating time indicated by the battery meter does not
match the actual operating time.

 The actual operating time can be different from the estimated time,

depending on how you are using the computer. If the actual operating
time is much less than the estimated time, initialize the battery. (See
“Initializing the Battery Pack” in Chapter 3 for instructions.)

Bluetooth Problems

I cannot connect to another Bluetooth-enabled device.

 Make sure that both devices have activated Bluetooth.
 Make sure that the distance between the two devices are not over 10

meters or that there are no walls or other obstructions between the
devices.

 Make sure that the other device is not in “Hidden” mode.
 Make sure that both devices are compatible.

8-4 Troubleshooting

I cannot end a Bluetooth connection.

 If another device is connected to your computer, you can either end

the connection using the other device or by deactivating Bluetooth.

DVD Drive Problems

The DVD drive cannot read a disc.

 Make sure that the disc is correctly seated in the tray, with the label

facing up.

 Make sure that the disc is not dirty. Clean the disc with a disc cleaning

kit, available in most computer stores.

 Make sure that the DVD drive driver is installed correctly.
 Make sure that the computer supports the disc or the files contained.

You cannot eject a disc.

 The disc is not properly seated in the drive. Manually release the disc

following the method described next:

1. Turn off the system.

2. Insert a small rod, such as a straightened paperclip, into the drive’s
manual eject hole and push firmly to release the tray.

3. Pull the tray out until fully extended, and then remove the disc.

Troubleshooting 8-5
