Getac Technology 012 User Manual

Download

M220

Operation Manual

MITAC Technology Corporation

Part Number: 0000 0000 0001 R00

(December 2004)

TRADEMARKS All brand and product names are trademarks or registered trademarks of their respective companies.

NOTE The information in this manual is subject to change without notice.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: To assure continued compliance, (example - use only shielded interface cables when connecting to computer or peripheral devices) any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This dev ice may not cause harmful interference, and (2) This device must accept any interference received, including interference that may

cause undesired operation.

IMPORTANT NOTE: FCC Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Table of Contents

Preface................................................................................................viii

Chapter 1 Getting Started.............................................................1-1

Getting the Computer Running .............................................1-2

Unpacking.....................................................................1-2

Connecting to AC Power ...............................................1-2

Opening the Cover .........................................................1-4

Turning On and Off the Computer ..................................1-4

Taking a Look at the Computer ............................................1-6

Right-Side Components..................................................1-6

Left-Side Components....................................................1-7

Rear Components..........................................................1-8

Front Components........................................................ 1-10

Bottom-Side Components............................................. 1-12

Top-open Components ................................................. 1-13

Where to Go from Here .................................................... 1-15

Chapter 2 Operating Your Computer.........................................2-1

Starting and Stopping the Computer ......................................2-2

Starting the Computer ....................................................2-2

Stopping the Computer...................................................2-2

Using the Keyboard............................................................2-4

Typewriter Keys ............................................................2-4

Cursor-Control Keys......................................................2-5

Numeric Keypad...........................................................2-5

Euro Symbol.................................................................. 2-6

Windows Keys.............................................................. 2-6

Function Keys ............................................................... 2-6

Fn Key......................................................................... 2-7

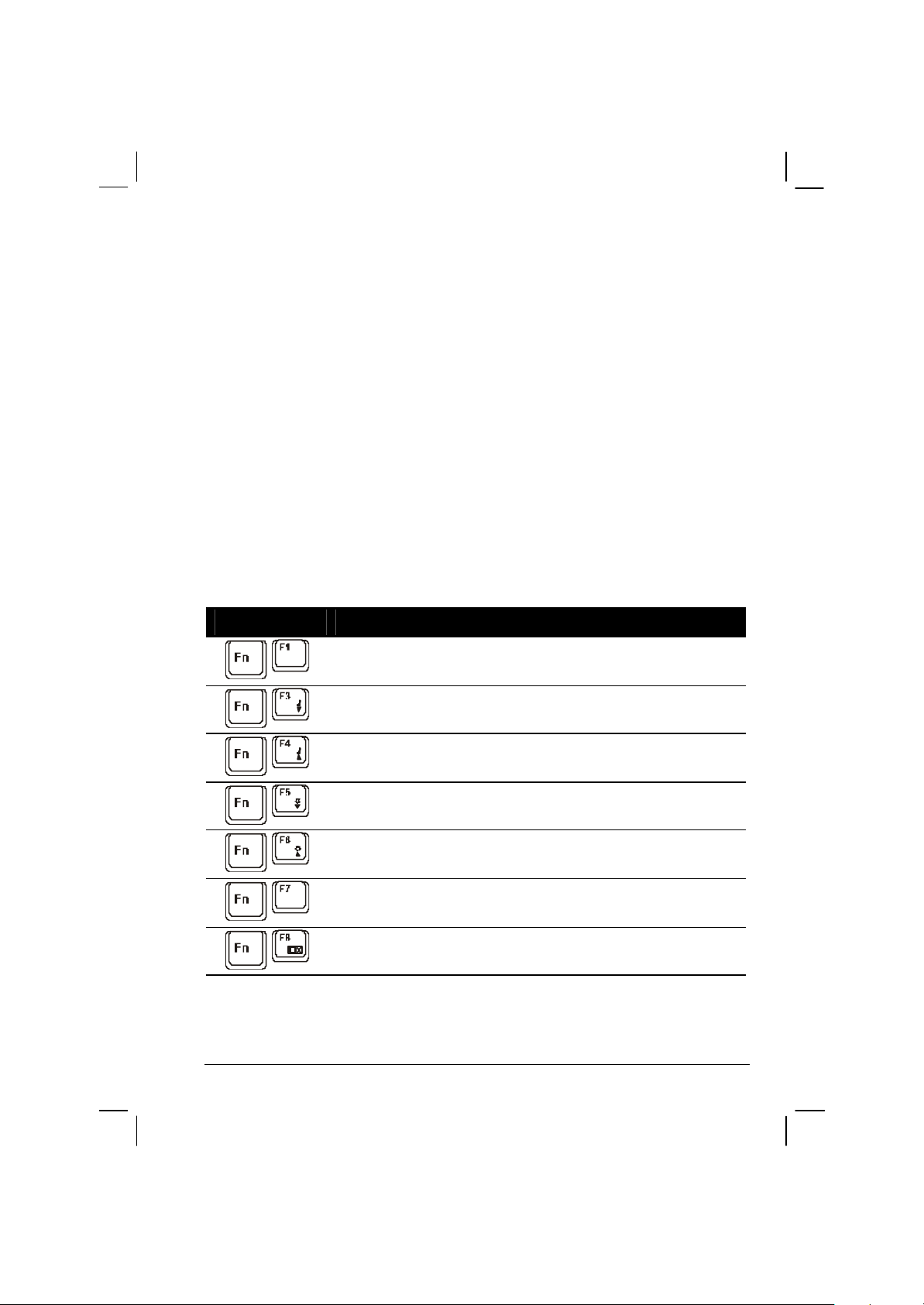

Hot Keys ...................................................................... 2-7

Using the Touchpad ............................................................2-9

Configuring the Touchpad............................................2-11

Using the Touchscreen (option) .........................................2-12

Using the Hard Disk Drive ................................................2-13

Using the Optical Drive.....................................................2-14

Installing the CD/Combo/DVD RW Drive ..................... 2-15

Inserting and Removing a Disc.....................................2-16

Using the Video Features..................................................2-17

Configuring the Display Modes ..................................... 2-17

Using the Audio Features..................................................2-19

Connecting Audio Devices...........................................2-20

Using the Communication Features....................................2-21

Using the LAN............................................................2-21

Using the Wireless LAN (WLAN)...............................2-21

Using the Modem ........................................................ 2-23

Chapter 3 Managing Power.........................................................3-1

AC Adapter ....................................................................... 3-2

Battery Pack ......................................................................3-3

Charging the Battery Pack .............................................3-3

Initializing the Battery Pack............................................ 3-4

Checking the Battery Level............................................ 3-4

Using the Primary Battery Pack .....................................3-5

Using the Secondary Battery Pack................................. 3-6

Battery Low Signals and Actions.................................... 3-7

Power Management............................................................ 3-8

Hibernation ................................................................... 3-9

Power-Saving Tips............................................................ 3-10

Chapter 4 Expanding Your Computer.......................................4-1

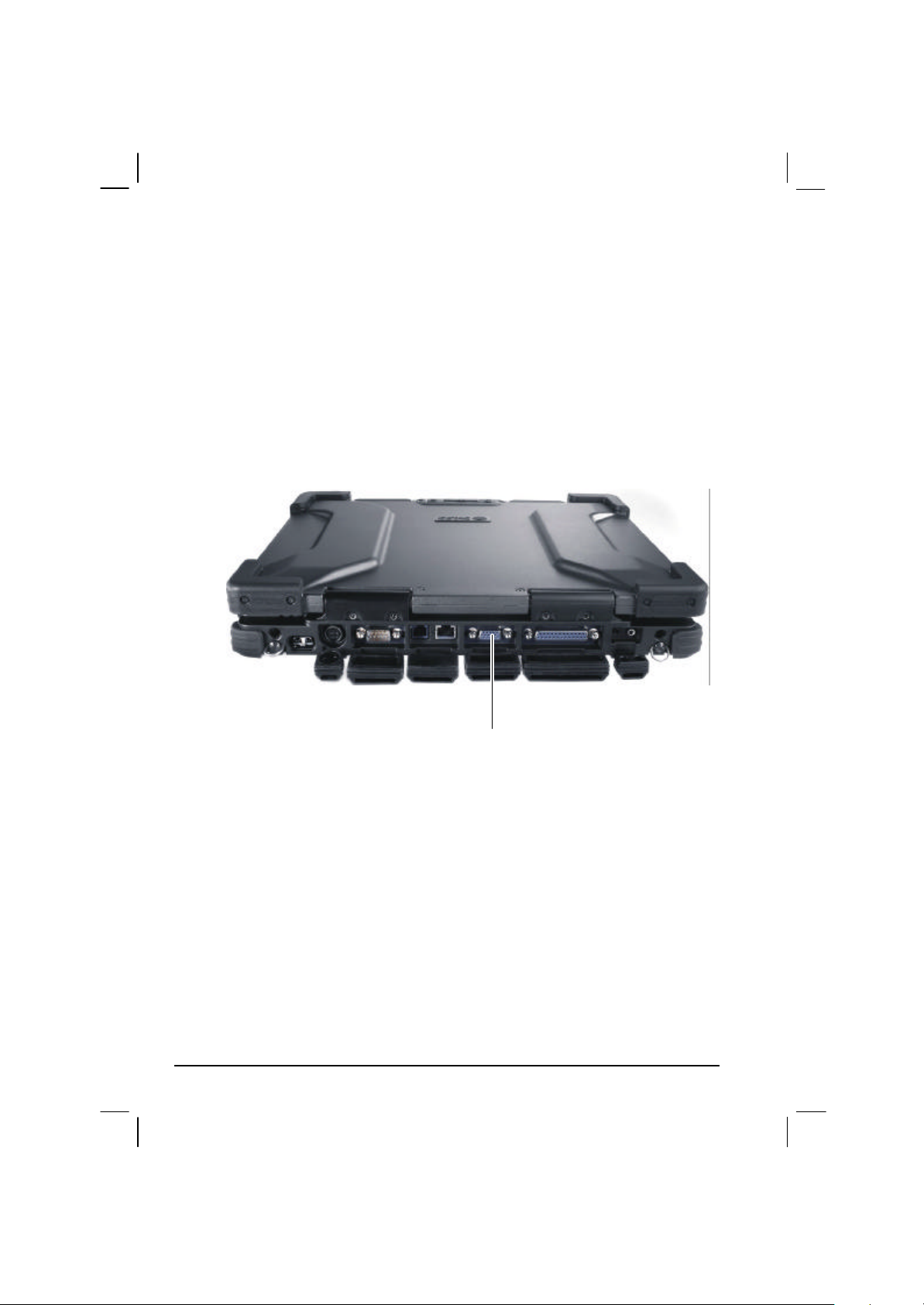

Connecting an External Monitor ...........................................4-2

Connecting a USB Device ...................................................4-4

Connecting the PS/2 Keyboard and Mouse...........................4-5

Connecting a Parallel Device...............................................4-6

Connecting a Serial Device ..................................................4-7

Connecting an IR Device.....................................................4-8

Using PC Cards................................................................ 4-10

PC Card Type ............................................................. 4-10

CardBus Support ......................................................... 4-10

Inserting and Removing a PC Card ...............................4-10

System Memory Upgrade.................................................. 4-12

Chapter 5 Setup Configuration Utility (SCU)...........................5-1

When and How to Use the SCU Program............................5-2

When to Use.................................................................5-2

Starting SCU.................................................................5-2

Moving Around and Making Selections ............................5-4

Main Menu .........................................................................5-5

Advanced Menu .................................................................5-7

HDD Heater............................................................... 5-11

Security Menu .................................................................. 5-12

Boot Menu ....................................................................... 5-15

Exit Menu......................................................................... 5-17

Chapter 6 Installing Software Drivers........................................6-1

How to Use the Driver CD..................................................6-2

Installing Drivers for Windows 2000 .....................................6-3

Touchscreen Driver.......................................................6-6

Installing Drivers for Windows XP .......................................6-7

Touchscreen Driver..................................................... 6-10

Touchscreen Utility ......................................................6-16

iii

Chapter 7 Caring for the Computer...........................................7-1

Protecting the Computer...................................................... 7-2

Using the Password....................................................... 7-2

Using the Cable Lock.................................................... 7-2

Using an Anti-Virus Strategy.......................................... 7-3

Taking Care of the Computer .............................................. 7-4

Location Guidelines........................................................ 7-4

General Guidelines .........................................................7-4

Cleaning Guidelines........................................................ 7-5

Battery Pack Guidelines .................................................7-5

When Traveling.................................................................. 7-6

Chapter 8 Troubleshooting..........................................................8-1

Preliminary Checklist .......................................................... 8-2

Solving Common Problems .................................................. 8-3

Battery Problems ...........................................................8-4

Optical Drive Problems.................................................. 8-4

Display Problems ...........................................................8-5

Hardware Device Problems ........................................... 8-7

Hard Disk Drive Problems ............................................. 8-7

Infrared Problems ..........................................................8-7

Keyboard, Mouse and Touchpad Problems ......................8-8

LAN Problems.............................................................. 8-9

WLAN Problems .......................................................... 8-9

Modem Problems ........................................................8-10

PC Card Problems ....................................................... 8-11

Power Management Problems ...................................... 8-11

Printer Problems .......................................................... 8-12

Software Problems ......................................................8-12

Sound Problems ........................................................... 8-13

Startup Problems .........................................................8-13

Other Problems ...........................................................8-14

Resetting the Computer ..................................................... 8-16

Appendix A Specifications..........................................................A-1

Appendix B Regulatory Information.........................................B-1

On the Use of the System................................................... B-2

Class B Regulations ...................................................... B-2

Safety Notices ..............................................................B-3

On the Use of RF Device ...................................................B-6

USA and Canada Safety Requirements and Notices ....... B-6

European Union CE Marking and Compliance Notices.... B-9

Preface

This manual contains information that will help you operate the computer. It is divided into 8 chapters and 2 appendices.

?? Chapter 1, Getting Started, takes you through the process of setting

up the computer and identifying its external components.

?? Chapter 2, Operating Your Computer, tells you how to use the

computer’s components and features.

?? Chapter 3, Managing Power, provides information on power. ?? Chapter 4, Expanding Your Computer, provides information on

installing and using peripheral devices.

?? Chapter 5, Using BIOS Setup, describes the SCU program that

configures the computer’s BIOS settings.

?? Chapter 6, Installing Software Drivers, describes how to install the

drivers and utilities supplied with the computer.

?? Chapter 7, Caring for the Computer, gives you tips in care and

maintenance.

?? Chapter 8, Troubleshooting, gives solutions to common problems

you may encounter when using the computer.

?? Appendix A, Specifications, gives a brief specification of the

computer.

?? Appendix B, Regulatory Information, provides regulatory

statements and safety notices on your computer.

vii

Notational Conventions

Throughout this manual, the following conventions are used to distinguish elements of text.

NOTE: identifies additional information that requires special attention. CAUTION: identifies important information that , if not followed, may result in loss of data or

damage to the computer.

Keyboard keys are shown in a bold typeset. For example:

Press Enter to complete.

When keys are joined by a plus sign (+), press the first key, and, while keeping the first key down, press the remaining keys, finally release all the keys. When necessary, keys are also shown in graphics.

A title, command, setup item, or button that you can see on the screen is shown in boldface. A value or an option that you can select for a setup item is shown in italic. For example:

Select Power Schemes, set it to Portable/Laptop, and then click the OK button.

viii

CHAPTER

Getting Started

Congratulations on purchasing this computer. This high performance notebook computer is especially designed for the

practical applications of warehouses, automobiles, vehicles, public security, repairing, assisting the handicapped, and other demanding situations where conventional notebook computers just cannot measure up.

This chapter first tells you step by step how to get the computer up and running. You will find instructions for these procedures:

?? Unpacking ?? Connecting to AC power

?? Opening the cover ?? Turning on the computer ?? Turning off the computer

Then, you will find a section briefly introducing the external components of the computer. And the last section navigates you to the information you may need after the computer is ready for use .

Getting the Computer Running

This section guides you through the procedures for getting the computer ready for operation.

Unpacking

After unpacking the shipping carton, you should find these standard items:

?? Notebook computer ?? Accessories:

? AC adapter (100~240 VAC, 50/60 Hz) ? AC power cord (US/CE/UK/SA) ? Car adapter (option) ? Extra battery pack (option) ? Touchscreen pen (option) ? Driver CD ? This Operation Manual ? Vehicle docking (option) ? Office docking (option) ? Carrying bag (option)

Inspect all the items. If any item is damaged or missing, notify your dealer immediately.

Keep the shipping carton and packing materials in case you need to ship or store the computer in the future.

Connecting to AC Power

The computer operates either on the external AC power or internal battery power. It is suggested that you use AC power when you start up the computer for the first time.

CAUTION: Use only the AC adapter included with your computer. Using other AC

1-2 Getting Started

adapters may damage the computer.

NOTE: Power Supply Cord: (optional) Detachable, minimum 1.5 m long. Listed, rated

minimum 125 V, 7 A, having a 2/18 AWG, type SVT flexible cord. One end terminates with a parallel blade, molded-on, attachments plug with a 7 A, 125 V (NEMA 1-15P) configuration; other end terminates with a molded-on appliance coupler.

Alternative: (optional) Detachable, maximum 4.5 m (14.76 ft) long. Listed, rated minimum 250 V, 6 A, having a 3/18 AWG, type SVT flexible cord. One end terminates with a Tandem blade, grounding, listed molded-on, attachments plug with a 6 A, 250 V (NEMA 6-15P) configuration; other end terminates with a molded-on appliance coupler.

1. Make sure the computer is turned off.

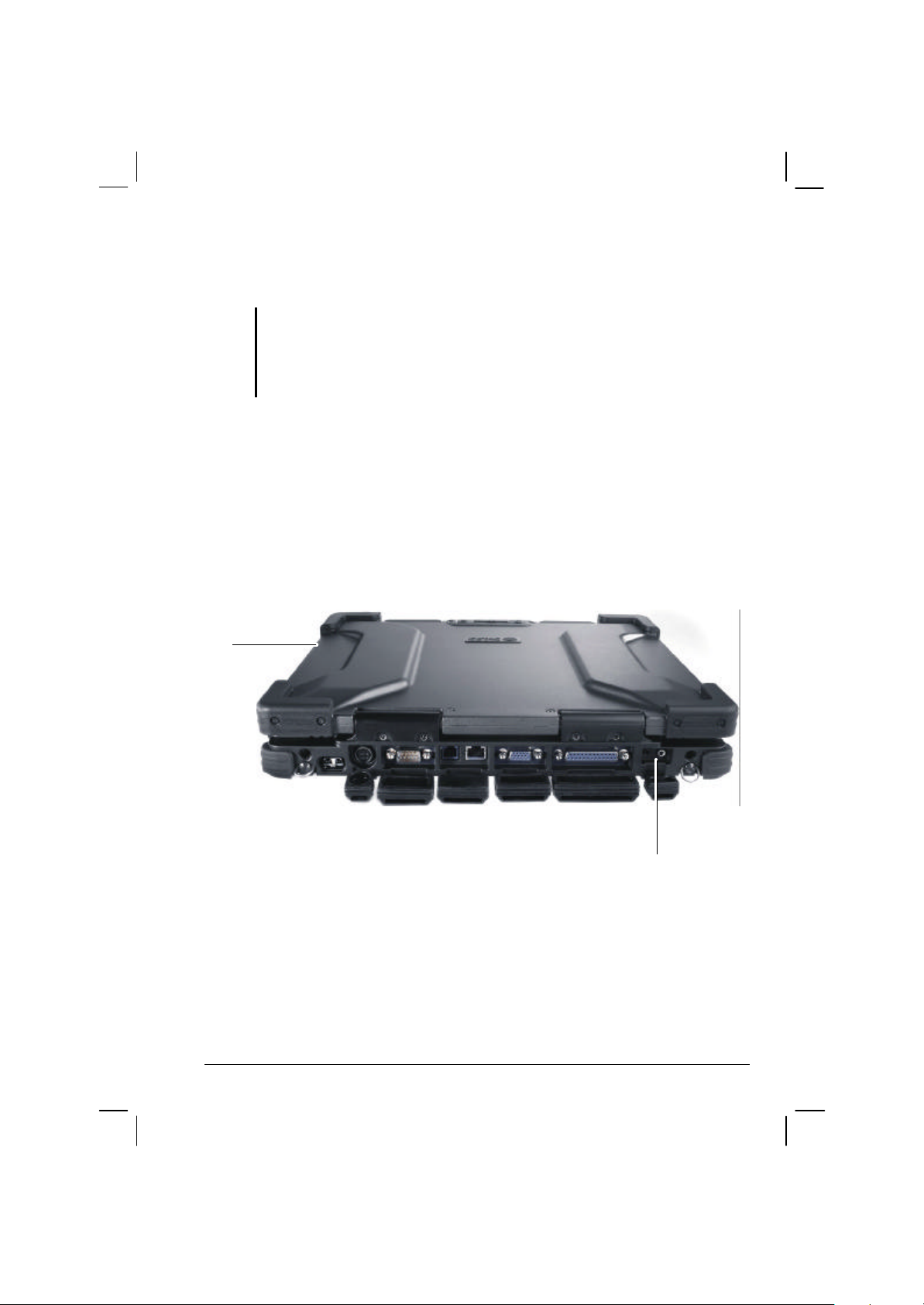

2. Plug the DC cord of the AC adapter to the power connector on the rear side of the computer (?) .

3. Plug the female end of the AC power cord to the AC adapter and the male end to an electrical outlet (?) .

AC in

4. When the AC adapter is connected, the indicator on the AC adapter lights up, indicating that power is being supplied from the electrical outlet to the AC adapter and onto your computer. Now, you are ready to turn on the computer.

Getting Started 1-3

CAUTION:

?? When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the comp uter. A reverse procedure may damage the AC adapter or the computer.

?? When unplugging the connector, always hold the plug head. Never pull on the cord.

NOTE: When the AC adapter is connected, it also charges the battery pack. For information on using battery power, see Chapter 3.

Opening the Cover

CAUTION: Be gentle when opening and closing the cover. Opening it vigorously or slamming it shut could damage the computer.

1. Open the top cover by pushing on the top portion of the cove r latch, and then pulling on the bottom portion of the cover latch.

Cover latch

2. Lift up the cover. You can tilt the cover forward or backward for optimal viewing clarity.

Turning On and Off the Computer

Turning On

1. Make sure the computer is connected to AC power.

1-4 Getting Started

Power

2. Press the power button.

button

3. Each time the computer is turned on, it performs a Power-On Self Test (POST), and the operating system such as Windows should start.

Turning Off

To turn off the computer power, use the “Shut Down” command of your operating system.

NOTE: There are other ways you can stop the computer so that you will be back to where you left off when you next turn on the computer. (See “Stopping the Computer” in Chapter 2 for information.)

CAUTION: If you have to turn the computer on again immediately after turning it off, wait for at least five seconds. Turning the computer off and on rapidly can damage it.

Getting Started 1-5

? ? ? ?

Taking a Look at the Computer

This section identifies the external components of the computer and briefly describes the function of each component.

NOTE: Depending on the model you purchased, the appearance of your computer may not exactly be the same as those shown in this manual.

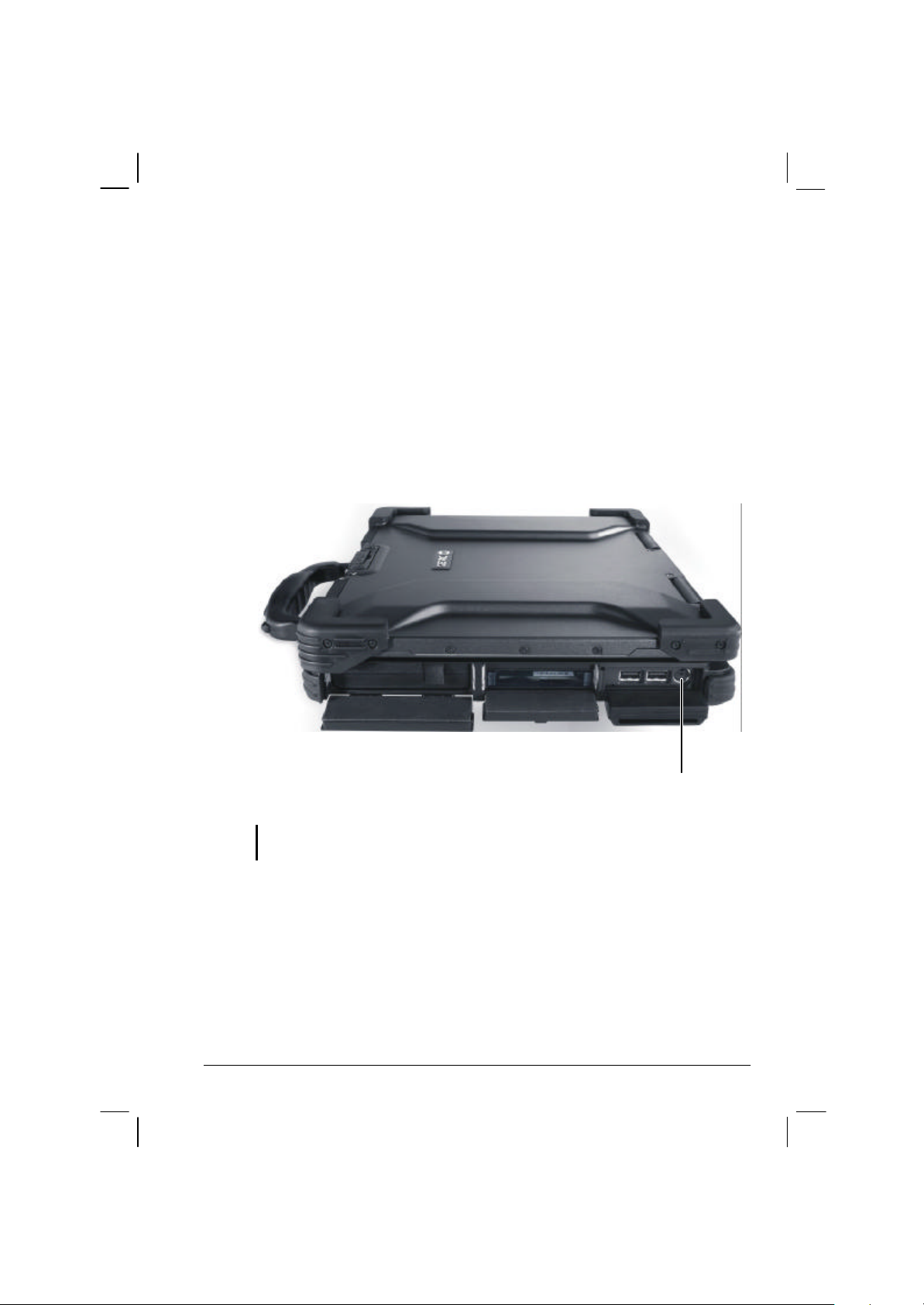

Right-Side Components

Ref Component Description See Also

Primary

Battery Pack PC Card Slot Accepts a PC card for additional functions. P. 4-10

USB Ports Each of the two ports connects a USB device,

PS/2 Port Connects a PS/2 keyboard and/or mouse. P. 4-5

1-6 Getting Started

Supplies power to your computer when external power is not connected.

such as a USB floppy drive, printer, digital camera, joystick, and more.

P. 3-5

P. 4-4

? ?

Left-Side Components

Ref Component Description See Also

CD/Combo/

DVD RW Drive

Secondary Battery Pack

Hard Disk

Drive Slot

Accepts a compact disc (CD) for installing or loading software, accessing data, and playing music/video.

You can purchase a secondary battery pack that supplies power to your computer when external power is not connected.

Inside is the hard disk drive of your computer. P. 2-13

P. 2-14

P. 3-6

Getting Started 1-7

? ? ? ? ? ?

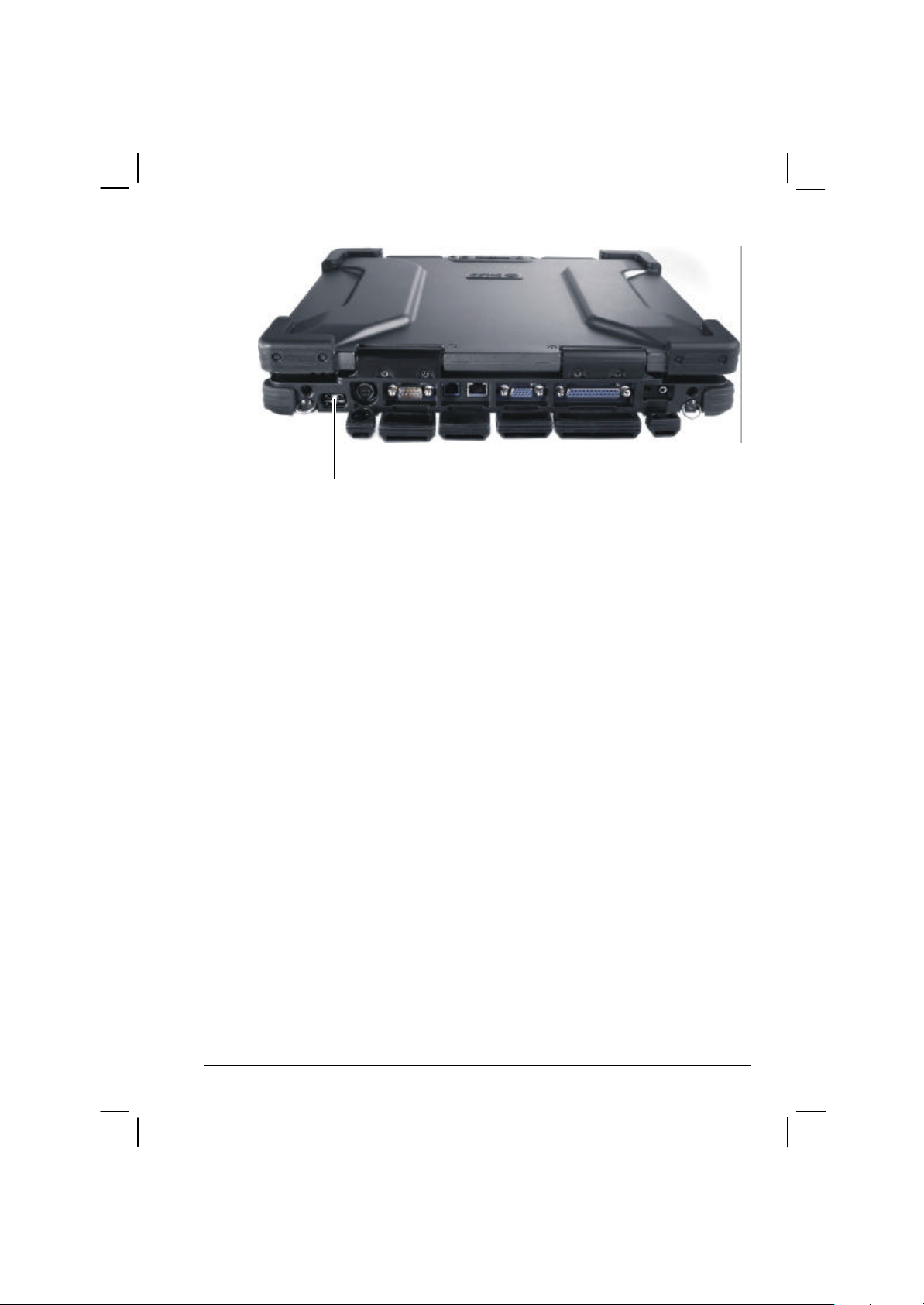

Rear Components

Ref Component Description See Also

IR Port Connects an IrDA-compliant device for wireless

Power

Connector Serial Port Connects a serial device, such as an external

RJ-11

Connector RJ-45

Connector VGA Port Connects an external monitor. P. 4-2

Parallel Port Connects a parallel device, such as a printer. P. 4-6

Microphone

Connector

data transfer. Connects the AC adapter. P. 1-3

modem. Connects the telephone line. P. 2-24

Connects the LAN cable. P. 2-22

Connects an external microphone. P. 2-21

P. 4-8

P. 4-7

1-8 Getting Started

Ref Component Description See Also

Audio Output

Connector

Connects a set of headphones, external speakers with amplifier, an audio recording device, or an S/PDIF device such as a digital speaker set for digital audio output.

P. 2-21

Getting Started 1-9

? ? ? ?

Front Components

Ref Component Description See Also

Top Cover

Latch

Locks the top cover. P. 1-4

1-10 Getting Started

Ref Component Description See Also

Device

Indicators

Touchscreen

Pen (option)

Handle Allows you to carry your computer for an easy

Kensington

Lock

Show the current status of the computer’s devices.

AC power indicator. Glows green when the computer is using AC

power. Blinks green when the computer, using AC

power, is in Standby mode. Battery Charge Indicator Glows green when the battery is fully charged

and connected to AC power. Glows amber when the battery is being charged. Blinks red when the battery is almost completely

discharged. Battery Power Indicator Glows green when the computer is using battery

power. Blinks green when the computer, using battery

power, is in Standby mode. CD/Combo/DVD RW drive in -use indicator P. 2-14

Wireless LAN (Local Area Network) indicator P. 2-22

Wired LAN indicator P. 2-22

Provides a convenient way to use the touchscreen. Can be stretched for better grip and handling.

grip. Locks the computer to a stationary object for

security.

P. 3-2

P. 3-3

P. 3-7

P. 2-12

P. 7-2

Getting Started 1-11

? ?

? ? ?

Bottom-Side Components

Ref Component Description See Also

Reserved

Opening Release Knob Allows you to remove the CD/Combo/DVD RW

Docking

Connector (POGO)

Memory Slot Contains the memory slot for expanding the

Stereo Speaker

Set

1-12 Getting Started

Opening reserves for upgrade model ------

P. 2-14

drive as well as eject the secondary battery pack . For connecting to a Port Replicator / car mount

(both are available as an option).

memory size of your computer. Sends out sound and voice from the computer. P. 2-20

P. 3-6

P. 4-12

? ? ? ? ?

Top-open Components

Ref Component Description See Also

Power Button Turns the computer power ON and OFF. P. 1-5

LCD Screen Displays the output of the computer. P. 2-18

Getting Started 1-13

Ref Component Description See Also

Device Indicators

Show the current status of the computer’s devices.

Keyboard Serves as the data input device of the computer.

Touchpad Serves as the pointing device of the computer.

Power On Indicator Glows green when the computer is on. Blinks green when the computer is in Standby

mode. Hard Disk Drive Indicator Blinks green when the hard disk drive is active. Blinks red when the hard disk heater is on. Scroll Lock indicator P. 2-4

Num Lock indicator P. 2-4 Caps Lock indicator P. 2-4

P. 2-13

P. 2-4

P. 2-9

1-14 Getting Started

Where to Go from Here

As your computer is ready for operation, you may want to do any of the following now:

For this purpose… Do this…

To know more about the computer… Go on to the next chapter. To install the operating system if your

dealer has not already done so… To know more about the operating

system… To install the drivers if your dealer has

not already done so… To set a power -on password… See “Security Menu” in Chapter 5. To charge the battery pack for the first

time…

See the operating system manual.

Read the operating system manual.

See Chapter 6.

See “Charging the Battery Pack” in Chapter 3.

Getting Started 1-15

CHAPTER

Operating Your Computer

This chapter provides information about the use of the computer. If you are new to computers, reading this chapter will help you learn the

operating basics. If you are already a computer user but are new to notebook computers, yo u may choose to read only the parts containing information unique to your computer.

Described in this chapter are the operating basics of these components:

?? Keyboard ?? Touchpad ?? Touchscreen

?? Floppy disk drive ?? Hard disk drive ?? Optical drive

And these features:

?? Starting and stopping the computer ?? Video features ?? Audio features ?? Communication features

Starting and Stopping the Computer

There are a number of ways to start and stop the computer.

Starting the Computer

You always start the computer using the power button. A computer starts up with an operating system (OS) existing on the

storage device such as the hard disk; or from a floppy disk or CD if you have the respective modules installed. The computer will automatically load the OS after you turn it on. This process is called booting.

NOTE: An operating system is the platform for all your software application programs to run on. The most widely used operating system today is Microsoft Windows.

Stopping the Computer

When you finish a working session, you can stop the computer by turning off the power or leaving the computer in Standby or Hibernation mode:

To stop in this mode…

Off Follow the shutdown procedure of your

operating system. This can prevent loss of unsaved data or damage to your software programs.

If the system is locked up because of hardware or software problems, press the power button to turn off the computer.

Standby

Depending on your settings in Windows, you can place the computer in Standby mode by:

?? Closing the display cover ?? Pressing the power button

Do this… To start up or

resume again

Press the power button.

Press any key.

2-2 Operating Your Computer

To stop in this mode…

Hibernation

Depending on your settings in Windows, you can place the computer in Hibernation mode by:

?? Closing the display cover. ?? Pressing the power button

Do this… To start up or

resume again

Press the power

button.

If you choose to stop in Standby or Hibernation mode, you can return to where you left off the next time you start up the computer. (See “Power Management” in Chapter 3 for more information.)

Operating Your Computer 2-3

Using the Keyboard

Your keyboard has all the standard functions of a full-sized computer keyboard plus a Fn key added for specific functions.

The standard functions of the keyboard can be further divided into four major categories:

?? Typewriter keys ?? Cursor-control keys ?? Numeric keys ?? Function keys

Typewriter Keys

Typewriter keys are similar to the keys on a typewriter. Several keys are added such as the Ctrl, Alt, Esc, and lock keys for special purposes. When the lock keys (Caps Lock, Num Lk, and Scroll Lk) are pressed, their corresponding indicators light up.

The Control/Alternate key is normally used in combination with other keys for program-specific functions. The Escape key is usually used for stopping a process. Examples are exiting a program and canceling a command. The function depends on the program you are using.

2-4 Operating Your Computer

Cursor-Control Keys

NOTE: The word “cursor” refers to the indicator on the screen that lets you know exactly where on your screen anything you type will appear. It can take the form of a vertical or horizontal line, a block, or one of many other shapes.

Numeric Keypad

A 15-key numeric keypad is embedded in the typewriter keys as shown next:

Operating Your Computer 2-5

Numeric keys facilitate entering of numbers and calculations. When Num Lock is on, the numeric keys are activated; meaning you can use these keys to enter numerals.

NOTES:

?? When the numeric keypad is activated and you need to type the English letter in the

keypad area, you can turn Num Lock off or you can press Fn and then the letter without turning Num Lock off.

?? Some software may not be able to use the numeric keypad on the computer. If so,

use the numeric keypad on an external keyboard instead.

Euro Symbol

You can press the Euro dollar sign on the keyboard.

?? To press the Euro sign on the keyboard, hold down either of the Alt

keys and type 0128 on the numeric keypad of your keyboard.

?? To press the Euro sign on an UK keyboard, hold down the Alt Gr key

and press 4 (which has an Euro sign on it).

Windows Keys

The keyboard has two keys that perform Windows-specific functions:

Windows Logo key and Application key.

The Windows Logo key opens the Start menu and performs software-specific functions when used in combination with other keys. The Application key usually has the same effect as a right mouse click. (See your Windows manual for more information.)

Function Keys

On the top row of the keys are the function keys: F1 to F12. Function keys are multi-purpose keys that perform functions defined by individual programs.

2-6 Operating Your Computer

Fn Key

The Fn key, at the lower left corner of the keyboard, is used with another key to perform the alternative function of a key. The letter “Fn” and the alternative functions are identified by the color of blue on the keytop. To perform a desired function, first press and hold Fn, then press the other key.

Hot Keys

Hot keys refer to a combination of keys that can be pressed any time to activate special functions of the computer. Most hot keys operate in a cyclic way. Each time a hot key combination is pressed, it shifts the corresponding function to the other or next choice.

You can easily identify the hot keys with the icons imprinted on the keytop. The hot keys are described next.

Key Description

Switches the optional keyboard backlight function on/off with 10 levels of brightness in-between.

Decreases the sound volume.

Increases the sound volume.

Decreases the LCD brightness.

Increases the LCD brightness.

Switches the LCD backlight on and off

Switches LCD on and off.

Operating Your Computer 2-7

Key Description

Switches the display output to one of the following when an external device is connected.

Upon booting the system with CRT: LCD CRT LCD & CRT NOTES:

?? Fn+F9 will not work when playing a DVD/MPEG movie. ?? Using the VGA utility’s “Graphics Properties” to switch the

display output is not allowed.

?? Display switching when in full screen (maximize view)

DOS mode is not allowed.

?? If the display mode is set to 256 colors or lower, or in DOS

mode, there will be only two modes for selecting: CRT only and LCD & CRT.

?? This function only applies to Plug & Play CRT monitors.

Serves as the sleep button that you can define with Windows’ Power Management . (See the “Power Management” in Chapter 3.)

Switches the wireless LAN radio on and off. NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate wireless devices in aircraft as this may interfere with flight safety. Remember to turn off wireless LAN when using your computer in the airplane.

Switches the optional GPS function on and off.

2-8 Operating Your Computer

Using the Touchpad

CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may damage the touchpad surface.

NOTE: For optimal performance of the touchpad, keep your fingers and the pads clean and dry. When tapping on the pad, tap lightly. Do not use excessive force.

The touchpad is a pointing device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons.

Touchpad

The touchpad consists of a rectangular pa d and two buttons. To use the touchpad, place your forefinger or thumb on the pad. The rectangular pad acts like a miniature duplicate of your display. As you slide your fingertip across the pad, the pointer (also called cursor) on the screen moves accordingly. When your finger reaches the edge of the pad, simply relocate yourself by lifting the finger and placing it on the other side of the pad.

Here are some common terms that you should know when using the touchpad:

Operating Your Computer 2-9

Term Action

Point Move your finger on the pad until the cursor points to the

selection on the screen.

Click Press and release the left button.

–or– Tap gently anywhere on the pad.

Doubleclick

Drag and drop

Scroll To scroll is to move up and down or left and right in the working

Press and release the left button twice in quick succession. –or– Tap twice on the pad rapidly. Press and hold the left button, then move your finger until you

reach your destination (drag). Finally, release the button (drop) when you finish dragging your selection to the destination. The object will drop into the new location.

–or– Gently tap twice on the pad and on the second tap, keep your

finger in contact with the pad. Then, move your finger across the pad to drag the selected object to your destination. When you lift your finger from the pad, the selected object will drop into place.

area on the screen. To move vertically, place your finger on the right edge of the

pad and slide your finger up and down along the edge. To move horizontally, place your finger on the bottom edge of the pad and slide your finger left and right.

This function works only after you install the touchpad driver supplied with the computer and it may not work for all applications.

TABLE NOTE: If you swap the left and right buttons, “tapping” on the touchpad as an alternative method of pressing the left button will no longer be valid.

2-10 Operating Your Computer

Configuring the Touchpad

You may want to configure the touchpad to suit your needs. For example, if you are a left-handed user, you can swap the two buttons so that you can use the right button as the left button and vise versa. You can also change the size of the on-screen pointer, the speed of the pointer, and so on.

To configure the touchpad, you can use the standard Microsoft or IBM PS/2 driver if you are using Windows. However, you can install the touchpad driver supplied with your computer to take advantage of more powerful features. (For infor mation on installing the driver, see “How to Use the Driver CD” in Chapter 6.)

Operating Your Computer 2-11

Using the Touchscreen (option)

CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the touchscreen. Doing so may damage the touchscreen surface. Use the included touchscreen pen (option) located on the handle.

The touchscreen is a touch-sensitive device that allows you to communicate with the computer by controlling the location of the pointer on the screen and making selection with the buttons.

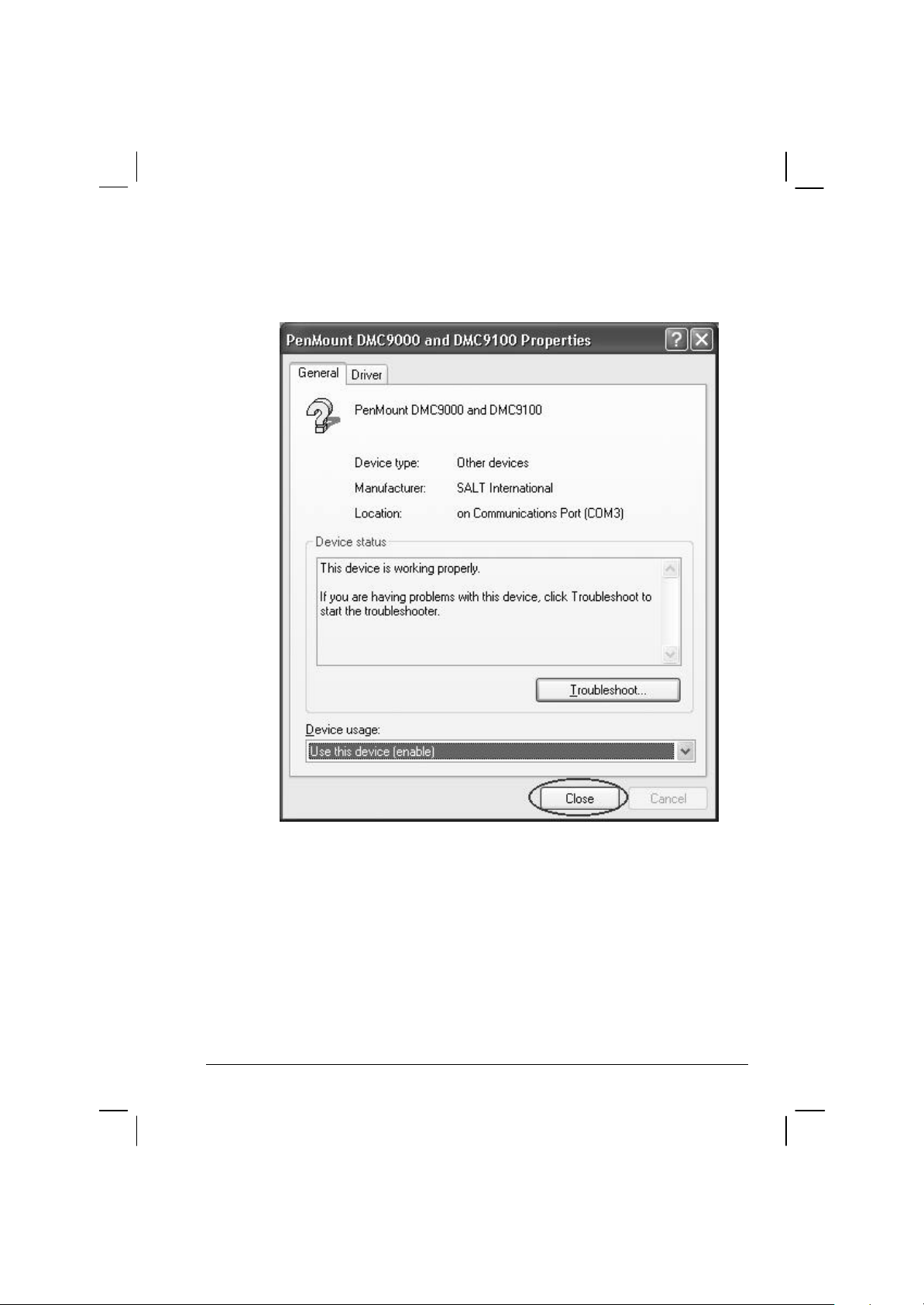

The touchscreen needs a special device driver support that allows you to easily use the computer without a mouse or touchpad. (For information on installing the driver, see Chapter 6.)

Here are some common terms that you should know when using the touchscreen:

Term Action

Click/Point Tap gently on the touchscreen. Double-click Tap twice on the touchscreen rapidly. Drag and

drop

Scroll To scroll is to move up and down or left and right in the

Press lightly on the touchscreen and move your finger until you reach your destination (drag). Finally, release your finger (drop) when you finish dragging your selection to the destination. The object will drop into the new location.

working area on the screen. To move vertically, place your finger on the right edge of

the touchscreen and slide your finger up and down along the edge. To move horizontally, place your finger on the bottom edge of the touchscreen and slide your finger left and right.

This function works only after you install the touchscreen driver supplied with the computer and it may not work for all applications.

2-12 Operating Your Computer

Using the Hard Disk Drive

Your computer comes with a removable hard disk drive as drive C. A hard disk drive is a storage device with non-removable, rotating, magnetic storage platters inside it. It is where your operating system and application software programs are stored.

Your hard disk drive is a 2.5 -inch IDE (Integrated Drive Electronics) hard disk drive. This type of drive embodies the latest in fast, reliable mass storage by integrating all the control circuitry necessary for operation directly onto the drive itself. This allows the drive manufacturer to carefully optimize drive pe rformance.

The system comes with a built-in heater that automatically turns on for low temperature operation. The HDD heater on indicator blinks red when heater is on.

CAUTION:

?? Make regular backups of your data files from your hard disk drive to floppy disks or

other storage media.

?? Never try to remove or install the hard disk drive while the computer is powered on.

Doing so can result in loss of data, and can damage the computer and the hard disk drive’s sensitive circuitry.

?? Never turn off or reset the computer while the hard disk drive in-use indicator is on.

To install a hard disk drive:

1. Make sure that system power is off.

2. Locate the hard disk drive slot on the left side of the system.

3. Open the hard disk drive slot cover by pressing on both sides of the release latch using your thumb and index fingers.

4. Place the hard disk drive into the metal shield and tighten the four screws.

5. Slide the HDD module into the slot until it reaches the end.

6. Close the hard disk drive slot cover to secure the HDD module.

NOTE: Before removing the hard disk drive, make sure to power down the system first.

Operating Your Computer 2-13

Using the Optical Drive

Depending on the model, your computer comes with a CD, DVD dual recorder, or Combo drive located on the left side of the computer. This drive is usually configured as drive D.

The drive uses removable 5.25-inch silver discs, which look like standard music CDs. It is an ideal medium to use for distributing multimedia because of the huge amount of data that a disc can store.

Depending on the model, your drive is one of the following:

?? CD drive can read CDs, audio CDs, CD-R, and CD-RW discs. ?? Combo drive can work both as a CD drive, DVD drive and CD-RW

drive.

?? DVD RW drive can work as a Combo drive and DVD –RW /

DVD +RW / DVD Multi / DVD Dual / Super Multi drive .

NOTE: If the CD/Combo/DVD RW drive would be operating for more than half an hour (such as showing a DVD title), use the AC power source instead of the battery. If not, the battery may run out of power before the opera tion is complete.

CAUTION:

1. When inserting a CD, do not use force.

2. Make sure the CD is correctly inserted into the tray, and then close the tray.

3. Do not leave the CD tray open. Also, avoid touching the lens in the tray with your hand. If the lens becomes dirty, the CD may malfunction.

4. Do not wipe the lens using materials with rough surface (such as paper towel). Instead, use a cotton swab to gently wipe the lens.

FDA regulations require the following statement for all laser -based devices: “Caution, Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.”

NOTE: The CD/Combo/DVD RW drive is classified as a Class 1 laser product. This label is located on the CD/Combo/DVD RW drive.

2-14 Operating Your Computer

NOTE: For Combo/DVD RW drive only. This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Installing the CD/ Combo/DVD RW Drive

To install the CD/Combo/DVD RW drive:

1. Open the optical drive bay cover by pressing on both sides of the

release latch using your thumb and index fingers.

2. Insert the CD/Combo/DVD RW drive into the optical drive bay

located on the left side of the computer.

3. Close the optical drive bay cover to secure the CD/Combo/DVD RW

drive in place.

To remove the CD/Combo/DVD RW drive:

1. Open the optical drive bay cover by pressing on both sides of the release latch using your thumb and index fingers.

2. Gently place the computer upside down.

3. Lift up the handle of the optical drive release knob and turn it counter-clockwise. The CD/Combo/DVD RW drive will slide out partially. Gently pull on it to remove it.

Operating Your Computer 2-15

Lift up and turn counter-clockwise

Inserting and Removing a Disc

Follow this procedure to insert or remove a disc.

1. Turn on the computer.

2. Open the optical drive bay cover by pressing on both sides of the release latch using your thumb and index fingers.

3. Press the eject button and the CD tray will slide out partially. Gently pull on it until it is fully extended.

4. To insert a disc, place down the disc in the tray with its label facing up. Slightly press the center of the disc until it clicks into place.

To remove a disc, hold the disc by its outer edge and lift it up from the tray.

5. Gently push the tray back into the drive.

NOTE: In the unlikely event that you are unable to release the CD tray by pressing the eject button, you can manually release the disc. (See “Optical Drive Problems” in Chapter 8.)

2-16 Operating Your Computer

Using the Video Features

The video subsystem of your computer features:

?? 14.1/15-inch TFT (Thin-Film Transistor) color LCD display with

1024× 768 XGA (Extended Video Graphics Array) resolution.

?? 64 MB integrated video memory. ?? Simultaneous display on LCD and external monitor, which is useful

when you have a presentation as you can control the screen from your computer and face the audience at the same time.

?? Dual view capability, which allows you to expand your desktop on

the screen to another display device so that you have more desktop space to work on.

?? Power Management. ?? Touchscreen function (option). ?? High contrast LCD display (opt ion).

NOTES:

?? Before using the dual view capability, the video driver supplied with your computer

must be installed.

?? The computer enters Standby or Hibernation mode when the LCD is closed. If you

want to use the computer with the LCD closed, set None to the “When I close the lid of my portable computer” option in the Power Management Properties. Thus the computer does not enter Standby or Hibernation mode when the LCD is closed.

Configuring the Display Modes

NOTES:

?? To take advantage of the enhanced video capabilities, the video driver supplied

with your computer must be installed.

?? When using CRT only, the resolution would depend on the supported resolution by

the CRT.

Operating Your Computer 2-17

Your computer has been set to a default resolution and number of colors before shipment. You can view and change display settings through your operating system. See your operating system documentation or online help for specific information.

For displaying in higher resolutions, you can connect an external CRT monitor that supports higher resolutions. (See “Connecting an External Monitor” in Chapter 4 for more information.)

The following table lists the display modes supported by your computer.

Display Mode LCD Only CRT Only Simultaneous Display

Resolution Colors

800× 600

1024×768

TABLE NOTES:

?? 16-bit = High Color or 65,536 (64 K) colors; 32-bit = True Color 16,770,000 (16 M)

colors.

?? When using CRT only, the resolution would depend on the supported resolution by

the CRT.

16-bit 32-bit 16-bit 32-bit

? ? ? ? ? ? ? ? ? ? ? ?

2-18 Operating Your Computer

? ?

Using the Audio Features

NOTES:

?? To take advantage of the enhanced audio capabilities, the audio driver supplied

with your computer must be installed (see chapter 6 for details).

?? If you experience interference while recording, try lowering the microphone

recording volume.

The audio subsystem of your computer features:

?? Digital audio and analog mixing functions required for recording and

playing sound on your computer

?? Microsoft Windows Sound System support ?? A set of speakers ( ?? External audio connectors (

) on the bottom side, and

)

Ways of playing and recording sound vary with the operating system used. See your operating system documentation or online help for specific information.

Operating Your Computer 2-19

Connecting Audio Devices

For higher audio quality, you can send or receive sound through external audio devices.

?? Microphone Connector (

) can be connected to an external

microphone for recording voice or sound.

?? Audio Output Connector (

) can be connected to the line -in connector of powered speakers wi th built-in amplifiers, headphones, or earphone set. This connector is compliant with S/PDIF (Sony/Philips Digital InterFace). You can connect audio equipment with S/PDIF to the computer. S/PDIF is a newer audio transfer file format that ensures a high quality digital audio output through optical fibers.

NOTE: When using external speakers/headphones or microphone, you cannot use the internal one.

2-20 Operating Your Computer

Using the Communication Features

Using the LAN

NOTE for Windows 2000: To take advantage of the LAN (Local Area Network) feature, the LAN driver supplied with your computer must be installed.

The internal 10/100Base-T Ethernet module allows you to connect your computer to a network. It supports data transfer rate up to 100 Mbps.

To connect the network cable to the LAN module, connect one end of the LAN cable to the RJ-45 connector on the computer and the other end to the network hub.

LAN cable

Using the Wireless LAN (WLAN)

An internal Mini PCI wireless LAN (Intel Centrino platform) module have been pre -installed by your computer manufacturer at the factory. This allows you to access corporate networks or the Internet in a wireless environment.

Operating Your Computer 2-21

To take advantage of the WLAN feature, make sure that the WLAN driver is installed correctly. (See Chapter 6 for more information.) If your WLAN module was provided by your dealer instead of the computer manufacturer, contact your dealer for the correct driver to use.

Configuring the WLAN

After driver installation, you can use the WLAN utility to configure and monitor your WLAN connection. If you are using Windows XP, you can also use its built -in WLAN utility. Follow this procedure to launch the WLAN utility in Windows XP:

1. Select Control Panel from the Start menu.

2. Click Network and Internet Connections.

3. Click Network Connections , then double-click the Wireless Network Connection icon .

4. Click Properties in the Wireless Network Connection Status dialog box.

5. You can configure your WLAN settings in the Wireless Network Connection Properties dialog box.

Turning Off/On the WLAN Radio

NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate wireless devices in aircraft as this may interfere with flight safety. Remember to select turn off wireless LAN when using your computer in the airplane.

Your computer has a built -in Fn+F11 hot key to switch the WLAN radio on/off (see “Hot Keys ” in chapter 2).

Both Windows XP WLAN utility and the Fn+F11 hot key must be on for the WLAN function to work. The WLAN indicator ( ) glows to

indicate that the computer is ready for WLAN connection. To turn off the WLAN function, either press Fn+F11 or turn off the

WLAN utility. It takes approximately 30 seconds for your computer to make a successful

WLAN connection and approximately 10 seconds to disconnect.

2-22 Operating Your Computer

Using the Modem

NOTE: To take advantage of the modem feature, the modem driver supplied with your computer must be installed.

The internal 56 K fax/data modem allows you to use the telephone line to communicate with others by fax, email, or connect to an online service or bulletin board.

To connect the telephone line to the modem, connect one end of the modem cable to the RJ-11 connector on the computer and the other end to the phone line.

Modem cable

NOTES:

?? When using communication software, you may have to disable power

management.

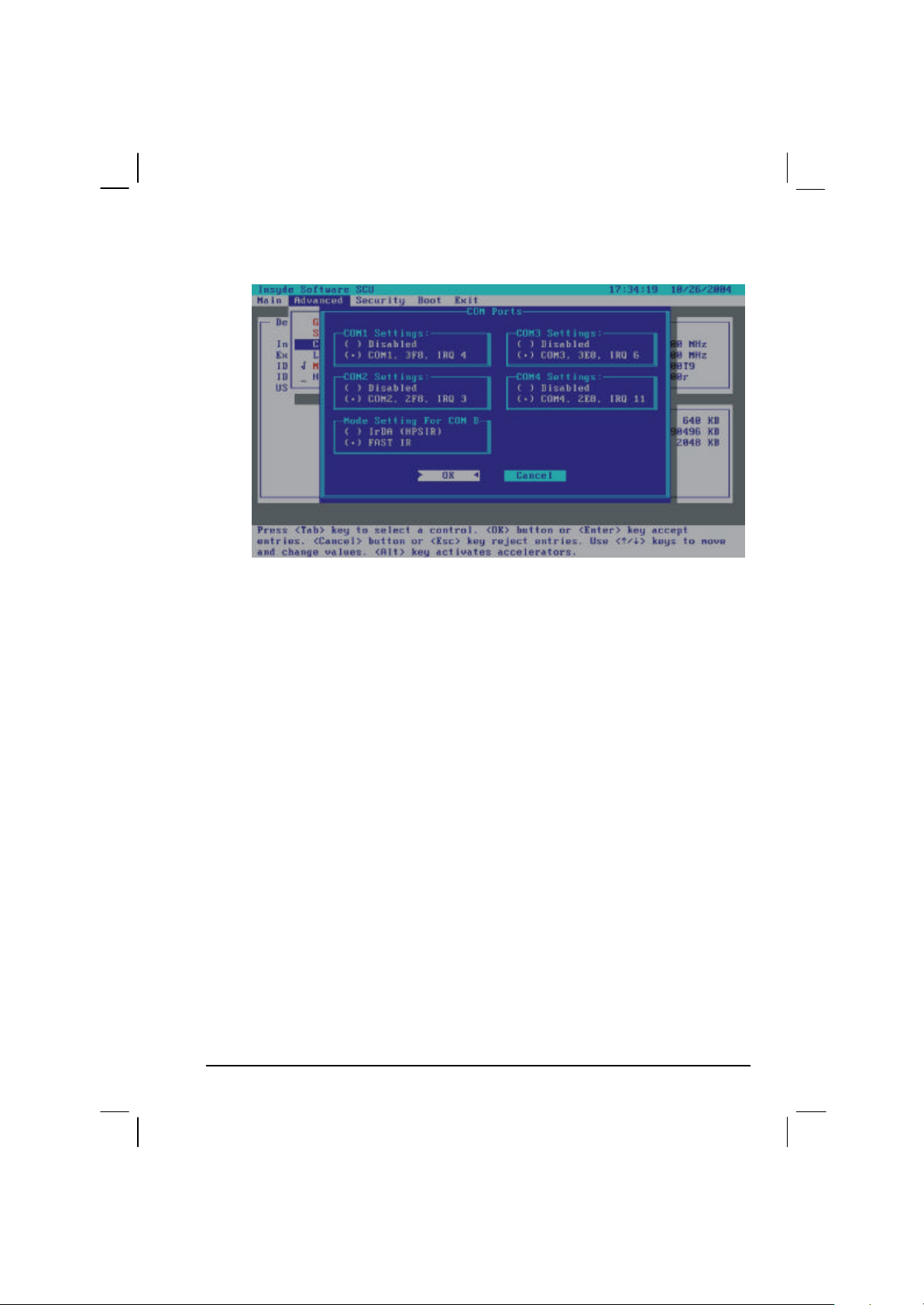

?? Set the COM port of the modem to COM3. ?? Set parameters such as modem speed (baud rate) and line type (pulse dialing or

tone dialing).

Operating Your Computer 2-23

?? Do not enter Standby mode when using communication software.

CHAPTER

Managing Power

Your computer operates either on external AC power or internal battery power.

This chapter tells you how you can effectively manage power. To maintain optimal battery performance, it is important that you use the battery in the proper way.

The topics in this chapter include:

?? What is an AC adapter ?? How to charge the battery pack ?? When and how to initialize the battery pack

?? How to check the battery level ?? How to replace the battery pack ?? What happens when the battery is low and what actions to take ?? What is Power Management ?? How to save power

AC Adapter

CAUTION:

?? The AC adapter is designed for use with your computer only. Connecting the AC

adapter to another device can damage the adapter.

?? The AC power cord supplied with your computer is for use in the country where you

purchased your computer. If you plan to go overseas with the computer, consult your dealer for the appropriate power cord.

?? When you disconnect the AC adapter, disconnect from the electrical outlet first and

then from the computer. A reverse procedure may damage the AC adapter or computer.

?? When unplugging the connector, always hold the plug head. Never pull on the cord.

The AC adapter serves as a converter from AC (Alternating Current) to DC (Dir ect Current) power because your computer runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power.

The AC adapter operates on any voltage in the range of 100 ~ 240 V AC.

3-2 Managing Power

Battery Pack

The battery pack is the internal power source for the computer. It is rechargeable using the AC adapter.

The operating time of a fully charged battery pack depends on how you are using the computer. When your applications often access peripherals, you will experience a shorter operating time.

NOTE: Care and maintenance information for the battery is provided in the “Battery Pack Guidelines” section in Chapter 7.

Charging the Battery Pack

NOTES:

?? Charging will not start if the battery’s temperature is below 0 ?C (32 ?F) or above

50 ?C (122 ?F).

?? The charging process will stop and the Battery Charge Indicator flashes amber

when the battery’s temperature gets above 60 ?C (140 ?F). If this happens, the battery pack may be damaged. Please contact your dealer.

?? During charging, do not disconnect the AC adapter before the battery has been fully

charged; otherwise you will get a prematurely charged battery.

To charge the battery pack, connect the AC adapter to the computer and an electrical outlet. The Battery Charge Indicator ( ) on the computer

glows amber to indicate that charging is in progress. You are advised to keep the computer power off while the battery is being charged. When the battery is fully charged, the Battery Charge Indicator glows green.

It takes approximately 150 minutes (2.5 hours) to charge the battery pack when the computer is off, and 350 minutes (5.8 hours) to fully charge the battery pack when the computer is on.

CAUTION: After the computer has been fully recharged, do not immediately disconnect

Managing Power 3-3

and reconnect the AC adapter to charge it again. Doing so may damage the battery. NOTE: The battery level may automatically lessen due to the self-discharge process

(0.21% per day), even when the battery pack is fully charged (100%). This happens no matter if the battery pack is installed in the computer.

Initializing the Battery Pack

You need to initialize a new battery pack before using it for the first time or when the actual operating time of a battery pack is much less than expected.

Initializing is the process of fully charging, discharging, and then charging. It can take several hours.

1. Make sure the computer power is turned off. Connect the AC adapter to fully charge the battery pack.

2. After the battery pack is fully charged, turn on the computer.

3. Disconnect the AC adapter and leave the computer on until the battery is fully discharged. The computer will shut down automatically.

4. Connect the AC adapter to fully charge the battery pack.

Checking the Battery Level

When two batteries exist on the system, the battery’s discharge sequence is from the secondary battery (located on the optical drive bay) to the primary battery (located on the right side). When the battery charge on the secondary battery falls below 5 %, then power usage will switch to the primary battery. When the battery charge on the primary battery falls below 5 %, then system will shutdown.

NOTE: Any battery level indication is an estimated result. The actual operating time can be different from the estimated time, depending on how you are using the computer.

You can check the approximate battery level using the battery meter function of the operating system. To read the battery level in Windows,

click the icon on the taskbar. (Click the icon if the computer is using AC power.)

3-4 Managing Power

Using the Primary Battery Pack

CAUTION:

?? There is danger of explosion if the battery is incorrectly replaced. Replace the

battery only with the computer manufacturer’s optional battery packs. Discard used batteries according to the dealer’s instructions.

?? Do not attempt to disassemble the battery pack.

To install the primary battery pack, follow these steps:

1. Locate the primary battery slot on the right side of the system.

Primary battery slot

2. Open the slot cover by pressing on both sides of the release latch using your thumb and index fingers.

3. Slide the primary battery pack all the way into the slot. Make sure to observe the correct orientation (the ribbon strip must face outward for future battery back removal).

4. Close the slot cover to secure the primary battery pack.

Managing Power 3-5

Using the Secondary Battery Pack

If you often rely on battery power for a long period of time while traveling, you may consider the purchase of an additional battery pack from your dealer and keep it with you in a fully charged state as a backup.

To install the secondary battery pack, follow these steps:

1. Locate the optical drive slot on the left side of the system.

2. Open the slot cover by pressing on both sides of the release latch using your thumb and index fingers.

3. Gently place the computer upside down.

4. Lift up the handle of the optical drive release knob and turn it counter-clockwise. The CD/Combo/DVD RW drive will slide out partially. Gently pull on it to remove it.

5. Slide the secondary battery pack all the way into the slot. Make sure to observe the correct orientation (the ribbon strip must face outward for future battery pack removal).

6. Close the slot cover to secure the secondary battery

3-6 Managing Power

Lift up and turn counter-clockwise

NOTE: The system supports the battery hot-swap function, providing you the ability to replace the battery even during system on. Hot swap means that you can remove the secondary battery pack and replace it with another one without significant interruption to the system (without turning off the system).

Battery Low Signals and Actions

Battery Low occurs when the battery has approximately 10 % (Windows default setting) of its charge remaining. The computer gives warning

beeps or messages and the Battery Power Indicator ( ) blinks amber (orange) to alert you to take actions.

NOTE: You can set up your threshold and signals of Battery Low under Windows.

Immediately save your data upon Battery Low. The remaining operating time depends on how you are using the computer. If you are using the audio subsystem, hard or optical drives, the battery might run out of charge very quickly.

Always respond to Battery Low by placing your computer on Standby or Hibernation mode, turning off the computer, or connecting the AC adapter.

If you do not take any action, the computer will automatically hibernate and turn off.

CAUTION:

?? If you are using a flash PC card, do not access the card during battery low periods.

This is because the access may take longer than the time it takes the battery to run out of charge, thus making your access to the card un successful.

?? If you fail to save your data when the battery completely runs out of charge, then

you lose your data.

Managing Power 3-7

Power Management

Your computer supports ACPI (Advanced Configuration and Power Interface) for power management. The power management feature allows you to reduce the power consumption for energy saving.

With an ACPI-compliant operating system such as Windows 2000 and Windows XP, power supply to different computer components is controlled on an as-needed basis. This allows maximum power conservation and performance at the same time.

In general, Windows’ power management works in this way:

What… When…

Power to the hard disk is turned off When the hard disk has been idle for a

set period.

Power to the display is turned off When the display has been idle for a set

period.

The computer enters Standby mode. The hard disk and display are turned off and the entire system consumes less power.

When the entire system has been idle for a set period.

When you press Fn+F10. * When you close the cover. * When you press the power button. *

The computer enters Hibernation mode. (See the next subsection for more information.)

* depends on your settings in Windows.

When you press the power button. * When you press Fn+F10. *

When you close the cover. *

For detailed information on power management, see Windows’ Help.

3-8 Managing Power

Hibernation

Hibernation is a very useful feature. People frequently open many applications when they use computers. It takes some time to get all these applications open and running, and normally they all have to be closed before the system can be turned off.

When you use the hibernation feature, you do not have to close the applications. The computer stores the state of your computer to a file on the hard disk and then shut down. The next time you turn on your computer, you return to exactly where you left off.

Managing Power 3-9

Power-Saving Tips

In addition to your computer’s automatic power management, you can do your part to maximize the battery’s operating time by following these suggestions.

?? Do not disable Power Management. ?? Decrease the LCD brightness to the lowest comfortable level. ?? Disable the parallel and serial ports if no devices are connected to

these ports. (See “Advanced Menu” in Chapter 5.)

?? If you work with an application that uses the PC card or features

wireless connectivity (LAN), exit the application when you finish using it.

?? If you have a PC card installed, remove it when not in use. Some PC

cards drain power even while they are inactive.

?? Turn off the computer when you are not using it.

3-10 Managing Power

CHAPTER

Expanding Your Computer

You can expand the capabilities of your computer by connecting other peripheral devices. When using a device, be sure to read the instructions accompanying the device together with the relevant section in this chapter.

This chapter gives guidelines on installing and using these devices:

?? External monitor ?? USB device ?? PS/2 keyboard and mouse ?? Parallel device ?? Serial device ?? IR device ?? PC card

Connecting an External Monitor

If you want the benefits of a larger display screen with higher resolution, you can connect an external CRT monitor to your computer.

Follow this procedure to connect an external monitor:

1. Make sure that the computer is not turned on.

2. Plug the monitor’s D-type signal connector to the computer’s VGA port.

Connect to external monitor

3. Plug one end of the monitor’s power cord into the power socket on the monitor and the other end to an electrical outlet.

4. To use the monitor, turn on the monit or before turning on the computer.

5. The monitor should respond by default. If not, you can switch the display to the monitor or to both (simultaneous display) by pressing

Fn+F9. In Windows, you can also change the display through the

settings in Display Properties.

6. You can change display settings through your operating system. See your operating system documentation or online help for specific information.

4-2 Expanding Your Computer

CAUTION: Do not disconnect the external monitor while the computer is in Standby mode or Hibernation mo de. If no external monitor is connected when the computer resumes, the LCD remains blank and the output is not displayed.

Expanding Your Computer 4-3

Connecting a USB Device

NOTE: To take advantage of the USB 2.0 feature, the USB 2.0 driver supplied with your computer must be installed (see chapter 6).

Your computer has two USB ports that supports transfer rates up to 12 MB/s for USB 1.1 devices and 480 MB/s for USB 2.0 devices, such as digital camera, scanner, printer, modem, and mouse.

USB is specified to be an industry standard extension to the PC architecture. It supports “Plug-and-Play” technology so you can install and remove USB devices without turning off the computer. With its multiple connection capability, up to 127 devices can be connected in a daisy -chain configuration. In addition, you can use a USB hub that converts a single USB connector into multiple ports where USB devices can be connected.

To connect a USB device, simply plug the device cable to one of the USB ports.

Connect to USB device(s)

4-4 Expanding Your Computer

Connecting the PS/2 Keyboard and Mouse

If you want the benefits of a full-size keyboard or an external mouse, you can connect a PS/2 keyboard/mouse to your computer.

When an external keyboard/mouse is connected, you can use both the external keyboard/mouse and the internal keyboard/touchpad at the same time.

To connect an external keyboard/mouse, simply plug its cable to the PS/2 port on the rear of the computer.

Connect to PS/2 mouse/keyboard

NOTE: If you wish to use a PS/2 mouse and keyboard at the same time, you need to buy a Y-cable adapter.

Expanding Your Computer 4-5

Connecting a Parallel Device

Your computer has a parallel port for connecting a parallel device such as printer. The port supports ECP (Extended Capabilities Port) and EPP (Enhanced Parallel Port) modes that turn the standard parallel port into a high-speed bi-directional peripheral port.

Follow this procedure to connect a parallel device:

1. Make sure that the “LPT Port” item is set properly in the BIOS Setup program. (See “Advanced Menu” in Chapter 5 for information.)

2. Make sure the computer is not turned on.

3. Plug the parallel device’s cable to the computer’s parallel port.

4. If the parallel device has independent power, plug its power cord into an electrical outlet.

5. If the parallel device has its own power switch, turn on the printer before turning on the computer.

4-6 Expanding Your Computer

Connect to parallel device

Connecting a Serial Device

Your computer has a serial port for connecting a serial device such as an external modem.

Follow this procedure to connect a serial device:

1. Make sure the “COM Ports” item is set properly in the SCU program. (See “Advanced Menu” in Chapter 5 for information.)

2. Make sure the computer is not turned on.

3. Plug the device cable to the serial port on the rear of the computer.

4. Turn on the computer.

Connect to serial device

NOTE: Portable modems that derive power through the serial port cannot be used with the computer. Instead, use a modem that is powered by its own internal battery or external AC power.

Expanding Your Computer 4-7

Connecting an IR Device

Your computer has an IR (infrared) port for connecting an infrared-equipped device wirelessly such as another computer, printer, or PDA (Personal Digital Assistant).

Follow this procedure to connect an IR device:

1. Under Windows, make sure that the IrDA Fast Infrared Port is set to HP HSDL-2300/3600.

2. Make sure that the “COM Ports” and its “Mode Setting For COM B” items are set properly in the SCU program. (See “Advanced Menu” in Chapter 5 for information.)

3. When using the IR port: Place the transmitting device where its IR port faces the IR port of your computer within the effective range ? within ? 20-degrees vertical angle and within ? 20-degrees horizontal angle at no greater than 0.8~1.0 meter distance. Place the receiving device where the IR port of your computer faces its IR port within the effective range ? within ?15-degrees vertical angle and within ? 15-degrees horizontal angle at no greater than

0.8~1.0 meter distance.

4. To take advantage of the IR communications, you need a third party software.

NOTES: During infrared communication, take note of the following:

?? Do not move the computer and IR device. ?? Do not enter Standby mode. ?? Do not use a cell phone or another IR device near the computer. ?? Avoid strong light such as sunlight or fluorescent light. ?? Disable the screen saver.

4-8 Expanding Your Computer

Connect to IR device

Expanding Your Computer 4-9

Using PC Cards

Your computer has a PC card slot. PC cards are credit card-sized peripheral products based on the standards

developed by PCMCIA (Personal Computer Memory Card International Association). PCMCIA is a non-profit association for promoting the interchangeability among mobile computers where ruggedness, low power, and small size are critical.

PC Card Type

Your computer’s PC card slot can accommodate two type II card or one type III cards . Typical type II/III cards are flash memory, SRAM, modem, LAN, and SCSI cards.

CardBus Support

Your computer’s PC card slot supports CardBus specifications. CardBus is the 32-bit version of PC card technology. It allows speeds of up to 133 Mbps at 33 MHz. Typical applications are SCSI host bus and high-speed network cards.

Inserting and Removing a PC Card

NOTES:

?? Some PC cards require additional system resources. Before using such PC card,

you may have to free other system resources for the PC card.

?? Although some PC cards can be inserted and removed without turning off the

computer, you cannot remove or install PC cards during Standby mode.

To insert a PC card:

1. Locate the PC card slot on the left side of the computer.

2. Slide the PC card, with its label facing up, into the slot until the eject button pops out.

4-10 Expanding Your Computer

Eject Button

3. When a new card is seate d, the computer will detect it and try to install the appropriate driver. Follow the on-screen instructions to complete the process.

To remove a PC card:

1. Double-click on the Safely Remove Hardware icon found on the Windows XP taskbar and the Safely Remove Hardware window appears on screen.

2. Select (highlight) the PC card from the list to disable the card.

3. Push the eject button and the card will slide out slightly.

4. Pull the card out of the slot.

Expanding Your Computer 4-11

System Memory Upgrade

You can upgrade your computer by changing system memory to a maximum of 2 GB on the two 200-pin PC2100/PC2700 DDR SO -DIMM slots.

To install the SO -DIMM :

1. Carefully place the notebook computer upside down.

2. Remove the ten screws to detach the SO-DIMM compartment cover.

4-12 Expanding Your Computer

3. Remove the long rubber cushion on the left side and two short rubber cushions on the right side.

1 long rubber cushion

2 short rubber cushions

4. To install the SO -DIMM, match the SO-DIMM's notched part with the socket's projected part and firmly insert the SO -DIMM into the socket at a 20-degree angle. Then push down until the retaining clips lock the SO -DIMM into position.

5. Replace the long rubber cushion on the left side and two short rubber cushions on the right side .

6. Replace the SO-DIMM compartment cover and secure with ten screws.

Expanding Your Computer 4-13

4-14 Expanding Your Computer

CHAPTER

Setup Configuration Utility (SCU)

SCU is a program for configuring the BIOS (Basic Input/Output System) settings of the computer.

BIOS is a layer of software, called firmware, that translates instructions from other layers of software into instructions that the computer hardware can understand. The BIOS settings are needed by your computer to identify the types of installed devices and establish special features.

This chapter tells you how to use the SCU program.

When and How to Use the SCU Program

When to Use

You need to run the SCU program when:

?? You see an error message on the screen requesting you to run Setup. ?? You want to restore the factory default settings. ?? You want to modify some specific settings according to the

hardware.

?? You want to modify some specific settings to optimize system

performance.

Starting SCU

NOTES:

?? The Setup screens shown in this chapter are for your reference only. The actual

items or settings on your computer may differ.

?? The Setup program may have been updated after the publication of this manual. ?? The settings you select in your operating system might override similar settings in

Setup.

To run SCU, press F2 when the prompt appears in the lower left corner of the screen during system startup. The pr ompt shows up on the screen for only a few seconds. You must press F2 quickly. The SCU menu appears as shown next.

5-2 Setup Configuration Utility (SCU)

The menu can be divided into four areas:

?? On the top line is the menu bar containing the titles of the available

menus. Each menu title brings a specific menu.

?? The center left column of the menu contains information regarding

the current settings of the system. If you open a pull-down menu and select an item that provides multiple options, the left column will display a submenu where you can make further selections.

?? The right column of the menu contains details of the CPU and system

memory.

?? The bottom lines of the menu provide keyboard instructions for

moving around and making selections. When a menu item is highlighted, more detailed informa tion is given.

Setup Configuration Utility (SCU) 5-3

Moving Around and Making Selections

A brief description of keyboard usage is listed next:

Key Function

? , ? ?, ?

Enter 1) Brings up the sub-menu when avai lable.

Tab Jumps from one item to another. Esc 1) Exits the SCU program.

NOTE: You are advised to use the touchpad (if enabled) as it is more straightforward

than using the keyboard.

Selects a menu title.

1) Selects an item or option.

2) Brings up/down the value.

2) Opens or closes the options window when an item is selected.

2) Returns to the previous menu if in a sub-menu.

3) Closes the options window if one is open.

5-4 Setup Configuration Utility (SCU)

Main Menu

Date and Time

Setup Configuration Utility (SCU) 5-5

Sets the system time (Hour, Minute, Second) and date (Year, Month, Day).

Internal Numlock

Sets if you can enter a number when Num Lock is turned on. When this item is enabled and Num Lock is turned on, you can press a letter key to enter a number, and press and hold Fn, then a letter key to enter a letter. When this item is disabled and Num Lock is turned on, the above method works oppositely. When Num Lock is turned off, this item does not function. A check mark (?) indicates enabled; an underline (_) indicates disabled.

USB Emulation

Enables or disables the system’s support for the USB port in DOS mode. A check mark (?) indicates enabled ; an underline (_) indicates disabled.

5-6 Setup Configuration Utility (SCU)

Advanced Menu

Geyserville Support

Setup Configuration Utility (SCU) 5-7

Allows maximum CPU performance when using AC/car power but minimum CPU performance when using battery power. The available options are Enabled and Disabled . Make sure that your CPU supports this function.

Shared Video Memory

Allows you to set the shared memory size of the video controller. The available options are 4M, 8M, 16M, and 32M.

5-8 Setup Configuration Utility (SCU)

COM Ports

Allows you to configure the COM ports of the computer.

COM1/2/3/4 Settings sets the I/O (Input/Output) address and the Interrupt ReQuest line (IRQ) settings of the COM ports. The options are Disabled; COM1, 3F8, IRQ4; COM2, 2F8, IRQ3 ; COM3, 3E8, IRQ6; COM4, 2E8, IRQ11.

Mode Setting for COM B sets the communication compatibility mode according to the type of the IR device to be connected. The options are IrDA (HPSIR) and Fast IR. This item is not valid for setting if the COM1/2/3/4 Settings item is set to Disabled.

Setup Configuration Utility (SCU) 5-9

LPT Port

This item configures the parallel port of the computer.

Port Address sets the I/O address and the Interrupt ReQuest line settings of th e parallel port. The options are None; LPT1, 378, IRQ7; LPT2, 278, IRQ5; and LPT3, 3BC, IRQ7.

Port Definition sets the operating mode for the parallel port according to the type of the parallel device to be connected. Your system supports EPP (Enhanced Parallel Port) and ECP (Extended Capabilities Port) standards, which turn the standard parallel port into a high-speed bi-directional peripheral port. The options are

Standard AT (Centronics) , Bidirectional (PS -2), Enhanced Parallel (EPP), and Extended Capab ilities (ECP). This item is not valid for setting if the Port Address item is set to None.

MC97 Controller

Enables or disables the system’s support for PCI modem device. A check mark (?) indicates enabled ; an underline (_) indicates disabled.

5-10 Setup Configuration Utility (SCU)

HDD Heater

Sets if the system automatically turns on the built -in hard disk drive heater for low temperature operation. A check mark (?) indicates

enabled, while underline (_) indicates disabled.

NOTE: Disable this item to conserve energy when using battery power.

Setup Configuration Utility (SCU) 5-11

Security Menu

Power-on Password

5-12 Setup Configuration Utility (SCU)

Allows you to set the password for booting-up your syste m. When typing the password, first make sure that Num Lk is off, and then type the password in the entry fields and press Enter. Confirm your password by typing it again and pressing Enter. If the Enable Password to Power-on sub-item is enabled, the power-on password is always required to boot the computer.

SCU Password

Allows you to set the password for entering SCU Setup. When typing the password, first make sure that Num Lk is off, and then type the password in the entry fields and press Enter. Confirm your password by typing it again and pressing Enter. If the Enable SCU Password sub-item is enabled, the SCU password is always required to enter SCU Setup.

Hard Disk Encryption

Enables or disables hard disk drive encryption (including boot sector, operating system, temporary and swap files). Attempts to circumvent security by booting from a floppy disk or by removing the hard drive to be read on a different machine would prove futile since the entire content of the hard drive is encrypted. A checkmark (?) indicates enabled, while an underline (_) indicates disabled.

Setup Configuration Utility (SCU) 5-13

CAUTION: You must enable this option first before formatting your hard disk drive (HDD). Upon enabling this function, you will be asked to type in your HDD key. You must remember the HDD key as you need to type it every time you boot up your system. If you did not enable this option and have already formatted your hard disk, then you must “GHOST” the contents of your hard disk to another storage media before you can enable this option for the first time.

IMPORTANT: If you should lose the HDD key, your dealer or the computer manufacturer will not be responsible for any loss of data. You will need to re-format your hard disk and th ereby, lose all your original data.

Hard Disk Boot Sector

Sets if a warning message will appear when the hard disk boot sector (partition table) has been changed. A checkmark (?) indicates enabled, while an underline (_) indicates disabled.

CAUTION: Set this item to disabled before installing an operating system, running

Fdisk or Format program. Otherwise, the intended action will fail.

5-14 Setup Configuration Utility (SCU)

Boot Menu

Boot Sequence

Setup Configuration Utility (SCU) 5-15

Sets the first, second, third, and fourth booting device. The system will try to boot from the first device but if it is not available, will try the next boot device. If you set the first boot device to LAN Boot, the system will boot from the LAN server first. The options are Hard Disk Drive, CD-ROM Drive, Floppy Disk Drive, and LAN Boot.

NOTE: If you set all booting options to the same device, then the computer will try to boot from that device only.

5-16 Setup Configuration Utility (SCU)

Exit Menu

Save Changes and Exit saves the changes you have made and exit the SCU program.

Discard Changes and Exit exits the SCU program without saving the changes you have made.

Get Default Values loads factory default values for all the items. Load Previous Values restores previous values for all the items.

Setup Configuration Utility (SCU) 5-17

CHAPTER

Installing Software Drivers

To take full advantage of the unique features of your computer, some operating systems require custom software, known as drivers, to be installed.

If you purchased the computer with Windows pre-installed, your dealer may have already installed the drivers. If not, you need to install the drivers using the driver CD supplied with your computer.

This chapter describes how to install the drivers.

How to Use the Driver CD

NOTES: ? The drivers may have been updated after this manual was published. For driver upgrade, please contact your dealer. ? You can always find README or document files on the driver CD. These files contain the latest information from the software supplier. Please read the files together with this chapter. ? This driver CD supports Windows 2000 and Windows XP only. You are recommended to install Windows 2000 Service Pack 4 when using Windows 2000 and Windows XP Service Pack 2 when using Windows XP. ? The available items may differ according to your computer model and operating system. ? 請當安裝驅動程式時請不要移開驅動程式。

6-2 Installing Software Drivers

An autorun program is provided on the driver CD to help you easily install the drivers. As you insert the driver CD, the autorun program automatically starts. If you need to start the program manually, run the Autorun.exe program from the driver CD.

安裝必要的驅動, 正義點擊特殊選擇和跟隨 onscreen 指示繼續和完成設施。

To install the necessary driver, just click on the particular option and follow the onscreen instructions to continue and complete installation.

Device driver Ensures the full function of the following drivers. Install

this main driver before installing the device drivers. Upon clicking this icon, the chipset, VGA, audio, modem, and LAN drivers would be installed one after the other.

DirectX 8.1 Allows you to take full advantage of the multimedia

applications. Run the file DX81NTeng.exe located on the /Utility/DirectX/ directory on your driver CD. NOTE: For Windows 2000 only.

USB-to-COM Allows you to use the optional wireless modem and

GPS features to transmit information wirelessly.

Touch Screen Allows you to use your fingers as a pointing device on

the LCD screen (refer to the next section for further instructions).

Installing Software Drivers 6-3

MTCCTRL Allows you to use the built -in heater feature that

automatically turns on for low temperature hard disk drive operation.

VGA Utility Allows you to use the ATI M11 VGA control panel for

better display control.

WLAN Utility Allows you to use the computer’s internal Mini PCI

WLAN card’s network function.

ReadMe Shows you a list of the included drivers in this driver

CD and the version number.

Browse CD Browses the contents of the CD. Exit Exits the driver CD installation.

Touchscreen Driver

For Windows 2000

安裝觸驅動程式, 執行以下:

1. 插入驅動程式近入磁碟機。

2. Click on “Touch Screen” and follow the onscreen instructions to continue.

3. When finished installing, select “Yes” to reboot your system. The driver should now be loaded.

4. After the system has finished rebooting, click on the “PenMount Monitor” icon located on the taskbar to bring up the “PenMount Control Panel.”

5. Select the “Standard Calibrate” folder and click on “OK.”

6. Click on “Advanced Calibrate” button.

7. Click on the four sides (points) and the plus -sign “+” on the screen to calibrate your touchscreen for use on the computer.

6-4 Installing Software Drivers

For Windows XP

To install the touchscreen driver, perform the following:

1. Insert the driver CD into the drive.

2. Click on “Touch Screen” and follow the onscreen instructions to continue.

3. Click on ”Start,” then “Control Panel.”

Installing Software Drivers 6-5

4. Click on the “Performance and Maintenance” category.

5. Click on “System.”

6-6 Installing Software Drivers

6. Click on “Hardware” folder, then click on “Device Manager.”

Installing Software Drivers 6-7

7. Click on “? Unknown device,” then click on the “Properties” icon.

6-8 Installing Software Drivers

8. Click on “Reinstall Driver.”

9. When the “Hardware Update Wizard” appears, select “Install the software automatically [Recommended],” then click on “Next.”

Installing Software Drivers 6-9

10. Click on “Continue Anyway.”

11. Click on “Finish.”

6-10 Installing Software Drivers

12. When the “PenMount DMC9000 and DMC9100 Properties” screen appears, click on “Close” to exit the driver installation.
