Gestetner CP6143L, 3180DNP, LDD120, DX 3340, LLD120 Operating Instructions Manual

Paper type: OK Prince Eco G100(55kg), Paper Thicknes s=80 µm // Pages in book=132 // Print scale=81% Gap (when printed at 81% scale) = Pages in book × Paper thickness / 2 = 5.280000 mm

Operating Instructions

Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to r ead the

Safety Information before using the machine.

Before Using the Machine

Basics

Printing Functions

Troubleshooting

User Tools

Remarks

Specifications

Type for 3180DNP/CP6143L/LDD120/DX3340

Printed in China

EN USA C267-860 8

Paper type: OK Prince Eco G100(55kg), Paper Thicknes s=80 µm // Pages in book=132 // Print scale=81% Gap (when printed at 81% scale) = Pages in book × Paper thickness / 2 = 5.280000 mm

Note to users in the United States of America

Note:

This equipment has been tested and found to comply with the limits for a Class B digital devic e, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment genera tes, uses and can radiate radio frequency energy and, if not installed and used in accordan ce with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio /TV technician for help.

Caution:

Changes or modifications not expressly approved by the party r esponsible for compliance could void the user's authority to operate the equipment.

Note to users in Canada

Note:

This Class B digital apparatus complies with Canadian ICES-003.

Remarque concernant les utilisateurs au Canada

Avertissement:

Cet appareil numérique de la classe B est conforme à la norme NMB-003 d u Canada.

In accordance with IEC 60417, this machine uses the following symbols for the main switch:

a means POWER ON. b means POWER OFF.

Introduction

This manual contains detailed instructions and notes on the operation and use of this machine. For your safety and benefit, read this manual carefully before using the machine. Ke ep this manual in a handy place for quick reference.

Important

Contents of this manual are subject to change without prior notice. In no event will the company be liable for direct, indirect, special, incidental, or consequential damag es as a result of handling or operating the machine.

Notes:

Some illustrations in this manual might be slightly different from the machine.

Certain options might not be available in some countries. For details, please contact your local dealer.

Two kinds of size notation are employed in this manual. With this machine refer to the inch version.

For good print quality, the supplier recommends that you use gen uine master and ink from the supplier.

The supplier shall not be responsible for any damage or expense that might result from the use of parts other than genuine parts from the supplier with your office products.

Power Source

120V, 60Hz, 1.7A or more

Please be sure to connect the power cord to a power source as above. For details about power source, see ⇒ p.115 “Power Connection”.

TABLE OF CONTENTS

Manuals for This Machine ..................................................................................... 1

What You Can Do with this Machine....................................................................2

Notice ...................................................................................................................... 4

How to Read this Manual ...................................................................................... 5

Safety Information ................................................................................................. 6

Safety During Operation............................................................................................. 6

Positions of RWARNING and RCAUTION Labels ............................................. 8

Guide To Components .......................................................................................... 9

Options .................................................................................................................11

Option List ................................................................................................................ 11

Guide to Major Options ............................................................................................11

Control Panel........................................................................................................ 12

Panel Display ........................................................................................................... 14

1. Before Using the Machine

Originals ...............................................................................................................17

Size and Weights of Recommended Originals.........................................................17

Print Paper............................................................................................................ 19

Non-recommended Paper........................................................................................19

Storing Paper ...........................................................................................................20

Printing Size ......................................................................................................... 21

2. Basics

Printing Preparations .......................................................................................... 23

Using the Paper Feed Tray and Delivery Tray.........................................................23

After Printing ........................................................................................................26

Folding the Paper Feed Tray and Delivery Tray ......................................................26

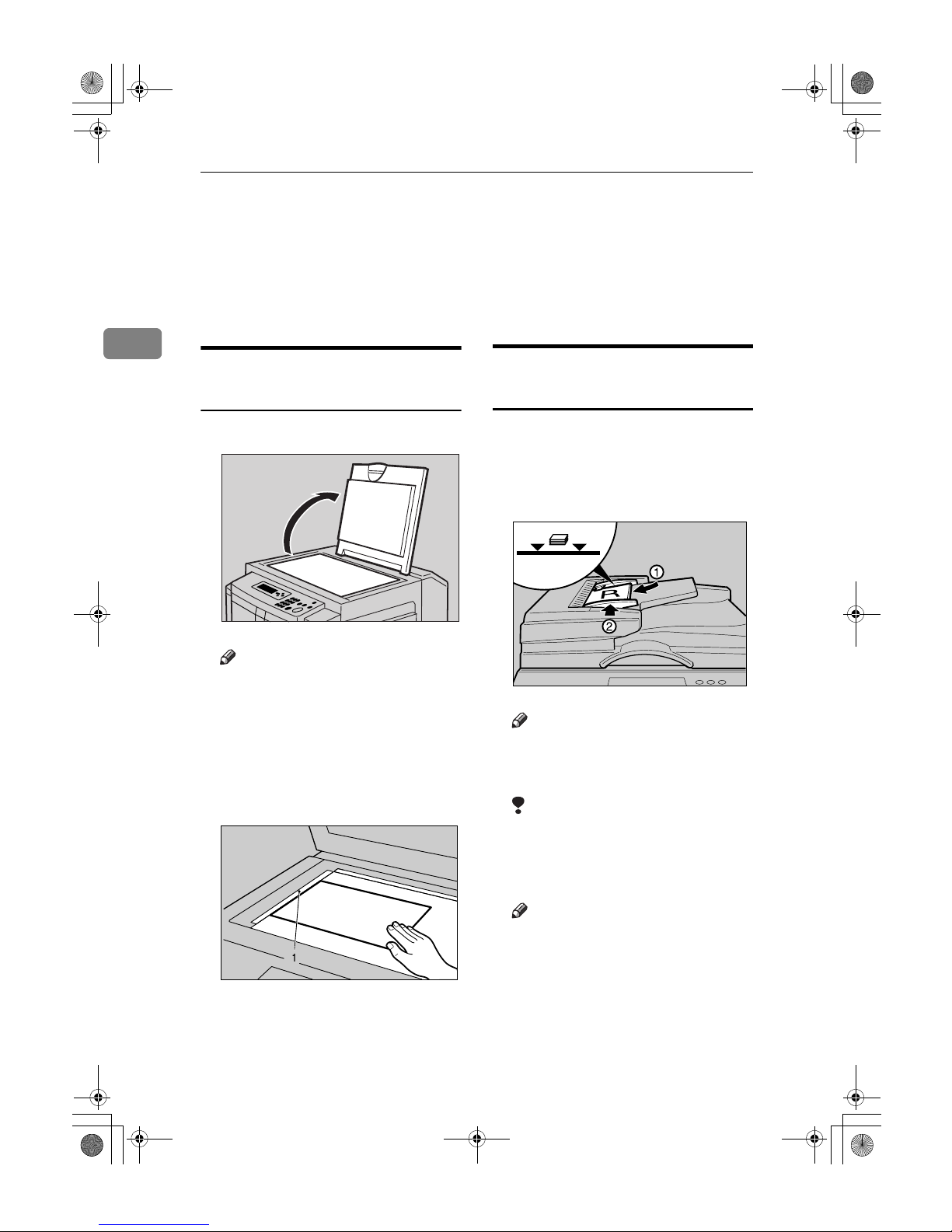

Placing Originals.................................................................................................. 28

Placing Originals on the Exposure Glass ................................................................. 28

Placing Originals in the Auto Document Feeder ...................................................... 28

Basic Procedure................................................................................................... 30

Energy Saver Mode ................................................................................................. 32

Auto Reset ............................................................................................................... 32

Printing on Thick or Thin Paper ......................................................................... 33

Feed Roller Pressure Lever Position ....................................................................... 33

Separation Pressure Lever Position......................................................................... 34

Auto Cycle ............................................................................................................ 35

Original Type ............................................................................................................36

Sample Print and Adjustment.............................................................................37

Adjusting the Print Image Position ...........................................................................37

Changing the Printing Speed..............................................................................39

C2678608_Platinum-EN.book Page i Sunday, February 12, 2006 10:53 PM

3. Printing Functions

Printing Functions ............................................................................................... 41

Master making Density............................................................................................. 41

Fine Mode ................................................................................................................ 42

Preset Reduce/Enlarge ............................................................................................ 42

Erase Border ............................................................................................................ 43

Economy Mode ........................................................................................................ 44

Memory/Class .......................................................................................................... 45

Class Mode (print per class) ....................................................................................46

Memory Mode (print per original) .............................................................................47

Recall Program ........................................................................................................49

Class/Year................................................................................................................53

Combine...................................................................................................................55

Repeat......................................................................................................................57

Skip Feed Printing .................................................................................................... 58

Security Mode .......................................................................................................... 59

Online Printing..........................................................................................................59

Hold Data-in ............................................................................................................. 59

Program ................................................................................................................ 60

Registering Print Settings.........................................................................................60

Recalling a Program................................................................................................. 61

Make Color Prints ................................................................................................ 62

Changing the Color Drum Unit.................................................................................62

Making Color Prints .................................................................................................. 64

Printing in Two Colors .............................................................................................. 64

Combination Chart............................................................................................... 66

4. Troubleshooting

If Your Machine Does Not Operate as You Want .............................................. 67

Printing Problems ................................................................................................ 68

Printing Problems When Using Combine Mode.......................................................68

Loading Paper into the Paper Feed Tray ........................................................... 69

Replenishing Paper..................................................................................................69

Changing the Paper Size .........................................................................................70

When the Add Ink Indicator (j ) Lights .............................................................71

Master Roll Replacement ....................................................................................75

Placing a New Roll of Tape in the Tape Dispenser (Option) ............................ 77

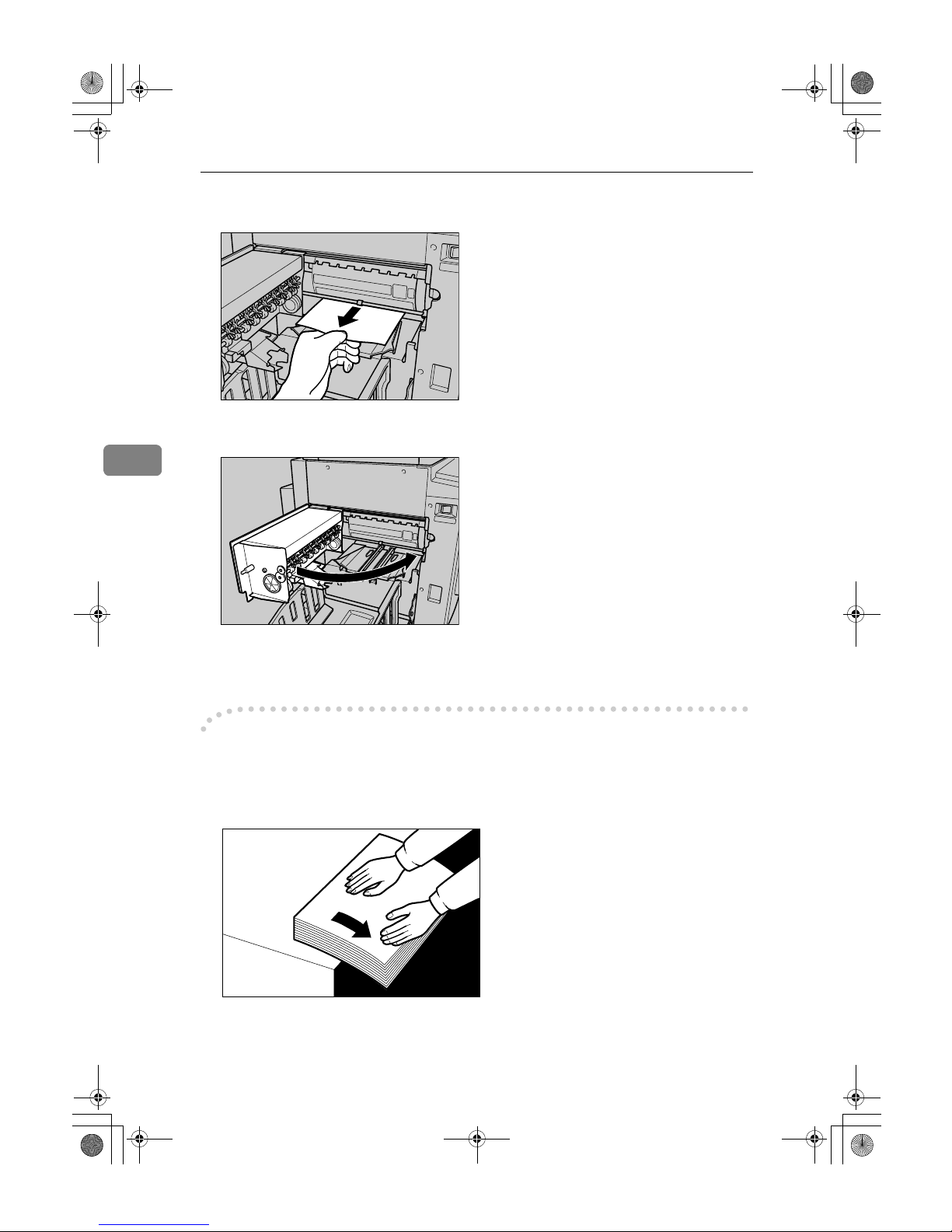

x Clearing Misfeeds ........................................................................................... 78

“x + P” Original Misfeeds Occur in the Auto Document Feeder.............................78

“x + A” Paper Misfeeds in the Paper Feed Section................................................81

“x + B” Paper Wrapped Around the Drum..............................................................81

“x + C” Paper Misfeeds in the Paper Exit Section..................................................83

“x + D” Master Misfeeds in the Master Feed Section.............................................86

”x + A + B” Paper Misfeeds in the Paper Feed Section .........................................87

“x + B + E” Master Misfeeds in the Master Eject Section....................................... 89

When the Open Cover/Unit Indicator (M) Lights and a Message is Displayed

.....92

Front cover is Open.................................................................................................. 92

Cover of Optional Auto Document Feeder is Open..................................................92

Master Eject Unit is Open ........................................................................................ 92

C2678608_Platinum-EN.book Page ii Sunday, February 12, 2006 10:53 PM

iii

When the Master End Indicator (C) Lights and a Message is Displayed ......93

Master Feeding Cover is Open ................................................................................93

Master Tray is Not Set Properly...............................................................................93

When the Master Eject Indicator (k) Lights ..................................................... 94

When Other Indicators Light...............................................................................95

Poor Printing ........................................................................................................ 96

Dirt on the Back Side of Paper.................................................................................96

Dirt on the Front Side of Paper (Black Line/Stain) ................................................... 98

Blank Prints or Incomplete Prints .............................................................................99

5. User Tools

Accessing the User Tools ................................................................................. 103

Quitting User Tools ................................................................................................103

User Tools Menu ................................................................................................ 104

1 Counter ............................................................................................................... 104

2 System ................................................................................................................ 104

3 Set Operation Mode ............................................................................................ 105

4 Initial Settings ...................................................................................................... 106

5 Mode Settings ..................................................................................................... 107

6 Administrator Tools ............................................................................................. 108

7 Onine Settings.....................................................................................................108

User Code ...........................................................................................................109

Entering the User Code to Use the Machine.......................................................... 109

Clearing the Counter..............................................................................................110

6. Remarks

Operation Notes .................................................................................................111

General Cautions ................................................................................................... 111

Print Paper ............................................................................................................. 113

Originals ................................................................................................................. 113

Where to Put Your Machine .............................................................................. 114

Environmental Conditions ...................................................................................... 114

Power Connection .................................................................................................. 115

Access to Machine ................................................................................................. 115

Maintaining the Machine ................................................................................... 116

Main Frame ............................................................................................................ 116

Optional Document Feeder....................................................................................117

7. Specifications

Main Frame .........................................................................................................119

Auto Document Feeder (ADF)........................................................................... 122

Consumables ..................................................................................................... 123

INDEX....................................................................................................... 124

C2678608_Platinum-EN.book Page iii Sunday, February 12, 2006 10:53 PM

C2678608_Platinum-EN.book Page iv Sunday, February 12, 2006 10:53 PM

Manuals for This Machine

The following manuals describe the operational procedures of this machine. For particular functions, see the relevant parts of the manual.

Note

❒ Manuals provided are specific to machine type.

❒ Adobe Acrobat Reader/Adobe Reader is necessary to view the manuals as a

PDF file.

❖ Easy Operation Guide

Describes information about the control panel and basic operations.

❖ Operating Instructions (this manual)

Describes operations, functions, User Tools (initial setting, mode setting, etc.) and troubleshooting.

C2678608_Platinum-EN.book Page 1 Sunday, February 12, 2006 10:53 PM

What You Can Do with this Machine

Below is a quick summary of this machine's features and where to look in this manual for more information

❖ Basic Procedure

See p.30 “Basic Procedure”.

❖ Printing on Thick or Thin Paper

See p.33 “Printing on Thick or Thin Paper”.

❖ Selecting Original Type

See p.36 “Original Type”.

❖ Adjusting the Print Image Position

See p.37 “Adjusting the Print Image Position”.

❖ Adjusting the Print Image Density

See p.41 “Master making Density”.

❖ Changing the Print Speed

See p.39 “Changing the Printing Speed”.

❖ Fine Mode

See p.42 “Fine Mode”.

❖ Reducing and Enlarging Using Preset

Ratios

See p.42 “Preset Reduce/Enlarge”.

❖ Erasing Edge Margins

See p.43 “Erase Border”.

❖ Saving Ink (Economy Mode)

See p.44 “Economy Mode”.

❖ Printing per Class (Class Mode)

See p.46 “Class Mode (print per class)”.

❖ Printing per Original (Memory Mode)

See p.47 “Memory Mode (print per original)”.

GRRATI0E

ACY068S

GRCLAS0E

R R

R R R

GRCLAS1E

C D

C2678608_Platinum-EN.book Page 2 Sunday, February 12, 2006 10:53 PM

❖ Combining Originals onto One Print

See p.55 “Combine”.

❖ Repeating Original onto One Print

See p.57 “Repeat”.

❖ Skip Feed Printing

See p.58 “Skip Feed Printing”.

❖ Printing Secret Documents (Security

Mode)

See p.59 “Security Mode”.

❖ Making Color Prints

See p.62 “Make Color Prints”.

❖ Printing in Two Colors

See p.64 “Printing in Two Colors”.

ZCTX040E

BA AB

C2678608_Platinum-EN.book Page 3 Sunday, February 12, 2006 10:53 PM

Notice

Important

Do not copy or print any item for which reproduction is prohibited by law.

Copying or printing the following items is generally prohibited by local law:

bank notes, revenue stamps, bonds, stock certificates, bank drafts, checks, passports, driver's licenses.

The preceding list is meant as a guide only and is not inclusive. We assume no responsibility for its completeness or accuracy. If you have any questions concerning the legality of copying or printing certain items, consult with your legal advisor.

C2678608_Platinum-EN.book Page 4 Sunday, February 12, 2006 10:53 PM

How to Read this Manual

Symbols

This manual uses the following symbols:

WARNING:

Indicates important safety notes.

Ignoring these notes could result in serious injury or death. Be sure to read these notes. They can be found in the "Safety Information" section of About This Machine.

CAUTION:

Indicates important safety notes.

Ignoring these notes could result in moderate or minor injury, or damage to the machine or to property. Be sure to read these notes. They can be found in the "Safety Information" section of About This Machine.

Important

Indicates points to pay attention to when using the machine, and explanations of likely causes of paper misfeeds, damage to originals, or loss of data. Be sure to read these explanations.

Note

Indicates supplementary explanations of the machine’s functions, and instructions on resolving user errors.

Reference

This symbol is located at the end of sections. It indicates where you can find further relevant information.

[]

Indicates the names of keys that appear on the machine’s display panel.

{}

Indicates the names of keys on the machine’s control panel.

C2678608_Platinum-EN.book Page 5 Sunday, February 12, 2006 10:53 PM

Safety Information

When using this machine, the following safety precautions should always be followed.

Safety During Operation

In this manual, the following important symbols are used:

R WARNING:

WARNING:

Indicates a potentially hazardous situation which, if instructions are not followed, could result in death or serious injury.

CAUTION:

Indicates a potentially hazardous situation which, if instructions are not followed, may result in minor or moderate injury or damage to property.

• Do not damage, break or make any modifications to the power cord. Do not place heavy objects on it. Do not pull it hard nor bend it more than necessary. These actions could cause an electric shock or fire.

• Disconnect the power plug (by pulling the plug, not the cable) if the power cable or plug becomes frayed or otherwise damaged.

• To avoid hazardous electric shock, do not remove any covers or screws other than those specified in this manual.

• Turn off the power and disconnect the power plug (by pulling the plug, not the cable) if any of the following occurs:

• You spill something into the machine.

• You suspect that your machine needs service or repair.

• The external housing of your machine has been damaged.

• Keep the machine away from flammable liquids, gases, and aerosols.

A fire or an electric shock might occur.

• Connect the power cord directly into a wall outlet and never use an extension cord.

• Only connect the machine to the power source described in this manual.

• Disposal can take place at our authorized dealer or at appropriate col-

lection sites.

C2678608_Platinum-EN.book Page 6 Sunday, February 12, 2006 10:53 PM

R CAUTION:

• After you move the machine, use the caster fixture to fix it in place. Otherwise the machine might move or come down to cause an injury.

• If you use the machine in a confined space, make sure there is a continuous air turnover.

• Keep the machine away from humidity and dust. Otherwise a fire or an electric shock might occur.

• Protect the machine from dampness or wet weather, such as rain and snow.

• Do not place the machine on an unstable or tilted surface. If it topples over,

an injury might occur.

• Unplug the power cord from the wall outlet before you move the machine. While moving the machine, you should take care that the power cord will not be damaged under the machine.

• When you disconnect the power plug from the wall outlet, always pull the plug (not the cable).

• Do not allow paper clips, staples, or other small metallic objects to fall inside the machine.

• For environmental reasons, do not dispose of the machine or expended supply waste at household waste collection points. Disposal can take place at an authorized dealer.

• When disposing of a used ink container, reattach the cap to prevent ink from splattering.

• Be careful not to get ink on your clothes when replacing an ink container. Ink stains on clothes are hard to remove.

• Be careful not to cut yourself on any sharp edges when you reach inside the machine to remove misfed sheets of paper or masters.

• If ink comes into contact with your eyes, rinse immediately in running water. For other symptoms, consult a doctor.

• Keep the ink or ink container out of reach of children.

• If ink is ingested, induce vomiting by drinking a strong saline solution. Con-

sult a doctor immediately.

• If your skin comes into contact with ink, wash the affected area thoroughly with soap and water.

• While printing, do not touch the belt at the end of the paper delivery tray or the job separator. Otherwise, an injury might occur.

• Our products are engineered to meet the high standards of quality and functionality, and we recommend that you only use the expendable supplies available at an authorized dealer.

C2678608_Platinum-EN.book Page 7 Sunday, February 12, 2006 10:53 PM

Positions of RWARNING and RCAUTION

Labels

This machine has labels for RWARNING and RCAUTION at the positions shown below. For safety, please follow the instructions and handle the machine as indicated.

ANT150S

C2678608_Platinum-EN.book Page 8 Sunday, February 12, 2006 10:53 PM

Guide To Components

1. Front cover

Open for access to the inside of the machine.

2. Control panel

Operator controls and indicators are located here. See ⇒ p.12 “Control Panel”.

3. Exposure glass cover (optional) or

Auto Document Feeder (optional)

Lower this cover over an original on the exposure glass. If you have the ADF, load a stack of originals here. They will be fed automatically, one by one.

(The illustration shows the ADF.)

4. Master tray

Open this tray when installing the master.

5. Feed roller pressure lever

Use to adjust the contact pressure of the paper feed roller according to paper thickness.

6. Separation pressure lever

Use to prevent double feed.

7. Paper feed side plate lock lever

Use to lock or unlock the paper feed side plates.

8. Side tray fine adjusting dial

Use to shift the paper feed tray sideways.

9. Paper feed tray

Set paper on this tray for printing.

10. Paper feed side plates

Use to prevent paper skew.

11. Paper feed tray down key

Press to lower the paper feed tray.

ANT046S

C2678608_Platinum-EN.book Page 9 Sunday, February 12, 2006 10:53 PM

1. Exposure glass

Use to set the original.

2. Master eject unit

Open to remove the misfed master.

3. Master eject box

Used masters are stored here.

4. Paper delivery side plates

Use to align the prints on the paper delivery tray.

5. Paper delivery end plate

Use to align the leading edge of prints.

6. Paper delivery tray

Completed prints are delivered here.

7. Main switch

Use to turn the power on or off.

8. Drum unit

The master is wrapped around this unit.

9. Drum unit lock lever

Lift to unlock and pull out the drum unit.

10. Ink holder

Set the ink cartridge in this holder.

ANT043S

C2678608_Platinum-EN.book Page 10 Sunday, February 12, 2006 10:53 PM

Options

Option List

Guide to Major Options

❖ Auto Document Feeder (ADF)

Load a stack of originals here. They will be fed automatically, one by one.

Options Model Name

Auto Document Feeder (ADF) DF Type 20

Exposure Glass Cover Platen Cover Type 1018

Drum unit Color Drum Type 20 LG

Tape Dispenser Priport Tape Maker Type 20

Key Counter –

ANT071S

C2678608_Platinum-EN.book Page 11 Sunday, February 12, 2006 10:53 PM

Control Panel

1. {Economy} key

Press to save ink. See p.44 “Economy Mode”.

2. {Memory/Class} key

Press to select Memory or Class mode. See p.46 “Class Mode (print per class)” or p.47 “Memory Mode (print per original)”.

3. {Erase Border} key

Press to select erase margins on the prints. See p.43 “Erase Border”

4. {User Tools} key

Press to change the default settings to suit your requirements. See p.103 “User Tools”

5. {Master Making Density} key

Press to make prints darker or lighter. See ⇒ p.41 “Master making Density”.

6. Indicators

Show errors and machine status. Color:Color Drum indicator u: Key Counter indicator See p.95 “When Other Indicators Light”. j: Add Ink indicator See p.71 “When the Add Ink Indicator

(j) Lights”. C: Master End indicator See p.93 “When the Master End Indicator

B: Load Paper indicator See p.69 “Loading Paper into the Paper

Feed Tray”. k: Master Eject indicator See p.94 “When the Master Eject Indica-

tor (k) Lights”. x: Misfeed indicator See p.78 “x Clearing Misfeeds”. M: Open Cover/Unit indicator See p.92 “When the Open Cover/Unit In-

dicator (M) Lights and a Message is Displayed”.

7. Panel Display

The panel display shows the machine status, error messages, and function menus.

8. {Escape} key

Press to cancel a selection or an entry, and to return to the previous display.

9. Counter

Shows the number of prints entered. While printing, it shows the remainder that is to be printed.

10. {U}{T} keys

Press to select an item on the panel display.

11. {OK} key

Press to confirm a selection or an entry.

12. {Program} key

Press to input or recall user programs. See p.60 “Program”.

1 83 5 112 4 7 9 12 13 14 15 16 176

21 22 23 24 2625 28 2927 3430 31 32 33 35

ANT148S

C2678608_Platinum-EN.book Page 12 Sunday, February 12, 2006 10:53 PM

13. {Clear Modes/Energy Saver} key

•Clear Modes Press to clear the previously entered job settings.

•Energy Saver Press to switch to and from Energy Saver Mode p.32 “Energy Saver Mode”.

14. {Proof} key

Press to make proof prints.

15. {Master Making} mode select key

Press to select the master making mode.

16. {Auto Cycle} key

Press to make masters and prints in a single operation. See p.30 “Basic Procedure”

17. {Print} mode select key

Press to select the print mode.

18. {Fine} key

Press to select the fine image. See ⇒ p.42 “Fine Mode”.

19. {Security} key

Press to make prints of secret documents. See p.59 “Security Mode”.

20. {Skip Feed} key

Press to select skip feed printing. Seep.59 “Security Mode”.

21. Data In indicator (Green)

• On: Data waiting for Master Making and printing is in the machine.

• Blinking: Data is being received, or Master Making or printing is in progress.

• Off: Master Making and printing are completed.

22. Error indicator (Red)

• On: An error has occurred. Master Making and printing stops.

• Off: Normal status

23. {Job Reset} key

Press to cancel the data from an optional PC controller.

24. {Hold Data-in} key

Press to reject the online print temporarily.

25. {Original Type} key

Press to select Text, Photo, Text/Photo, or Pale mode. See ⇒ p.36 “Original Type”.

26. {Reduce/Enlarge} key

Press to reduce or enlarge the image by preset ratios. Seep.42 “Preset Reduce/Enlarge”.

27. {Combine/Repeat} key

Press to combine two originals onto one print. See p.55 “Combine”.

Press to repeat the image of an original on one print. See p.57 “Repeat”.

28. {Full Size} key

Press to make full size prints.

29. {W} and {V} keys (Speed keys)

Press to adjust the printing speed. See ⇒ p.39 “Changing the Printing Speed”.

30. {Image Position} key

Press to shift the image forwards or backwards. See ⇒ p.37 “Adjusting the Print Image Position”.

31. Number keys

Press to enter the desired number of prints and data for selected modes.

32. {q} key

Press to enter data in selected modes.

33. {Clear/Stop} key

Press to cancel a number you have entered or to stop printing.

34. {Start} key

Press to start making masters or printing.

35. Processing indicators

Shows the process of making master to printing.

C2678608_Platinum-EN.book Page 13 Sunday, February 12, 2006 10:53 PM

Panel Display

The panel display shows the machine status, error messages, and function menus.

Important

❒ Do not subject the panel display to strong impact or a force equivalent to 30N

or more, otherwise it could be damaged.

Note

❒ When you select an item on the panel display, it is highlighted (e.g. ).

1. Menu for the function selected

2. Machine status or messages

❖ Common keys

100

ANT100S

{OK} key Press to confirm a selection or an entry. {Escape} key Press to cancel a selection or entry, and to return to the previ-

ous display.

{U}{T} keys Press to select items on the panel display.

C2678608_Platinum-EN.book Page 14 Sunday, February 12, 2006 10:53 PM

Panel Display Layout

The basic elements of the panel display are explained below. Understanding their meaning helps you use this machine's features quickly and easily.

❖ Sample display when selecting the {Reduce/Enlarge} key

1. Machine status or messages

When the {Reduce/Enlarge} key is pressed, the following display is shown.

Functions and settings available:

•Press the {U}{T} keys to select an item.

•Press the {OK} key to confirm your settings.

•Press the {Escape} key to return to the previous display.

ANT101S

ANT149S

C2678608_Platinum-EN.book Page 15 Sunday, February 12, 2006 10:53 PM

C2678608_Platinum-EN.book Page 16 Sunday, February 12, 2006 10:53 PM

1. Before Using the Machine

Originals

Size and Weights of Recommended Originals

❖ Metric version

This machine supports up to A3 size original. However the printed paper size allows only up to B4 size papers. When you’re using an A3 size original, make sure to use the “Reduce” or “Combine” features.

❖ Inch version

This machine supports up to 11" × 17" size original. However the printed paper size allows only up to 8

/2" × 14" size papers. When you’re using an 11" × 17" size original,

make sure to use the “Reduce” or “Combine” features.

Note

❒ The maximum number of originals that can be placed in the ADF is about 30

(80 g/m

, 20 lb).

❒ If you do not lift the exposure glass cover more than 30° when you place an-

other original, the machine might not detect the next original correctly.

Where original is placed Original size Original weight

Exposure glass

Up to A3

ADF Maximum: 297 mm × 432 mm

Minimum: 105 mm × 128 mm

52–128 g/m

Where original is placed Original size Original weight

Exposure glass

UP to 11" × 17" L

ADF Maximum: 11.7" × 17.0"

Minimum: 4.1 " × 5.0 "

14–28 lb.

C2678608_Platinum-EN.book Page 17 Sunday, February 12, 2006 10:53 PM

Before Using the Machine

Non compatible originals for the Auto Document Feeder(ADF)

Placing the following types of originals in the ADF can cause paper misfeeds or result in damage to the originals. Place these originals on the exposure glass instead.

• Originals other than those specified on p.17 “Size and Weights of Recommended Originals”.

• Perforated or torn originals

• Curled, folded, or creased originals

•Pasted originals

• Originals with any kind of coating, such as thermal fax paper, art paper, aluminum foil, carbon paper, or conductive paper.

• Originals with indexes, tags, other projecting parts

• Stapled or clipped original

• Sticky originals such as translucent paper

• Thin originals that have low stiffness

• Thick originals such as postcards

• Bound originals such as books

• Transparent originals such as OHP transparencies or translucent paper

C2678608_Platinum-EN.book Page 18 Sunday, February 12, 2006 10:53 PM

Print Paper

The following limitations apply:

Non-recommended Paper

The following types of paper are not recommended for this machine:

• Roughly cut paper

• Paper of different thickness in the same stack

• Envelopes heavier than 85 g/m

, 22 lb.

• Folded, curled, creased, or damaged paper

• Damp paper

•Torn paper

• Slippery paper

• Rough paper

• Paper with any kind of coating (such as carbon)

• Short grain paper

• Thin paper that has low stiffness

• Paper that is prone to generate a lot of paper dust

• Grained paper loaded with the direction of the grain perpendicular to the feed direction

• Certain types of long thin envelopes. E.g. international mail envelopes

Paper Size Paper

Weight

Metric Inch

Paper feed tray B4 JIS L, A4 L, B5 JIS LK,

A5 L, B6 JIS L, A6 L

Others (Vertical: 90 - 268 mm, Horizontal: 148 - 388 mm)

/2" × 14" L, 81/2" × 11" L,

/2" × 81/2" LK, 8" × 13" L

Others (Vertical: 3.6" - 10.5", Horizontal: 5.9" - 15.2")

47.1 - 209.3 g/m

12.5 - 55.6 lb

ZFXX040E

C2678608_Platinum-EN.book Page 19 Sunday, February 12, 2006 10:53 PM

Before Using the Machine

• The following types of envelopes

Note

❒ Do not use inkjet paper. It does not absorb ink well, print will smudge if

rubbed, and the back of paper may be dirtied.

❒ If you print on rough grained paper, the print image might be blurred.

Important

❒ Correct curls in the paper before placing it in the machine. When you cannot

correct the paper curl, stack the paper with the curl face down or face up as shown in the illustration. If the paper is curled, it might wrap around the drum or stains might appear.

Storing Paper

Note

❒ When storing paper, the following precautions should always be taken:

• Do not store paper where it will be exposed to direct sunlight.

• Avoid storing paper in humid (greater than 70%) areas.

• Store on a flat surface.

❒ Keep open reams of paper in the package and store as you would unopened

paper.

TPEY990E

C2678608_Platinum-EN.book Page 20 Sunday, February 12, 2006 10:53 PM

Printing Size

Maximum print size

210 × 355 mm, 8.3" × 14.0"

At low temperatures, the maximum print size may be somewhat smaller.

Range that cannot be printed

The first 5 mm, 0.2" of the leading edge cannot be printed. When using the optional Auto Document Feeder, the first 5 mm, 0.2", of the leading edge as well as the last 2 mm, 0.08", of the trailing edge cannot be printed.

a: 5 mm, 0.2"

Original Print

C2678608_Platinum-EN.book Page 21 Sunday, February 12, 2006 10:53 PM

Before Using the Machine

C2678608_Platinum-EN.book Page 22 Sunday, February 12, 2006 10:53 PM

2. Basics

Printing Preparations

Using the Paper Feed Tray and Delivery Tray

Loading Paper

A Carefully open the paper feed tray.

B Shift the paper feed side plates

lock lever forward. Adjust the side plates to match the paper size.

1: Paper Feed Side Plates Lock Lever

C Load paper into the paper feed tray.

Note

❒ Correct the paper curl before

setting the paper. If you cannot do so, stack the paper with the curl face down as shown.

TSLH026E

ANT072S

ANT074S

GRMARU0E

GRBATS0E

C2678608_Platinum-EN.book Page 23 Sunday, February 12, 2006 10:53 PM

Basics

D Make sure that the paper feed

side plates touch the paper lightly. Shift the lock lever to its original position.

Setting Up the Paper Delivery Tray

A Open the paper delivery tray.

B Lift the paper delivery side plates

and adjust them to the paper size.

C Lift the paper delivery end plate

and move it to match the print paper size.

D Lift the paper delivery end plate

and adjust it to match the paper size.

TSLY015E

ANT035S

ANT062S

ANT037S

ANT038S

C2678608_Platinum-EN.book Page 24 Sunday, February 12, 2006 10:53 PM

Printing Preparations

Using the side plate guides

When printing on A4L, 81/2"L, B5 JISKLsize paper and thin paper, you should attach the side plate guides to the side plates of the Paper Delivery Tray. Using the side plate guides allows you to properly assemble the printed papers on the Paper Delivery Tray.

Side plate guides

Note

❒ Side Plate guides come equipped

with the machine.

A Insert the protruding portion

into the Side Plate holes.

Note

❒ Insert the middle protruding

portion first followed by the upper and lower portions.

B Turn the Side Plate Guide to

the direction shown by the arrow, and make sure it is fixed.

C After attaching the Side Plate

Guide on one side, repeat the same process for the other side.

E Turn on the main switch.

ANT040S

ANT041S

ANT042S

ANT076S

C2678608_Platinum-EN.book Page 25 Sunday, February 12, 2006 10:53 PM

Basics

After Printing

This section shows you how to return the paper feed tray and paper delivery tray to their original positions.

Folding the Paper Feed Tray and Delivery Tray

A Remove the paper from the paper

feed tray.

The paper feed tray will move down.

B Turn off the main switch.

C Close the paper feed tray.

D Move the end plate until the plate

handle is flush with the end of the tray.

E Lower the end plate.

ANT073S

ANT077S

TSLH020E

ANT038S

ANT039S

C2678608_Platinum-EN.book Page 26 Sunday, February 12, 2006 10:53 PM

After Printing

F Move the side plates to the sides,

then lower them.

G Close the tray.

ANT036S

C2678608_Platinum-EN.book Page 27 Sunday, February 12, 2006 10:53 PM

Basics

Placing Originals

When using the exposure glass, place the originals face down.

When using the ADF, place the originals face up.

Placing Originals on the Exposure Glass

A Lift the exposure glass cover.

Note

❒ Be sure to lift the exposure glass

cover more than 30°.

B Place the original face down on

the exposure glass. The original should be aligned with the left scale.

1. Left scale

C Lower the exposure glass cover. D Adjust print settings as necessary,

and then press the {Start} key.

Placing Originals in the Auto Document Feeder

A Adjust the guide to the original

size.

B Insert the aligned originals face up

into the ADF.

Note

❒ To avoid originals misfeeding,

fan the originals before placing them in the ADF.

Limitation

❒ Approximately 30 originals (80

g/m

, 20 lb) can be inserted at a time in the ADF. The first (top) original will be fed first.

Note

❒ To avoid jamming, fan the orig-

inals before placing them in the ADF.

❒ The guides must fit snugly against

both sides of the stack.

ANT064S

ACY070S

AJK153S

C2678608_Platinum-EN.book Page 28 Sunday, February 12, 2006 10:53 PM

Placing Originals

C Adjust print settings as necessary,

and then press the {Start} key.

Note

❒ If the next original has been

placed in the ADF before the machine stops, that original is fed automatically.

C2678608_Platinum-EN.book Page 29 Sunday, February 12, 2006 10:53 PM

Basics

Basic Procedure

When Auto Cycle mode is on, you can process masters and make prints in a single operation.

Note

❒ You can process masters and make

prints in a single operation. See p.35 “Auto Cycle”.

❒ If the machine has user codes set,

enter your user code using the number keys, and then press the {OK} key.

Reference

See p.109 “User Code”.

A Make sure no previous settings

remain.

Note

❒ If previous settings remain, press

the {Clear Modes/Energy Saver} key before entering your settings.

B Place the originals.

Reference

See p.28 “Placing Originals”.

C Make sure the {Master Making} mode

select key is lit.

Note

❒ If it is not lit, press the {Master

Making} mode select key.

D Make the necessary settings.

E Press the {Start} key.

Master making starts.

Note

❒ Press the {Proof} key to check the

image before making prints.

Reference

To change the image position, see p.37 “Adjusting the Print Image Position”.

F Make sure the {Print} mode select

key is lit.

ANT128S

ANT123S

ANT127S

C2678608_Platinum-EN.book Page 30 Sunday, February 12, 2006 10:53 PM

Basic Procedure

G Enter the required number of prints

using the number keys.

Note

❒ Set a print quantity between 1

(minimum) and 9999 (maximum).

H Press the {Start} key.

Note

❒ When the print job finishes, press

the {Clear Modes} key. Previously entered job settings are cleared.

-How to operate

❖ To stop the machine during a multi-

print run

Press the {Clear/Stop} key.

❖ To return the machine to the initial

condition after printing

Press the {Clear Modes} key.

❖ When clearing entered values

Press the {Clear/Stop} key.

ANT122S

ANT128S

C2678608_Platinum-EN.book Page 31 Sunday, February 12, 2006 10:53 PM

Basics

Energy Saver Mode

If the machine has not been operated for a certain period of time after printing, or when you press and hold the {Clear Modes/Energy Saver} key for 3 seconds, the panel display goes off and the machine enters Energy Saver mode. In Energy Saver mode, the machine consumes less electricity. Press the {Clear Modes/Energy Saver} key again, and the machine will return to the ready condition.

Note

❒ By default, the time taken for the

machine to shift to Energy Saver mode is 3 minutes.

❒ You can change the waiting time

within a range of 1 to 120 minutes. See “Energy Saver Timer”on p.104 “2 System”.

❒ In the following cases, the machine

will not shift automatically to Energy Saver mode.

• If there is no ink

• If originals are or paper is jammed

• If the machine has not finished making masters or prints

• If the machine is printing the second page of a Combine print

• If there is no master

• If the master eject box is full

• If there is an original in the optional Auto Document Feeder

• If the “cover open” indicator is lit

• If you are in the process of making changes to the user tools

• If the screen for entering a user code is displayed

Auto Reset

This machine can be set to return automatically to its initial condition if it has not been operated for a certain period of time. This is called “Auto Reset”.

Note

❒ The Auto Reset time can be set from

1 to 5 minutes, or to “Off”. See “Auto Reset Timer” on p.104 “2 System”.

❒ The default for Auto Reset is Off.

❒ In the following cases, Auto Reset

will not take place.

• If there is no ink

• If originals are or paper is jammed

• If the machine has not finished making masters or prints

• If the machine is printing the second page of a Combine print

• If there is no paper

• If there is no master

• If the master eject box is full

• If there is an original in the optional Auto Document Feeder

• If the “cover open” indicator is lit

• If you are in the process of making changes to the user tools

• If you have set Auto Reset to“Off”

C2678608_Platinum-EN.book Page 32 Sunday, February 12, 2006 10:53 PM

Printing on Thick or Thin Paper

When you make prints on thick (127.9 to 209.3 g/m

, 34.0 to 55.6 lb), stan-

dard (52.3 to 127.9 g/m

, 13.9 to 34.0

lb) or thin (47.1 to 52.3 g/m

, 12.5 to

13.9 lb) paper, perform the following steps.

Feed Roller Pressure Lever Position

A Shift the feed roller pressure le-

ver to the Thick, Standard, or Thin paper position.

Note

❒ Shift the lever according to the

paper weights as shown in the following table.

When paper is smaller than B5, 5

/2" × 81/2" and heavier than

81.4 g/m

(21.6 lb.), move the feed roller pressure lever to the Thin paper position.

B Shift the paper feed side plates

lock lever forward. Adjust the side plates to match the paper size.

1: Paper Feed Side Plates Lock Lever

C Make sure that the paper feed

side plates touch the paper lightly.

Metric version

Inch version

Thick 127.9–209.3

g/m

34.0–55.6 lb.

Standard

52.3–127.9 g/m

13.9–34.0 lb.

Thin

47.1–52.3 g/m

12.5–13.9 lb.

ANT075S

ANT072S

ZCTH150E

C2678608_Platinum-EN.book Page 33 Sunday, February 12, 2006 10:53 PM

Basics

When printing onto thin paper

A Set the side pads to both sides

of the paper feed side plates. Make sure that the paper feed side plates touch the paper lightly.

D Shift the lock lever to its original

position.

E When you finish printing, shift

the feed roller pressure lever to the Standard paper position.

Separation Pressure Lever Position

A To prevent double feed, adjust

the paper separation pressure using the separation pressure lever.

Note

❒ Paper separation pressure can

be adjusted according to the paper weights as shown in the following table.

This position can also be used if the leading edge of the paper is curled, or when the paper does not feed properly.

TSLY015E

ANT075S

Position Metric

version

Inch version

1 Use this position if the

leading edge of the paper is curled, or when the paper does not feed properly at Position 2.

81.6–209.4 g/m

21.7–55.6 lb.

3 47.1–81.5

g/m

12.6–21.6 lb.

ANT117S

C2678608_Platinum-EN.book Page 34 Sunday, February 12, 2006 10:53 PM

Auto Cycle

Using the default settings, you can process masters and make prints in a single operation. This is called "Auto Cycle".

A Make sure the {Auto Cycle} key is

lit.

Note

❒ If it is not lit, press the {Auto Cy-

cle} key.

B Place your originals.

Reference

See p.28 “Placing Originals”.

C Make sure the {Master Making}

mode select key is lit.

Note

❒ If it is not lit, press the {Master

Making} mode select key.

D Make the necessary settings.

E Enter the required number of prints

using the number keys.

F Press the {Start} key.

Note

❒ When the print job finishes, press

the {Clear Modes} key. Previously entered job settings are cleared.

ANT125S

ANT122S

ANT128S

C2678608_Platinum-EN.book Page 35 Sunday, February 12, 2006 10:53 PM

Basics

Original Type

Select one of the following four types to match your originals:

❖ Text

Specify this if the original document consists primarily of text.

❖ Text/Photo

If the original document contains a combination of text and photographs, it is printed using the optimum image balance.

❖ Photo

Specify this for photographs, pictures, or colored documents.

❖ Pale

When printing pale colors, the master is created using pale color print.

Note

❒ You can specify the original type

that is selected by default when the power is turned on. See “Original Type” on p.106 “4 Initial Settings”.

❒ The default is Text mode.

❒ Moire patterns may occur when

you are printing from screened originals.

❒ When using Photo mode to print

originals with both text and photographs, the text might appear faint. To avoid this, use Text/Photo mode instead.

A Press the {Original Type} key.

B Use the {U}{T} keys to select the

type of original, and then press the {OK} key.

ANT129S

C2678608_Platinum-EN.book Page 36 Sunday, February 12, 2006 10:53 PM

Sample Print and Adjustment

Once the master making has been completed, it is possible to confirm the print finish before pressing the {Print} mode select key to start the printing process.

A Press the {Proof} key.

A single printed page is ejected.

Note

❒ Press the key continuously to

eject printed pages in succession.

Adjusting the Print Image Position

After master making, you can adjust the print image position to suit your needs. There are two ways:

❖ Shifting the Image Position Forward

or Backward

Shift the image position using the {Image Position} keys.

❖ Shifting the Image Position to the

Right or Left

Shift the image position using the side tray fine adjusting dial.

Shifting the Image Position Forward or Backward

* Paper feed direction

A Press the left {Image Position} key

to move the image forwards, the right key to move it backwards.

Note

❒ When you shift the image for-

wards, leave a margin (more than 5 mm, 0.2") at the leading edge. If there is no margin, paper might wrap around the drum and cause a misfeed.

❒ The right or left {Image Position}

keys shift the image about 0.5 mm, 0.02" each time they are pressed.

❒ The value of the image position

that shifted is displayed on the panel display.

ANT123S

GRFORW0E

ANT137S

C2678608_Platinum-EN.book Page 37 Sunday, February 12, 2006 10:53 PM

Basics

B Press the {Proof} key to check the

image position.

Shifting the Image Position to the Right or Left

* Paper feed direction

A Turn the side tray fine adjusting

dial as shown in the illustrations.

❖ Shifting the image to the right

❖ Shifting the image to the left

Note

❒ The image position can be shift-

ed up to about 10 mm, 0.4" each way. Each division on the scale is 2 mm, 0.08".

B Adjust the paper delivery side

plates to the print paper position.

C Press the {Proof} key to check the

image position.

ANT123S

GRLEFT0E

TSLH02IE

TSLH02JE

ANT123S

C2678608_Platinum-EN.book Page 38 Sunday, February 12, 2006 10:53 PM

Changing the Printing Speed

Use the {W} or {V} key to adjust the speed of the machine with the image density and printing paper.

A Press the {V} key to increase the

speed and press the {W} key to reduce the speed.

Note

❒ The following speeds are avail-

able:

•Setting 1: 80 sheets/minute

•Setting 2: 100 sheets/minute

•Setting 3: 130 sheets/minute

❒ As a default setting, setting 2 is

selected.

ANT136S

C2678608_Platinum-EN.book Page 39 Sunday, February 12, 2006 10:53 PM

Basics

C2678608_Platinum-EN.book Page 40 Sunday, February 12, 2006 10:53 PM

3. Printing Functions

Printing Functions

Master making Density

You can adjust the image density to suit your needs.

Note

❒ You can specify the image density

that is selected by default when the power is turned on. See “Master Making Density” on p.106 “4 Initial Settings”.

A Press the {Master Making Density}

key to select the density you want to set.

Note

❒ If your original has a colored

background such as red or blue, select a lighter image density to prevent the prints from appearing dirty.

B Make sure the {Master Making} mode

select key is lit.

Note

❒ If it is not lit, press the {Master

Making} mode select key.

C Press the {Start} key.

D Press the {Proof} key to check the

print image density.

ANT143S

ANT128S

ANT123S

C2678608_Platinum-EN.book Page 41 Sunday, February 12, 2006 10:53 PM

Printing Functions

Fine Mode

Use the {Fine} key to make clear prints.

A Set your originals. B Press the {Fine} key to select Fine

mode.

C Enter the number of prints with

the number keys.

D Press the {Start} key.

Preset Reduce/Enlarge

Use this function to reduce or enlarge originals by a preset ratio.

Note

❒ You can select a ratio regardless of

the size of the original or the printing paper. However, with some ratios, parts of the image might not be printed or margins will appear on prints.

❒ You can choose from 7 preset ra-

tios (3 enlargement ratios and 4 reduction ratios).

❖ Metric version

ANT138S

ANT122S

ANT128S

Ratio (%) Original → Print paper size

141 A5 → A4, B5 JIS → B4 JIS

122 A4 → B4 JIS, A5 → B5 JIS

115 B5 JIS → A4

93 —

87 A3 → B4 JIS, A4 → B5 JIS

82 B4 JIS → A4, B5 JIS → A5

71 A3 → A4, A4 → A5, B4 JIS →

B5 JIS

GRRATI0E

C2678608_Platinum-EN.book Page 42 Sunday, February 12, 2006 10:53 PM

Printing Functions

❖ Inch version

❒ You can specify the reproduction

ratio that is selected by default when the power is turned on. See “Ratio” on p.106 “4 Initial Settings”.

A Set your original. B Press the {Reduce/Enlarge} key.

C Use the {U}{T} keys to select

your desired reproduction ratio, and then press the {OK} key.

D Enter the number of prints with the

number keys.

E Press the {Start} key.

Erase Border

This function erases all four margins of the original or paper.

Note

❒ You can specify within a range of 0

to 20mm, 0" to 0.8", the width of the margin to be erased. See “Erase Border Width” on p.106 “4 Initial Settings”.

❒ The default is 5 mm, 0.2".

A Set your original.

Ratio (%) Original → Print paper size

155

5 1/2" × 8 1/2" → 8 1/2" × 14"

129

/2" × 8 1/2" → 8 1/2" × 11"

121

/2" × 14" → 11" × 17"

93 —

/2" × 14" → 8 1/2" × 11"

11" × 15" → 8

/2" × 11"

11" × 17" → 8

/2" × 11", 8

/2" × 11" → 5 1/2" × 8 1/2"

ANT131S

ANT122S

ANT128S

ACY068S

C2678608_Platinum-EN.book Page 43 Sunday, February 12, 2006 10:53 PM

Printing Functions

B Press the {Erase Border} key.

C Use the {U}{T}keys to select the

original size and orientation, and then press the {OK} key.

D Enter the number of prints with

the number keys.

E Press the {Start} key.

Economy Mode

Use this function to save ink.

Note

❒ Prints will appear lighter when

Economy mode is used.

❒ The default is Off. To select either

“On” or “Off” for Economy mode, see “Economy Mode” on p.106 “4 Initial Settings”.

A Set your original. B Press the {Economy Mode} key.

C Enter the number of prints with the

number keys.

ANT145S

ANT122S

ANT128S

ANT142S

ANT122S

C2678608_Platinum-EN.book Page 44 Sunday, February 12, 2006 10:53 PM

Printing Functions

D Press the {Start} key.

Memory/Class

The Memory/Class function is useful especially for people such as teachers, who often have to make different numbers of prints from the same original for different classes or have to make the same number of prints from a number of different originals for the same class.

Under the Memory/Class function, the following modes are available:

❖ Class Mode (print per class)

Use to make prints from one original for multiple classes, with the same number of prints for each class.

❖ Memory Mode (print per original)

You can choose from the following two types of Memory mode:

• Normal Memory Mode Use to make prints from a number of different originals. A different number of prints is made from each original.

• Stack Memory Mode Use to make prints from one original, with a different number of prints for each class.

Note

❒ You can specify either Normal

Memory Mode or Stack Memory Mode as the default. See “Memory Mode Setting” on p.107 “5 Mode Settings”.

ANT128S

GRCLAS0E

R R

R R R

GRCLAS1E

C D

STKMEM1E

AAA

C2678608_Platinum-EN.book Page 45 Sunday, February 12, 2006 10:53 PM

Printing Functions

❖ Recall Program

Use to recall settings that you have stored under the Memory Mode and Class Mode.

❖ Class/Year Mode

Reference

If the use of this machine is not limited to school or college, you can choose to have this mode displayed as “Department” displayed instead of “Class/Year”. See “Class Display” on p.105 “3 Set Operation Mode”.

•All Use to make prints from the same original for all the registered classes in all the school years.

•Class Select to make prints from the same original for only the classes selected.

•Households Use to make prints from the same original for all the registered student households in the school.

Class Mode (print per class)

Note

❒ You can print for up to 24 combi-

nations of number of prints and number of classes.

❒ The maximum possible number of

classes in one combination is 99.

A Set your original. B Press the {Memory/Class} key.

C Use the {U}{T} keys to select

Class and then press {OK} key.

D With the number keys, enter the

desired number of prints, and the press the {q} key.

GRCLAS2E

ANT139S

C2678608_Platinum-EN.book Page 46 Sunday, February 12, 2006 10:53 PM

Printing Functions

E With the number keys, enter the

desired number of classes, and then press the {q} key.

Note

❒ Repeat Steps D to E as desired.

F Press the {OK} key. G If you are using the optional tape

dispenser, turn on the tape dispenser switch.

Note

❒ The optional tape dispenser au-

tomatically feeds out strips of paper to separate each group of prints.

H Press the {Start} key.

Memory Mode (print per original)

Normal Memory Mode

Note

❒ You can make prints from up to 30

originals at one time.

A Set your original. B Press the {Memory/Class} key.

C Use the {U}{T} keys to select

Memory, and then press the {OK} key.

D With the number keys, enter the

desired number of prints for each original, and then press the {q} key.

Note

❒ Repeat this step until you have

entered for all the originals.

E Press the {OK} key.

TSLP013E

Off

ANT128S

ANT139S

C2678608_Platinum-EN.book Page 47 Sunday, February 12, 2006 10:53 PM

Printing Functions

F If you are using the optional tape

dispenser, turn on the tape dispenser switch.

Note

❒ The optional tape dispenser au-

tomatically feeds out strips of paper to separate the prints made from each original.

G Press the {Start} key.

Stack Memory Mode

Limitation

❒ To use Stack Memory mode, you

need to first set Memory Mode to “Stack Mode” using the user tools. See “Memory Mode Setting” on p.107 “5 Mode Settings”.

Note

❒ You can make prints for up to 30

classes at one time.

A Set your original.

B Press the {Memory/Class} key.

C Use the {U}{T} keys to select

Memory, and then press the {OK} key.

D With the number keys, enter the

desired number of prints for each class, and then press the {q} key.

Note

❒ Repeat this step until you have

entered for all your classes.

E Press the {OK} key. F If you are using the optional tape

dispenser, turn on the tape dispenser switch.

TSLP013E

Off

ANT128S

ANT139S

C2678608_Platinum-EN.book Page 48 Sunday, February 12, 2006 10:53 PM

Printing Functions

G Press the {Start} key.

Recall Program

Note

❒ You can store up to 10 entries for

Memory mode with each entry containing settings for up to 30 originals (Normal Memory mode), or settings for up to 30 classes (Stack Memory mode).

❒ You can store up to 10 entries for

Class mode with each entry containing settings for up to 24 combinations of classes and numbers of prints.

Storing Normal Memory Mode Settings

A Press the {User Tools} key.

B Use the {U}{T} keys to select 4

Initial Settings, and then press the {OK} key.

C Use the {U}{T} keys to select 7

Program/Change Memory, and then press the {OK} key.

D Use the {U}{T} keys to select a

number, and then press the {OK} key.

Note

❒ If the number is already in use,

a message will be displayed asking if you wish to overwrite the settings stored. To overwrite, press the {OK} key. Otherwise press the {Escape} key to return to the previous display, and then select another number.

ANT128S

ANT140S

C2678608_Platinum-EN.book Page 49 Sunday, February 12, 2006 10:53 PM

Printing Functions

E With the number keys, enter the

number of prints for each original, and then press the {q} key.

Note

❒ Repeat Steps D and E to register

all your originals.

F Press the {OK} key. G Press the {Clear Modes/Energy Sav-

er} key.

The contents that you have stored are now effective.

Storing Stack Memory Mode Settings

Limitation

❒ To use Stack Memory mode, you

need to first set Memory Mode to “Stack” using the user tools. See “Memory Mode Setting” on p.107 “5 Mode Settings”.

A Press the {User Tools} key.

B Use the {U}{T}keys to select 4

Initial Settings, and then press the {OK} key.

C Use the {U}{T} keys to select 7

Program/Change memory, and then press the {OK} key.

D Use the {U}{T} keys to select a

number, and then press the {OK} key.

Note

❒ If the number is already in use,

ANT140S

C2678608_Platinum-EN.book Page 50 Sunday, February 12, 2006 10:53 PM

Printing Functions

E With the number keys, enter the

number of prints for each class, and then press the {q} key.

Note

❒ Repeat Steps D and E to register

all your classes.

F Press the {OK} key. G Press the {Clear Modes/Energy Sav-

er} key.

The contents that you have stored are now effective.

Storing Class Mode Settings

A Press the {User Tools} key.

B Use the {U}{T} keys to select 4

Initial Settings, and then press the {OK} key.

C Use the {U}{T} keys to select 6

Program/Change Class, and then press the {OK} key.

D Use the {U}{T} keys to select a

number, and then press the {OK} key.

Note

❒ If the number is already in use,

E With the number keys, enter the

number of prints, and then press the {q} key.

ANT140S

C2678608_Platinum-EN.book Page 51 Sunday, February 12, 2006 10:53 PM

Printing Functions

F With the number keys, enter the

number of classes, and then press the {q} key.

Note

❒ Repeat Steps D to F to register

all your classes.

G Press the {OK} key. H Press the {Clear Modes/Energy Sav-

er} key.

The contents that you have stored are now effective.

Recalling the Stored Settings

A Set your original. B Press the {Memory/Class} key.

C Use the {U}{T} keys to select Re-

call Program, and then press the {OK} key.

D Use the {U}{T} keys to select

Class or Memory, and then press the {OK} key.

E Use the {U}{T} keys to select the

number to recall, and then press the {OK} key.

F Confirm that the settings are cor-

rect, and then press the {OK} key.

Note

❒ To change the stored settings, use

the {U}{T} keys to select the item that you wish to change, and then overwrite using the number keys.

G Press the {Start} key.

ANT139S

ANT128S

C2678608_Platinum-EN.book Page 52 Sunday, February 12, 2006 10:53 PM

Printing Functions

Class/Year

Preparation

To use this mode, you need to first register the number of prints required for each class.

Registering Class/Year

Note

❒ You can register for up to 108 class-

es (up to 12 classes per school year for a maximum of 9 school years).

A Press the {User Tools} key.

B Use the {U}{T} keys to select 4

Initial Settings, and then press the {OK} key.

C Use the {U}{T} keys to select 8

Prog./Change:Class/Year, and then press the {OK} key.

D Use the {U}{T} keys to select the

desired school year, and then press the {OK} key.

E With the number keys, enter the

number of prints for a class, and then press the {q} key.

Note

❒ Repeat Steps D and E to register

all your classes.

F Press the {OK} key. G Press the {Clear Modes/Energy Sav-

er} key.

The contents that you have registered are now effective.

Printing for All Years

A Set your original. B Press the {Memory/Class} key.

ANT140S

ANT139S

C2678608_Platinum-EN.book Page 53 Sunday, February 12, 2006 10:53 PM

Printing Functions

C Use the {U}{T} keys to select

Class/Year, and then press the {OK} key.

D Use the {U}{T} keys to select All,

and then press the {OK} key.

E Press the {Start} key.

Printing for Selected Classes

A Set your original. B Press the {Memory/Class} key.

C Use the {U}{T} keys to select

Class/Year, and then press the {OK} key.

D Use the {U}{T} keys to select the

school year, and then press the {OK} key.

E Use the {U}{T} keys to select the

class that you wish to print for, and then press the {q} key.

Note

❒ Repeat Step E to select more

classes.

❒ You can only select classes from

the same school year.

❒ If you have selected the wrong

class, indicate it again using the {U}{T} keys, and then press the {q} key to cancel its selection.

F Press the {OK} key.

ANT128S

ANT139S

C2678608_Platinum-EN.book Page 54 Sunday, February 12, 2006 10:53 PM

Printing Functions

G Press the {Start} key.

Combine

Use this function to combine two originals onto one sheet of paper.

Note

❒ When the two originals are com-

bined, their sizes would be reduced or enlarged as follows:

❖ Metric version

❖ Inch version

❒ If the length of the first original is

shorter than 91mm, 3.6" , Combine mode will be disabled.

❒ You can set the machine to auto-

matically cancel Combine/Repeat mode once you have finished using it. See “Cancel Combine Setting” on p.107 “5 Mode Settings”.

❒ Any image closer than 5mm, 0.2"

to the leading edge of the first original will not be printed. Also, any image closer than 4mm, 0.16" to the leading edge of the second original will not be printed. When the image is too close to the leading edge, make duplicates of the originals with the image shifted away from the leading edge, and then print from the duplicates.

❒ You can select different image set-

tings for the first and second originals.

❒ Make sure that the paper feed side

plates touch the paper lightly. If they do not, then the two images will not be properly aligned on the prints.

Reference

For details on how to use the optional Auto Document Feeder when combining originals, see p.56 “Using the Auto Document Feeder when Combining Originals”.

A Place the first original face down

on the exposure glass.

Note

❒ When combining originals, place

the original face down on the exposure glass with its leading edge towards you, as shown above.

Original Size

A4K B5K A5K

Paper Size

B4L 87% 100% 122%

A4L 71% 82% 100%

Original Size

/2" ×

11"K

51/2" × 8

/2"K

Paper Size

/2" ×

14"L

65% 100%

/2" ×

11"L

65% 100%

ANT128S

C2678608_Platinum-EN.book Page 55 Sunday, February 12, 2006 10:53 PM

Printing Functions

B Press the {Combine/Repeat} key.

C Use the {U}{T} keys to select

Combine 2, and then press the {OK} key.

D Use the {U}{T} keys to select

original and paper size, and then press the {OK} key.

E Press the {Start} key.

F After the first original has been

scanned, place the second original in the same way.

G Press the {Start} key.

Using the Auto Document Feeder when Combining Originals

A Place the originals face up in the

Auto Document Feeder.

Note

❒ The first (top) original will be

printed on the left side of the print.

B Press the {Combine/Repeat} key.

ANT130S

ANT128S

AJK153S

ANT130S

C2678608_Platinum-EN.book Page 56 Sunday, February 12, 2006 10:53 PM

Printing Functions

C Use the {U}{T} keys to select

Combine 2, and then press the {OK} key.

D Use the {U}{T} keys to select

original and paper size, and then press the {OK} key.

E Press the {Start} key.

Note

❒ After the first original has been

stored, the second original is fed.

Repeat

Use this function to repeat the image twice on the same sheet of paper.

Limitation

❒ You cannot use the optional Auto

Document Feeder with the Repeat function.

Note

❒ You can choose to have either

Combine or Repeat selected by default when the power is turned on. See “Combine/Repeat Priority” on p.107 “5 Mode Settings”.

A Set your original. B Press the {Combine/Repeat} key.

ANT128S

ANT130S

C2678608_Platinum-EN.book Page 57 Sunday, February 12, 2006 10:53 PM

Printing Functions

C Use the {U}{T}keys to select Re-

peat 2, and then press the {OK} key.

D Use the {U}{T} keys to select

original and paper size, and then press the {OK} key.

E Press the {Start} key.

Skip Feed Printing

If the backs of prints are dirty, you can use the {Skip Feed} key to make the drum rotate twice instead of once with every sheet of paper fed. This gives you time to remove prints one by one from the paper delivery tray, or to insert a sheet of paper between two prints.

Note

❒ You can specify how many times

that the drum rotates when the power is turned on. Alternatively, you can also choose whether or not to change the number of rotations temporarily when the {Skip Feed} key is pressed. See “Skip Feed” on p.107 “5 Mode Settings”.

❒ The number of rotations can be set

from 2 to 9.

❒ The default is 2.

A Press the {Skip Feed} key.

B Press the {Start} key.

ANT128S

ANT144S

ANT128S

C2678608_Platinum-EN.book Page 58 Sunday, February 12, 2006 10:53 PM

Printing Functions

Security Mode

Use this function to prevent others from accessing your masters and making prints of confidential documents after you have done so.

A After you have made your prints,

press the {Security} key.

B Press the {OK} key.

Note

❒ Once Security mode is set, you

will not be able to press the {Proof} key or the {Start} key, nor will you be able to pull out the drum unit.

❒ Security mode cannot be cleared

by turning off the main switch.

❒ Security mode will be cancelled

when you set a new original and press the {Start} key.

Online Printing

Online printing allows you to use this machine as a PC printer.

Limitation

❒ The optional PC controller is re-

quired.

Reference

For dedails about online printing, refer to the manual for the PC controller.

Hold Data-in

You can select whether or not the machine automatically switches to Online mode when it receives data from a PC.

Press the {Hold Data-in} key to switch it on or off.

When the Hold Data-in mode is off, the machine gives priority to data received from a PC. If you are making prints and do not wish to have your print job interrupted by a PC, press the {Hold Data-in} key to turn it on.

Note

❒ The default is Off.

A Press the {Hold Data-in} key.

ANT141S

ANT135S

ANT147S

C2678608_Platinum-EN.book Page 59 Sunday, February 12, 2006 10:53 PM

Printing Functions

Program

Use this function to store up to nine frequently used print job settings and to recall them for future use.

Note

❒ The stored contents will not be

cleared even when you turn off the main switch.

❒ The stored contents cannot be de-

leted. To change the contents of a program, overwrite it with new print settings.

❒ You can store settings for the fol-

lowing functions:

• Type of Original

•Image Density

•Image Position

•Printing Speed

•Fine mode

•Preset Reduce/Enlarge

•Edge Erase

• Economy Mode

•Memory/Class

•Combine/Repeat

•Skip Feed

•Hold Data-in

❒ You cannot store settings for Secu-

rity mode, nor for the Program function itself.

Registering Print Settings

A First specify the print settings that

you wish to store.

B Press the {Program} key.

C Use the {U}{T} keys to select

ANT120S

C2678608_Platinum-EN.book Page 60 Sunday, February 12, 2006 10:53 PM

Program

D Use the {U}{T} keys to select a

number.

Note

❒ If the number is already in use,

a message will be displayed asking whether you wish to overwrite the settings stored. To overwrite, press the {OK} key. Otherwise press the {Escape} key to return to the previous display, and then select another number.

E Press the {OK} key.

Recalling a Program

A Press the {Program} key.

B Use the {U}{T} keys to select Re-

call, and then press the {OK} key.

C Use the {U}{T} keys to select the

number to recall, and then press the {OK} key.

The stored settings are displayed.

D Confirm that the settings are cor-

rect, and then set your original.

E Press the {Start} key.

ANT120S

ANT128S

C2678608_Platinum-EN.book Page 61 Sunday, February 12, 2006 10:53 PM

Printing Functions

Make Color Prints

Color drum units (red, blue, green, brown, yellow, purple, navy, maroon, orange, teal and gray) are available as options in addition to the standard black unit. For making color prints, a separate drum unit is necessary for each color.

Changing the Color Drum Unit

A Open the front cover.

B Pull out the drum unit handle.

Note

❒ If you cannot pull out the drum

unit, push the drum unit handle, then pull out the drum unit.

C Hold the rail on the drum and slide

out the drum while pulling the release towards you.

D Remove the drum unit from the

machine while holding the upper drum stay.

Note

❒ Be careful not to let the drum unit

fall.

ANT114S

ANT057S

ANT052S

ANT04

ANT048S

C2678608_Platinum-EN.book Page 62 Sunday, February 12, 2006 10:53 PM

Make Color Prints

E Insert the color drum unit along

the guide rail.

F Slide in the drum unit until it locks

in position.

G Lower the drum unit lock lever.

H Close the front cover.

Note

❒ Make sure that the Cover Open

indicator (M) turns off, and the Color indicator is lit.

ANT053S

ANT049S

ANT115S

ANT059S

C2678608_Platinum-EN.book Page 63 Sunday, February 12, 2006 10:53 PM

Printing Functions

Making Color Prints

A Make sure that the Color indica-

tor is lit.

B Set your original. C Press the {Start} key.

Printing in Two Colors

After printing in one color, you can print in another color on the same side of the print.

Important

❒ Leave the prints for a while before

printing on them again to let the ink dry.

❒ If the prints are not dry, the paper

feed roller might become dirty. In this case, wipe off the roller with a cloth.

Note

❒ You cannot print in two colors at a

time.

A Prepare two originals. Set the first

original on the exposure glass.

B Enter the number of prints with the

number keys.

C Press the {Start} key.

D Remove the prints from the paper

delivery tray and set them on the paper feed tray again as shown in the illustration.

ANT128S

ANT113S

ANT122S

ANT128S

ANT079S

C2678608_Platinum-EN.book Page 64 Sunday, February 12, 2006 10:53 PM

Make Color Prints

E Exchange the drum unit. See ⇒

p.62 “Changing the Color Drum Unit”.

F Set the second original and press

the {Start} key.

ANT054S

C2678608_Platinum-EN.book Page 65 Sunday, February 12, 2006 10:53 PM

Printing Functions

Combination Chart

This combination chart shows which modes can be used together.

Blank means that these modes can be used together.

× means that these modes cannot be used together.

Function chosen later

Master Making Density

Original Type

Fine mode

Economy mode

Auto Cycle

Preset Reduce/Enlarge

Combine

Repeat

Erase Border

Memory/Class

Skip Feed

On Line

Function selected first

Master Making Density -- ×

Original Type -- ×

Fine mode -- ×

Economy mode --

Auto Cycle --

Preset Reduce/Enlarge -- ×

Combine -- ××

Repeat × -- ×

Erase Border -- ×

Memory/Class -- ×

Skip Feed --

On Line ××× ЧЧЧЧЧ --

C2678608_Platinum-EN.book Page 66 Sunday, February 12, 2006 10:53 PM

4. Troubleshooting

If Your Machine Does Not Operate as You Want

The following chart gives explanations of common problems and messages. If other messages appear, follow the instructions displayed. If a malfunction or a misfeed occurs, the following messages will appear on the display.

❖ When a Message is Displayed

Message Causes Solutions

Set original.

You have not changed the original on the exposure glass before pressing the {Start} key.

Place the next original on the exposure glass or in the ADF.

Original is not placed. Place your originals.

Set the Drum Unit correctly.

The drum unit is not set correctly. Slide in the drum until it clicks.

Make sure that the drum is completely set in position.

Set the Master Eject Box correctly.

The master eject box is not set correctly.

Make sure that the master eject box is completely set in position.

Auto-shutdown occurred due to power problems. Press OK to exit.

The power problem is occurred. Press {OK} key.

If it occurs frequently, contact your customer service.

C2678608_Platinum-EN.book Page 67 Sunday, February 12, 2006 10:53 PM

Troubleshooting

Printing Problems

Printing Problems When Using Combine Mode

Problem Cause Action

When you try to select several functions at the same time, some of them cannot be selected.

Some functions cannot be used together.

See p.66 “Combination Chart”.

Parts of the image are not printed in Edge Erase mode.

The edge erase margin that you set is too wide.

Adjust the edge erase margin with the user tools. See “Erase Border Width” on p.106 “4 Initial Settings”.

The original has very narrow margins.

Prints are blank, or parts of the image are not printed.

The paper feed side plates are not set correctly.

Make sure that the paper feed side plates touch the paper lightly.

Printing in a second color is unsatisfactory.

The first color is still wet. Wait until the first color be-

comes dry.

An uneven solid image appears.

Large solid image wrinkles the master.

Increase the printing speed or use Photo mode.

Problem Cause Action

Prints are blank or parts of the image are not printed.

Original size and orientation are not correct.

You cannot combine originals of different sizes and orientations

The image is not printed correctly.

The originals were fed in the wrong order.

When using the optional Auto Document Feeder, place the originals face up. The first original should be on the top.

When using the exposure glass, place the originals face down on the exposure glass. The first original should be placed first.

C2678608_Platinum-EN.book Page 68 Sunday, February 12, 2006 10:53 PM

Loading Paper into the Paper Feed Tray

The Load Paper indicator (B) lights when the paper feed tray runs out of paper.

Replenishing Paper

A Press the {Clear/Stop} key.

Note

❒ This step is necessary only if

you want to pause a print run to replenish paper.

B Press the {Paper Feed Tray Down} key.

Note

❒ The paper feed tray will lower

without the key being pressed when the printing paper runs out.

❒ The top sheet might remain be-

tween the feed rollers. In this case, remove the top sheet.

C Load paper into the paper feed

tray.

Note

❒ Correct paper curl before set-

ting the paper.

D Press the {Start} key to resume

printing.

ANT124S

ANT045S

ANT074S

ANT128S

C2678608_Platinum-EN.book Page 69 Sunday, February 12, 2006 10:53 PM

Troubleshooting

Changing the Paper Size

A Remove the paper from the paper

feed tray.

The paper feed tray will lower.

B Shift the paper feed side plates

lock lever forward. Adjust the paper feed side plates to match the paper size.

1: Paper Feed Side Plates Lock Lever

C Load paper into the paper feed tray.

Note

❒ Correct any paper curl before

setting the paper.

❒ Make sure that the side plates

touch the paper lightly.

❒ Shift the lock lever to its original

position.

D Adjust the side plates and the end

plate.

ANT073S

ANT072S

ANT074S

ANT062S

C2678608_Platinum-EN.book Page 70 Sunday, February 12, 2006 10:53 PM

When the Add Ink Indicator (j) Lights

The Add Ink indicator (j) lights when it is time to supply ink.

CAUTION:

Important

❒ Faults may occur if you use ink other than the recommended type.

❒ Our products are engineered to meet high standards of quality and function-

ality, and we recommend that you use only the expendable supplies available at an authorized dealer.

Note

❒ Be sure to supply ink of the same color as the current drum.

❒ Store ink in a cool, dry place. Do not store ink where it will be exposed to heat

or direct sunlight.

❒ Store ink on a flat surface.

• Keep the ink or ink container out of reach of children.

• Be careful not to get ink on your clothes when replacing an ink container. Ink

stains on clothes are hard to remove.

• When disposing of a used ink container, reattach the cap to prevent ink from splattering.

• If your skin comes into contact with ink, wash the affected area thoroughly with soap and water.

• If ink comes into contact with your eyes, rinse immediately in running water. For other symptoms, consult a doctor.

• If ink is ingested, induce vomiting by drinking a strong saline solution. Consult a doctor immediately.

C2678608_Platinum-EN.book Page 71 Sunday, February 12, 2006 10:53 PM

Troubleshooting

A Open the front cover.

B Push the ink holder lever.

C Pull out the ink holder.

ANT057S

ANT060S

ANT089S

C2678608_Platinum-EN.book Page 72 Sunday, February 12, 2006 10:53 PM

When the Add Ink Indicator (j) Lights

D Remove the used ink cartridge.

E Remove the cap of the new ink cartridge.

F Insert the new cartridge into the ink holder.

Note

❒ Always supply ink of the same color.

ANT091S

ANT098S

ANT092S

C2678608_Platinum-EN.book Page 73 Sunday, February 12, 2006 10:53 PM

Troubleshooting

❒ Make sure to firmly insert the part indicated by the arrow mark into the

guide.

G Return the ink holder to its original position until it clicks.

H Close the front cover.

The machine will start idling to supply ink to the drum.

Note

❒ It will stop when the correct amount of ink reaches the drum.

ANT097S

ANT090S

ANT059S

C2678608_Platinum-EN.book Page 74 Sunday, February 12, 2006 10:53 PM

Master Roll Replacement

The Master End indicator (C) is lit when it is time to replace the master roll.

A Pull out the master tray.

B Press the release button to open

the master feeding cover.

C Unwrap the tape from the new

master roll.

D Remove the used master roll and

pull out both spools. Then, insert both spools into a new master roll.

Note

❒ It is necessary to replace the mas-

ter roll even if some master remains on the old roll.

E Set the new master roll in the mas-

ter tray.

ANT065S

ZJVH070E

TSLT010E

ZFRH260E

C2678608_Platinum-EN.book Page 75 Sunday, February 12, 2006 10:53 PM

Troubleshooting

F Insert the master and set its lead-

ing edge to the position of the marks.

G Close the master feeding cover

firmly.

H Close the master tray.

ANT080S

ZFRH250E

ANT066S

C2678608_Platinum-EN.book Page 76 Sunday, February 12, 2006 10:53 PM

Placing a New Roll of Tape in the Tape Dispenser (Option)

Note

❒ Make sure that the main switch is

turned on and the power switch of the tape dispenser is off.

A Open the cover of the tape dispens-

er.

B As shown, put the roll in the dis-

penser.

Note

❒ Make sure that the tape is in-

stalled in the proper direction. If it is not in the correct direction, the tape dispenser will not work correctly.

C Feed the leading edge of the roll in

the dispensing slot until it stops.

Note

❒ Push the tape as far as possible

through the slot.

D Turn on the power switch of the

tape dispenser.

E Press the manual cut button to trim

off the leading edge of the tape.

TSLP010E

TSLP011E

TSLP012E

TSLP013E

Off

TSLP014E

C2678608_Platinum-EN.book Page 77 Sunday, February 12, 2006 10:53 PM

Troubleshooting

x Clearing Misfeeds

The location indicators show where the jam has occurred.

Important

❒ When clearing misfeeds, do not turn off the main switch. Otherwise, your

print settings are cleared.

“x + P” Original Misfeeds Occur in the Auto Document Feeder

An original misfeed has occurred in the optional Auto Document Feeder.

Note

❒ This indicator will only be displayed when the machine is equipped with the

optional Auto Document Feeder.

A Open the Auto Document Feeder cover.

B Pull out the original gently.

C If you are unable to remove the misfed original in Step B, lift the Auto Doc-

ument Feeder.

ZDCY090E

ZDCY120E

C2678608_Platinum-EN.book Page 78 Sunday, February 12, 2006 10:53 PM

x Clearing Misfeeds

D Pull the green knob towards you to remove the original.

E Return the document feed sheet to its original position. F Close the Auto Document Feeder cover until it clicks in position.

TPEH220E

ZDCY100E

C2678608_Platinum-EN.book Page 79 Sunday, February 12, 2006 10:53 PM

Troubleshooting

-To prevent original misfeeds

Use the exposure glass for the following kinds of originals.

• Originals heavier than 128g/m

, 34 lb

• Originals lighter than 52g/m

, 14 lb

• Originals smaller than 148mm × 210mm, 5.9" × 8.3"

• Originals larger than 297mm × 864mm, 11.6" × 34.0"

• Stapled or clipped originals

• Perforated or torn originals

• Curled, folded, or creased originals

• Originals with any kind of coating, such as thermal fax paper, art paper, aluminum foil, carbon paper, or conductive paper

• Bound originals such as books

• Damaged originals

• Originals with glue on them

•Pasted originals

• Originals written in pencil

• Thin and flimsy originals

• Originals with index tabs

• Transparent originals such as OHP transparencies or translucent paper

Note

❒ You cannot place originals of different sizes at the same time.

❒ Remove staples or clips from the originals, and then fan the originals lightly.

❒ Do not stack originals above the limit mark.

C2678608_Platinum-EN.book Page 80 Sunday, February 12, 2006 10:53 PM

x Clearing Misfeeds

“x + A” Paper Misfeeds in the Paper Feed Section

A paper misfeed has occurred in the paper feed section.

CAUTION:

A Slowly but firmly pull out the paper.

B If the indicators remain lit, open the front cover and close it firmly or press

{OK} key.

Reference

See p.84 “To prevent paper misfeeds”.

“x + B” Paper Wrapped Around the Drum

The paper is wrapped around the drum.

A Pull out the drum unit.

• Be careful not to cut yourself on any sharp edges when you reach inside the machine to remove misfed sheets of paper or masters.

ZFRY010E

ANT054S

C2678608_Platinum-EN.book Page 81 Sunday, February 12, 2006 10:53 PM

Troubleshooting

B Remove the misfed paper.

C Insert the drum unit until it locks in position, and then lower the drum unit

lock lever.

D Close the front cover.

Reference

See p.84 “To prevent paper misfeeds”.

TSLH02BE

ANT061S

ANT059S

C2678608_Platinum-EN.book Page 82 Sunday, February 12, 2006 10:53 PM

x Clearing Misfeeds

“x + C” Paper Misfeeds in the Paper Exit Section

A paper misfeed has occurred in the paper exit section.

CAUTION:

A Remove the misfed paper.

Note

❒ Make sure that the paper delivery end plate and side plates are at their cor-

rect positions.

❒ If a jam occurs because the current printing speed is too fast, reduce the

speed.

B If you can not see the misfed paper, push the button and open the master

eject unit.

• Be careful not to cut yourself on any sharp edges when you reach inside the machine to remove misfed sheets of paper or masters.

ANT094S

ANT081S

C2678608_Platinum-EN.book Page 83 Sunday, February 12, 2006 10:53 PM

Troubleshooting

C Remove the misfed paper.

D Close the master eject unit.

E If the indicators remain lit, open the front cover and close it firmly or press

{OK} key.

-To prevent paper misfeeds

If paper is curled or the margin on the leading edge of the original is too narrow, the following action is necessary.

• Before using the paper, correct the curl as shown below.

ANT084S

ANT083S

GRCURL0E

C2678608_Platinum-EN.book Page 84 Sunday, February 12, 2006 10:53 PM

x Clearing Misfeeds

• If you are unable to correct the paper curl, place the paper in the paper feed tray with it curling either upward or downward, as shown in the illustration below.

• When the leading edge margin of the original is less than 5mm, 0.2" , or when there is a solid image on the leading edge, feed the original from the edge with the widest margin. Alternately, create a leading edge margin on a duplicate of the original, and then print from the duplicate.

TPEY990E

GRLEAD0E

C2678608_Platinum-EN.book Page 85 Sunday, February 12, 2006 10:53 PM

Troubleshooting

“x + D” Master Misfeeds in the Master Feed Section

A master misfeed has occurred in the master feed section.

A Pull out the master tray.

B Open the master feeding cover, and then remove the misfed master inside.

C Set the leading edge of master to the position of the marks.

ANT065S

ZJVH070E

ANT080S

C2678608_Platinum-EN.book Page 86 Sunday, February 12, 2006 10:53 PM

x Clearing Misfeeds

D Close the master feeding cover firmly.

E Close the master tray.

”x + A + B” Paper Misfeeds in the Paper Feed Section

The paper is jammed between the drum and the paper feed section.

A Unlock the lever and then pull out the drum unit.

ZFRH250E

ANT066S

ANT054S

C2678608_Platinum-EN.book Page 87 Sunday, February 12, 2006 10:53 PM

Troubleshooting

B Remove the misfed paper from inside.

C Insert the drum until it locks into position, and then lower the lock lever.

D Close the front cover.

TSLH01BE

ANT061S

ANT059S

C2678608_Platinum-EN.book Page 88 Sunday, February 12, 2006 10:53 PM

x Clearing Misfeeds

“x + B + E” Master Misfeeds in the Master Eject Section

Either a master misfeed has occurred either in the master eject section, or the master is wrapped around the drum unit.

A Grip the handle and pull out the master eject box.

B Remove the misfed master.

Note

❒ Be careful not to stain your hands with ink when you touch used masters.

C Return the master eject box to its original position.

ANT095S

ZFRH120E

ANT096S

C2678608_Platinum-EN.book Page 89 Sunday, February 12, 2006 10:53 PM

Troubleshooting

When the master is wrapped around the drum

A Unlock the lever and then pull out the drum unit.

B Unlock the lever to open the clamp of drum unit.

C Remove the misfed master.

ANT054S

ANT111S

ANT085S

C2678608_Platinum-EN.book Page 90 Sunday, February 12, 2006 10:53 PM

x Clearing Misfeeds

Note

❒ When the lever is released, the clamp will be set back. Make sure that the

clamp is set correctly as showm.

D Insert the drum until it locks into position, and then lower the lock lever.

E Close the front cover.

ANT087S

ANT061S

ANT059S

C2678608_Platinum-EN.book Page 91 Sunday, February 12, 2006 10:53 PM

Troubleshooting

When the Open Cover/Unit Indicator (M) Lights and a Message is Displayed

A message is displayed explaining the place where the doors/covers are not properly closed.

Front cover is Open

A Close the front cover completely.

Cover of Optional Auto Document Feeder is Open

A Close the Auto Document Feeder

until it clicks into place.

Master Eject Unit is Open

A Close the master eject unit.

ANT059S

ZDCY100E

ANT083S

C2678608_Platinum-EN.book Page 92 Sunday, February 12, 2006 10:53 PM

When the Master End Indicator (C) Lights and a Message is Displayed

A message is displayed explaining the place in the master feed section that is not properly set.

Master Feeding Cover is Open

A Close the master feeding cover

firmly with both hands.

Master Tray is Not Set Properly

A Push in the master tray complete-

ly.

ZFRH250E

ANT066S

C2678608_Platinum-EN.book Page 93 Sunday, February 12, 2006 10:53 PM

Troubleshooting

When the Master Eject Indicator (k) Lights

The master eject indicator (k) lights when it is time to empty master eject box.

A Grip the handle and pull out the master eject box.

B Remove the used masters.

Note

❒ Spread out an old newspaper, and then pour the used masters onto the

newspaper. Throw away the used masters.

C Return the master eject box to its original position.

ANT095S

ANT088S

ANT096S
