Gestetner 2235, 2335, 2345, 2535, 2535p Copy Manual

...

Download

Copying

Punch

The optional 2 tray finisher and the bridge unit are required to use this function.

This function is used to make punch holes in copies.

❖❖❖❖ 2 holes

❖❖❖❖ 3 holes

❖❖❖❖ 4 holes

AdonisC2_ENcopy122F_FM.book Page 56 Thursday, February 15, 2001 3:23 PM

Punch

Note

❒ When using Punch and Combine, Double Copies, or Auto Reduce/Enlarge,

the message "Blank part will appear. Check orientation." may appear because of the orientation of the original and the copy paper. If this occurs, change the orientation of the copy paper.

❒ The relationship between the direction in which you set the original and the

punch hole positions is as follows:

❖❖❖❖ Punch hole positions

Direction in which Original is Set Punch Hole Positions

Exposure glass Document feeder

Standard

2 holes

3 holes

4 holes

90º Turn

2 holes

3 holes

AdonisC2_ENcopy122F_FM.book Page 57 Thursday, February 15, 2001 3:23 PM

Copying

❒ Punchable paper sizes are as follows:

❒ Since punch holes are made in each copy, the punch hole positions vary

slightly.

❒ The punch hole positions change according to the direction of the paper selected.

Reference

If the punch waste box fills up, ⇒ P.206 “y Removing Punch Waste”.

Select the Punch position.

Note

❒ When stapling copies, also select a stapling position. ⇒ P.50 “Staple”.

90º Turn

4 holes

With 2 Tray Finisher

Punch kit type

2 & 4 holes type 2 holes

A3-A5, 11" × 17"-5

/2" × 81/2"

A4-A5, 8

/2" × 11"-51/2" × 81/2"

4 holes

A3, B4, 11" × 17"

A4, B5, 81/2" × 11"

4 holes type 4 holes

A3-A5, 11" × 17"-5

/2" × 81/2"

A4-A5, 8

/2" × 11"-51/2" × 81/2"

2 & 3 holes type 2 holes

A3-A5, 11" × 17"-5

/2" × 81/2"

A4-A5, 8

/2" × 11"-51/2" × 81/2"

3 holes

A3, B4, 11" × 17"

A4, B5, 81/2" × 11"

Direction in which Original is Set Punch Hole Positions

Exposure glass Document feeder

AdonisC2_ENcopy122F_FM.book Page 58 Thursday, February 15, 2001 3:23 PM

Punch

Enter the number of copy sets with the number keys.

Note

❒ To change the entered number, press the {Clear/Stop} key.

❒ If you wish to use the Sort function, press the [Sort] key.

Set your originals, then press the {{{{Start}}}} key.

AdonisC2_ENcopy122F_FM.book Page 59 Thursday, February 15, 2001 3:23 PM

Copying

Copying from the Bypass Tray

Use the bypass tray to copy onto OHP transparencies, adhesive labels, translucent paper, postcards, and copy paper that cannot be set in the paper tray.

Note

❒ The machine can automatically de-

tect the following sizes as standard size copy paper:

❒ If you do not use the standard size

copy paper, you should input vertical and horizontal dimensions. The sizes that you can input are as follows:

❒ When using paper larger than 433

mm in size, set it so that it is fed straight into the machine.

❒ When using paper larger than 433

mm in size, the paper may become wrinkled, and may not be fed into the machine, or may cause paper jams.

❒ To make copies onto OHP trans-

parencies or thick paper exceeding 128g/m

, 35 lb., specify the paper

type in ⇒ P.63 “When Copying onto OHP Transparencies or Thick Paper”.

❒ The maximum number of sheets

you can set at a time depends on the paper type. For details about paper capacity of the bypass tray, ⇒ P.22 “Copy Paper”.

Open the bypass tray.

Adjust the guides to copy paper size.

Important

❒ If the guides are not flush with

the copy paper, a skew image or paper misfeeds might occur.

Lightly insert the copy paper face up until the beeper sounds.

The k indicator on the display automatically goes on.

Extender

Note

❒ The face side of the paper set is

copied on.

❒ Do not stack paper over the lim-

it mark, otherwise a skew image or paper misfeeds might occur.

Metric version

A3L, A4L, A5L, 81/2" × 13"

Inch version

A3L, 11" × 17"L, 81/2" × 14"L, 8

/2" × 11"L, 51/2" × 81/2"

Metric version

• Vertical: 100 – 297mm

• Horizontal: 148 – 600mm

Inch version

• Vertical: 3.9" – 11.6"

• Horizontal: 5.8" – 23.4"

AdonisC2_ENcopy122F_FM.book Page 60 Thursday, February 15, 2001 3:23 PM

Copying from the Bypass Tray

❒ If the beeper is turned off, light-

ly insert the copy paper until it stops. Refer to the System Settings manual.

❒ When the document feeder is

open, set the direction of the copy paper to L.

❒ Swing out the extender to sup-

port paper sizes larger than A4L, 8

/2" × 11"L.

❒ Fan paper to get air between the

sheets and avoid a multi-sheet feed.

❒ Before setting, adjust the paper

if curled or warped.

When copying onto standard size paper (Thick Paper, Thin paper, Transparent Paper, or OHP transparecies)

A Press the {{{{#}}}} key. B Press the [Select Size] key.

C Select the paper size.

Note

❒ The copy paper sizes that can

be selected are as follows:

• A3L, A4KL, A5KL, A6L, B4L , B5KL , B6L, 11×17L, 8

×14L,

×11KL, 5

×8

×10

L, 8×13L,

×13L , 8

×13K , 11×14L , 11× 15K , 10×14L, 10×15L, 8

×14L, 8×10

KL,

8×10KL

When copying onto custom size paper

Important

❒ You should specify the size of

copy paper to avoid paper misfeeds.

A Press the {{{{#}}}} key.

AdonisC2_ENcopy122F_FM.book Page 61 Thursday, February 15, 2001 3:23 PM

Copying

B Press the [Custom Size] key.

C Press the [Vertical mm] key and

enter the vertical size of the paper with the number keys, then press the [#] key.

Note

❒ To change the number en-

tered, press the [Clear] or {Clear/Stop} key and enter the new number.

D Enter the horizontal size of the

paper with the number keys, then press the [#] key.

Note

❒ If the [Horiz mm] key is not

highlighted, press the [

Horiz

mm] key.

❒ To change the number en-

tered, press the [Clear] or {Clear/Stop} key and enter the new number.

E To register the custom size en-

tered, press the [Store] key and then press the [Cancel] key.

Note

❒ If you do not register the cus-

tom size, go to step F .

❒ Only one custom size can be

stored.

❒ To recall the custom size

stored, press the [Recall] key.

❒ If you do not register the cus-

tom size, the size you set is deleted when modes are cleared.

F Press the [OK] key.

Set your originals, then press the {{{{Start}}}} key.

When your copy job is finished, press the {{{{Clear Modes}}}} key to clear the settings.

AdonisC2_ENcopy122F_FM.book Page 62 Thursday, February 15, 2001 3:23 PM

Copying from the Bypass Tray

When Copying onto OHP Transparencies or Thick Paper

To make copies onto OHP transparencies or thick paper, you need to specify the paper type.

Note

❒ Select [Thick Paper] if the paper

weight is more than 128g/m

, 34

lb.

Open the bypass tray, and adjust the guides to the paper size.

Important

❒ If the guides are not flush with

the copy paper, a skew image or paper misfeeds might occur.

Lightly insert the OHP transparencies or thick paper face down until the beeper sounds.

The k indicator on the display automatically goes on.

Important

❒ When you set an OHP transpar-

ency, make sure that its front and back faces are properly positioned.

❒ To avoid paper misfeeds, fan

the paper before setting it in the tray.

Press the {{{{#}}}} key.

Select [OHP Sheet] or [Thick Paper].

Press the [OK] key.

Set your originals and press the {{{{Start}}}} key.

Important

❒ When copying onto OHP trans-

parencies, remove copied sheets one by one.

When your copy job is finished, press the {{{{Clear Modes}}}} key to clear the settings.

AdonisC2_ENcopy122F_FM.book Page 63 Thursday, February 15, 2001 3:23 PM

Copying

Programs

You can store frequently used copy job settings in machine memory, and recall them for future use.

❖❖❖❖ Storing Your Settings

You can store your settings you frequently use.

❖❖❖❖ Deleting A Program

You can delete a stored program.

❖❖❖❖ Recalling A Program

You can recall a stored program.

Note

❒ You can store up to 10 programs.

❒ You can select the standard mode

or program No. 10 as the mode to be set when modes are cleared or reset is made, or immediately after the operation switch is turned on.

❒ Paper settings are stored based on

paper size. So if you place more than one paper tray of the same size, the paper tray prioritized with the User Tools (System Settings) will be selected first.Refer to the System Settings manual.

❒ Programs are not cleared by turn-

ing the power off or by pressing the {Clear Modes} key. They are canceled only when you delete or overwrite them with another program.

Storing a Program

Edit the copy settings so that all functions you want to store in this program are selected.

Press the {{{{Program}}}} key.

Press the [Register] key.

Press the program number you want to store.

Note

❒ Program numbers with m al-

ready have settings in them.

Reference

⇒ P.65 “Changing a Stored Pro- gram”.

Enter the program name with the letter keys on the display panel.

AdonisC2_ENcopy122F_FM.book Page 64 Thursday, February 15, 2001 3:23 PM

Programs

Note

❒ If you do not wish to enter the

program name, go to step F.

❒ You can register up to 40 char-

acters.

❒ To change the name entered,

press the [Backspace], [Delete] or {Clear/Stop} key and enter new letters.

Reference

For details on entering characters,

⇒

"Entering Text Characters" in

the System Settings manual.

Press the [OK] key.

When the settings are successfully stored, the m indicator goes on.

Changing a Stored Program

Make sure the program settings.

Note

❒ When you want to check the

contents of the program, recall the program. ⇒ P.66 “Recalling a Program”.

Repeat steps AAAA to DDDD in Storing a Program.

To overwrite the program

Important

❒ If you select [Register], the previ-

ous program is lost.

A Repeat steps EEEE and FFFF in Storing

a Program.

Not to overwrite the program

A Press the [Do not Register] key.

Deleting a Program

Press the {{{{Program}}}} key.

Press the [Delete] key.

Press the program number you want to delete.

Press the [Yes] key.

Note

❒ To cancel the deletion, press the

[No] key.

AdonisC2_ENcopy122F_FM.book Page 65 Thursday, February 15, 2001 3:23 PM

Copying

Recalling a Program

Press the {{{{Program}}}} key.

Press the [Recall] key.

Press the program number you want to recall.

The stored settings are displayed.

Note

❒ Only programs with m contain

a program.

Set your originals, then press the {{{{Start}}}} key.

AdonisC2_ENcopy122F_FM.book Page 66 Thursday, February 15, 2001 3:23 PM

Job Preset

If a long copy job is in progress and you do not wish to wait for it to finish, you can use this function to set up the next one copy job in advance. When the current copy job is finished, your copy job will be started automatically.

Press the {{{{Copy}}}} key.

Set up the next copy job.

Note

❒ To cancel this job, press the

[Cancel] key.

Set the originals in the document feeder and press the {{{{Start}}}} key.

All originals are scanned.

Press the [To "Printing"] key.

After the current copy job, the next job starts automatically.

Note

❒ You can switch the display to

the current copy job by pressing the [To "Printing"] key. You can switch the display to the preset job by pressing the [To "Reserv- ing"] key.

AdonisC2_ENcopy122F_FM.book Page 67 Thursday, February 15, 2001 3:23 PM

Copying

Other Functions

Energy Saver Mode

If you do not operate the machine for a certain period after copying, or when you press the {Energy Saver} key, the display disappears and the machine enters Energy Saver mode. When you press the {Energy Saver} key again, the machine returns to the ready condition. In Energy Saver mode, the machine uses less electricity.

Note

❒ If you press the {Energy Saver} key

during the operation, the current settings will be cleared.

❒ It takes about 3 seconds to return

to the ready condition from Energy Saver mode.

Reference

⇒“Low Power Timer” in the Sys- tem Settings manual.

Interrupt Copy

Use this function if you wish to interrupt a long copy job to make urgently needed copies.

Limitation

❒ You cannot use the Interrupt Copy

function when scanning fax originals.

Note

❒ The procedure for making inter-

rupt copies depends on which kind of operation the machine is currently carrying out.

To interrupt an original being fed

Press the {{{{Interrupt}}}} key.

The Interrupt indicator goes on and scanning stops.

Remove the originals that were being copied and set the originals you wish to copy.

Press the {{{{Start}}}} key.

The machine starts making your copies.

When your copy job is finished, remove your originals and copies.

Press the {{{{Interrupt}}}} key again.

The Interrupt indicator goes off.

When the display prompts you to, replace the originals that were being copied before.

Press the {{{{Start}}}} key.

The previous copy job settings will be restored and the machine will continue copying from where it left off.

AdonisC2_ENcopy122F_FM.book Page 68 Thursday, February 15, 2001 3:23 PM

Other Functions

To interrupt copying after all originals have been fed

Press the {{{{Interrupt}}}} key.

The Interrupt indicator goes on.

Note

❒ Copying will not stop yet.

Set your original.

Press the {{{{Start}}}} key.

The machine stops the original job and starts copying your original.

When copying is complete, remove your originals and copies.

Press the {{{{Interrupt}}}} key again.

The Interrupt indicator goes off.

The previous copy job settings will be restored and the machine will continue copying from where it left off.

Original Beeper

The beeper sounds and an error message is displayed when you leave your originals on the exposure glass after copying.

Note

❒ To cancel this function, ⇒ “Tone:

Original remains” in P.215 “Gener-

al Features

/4”.

Sample Copy

Use this function to check a copy set before making a long copy run.

Limitation

❒ This function can be used only

when the Sort function has been turned on.

Select Sort and any other functions, then enter the number of copy sets to be made.

Set the originals.

Press the {{{{Sample Copy}}}} key.

One copy set is delivered for proof copying.

After checking the finish, press the [Print] key if the sample is acceptable.

The number of copies made is the number you specified minus one for the proof copy.

Note

❒ If you press the [Suspend] key

after checking the finish, return to step A to adjust the copy settings as necessary. You can change the settings for Staple, Punch, Duplex, Copy Orientation, Stamp, Margin Adjust, and Cover/Slip Sheet. However, depending on the combinations of functions, some settings might not be changed.

❒ You cannot use the Sample

Copy function after changing the settings.

AdonisC2_ENcopy122F_FM.book Page 69 Thursday, February 15, 2001 3:23 PM

Copying

Changing the Number of Sets

You can change the number of copy sets during copying.

Limitation

❒ This function can be used only

when the Sort function has been turned on.

Press the {{{{Clear/Stop}}}} key when “Copying” is displayed.

Press the [Change Quantity] key.

Enter the number of copy sets with the number keys, then press the {{{{#}}}} key.

Note

❒ The number of sets you can en-

ter differs depending on the timing of pressing the {Clear/ Stop} key.

❒ To change the entered number,

press the {Clear/Stop} key.

Press the [Continue] key.

AdonisC2_ENcopy122F_FM.book Page 70 Thursday, February 15, 2001 3:23 PM

Preset Reduce/Enlarge

You can select a preset ratio for copying.

Note

❒ You can select one of 12 preset ra-

tios (5 enlargement ratios, 7 reduction ratios).

❒ Use “Create Margin” to reduce the

image to 93% of its original size with the centre as reference. You can register this function in a shortcut key on the initial display.

❒ You can change the preset ratios to

other ratios you frequently use. ⇒

“Enlarge” in P.219 “Reproduction Ratio

/2” and “Reduce” in P.220

“Reproduction Ratio

/2”.

❒ You can set and display three

kinds of ratio on the initial display.

⇒ “Shortcut R/E” in P.219 “Repro- duction Ratio

/2”.

❒ You can specify which of [Reduce],

[Enlarge] or [Mag. Ratio] is to be given priority and displayed when the [Reduce/Enlarge] key is pressed.

❒ You can select a ratio regardless of

the size of an original or copy paper. With some ratios, parts of the image might not be copied or margins will appear on copies.

❒ Copies can be reduced or enlarged

as follows:

❖❖❖❖ Metric version

❖❖❖❖ Inch version

Ratio (%)

Original →→→→ Copy paper size

400 (enlarge area by 16)

200 (enlarge area by 4)

A5→A3

141 (enlarge area by 2)

A4→A3, A5→A4

122 F→A3, A4→B4

115 B4→A3

93 --

82 F→A4, B4→A4

75 B4→F4, B4→F

71 (reduce area by

/2)

A3→A4, A4→A5

65 A3→F

50 (reduce area by

/4)

A3→A5, F→A5

25 --

Ratio (%) Original →→→→ Copy

paper size

400 (enlarge area by 16)

200 (enlarge area by 4)

/2" × 81/2"→11" ×

17"

155 (enlarge area by 2)

51/2" × 81/2"→81/2"

14"

129 81/2" × 11"→11" ×

17"

121 8

/2" × 14"→11" ×

17"

93 --

85 F→8

/2" × 11"

78 8

/2" × 14"→81/2" ×

11"

AdonisC2_ENcopy122F_FM.book Page 71 Thursday, February 15, 2001 3:23 PM

Copying

Press the [Reduce/Enlarge] key.

Note

❒ To select a preset ratio on the

initial display, directly press the shortcut reduce/enlarge key and go to step D.

Press the [Enlarge] or [Reduce] key.

Select a ratio.

Press the [OK] key.

Set your originals, then press the

{{{{Start}}}} key.

Create Margin mode

Use “Create Margin” to reduce the image by 93% of its original size with the centre position as reference. You can register this function in a shortcut key on the initial display. By combining it with the Reduce/Enlarge function, you can also provide the Reduce/Enlarge copy with a margin.

Note

❒ You can register “Create Margin”

in a shortcut key.

❒ You can change the Reduce/En-

large ratio for “Create Margin”.

Press the [Create Margin] key displayed on the initial display.

If you do not wish to combine it with the Reduce/Enlarge function, set your originals, then press the {{{{Start}}}} key.

73 11" × 15"→81/2" ×

11"

65 11" × 17"→8

/2" ×

11"

50 (reduce area by

/4)

11" × 17"→5

/2" ×

/2"

25 --

Ratio (%) Original

→→→→

Copy

paper size

AdonisC2_ENcopy122F_FM.book Page 72 Thursday, February 15, 2001 3:23 PM

Zoom

You can change the reproduction ratio in 1% steps.

Note

❒ The following ratios can be select-

ed:

• Metric version: 25 – 400%

• Inch version: 25 – 400%

❒ You can select a ratio regardless of

the size of an original or copy paper. With some ratios, parts of the image might not be copied or margins will appear on copies.

❒ You can select a preset ratio which

is near the desired ratio, then adjust the ratio with the [n] or [o] key.

Press the [Reduce/Enlarge] key.

Enter the ratio.

To select the ratio with the [n] and [o] keys

A Select a preset ratio which is

close to the desired ratio by using [Reduce] or [Enlarge].

B Adjust the ratios with the [nnnn]

or [oooo] key.

Note

❒ To change the ratio in 1%

steps, just press the [n] or [o] key. To change the ratio in 10% steps, press and hold down the [n] or [o] key.

To enter the ratio with the number keys

A Press the [Mag. Ratio] key.

AdonisC2_ENcopy122F_FM.book Page 73 Thursday, February 15, 2001 3:23 PM

Copying

B Enter the desired ratio with the

number keys.

Note

❒ To change the ratio entered,

press the [Clear] or {Clear/ Stop} key and enter the new ratio.

C Press the [#] key. D Press the [OK] key.

Set your originals, then press the {{{{Start}}}} key.

AdonisC2_ENcopy122F_FM.book Page 74 Thursday, February 15, 2001 3:23 PM

Size Magnification

This function calculates an enlargement or reduction ratio based upon the lengths of the original and copy.

Preparation

Measure and specify the lengths of the original and copy by comparing “A” with “a.”

Limitation

❒ If the calculated ratio is over the

maximum or under the minimum ratio, it is corrected within the range of the ratio automatically. However, with some ratios, parts of the image might not be copied or blank margins will appear on copies.

Note

❒ A ratio is selected in the range of 25

to 400%.

Press the [Reduce/Enlarge] key.

Press the [Specifid Ratio] key.

Make sure that the [Specifid Ratio] key is highlighted.

Enter the length of the original with the number keys and press the [#] key.

Note

❒ You can enter sizes within the

following ranges:

❒ To change the length entered,

press the [Clear] or {Clear/Stop} key and enter the new length.

Amm amm

Metric version

1 – 999mm (in 1mm steps)

Inch version

0.1" – 99.9" (in 0.1" steps)

AdonisC2_ENcopy122F_FM.book Page 75 Thursday, February 15, 2001 3:23 PM

Copying

Enter the length of the copy with the number keys and press the [#] key.

Note

❒ To change the length entered,

press the [Clear] or {Clear/Stop} key and enter the new length.

❒ To change the length after

pressing the [#] key, select [Orig- inal] or [Copy] and enter the de- sired length.

Press the [OK] key.

Set your original, then press the {{{{Start}}}} key.

AdonisC2_ENcopy122F_FM.book Page 76 Thursday, February 15, 2001 3:23 PM

Directional Magnification (%)

Copies can be reduced or enlarged at different reproduction ratios horizontally and vertically.

Note

❒ The following ratios can be select-

ed:

• Metric version: 25 – 400%

• Inch version: 25 – 400%

❒ You can select a ratio regardless of

the size of an original or copy paper. With some ratios, parts of the image might not be copied or blank margins will appear on copies.

❒ You can also select a preset ratio

which is close to the desired ratio by using Reduce or Enlarge, then adjust the ratio with the [n] or [o] key.

Press the [Reduce/Enlarge] key.

Press the [Specifid Ratio] key.

Press the [Direct. Mag.%] key.

To enter the ratio with the number keys

A Press the [Horizontal] key.

B Enter the desired ratio with the

number keys, followed by the

[#] key.

Note

❒ To change the ratio entered,

press the [Clear] or {Clear/ Stop} key and enter the new ratio.

CP2P01EE

AdonisC2_ENcopy122F_FM.book Page 77 Thursday, February 15, 2001 3:23 PM

Copying

C Press the [Vertical] key. D Enter the desired ratio with the

number keys, followed by the [#] key.

E Press the [OK] key.

To specify a ratio with the [n] and [o] keys

A Press the [With nnnnoooo] key. B Press the [Horizontal] key.

C Adjust the ratio using the [nnnn]

or [oooo] key.

Note

❒ Pressing the [n] or [o] key

changes the ratio in 1% steps. Pressing and holding down the [n] or [o] key changes it in 10% steps.

❒ If you have incorrectly en-

tered the ratio, readjust the ratio with the [n] or [o] key.

D Press the [

Vertical

] key.

E Adjust the ratio with the [nnnn]

or [oooo] key.

F Press the [OK] key.

Press the [OK] key.

Set your originals, then press the {{{{Start}}}} key.

AdonisC2_ENcopy122F_FM.book Page 78 Thursday, February 15, 2001 3:23 PM

Directional Size Magnification (Inch)

The suitable reproduction ratios will be automatically selected when you enter the horizontal and vertical lengths of the original and copy image you require.

1: Horizontal original size

2: Vertical original size

3: Horizontal copy size

4: Vertical copy size

Preparation

Specify the vertical and horizontal sizes of the original and those of the copy, as shown in the illustration.

Limitation

❒ If the calculated ratio is over the

Note

❒ You can enter sizes within the fol-

lowing ranges:

❒ The following ratios can be selected:

• Metric version: 25 – 400%

• Inch version: 25 – 400%

Press the [Reduce/Enlarge] key.

Press the [Specifid Ratio] key.

Press the [Dirc.Size Mag. In] key.

Enter the horizontal size of the original with the number keys, then press the [#] key.

Note

❒ To change the value entered,

press the [Clear] or {Clear/Stop} key and enter the new value.

Metric version

1 – 999mm (in 1mm steps)

Inch version

0.1" – 99.9" (in 0.1" steps)

CP2M01EE

AdonisC2_ENcopy122F_FM.book Page 79 Thursday, February 15, 2001 3:23 PM

Copying

Enter the horizontal size of the copy with the number keys, then press the [#] key.

Enter the vertical size of the original with the number keys, then press the [#] key.

Enter the vertical size of the copy with the number keys, then press the [#] key.

Note

❒ To change the length, press the

place you wish to change and enter the new value.

Press the [OK] key.

Set your originals, then press the {{{{Start}}}} key.

AdonisC2_ENcopy122F_FM.book Page 80 Thursday, February 15, 2001 3:23 PM

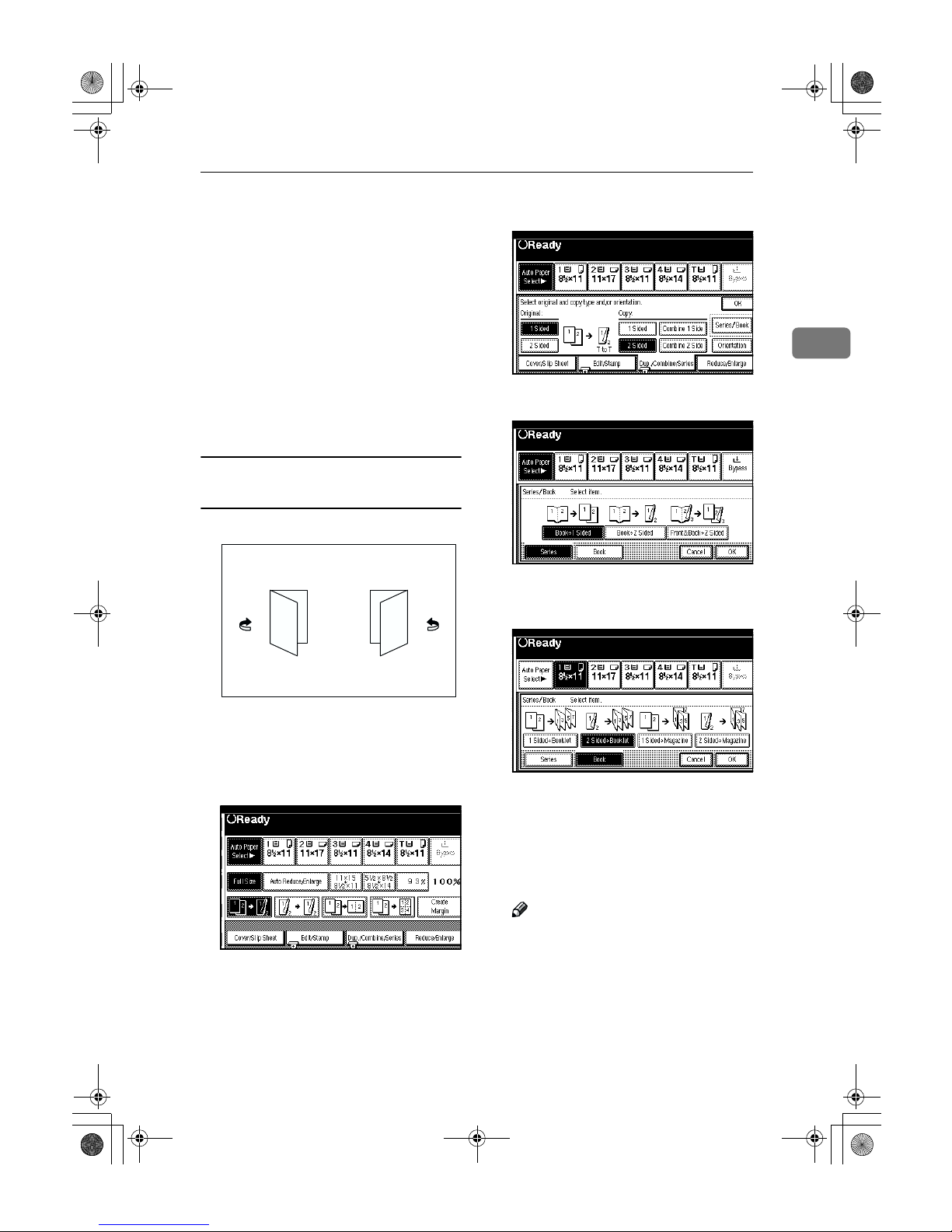

Duplex/Combine/Series

You can make copies in a variety of formats by combining the following modes:

• 1 Sided/2 Sided originals

• 1 Sided/2 Sided copies

• Duplex

• Combine

• Book

• Series

Press [Dup./Combine/Series] and check your originals. And select [1 Sided] or [2 Sided] for the originals.

1: 1-sided

2: 2-sided

3: Series/Book

Select [1 Sided] or [2 Sided] for copying.

1: 1-sided

2: 2-sided

A: Front

B: Back

Press the [OK] key.

1 2

2 1234

5678

5 6

1 2

1 234

5678

10 11 12

13 14 15 16

AdonisC2_ENcopy122F_FM.book Page 81 Thursday, February 15, 2001 3:23 PM

Copying

Original Direction and Completed Copies

The resulting copy image will differ according to the direction in which you set your original (lengthwise K or widthwise L).

Note

❒ The illustrations show the direc-

tions of copied images on the front and back, not the directions of delivery.

Originals and Copy Direction

You can select the orientation ([Top to Top], [Top to Bottom]). ⇒ P.82 “Specify-

ing Orientation of Bound Originals”.

• Top to Top

• Top to Bottom

Specifying Orientation of Bound Originals

You can specify the orientation of bound originals (how you turn the pages). The default setting is [Top to

Top].

Note

❒

You can change the orientation default with the User Tools.

⇒

“Copy Orientation in Duplex Mode” and “Original Orientation in Duplex Mode” in

P.215 “General Features 2/

”

Press the [Dup./Combine/Series] key.

GCRYOU1E

Duplex1

Duplex2

AdonisC2_ENcopy122F_FM.book Page 82 Thursday, February 15, 2001 3:23 PM

Duplex/Combine/Series

Press the [Orientation] key.

Select an original orientation and a copy orientation.

Press the [OK] key.

AdonisC2_ENcopy122F_FM.book Page 83 Thursday, February 15, 2001 3:23 PM

Copying

Duplex

This function can be used in two ways:

❖❖❖❖ 1 Sided →→→→ 2 Sided

This mode makes two-sided copies from one-sided originals.

❖❖❖❖ 2 Sided →→→→ 2 Sided

This mode makes two-sided copies from two-sided originals.

Limitation

❒ You cannot use the following copy

paper in this function:

• Paper smaller than A5K, 5

/2"

/2"K (possible on A5L, 51/

" × 81/2"L)

• Paper thicker than 105g/m

, 28

lb.

• Paper thinner than 64g/m

, 17

lb.

• Translucent paper

• Adhesive labels

• OHP transparencies

• Postcards

❒ You cannot use the bypass tray

with this function.

1 Sided

→→→→

2 Sided

Note

❒ If you set an odd number of 1-sid-

ed originals in the document feeder, the reverse side of the last page is left blank.

❒ When original images are copied,

the images are shifted by a width of the binding margin. You can adjust the binding margin or binding position. You can also change their default values. ⇒ “Front Margin: Left/Right”, “Back Margin: Left/ Right”, “Front Margin: Top/Bottom” and “Back Margin: Top/Bottom” in P.222 “Edit

/2”.

❒ A binding margin can be automat-

ically made on the back side. ⇒ “1 sided → 2 sided Auto Margin: T to T” in P.222 “Edit

/2”.

Press the [Dup./Combine/Series] key.

AdonisC2_ENcopy122F_FM.book Page 84 Thursday, February 15, 2001 3:23 PM

Duplex

Press the [1 Sided] key for original, then press the [

2 Sided

] key for

copy.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[Orientation] key and select [Top to Bottom]. ⇒ P.82 “Specifying

Orientation of Bound Originals”.

Press the [OK] key.

Set your originals, then press the {{{{Start}}}} key.

When setting an original on the exposure glass or in the document feeder using Batch mode

Reference

⇒ P.33 “Batch mode”.

A Set the original, then press the

{{{{Start}}}} key.

Note

❒ Start with the first page to be

copied.

B Set the next original. When it is

placed on the exposure glass, press the {{{{Start}}}} key.

C Press the {{{{#}}}} key after the last

original has been scanned.

2 Sided →→→→ 2 Sided

Press the [Dup./Combine/Series] key.

Press the [2 Sided] key for original, then press the [2 Sided] key for copy.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[Orientation] key and select [Top to Bottom

]. ⇒ P.82 “Specifying

Orientation of Bound Originals”.

Press the [OK] key.

AdonisC2_ENcopy122F_FM.book Page 85 Thursday, February 15, 2001 3:23 PM

Copying

Set your originals, then press the {{{{Start}}}} key.

When setting an original on the exposure glass or in the document feeder using Batch mode

Reference

⇒ P.33 “Batch mode”.

A Set the original, then press the

{{{{Start}}}} key.

Note

❒ Start with the first page to be

copied.

B Set the next original. When it is

placed on the exposure glass, press the {{{{Start}}}} key.

C Press the {{{{#}}}} key after the last

original has been scanned.

AdonisC2_ENcopy122F_FM.book Page 86 Thursday, February 15, 2001 3:23 PM

Combine

You can combine two or more originals into one copy. 1 Sided Combine mode is for 1-sided copies, and 2 Sided Combine mode for 2-sided copies.

This function can be used in twelve ways:

❖❖❖❖ 1 Sided 2 Pages →→→→ Combine 1 Side

Copies two 1-sided originals to one side of a sheet.

❖❖❖❖ 1 Sided 4 Pages →→→→ Combine 1 Side

Copies four 1-sided originals together to one side of a sheet.

❖❖❖❖ 1 Sided 8 Pages →→→→ Combine 1 Side

Copies eight 1-sided originals together to one side of a sheet.

❖❖❖❖ 1 Sided 4 Pages →→→→ Combine 2 Side

Copies four 1-sided originals to the two-page spread on both sides of a sheet.

❖❖❖❖ 1 Sided 8 Pages →→→→ Combine 2 Side

Copies eight 1-sided originals together to both sides of a sheet.

❖❖❖❖ 1 Sided 16 Pages →→→→ Combine 2 Side

Copies 16 1-sided originals together to both sides of a sheet.

❖❖❖❖ 2 Sided 2 Pages →→→→ Combine 1 Side

Copies one 2-sided original to one side of a sheet.

❖❖❖❖ 2 Sided 4 Pages →→→→ Combine 1 Side

Copies two 2-sided originals to one side of a sheet.

❖❖❖❖ 2 Sided 8 Pages →→→→ Combine 1 Side

Copies four 2-sided originals to one side of a sheet.

❖❖❖❖ 2 Sided 4 Pages →→→→ Combine 2 Side

Copies two 2-sided originals together to both sides of a sheet.

❖❖❖❖ 2 Sided 8 Pages →→→→ Combine 2 Side

Copies four 2-sided originals together to both sides of a sheet.

❖❖❖❖ 2 Sided 16 Pages →→→→ Combine 2 Side

Copies eight 2-sided originals together to both sides of a sheet.

Limitation

❒ You cannot use the bypass tray

with this function.

❒ If the calculated ratio is under the

minimum ratio, it is corrected within the range of the ratio automatically. However, with some ratios, parts of the image might not be copied.

Note

❒ In this mode, the machine selects

the reproduction ratio automatically. This reproduction ratio depends on the copy paper sizes and the number of originals.

❒ The machine uses ratios in the fol-

lowing range:

• Metric version: 25 – 400%

• Inch version: 25 – 400%

❒ A separation line between origi-

nals can be printed with the User Tools. ⇒ “Separation Line in Combine” in P.224 “Edit

/2”.

❒ Even if the direction of originals is

different from that of the copy paper, the machine will automatically rotate the image by 90° to make copies properly.

AdonisC2_ENcopy122F_FM.book Page 87 Thursday, February 15, 2001 3:23 PM

Copying

❒ When making copies in Combine

mode, the border of each original can be automatically erased by 3mm, 0.1". ⇒ “Erase Original Shadow in Combine” in P.222 “Ed-

/2”.

❒ If the number of originals placed is

less than the number specified for combining, the last page is copied blank as shown in the illustration.

❒ You can change the copy order in

Combination mode. ⇒ “Copy Or- der In Combine” in P.224 “Edit

/2”.

❒ Direction of the originals and ar-

rangement of combined images.

❖❖❖❖ Open to Left (KKKK) originals

❖❖❖❖ Open to Right (LLLL) originals

1 Sided 2 Pages →→→→ Combine 1

Side

Copies two 1-sided originals to one side of a sheet.

❖❖❖❖ Setting originals (Originals set in the

document feeder)

• Originals read from left to right

• Originals read from top to bot-

tom

5678

1234

GCSHUY1E

1 3 5 7

2 4 6 8

GCSHUY2E

1 2

Combine5

Combine6

AdonisC2_ENcopy122F_FM.book Page 88 Thursday, February 15, 2001 3:23 PM

Combine

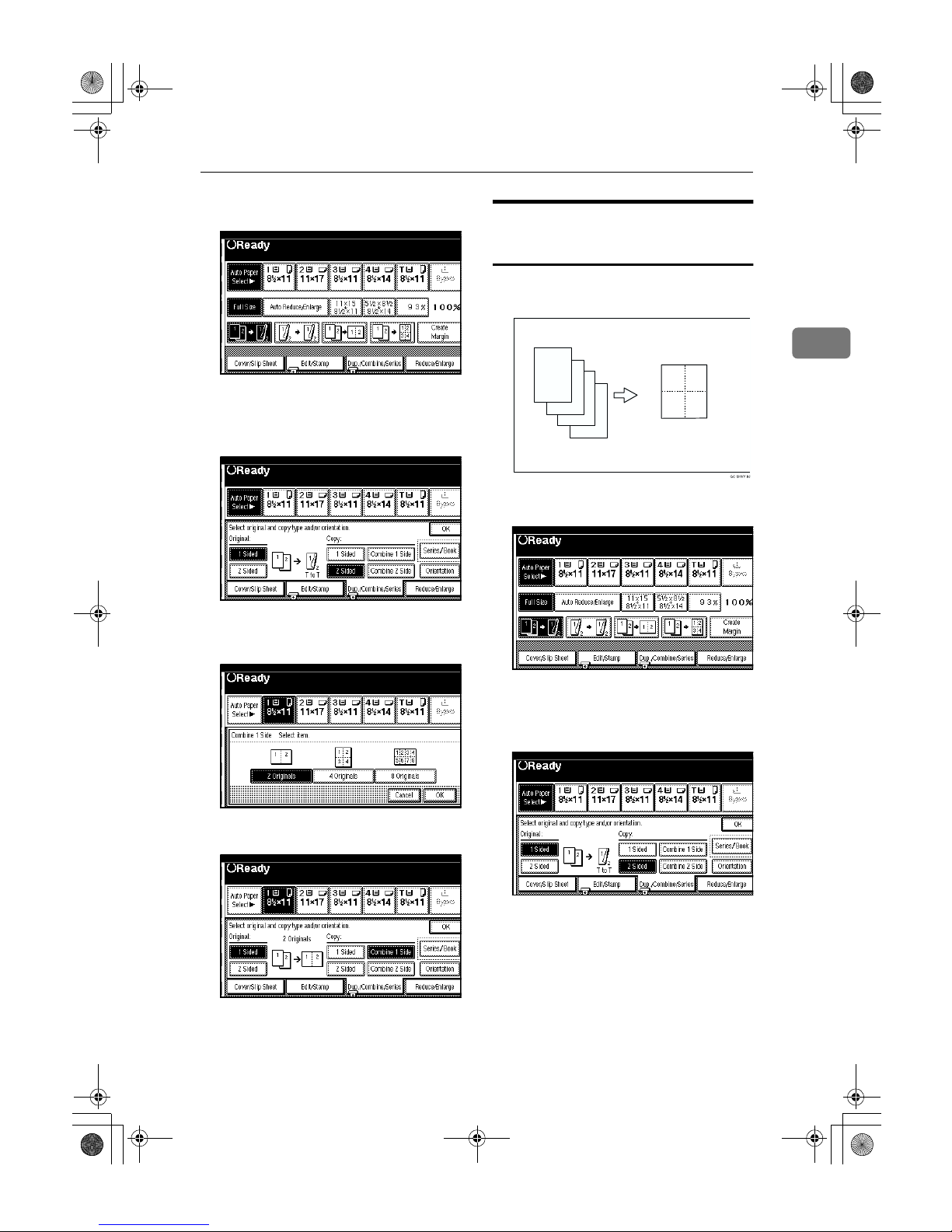

Press the [Dup./Combine/Series] key.

Press the [1 Sided] key for the original, then press the [Combine 1 Side] key for the copy.

Press the [2 Originals] key, then press the [OK] key.

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

1 Sided 4 Pages →→→→ Combine 1

Side

Copies four 1-sided originals together to one side of a sheet.

Press the [

Dup./Combine/Series

] key.

Press the [1 Sided] key for the original, then press the [Combine 1 Side] key for the copy.

1 2

AdonisC2_ENcopy122F_FM.book Page 89 Thursday, February 15, 2001 3:23 PM

Copying

Press the [4 Originals] key, then press the [OK] key.

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

1 Sided 8 Pages →→→→ Combine 1

Side

Copies eight 1-sided originals together to one side of a sheet.

Press the [

Dup./Combine/Series

] key.

Press the [1 Sided] key for the original, then press the [Combine 1 Side] key for the copy.

1 234

5678

AdonisC2_ENcopy122F_FM.book Page 90 Thursday, February 15, 2001 3:23 PM

Combine

Press the [8 Originals] key, then press the [OK] key.

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

1 Sided 4 Pages →→→→ Combine 2

Side

Copies four 1-sided originals to the two-page spread on both sides of a sheet.

Press the [

Dup./Combine/Series

] key.

Press the [1 Sided] key for the original, then press the [Combine 2 Side] key for the copy.

AdonisC2_ENcopy122F_FM.book Page 91 Thursday, February 15, 2001 3:23 PM

Copying

Press the [4 Originals] key, then press the [OK] key.

Check the orientation.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[

Orientation

] key and select [

Top

to Bottom]. ⇒ P.82 “Specifying

Orientation of Bound Originals”.

Press the [OK] key.

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

1 Sided 8 Pages →→→→ Combine 2

Side

Copies eight 1-sided originals together to both sides of a sheet.

Front

Back

Press the [Dup./Combine/Series] key.

Press the [1 Sided] key for the original, then press the [Combine 2

Side

] key for the copy.

1 2

GCSHVYAE

5 6

AdonisC2_ENcopy122F_FM.book Page 92 Thursday, February 15, 2001 3:23 PM

Combine

Press the [8 Originals] key, then press the [OK] key.

Check the orientation.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[

Orientation

] key and select [

Top

to Bottom]. ⇒ P.82 “Specifying

Orientation of Bound Originals”.

Press the [OK] key.

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

1 Sided 16 Pages →→→→ Combine

2 Side

Copies sixteen 1-sided originals together to both sides of a sheet.

Front

Back

Press the [Dup./Combine/Series] key.

Press the [

1 Sided

] key for the orig-

inal, then press the [

Combine 2

Side

] key for the copy.

GCSHVY5E

1 234

5678

9 10 11 12

13 14 15 16

AdonisC2_ENcopy122F_FM.book Page 93 Thursday, February 15, 2001 3:23 PM

Copying

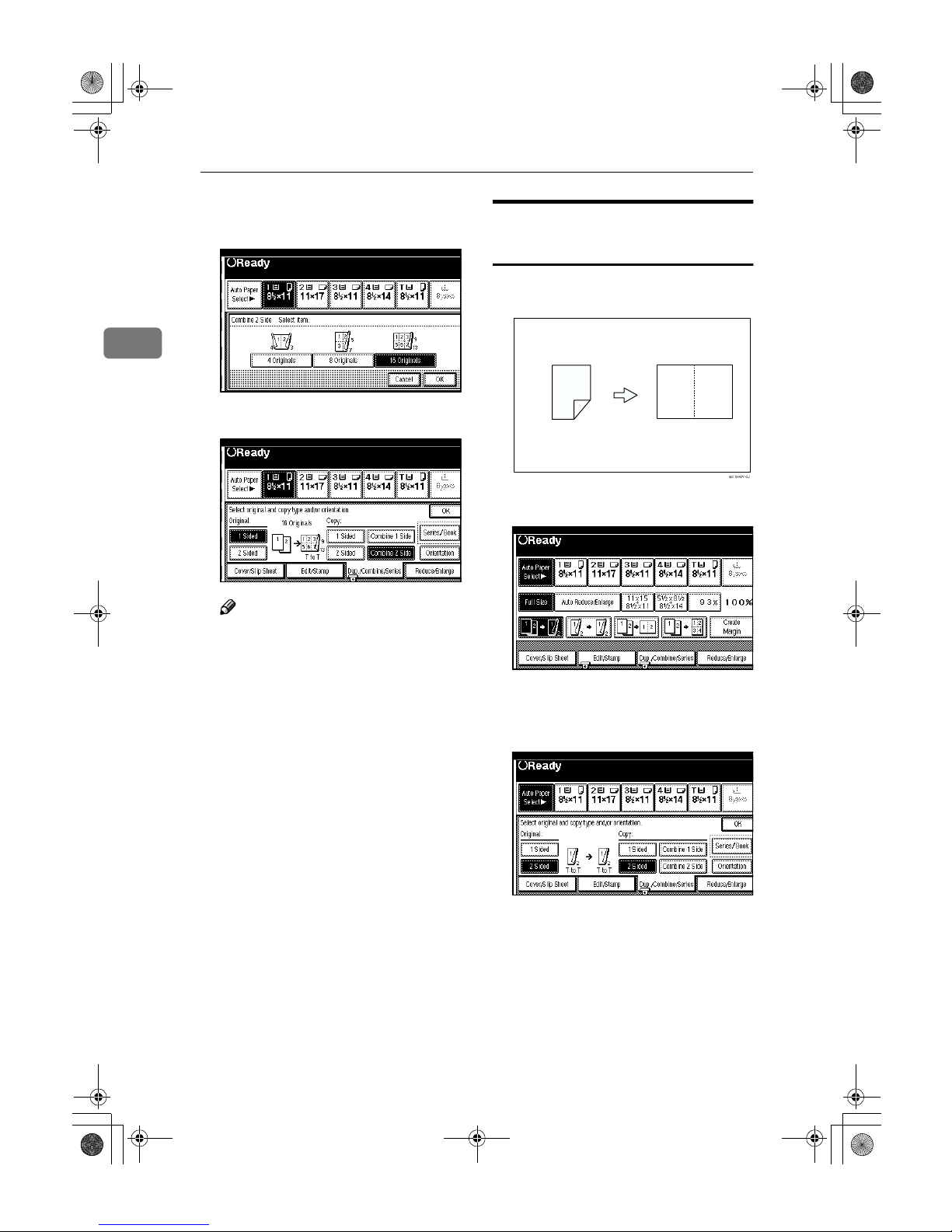

Press the [16 Originals] key, then press the [OK] key.

Check the orientation.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[

Orientation

] key and select [

Top

to Bottom]. See ⇒ P.82 “Specify-

ing Orientation of Bound Originals”.

Press the [OK] key.

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

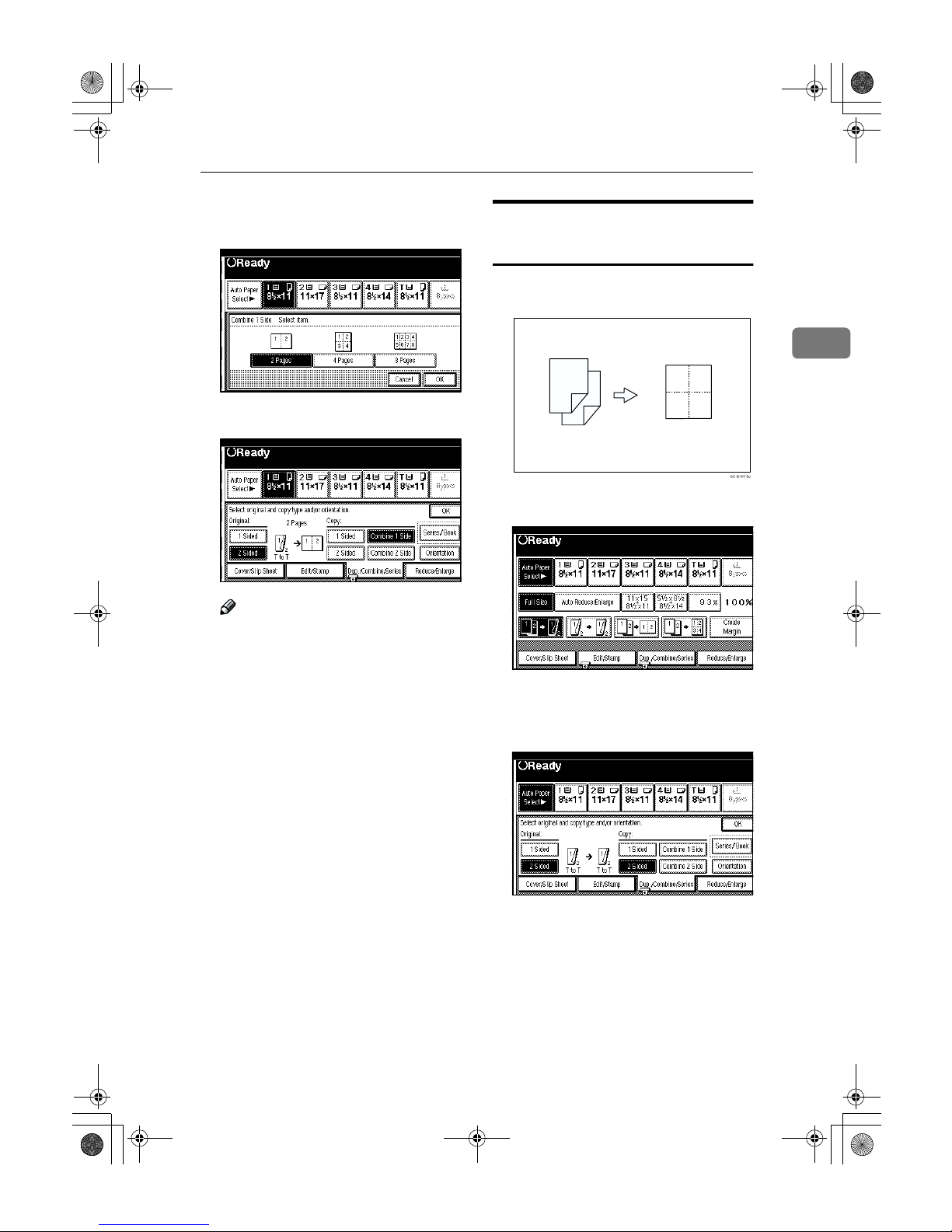

2 Sided 2 Pages →→→→ Combine 1

Side

Copies one 2-sided original to one side of a sheet.

Press the [

Dup./Combine/Series

] key.

Press the [2 Sided] key for the original, then press the [Combine 1 Side] key for the copy.

1 2

AdonisC2_ENcopy122F_FM.book Page 94 Thursday, February 15, 2001 3:23 PM

Combine

Press the [2 Pages] key, then press the [OK] key.

Check the orientation.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[

Orientation

] key and select [

Top

to Bottom]. ⇒ P.82 “Specifying

Orientation of Bound Originals”.

Press the [OK] key.

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

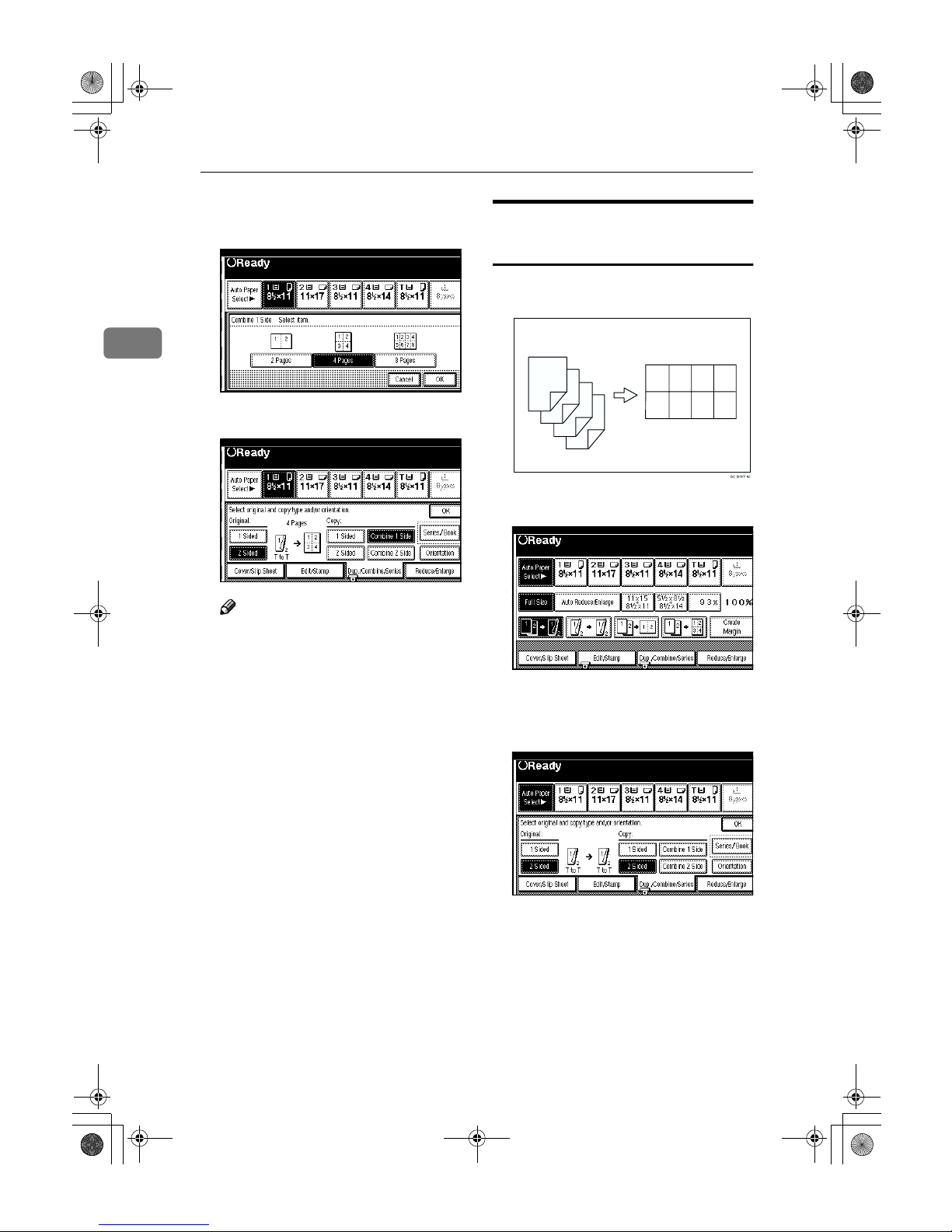

2 Sided 4 Pages →→→→ Combine 1

Side

Copies two 2-sided originals to one side of a sheet.

Press the [

Dup./Combine/Series

] key.

Press the [2 Sided] key for the original, then press the [Combine 1 Side] key for the copy.

1 2

AdonisC2_ENcopy122F_FM.book Page 95 Thursday, February 15, 2001 3:23 PM

Copying

Press the [4 Pages] key, then press the [OK] key.

Check the orientation.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[

Orientation

] key and select [

Top

to Bottom]. ⇒ P.82 “Specifying

Orientation of Bound Originals”.

Press the [OK] key.

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

2 Sided 8 Pages →→→→ Combine 1

Side

Copies four 2-sided originals to one side of a sheet.

Press the [

Dup./Combine/Series

] key.

Press the [2 Pages] key for the original, then press the [Combine 1 Side] key for the copy.

1 234

5678

AdonisC2_ENcopy122F_FM.book Page 96 Thursday, February 15, 2001 3:23 PM

Combine

Press the [8 Pages] key, then press the [OK] key.

Check the orientation.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[

Orientation

] key and select [

Top

to Bottom]. ⇒ P.82 “Specifying

Orientation of Bound Originals”.

Press the [OK] key.

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

2 Sided 4 Pages →→→→ Combine 2

Side

Copies two 2-sided originals together to both sides of a sheet.

Press the [

Dup./Combine/Series

] key.

Press the [2 Sided] key for the original, then press the [Combine 2 Side] key for the copy.

AdonisC2_ENcopy122F_FM.book Page 97 Thursday, February 15, 2001 3:23 PM

Copying

Press the [4 Pages] key, then press the [OK] key.

Check the orientation.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[

Orientation

] key and select [

Top

to Bottom]. ⇒ P.82 “Specifying

Orientation of Bound Originals”.

Press the [OK] key

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

2 Sided 8 Pages →→→→ Combine 2

Side

Copies four 2-sided originals together to both sides of a sheet.

Front

Back

Press the [Dup./Combine/Series] key.

Press the [

2 Sided

] key for the orig-

inal, then press the [

Combine 2

Side

] key for the copy.

GCSHVY2E

5 6

1 2

AdonisC2_ENcopy122F_FM.book Page 98 Thursday, February 15, 2001 3:23 PM

Combine

Press the [8 Pages] key, then press the [OK] key.

Check the orientation.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[

Orientation

] key and select [

Top

to Bottom]. ⇒ P.82 “Specifying

Orientation of Bound Originals”.

Press the [OK] key

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

2 Sided 16 Pages →→→→ Combine

2 Side

Copies eight 2-sided originals together to both sides of a sheet.

Front

Back

Press the [Dup./Combine/Series] key.

Press the [

2 Sided

] key for the original, then press the [Combine 2 Side] key for the copy.

GCSHVY6E

1 234

5678

9 10 11 12

13 14 15 16

AdonisC2_ENcopy122F_FM.book Page 99 Thursday, February 15, 2001 3:23 PM

Copying

100

Press the [16 Pages] key, then press the [OK] key.

Check the orientation.

Note

❒ To change the copy orientation

to “Top to Bottom”, press the

[

Orientation

] key and select [

Top

to Bottom]. ⇒ P.82 “Specifying

Orientation of Bound Originals”.

Press the [OK] key.

Select the paper.

Set your originals, then press the {{{{Start}}}} key.

AdonisC2_ENcopy122F_FM.book Page 100 Thursday, February 15, 2001 3:23 PM

Series/Book

101

Series/Book

Series copies are made by separately copying the front and back of a 2-sided original or the two facing pages of a spread original onto two sheets of paper. A book is made by copying two or more originals in page order.

The following types of Series and Book modes can be used:

❖❖❖❖ Series Copies

• Book → 1 Sided

Copies the two facing pages of a spread original to make two 1sided copies.

• Book → 2 Sided

Copies a spread two-page original onto both sides of a sheet.

• Front & Back→ 2 Sided

Copies each two-page spread original as it is onto both sides of a sheet.

❖❖❖❖ Booklet

• 1 Sided → Booklet

Make copies in page order for a folded booklet.

• 2 Sided → Booklet

Copies a 2-sided original in page order for a folded booklet.

• 1 Sided → Magazine

Copies two or more originals to make copies in page order (as when they are folded and stacked).

• 2 Sided → Magazine

Copies 2-sided originals to make copies in page order (as when they are folded and stacked).

Series Copies

Book →→→→ 1 Sided

You can make one-sided copies from two facing pages of a bound original (book).

Limitation

❒ You cannot use the Book → 1 Sided

function from the document feeder.

Note

❒ See the following table when you

select original and copy paper sizes with 100% ratio:

❖❖❖❖ Metric version

❖❖❖❖ Inch version

Original Copy paper

A4K × 2 sheets

B5K × 2 sheets

A5K × 2 sheets

Original Copy paper

11" × 17"

/2" × 11"K × 2

sheets

/2" × 11"

51/2" × 81/2"K × 2 sheets

AdonisC2_ENcopy122F_FM.book Page 101 Thursday, February 15, 2001 3:23 PM

Copying

102

Press the [Dup./Combine/Series] key.

Press the [Series/Book] key.

Make sure that the [Series] key is selected.

Press the [Book→→→→1 Sided] key, then press the [OK] key.

Press the [OK] key.

Make sure that the [Auto Paper Se- lect

] key is selected.

Note

❒ If the [Auto Paper Select] key is

not selected, press the [Auto Pa- per Select] key.

Set your originals, then press the

{{{{Start}}}} key.

Book →→→→ 2 Sided

Copies a two-page spread original onto both sides of a sheet.

Limitation

❒ You cannot use the Book

→

2 Sided

function from the document feeder.

Note

❒ See the following table when you

select original and copy paper sizes with 100% ratio:

❖❖❖❖ Metric version

❖❖❖❖ Inch version

Original Copy paper

A4 (2-sided)

B5 (2-sided)

A5 (2-sided)

Original Copy paper

11" × 17"

81/2" × 11" (2-sided)

81/2" × 11"

51/2" × 81/2" (2-sided)

AdonisC2_ENcopy122F_FM.book Page 102 Thursday, February 15, 2001 3:23 PM

Series/Book

103

Press the [Dup./Combine/Series] key.

Press the [Series/Book] key.

Make sure that the [Series] key is selected.

Press the [Book→→→→2 Sided] key, then press the [OK] key.

Press the [OK] key

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

Front & Back →→→→ 2 Sided

Copies each two-page spread original as it is onto both sides of a sheet.

Limitation

❒ You cannot use the Front & Back →

2 Sided function from the document feeder.

Note

❒ See the following table when you

select original and copy paper sizes with 100% ratio:

❖❖❖❖ Metric version

❖❖❖❖ Inch version

Original Copy paper

A4 (2-sided)

B5 (2-sided)

A5 (2-sided)

Original Copy paper

11" × 17"

81/2" × 11" (2-sided)

81/2" × 11"

51/2" × 81/2" (2-sided)

AdonisC2_ENcopy122F_FM.book Page 103 Thursday, February 15, 2001 3:23 PM

Copying

104

Press the [Dup./Combine/Series] key.

Press the [Series/Book] key.

Make sure that the [Series] key is selected.

Press the [Front & Back →→→→ 2 Sided] key, then press the [OK] key.

Press the [OK] key.

Select the paper.

Set your originals, then press the {{{{Start}}}} key.

Note

❒ Press the {#} key after all origi-

nals are scanned.

Copying Book Originals

Limitation

❒ You cannot use the bypass tray

with this function.

Note

❒ The machine sets the reproduction

ratio automatically to meet the paper size and copies the originals together onto the paper.

❒ The machine uses ratios in the

range of 25 to 400%.

❒ If the calculated ratio is under the

available minimum ratio, it will be adjusted to the minimum ratio. However, with some ratios, parts of the image might not be copied.

❒ Even if the direction of originals is

different from that of the copy paper, the machine will automatically rotate the image by 90° to make copies properly.

AdonisC2_ENcopy122F_FM.book Page 104 Thursday, February 15, 2001 3:23 PM

Series/Book

105

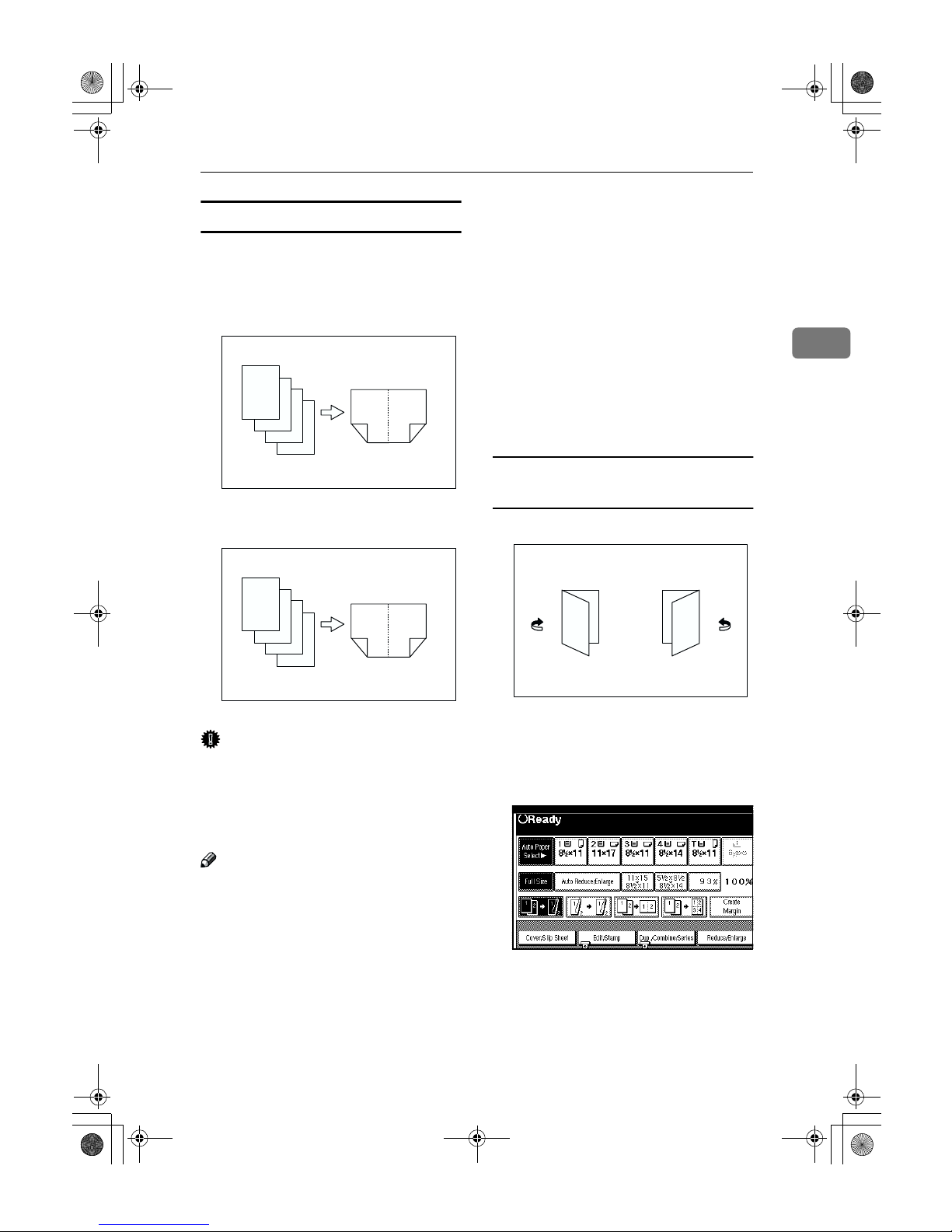

1 Sided →→→→ Booklet

Make copies in page order for a folded booklet as shown in the following illustrations:

❖❖❖❖ Open to Left

❖❖❖❖ Open to Right

Important

❒ Before selecting this function, se-

lect “Open to left” or “Open to right.” with the User Tools.

⇒

“Orientation: Booklet, Margine” in P.224 “Edit

/2”.

Note

❒ Four originals are copied onto each

sheet of copy paper.

❒ In this mode, the machine sets the

reproduction ratio automatically to meet the paper size and copies the originals together onto the paper.

❒ A ratio is selected in the range of 25

to 400%.

❒ If the calculated ratio is under the

available minimum ratio, it will be adjusted to the minimum ratio. However, with some ratios, parts of the image might not be copied.

❒ If the number of originals scanned

is less than a multiple of 4, the last page is copied blank.

❒ You can have a 3mm, 0.1" bound-

ing margin around all four edges of the original left blank (erased).

⇒

“Erase Original Shadow in

Combine” in P.222 “Edit

/2”.

How to fold copies to make a booklet

Open to Left

Open to Right

Press the [Dup./Combine/Series] key.

GCBOOK0E

GCBOOK1E

GCBOOK2E

AdonisC2_ENcopy122F_FM.book Page 105 Thursday, February 15, 2001 3:23 PM

Copying

106

Press the [Series/Book] key.

Press the [Book] key.

Press the [1 Sided →→→→ Booklet] key, then press the [OK] key.

Press the [OK] key.

Select the paper.

Set your originals, then press the {{{{Start}}}} key.

Note

❒ When placing one original on

the exposure glass or in the document feeder in Batch mode, press the {#} key after all originals are scanned.

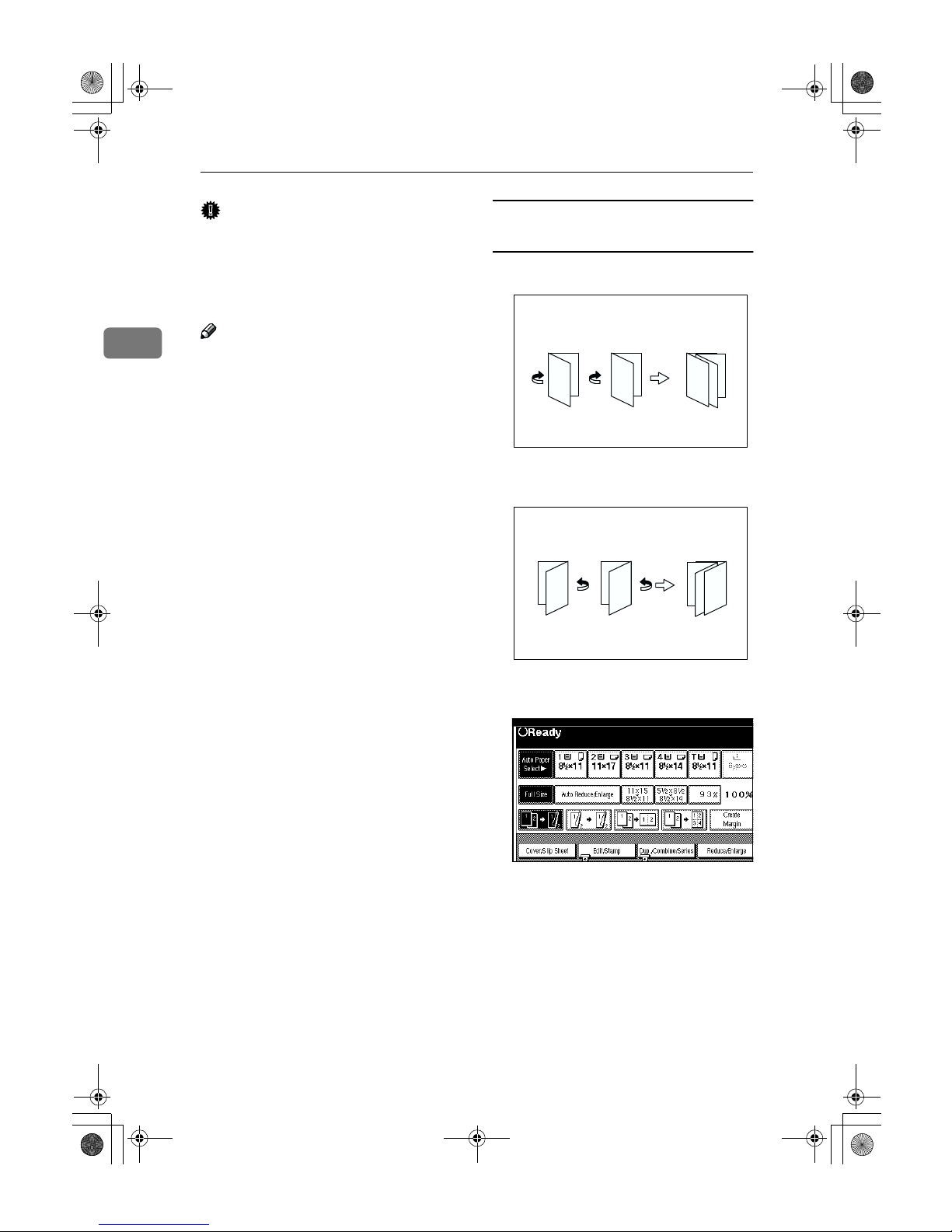

2 Sided →→→→ Booklet

Make 2 sided originals to copies in page order for a folded booklet as shown in the following illustrations:

❖❖❖❖ Open to Left

❖❖❖❖ Open to Right

Important

❒ Before selecting this function, se-

lect “Open to left” or “Open to right.” with the User Tools.

❒ Two originals of 2 sided are copied

onto each sheet of copy paper.

❒ In this mode, the machine sets the

reproduction ratio automatically to meet the paper size and copies the originals together onto the paper.

❒ A ratio is selected in the range of 25

to 400%.

AdonisC2_ENcopy122F_FM.book Page 106 Thursday, February 15, 2001 3:23 PM

Series/Book

107

❒ If the calculated ratio is under the

available minimum ratio, it will be adjusted to the minimum ratio. However, with some ratios, parts of the image might not be copied.

❒ If the number of originals scanned

is less than a multiple of 4, the last page is copied blank.

❒ You can have a 3mm, 0.1" bound-

ing margin around all four edges of the original left blank (erased). ⇒ “Erase Original Shadow in Combine” in P.222 “Edit

/2”.

How to fold copies to make a booklet

Open to Left

Open to Right

Press the [Dup./Combine/Series] key.

Press the [Series/Book] key.

Press the [Book] key.

Press the [2 Sided →→→→ Booklet] key, then press the [OK] key.

Press the [OK] key.

Select the paper.

Set your originals, then press the {{{{Start}}}} key.

Note

❒ When placing one original on

the exposure glass or in the document feeder in Batch mode, press the {#} key after all originals are scanned.

GCBOOK2E

AdonisC2_ENcopy122F_FM.book Page 107 Thursday, February 15, 2001 3:23 PM

Copying

108

1 Sided →→→→ Magazine

Copies two or more originals to make copies in page order when they are folded and stacked.

❖❖❖❖ Open to Left

❖❖❖❖ Open to Right

Important

❒ Before selecting this function, se-

lect “Open to left” or “Open to right.” with the User Tools.

⇒

“Orientation: Booklet, Magazine” in P.224 “Edit

/2”.

Note

❒ Four originals are copied onto each

sheet of copy paper.

❒ In this mode, the machine sets the

reproduction ratio automatically to meet the paper size and copies the originals together onto the paper.

❒ A ratio is selected in the range of 25

to 400%.

❒ If the calculated ratio is under the

available minimum ratio, it will be adjusted to the minimum ratio. However, with some ratios, parts of the image might not be copied.

❒ If the number of originals scanned

is less than a multiple of 4, the last page is copied blank.

❒ You can have a 3mm bounding

margin around all four edges of the original left blank (erased).

⇒

“Erase Original Shadow in Combine” in P.222 “Edit

/2”.

❒ The copying may take some time

after scanning originals.

How to fold and unfold copies to make a magazine

❖❖❖❖ Open to Left

❖❖❖❖ Open to Right

GCBOOK3E

GCBOOK4E

GCBOOK5E

7 5

GCBOOK6E

AdonisC2_ENcopy122F_FM.book Page 108 Thursday, February 15, 2001 3:23 PM

Series/Book

109

Press the [Dup./Combine/Series] key.

Press the [Series/Book] key.

Press the [Book] key.

Press the [1 Sided →→→→ Magazine] key, then press the [OK] key.

Press the [OK] key.

Select the paper.

Set your originals, then press the {{{{Start}}}} key.

Note

❒ When placing one original on

the exposure glass or in the document feeder in Batch mode, press the {#} key after all originals are scanned.

2 Sided →→→→ Magazine

Copies two or more originals of 2 sided to make copies in page order when they are folded and stacked.

❖❖❖❖ Open to Left

❖❖❖❖ Open to Right

AdonisC2_ENcopy122F_FM.book Page 109 Thursday, February 15, 2001 3:23 PM

Copying

110

Important

❒ Before selecting this function, se-

lect “Open to left” or “Open to right.” with the User Tools. ⇒ “Orientation: Booklet, Magazine” in P.224 “Edit

/2”.

Note

❒ Two originals of 2 sided are copied

onto each sheet of copy paper.

❒ Four originals are copied onto each

sheet of copy paper.

❒ In this mode, the machine sets the

reproduction ratio automatically to meet the paper size and copies the originals together onto the paper.

❒ A ratio is selected in the range of 25

to 400%.

❒ If the calculated ratio is under the

available minimum ratio, it will be adjusted to the minimum ratio. However, with some ratios, parts of the image might not be copied.

❒ If the number of originals scanned

is less than a multiple of 4, the last page is copied blank.

❒ You can have a 3mm bounding

margin around all four edges of the original left blank (erased). ⇒ “Erase Original Shadow in Combine” in P.222 “Edit

/2”.

❒ The copying may take some time

after scanning originals.

How to fold and unfold copies to make a magazine

❖❖❖❖ Open to Left

❖❖❖❖ Open to Right

Press the [Dup./Combine/Series] key.

GCBOOK5E

7 5

GCBOOK6E

AdonisC2_ENcopy122F_FM.book Page 110 Thursday, February 15, 2001 3:23 PM

Series/Book

111

Press the [Series/Book] key.

Press the [Book] key.

Press the [2 Sided →→→→ Magazine] key, then press the [OK] key.

Press the [OK] key.

Select the paper.

Set your originals, then press the {{{{Start}}}} key.

Note

❒ When placing one original on

the exposure glass or in the document feeder in Batch mode, press the {#} key after all originals are scanned.

AdonisC2_ENcopy122F_FM.book Page 111 Thursday, February 15, 2001 3:23 PM

Copying

112

Edit Image

Image Repeat

The original image is copied repeatedly.

Note

❒ The number of repeated images

depends on the original size, copy paper size, and reproduction ratio. See the following table:

❖❖❖❖ Original: A5KKKK/Copy paper: A4KKKK

or Original: A5LLLL/Copy paper A4LLLL

❖❖❖❖ Original: A5KKKK/Copy paper: A4LLLL

or Original: A5LLLL/Copy paper A4KKKK

❒ Part of a repeated image might not

be copied depending on copy paper size, copy paper direction or reproduction ratio.

❒ You can insert separation lines be-

tween repeated images.

⇒

“Repeat

Separation Line” in

P.224 “Edit 2/2”

Select the size of the copy paper and the reproduction ratio.

Press the [Edit/Stamp] key.

Press the [Edit Image] key.

Press the [Image Repeat] key.

Press the [OK] key.

4 repeats (71%) 16 repeats (35%)

2 repeats (100%)

8 repeats (50%)

32 repeats (25%)

Repeat1

Repeat2

Repeat3

Repeat4

Repeat5

AdonisC2_ENcopy122F_FM.book Page 112 Thursday, February 15, 2001 3:23 PM

Edit Image

113

Press the [OK] key.

Set your original, then press the

{{{{Start}}}} key.

Double Copies

One original image is copied twice on one copy as shown in the illustration.

Limitation

❒ The following originals cannot be

detected properly on the exposure glass. Be sure to select the copy paper manually or set the originals in the document feeder.

❒ You cannot use the bypass tray

with this function.

Note

❒ You can insert separation lines be-

tween repeated images. ⇒ “Dou- ble Copies Separation Line” in P.224 “Edit

/2”.

❒ See the following table when you

select original and copy paper sizes with 100% ratio:

❖❖❖❖ Metric version

❖❖❖❖ Inch version

Press the [Edit/Stamp] key.

Press the [Edit Image] key.

Metric version

A5L, B6

Inch version

/2" × 81/2"

Original Size and Direction

Copy Paper Size and Direction

Original Size and Direction

Copy Paper Size and Direction

/2" × 81/2"

81/2" × 11"

/2" × 81/2"

81/2" × 11"

/2" × 11"

11" × 17"

AdonisC2_ENcopy122F_FM.book Page 113 Thursday, February 15, 2001 3:23 PM

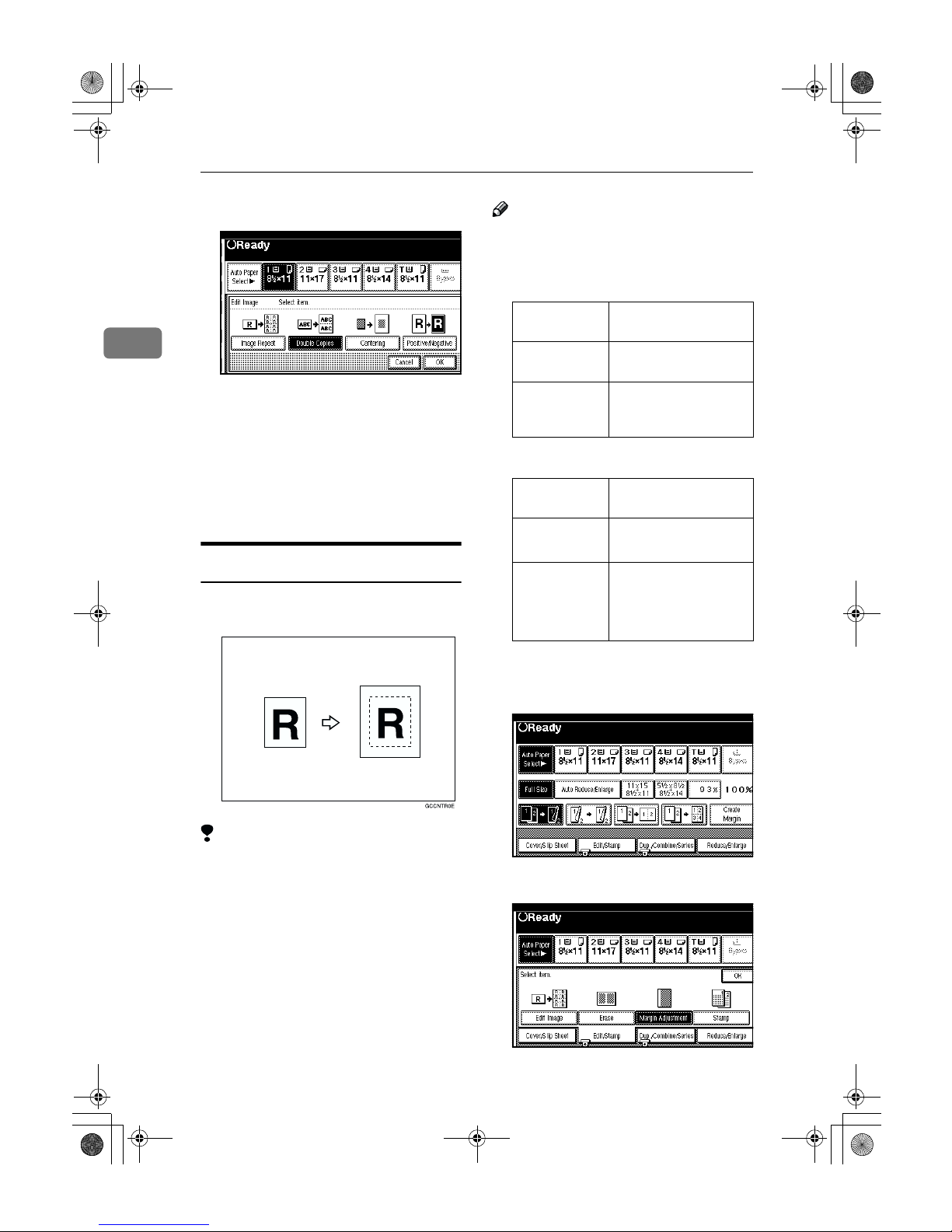

Copying

114

Press the [Double Copies] key.

Press the [OK] key.

Select the paper.

Set your originals, then press the

{{{{Start}}}} key.

Centering

You can make copies by moving the image to the centre of the copy paper.

Limitation

❒ You cannot use the bypass tray

with this function.

❒ If the direction of originals is dif-

ferent from that of the copy paper, the machine will not rotate the image by 90°(rotated copy).

❒ If the original size cannot be mea-

sured, the centring function will not work.

Note

❒ The original sizes and directions

for centring are listed below.

❖❖❖❖ Metric version

❖❖❖❖ Inch version

Select the paper.

Press the [Edit/Stamp] key.

Press the [Edit Image] key.

Original placed on:

Original size and direction

Exposure glass A3L, B4L, A4KL,

Document feeder

A3L, B4L, A4KL, B5KL, A5KL, B6KL, 11" × 17"

Original placed on:

Original size and direction

Exposure glass

11" × 17"L, 8

/2" ×

14"L, 8

/2" × 11"

Document feeder

A4KL, 11" × 17"L, 11" × 15"L, 8

/2" ×

14"L, 8

/2" × 11"K,

/2" × 81/2"

AdonisC2_ENcopy122F_FM.book Page 114 Thursday, February 15, 2001 3:23 PM

Edit Image

115

Press the [Centering] key.

Press the [OK] key.

Set your originals, then press the

{{{{Start}}}} key.

Positive/Negative

If your original is black and white, copy images are inverted.

Press the [Edit/Stamp] key.

Press the [Edit Image] key.

Press the [Positive/Negative] key.

Press the [OK] key.

Select the paper.

Set your originals, then press the {{{{Start}}}} key.

GCHATN1

R R

AdonisC2_ENcopy122F_FM.book Page 115 Thursday, February 15, 2001 3:23 PM

Copying

116

Erase

This function erases the centre and/ or all four sides of the original image. This is useful for avoiding shadows on the copy image caused by the bound originals, such as books.

This function can be used in three ways:

❖❖❖❖ Border

This mode erases the edge margin of the original image.

❖❖❖❖ Center

This mode erases the centre margin of the original image.

❖❖❖❖ Center/Border

This mode erases both the centre and edge margins of the original image.

Note

❒ You can change the width of the

erased margin as follows:

❒ The default setting of the erased

margin is as follows. You can change this settings with the User Tools. ⇒ “Erase Border Width” and “Erase Center Width” in P.222

“Edit

/2”.

❒ The width of the erased margin

varies depending on the reproduction ratio.

❒ If the size of the original is differ-

ent from sizes listed in the following chart, the erased margin might be shifted.

❖❖❖❖ Metric version

❖❖❖❖ Inch version

❒ The relationship between the orig-

inal orientation and the erased part is as follows:

❒ 1: Erased part

❒ 2: 2–99mm

Metric version

2 – 99mm (in 1mm steps)

Inch version

0.2" – 3.9" (in 0.1" steps)

Metric version

10mm

Inch version

0.4"

Where Original Is Set

Paper Size and Orientation

Exposure glass A3L, B4L, A4KL,

Document feeder

A3L, B4L, A4KL, B5KL, A5KL, B6KL, 11" × 17"

Where Original Is Set

Paper Size and Orientation

Exposure glass

11" × 17"L, 8

/2" ×

14"L, 8

/2" × 11"

Document feeder

A4KL, 11" × 17"L, 8

/2" × 14"L, 81/2" ×

11"KL, 5

/2" × 81/

original

AdonisC2_ENcopy122F_FM.book Page 116 Thursday, February 15, 2001 3:23 PM

Erase

117

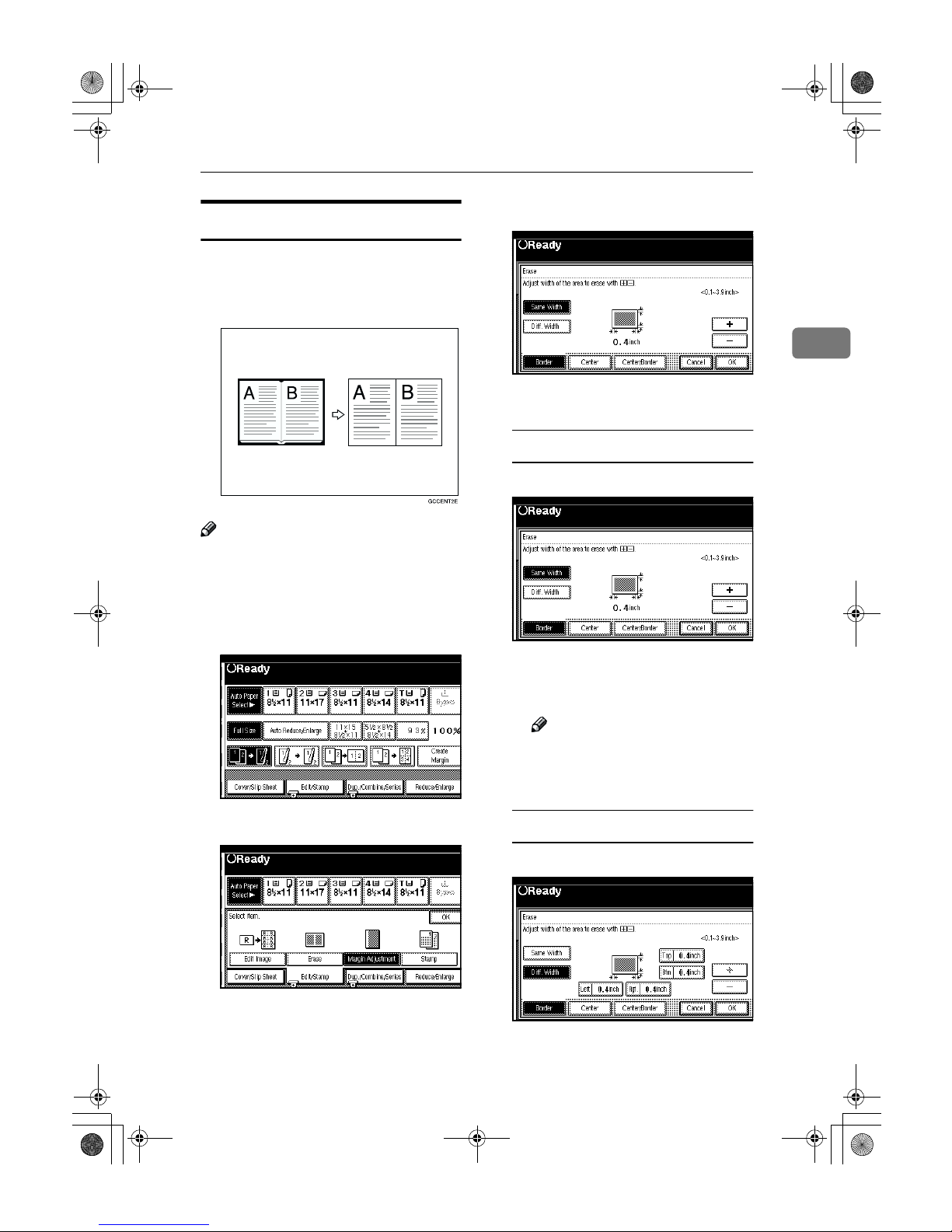

Border Erase

This function erases the edge margins. You can set the same margin width for all four sides, or you can set different margin widths for each side.

Note

❒ If you want to erase the centre mar-

gin too, use the Centre/Border function. ⇒ P.119 “Center/Border Erase”.

Press the [Edit/Stamp] key.

Press the [Erase] key.

Press the [Border] key.

Set the erase border width.

Selecting [Same Width]

A Press the [Same Width] key.

B Set an erase border width with

the [nnnn] and [oooo] keys, fol- lowed by the [OK] key.

Note

❒ To change the value entered,

press the [n] and [o] keys and enter the new value.

Selecting [Diff. Width]

A Press the [Diff. Width] key.

AdonisC2_ENcopy122F_FM.book Page 117 Thursday, February 15, 2001 3:23 PM

Copying

118

B Press the key for the border

you wish to change and set an erase border width with the

[nnnn] and [oooo] keys.

Note

❒ To change the value entered,

press the [n] and [o] keys and enter the new value.

C Press the [OK] key.

Press the [OK] key.

Set your originals, then press the

{{{{Start}}}} key.

Center Erase

This function erases the centre margin.

Note

❒ If you want to erase the border

margin too, use the Center/Border function. ⇒ P.119 “Center/Border Erase”.

Press the [Edit/Stamp] key.

Press the [Erase] key.

Press the [Center] key.

Set the erase centre width with the [nnnn] and [oooo] keys. Then press the [OK] key.

Note

❒ To change the value entered,

press the [n] and [o] keys and enter the new value.

Set your originals, then press the {{{{Start}}}} key.

AdonisC2_ENcopy122F_FM.book Page 118 Thursday, February 15, 2001 3:23 PM

Erase

119

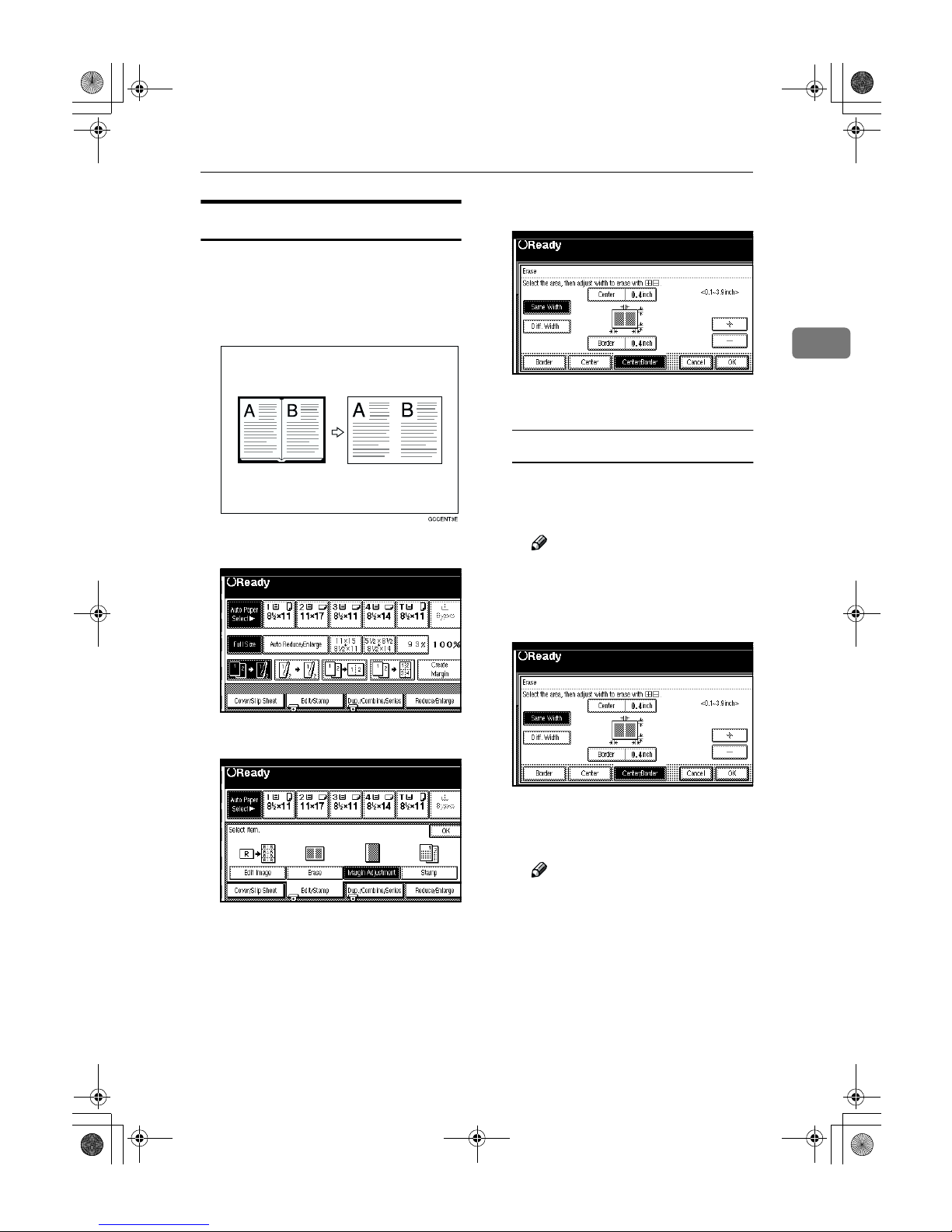

Center/Border Erase

This mode erases both the centre and edge margins. You can set the same margin width for all four sides and centre, or you can set different margin widths for each.

Press the [Edit/Stamp] key.

Press the [Erase] key.

Press the [Center/Border] key.

Set the erase margin width.

Selecting [Same Width]

A Press the [

Center

] key, then set

the erase centre width with the

[nnnn] and [oooo] keys.

Note

❒ To change the value entered,

press the [n] and [o] keys and enter the new value.

B Press the [Same Width] key.

C Press the [Border] key, then set

the erase border width with the

[nnnn] and [oooo] keys.

Note

❒ To change the value entered,

press the [n] and [o] keys and enter the new value.

D Press the [OK] key.

AdonisC2_ENcopy122F_FM.book Page 119 Thursday, February 15, 2001 3:23 PM

Copying

120

Selecting [Diff. Width]

A Press the [Diff. Width] key.

B Press the key for the part you

wish to change and set an erase margin width with the [nnnn] and

[oooo] keys.

Note

❒ To change the value entered,

press the [n] and [o] keys and enter the new value.

C Press the [OK] key.

Press the [OK] key.

Set your originals, then press the {{{{Start}}}} key.

AdonisC2_ENcopy122F_FM.book Page 120 Thursday, February 15, 2001 3:23 PM

Gestetner 2235, 2335, 2345, 2535, 2535p Copy Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
