Gestetner 1302, 1302f Facsimile Reference Manual
Operating Instructions
Facsimile Reference
<Basic Features>>
Read this manual carefully before you use this product and keep it handy for future
reference.
For safety, please follow the instructions in this manual.
<Advancedd Features>dvd
Part #G1619
Introduction
This manual contains detailed instructions on the operation and maintenance of this machine. To get
maximum versatility from this machine all operators should carefully read and follow the instructions in
this manual. Please keep this manual in a handy place near the machine.
Please read the Safety Information in the Copy Reference manual before using this machine. It contains important information related to USER SAFETY and PREVENTING EQUIPMENT PROBLEMS.
Notes:
Some illustrations might be slightly different from your machine.
Certain options might not be available in some countries. For details, please contact your local dealer.
Two kinds of size notation are employed in this manual. With this machine refer to the inch version.
Machine Types
The model names of the machines do not appear in the following pages. Check the type of your machine before reading this manual. (For details, see p.1 “Machine Types”.)
Important
Parts of this manual are subject to change without prior notice. In no event will the company be liable
for direct, indirect, special, incidental, or consequential damages as a result of handling or operating
the machine.
i
NOTICE
R CAUTION:
Use of controls, adjustments or performance of procedures other than those
specified herein may result in hazardous radiation exposure.
Shielded interconnect cables must be employed with this equipment to ensure
compliance with the pertinent RF emission limits governing this device.
Note to users in the United States of America
----Notice:
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio /TV technician for help.
----Warning
Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
Direct (or indirect reflected) eye contact with the laser beam may cause serious eye damage.
Safety precautions and interlock mechanisms have been designed to prevent any possible laser
beam exposure to the operator.
ii
Note to users in Canada
----Note:
This Class B digital apparatus complies with Canadian ICES-003.
Remarque concernant les utilisateurs au Canada
----Avertissement:
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
----Notice about the Telephone Consumer Protection Act (Valid in USA
only).
The Telephone Consumer Protection Act of 1991 among other things makes it
unlawful for any person to send any message via a telephone fax machine unless
such message clearly contains in a margin at the top or bottom of each transmitted page or on the first page of the transmission, the date and time it is sent and
an identification of the business, other entity, or other individual sending the
message and the telephone number of the sending machine or such business,
other entity or individual. This information is transmitted with your document
by the TTI (Transmit Terminal Identification) feature. In order for you to meet
the requirement, your machine must be programmed by following the instructions in the accompanying Operation Manual. In particular, please refer to the
chapter of Installation. Also refer to the TTI (Transmit Terminal Identification)
programming procedure to enter the business identification and telephone
number of the terminal or business. Do not forget to set the date and time.
Thank you.
For this machine, TTI is called FAX HEADER.
iii
Important Safety Instructions
Caution
When using your telephone equipment, basic safety precautions should always
be followed to reduce the risk of fire, electric shock and injury to persons, including the following:
• Do not use this product near water, for example, near a bath tub, wash bowl,
kitchen sink or laundry tub, in a wet basement or near a swimming pool.
• Avoid using a telephone during an electrical storm. There may be a remote
risk of electric shock from lightning.
• Do not use a telephone in the vicinity of a gas leak to report the leak.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.
Save these instructions.
Certalnes mesures de sécurité doivent être prises pendant l'utilisation de matérial téléphonique afin de réduire les risques d'incendle , de choc électrique et de
blessures. En voici quelquesunes:
• Ne pas utiliser l'appareil près de l'eau, p.ex., près d'une balgnoire, d'un lavabo, d'un évier de cuisine, d'un bac à laver, dans un sous-sol humide ou près
d'une piscine.
• Éviter d'utiliser le téléphone (sauf s'il s'agit d'un apparell sans fil) pendant un
orage électrique. Ceci peut présenter un risque de choc électrique causé par la
foudre.
• Ne pas utiliser l'appareil téléphonique pour signaler une fulte de gaz s'il est
situé près de la fuite.
• Utiliser seulement le cordon d'alimentation et le type de piles indiqués dans
ce manual. Ne pas jeter les piles dans le feu: elles peuvent exploser. Se conformer aux ègrlements pertinents quant à l'élimination des piles.
Conserver ces instructions.
iv
How to Read this Manual
Symbols
In this manual, the following symbols are used:
R
WARNING:
This symbol indicates a potentially hazardous situation that might result in
death or serious injury when you misuse the machine without following the instructions under this symbol. Be sure to read the instructions, all of which are described in the Safety Information section in the Copy Reference manual.
R
CAUTION:
This symbol indicates a potentially hazardous situation that might result in minor or moderate injury or property damage that does not involve personal injury
when you misuse the machine without following the instructions under this
symbol. Be sure to read the instructions, all of which are described in the Safety
Information section in the Copy Reference manual.
* The statements above are notes for your safety.
Important
If this instruction is not followed, paper might be misfed, originals might be
damaged, or data might be lost. Be sure to read this.
Preparation
This symbol indicates the prior knowledge or preparations required before operating.
Note
This symbol indicates precautions for operation, or actions to take after misoperation.
Limitation
This symbol indicates numerical limits, functions that cannot be used together,
or conditions in which a particular function cannot be used.
Reference
This symbol indicates a reference.
{}
Keys built into the machine's operation panel.
v
Manuals for This Machine
Two Facsimile Reference manuals are provided, the Basic Features manual and
the Advanced Features manual. Please refer to the manual that suits your needs.
Basic Features (this manual)
The Basic Features manual explains the most frequently used fax functions and
operations.
Advanced Features
The Advanced Features manual describes more advanced functions, and also
explains settings for key operators.
❖❖❖❖ Chapter 1 Transmission Options
Explains about sending at a specific time without having to be by the machine
and also taking advantage of off-peak telephone line charges.
❖❖❖❖ Chapter 2 Job Information
Explains about erasing a fax message stored in memory and checking the contents of any files in memory.
❖❖❖❖ Chapter 3 Other Transmission Features
Explains about useful features for transmission. You can find out about dialing numbers easily.
❖❖❖❖ Chapter 4 Reception Features
Explains about reception features. You can find out about screening out message from anonymous senders.
❖❖❖❖ Chapter 5 Facsimile User Tools
Explains about programming frequently used functions for User Function
Key and setting the Date and Time.
❖❖❖❖ Chapter 6 Key Operator Settings
Explains about functions the key operator handles . You can find out how to
change the user parameter settings.
❖❖❖❖ Chapter 7 Troubleshooting
Explains about things you should do when an Error Report is printed and
power is turned off.
❖❖❖❖ Chapter 8 Appendix
You can check the specifications for this machine.
vi
TABLE OF CONTENTS
1.Getting Started
Machine Types............................................................................................ 1
Guide to Components ................................................................................ 2
Front View...................................................................................................... 2
Side View ....................................................................................................... 3
Control Panel .............................................................................................. 4
Starting the Machine .................................................................................. 6
Turning On the Power .................................................................................... 6
Turning Off the Power .................................................................................... 7
Changing Modes......................................................................................... 8
Reading the Display ................................................................................... 9
Reading the Display and Using Keys............................................................. 9
Standby Display ........................................................................................... 10
Communication Display ............................................................................... 10
Display Prompts........................................................................................... 10
2.Faxing
Transmission Modes................................................................................ 11
Switching between Memory Transmission and Immediate Transmission.... 12
Setting Originals....................................................................................... 13
Placing a Single Original on the Exposure Glass......................................... 14
Loading Originals in the Document Feeder.................................................. 14
Original Sizes Difficult to Detect................................................................... 15
Memory Transmission ............................................................................. 16
Canceling a Memory Transmission ........................................................ 19
Before the Start Key is Pressed................................................................... 19
While the Original is Being Scanned ............................................................ 19
During Transmission .................................................................................... 19
While the Original is Awaiting Transmission ................................................ 20
Immediate Transmission ......................................................................... 21
Canceling an Immediate Transmission.................................................. 23
Before the Start key is Pressed.................................................................... 23
After the Start key is Pressed....................................................................... 23
Scan Settings............................................................................................ 24
Resolution .................................................................................................... 24
Original Type................................................................................................ 25
Image Density (Contrast) ............................................................................. 25
Dialing........................................................................................................ 26
Entering Numbers Directly ........................................................................... 26
Using Quick Dials......................................................................................... 27
Using Speed Dials........................................................................................ 28
Using Groups ............................................................................................... 29
vii
Reception Modes...................................................................................... 31
Selecting the Reception Mode ..................................................................... 31
3.Registering
Own Name/Fax Header/Own Fax Number.............................................. 33
Registering................................................................................................... 34
Editing ......................................................................................................... 35
Deleting........................................................................................................ 36
Quick Dial.................................................................................................. 38
Registering .................................................................................................. 38
Editing ......................................................................................................... 40
Deleting ....................................................................................................... 41

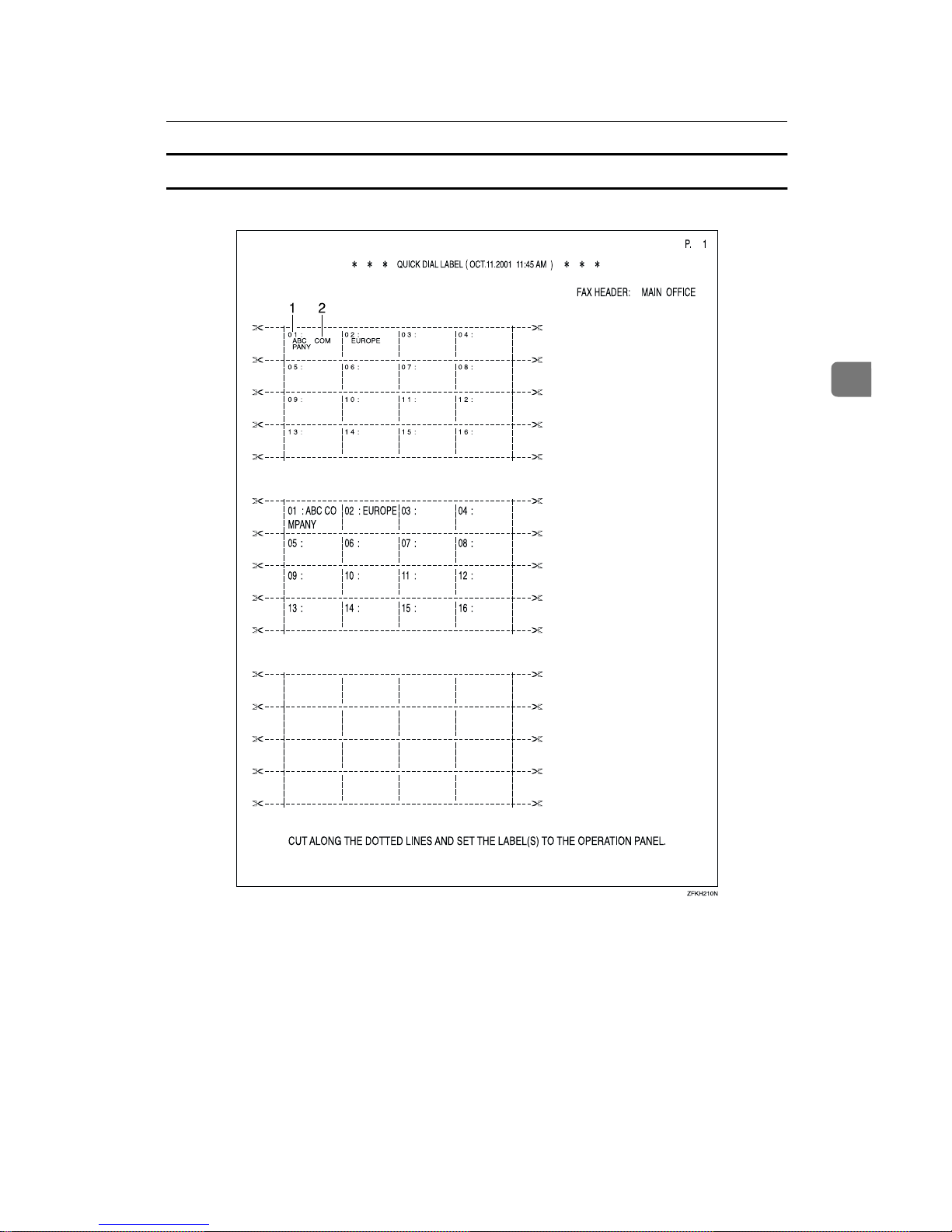

Quick Dial Key Label (Dial label).................................................................. 42
Speed Dial ................................................................................................. 44
Registering .................................................................................................. 44
Editing .......................................................................................................... 46
Deleting ....................................................................................................... 47
Groups....................................................................................................... 49
Registering .................................................................................................. 49
Editing .......................................................................................................... 52
Deleting........................................................................................................ 55
Entering Characters ................................................................................. 59
Available Characters .................................................................................... 59
Keys ............................................................................................................. 59
How to Enter Characters.............................................................................. 60
4.Troubleshooting
Adjusting Volume ..................................................................................... 61
Error Messages ........................................................................................ 63
When the {{{{Facsimile}}}} key is Lit in Red..................................................... 64
When the Receive File Indicator is Lit .................................................... 65
Solving Problems ..................................................................................... 66
INDEX......................................................................................................... 67
´ADVANCED FEATURES are in second section.
viii
1
1. Getting Started
Machine Types
This machine comes in three models.
Model A Model B
Type1 Type1 Type2
Copy Speed 12 copies/minute
(A4, 8
1
/2"×11" )
13 copies/minute
(A4, 81/2"×11" )
13 copies/minute
(A4, 81/2"×11" )
Paper Capacity for
Bypass Tray
1 sheet 100 sheets 100 sheets
Paper Tray Unit Not available Option Option
Fax Unit Option Option Standard
Document Feeder Option Option Standard
Getting Started
2
1
Guide to Components
Front View
Following illustration is for Model B.
1.
Exposure Glass Cover
Lower the Exposure Glass Cover over
originals placed on the exposure glass.
2.
Document Feeder (ADF) (Option
for Type1)
Originals will be fed automatically.
3.
Exposure Glass
Place the original face down on the upper
left corner of the exposure glass, aligning
the upper left corner with the reference
mark. Close the exposure glass cover
when you set a document on the exposure glass.
4.
Handset (Option)
This permits voice communication.
5.
main power switch
If the machine does not operate after
turning on the operation switch, check if
the main power switch is turned on. If it
is off, turn it on. However, if the machine
is installed with the fax option, do not
turn the main power switch off.
Note
❒ The main power switch is normally
set by your service representative. Do
not touch this switch.
❒ When you press the operation switch
and there is still no power, turn on the
main power switch.
❒ If you leave the main power switch off
for more than 12 hours, all files in
memory are lost.
Guide to Components
3
1
6.
Operation switch
Press this switch to turn the power on
(the On indicator lights up). To turn the
power off, press this switch again (the On
indicator goes off). See p.6 “Turning On
the Power”.
7.
Paper Tray
Set paper here.
8.
Paper Tray Unit (Option for Mod-
el B Only)
You can set more paper here.
Side View
1.
Bypass Tray
A fax message can be printed on the paper placed here. (Model B only)
2.
External Telephone Connector
3.
G3 Line Connector
Getting Started
4
1
Control Panel
1.
Receive File Indicator
Lights when a message has been received
into memory.
2.
Communicating Indicator
Lights during transmission or reception.
3.
{{{{Job Information}}}} key
Press to search for information on a specific job.
4.
{{{{Transmission Option}}}} key
Press to change the transmission option
settings. The indicator lights when option settings are changed.
5.
{{{{Facsimile}}}} key
Press to switch to Facsimile mode.
6.
{{{{Speed Dial}}}} key
Press to select a Speed Dial.
7.
Indicator
The indicator shows errors or the status
of the machine.
8.
{{{{Cancel}}}} key
Press to cancel an operation or return to
the previous display.
9.
LCD display
This guides you through tasks and informs you of the machine status. A message appears here.
10.
0000 1111 keys
Press to move the cursor or select functions.
11.
{{{{OK}}}} key
Press to answer " Yes " to a question displayed on the display.
12. {
{{
{User Tools}}}} key
Press to enter User Tools mode. These
tools allow you to customize the default
settings.
13.
{{{{Clear/Stop}}}} key
Clear:
Deletes one character or digit.
Stop:
Interrupts the current operation (trans-
mission, scanning, copying or printing).
14.
{{{{Clear Modes}}}} key
15.
Main Power Indicator
16.
On Indicator
17.
Quick Dial keys
Use to dial numbers at a single touch or
to enter letters and symbols. Also use for
the Group Dial function.
Control Panel
5
1
18.
User Function keys
Each of these can be programmed for
rapid access to frequently used functions.
❖❖❖❖ Functions Programmed by Default
19.
{{{{Resolution}}}} key
Press to switch between Standard, Detail
and Fine. When the indicator is not lit,
Standard is selected.
20.
{{{{Memory Trans.}}}} key
Press this key to toggle between Memory
Transmission ( Memory Trans. ) and Im-
mediate Transmission ( Immediate
Trans ) modes.
When the indicator is not lit, Immediate
Transmission is selected, and when the
indicator is lit, Memory Transmission is
selected.
21.
{{{{Pause/Redial}}}} key
Pause:
Inserts a pause when you are dialing or
storing a fax number. A pause cannot be
inserted as the first digit.
Redial:
Press to redial one of the last ten num-
bers.
22.
{{{{On Hook Dial}}}} key
Use to dial a number from the numeric
keypad without having to lift the handset.
23.
{{{{Image Density}}}} keys (iiii and jjjj)
Use to change the setting of image density.
24.
{{{{Original Type}}}} key
Press to select original type, Text or Photo. When the original type is selected, the
corresponding indicator lights.
25.
Number keys
Use to dial fax numbers or enter the number of copies.
26. {
{{
{Start}}}} key
Press to start all tasks.
27.
Operation switch
Press this switch to turn the power on
(the On indicator goes on). To turn the
power off, press this switch again (the On
indicator goes off).
Key Function
F1 Manual Reception
F2 Reception Mode
F3 Print Journal
Getting Started
6
1
Starting the Machine
To start the machine, turn on the operation switch.
Note
❒ This machine automatically enters
Energy Saver mode or turns itself
off if you do not use the machine
for a while. See Chapter 2 “Settings
You Can Change with the User
Tools” in the System Settings manual.
----Power switches
This machine has two power switches: See p.2 “Guide to Components”.
❖❖❖❖ Operation switch
Turn on this switch to activate the
machine. When the machine has
warmed up, you can make copies
or send faxes.
❖❖❖❖ Main power switch
If the machine does not operate after turning on the operation
switch, check if the main power
switch is turned on. If it is off, turn
it on.
Important
❒ Fax files stored in memory can be
kept for 12 hours after the main
power is switched off if the machine has been on for at least a
week. However, if the surrounding temperature is low, the storage
time might be shorter.
❒ If you leave the main power switch
off for more than 12 hours, all fax
files in memory are deleted. See p.7
“Turning Off the Power”.
Turning On the Power
AAAA
Confirm that the power cord is
plugged into the wall outlet firmly and the main power switch is
on.
BBBB
Turn on the operation switch. The
On indicator should light.
The panel display will turn on.
Note
❒ If nothing happens when you
turn on the operation switch,
make sure the main power
switch is turned on.
Starting the Machine
7
1
Turning Off the Power
AAAA
Turn off the operation switch.
The On indicator will go out.
Important
❒ Before you unplug the power
cord, confirm that the display in
Facsimile mode indicates that
the remaining memory space is
100%.
Turning Off the main power switch
When the main power switch is
turned off while using the fax function, waiting fax jobs and print jobs
may be canceled, and incoming fax
documents cannot be received. Normally, only the service representative
operates this switch. When you have
to turn off this switch for some reason, follow the procedure below.
Important
❒ Make sure that 100% is shown on
the Fax standby display before you
turn the main power switch off or
you unplug the power cord. Fax
files programed in memory will be
deleted 12 hours after you turn the
main power switch off or you unplug the power cord.
AAAA
Make sure the On indicator is off.
BBBB
Turn off the main power switch.
The main power indicator turns
off.
Getting Started
8
1
Changing Modes
This machine is both a fax and a copier. If the machine is not in Facsimile mode,
press the {{{{Facsimile}}}} key to use fax function.
You can set this machine to display facsimile mode immediately after the operation switch is turned on. See Chapter 2 “Settings You Can Change with the User
Tools” in the System Settings manual.
Limitation
❒ You cannot switch modes under the following circumstances:
• While scanning with fax
• During Immediate Transmission
• While editing the System Settings
• While using On Hook Dial
Reading the Display
9
1
Reading the Display
The machine status and instructions are shown on the display.
Note
❒ All procedures in this manual assume you are in Facsimile mode. If the ma-
chine is not in Facsimile mode, press the {{{{Facsimile}}}} key to change to Facsimile mode. You can have the machine start in Facsimile mode. See Chapter 2
"Settings You Can Change with the User Tools" in the System Settings.
❒ This machine automatically returns to the standby mode if you do not use the
machine for a certain period of time. You can select the period in Fax Reset
Timer. See Chapter 5 “ Setting the Fax Reset Timer” in the Advanced Features
manual.
Reading the Display and Using Keys
A Display for the machine status or currently selected function.
B Display for the messages.
Items which can be selected or specified.
C Display for items which can be selected.
Note
❒ Press 0 or 1 to display another function on the LCD display or move the
brackets to select another values.
❒ Press the {{{{OK}}}} key to set a selected function or entered value, and return
to the previous display.
❒ Press the {{{{Cancel}}}} key to cancel the selected function or entered value, and
return to the previous display.
❒ Press the {{{{Clear Modes}}}} key to cancel the settings and return to the initial
display.
Getting Started
10
1
Standby Display
While the machine is in standby mode
(immediately after it is turned on or after the {{{{Cancel}}}} key is pressed), the following display is shown.
Note
❒ To return the machine to standby
mode, do one of the following:
• If you have set the original and
have not pressed the {{{{Start}}}}
key, remove the original.
• If you have not set an original,
press the {{{{Cancel}}}} key.
• If you are in User Tools mode,
press the {{{{User Tools}}}} key or the
{{{{Cancel}}}} key.
Communication Display
While the machine is communicating,
the status is displayed.
❖❖❖❖ Display during Memory Transmission
or Reception:
The destination's name or fax
number appears on the top of the
LCD display.
Note
❒
Even when the machine is sending
or receiving a fax message
from/into memory, you can still
scan the next original into memory.
❖❖❖❖ Immediate Transmission:
Display Prompts
Depending on the situation, the machine will show various prompts on
the display.
❖❖❖❖ Instructions and Requests
❖❖❖❖ Questions
❖❖❖❖ Selections
❖❖❖❖ Status
11
2. Faxing
Transmission Modes
There are two types of transmission.
❖❖❖❖ Memory Transmission
When a fax document is stored in
memory, then transmission starts
automatically.
This makes it convenient when
you would like to take documents
back in a hurry.
You can send the same message to
more than one destination in a single operation. This technique is referred to as Broadcasting.
❖❖❖❖ Immediate Transmission
The machine dials immediately,
and transmits the fax while scanning.
It is convenient when you would
like to send a document immediately, and would like to check
whether you have successfully
connected with the other party's
fax machine.
A fax document is not stored in
memory.
Important
❒ If there is a power failure, the pow-
er switch is turned off, or the plug
is pulled out for more than 12
hours, all documents stored in
memory are deleted. As soon as
power is restored, the Power Failure Report is printed to help you
identify deleted documents. See
Chapter 7 "Power Failure Report"
in the Advanced Features manual.
Transmitter (This machine)
Receiver
Receiver
Receiver
GDRH230E
GDRH240E
Transmitter
(This machine)
Receiver
Loading...
