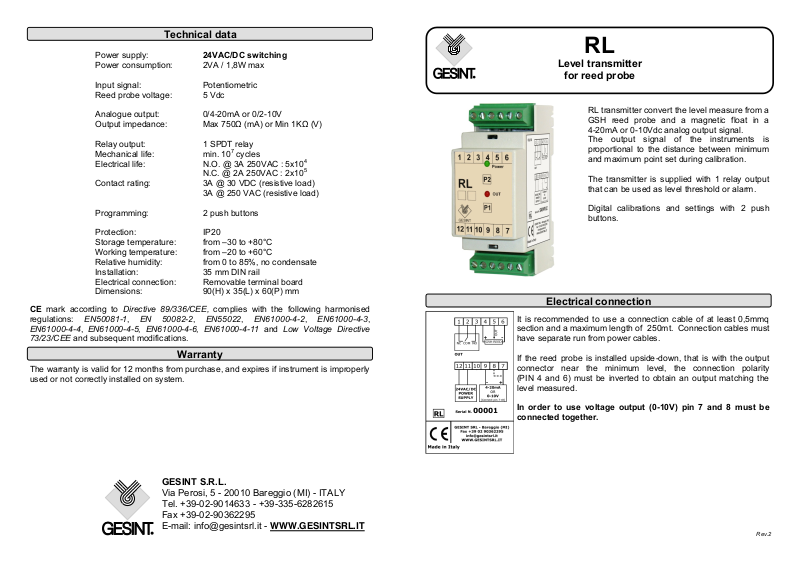

Gesint RL User Manual

GESINT

®

Technical data

GESINT

®

Power supply: 24VAC/DC switching
Power consumption: 2VA / 1,8W max

Input signal: Potentiometric
Reed probe voltage: 5 Vdc

Analogue output: 0/4-20mA or 0/2-10V
Output impedance: Max 750Ω (mA) or Min 1KΩ (V)

Relay output: 1 SPDT relay
Mechanical life: min. 107 cycles
Electrical life: N.O. @ 3A 250VAC : 5x104
N.C. @ 2A 250VAC : 2x105
Contact rating: 3A @ 30 VDC (resistive load)
3A @ 250 VAC (resistive load)

Programming: 2 push buttons

Protection: IP20
Storage temperature: from –30 to +80°C
Working temperature: from –20 to +60°C
Relative humidity: from 0 to 85%, no condensate
Installation: 35 mm DIN rail
Electrical connection: Removable terminal board
Dimensions: 90(H) x 35(L) x 60(P) mm

CE mark according to Directive 89/336/CEE, complies with the following harmonised
regulations: EN50081-1, EN 50082-2, EN55022, EN61000-4-2, EN61000-4-3,

EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-11 and Low Voltage Directive
73/23/CEE and subsequent modifications.

Warranty

The warranty is valid for 12 months from purchase, and expires if instrument is improperly
used or not correctly installed on system.

RL

Level transmitter

for reed probe

RL transmitter convert the level measure from a
GSH reed probe and a magnetic float in a
4-20mA or 0-10Vdc analog output signal.
The output signal of the instruments is
proportional to the distance between minimum
and maximum point set during calibration.

The transmitter is supplied with 1 relay output
that can be used as level threshold or alarm.

Digital calibrations and settings with 2 push
buttons.

Electrical connection

It is recommended to use a connection cable of at least 0,5mmq
section and a maximum length of 250mt. Connection cables must
have separate run from power cables.

If the reed probe is installed upside-down, that is with the output
connector near the minimum level, the connection polarity
(PIN 4 and 6) must be inverted to obtain an output matching the
level measured.

In order to use voltage output (0-10V) pin 7 and 8 must be
connected together.

GESINT S.R.L.

Via Perosi, 5 - 20010 Bareggio (MI) - ITALY
Tel. [phone]
Fax [phone]
E-mail: [e-mail] - WWW.GESINTSRL.IT

Rev.2

LED signalling

GREEN LED (Power):

 ON: transmitter is powered and working
 Fast blinking: programming mode
 Slow blinking: empty or invalid data in eeprom, transmitter need to be calibrated

(both output and level)

RED LED (Out1 - Out2):

 ON: active level threshold
 Blinking: programming mode

0-100% level calibration

In order to access the 2 programming buttons, remove the front cover of the transmitter.
Then connect a reference multimeter to the analogue output pins.

1) Press P1 button for at least 3 seconds, until GREEN led start blinking, and RED
leds blink alternatively.

2) Set fluid level at minimum and wait until value on multimeter is stabilized. Then
press and release P1 button.

3) Now only one of the two RED leds is blinking. Set fluid level at maximum and wait
until value on multimeter is stabilized. Then press and release P2 button.

4) RED leds are now blinking together. Press both P1 and P2 and release them so
that transmitter writes in memory the data acquired.

It is possible to acquire only of the two level settings, by pressing P1 button for minimum
level or P2 button for maximum level and then confirm by pressing both P1 and P2.

Relay settings

It is possible to use the relay output as level threshold or alarm in case the reed probe is
not sensing the magnetic float.

In order to access the 2 programming buttons, remove the front cover of the transmitter.
Then connect a reference multimeter to the analogue output pins.

1) Press P2 button for at least 3 seconds, until GREEN led start blinking, and RED
leds blink alternatively.

2) - Use relay as level threshold: Set fluid at the desired level and wait until value

on multimeter is stabilized. Now press and release P1.

- Use relay as alarm: press and release P2.

3) To store acquired relay setting press and release both P1 and P2.

Is it possible to disable relay on the transmitter by executing only step 1) and 3).

4-20mA or 0-10V output calibration

During manufacturing and factory testing, the transmitter is calibrated for 4-20mA or
0-10V output using precise instruments. This calibration should be executed only if a
different output type or range is needed.

During this calibration phase, relay output will be activated for diagnostic purpose. It is
recommended to disconnect wires from pin 1, 2 and 3.

In order to access the 2 programming buttons, remove the front cover of the transmitter.
Then connect a reference multimeter to the analogue output pins.

1) While transmitter is powered off, keep pressed both P1 and P2 buttons and then
power on.

2) Keep both buttons pressed for at least 3 seconds, until GREEN led start blinking:
now it’s possible to release them.

3) RED led below P1 is now on, indicating the output calibration corresponding to the
minimum level.

4) Press P2 for increase and P1 for decrease the output value, until you read on
multimeter the needed value (ex. 0,0Vdc or 4,0mA).

5) Now press both P1 and P2 and release them.

6) OUT RED led is now on, indicating the output calibration corresponding to the
maximum level.

7) Press P2 for increase and P1 for decrease the output value, until you read on
multimeter the needed value (ex. 10,0Vdc or 20,0mA).

8) Now press both P1 and P2 and release them.

9) Both RED led remain on for a few seconds while data are stored in the transmitter.

10) Transmitter reset itself and start working.
