GE Security TVC-BIR-HR, TVC-BIR-MR, TVC-BIR-SR Specsheet

GE

Video Surveillance

Security

TruVision™ Line

IR cameras

Standard-Res Fixed Lens Cameras

• TruVision™ Cam IR Bullet (TVC-BIR-SR)

• TruVision™ Dome IR (TVD-TIR-SR)

TruVision™ Line IR Cameras

Mid-Res Varifocal Lens Cameras

• TruVision™ Cam IR Bullet (TVC-BIR-MR)

• TruVision™ Dome IR (TVD-TIR-MR)

High-Res Varifocal Lens Cameras

• TruVision™ Cam IR Bullet (TVC-BIR-HR)

• TruVision™ Dome IR (TVD-TIR-HR)

Overview

The TruVision™ line from GE Security includes a comprehensive family of infrared (IR) cameras for stand­alone or basic integrated installations that are flexible and scalable to accommodate future growth.
Ideal for surveillance system installations ranging from convenience stores to retail mall parking lots, the
TruVision IR line has the right cameras for your job and can help you stay within budget constraints without
compromising security needs.

These flexible cameras can see in total darkness, providing color images by day and black-and-white
images under IR operation in low-light applications. Form factors include omni-directional dome and
traditional bullet cameras. Dome models allow for ceiling or wall mounting while still maintaining a level field
of view. Single gang adaptor plates are included with the MR and HR dome models, while the bullet models
offer a familiar form factor that can also be ceiling or wall mounted. TruVision IR dome and bullet cameras
are also available in fixed lens and varifocal lens models.

Best of all, the TruVision IR line of cameras is backed by a two-year warranty, valid from the original
purchase date. For superior quality and performance, GE Security delivers the level of products you expect
from a leader in the video surveillance market.

Standard Features

• Balanced IR illumination for optimal viewing in low- to
no-light environments

• Dome and bullet form factors provide flexible installation
options and ensure the right camera for the job

• Up to IP67 ratings for weather-resistant performance
(depending on model)

Application

Built for long-lasting service and plug-and-play
functionality, the TruVision IR line provides a value­based solution that is ideal for applications ranging from
residential to office buildings.

Designed for low-light and complete-darkness
environments, TruVision cameras’ balanced IR capabilities
and multiple resolution options offer the perfect camera

• Flexible resolutions from 380 TVL to 530 TVL so you can
choose the level of performance required for the job

• Varifocal and fixed lens options available

• Compatible with all analog CCTV recording devices

for each situation. With weather-resistant options that are
well suited for indoor and outdoor applications, TruVision
cameras represent sensible, secure video surveillance you
can depend on.

and equipment

TruVision IR Cameras Application Matrix

GE SKU TVC-BIR-SR TVD-TIR-SR TVC-BIR-MR TVD-TIR-MR TVC-BIR-HR TVD-TIR-HR

Recommended Use*

Residential

Retail

Office building

School

Parking lot

* Although recommended use is indoor, TruVision™ IR Domes (TVD-TIR-SR, TVD-TIR-MR, TVD-TIR-HR) are rated IP66 and above and can be used in outdoor applications if desired.

Outdoor Indoor Outdoor Indoor Indoor

Outdoor Indoor Outdoor Indoor Indoor

Outdoor Indoor Outdoor Indoor Outdoor Indoor

Indoor Indoor Indoor

Outdoor Outdoor

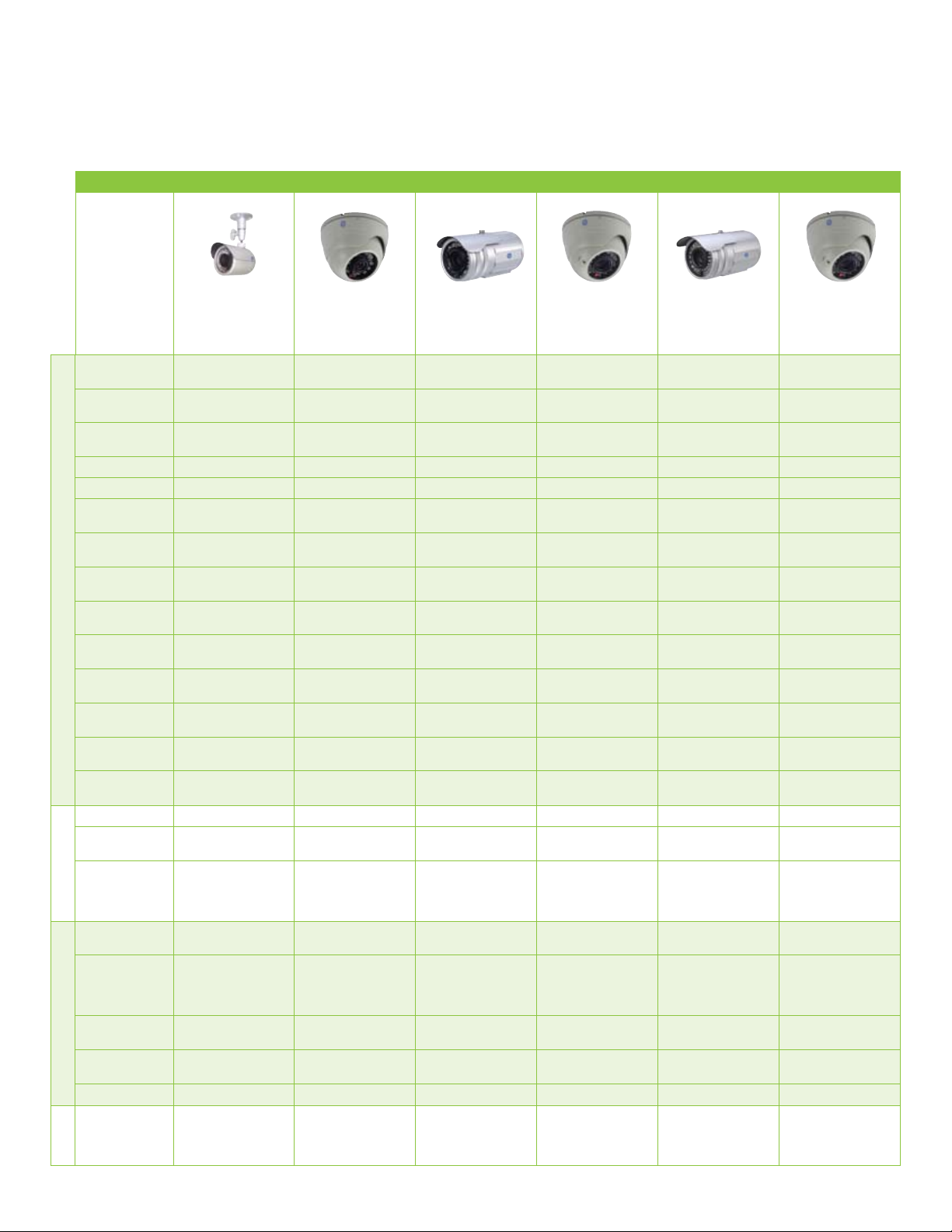

TruVision™ IR Camera Comparisons

GE SKU TVC-BIR-SR TVD-TIR-SR TVC-BIR-MR TVD-TIR-MR TVC-BIR-HR TVD-TIR-HR

GE Description

TruVision™ Cam IR

Pick-up device

Total pixels

Effective pixels

Resolution

Sync. system

Scanning system

S/N ratio

Electronic shutter

Camera

Min. illumination

Video output

IR distance

IR trigger

Lens type

Single gang
mounting plate

Power source

Power
consumption

Electrical

Current

Weight

Dimensions

Operation
temperature

Storage

Environmental & Physical

temperature

Weather resistant

Regulatory
certification

Regulatory

Bullet, Standard-Res
Fixed Lens Camera,
12VDC only

1/3” Interline
transfer CCD

NTSC: 537(H) x 505(V)
PAL: 537(H) x 505(V)

NTSC: 510(H) x 492(V)
PAL: 500(H) x 582(V)

380 TV lines 380 TV lines 480 TV lines 480 TV lines 530 TV lines 530 TV lines

2.1 internal 2.1 internal 2.1 internal 2.1 internal 2.1 internal 2.1 internal

NTSC 525 Lines/30 Fields
PAL 625 Lines/50 Fields

More than 48dB
(AGC OFF)

Auto 1/60 (1/50)­1/100,000 sec.

0.4 lux color / F2.0

0.00 lux IR ON

Composite 1.0 Vp-p /
75 ohm

50 ft./15 m
(18 pcs IR LED)

2.6 lux/2.7 lux
IR ON/OFF

Board lens:

4.3 mm

N/A No N/A Yes N/A Yes

12VDC 12VDC 24VAC/12VDC 12VDC 24VAC/12VDC 12VDC

6.0W (Max) 5.9W (Max) 10W (Max) 5.9W (Max) 14.3W (Max) 6.2W (Max)

110mA (IR OFF)
350mA (Max)

11 oz./
.31 kg

2.24 in. (W) x 2.42 in. (H) x

3.95 in. (D)
(57 mm x 61.5 mm x

100.3 mm)

-10 to 50º C
14 to 122º F

-20 to 70º C

-4 to 158º F

IP67 IP67 IP67 IP66 IP67 IP66

CE/FCC
RoHS
DecaBDE
C-Tick

TruVision™ Dome IR,
Standard-Res Fixed Lens
Camera, 12VDC only

1/3” Interline
transfer CCD

NTSC: 537(H) x 505(V)
PAL: 537(H) x 505(V)

NTSC: 510(H) x 492(V)
PAL: 500(H) x 582(V)

NTSC 525 Lines/30 Fields
PAL 625 Lines/50 Fields

More than 52dB
(AGC OFF)

Auto 1/60 (1/50)­1/100,000 sec.

0.4 lux color / F2.0

0.00 lux IR ON

Composite 1.0 Vp-p /
75 ohm

33 ft./10 m
(14 pcs IR LED)

2.6 lux/2.7 lux
IR ON/OFF

Board lens:

4.3 mm

110mA (IR OFF)
250mA (Max)

14 oz./
.39 kg

3.7 in. (W) x 2.72 in. (H)
(94 mm x 69 mm)

-10 to 50º C
14 to 122º F

-20 to 70º C

-4 to 158º F

CE/FCC
RoHS
DecaBDE
C-Tick

TruVision™ Cam IR Bullet,
Mid-Res Varifocal Lens
Camera, 24VAC/12VDC

1/3” Interline
transfer CCD

NTSC: 811(H) x 508(V)
PAL: 795(H) x 596(V)

NTSC: 768(H) x 494(V)
PAL: 752(H) x 582(V)

NTSC 525 Lines/30 Fields
PAL 625 Lines/50 Fields

More than 48dB
(AGC OFF)

Auto 1/60 (1/50)­1/100,000 sec.

0.3 lux color / F2.0

0.00 lux IR ON

Composite 1.0 Vp-p /
75 ohm

82 ft./25 m
(20 pcs IR LED)

2.6 lux/2.7 lux
IR ON/OFF

Varifocal lens:

3.5–12 mm

12VDC: 250mA (IR OFF)
12VDC: 740mA (Max)
24VAC: 290mA (IR OFF)
24VAC: 650mA (Max)

26 oz./
.75 kg

2.99 in. (W) x 3.27 in. (H) x

6.14 in. (D)
(76 mm x 83 mm x
156 mm)

-10 to 50º C
14 to 122º F

-20 to 70º C

-4 to 158º F

CE/FCC
RoHS
DecaBDE
C-Tick

TruVision™ Dome IR,
Mid-Res Varifocal Lens
Camera, 12VDC only

1/3” Interline
transfer CCD

NTSC: 811(H) x 508(V)
PAL: 795(H) x 596(V)

NTSC: 768(H) x 494(V)
PAL: 752(H) x 582(V)

NTSC 525 Lines/30 Fields
PAL 625 Lines/50 Fields

More than 49dB
(AGC OFF)

Auto 1/60 (1/50)­1/100,000 sec.

0.3 lux color / F2.0

0.00 lux IR ON

Composite 1.0 Vp-p /
75 ohm

66 ft./20 m
(28 pcs IR LED)

3.1 lux/3.7 lux
IR ON/OFF

Varifocal lens:

3.5–8 mm

120mA (IR OFF)
400mA (Max)

26 oz./
.76 kg

4.69 in. (W) x 3.25 in. (H)
(119 mm x 82.5 mm)

-10 to 50º C
14 to 122º F

-20 to 70º C

-4 to 158º F

CE/FCC
RoHS
DecaBDE
C-Tick

TruVision™ Cam IR Bullet,
High-Res Varifocal Lens
Camera, 24VAC/12VDC

1/3” Interline
transfer CCD

NTSC: 811(H) x 508(V)
PAL: 795(H) x 596(V)

NTSC: 768(H) x 494(V)
PAL: 752(H) x 582(V)

NTSC 525 Lines/30 Fields
PAL 625 Lines/50 Fields

More than 48dB
(AGC OFF)

Auto 1/60 (1/50)­1/100,000 sec.

0.5 lux color / F2.0

0.00 lux IR ON

Composite 1.0 Vp-p /
75 ohm

180 ft./55 m
(40 pcs IR LED)

3.1 lux/3.7 lux
IR ON/OFF

Varifocal lens:
6–50 mm

12VDC: 260mA (IR OFF)
12VDC: 1.2A (Max)
24VAC: 290mA (IR OFF)
24VAC: 960mA (Max)

33 oz./
.93 kg

3.46 in. (W) x 3.74 in. (H) x

6.93 in. (D)
(88 mm x 95 mm x
176 mm)

-10 to 50º C
14 to 122º F

-20 to 70º C

-4 to 158º F

CE/FCC
RoHS
DecaBDE
C-Tick

TruVision™ Dome IR,
High-Res Varifocal Lens
Camera, 12VDC only

1/3” Interline
transfer CCD

NTSC: 811(H) x 508(V)
PAL: 795(H) x 596(V)

NTSC: 768(H) x 494(V)
PAL: 752(H) x 582(V)

NTSC 525 Lines/30 Fields
PAL 625 Lines/50 Fields

More than 49dB
(AGC OFF)

Auto 1/60 (1/50)­1/100,000 sec.

0.5 lux color / F2.0

0.00 lux IR ON

Composite 1.0 Vp-p /
75 ohm

66 ft./20 m
(28 pcs IR LED)

3.1 lux/3.7 lux
IR ON/OFF

Varifocal lens:

3.5–8 mm

150mA (IR OFF)
430mA (Max)

26 oz./
76 kg

4.69 in. (W) x 3.25 in. (H)
(119 mm x 82.5 mm)

-10 to 50º C
14 to 122º F

-20 to 70º C

-4 to 158º F

CE/FCC
RoHS
DecaBDE
C-Tick

GE

2.24 in.

(57 mm)

3.21 in.

(81.6 mm)

TVC-BIR-SR

3.95 in.

(100.3 mm)

2.42 in.
(61.5 mm)

2.24 in.

(57 mm)

3.21 in.

(81.6 mm)

TVC-BIR-MR

TVC-BIR-SR

6.14 in.

(156 mm)

5.5 in.

(139.7 mm)

3.27 in.

(83 mm)

3.95 in.

(100.3 mm)

2.42 in.
(61.5 mm)

2.99 in.

(76 mm)

2.24 in.

(57 mm)

3.21 in.

(81.6 mm)

3.7 in.

(94 mm)

2.72 in.

(69 mm)

TVD-TIR-SR

TVC-BIR-MR

TVC-BIR-SR

6.14 in.

(156 mm)

5.5 in.

(139.7 mm)

3.27 in.

(83 mm)

3.95 in.

(100.3 mm)

2.42 in.
(61.5 mm)

2.99 in.

(76 mm)

2.24 in.

(57 mm)

3.21 in.

(81.6 mm)

3.7 in.

(94 mm)

2.72 in.

(69 mm)

TVD-TIR-MR/TVD-TIR-HR

TVD-TIR-SR

TVC-BIR-MR

TVC-BIR-SR

3.25 in.
(82.5 mm)

4.69 in.

(119 mm)

6.14 in.

(156 mm)

5.5 in.

(139.7 mm)

3.27 in.

(83 mm)

3.95 in.

(100.3 mm)

2.42 in.
(61.5 mm)

2.99 in.

(76 mm)

2.24 in.

(57 mm)

3.21 in.

(81.6 mm)

3.7 in.

(94 mm)

2.72 in.

(69 mm)

TVD-TIR-MR/TVD-TIR-HR

TVD-TIR-SR

TVC-BIR-MR

TVC-BIR-SR

3.25 in.
(82.5 mm)

4.69 in.

(119 mm)

6.14 in.

(156 mm)

5.5 in.

(139.7 mm)

3.27 in.

(83 mm)

3.95 in.

(100.3 mm)

2.42 in.
(61.5 mm)

2.99 in.

(76 mm)

TVC-BIR-HR

6.93 in.

(176 mm)

6.13 in.

(155.7 mm)

3.74 in.

(95 mm)

3.46 in.

(88 mm)

Security

North America
T 503-885-5700
T 888-GE-SECURITY
888-437-3287

Asia
T 852-2907-8108
F 852-2142-5063

Australia
T 61-3-9239-1200
F 61-3-9239-1299

Europe
T 32-2-725-11-20
F 32-2-721-40-47

Latin America
T 305-593-4301
F 305-593-4300

gesecurity.com

Specifications subject to
change without notice.

© 2008 General Electric Company
All Rights Reserved

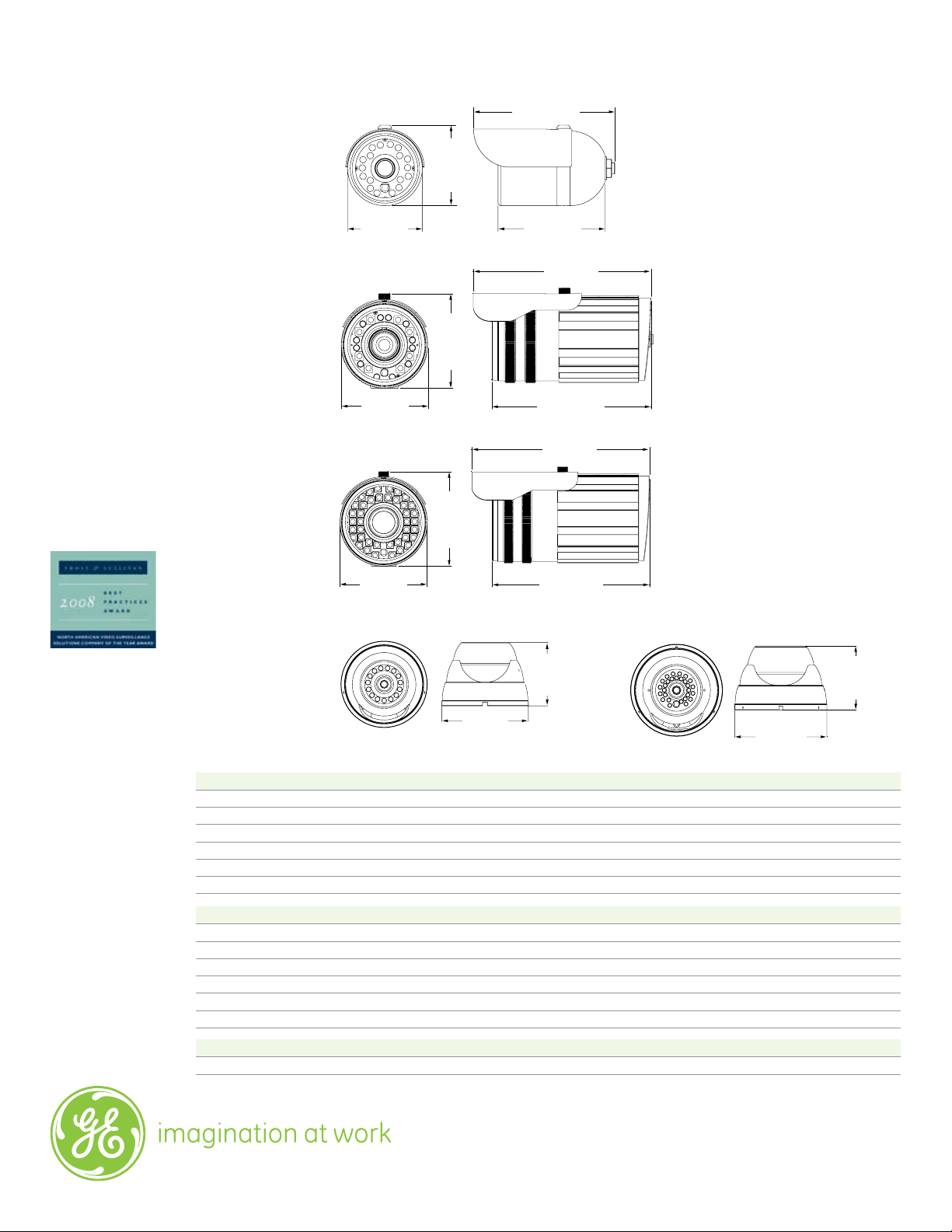

Dimensional Diagrams

In 2008 GE Security
was named the
North American Video
Surveillance Solutions
Company of the Year
by Frost & Sullivan.

Ordering Information

NTSC

TVC-BIR-SR TruVision™ Cam IR Bullet Standard-Res Camera, 380 TVL Color, 4.3 mm Fixed Lens, 49.2 ft./15 m IR Range, 12VDC only
TVD-TIR-SR TruVision Dome IR Standard-Res Camera, 380 TVL Color, 4.3 mm Fixed Lens, 32.8 ft./10 m IR Range, 12VDC only
TVC-BIR-MR TruVision Cam IR Bullet Mid-Res Camera, 480 TVL Color, 3.5–12 mm Varifocal Lens, 82 ft./25 m IR Range, 24VAC/12VDC
TVD-TIR-MR TruVision Dome IR Mid-Res Camera, 480 TVL Color, 3.5–8.0 mm Varifocal Lens, 65.6 ft./20 m IR Range, 12VDC only
TVC-BIR-HR
TVD-TIR-HR TruVision Dome IR High-Res Camera, 530 TVL Color, 3.5–8.0 mm Varifocal Lens, 65.6 ft./20 m IR Range, 12VDC only

PAL

TVC-BIR-SR-P TVC-BIR-SR-P
TVD-TIR-SR-P TruVision
TVC-BIR-MR-P
TVD-TIR-MR-P TruVision Dome IR Mid-Res Camera, 480 TVL Color, 3.5–8.0 mm Varifocal Lens, 65.6 ft./20 m IR Range, 12VDC only, PAL
TVC-BIR-HR-P
TVD-TIR-HR-P TruVision Dome IR High-Res Camera, 530 TVL Color, 3.5–8.0 mm Varifocal Lens, 65.6 ft./20 m IR Range, 12VDC only, PAL

Accessories

TVC-BIR-WM Wall Mount Bracket for TruVision Cam IR Bullet Cameras

TruVision Cam IR Bullet High-Res Camera, 530 TVL Color, 6.0–50.0 mm Varifocal Lens, 180.4 ft./55 m IR Range, 24VAC/12VDC

Dome IR Standard-Res Camera, 380 TVL Color, 4.3 mm Fixed Lens, 32.8 ft./10 m IR Range, 12VDC only, PAL

TruVision Cam IR Bullet Mid-Res Camera, 480 TVL Color, 3.5–12 mm Varifocal Lens, 82 ft./25 m IR Range, 24VAC/12VDC, PAL

TruVision Cam IR Bullet High-Res Camera, 530 TVL Color, 6.0–50.0 mm Varifocal Lens, 180.4 ft./55 m IR Range, 24VAC/12VDC, PAL

810-3100 2008/11 (55601)
