NetworX™ Series
NX-1300E LED Keypad
User’s manual
SECURITY SYSTEM NOTES
Installing/Service Company _________________________________
For Service Call __________________________________________
Central Station ___________________________________________
Duress Code ____________________
Function Code Controls Function
This system is is not partitioned.
EMERGENCY ACTIVATION KEYS (check if enabled)
Fire Auxiliary Emergency Police
Abort Delay (s) Cancel Alarm Forced Arming (s)
Auto Bypass (s) Change Partitions Group Bypass (s)
Auto Instant Chime Quick Arm (s)
Battery Test Communicator Test Re Exit
Siren Test
(s) These features should not be enabled on UL listed systems.
Exit Delay Time __________ Secondary Exit Delay Time ________
Entry Delay Time _________ Secondary Entry Delay Time _______
01 _______________ 09 _______________ 17 _______________
02 _______________ 10 _______________ 18 _______________
03 _______________ 11 _______________ 19 _______________
04 _______________ 12 _______________ 20 _______________
05 _______________ 13 _______________ 21 _______________
06 _______________ 14 _______________ 22 _______________
07 _______________ 15 _______________ 23 _______________
08 _______________ 16 _______________ 24 _______________
FUNCTION CODES
PROGRAMMED FUNCTIONS
ENTRY / EXIT DELAY TIMES
ZONE DESCRIPTIONS
Page 1
THIS MANUAL IS FURNISHED TO HELP YOU UNDERSTAND YOUR
SECURITY SYSTEM AND BECOME PROFICIENT IN ITS OPERATION.
ALL USERS OF YOUR SECURITY SYSTEM SHOULD READ AND FOLLOW
THE INSTRUCTIONS AND PRECAUTIONS IN THIS BOOKLET AND, IF
POSSIBLE, PRACTICE ON THE KEYPAD CONTROL WHILE YOUR
PROFESSIONAL INSTALLER IS ON SITE. FAILURE TO DO SO COULD
RESULT IN THE SECURITY SYSTEM NOT WORKING PROPERLY. THIS
BOOKLET SHOULD BE KEPT IN AN ACCESSIBLE LOCATION FOR THE
LIFE OF THE SECURITY SYSTEM. IF YOU DO NOT UNDERSTAND ANY
PART OF THIS MANUAL YOU SHOULD NOTIFY YOUR INSTALLING
COMPANY SHOWN ON PAGE 1.
The SECURITY CONTROL can be turned on (ARMED) and off (DISARMED) by
entering a 4 or 6 digit code into the Keypad Control, which is similar to a
telephone keypad. If your Security Control has been so programmed, you
may be able to turn on (ARM) your System by simply pressing the [STAY] or
[EXIT] key. The system must always be disarmed using a 4 or 6 digit code.
The LED keypad includes up to 35 lights and a built-in electronic sounder.
These provide specific information relating to the status of the security system
which is described in the booklet. Understanding what the lights and sounds
mean will help you to easily operate your system.
Keep in mind, the level of security you will obtain with this system
relates specifically with two major factors:
1. The quantity, quality and placement of security devices attached to
this system.
2. The knowledge you have of the security system and how that
You should be aware of the following facts when preparing a
safety/security plan for your home/business.
Your security system is an electronic device and is subject to failure or
Your system should be tested weekly.
Your system will not work without power.
Warning devices will need to be loud enough, wired correctly, and properly
Smoke and heat detectors may not detect heat and smoke in all situations.
Use qualified security professionals to install and maintain your security
It may be possible to arm the security system without the backup battery
Care should be taken to plug in and restrain the AC Transformer after
Please read the following information and instructions carefully
before operating your security control system.
knowledge is utilized in a weekly test of the complete system.
malfunction. Do not rely on it as your single source of security.
placed to provide notification of an alarm event.
system.
connected. Your periodic test should be done with AC Power removed to
verify the battery is connected and adequately charged.
testing.
Page 2
TABLE OF CONTENTS
GLOSSARY OF TERMS ...........................................................4
UNDERSTANDING THE LIGHTS .............................................5
ARMED LIGHT ..................................................................................5
BYPASS LIGHT .................................................................................5
CANCEL LIGHT .................................................................................5
CHIME LIGHT ...................................................................................5
EXIT LIGHT......................................................................................5
FIRE LIGHT......................................................................................5
INSTANT LIGHT................................................................................6
POWER LIGHT ..................................................................................6
READY LIGHT...................................................................................6
STAY LIGHT .....................................................................................6
ZONE LIGHT ....................................................................................6
EMERGENCY ACTIVATION KEYS............................................7
KEYPAD FUNCTIONS.............................................................7
ARMING YOUR SYSTEM IN THE “AWAY” MODE .....................................7
ARMING YOUR SYSTEM IN THE “STAY” MODE ......................................8
USING THE QUICK ARM ....................................................................9
CHANGING MODES WHILE SYSTEM IS ARMED .....................................9
DISARMING THE SYSTEM ..................................................................9
CANCEL / ABORT FEATURE ...............................................................9
BYPASSING ZONES......................................................................... 12
GROUP BYPASS .............................................................................. 12
UNBYPASSING ...............................................................................12
TURNING THE DOOR CHIME ON AND OFF .......................................... 12
CHANGING USER CODES .....................................................13
ASSIGNING USER CODE AUTHORITY LEVELS......................13
OTHER KEYPAD FUNCTIONS ...............................................15
SETTING THE KEYPAD TONE ............................................................15
VIEW ALARM MEMORY ....................................................................15
TEST FUNCTION ............................................................................15
RESET FUNCTION ...........................................................................16
SET SYSTEM DATE.......................................................................... 16
SETTING THE SYSTEM CLOCK ..........................................................16
SETTING THE LIGHTING.................................................................. 17
SERVICE MENU ...................................................................17
KEYPAD CONTROL TONES (BEEPS) .....................................18

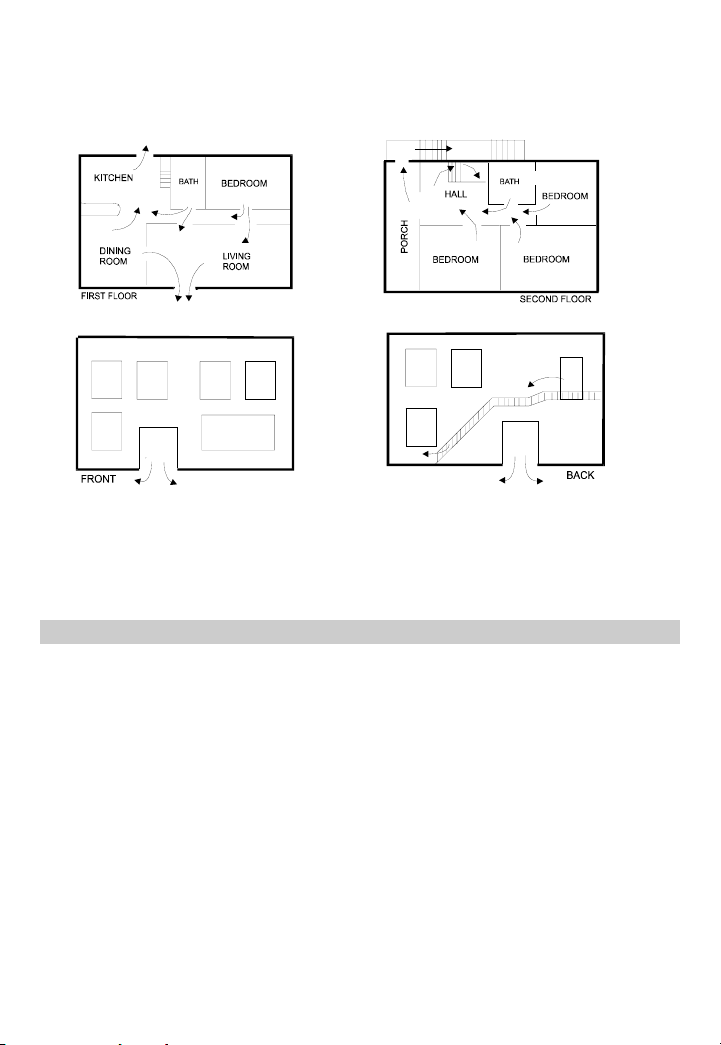

EMERGENCY EVACUATION PLANS.......................................19
Page 3
GLOSSARY OF TERMS
Abort Delay An option that allows a delay in reporting to the
Authority Level The level of access an individual has when using an
Central Station The location where alarm data is sent during an alarm
Chime Feature An option that allows the keypad to sound a ding-dong
Codes Can be either User Codes (relating to a person) or
Duress Code An option that allows a special code to be sent to the
Forced Arming An option that allows the system to be turned on
Function Code A Function Code is either a four (4) or six (6) digit
Group Bypass An option that allows the user to bypass multiple
Instant/Delay An option that allows an instant alarm condition for
Master Code A master arm/disarm code that can program other
Partitioned System A system divided into multiple areas in which its own
Perimeter The outer edge of the protected area.
central station.
alarm panel.
report.
whenever an entry/exit door is opened.
Function Codes (a toggle switch to turn specific
functions on/off). NOTE: A system may have either 99
four-digit codes or 66 six-digit codes, but not a
mixture of the two.
central station that indicates the alarm system is being
operated under duress.
(ARMED) with one or more zones open. A system that
is ready to be “force armed” will flash the ready light.
(Note: Those zones that are not ready will not create
an alarm.)
code that has been programmed by the installer to
operate a device.
zones with a single operation.
Entry/Exit doors, or grants a delay to allow someone
to enter/exit the building without an alarm, or before
entering a user code to disarm.
user codes.
user or users control each area.
Page 4
Quick Arm An option that allows you to turn on (ARM) the
User Code A four (4) or six (6) digit entry code used to arm or
security system by pressing either the [STAY] or
[EXIT] key on the keypad control (for ARMING only)
as programmed by the installing company.
disarm the system.
UNDERSTANDING THE LIGHTS
ARMED LIGHT
The armed light is “on” when the system is armed. The armed light is “off”
when it is disarmed. The armed light will flash when there has been an
alarm during the previous arm cycle.
BYPASS LIGHT
The bypass light is “on” when any zone in this keypad’s partition is
bypassed. The zone(s) that is bypassed will also be illuminated. If the
bypass light is “off”, no zones are bypassed.
CANCEL LIGHT
The cancel light will flash during an abort delay time. If a code is entered
followed by the [CANCEL] key while this light is flashing, all abortable
reports will stop the communication process. Note: The abort feature
must be enabled. Entering a code followed by the [CANCEL] key during or
after an alarm report to the central station will cause the cancel light to
come on. It will stay on until the central station has received the cancel
report. Note: The cancel feature must be enabled.
CHIME LIGHT
The chime light is “on” when the chime feature is “on”; “off” otherwise.
EXIT LIGHT
The exit light is “on” during the exit delay. Please note that the light will
flash during the last 10 seconds of the exit delay as a warning that the time
is running out. (The user may want to disarm the system if the exit light is
flashing in order to prevent an alarm. The user may then re-arm the system
and exit before the delay expires.)
FIRE LIGHT
A steady fire light means a fire zone has been faulted. A rapidly flashing fire
light means that a fire zone is in a trouble condition.
Page 5
INSTANT LIGHT
The instant light is “on” when there is no delay on your entry/exit door(s).
Any time the instant light is “on” and the exit delay has expired, the
opening of an entry/exit door will produce an immediate alarm. The
instant light can be toggled on or off by pressing the [Stay] key while the
system is armed. When the instant light is “off”, the entry/exit door(s) is
delayed.
POWER LIGHT
The power light is on if the primary power is on. The power light will flash if
the system has a low battery condition.
READY LIGHT
The ready light is “on” when the system is ready to arm and “flashes” if
ready to force arm. The ready light is off when the system is not ready to
arm because of a zone(s) being faulted.
STAY LIGHT
The stay light is “on” when the all interior (motion detector) zones are
bypassed.
ZONE LIGHT
The zone lights are “off” when everything is normal. A zone light will be “on”
if the zone has been bypassed. If a zone light is “flashing”, that zone is in
alarm or has been faulted. If a zone light is “flashing” rapidly, it means that
the zone is in a trouble condition. Trouble conditions are:
Tamper Hardware Low Battery Loss of Supervision
(A combination of Alarm/Fault and Tamper/Trouble will produce a rapid
“flashing” light for a short period of time, followed by a slow “flashing”
light.)
